QYSEA FIFISH PRO User manual

FIFISH PRO
OPSS (Onshore Power Supply System)
Quick Start Guide
V1.2

Safety and Regulations 1
Introduction 2
OPSS Protective Box 2
Inside Box 3
OPSS Spool 4
OPSS Power Management (OPSS-PM) 5
Electric Power Tank (E-Tank) 6
Preparation 6
Set-up 7-10
Packing After Dive 14
Maintenance 15
LED color index on OPSS-PM 16
Contents
0

1. Unauthorized disassemble may cause the leakage problem, and damages on OPSS. Such
type of safety issues is not responded to QYSEA’s legal liability. In addition, the warranty
will not valid for unauthorized disassembled products.
2. ROV shall be OFF before plug in power outlet.
3. Check the tether, connecters and seals after every dive.
4. The tether external surface shall contact well. If you find any damages, such as,
scratches, peel off or split, stop using damaged tether and contact your local
authorized service center or dealer for repair or replacing.
5. All connectors shall be clean and dry in all time to avoid shortages, and corrosions.
6. All seals and O-rings shall be contact and clean in all time, otherwise, replace it ASAP.
7. Keep the OPSS-PM OFF when deploy and retrieve.
8. It is NOT recommended to use OPSS when diver is operating underwater.
9. Do NOT touching OPSS’s tether and E-Tank underwater.
10.Monitoring the status indicator LED, the error color code index in page 16
11.No heavy objects left on OPSS-PM.
12.Do NOT put OPSS-PM inside water or wet floors, and avoid wave splashes.
Safety and Regulations
1
Operating FIFISH products requests training and practice.
Please read through this document before operating in water.

OPSS Protective Box
1. Top Cap
2. Travel Lock Button
3. Handle
Note:
The travel lock button shall be locked when moving.
Introduction, Package
2
1
22
3

Inside Box
1. OPSS Spool (200 meters or 656 feet)
2. OPSS Power Management (OPSS-PM)
3. AC Input Cable for OPSS-PM
4. E-Tank Mount on ROV
5. Electric Power Tank (E-Tank)
Introduction, Inside Box
3
1
2
4
3
5

Introduction, OPSS Spool
4
1
2
3
OPSS Spool
1. AC Input Plug (to OPSS-PM’s AC input socket)
2. AC Power input socket (190~265 V in AC)
3. Tether (200 meters or 656 feet)

OPSS Power Management (OPSS-PM)
1. AC Input socket (190~265 V in AC)
2. AC Output socket
3. ON/OFF
4. Status Indicator LED (Green: ready to charge, Red: charging battery)
Other colors please check the LED color index on OPSS-PM in page 16
Introduction, OPSS-PM
5
1
2
43
2 1

Introduction, E-Tank
6
1
2
3
Electric Power Tank (E-Tank)
1. E-Tank
2. Securing Loop
3. ROV Plug

Preparation Check List
1. Check and count all parts of OPSS
2. Check the connectors, socket and plug shall be dry and clean, and not damages
3. Check the outdoor power bank or the fuel level of generator
4. Check the remote controller and ROV
5. Check the cell phone, tablet, and laptop’s battery
Note, run a test before dive (Power ON less than 3min).
Set-up (OPSS set-up overview)
For example, Outdoor power bank and FIFISH PRO V6 PLUS
Preparation and Set-up
7

1. Cable connection on OPSS-PM
1.1. Plug AC output on OPSS-PM (another end to spool’s reel)
1.2. Plug AC input on OPSS-PM (another end to AC Scoket)
Set-up
8

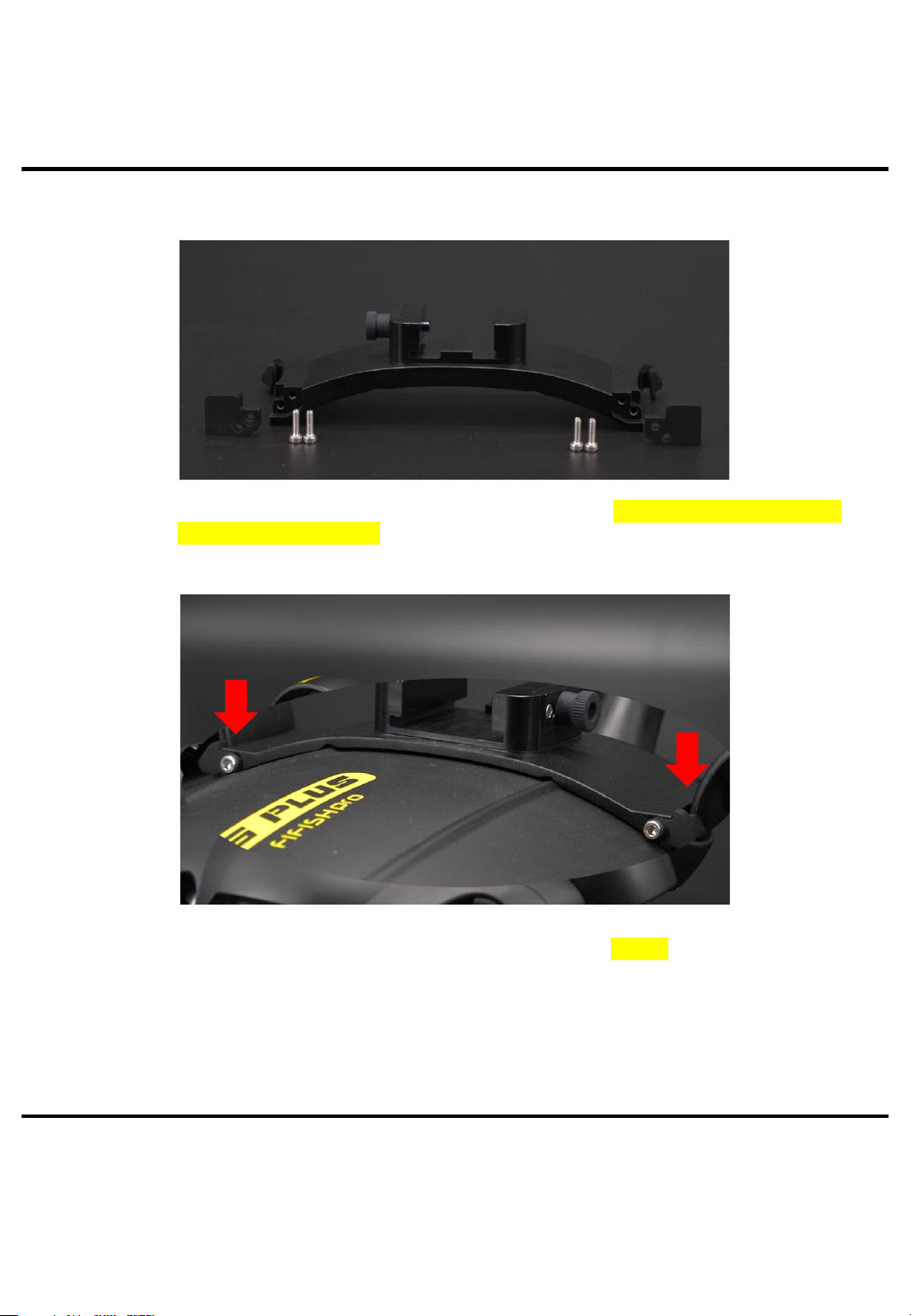

2. Secure the E-Tank Mount on ROV
2.1. Unfasten and take off just one side of fixing screws. The stern side has 4 screws,
and the 2 screws in bow side. Unfasten either side will work similar results.
2.2. Position E-Tank Mount on ROV (the E-Tank Mount shall LOCK on the middle
thrusters and attach against the back of ROV)
Set-up
9

2. Secure the E-Tank Mount on ROV
2.3. Fasten the fixing screws
3. Lock the E-Tank on E-Tank Mount
3.1. PULL out, and ROTATE 45°the Dowel Pin on E-Tank Mount
Set-up
10

3. Lock the E-Tank on E-Tank Mount
3.2. SLID the E-Tank on E-Tank Mount, then rotate Dowel Pin to lock E-Tank on Mount
4. Securing loop and ROV Plug
4.1. Knot the Securing Loop on ROV’s rear wing
Set-up
11

4. Securing loop and ROV Plug
4.2. FASTEN the Securing Loop on rear wing
4.3. PLUG the ROV plug (Black color) in ROV tether connector and FASTEN the cap on
ROV plug.
Set-up
12

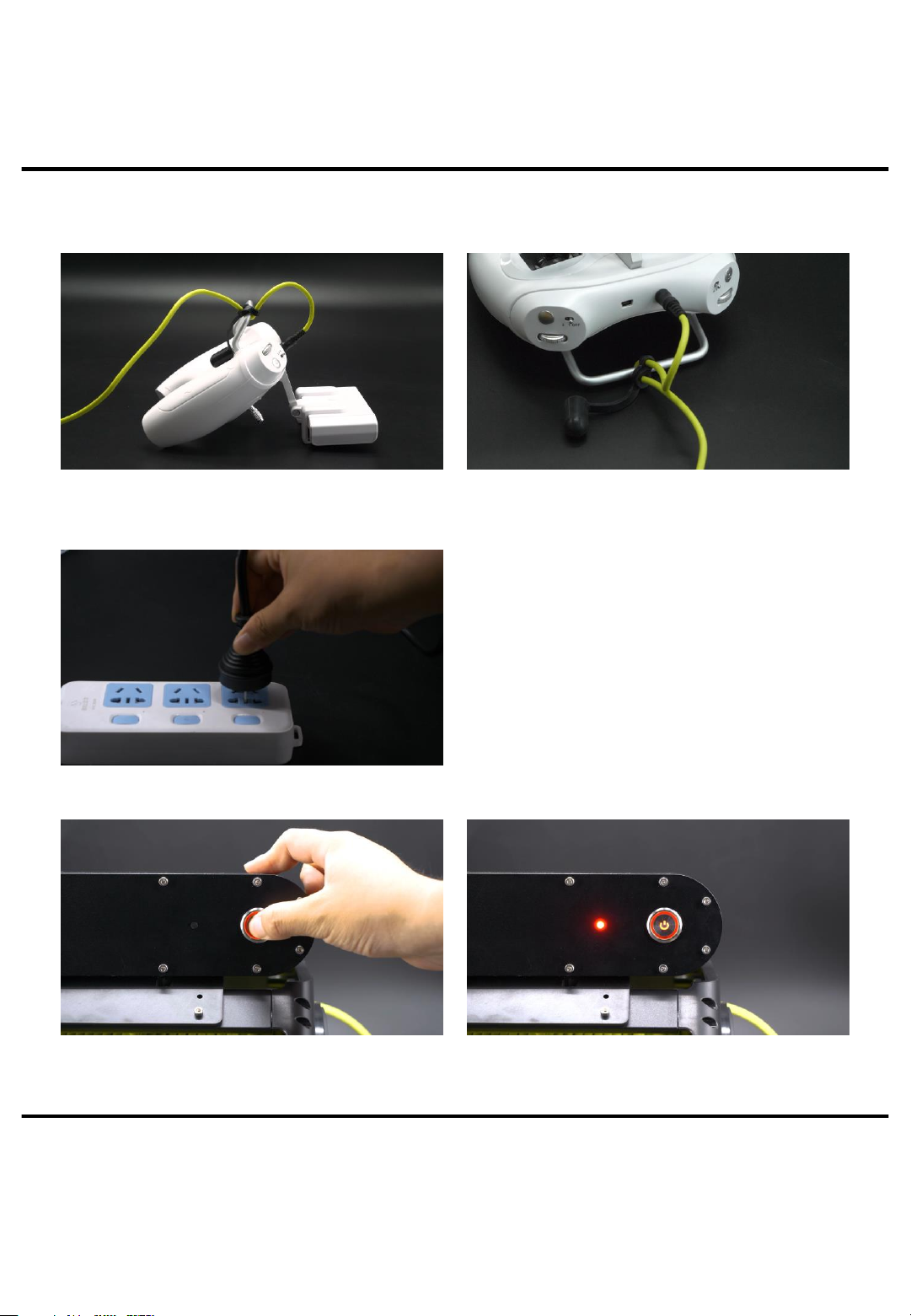

5. Connect to RC
6. Plug to the AC socket (outdoor power bank or generator)
7. Power ON
Set-up
13

1. Power OFF steps,
1.1. OPSS-PM OFF
1.2. Unplug from AC power socket
1.3. RC Power OFF
2. Disconnect the connectors and fasten the protective caps. Wipe out the water residues if
necessary.
3. Unlock the E-tank from mount (the E-tank Mount is not necessary to take off for day-to-day
use scenario)
4. Organize and put all parts back to protective box.*
Note:
1. Each part has its own slot, try a different direct if you facing any
difficulties when putting parts back to original position. Do NOT squeeze
or tear when packing.
2. Pay extra attention on bending or pressing on tether.
Packing After Dive
14

1. Check each connector and plug, and get rid of the water or dust. Fasten the protective cap
for next dive.
2. Check the seals and O-rings, replacing if it has been wearied or damaged.
3. Check the tether surface, make sure the tether jacket in good condition.
4. Rinse and soak the E-Tank in fresh water after dive, especially sea water operation.
5. Check the ON/OFF button on OPSS-PM, get rid of the dust or sand if necessary.
Contact our authorized service center or authorized dealer if you need help on repair or
replacing.
Email us: [email protected]m
Maintenance
Note:
1. Do NOT rinse or wash the OPSS Spool with water.
2. Use a towel to clean and wipe the OPSS Spool is
recommended.
15

LED color index on OPSS-PM
Green: Fully charged or no
charging
Red: Normal charging
Blue: Leakage alarm
Yellow: Overheat alarm
Purple: Overloading alarm
White: Overvoltage or
under voltage alarm
16
