R/Evolution SEISMIC MT 1:18 4WD RTR MONSTER TRUCK User manual

INSTRUCTION MANUAL
MANUEL D’UTILISATION
RVOS010 0 0
RVOS010 01

2
EN
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS
Your new Horizon Hobby vehicle has been designed and built with a
combination of waterproof and water-resistant components to allow you to
operate the product in many “wet conditions,” including puddles, creeks, wet
grass, snow and even rain.
While the entire vehicle is highly water-resistant, it is not completely
waterproof and your vehicle should NOT be treated like a submarine. The
various electronic components used in the vehicle, such as the Electronic
Speed Control (ESC) and servo(s) are waterproof, however, most of the
mechanical components are water-resistant and should not be submerged.
Metal parts, including the bearings, hinge pins, screws and nuts, as well as the
contacts in the electrical cables, will be susceptible to corrosion if additional
maintenance is not performed after running in wet conditions. To maximize
the long-term performance of your vehicle and to keep the warranty intact, the
procedures described in the “Wet Conditions Maintenance” section below
must be performed regularly if you choose to run in wet conditions. If you are
not willing to perform the additional care and maintenance required, then you
should not operate the vehicle in those conditions.
CAUTION: Failure to exercise caution while using this product
and complying with the following precautions could result in
product malfunction and/or void the warranty.
General Precautions
• Read through the wet conditions maintenance procedures and make sure
that you have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery
manufacturer before use. Do not use Li-Po batteries in wet conditions.
• The included transmitter is not waterproof or water-resistant. If using
a different transmitter than the one included, consult your transmitter's
manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water
(ocean water or water on salt-covered roads), contaminated or polluted
water. Salt water is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not
been certified as water-resistant or waterproof. If the motor becomes
excessively wet, apply very light throttle until the water is mostly removed
from the motor. Running a wet motor at high speeds may rapidly damage
the motor.
• Driving in wet conditions can reduce the life of the motor. The additional
resistance of operating in water causes excess strain. Alter the gear ratio
by using a smaller pinion or larger spur gear. This will increase torque (and
motor life) when running in mud, deeper puddles, or any wet conditions
that will increase the load on the motor for an extended period of time.
Wet Conditions Maintenance
• Remove the battery pack(s) and dry the contacts. If you have an air
compressor or a can of compressed air, blow out any water that may be
inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt
off with a garden hose. Avoid rinsing the bearings and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Use an air compressor or a can of compressed air to dry the vehicle and
help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a
water-displacing light oil or lubricant. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to
drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of:
• Front and rear axle hub assembly bearings.
• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil the bushings
with lightweight motor oil.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit http://www.horizonhobby.com and click on the support tab for this product.
Safety Precautions andWarnings
As the user of this product, you are solely responsible for operating in a
manner that does not endanger yourself and others or result in damage to the
product or property of others.
This model is controlled by a radio signal subject to interference from many
sources outside your control. This interference can cause momentary loss
of control, so it is advisable to always keep a safe distance in all directions
around your model as this margin will help avoid collisions or injury.
• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from
full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach
of children.
• Never lick or place any portion of the model in your mouth as it could
cause serious injury or even death.
• Exercise caution when using tools and sharp instruments.
• Take care during maintenance as some parts may have sharp edges.
• Immediately after using your model, do NOT touch equipment such as the
motor, electronic speed control and battery, because they generate high
temperatures. You may burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this
may cause damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car.
Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the
operation of the radio equipment.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the
product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure
to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use
by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided
by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and
warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
Age Recommendation: Not for children under 14 years.This is not a toy.

3
EN
Transmitter
Frequency 2.4GHz
Battery AA x 2
Servo
Power Supply 5V
Output Torque 0.8kg-cm @ 4.8V
1.0kg-cm @ 6V
Operating Speed 0.19 sec/60° of travel
Size 23 x 12.5 x 25mm
Electronic Speed Control (ESC)
Input Voltage 6–8.4V
Electric Capacity 20A
Size 68.5 x 32.5 x 22.5mm
Weight 32.3g
Vehicle Preparations ....................................................................................4
Charging the Vehicle Battery .....................................................................4
Charging Warnings ....................................................................................4
Binding .........................................................................................................4
Installing the Battery....................................................................................4

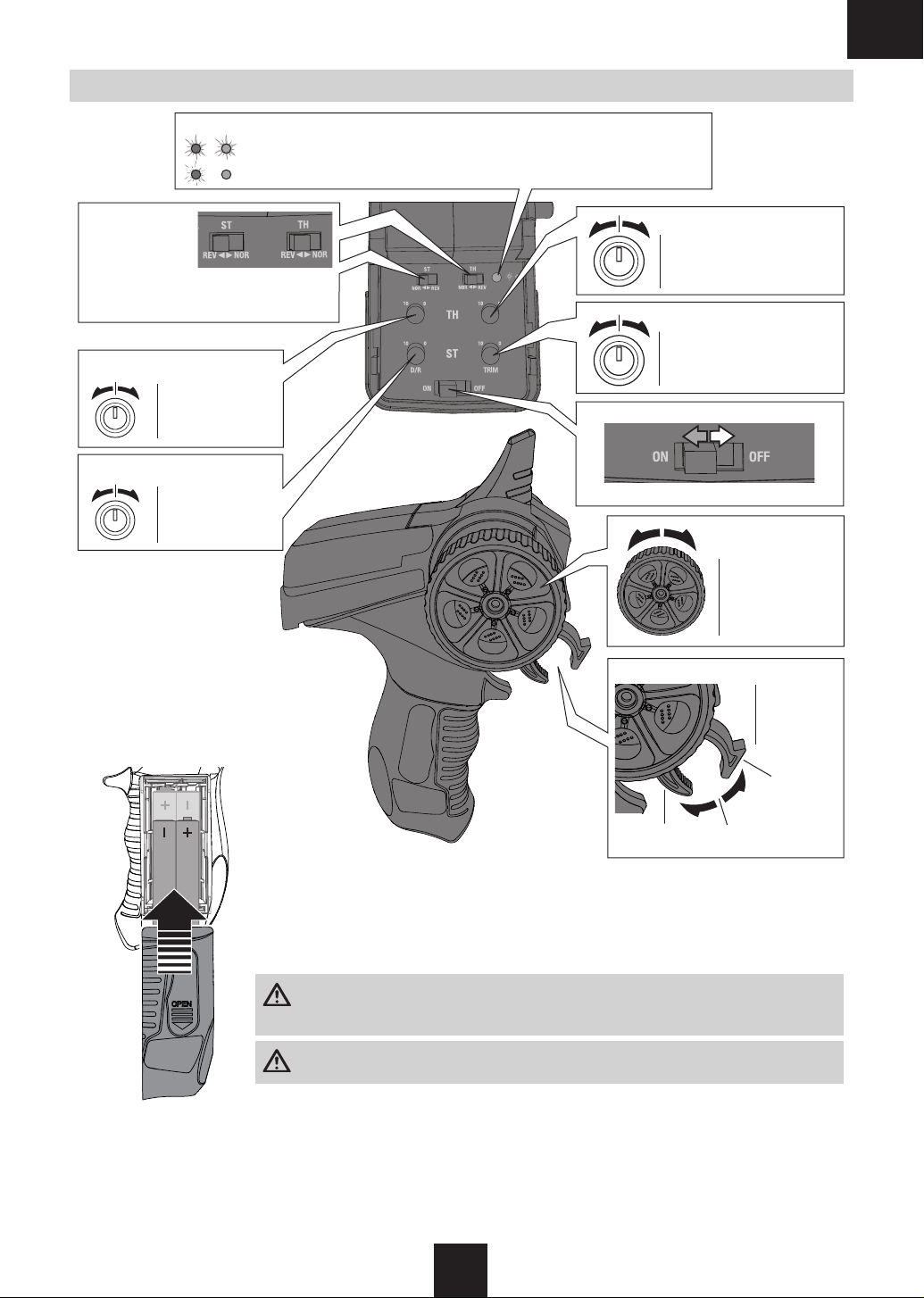

Transmitter Controls.....................................................................................5
Installing Transmitter Batteries .................................................................5

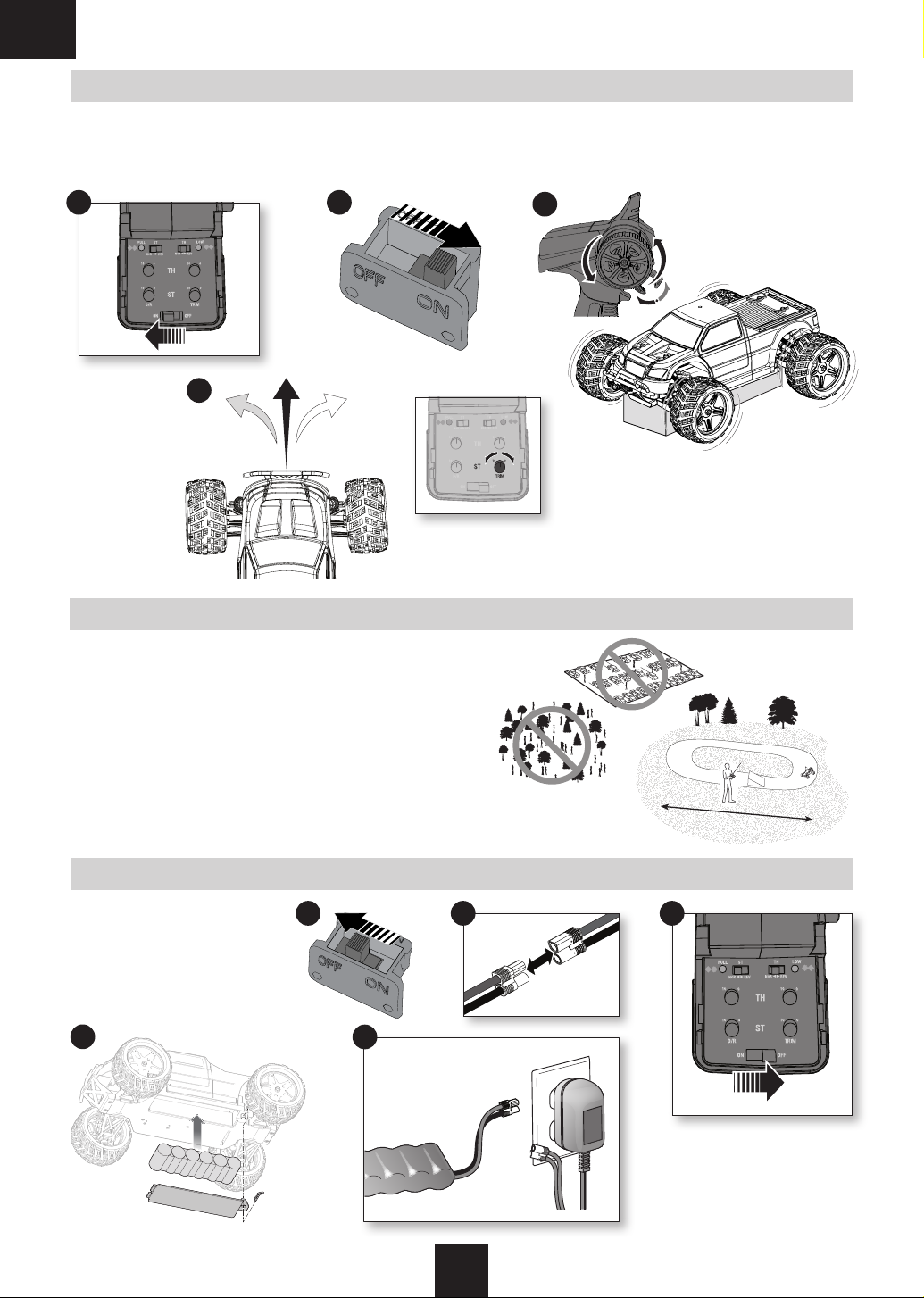

Getting Started.............................................................................................6
Operation......................................................................................................6
When You Are Finished................................................................................6
Motor Care...................................................................................................7
Troubleshooting Guide .................................................................................7
Limited Warranty .........................................................................................7
Warranty and Service Contact Information.................................................8
FCC Information............................................................................................8
IC Information...............................................................................................8
Replacement Parts.....................................................................................17
Parts Diagram...................................................................................... 18–19
TABLE OF CONTENTS
COMPONENTS
SPECIFICATIONS
• Revolution®Seismic™ Monster Truck or Seismic™ Short Course Truck
• 2.4GHz Transmitter (ECX10003)
• 100mA 9V AC-Input Charger with EC3™Connector (DYNC1030)
• 900mAh Dynamite®Speed Pack with EC3™Connector (DYN1462)
• 2-in-1 Revolution®Receiver/ESC (RVOS11001)
• 370 Revolution®Brushed Motor (RVOS11000)
• AA (4) Batteries
QUICK START
Please read the entire manual to gain a full understanding of the vehicle, fine-tuning the setup and performing maintenance.
1. Read the safety precautions found in this manual.
2. Charge a battery for the vehicle. Refer to the included
charging warnings and instructions for battery charging
information.
3. Install the AA batteries in the transmitter. Only use alkaline
or rechargeable batteries.
4. Install the fully charged battery in the vehicle.
5. Power ON the transmitter and then the vehicle. Always power ON
the transmitter before powering ON the vehicle. Power OFF the
vehicle before powering OFF the transmitter.
6. Check the steering control direction. Verify that the servos are
moving in the correct direction.
7. Drive your vehicle.
8. Perform any necessary maintenance.

4
EN
1. Remove the body clip from the clip post.
2. Install a fully charged battery, connecting the battery
lead to the vehicle lead.
3. Secure the battery cover by inserting the body clip
into the clip post.
CAUTION: Connecting the battery to the ESC
with reversed polarity will cause damage to the
ESC, the battery or both. Damage caused by incorrectly
connecting the battery is not covered under warranty.
VEHICLE PREPARATIONS
INSTALLINGTHE BATTERY
The included transmitter and receiver are bound at the factory.
If you need to rebind, follow the instructions below.
1. Power off the transmitter and receiver.
2. Connect a fully charged battery pack to the receiver.
3. Power on the receiver. The LED on the receiver flashes.
4. Press the BIND button. The LED flashes rapidly.
5. Power on the transmitter.
6. The receiver and the transmitter will bind.
NOTICE: Do not attempt to bind the transmitter and receiver
if there are other compatible transmitters in bind mode within
400 feet. Doing so may result in unexpected binding.
BINDING

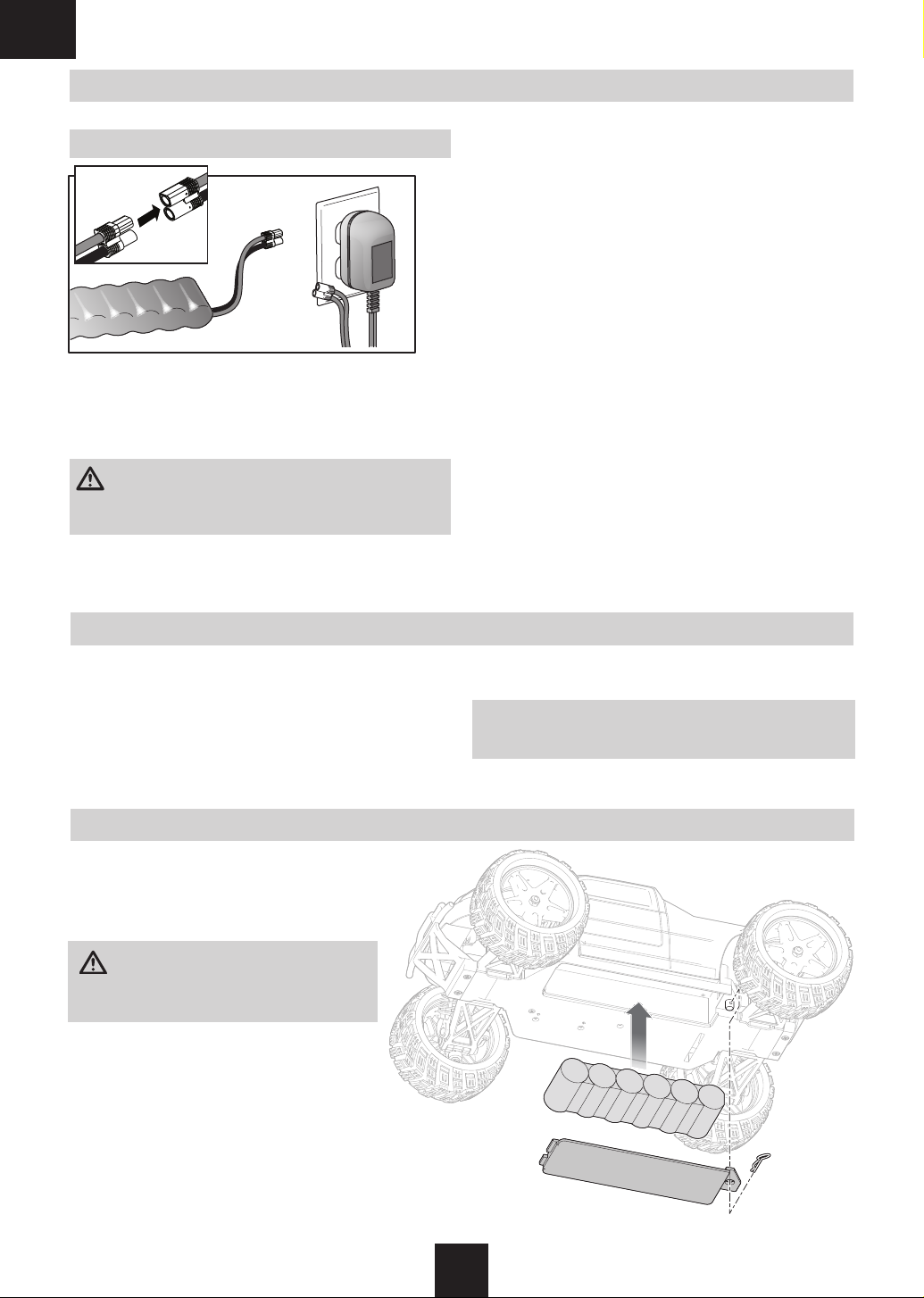

CHARGINGTHE VEHICLE BATTERY
NOTICE: Never charge a battery in the vehicle or damage may result.
1. Connect the NiMH battery to the battery charger.
2. Connect the charger to an AC power outlet.
3. Allow the NiMH battery to charge for 9 hours.
CHARGING WARNINGS
WARNING: Failure to exercise caution while using this product
and comply with the following warnings could result in product
malfunction, electrical issues, excessive heat, FIRE, and ultimately injury
and property damage.
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Read all safety precautions and literature prior to use of this product.
• Never leave the battery and charger unattended during use.
• Never allow children under 14 years of age to charge battery packs.
• Never attempt to charge dead or damaged batteries.
• Never charge a battery if the cable has been pinched or shorted.
• Never allow batteries or charger to come into contact with moisture
at any time.
• Never charge batteries in extremely hot or cold places (recommended
between 50–80°F [10–26°C]) or place in direct sunlight.
• Always use only NiMH rechargeable batteries. This charger cannot
charge batteries such as “heavy duty,” “alkaline,” “mercury” or
“lithium” battery.
• Always connect to the charger correctly.
• Always disconnect the battery and charger after charging and let
them cool between charges.
• Always inspect the battery before charging.
• Always terminate all processes and contact Horizon Hobby if the
product malfunctions.
• Always make sure you know the specifications of the battery to be
charged or discharged to ensure it meets the requirements of this
charger.
• Always constantly monitor the temperature of the battery pack while
charging.
• Always end the charging process if the charger or battery becomes
hot to the touch or starts to change form during the charge process.
• Always charge in a well ventilated area.

5
EN
TRANSMITTER CONTROLS
INSTALLINGTRANSMITTER BATTERIES
CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-
rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to
property.
This transmitter requires 4 AA batteries.
1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to national regulations.
THROTTLE TRIGGER
Controls power
to the motor
for forward
or reverse
Stop
Reverse
Forward
BATTERY LEVEL INDICATOR
Solid Red: Battery voltage is good (above 4V)
Blinking Red: Battery voltage is critically low (below 4V). Replace transmitter batteries.
Adjusts the neutral point of the
electronic speed control
THROTTLE TRIM
Adjust to make the vehicle
drive straight with no input at
the steering wheel
STEERING TRIM
POWER SWITCH
Power ON or OFF the transmitter
REVERSE
SWITCH
Allows you to change the direction of steering
(ST. REV) and throttle (TH. REV) controls (Ensure
proper function with a radio system test.)
Adjusts the
maximum amount of
throttle the vehicle
can be given
THROTTLE DUAL RATE
STEERING WHEEL
Control steering.
Right and Left
steering
Adjusts the total
steering travel
STEERING DUAL RATE

6
EN
WHENYOU ARE FINISHED
1. Power off the receiver.
2. Disconnect the battery.
3. Power off the transmitter.
4. Remove the battery from the vehicle.
5. Recharge the battery.
1. Power on the transmitter.
2. Connect the battery to the receiver and power on the vehicle.
3. Perform a test of the transmitter’s control of the vehicle with the
vehicle’s wheels off the ground.
4. Start driving slowly, and, if the vehicle does not go straight, adjust
the steering trim dial on the transmitter.
IMPORTANT: Seat the motor brushes by driving smoothly on a flat
surface during use of the first battery charge. Properly seating the
motor brushes will increase the life and performance of the motor.
GETTING STARTED
• ALWAYS turn on your transmitter before you turn on the receiver in the
vehicle. Always power off the receiver before turning your transmitter off.
• ALWAYS operate your vehicle in a wide open area. Operating the
vehicle in a small space or indoors can cause overheating at low speeds.
Operating at low speed increases heat in the electronic speed control
(ESC). Overheating can damage the vehicle and failure may result.
OPERATION
32
1
3
4
1 2
5
4

7
EN
Limited Warranty
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the
product purchased (the “Product”) will be free from defects in materials and
workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii)
damage due to acts of God, accident, misuse, abuse, negligence, commercial
use, or due to improper use, installation, operation or maintenance, (iii)
modification of or to any part of the Product, (iv) attempted service by
anyone other than a Horizon Hobby authorized service center, (v) Product
not purchased from an authorized Horizon dealer, (vi) Product not compliant
with applicable technical regulations, or (vii) use that violates any applicable
laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO
OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY
AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE
IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be
that Horizon will, at its option, either (i) service, or (ii) replace, any Product
determined by Horizon to be defective. Horizon reserves the right to inspect
any and all Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of purchase is required
for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Problem Possible Cause Solution
Short Run Time Battery damaged/not charged Check/change battery
Motor dirty Check/clean
Sluggish Action
Motor dirty Check/clean
Bind in drivetrain Clean/adjust
Vehicle battery is not charged Replace/recharge
Does Not Operate
Transmitter batteries low Replace/recharge
Transmitter powered off Power on
ESC powered off Power on
Vehicle battery is not charged Replace/recharge
Poor Range Transmitter batteries low Replace/recharge
Receiver antenna damaged Check/repair/replace
The system will not connect
Transmitter and receiver too near each other Move transmitter 3.3–9.8 ft (1–3 m) from receiver
Transmitter and receiver too near large metal
objects (vehicles, etc.) Move away from large metal objects (vehicles, etc.)
Receiver accidentally put in bind mode so
receiver is no longer bound Rebind transmitter and receiver
The receiver goes into failsafe mode
a short distance away from the
transmitter
Check the receiver antenna to be sure it is
not cut or damaged Make sure the antenna is in the antenna tube
The receiver quits responding
during operation
Low battery voltage Completely recharge battery
Loose or damaged wires or connectors
between battery and receiver
Do a check of the wires and connection between battery
and receiver. Repair or replace wires and/or connectors
Receiver and transmitter are not bound Transmitter accidentally put in bind mode,
ending bind to receiver Bind transmitter to receiver
Car does not drive straight Steering trim on transmitter not centered Adjust steering trim so vehicle drives straight
Servo failed Contact Horizon Product Support
No throttle ESC failed Contact Horizon Product Support
Motor failed Contact Horizon Product Support
Clicking noise in transmission area Dirt or rocks in spur gear Remove gear cover and inspect. If necessary, replace gear
Motor moved away from spur gear Reset gear mesh
Troubleshooting Guide
• Seat the motor brushes by driving smoothly on a flat surface
during use of the first battery charge. Failing to do so can
greatly reduce motor performance and functional life.
• Prolong motor life by preventing overheating conditions.
Undue motor wear results from frequent turns, stops and starts,
pushing objects, driving in deep water and tall grass, and driving
continuously up hill. Allow the motor to cool completely
before running the vehicle.
• Over-temperature protection is installed on the ESC to prevent
circuit damage, but cannot protect the motor from driving against
heavy resistance.
MOTOR CARE

8
EN
Warranty and Service Contact Information
FCC Statement
FCC ID: XNZKTH91802G This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTICE: Modifications to this product will void the user’s authority to
operate this equipment.
This product contains a radio transmitter with wireless technology which
has been tested and found to be compliant with the applicable regulations
governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.
IC Information
IC ID: 20264-KTH91802G This device complies with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Country
of Purchase Horizon Hobby Contact Information Address
United States
of America
Horizon Service Center (Repairs and Repair Requests) servicecenter.horizonhobby.com/RequestForm/
4105 Fieldstone Rd
Champaign, Illinois,
61822 USA
Horizon Product Support (Product Technical Assistance) [e-mail]
877-504-0233
Sales [e-mail]
800-338-4639
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION
OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH
CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT
LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no
event shall the liability of Horizon exceed the individual price of the Product
on which liability is asserted. As Horizon has no control over use, setup, final
assembly, modification or misuse, no liability shall be assumed nor accepted
for any resulting damage or injury. By the act of use, setup or assembly,
the user accepts all resulting liability. If you as the purchaser or user are
not prepared to accept the liability associated with the use of the Product,
purchaser is advised to return the Product immediately in new and unused
condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to conflict of law
principals). This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Horizon reserves the right to
change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty
support or service. Once assembly, setup or use of the Product has been
started, you must contact your local distributor or Horizon directly. This will
enable Horizon to better answer your questions and service you in the event
that you may need any assistance. For questions or assistance, please visit
our website at www.horizonhobby.com, submit a Product Support Inquiry, or
call the toll free telephone number referenced in the Warranty and Service
Contact Information section to speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the
country you live and use the Product in, please use the Horizon Online Service
Request submission process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack the Product securely
using a shipping carton. Please note that original boxes may be included,
but are not designed to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and insurance for lost
or damaged parcels, as Horizon is not responsible for merchandise until it
arrives and is accepted at our facility. An Online Service Request is available
at http://www.horizonhobby.com/content/service-center_render-service-
center. If you do not have internet access, please contact Horizon Product
Support to obtain a RMA number along with instructions for submitting your
product for service. When calling Horizon, you will be asked to provide your
complete name, street address, email address and phone number where you
can be reached during business hours. When sending product into Horizon,
please include your RMA number, a list of the included items, and a brief
summary of the problem. A copy of your original sales receipt must be
included for warranty consideration. Be sure your name, address, and RMA
number are clearly written on the outside of the shipping carton.
NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with
a Li-Po battery, please contact the appropriate Horizon Product Support
office.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof-of-purchase date. Provided warranty
conditions have been met, your Product will be serviced or replaced free of
charge. Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notification or
estimate of the expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for service you are agreeing
to payment of the service without notification. Service estimates are available
upon request. You must include this request with your item submitted for
service. Non-warranty service estimates will be billed a minimum of ½ hour
of labor. In addition you will be billed for return freight. Horizon accepts money
orders and cashier’s checks, as well as Visa, MasterCard, American Express,
and Discover cards. By submitting any item to Horizon for service, you are
agreeing to Horizon’s Terms and Conditions found on our website http://www.
horizonhobby.com/content/service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the
country of use and ownership. If received, a non-compliant Product
will not be serviced. Further, the sender will be responsible for
arranging return shipment of the un-serviced Product, through a
carrier of the sender’s choice and at the sender’s expense. Horizon
will hold non-compliant Product for a period of 60 days from
notification, after which it will be discarded.
10/15

17
FR
Replacement Parts List • Liste des pièces de rechange
Part Number English Français
DYN1462 7.2V 900mAh NiMH Battery, EC3 Batterie NiMH 900 mAh 7,2 V, EC3
RVOS11000 370 Motor, Brushed: 1/18 Seismic Moteur 370, à balais : Seismic à échelle 1/18ème
RVOS11001 Receiver/ESC, Servo: 1/18 Seismic Récepteur/ESC, Servo : Seismic à échelle 1/18ème
RVOS41000 FR/RR Tire Premount (2): 1/18 Seismic M Pneu FR/RR permanent (2) : Seismic SCT à échelle 1/18ème
RVOS41001 FR/RR Tire Premount (2): 1/18 Seismic SCT Pneu FR/RR permanent (2) : Seismic M à échelle 1/18ème
RVOSS210012 Body, Green/White: 1/18 Seismic M Carrosserie, verte/blanche : Seismic M à échelle 1/18ème
RVOSS210013 Body, Orange/White: 1/18 Seismic M Carrosserie, orange/blanche : Seismic M à échelle 1/18ème
RVOSS210014 Body, Red/Black: 1/18 Seismic SCT Carrosserie, rouge/noir : Seismic SCT à échelle 1/18ème
RVOSS210015 Body, Yellow/Black: 1/18 Seismic SCT Carrosserie, jaune/noir : Seismic SCT à échelle 1/18ème
RVOSS211022 Top Deck, Chassis: 1/18 Seismic Surface supérieure, Châssis : Seismic à échelle 1/18ème
RVOSS211023 FR/RR Shock Tower: 1/18 Seismic Tour d’amortisseur FR/RR : Seismic à échelle 1/18ème
RVOSS211024 Servo Saver Set: 1/18 Seismic Ensemble sauve-servo : Seismic à échelle 1/18ème
RVOSS211025 Battery Cover, Motor Mount and Cover:
1/18 Seismic
Couvercle de batterie, Bâti moteur : Seismic à échelle 1/18ème
RVOSS211026 Linkage and Hinge Pin: 1/18 Seismic Barre de direction, Axe d’articulation : Seismic à échelle 1/18ème
RVOSS211027 FR/RR Bumper Set: 1/18 Seismic Ensemble de protections anti-choc FR/RR : Seismic à échelle 1/18ème
RVOSS212029 Driveshaft, Axle, Outdrives: 1/18 Seismic Arbre de transmission, Essieu, Arbres extérieurs : Seismic à échelle 1/18ème
RVOSS212030 Pinion/Spur Gear: 1/18 Seismic Pignon/Roue droite cylindrique : Seismic à échelle 1/18ème
RVOSS212031 Diff, Complete: 1/18 Seismic Différentiel, complet : Seismic à échelle 1/18ème
RVOSS212032 Center Drive Shaft: 1/18 Seismic Arbre d’entraînement central : Seismic à échelle 1/18ème
RVOSS213003 Front/Rear Shocks: 1/18 Seismic Amortisseurs avant/arrière : Seismic à échelle 1/18ème
RVOSS214014 Steering Spindle/Hub St: 1/18 Seismic Arbre de direction/Station du moyeu : Seismic à échelle 1/18ème
RVOSS214015 Suspension Arm: 1/18 Seismic Bras de suspension : Seismic à échelle 1/18ème
RVOSS216003 Hardware Set: 1/18 4WD Seismic Matériel : Seismic 4 roues motrices à échelle 1/18ème
RVOSS217002 Bearing Kit: 1/18 4WD Seismic Ensemble pour palier : Seismic 4 roues motrices à échelle 1/18ème

18
FR
PARTS DIAGRAM | VUE ÉCLATÉE DES PIÈCES
RVOS11001
RVOSS211026
RVOSS211022
RVOSS211027
RVOSS211027
RVOSS213003
RVOSS213003
RVOS41000
RVOSS216003 - Hardware set
RVOSS211026
RVOSS211026
RVOSS214015
RVOSS214014
RVOSS212029
RVOSS212029
RVOSS216003 - Hardware set
RVOSS214014
RVOSS217002
RVOSS217002
SCT Wheels RVOS41001
RVOSS211026
RVOSS211026
RVOSS214015
RVOSS212029
RVOSS212029
RVOSS214014
RVOSS216003 - Hardware set
RVOSS217002
RVOSS217002

19
FR
PARTS DIAGRAM | VUE ÉCLATÉE DES PIÈCES
DYN1462
RVOS11000
RVOSS211023
RVOSS211023
RVOSS211025
RVOSS212029
RVOSS212029
RVOSS212030
RVOSS212031
RVOSS212031
RVOSS212032
RVOSS211022
RVOSS211025
RVOSS212029
RVOSS212029
RVOSS216003 - Hardware set
RVOSS211024
RVOSS212031
RVOSS217002
RVOSS217002
RVOSS210012 (MT Green/White Body) | (MT Carrosserie Verte/Blanche)
RVOSS210013 (MT Orange/White Body) | (MT Carrosserie Rouge/Noir)
RVOSS210014 (SCT Red/Black Body) | (SCT Carrosserie Rouge/Noir)
RVOSS210015 (SCT Yellow/Black Body) | (SCT Carrosserie Jaune/Noir)

©2017 Horizon Hobby, LLC.
Revolution, the Revolution logo, Seismic, Dynamite, EC3 and the Horizon Hobby logo are trademarks or
registered trademarks of Horizon Hobby, LLC.
All other trademarks, service marks or logos are property of their respective owners.
Created 10/17 55124 RVOS01000 | RVOS01001
