R2 Contour User manual

Before you start
Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a residual current
device (RCD) is recommended. Beware of hidden pipes or cables. Take care when drilling tiled surfaces as the drill might slip.
Use a piece of masking tape to prevent the drill from wandering.
The unit and basin are secured to a suitably strong / reinforced wall to ensure stability. Fix in place following instructions on
page 2. If in any doubt please consult an expert.
Installation and Fitting Instructions
Contour 1000mm Combo Unit - Instructions
Please retain for future reference
05/18 .V1
As with all wooden furniture, this unit should be treated with care:
Furniture Aftercare Instructions
POLISH
We recommend...
Wipe away any water splashes or
condensation after use. Excessive expo-
sure to water will deteriorate the furni-
ture.
All bathrooms should be well ventilated
with a suitable extractor fan.
Clean with a soft damp cloth only.
For removal of lime scale deposits use a
suitable proprietary cleaner. If necessary
test on an inconspicuous area rst.
WIPE AWAY
Please DO NOT...
BLEACH
CLEANER
CREAM
CLEANER
Do not scrub or scour
Do not use abrasive cleaning agents

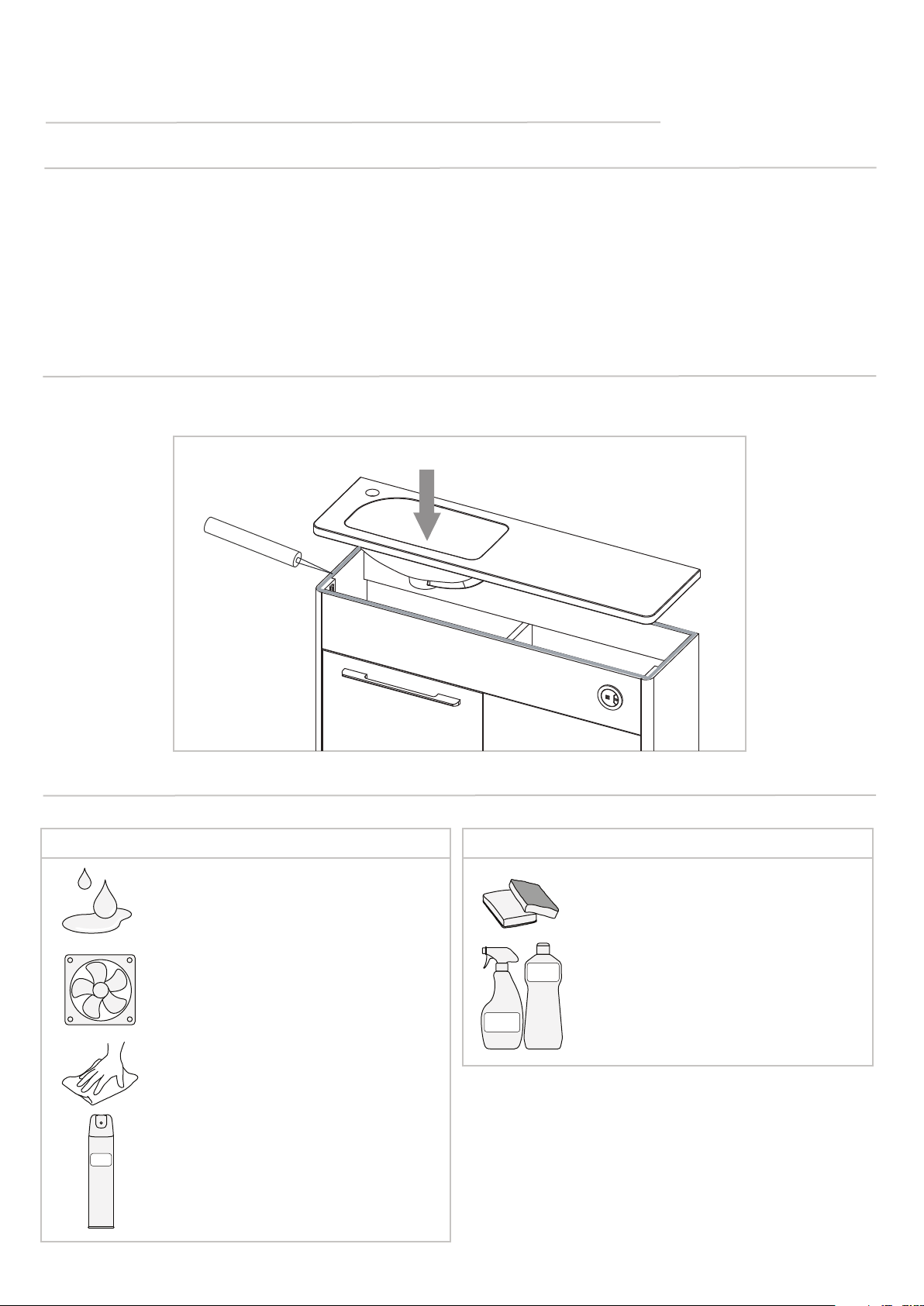

Once the basin is plumbed in nish by securing to the washstand with a silicone sealant (not supplied) on all four edges.
Fitting Basin
Page 1 of 2

To adjust the door hinges use a screwdriver as below:
05/18 .V1
Hinge adjustment
Back to wall Installation
Installation
Page 2 of 2
1
2
3
4
5
6
3
Door Furniture Frame
2
1
Please note that these instructions are a guide only and may not be appropriate for all installations. Fit WC according to
manufacturer’s instructions.
1. Remove the top fascia by and gently pulling towards you, releasing fascia from clips.
2. Remove main access panel by simply sliding upwards.
3. Cut suitable hole for soil pipe on main access panel and hole for cistern button on top fascia.*
4. Fit unit in required location ensuring correct position of supply and waste pipes using xings supplied.
5. Install WC and silicone the joint between WC and access panel. Install to normal building regulations.
6. Fit cistern and ush button/ plate into unit and top fascia. Apply fascia using reverse instruction from Stage 1.
*DO NOT cut a mouse hole as this will weaken the units construction.
