LFLED4LV INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
WARNING: MAX 12VAC ONLY.
WARNING: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
WALL MOUNTING
Mount to a weatherproof junction box and cover plate (not
supplied) as shown. To ensure weatherproof seal, apply
weatherproof silicone sealant around the edge of the wall
cover plate or surface box. This is especially important with
an uneven wall surface.
1. Seal arm thread using Teon tape or silicone sealant.
2. Thread xture into Cover Plate(not supplied).
3. Connect wires as shown in the wiring diagram.
4. Attach cover plate to Junction Box (not supplied).
5. Aim oodlight in the direction desired and tighten
locknut and Arm Screw.
Cover Plate
(not supplied)
GROUND MOUNTING
Mount to a Mighty Post (RAB Cat# MP19) as shown.
1. Thread xture into Mighty Post Cap.
2. Connect wires as shown in the wiring diagram and place
inside the Mighty Post.
3. Place Mighty Post Cap on the Mighty Post.
4. Aim oodlight in the direction desired and tighten
locknut and Arm Screw.
Junction Box
(not supplied)
Mighty Post Cap
Mighty Post
Arm Screw
Arm Screw

LFLED4LV INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation
operation or maintenance.
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Clean glass lens & xture with non-abrasive glass
cleaning solution.
2. Do not open xture to clean the LED. Do not touch the
LED.
Easy Installation & Product Help
Tech Help Line
Call our experts 888 RAB-1000
©2014 RAB LIGHTING Inc.
No
rthvale, New Jersey 07647 USA
rabweb.com
Visit our website for product info
email
Answered promptly [e-mail]
TROUBLESHOOTING
1. Check that the voltage at xture is correct. Refer to wiring
directions.
2. Keep leaves and debris out of hood.
LFLED4LV-IN-1214

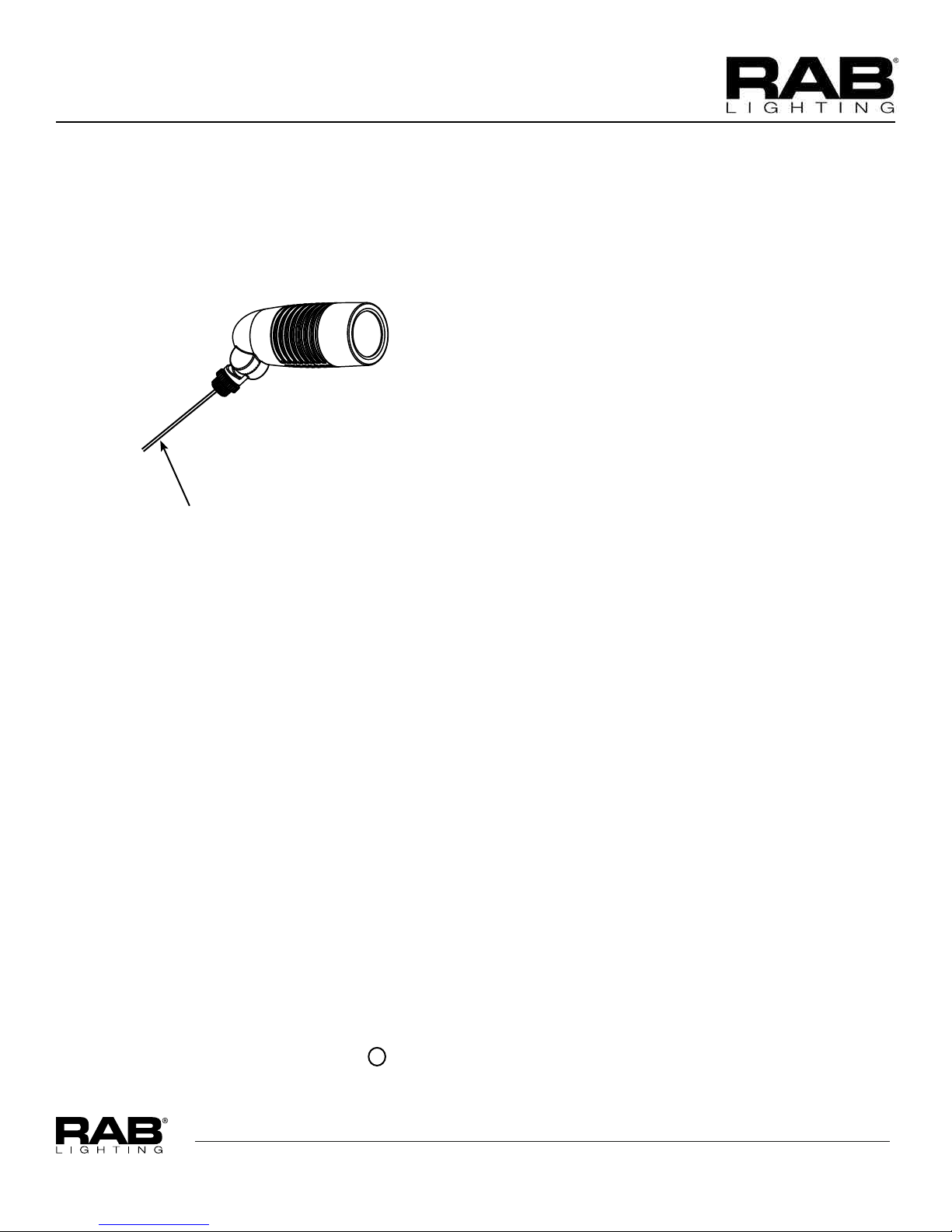

WIRING
The driver permits operation only at 12 VAC. Wire LFLED4LV
using approved wiring devices for SPT-1 cord.
Patent - US: pat. 676,190; CN: ZL201230408896.9; CA: D RAB Lighting, Inc MX: 39011; TW: pat. pending
ACCESSORIES
Reector door lens kit can be ordered separately
LNSLFLED8 15°spot reector, door, lens kit for LFLED4LV
LSLFLED8 20°spot reector, door, lens kit for LFLED4LV
Use approved wiring devices for SPT-1 cord.
