TALLPACK
Thank you for buying RAB lighting fi xtures. Our aim is to design the best quality products so you can get the job
done right. We’d like to hear your comments. Call us at 888-RAB-1000, attention Marketing Department.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
RAB Tallpack fi xtures must be wired in accordance
with the National Electrical Code and applicable
local codes. Proper grounding is required for safety.
Tallpack fi xtures are for outdoor use and should
not be used in areas with limited ventilation or high
ambient temperatures. Installation should be done
by a qualifi ed electrician.
USE SUPPLY WIRE RATED FOR 90°.
WARNING: RISK OF FIRE. MOST DWELLINGS BUILT BEFORE
1985 HAVE SUPPLY WIRE RATED FOR 60°. CONSULT AN ELECTRICIAN BEFORE INSTALLING.
Warning: Make certain power is OFF before installing or maintaining fi xture.
LOCATION
Fixtures should not be recessed and is for wall mount only.
Fixture must be positioned with lamp in vertical position
with lampholder base up.
MOUNTING
1. Loosen 2 screws from both sides of the front refractor.
2. Remove front refractor.
3. Remove refractor by loosening screws just enough to
allow refl ector to slide upward until keyhole in refl ector
releases screws.
Standard Box Mounting:
1. Remove center ½" Plug to route wires.
2. For 3½" or 4" round box or 4" square box, knockout
2 or 4 slotted openings in rear housing for screw
attachment to box (screws not provided).
3. Use gasket supplied. It is also advised to use
weatherproof silicone sealant to prevent entry of
moisture into fi xture.
Odd-sized Box Mounting:
1. Remove center ½" Plug to route wires.
2. Knockout 2 mounting holes in housing.
3. Mount with 2 lag screws (not provided) which will
penetrate at least ¾" of wood or similar solid surface.
4. Use weatherproof silicone sealant when mounting
fi xture to outlet box and mounting surface to prevent
entry of moisture into fi xture.
Bottom Conduit Mounting: See Back
Installation Instructions
Mounting
Knockout
Slotted
Knockout
½" Threaded
Opening
Refl ector
Fluorescent
Socket and
ballast compartment

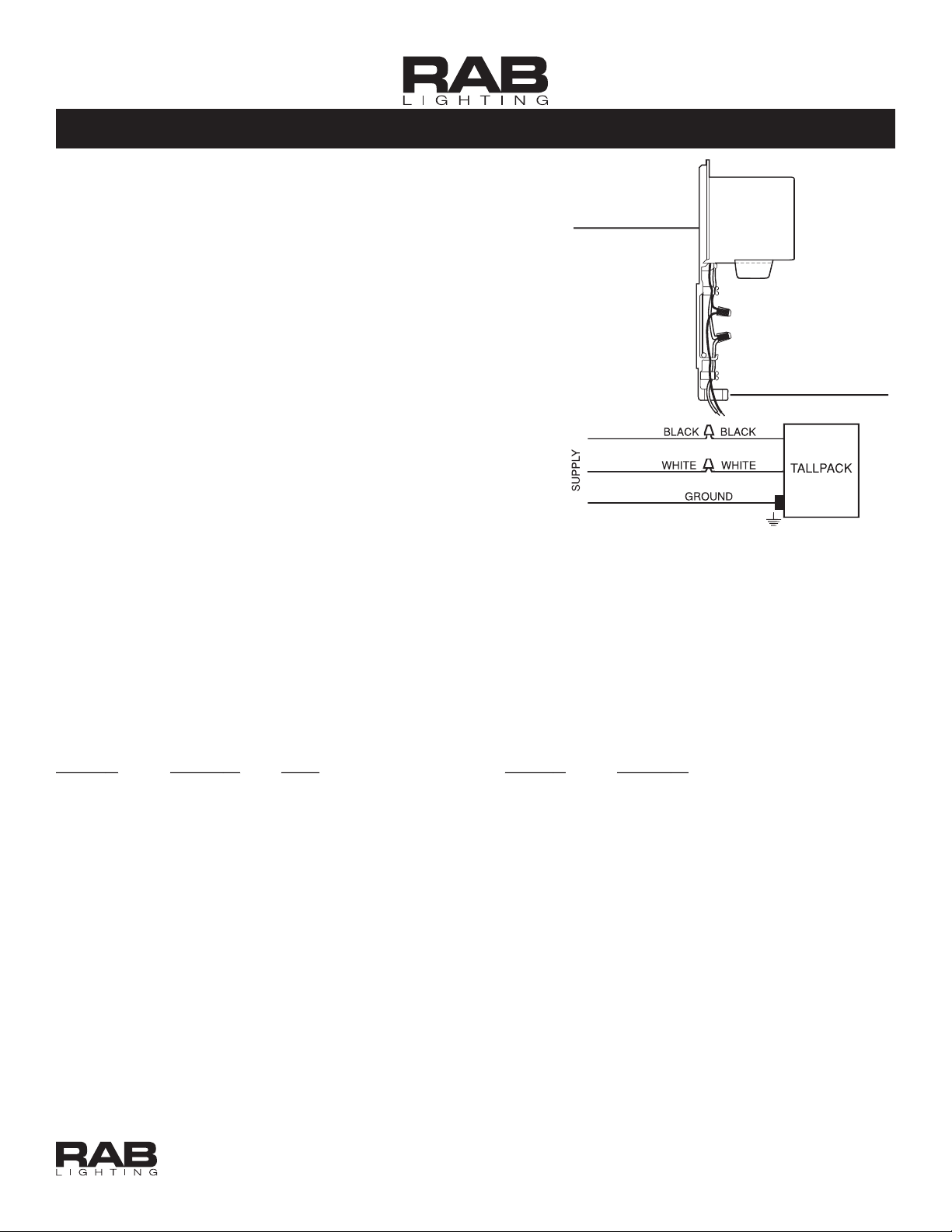

TALLPACK INSTALLATION INSTRUCTIONS
(continued)
MOUNTING
Bottom Conduit Mounting:
1. With front housing and refl ector off, knockout
the bottom conduit hole in the rear housing.
2. Pull service wires through the conduit opening and
make connection as indicated under Wiring section.
3. Replace the refl ector and refractor cover.
4. Attach to wall box per “Odd-sized Box Mounting”,
instructions #2 & 3 on previous page.
WIRING
Use supply wire rated for 90°C.
Caution: Check that voltage is compatible with fi xture ballast.
1. Connect the black fi xture lead to the black supply lead.
2. Connect the white fi xture lead to the white supply lead.
3. Connect supply ground wire to fi xture ground screw.
RE-LAMPING
Caution: Prior to installing, check that the lamp is of the proper type and wattage. Observe lamp manufacturers
recommendations on lamp operation, ballast type and burning positions. Disconnect power. Make sure fi xture and
lamp are cool enough to touch.
REPLACEMENT LAMPS
High Pressure Sodium ANSI Fluorescent
Wattage Catalog # Code Wattage Catalog #
35 LHPS35 S76 28 LCFL28
50 LHPS50 S68 42 LCFL42
70 LHPS70 S62
CLEANING
Caution:
Be sure fi xture is cool enough to touch. Be sure power is off.
Clean refl ector and refractor with a cloth moistened with non abrasive, non fl ammable glass cleaning solution.
TROUBLE SHOOTING CHECKLIST
Check that:
1. Proper lamp is installed. Lamp is not faulty.
2. Line voltage at the fi xture is proper.
EASY INSTALLATION & PRODUCT HELP
Fax Back Tech Help Line Website e-mail
888-RAB-1236 8AM – 5PM ET Mon. – Fri. www.rabweb.com [email protected]
888-RAB-1000
Over 28 warehouses nationwide!
1. Remove front refractor following instructions
under Mounting section.
2. Remove old lamp.
3. Place lamp into lamp socket securely until it is
fi rmly seated.
4. Replace front refractor.
Wattage Catalog # Code Wattage Catalog #
Wattage Catalog # Code Wattage Catalog #
Wattage Catalog # Code Wattage Catalog #
Wattage Catalog # Code Wattage Catalog #
Wattage Catalog # Code Wattage Catalog #
3. Fixture is wired properly.
4. Fixture is grounded properly.
THESE INSTRUCTIONS DO NOT COVER ALL
DETAILS OR VARIATIONS IN EQUIPMENT,
NOR DO THEY PROVIDE FOR EVERY POSSIBLE
CONTINGENCY TO BE MET IN CONNECTION WITH
INSTALLATION, OPERATION OR MAINTENANCE.
©2005 RAB Lighting, Inc.
Rear Housing
Conduit Knockout
Photocell
(not applicable
for NPC fi xtures)
for NPC fi xtures)
