WP3 INSTALLATION INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THEAPPLICABLE
INSTALLATION CODE BYA PERSON FAMILIAR WITH THE CONSTRUCTIONAND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED. Observe all caution and warning labels.
WARNING: Make certain power is OFF before installing or maintaining fixture.
Thank you for buying RAB lighting
fixtures. Our aim is to design the
best quality products to get the job
done right. We’d like to hear your
comments. Call the Marketing
Department at 888-RAB-1000, or
email: market[email protected]
LOCATION
1. Secure the Wallpack to a solid surface. Do not recess
any part of this fixture.
2. Mount over a junction box or feed with conduit on each
side, top or bottom. Using lag bolts to secure fixture to
the mounting surface is recommended.
3. To ensure weatherproof seal, use the supplied
mounting gasket and seal all mounting plugs, conduit
entrances and along all sides of the fixture with
weatherproof silicone sealant.
Backbox
WIRING
All units are factory wired for 277V except those factory
ordered with a 120V Photocell (/PC). If voltages other
than 277V are required, remove reflector and rewire for
the appropriate voltage.
WP3SC250QT HPS QT wired for 277V
WP3H200-250PSQ QT wired for 277V
WP3F120QT 120V thru 277V*
*No internal wiring changes needed for various voltages
as the ballast is quad tap electronic.
1. Open door and remove the reflector by loosening the
(4) Reflector Screws.
2. Connect the desired tap from the ballast to the (+)
LINE supply lead.
3. Connect the white fixture lead to the (-) COMMON
supply lead.
4. Connect the bare copper Ground wire from fixture to
supply ground.
5. Replace the reflector. Tighten screws. Install the
lamp and close the door.
Reflector
Screws

WP3 INSTALLATION INSTRUCTIONS
TROUBLESHOOTING
1. Is the proper lamp is installed? Check the wattage
and ANSI code on the fixture label against markings
on the lamp. Refer to Replacement Lamp table
above for verification.
2. Make sure the lamp is not defective. Try a lamp
known to be in operating condition.
3. Check that the line voltage at fixture is correct. Refer
to wiring directions.
4. Is there voltage at the lamp socket? If there is no
voltage, check all connections.
5. Is the fixture grounded properly?
6. Is the photocell functioning properly (if used)?
ACCESSORIES AND
REPLACEMENT PARTS
Chrome Wire Guard: GDWP3W
Door Frame & Glass: GLWP3F (bronze)
GLWP3FW (white)
Factory Installed Photocell: “/PC” (120V)
“/PC2” (277V)
“/PCS” (Swivel 120V)
Quartz Restrike “/QR” HID only
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
WP3-IN-0609
REPLACEMENT LAMPS AND
BALLASTS
Lamp ANSI Ballast
Wattage Catalog# Code Catalog#
High Pressure Sodium
250 LHPS250 S50 BHPSH250QT
Metal Halide
200 Pulse St LMH200PSQ M136 BMHH200PSQ
250 Pulse St LMH250PSQ M138 BMHH250PSQ
Compact Fluorescent Base Type
120 LCFL120 2G8-1 BCLF120
RAB fixture designs are protected under U.S. and International
Intellectual Property laws. Patent Pending.
-*()5
'*9563&
-*/& #-"$,
$0..0/ 8)*5&
(306/% (306/%
CLEANING & MAINTENANCE
CAUTION: Be sure fixture temperature is cool
enough to touch. Do not clean or maintain while
fixture is energized.
1. Clean glass lens with non-abrasive glass cleaning
solution.
2. As lamps age, light output diminishes. Mass
relamping at regular intervals ensures full light output
at the highest efficiency.

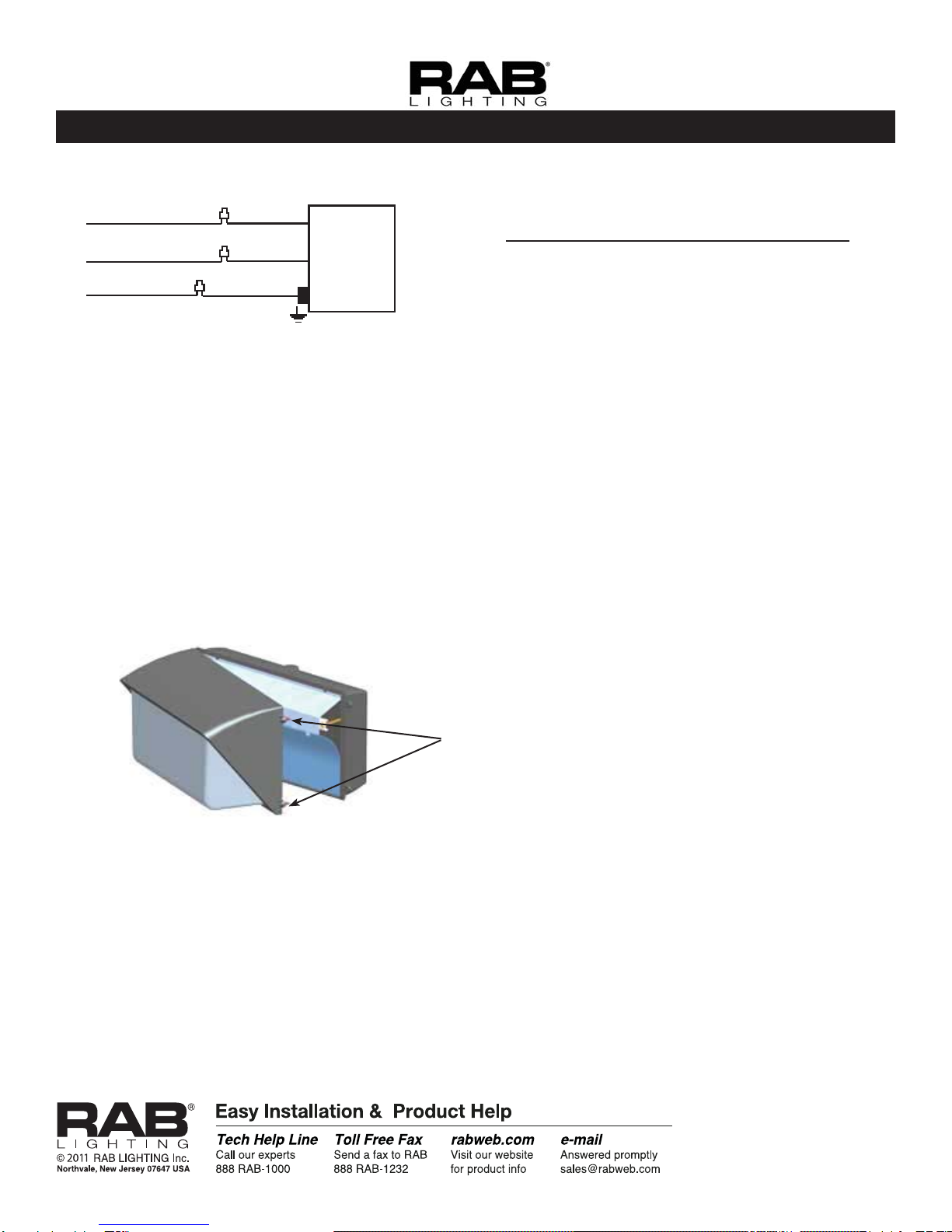

LAMP INSTALLATION
CAUTION: Prior to installing, check that the lamp is
the correct ANSI type and wattage. Observe lamp
manufacturer’s recommendations on lamp operation,
ballast type and burning positions.
1. Disconnect power. Make sure fixture and lamp are
cool enough to touch.
2. Loosen Door Screws (2) from the door frame. A
small rubber O-ring will retain screws. Open door.
3. Fully insert lamp into socket.
4. Before closing door, make sure gasket is properly
seated all around the backbox of the wallpack. Close
the door. Tighten Door Screws.
Door
Screws
WIRING SCHEMATIC
