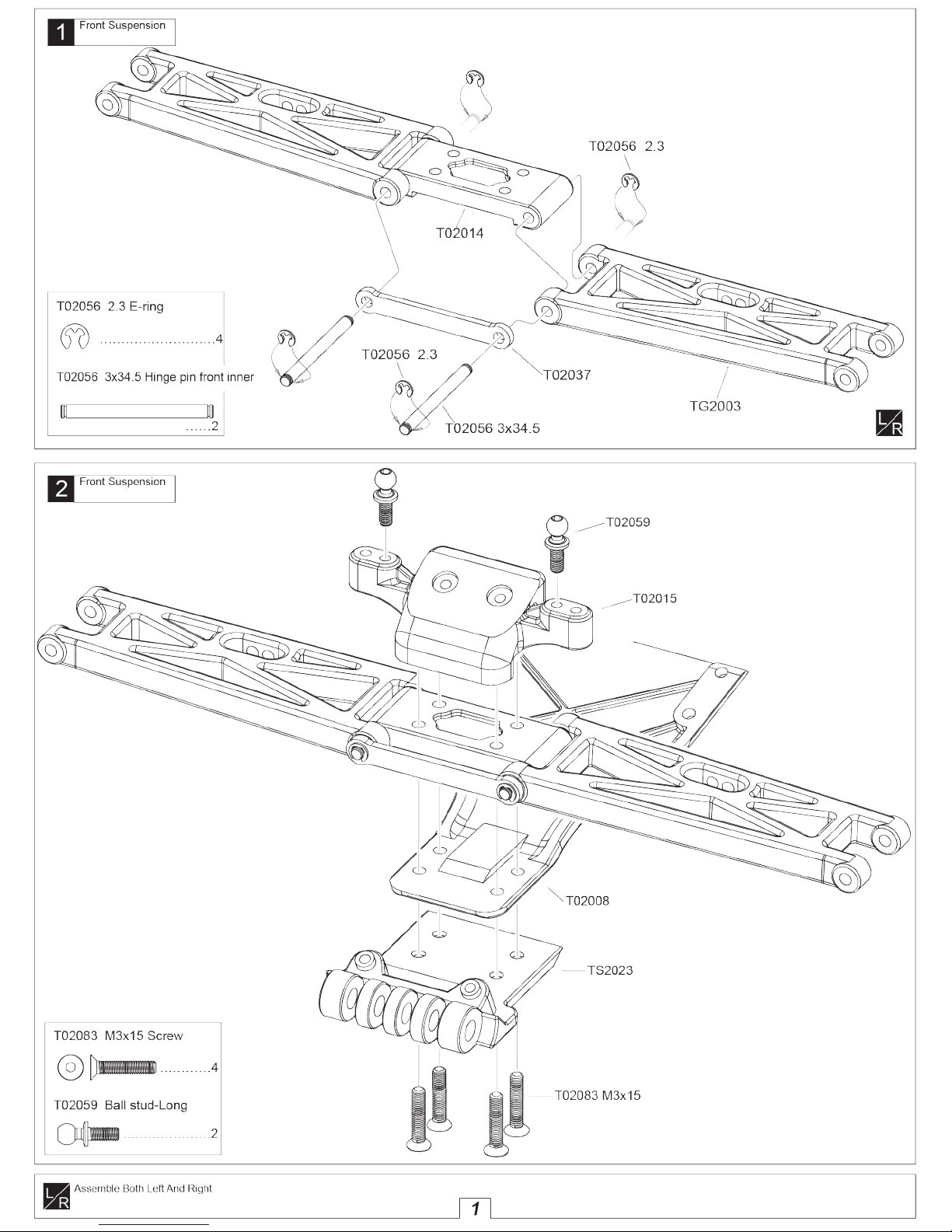

Racers Edge Pro 2 Short Course User manual

www.racers-edge.com

Operating Instructions:
· Place the model on a car stand or something that holds all 4 wheels off the ground.
Turn on the ESC.
· Right after powering up the ESC will denote a series of beeps denoting the neutral
setting of the transmitter. A second beeping sound denotes the success of neutral
setup. If you do not hear the second set of beeps power the esc down, then the
transmitter and begin again.
· Adjust & make sure the Throttle forward direction coincides with the ESC forward
direction. With the wheels of the model off the ground safely push the throttle trigger
forward to start motor running, push the throttle trigger backwards & hold it. If the
system keeps braking, the throttle forward direction coincides with the ESC
forward direction. Otherwise, if the system only has brief braking then the motor
begins reverse operation, the throttle and ESC forward directions do not coincide
with each other. In this case you can adjust the throttle reversing switch on the
transmitter. First change the switch for the throttle direction then turn the ESCoff and
back on again to reset. If the motor is operating in the wrong direction compared to
the throttle inputs switch any two motor wires while the ESC is turned off.
Precautions
· Do not reverse the battery wire connections! Reversing the battery polarity will
permanently damage the ESC.
· Once the battery pack is connected, handle the model with extreme care, making
sure you are clear of all rotating parts.
· Be sure to turn off the ESC power before turning off the transmitter.
· Connect the battery pack just before driving and disconnect it immediately after your
done. Never leave battery packs plugged into your model during storage; batteries
should not be stored in your model ever.
· Always make sure you are connecting the ESC to a proper power source that has the
correct voltage & polarity. Input voltage: 7.2V-8.4V(Ni-cd & Ni-MH) 7.4V(Li-po)
only. Any higher voltage will cause permanent damage and will void the warranty!
· Incorrect voltages or reversed polarity will damage the ESC.
· Avoid touching ESC heat sink or motor casing right after operation due to high
temperatures and the risk of burning your hands.
· Water and electronics don’t mix! Never let water or any other debris on or inside of
the ESC or motor. Any issue related to ESC failure due to water voids the warranty.
· Always maintain wiring away from rotating parts that can cause damage or wear
wiring over time. Cover any exposed wires using heat shrink.
Gear Selection
· It is very important not to overheat the ESC or motor. When adjusting gear ratios
always test both the ESC and motor temperature after running for 2-3 minutes. It
is very important not to heat the motor or speed control over 180 degrees Fahrenheit.
Doing so will decrease performance and could ruin your electronics.
· Forward operation includes brakes while throttle is at more than 25% input. Slower
than 25% will begin reverse operation. Reverse will also begin from a standstill.
Trouble-shooting
Steering Channel Works But Motor Will Not Run
· Check input plug wiring connections at ESC and receiver.
· Check motor connections. Possible internal motor damage.
· Check vehicle’s drive train for free operation.
· Possible ESC thermal shutdown–Check gear ratio & free operation of drive train
for possible overheating/ESC is being severely overheated–allow system to
cool & return throttle to neutral position to regain motor control.
· Possible receiver failure–Check operation with a different receiver.
· Possible internal damage––Refer to Service Procedures.
Receiver Glitches/Throttle Stutters During Acceleration
· Receiver or antenna too close to ESC, power wires, battery, or motor.
· Bad connections–Check wiring & connectors.
· Low voltage to receiver––Try Glitch Buster capacitor on receiver.
· External Power Capacitor damaged/not installed––Replace Power Capacitor.
· Battery pack damaged or weak––Try a different battery pack.
· Motor’s magnet has weakened or overheated––Replace rotor.
Motor and Steering Servo Do Not Work
· Check wires, receiver signal harness wiring & color sequence, radio system, crystals,
battery/motor connectors, & battery pack.
· Power wires too close to signal wires––Do not bundle power & signal wires together.
· Possible receiver failure–Check operation with a different receiver.
· Possible internal damage––Refer to Service Procedures.
Brushless Motor Runs Backwards
· Switch any two motor wires while the ESC is turned off.
Speed Control Runs Excessively Hot
· Gear ratio too low––Increase gear ratio (see ‘GEAR SELECTION’).
Model Runs Slowly/Slow Acceleration
· Gear ratio too high––Reduce gear ratio (see ‘GEAR SELECTION’).
· Check battery & connectors––Try another battery; replace connectors/battery if
needed.
· Incorrect transmitter/ESC adjustment––Refer to Step 4.
· External Power Capacitor damaged/not installed––Replace Power Capacitor.
Electronic Speed Controller Instructions
Caution
Needle Nose Pliers Awl RCE3003
HD Grease Thread Lock RCE601 Fusion Tire Glue
RCE3004
Super Diff Lube
RCE3005
Black Grease
RCE7035
Body Reamer Wire Cutters RCE7045 Body Scissors
Hex Wrench Box Wrench RCE17018
Hobby Knife
Please read the following manual closely and familiarize yourself with its contents before operating
the model. Keep the manual in a safe place for future reference for repairs, part numbers and
assembly instructions.
This product is not a toy and intended for ages 14 and up. Adult supervision is required for ages
under 18 years old. Contains small parts, keep out of reach of children 3 years and younger.
DO NOT operate this model in the rain, on public streets, near crowds, airports or anywhere
where it will be deemed a hazard to anyone or anything. Do not run the model into yourself, others
or animals while operating or possible injury may occur. Serious accidents, personal injury and
property damage may occur.
Use proper rechargeable batteries intended for RC applications only. Follow manufacturers
guidelines for charging batteries properly.
Motor and speed control can become very hot after use, please handle with care.
Be aware of all moving parts of the vehicle so no injuries occur.
Always unplug the battery after use. DO NOT leave your car unattended with the battery plugged
in and do not store the battery in the vehicle. Always store batteries and models in a cool dry
place.

1 Control Panel
2 Antenna
3 Steering Wheel
4 Throttle Trigger
5 Battery Compartment
6 Charging Jack
7 Sterring Servo Reverse
8 Power LED
9 Steering Trim
10 Bind Button
11 Throttle Servo Reverse
12 Battery Voltage
13 Steering Dual Rate
14 Power Switch
15 Throttle Trim
1510
98
711
12 13
14
6
2
1
4
5
3
GLG20
2.4GHz
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Install Transmitter Batteries1. Connect Battery to ESC2. Switch on Transmitter First3. Switch on ESC Second4.
Note: When done driving Turn Off the
ESC First and the Transmitter Second
