Racing RAC3IN115 User manual

ORIGINAL INSTRUCTIONS>EN
CORDLESS SCREWDRIVER
RAC3IN115
INSTRUCTION MANUAL
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Made in PRC 2021
1

ORIGINAL INSTRUCTIONS>EN
CONTENT
1. SAFETY INSTRUCTIONS............................................................................................................3
2. KNOW YOUR PRODUCT.............................................................................................................6
3. INTENDED USE............................................................................................................................8
4. PACKAGE CONTENTS................................................................................................................8
5. TECHNICAL DATA.......................................................................................................................8
6. BEFORE USE...............................................................................................................................9.
7. ASSEMBLE THE ATTACHMENTS..............................................................................................9
8. CHANGING BITS/SCREW DRIVER BITS..................................................................................10
9. OPERATION................................................................................................................................10
10. MAINTENANCE, STORAGE AND CLEANING..........................................................................11
11. DISPOSAL...................................................................................................................................11
12. CE DECLARATION.....................................................................................................................12
13. WARRANTY................................................................................................................................13
14. PRODUCT FAILURE...................................................................................................................14
15. WARRANTY EXCLUSIONS........................................................................................................15
2

ORIGINAL INSTRUCTIONS>EN
1: SAFETY INSTRUCTIONS:
GENERAL POWER TOOL SAFETY WARNINGS:
WARNING Read all safety warnings, instructions, illustrations and specifications provided
with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
3

ORIGINAL INSTRUCTIONS>EN
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer.A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another.Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.Liquid
ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified.Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature.Exposure to fire or temperature
above 130 °C may cause explosion.
NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures outside the
specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring.Cutting accessory contacting
4

ORIGINAL INSTRUCTIONS>EN
a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric
shock.
ELECTRICAL SAFETY
a. Connect the charger only to 100-240V~ socket.
b. Load the battery of the screwdriver only with the appropriate charger.
c. The charger and screwdriver must be protected against moisture!
d. Do not use the charger outdoors.
e. In order to protect the batteries from damage, never expose them to temperatures above 50 ºC.
f. Warning: Do not short-circuit the battery or charger contacts.
g. Repeat positive and negative polarity when recharging the battery.
h. Do not throw the battery into the fire.
Additional instructions for charger.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard
WARNING–Don’t recharge non-rechargeable batteries.
Symbols
To reduce the risk of injury, the user must read and understand this manual
before using this product.
Class II, double isolation(only for charger).
Use the battery and charger Indoor use only.
Conforms to relevant safety standards.
Do not dispose of old appliances with domestic rubbish.
5

ORIGINAL INSTRUCTIONS>EN

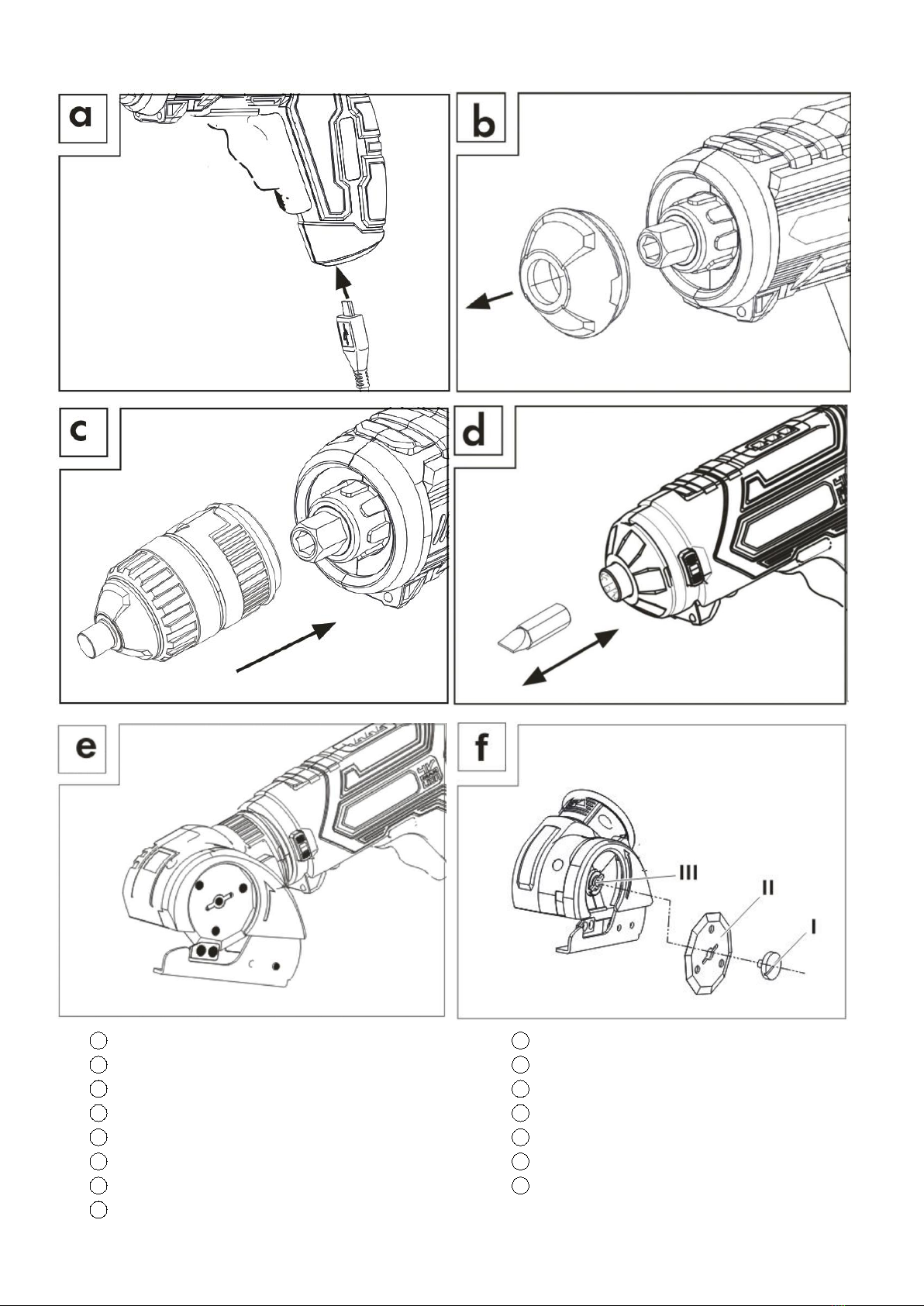

2. KNOW YOUR PRODUCT
6

ORIGINAL INSTRUCTIONS>EN
1Rotation direction switch/safety lock-out
2Battery charge level indicator
3Rubber cap
4Lock bottom
5Charging socket
6ON/OFF switch
7LED lamps
8Tool holder
9Charger
10 Torque attachment
11 Micro USB plug of the charging cable
12 Eccentric attachment
13 Angle attachment
14 Cutting attachment
15 Bits and bit extension
7

ORIGINAL INSTRUCTIONS>EN
3. INTENDED USE
This appliance is designed for screwing into wood, plastic and metal. The cutting attachment is designed
exclusively for cutting soft materials, such as card and similar materials up to a thickness of 6 mm. Use this
product only as described and for the areas of applications specified. The appliance is not intended for
commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a
significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to
misuse.
4. PACKAGE CONTENTS
1 cordless screwdriver
1 charger
1 BMC
1 charger
10 bits x 25mm
2 bits x 50 mm
1 bit extension
1 torque attachment
1 eccentric attachment
1 angle attachment
1 cutting attachment
1 set of operating instructions
5. TECHNICAL DATA
CORDLESS SCREWDRIVER RAC3IN115
Voltage V d.c. 4.0
Battery cell ICR18650 Li-ion
Battery capacity mAh 1500
No-load speed /min 200
Torque Nm (max) 4.0
Charger RAC3IN115
Charge time h 1.0
Charger in put 100–240V∼50/60Hz, 0.3A max
Charger output 5.5 V d.c. , 1750mA
Charger Protection class: II / (double insulation)
Weight approx. Kg Approx 0.5
Sound pressure level LPA dB(A) 66.2
Sound power level LWA dB(A) 77.2
Uncertainty KPA, KwA: dB(A) 3.0
Vibration emission value Ah: m/s20.8
Uncertainty K: m/s21.5
The vibration value of does not exceed 2.5m/s²
Information:
-The declared vibration total value has been measured in accordance with a standard test method and may
be used for comparing one tool with another;
-The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning:
-The vibration emission during actual use of the power tool can differ from the declared total value
depending on the ways in which the tool is used;
-need to identify safety measures to protect the operator that are based on an estimation of exposure in the
actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is
switched off and when it is running idle in addition to the trigger time). Wear ear protection.
8

ORIGINAL INSTRUCTIONS>EN
6. BEFORE USE
6.1) Charging the appliance battery (see fig. a)
Note:
The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1
hour. This guarantees full battery power. Li-ion batteries can be charged at any time without adversely
affecting their service life. Interruption of the charging process will not damage the battery.
If the battery charge level indicator lights up red during use, the battery is at less than 30% of its
capacity and needs to be charged.
Never charge the cordless appliance when the ambient temperature is below 10°C or above 40°C. If a
lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly.
The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and
the ambient temperature should be between 0°C and 50°C.
6.2) Start charging:
♦ Connect the charger to a 100–240 V∼50/60 Hz power source.
♦ The battery is fully charged when the battery level display changes from red to green.
6.3) Stopping charging:
♦ Disconnect the charger from the mains power supply.
7. ASSEMBLE THE ATTACHMENTS
7.1) Usage:
With the torque attachment screwing stops as soon as the screw is tight. Set the required torque from
one of the 10 levels.
The eccentric attachment allows you to screw even in locations that are close to the wall.
The angle attachment allows you to screw at right angles.
The cutting attachment allows you to cut soft materials, such as card and similar materials up to a
thickness of 6 mm.
7.2) Assembly:
Note:
Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle.
This prevents unintentional switching on.
Start by removing the rubber cap from the tool holder (see fig. b).
Now you can fit the supplied attachments to the appliance in 45°steps. Fit the attachment onto the
appliance so that the attachment clicks into place. (See fig. C, example: torque attachment).
7.3) Dismantling:
To remove the attachments from the appliance, press the release button and pull the attachment
forwards.
Afterwards, replace the rubber cap on the tool holder.
9

ORIGINAL INSTRUCTIONS>EN
8. CHANGING BITS/SCREW DRIVER BITS (see fig. d)
Inserting:
♦ Insert the bit into the tool holder.
Removal:
♦ Pull the bit out of the tool holder.
Replacing the cutting blade (see fig. e + f)
Note:
Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle.
This prevents unintentional switching on.
Start by connecting the cutting attachment to the appliance. This blocks the motor spindle and allows
the screw to be removed.
Unscrew the screw (I).
Remove the cutting blade (II) by pulling it downwards.
Push in a new cutting blade (II) from below ensuring that the ground edge of the blade faces you. Turn
around the blade (II) until it fits onto the tool fitting (III).
Tighten the screw (I).
The attachment can now be used again.
CAUTION!
► There is an arrow ( ) on the blade guard of the cutting attachment. This shows you the recommended
running direction of the cutting blade.
9. OPERATION
9.1) Switching the cordless screwdriver ON/OFF
Switching on:
To start the appliance, press the ON/OFF switch and keep it pressed in.
Switching off:
Release the ON/OFF switch to switch offthe appliance.
9.2) Changing the direction of rotation
Clockwise:
Push the rotation direction switch to the left.
Press the ON/OFF switch, the clockwise rotation; you can now screw in the screws.
Anti-clockwise:
Push the rotation direction switch to the right.
Press the ON/OFF switch, the anticlockwise rotation; you can now unscrew the screws.
Safety lock-out:
Push the rotation direction switch into the middle position. The ON/OFF switch is blocked.
Note
When the ON/OFF switch is locked it is still possible to activate the LED lamps. To do this, press the
ON/OFF switch.
9.3) Tips and tricks
Screw bits are labeled according to their dimensions and their shape. If you are unsure, always try the
particular screw bit out to see whether it sits in the screw head without any free play.
10

ORIGINAL INSTRUCTIONS>EN
10. MAINTENANCE, STORAGE AND CLEANING
WARNING!
RISK OF ELECTRIC SHOCK! Before cleaning, disconnect the charger from the mains socket.
Note
Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle.
This prevents unintentional switching on.
The cordless screwdriver is maintenance-free.
The appliance must always be kept clean, dry and free from oil or grease.
Never allow liquids to get into the appliance.
Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
WARNING!
Remove the attachments before cleaning. Clean them with a dry cloth.
Always ensure the appliance and attachments are clean, free of dust and dry before storing.
11. DISPOSAL
The packaging is made from environmentally friendly material and can be disposed of at your
local recycling plant.
Electric power tools, as well as their accessories and packaging, must each be able to follow an
appropriate recycling pathway. Only for the countries of the European Union:
Do not throw away your electrical appliance with the household waste! In accordance with the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation in national laws, power tools that can no longer be used must be separated and
follow an appropriate recycling pathway.
Do not dispose of batteries in your normal household waste!
11

ORIGINAL INSTRUCTIONS>EN
12. CE DECLARATION
Déclaration de conformité
BUILDER SAS
ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France
Tel : + 33 (0) 5.34.502.502 Fax : + 33 (0) 5.34.502.503
Declares that the machinery designated below:
Cordless screwdriver
RAC3IN115
Serial number: 20210433722-20210436771
Complies with the provisions of the Directive « machinery » 2006/42/EC and national laws transposing it:
Also complies with the following European directives:
EMC DIRECTIVE 2014/30/EU
RoHS DIRECTIVE 2011/65/EU & (EU) 2015/863
Also complies with European standards, with national standards and the following technical provisions:
Responsible for the technical file: Mr. Olivier Patriarca
Done at Cugnaux, le 08/02/2021
Philippe Marie/PDG
12

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
13. WARRANTY
13

WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
14. PRODUCT FAILURE
14

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
15. WARRANTY EXCLUSIONS
15
