Radiosistemi CARRARA Z9 User manual

PAGE 1
Index contents
Warning
Equipment Needed
Tools Recommended
Fuel&Glow Plug
A. Shock Stay
B. Differential
C. Turnbuckle
D. Steering System (CVD, Steering Block)
E. Front & Rear Chassis Assembly
F. Center Diff and Brake System
G. Steering Crank
H. Radio Tray System
I. Fuel Tank
Standard Setup Sheet
Setup Sheet
Exploded View
Parts List
2
3
4
5
6~8
9
10
11~13
14~18
19~20
21~24
25~26
27
31
32
33~34
35~44
J. Engine
K. Tire & Body
27~29
29~30

Sicurezza:
Questo prodotto non è un giocattolo. Non è raccomandato per bambini al di sotto del 14 anni e
comunque ogni minore dovrebbe essere accompagnato da un adulto. Questo prodotto è una macchina
di precisione che richiede un corretto assemblaggio e settaggio per evitare incidenti. La mancata presa
di cautela quando utilizzi questo prodotto può causare serie ferite o danni a persone e cose.
E’ comunque responsabilità del proprietario provvedere all’utilizzo di questo prodotto nel modo più
sicuro. Il costruttore e i suoi distributori non sono responsabili in alcun modo per qualsiasi lesione
personale o danni che possano verificarsi o che vengano causati dall’utilizzo di questo prodotto.
Al fine di evitare incidenti a persone, animali e/o danni a proprietà, evitate di utilizzare l’automodello
nelle seguenti situazioni:
luoghi frequentati da persone e/o animali;
strade, linee ferroviarie, aeroporti e in vicinanza di linee elettriche;
quartieri residenziali, scuole, ospedali e in generale luoghi chiusi;
in presenza di fiamme libere o in vicinanza di specchi d’acqua;
in presenza di altre apparecchiature elettroniche aventi la stessa frequenza del vostro radiocomando;
in condizioni di batterie scariche o danneggiate;
in caso di comportamenti anomali del modello.
Precauzioni
Questo automodello utilizza una miscela infiammabile,altamente volatile nonchè
tossica per l’organismo umano. Sono presenti durante l’utilizzo parti in
movimento e ad elevata temperatura quindi si consiglia di prestare la massima
attenzione alle seguenti cose:
utilizzare la miscela in luoghi aperti;
non utilizzare altri tipi di carburante;
non utilizzare la miscela vicino a fonti di calore o fiamme libere;
non ingerire o inalare la miscela e in caso di contatto con gli occhi sciacquare
abbondantemente con acqua e consultare un medico;
non toccare il motore o la marmitta durante o subito dopo il funzionamento.
FUEL
FUEL
ATTENZIONE:
Parti meccaniche
in movimento
DANGER:
Moving mechanical
parts!
ATTENZIONE:
Superfici calde,
non toccare
DANGER:
Hot surfaces,
do not touch!
ATTENZIONE:
Combustibile altamente
infiammabile
DANGER:
Highly
flammable fuel!
ATTENZIONE:
Combustibile velenoso
DANGER:
Poisonous fuel!

PAGE 3
Equipment Needed
~42mm
~28mm
~21mm
If you do not use a charger designed to charge Nickel Metal Hydride/LiPo batteries,
The batteries will be damaged.
Cautions
We recommend that you use
fuel containing 20~30% nitro.
Glow Fuel
Glow Plug lgniter
Transmitter Receiver Servo Receiver Switch
Engine Exhaust Pipe
Li-Po Battery 7.4V
Fuel Bottle
Charger for Receiver Battery Pack
Tires Starter Box

PAGE 4

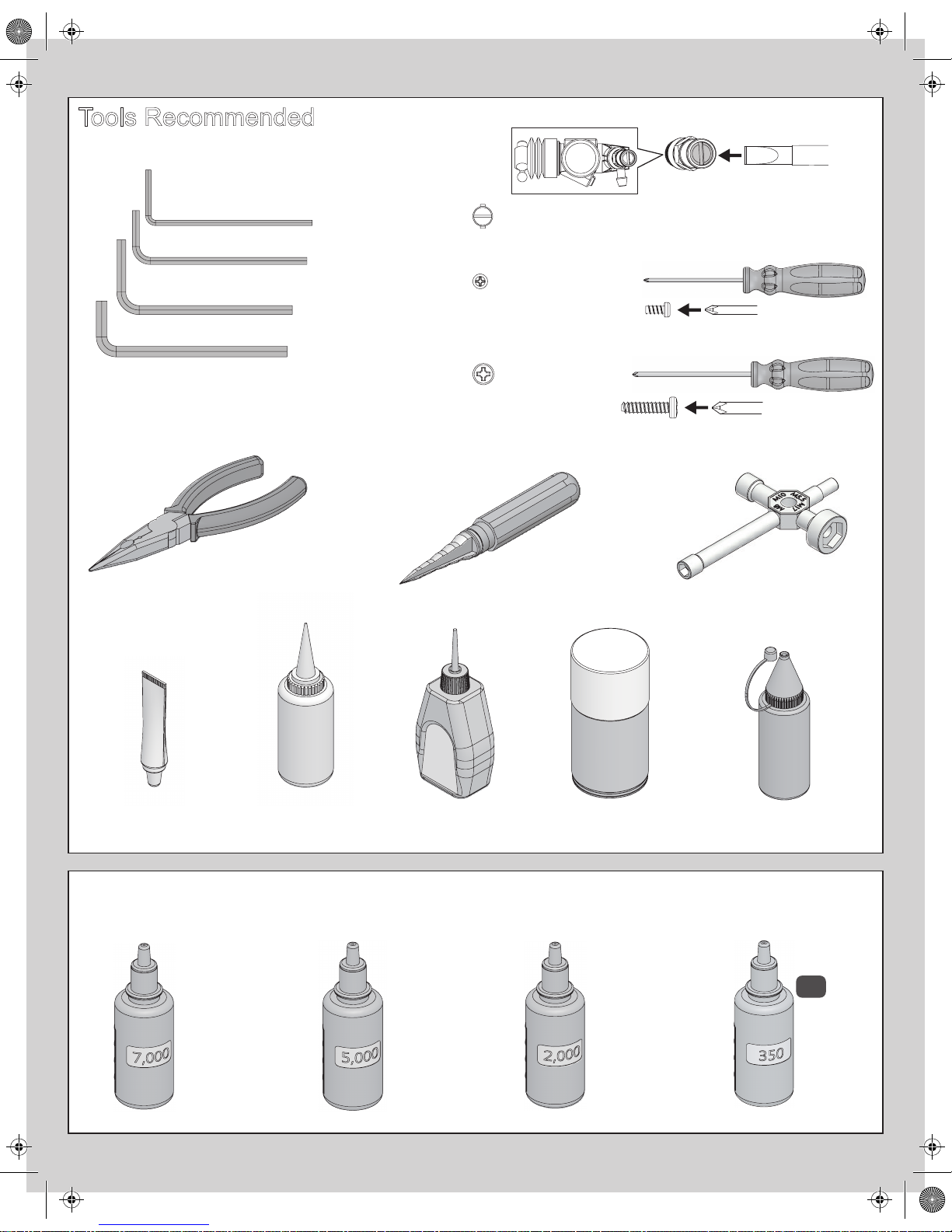

Tools Recommended
Screwdriver
Screwdriver (small)
Screwdriver(big)
Allen Wrench
1.5mm
2.0mm
2.5mm
3mm
Thread Glue Instant Cement
Needle Nosed Pliers Glow Plug Wrench
M5.5/M8/M10/M17
Reamer
Air Filter OilPaintGrease
Included Items
Front
Diff Oil #7,000
Center
Diff Oil #5,000
Rear
Diff Oil #2,000
Shock
Oil #350
2x

PAGE 5
Start the Engine
Turn on Radio System
1.Switch on transmitter.
2.Switch on receiver.
Before using the starter, make sure the batteries in your R/C car and transmitter are fully
charged. Check the radio functions to make sure your R/C car is in proper working order.
STEP
1
STEP
2
ON
Fill tank with high quality
R/C car glow fuel.
Keep the wheels off the ground
during static break-in!
Flooded Engine
Turn the wrench counter-clockwise
to remove the glow plug.
Tilt the engine head away from face
and turn the motor over using the
starter.
Replace the glow plug and
complete the starting steps
without priming the engine.
1
2 3
Glow Plug Use a fully charged glow plug igniter to test the glow plug.
Hold the glow plug with needle nose pliers and attach to the
igniter. If the plug is good, the element will glow an orange
or red color. If the element doesn’t glow,or if it’s damaged,
you will need to replace the plug. The element will be very
hot when glowing.
HOT!
Glow Plug lgniter
Pliers
Element
Good Plug
Element glows when tested.
Bad Plug
Element may be damaged
or broken if it doesn’t
light up completely.
Bad Plug
Element is broken or
doesn’t light up at all.

PAGE 6
A02
Spacer*4pcs
P4 O-ring*8pcs
P10 O-ring*4pcs
Use #350 Oil for front shock.
Drop oils to two o-rings first.
Use #350 Oil for rear shock.
Drop oils to two o-rings first.
A01
Front Shock Shaft Rear Shock Shaft
2.5mm Lock nut*4pcs
2.9x8x0.5mm Washer*4pcs
1.3 Shock Piston*4pcs
1.4 Shock Piston*4pcs
1.2 Shock Piston*4pcs
Ø1.4x5 Ø1.4x5
Z10077 Z10078
Z10015
Z10012
Z10016
Z10079
Z10084
Z10012
Z10083
Z10080
Front / Rear Shock Shaft Assembly
Front / Rear Shock Body Assembly
2x 2x
2x 2x

PAGE 7
A03
Pull shaft to the bottom
and then fill up oil.
Move shaft up and down
to get rid of air bubbles.
Front Shock Oil #350
Rear Shock Oil #350
Pull shaft to remain 15mm
as drawing. Put shock bladder
and foam inside,
and then cover up the cap.
Pull shaft to remain 26mm as drawing,
and then lock up M2.5x4 screw
and spacer. It could take suitable
setting, to adjust shaft to 23~29mm,
to increase or reduce the pressure.
Pull shaft to the bottom
and then fill up oil.
Move shaft up and down
to get rid of air bubbles.
Pull shaft to remain 20mm
as drawing. Put shock bladder
and foam inside,
and then cover up the cap.
Pull shaft to remain 40mm as drawing,
and then lock up M2.5x4 screw
and spacer. It could take suitable
setting, to adjust shaft to 35~45mm,
to increase or reduce the pressure.
2.5x4mm Screw*4pcs
2.6x3.5x0.5mm Washer*4pcs
26 mm
20 mm
40 mm
15 mm
Z10081
Z10174
Z10172
Point to Fill Shock silicone oil
2x
2x

PAGE 8
A04
Ø1.4
H:67x6.67
Ø1.5
H:84x9.5
Front Shock Shaft
Rear Shock Shaft
Instant
Cement
Instant
Cement
Z10173
Z10173
Z10053
Z10082
Z10173
Z10189
Z8328
Z10195
Z10054
3.5 mm
6.5 mm
Complete Shock set Assembly
2x
2x

PAGE 9

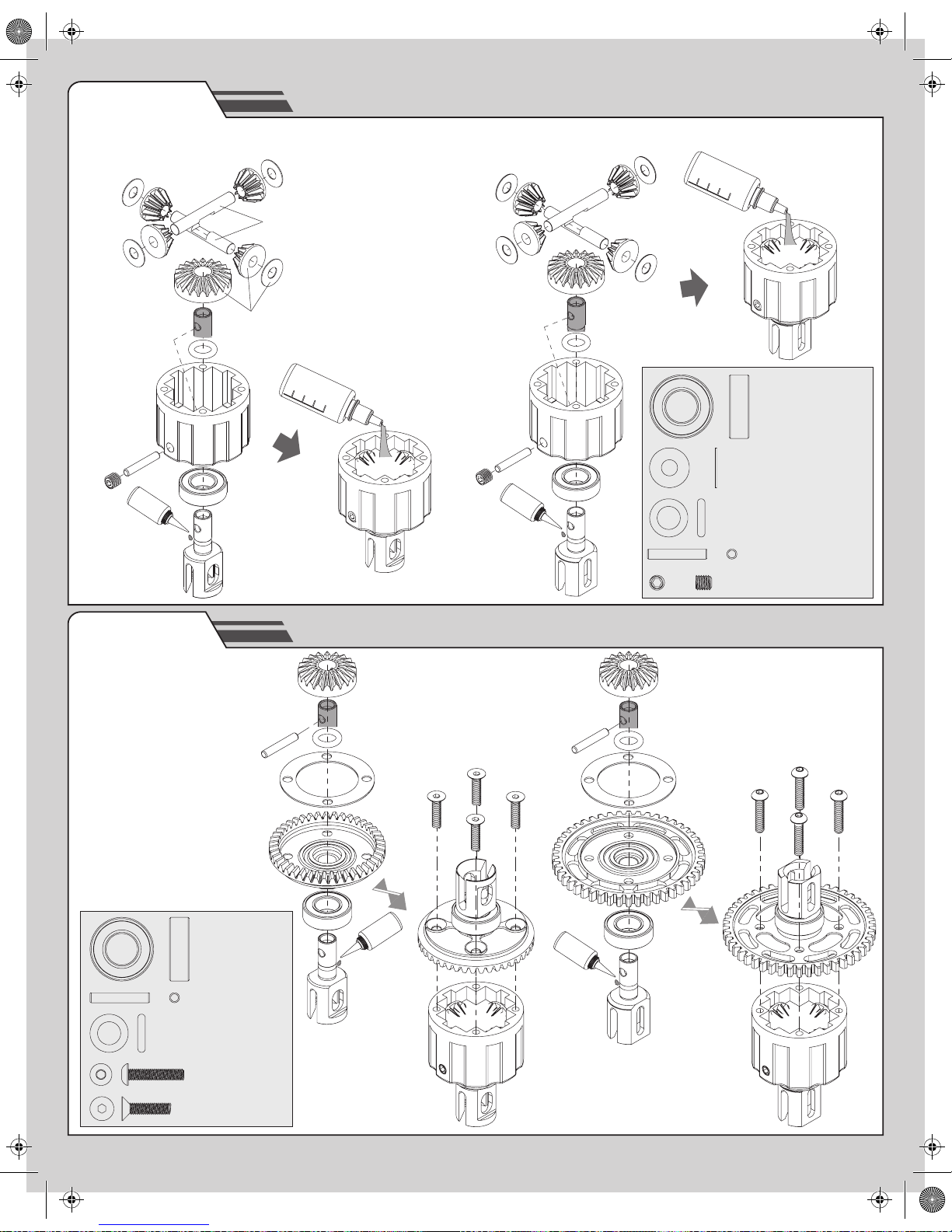

B01
B02
Center Diff.Front/Rear Diff.
Front Silicone Oil #7,000
Rear Silicone Oil #2,000
Center Silicone Oil #5,000
Center Diff.Front/Rear Diff.
Make sure to lock up screws
(Cross screwing). Turn over to
check there's no leaking.
4x4mm Screw*3pcs
4.05x10x0.3mm Washer*12pcs
P6 O-ring*3pcs
8x16x5 Bearing*3pcs
2.5x13.8mmPIN*3pcs
P6 O-ring*3pcs
8x16x5 Bearing*3pcs
2.5x13.8mmPIN*3pcs
3x14mm Screw*4pcs
3x12mm Screw*8pcs
Z10110
Z10175
Z8021
Z10176
Z8101-1
Z8023
Z8019
Z8020-1
Z10180
Z10183
Z10197
Differential Assembly
Differential Assembly
Grease
Grease
Grease
Grease

PAGE 10
C01
C02
C03
30 mm
51 mm
20 mm
40 mm
Front
Rear
Steering
Z8018-1
Z10159
Z10003
Z8017
Z10003
Z10159
Z10019
Z8016
Z8089
13.5 mm
Front Upper Suspension
Rear Upper Suspension
Steering Turnbuckle
31 mm

PAGE 11

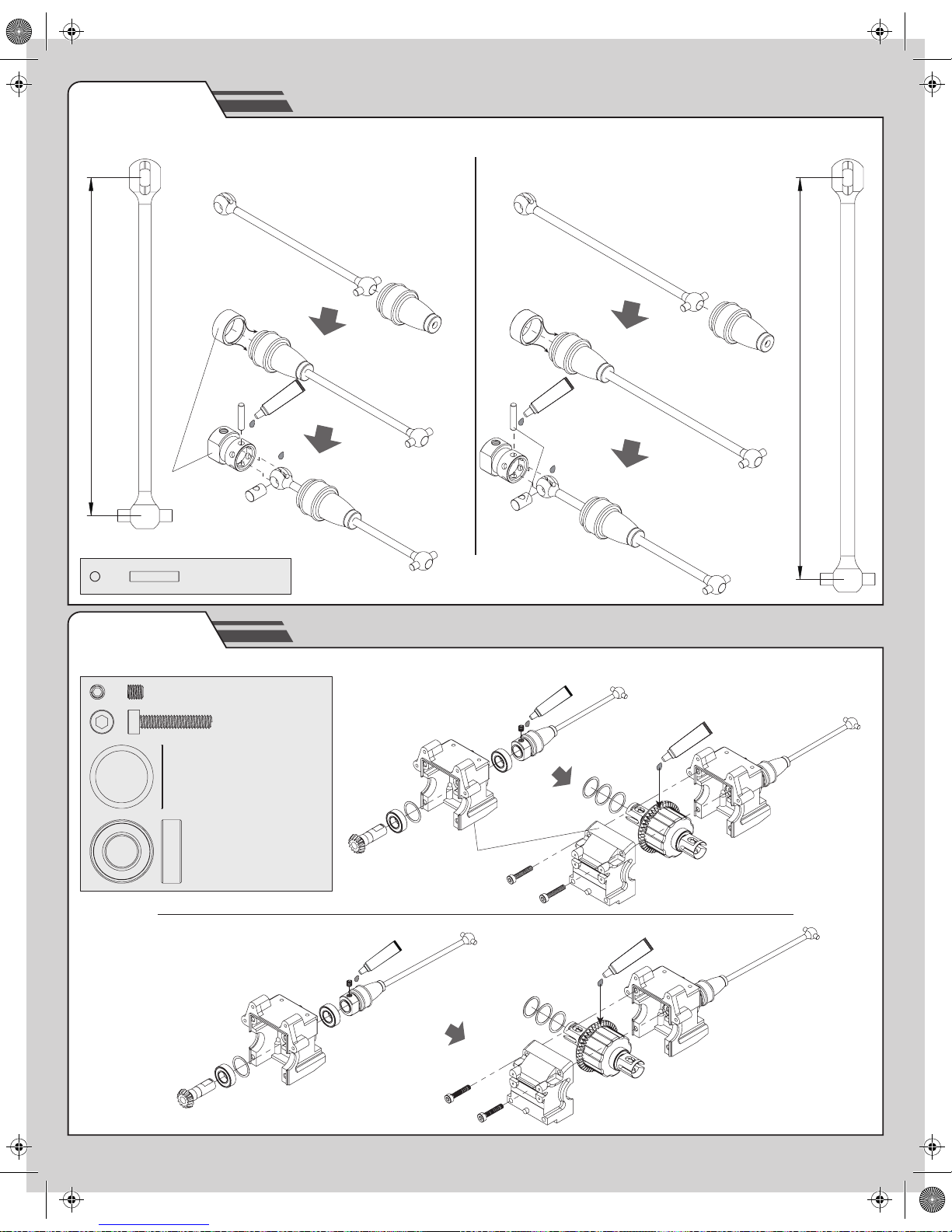

D01
D02
Front CVD Rear CVD
2.5x12.4mm PIN*2pcs
Front Gear box
Rear Gear box
Thread Glue
Gear oil
Gear oil
Thread Glue
8x16x5 Bearing*4pcs
3.5x18mm Screw*4pcs
4x4mm Screw*2pcs
13.15x15.9x0.2mm Washer*8pcs
85 mm
101 mm
Z10163
Z10165
Z10162
Z10164
Z10213 Z8009
Gear oil
Gear oil
Front / Rear Universal Shaft set
Front / Rear Gear Box

D03
D04
Front Shock Tower Assembly
Rear Shock Tower Assembly
Step1
Step2
Step3
Step4
Step5
2.5x13.2mm PIN*4pcs
CVD
PAGE 12
3x22
3x12
3x14
3x18
3x16
3x22
3x16
3x22mm Screw*4pcs
3x16mm Screw*4pcs
3x16mm Screw*2pcs
3x14mm Screw*1pcs
3x12mm Screw*2pcs
ZZ10065
ZZ10066
Z10179
Z10022
Z10007
Z10161
Z10166
Z10184
Z10151
Front / Rear Shock Tower Assembly
CVD Assembly
3x16mm Screw*2pcs

PAGE 13

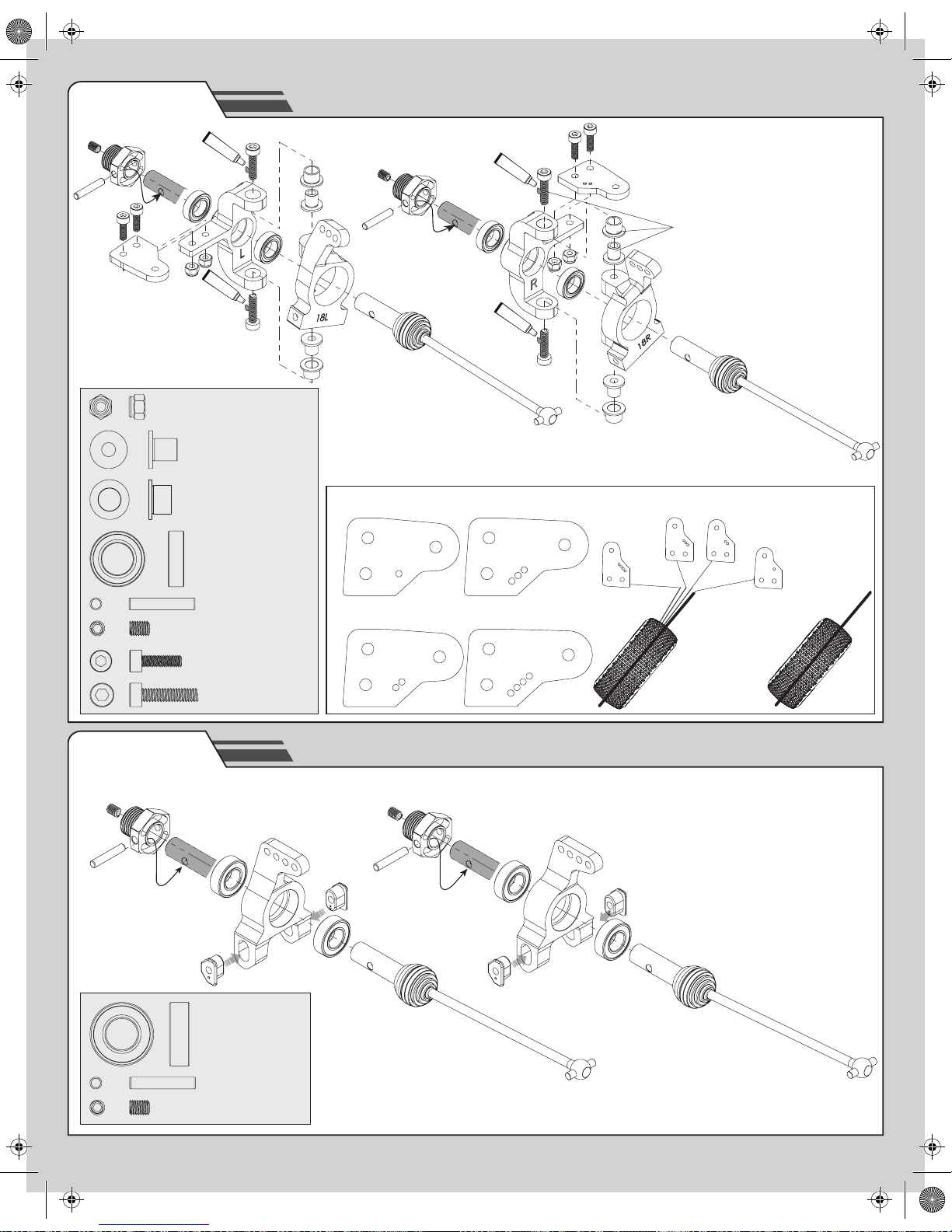

D06
Rear Hub(L) Rear Hub(R)
4x5mm Screw*2pcs
8x16x5 Bearing*4pcs
3x16.8mmPIN*2pcs
4x5
4x5
Z10074
Z10192
D05
3.5x14mm Screw*4pcs
4x5mm Screw*2pcs
8x14x4 Bearing*4pcs
3x16.8mmPIN*2pcs
3x10mm Screw*4pcs
Steering Block Bushing*4pcs
3mm Lock Nut*4pcs
Steering Block Bushing*4pcs
Front Spindle(R)
3.5x14
3x10
4x5
Front Spindle(L)
3.5x14
4x5
3x10
Z10177
Z10073
Z10109
Z10072
Z10168 Type 1(OPT) Z10170 Type 3(OPT)
Z10169 Type 2 Z10171 Type 4(OPT)
Front Steering
Rear Hub
Thread Glue
Thread Glue
Thread Glue
Thread Glue

PAGE 14
E01
E02
3mm Lock Nut*2pcs
3x44 Shaft*2pcs
3x3mm Screw*4pcs
4x8mm Screw*2pcs
3x3
4x8
3x3
4x8
4x10
4x10
3mm Lock Nut*2pcs
3x49 Shaft*2pcs
4x10mm Screw*2pcs
L
R
Z10186
Z10087
Z10088
Z10186
Front Arm Set
Rear Arm Set
Thread Glue
Thread Glue

PAGE 15

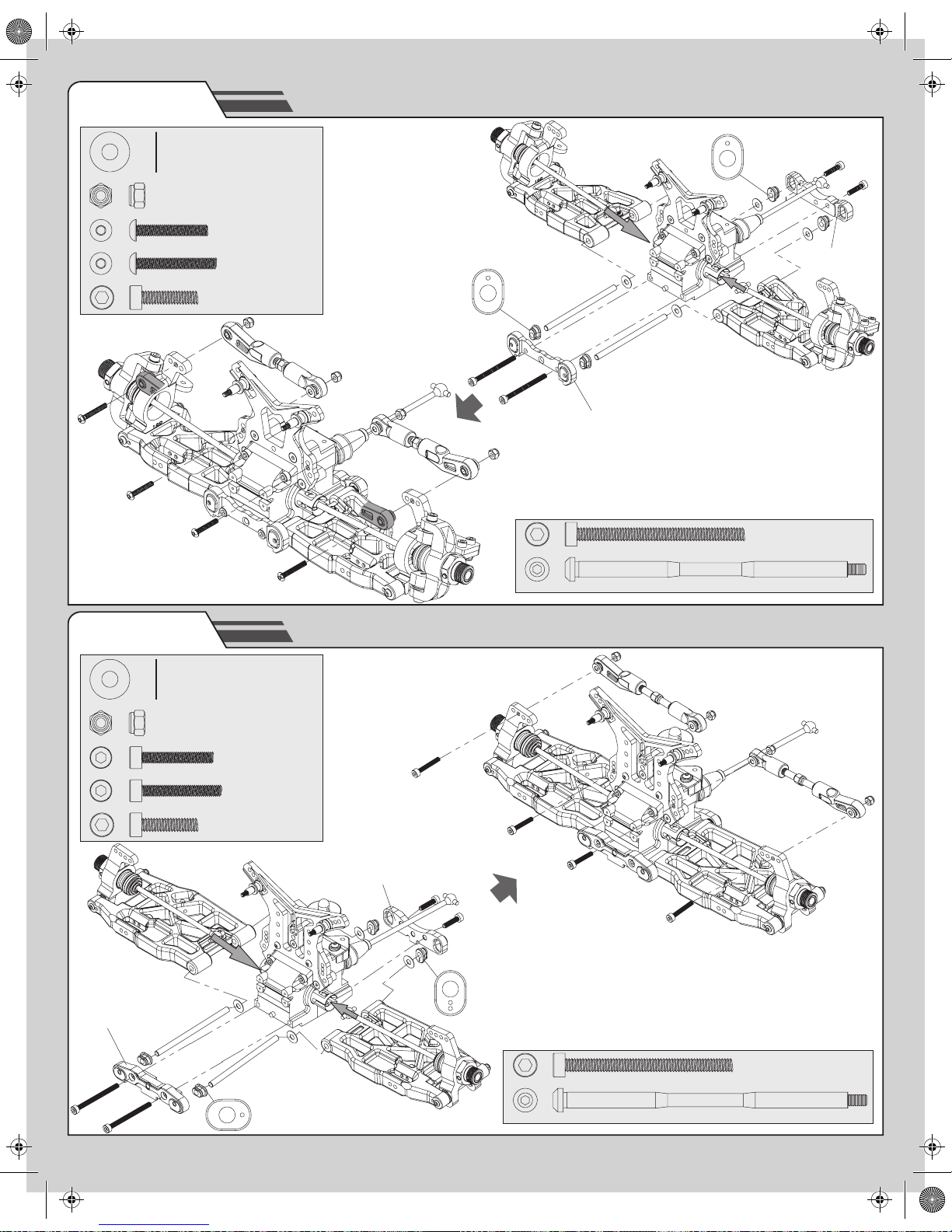

E03
E04
3mm Lock Nut*4pcs
3.5x14mm Screw*2pcs
3x20mm Screw*2pcs
3x18mm Screw*2pcs
4.05x10x0.3mm Washer*4pcs
3.5x42mm Screw*2pcs
4x68.6 Shaft*2pcs
3.5x42mm Screw*2pcs
4x71.7 Shaft*2pcs
3mm Lock Nut*4pcs
3.5x14mm Screw*2pcs
3x20mm Screw*2pcs
3x18mm Screw*2pcs
4.05x10x0.3mm Washer*4pcs
3.5x14
3.5x42
3x18
3x20
3x20
3x18
3x18
3x20
3x18
3x20
3.5x14
3.5x42
Z10192
ZZ10067
ZZ10034
Z10085
ZZ10068
ZZ10070
Front Arm Assembly
Rear Arm Assembly
Z10085

PAGE 16
E05
E06
3x18mm Screw*2pcs
2x5mm Screw*4pcs
3x5mm Screw*2pcs
3x3mm Screw*2pcs
3x18mm Screw*2pcs
2x5mm Screw*4pcs
3x5mm Screw*2pcs
3x3mm Screw*2pcs
3x3
3x5
2x5
3x18
3x3
2x5
3x5
3x18
Ø2.4
Ø2.4
2x5
2x5
Z10154
ZZ10155
Front Sway Bar
Rear Sway Bar

PAGE 17
E07
E08
Front Shock Assembly
Rear Shock Assembly
3x10mm Screw*1pcs
Left-handed Thread Screw*1pcs
3x20mm Screw*1pcs
Flanged Lock Nut M3*2pcs
3x10
Z10181
Z10007
Z10181
Left-handed Thread Screw*1pcs
3x20mm Screw*1pcs
Flanged Lock Nut M3*2pcs

PAGE 18
E09
E10
3mm Lock Nut*5pcs
3x14mm Screw*3pcs
3x20mm Screw*2pcs
Alum. 3x7x1mm Washer*2pcs
3mm Lock Nut*2pcs
3x18mm Screw*4pcs
3x20
3x14 3x14
Z10007
Z10022
Wing Mount
Wing Mount and Rear Chassis-
Anti Bending Rod

PAGE 19

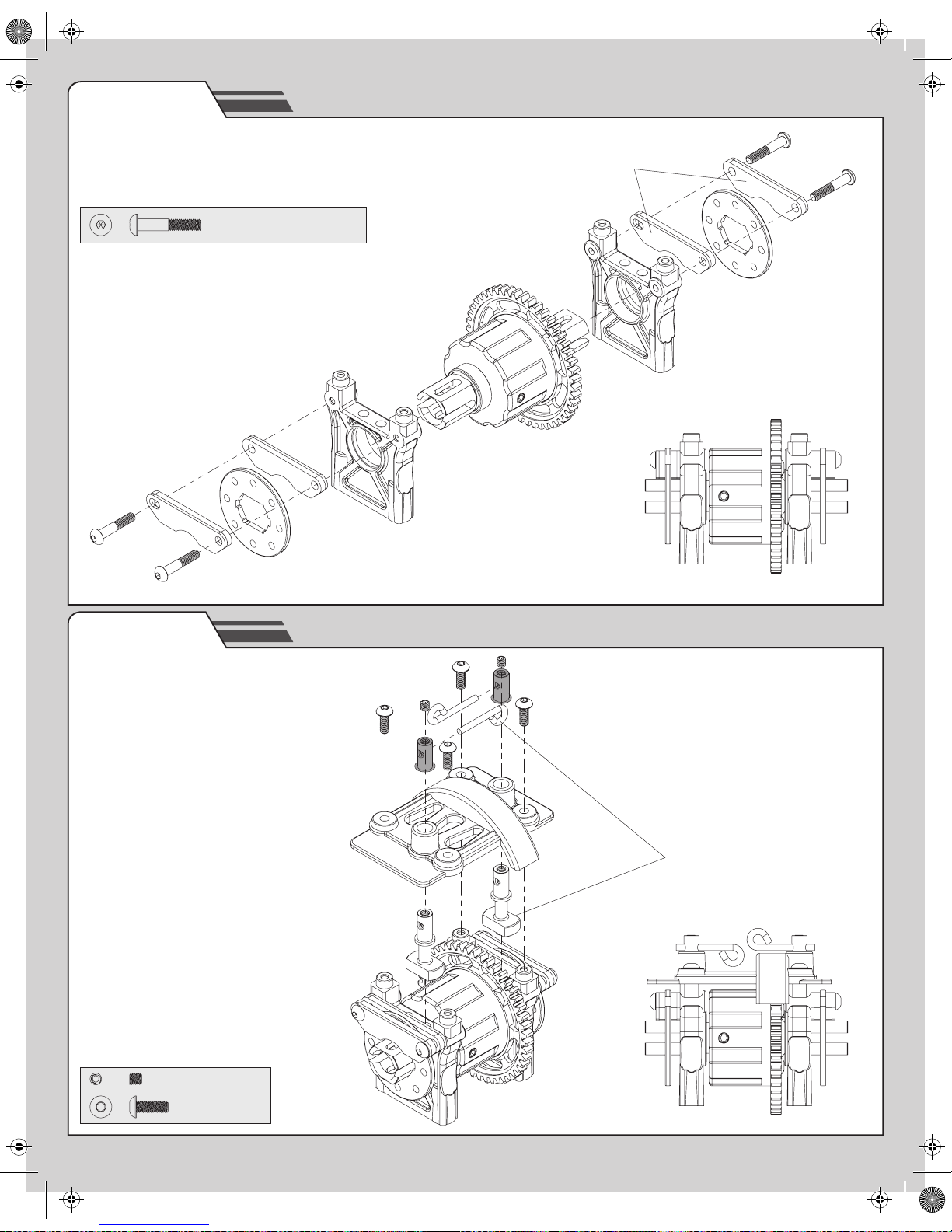

F01
F02
3x3mm Screw*2pcs
3x16mm Part Thread Screw*4pcs
3x8mm Screw*4pcs
Z10208
Z10182
Z10185
Z10021
Z10021 Z10158
Center Diffrential
Center Diff. Plate
