RADLEY 1248-202 User manual

WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR FACE
PROTECTION
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 4 volts. Nominal voltage is 3.6 volts.
3 Year Limited Warranty on tool
OWNER’S MANUAL
JD5033M
E114847

1
Speed: 200 RPM (no load)
Torque: 35–40 in. lbs.
Hex drive: ¼" (6.35 mm) magnetic quick-change chuck
Screwdriver bits: 7 X 1" (25.4mm) assorted
Battery: 4 V, 1.5 Ah Lithium-ion
Charging system:
Charging time:
Weight:
Cable with computer or cell phone USB connector
45 minutes – 5 hours depending upon USB output
1 lb. 2 oz. (0.46 kg)
NEED ASSISTANCE?
Call us on our toll- free customer support line:
1-866-349-8665 (Monday through Friday 9am – 5pm Eastern Standard Time)
•Technical questions
•Replacement parts
•Parts missing from package

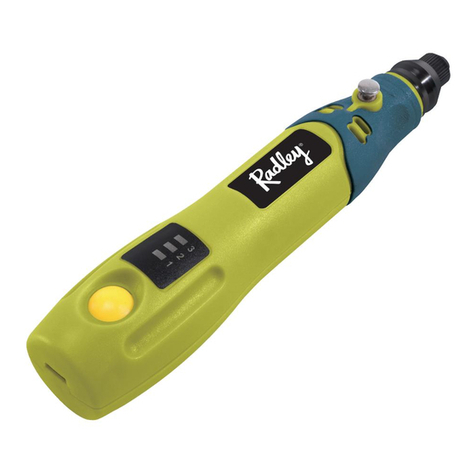

4V MAX RETRACTABLE SCREWDRIVER KIT

WARNING
Before using this tool or any of its accessories, read this manual and follow all
Safety Rules and Operating Instructions. The important precautions, safeguards and
instructions appearing in this manual are not meant to cover all possible situations.
It must be understood that common sense and caution are factors which cannot be
built into the product.
EYE, EAR, LUNG PROTECTION
SYMBOL MEANING
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH
CSA Z94.3 or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage.
Prescription eyeglasses ARE NOT a replacement for proper eye
protection. The usage of a safety standard compliant face shield
placed over proper safety glasses or goggles can reduce the
risk of facial injury.
Non-compliant eyewear can cause serious injury if broken
during the operation of a power tool.
Use hearing protection, particularly during extended periods
of operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
Dust that is created by power sanding, sawing, grinding, drilling,
and other construction activities may contain chemicals that
are known to cause cancer, birth defects, or other genetic
abnormalities. These chemicals include:
• Lead from lead-based paints
• Crystalline silica from bricks, cement, and other masonry
products
• Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies,
according to how often this type of work is performed. In order
to reduce exposure to these chemicals, work in a well-ventilated
area, and use approved safety equipment, such as a dust mask
2
1248-202
4V MAX RETRACTABLE SCREWDRIVER KIT

General Safety Warnings .......................................................................................................2
Product Specifications ......................................................................................................... 1
Eye, Ear, Lung Protection ......................................................................................................2
Table of Contents .................................................................................................................. 3
Power Tool Safety .................................................................................................................. 4
Work Area Safety ................................................................................................................... 4
Electrical Safety ..................................................................................................................... 4
Personal Safety ...................................................................................................................... 4
Power Tool Use and Care ..................................................................................................... 4
Battery Tool Use and Care ................................................................................................... 5
Service .................................................................................................................................... 5
............................................................................................................ 5
Battery and Charger Safety ................................................................................................. 6
Charging the Battery ............................................................................................................ 6
Assembly and Operation ..................................................................................................... 7
Removing a Bit From the Bit Storage Cartridge ............................................................... 7
Installing a Screwdriver Bit .................................................................................................. 7
Forward/Reverse Switch ...................................................................................................... 8
LED Work-Light ..................................................................................................................... 8
Maintenance .......................................................................................................................... 9
General .................................................................................................................................... 9
Lithium-Ion Battery Maintenance ...................................................................................... 9
Preparation for Recycling .................................................................................................... 9
Warranty ................................................................................................................................. 10
3

WARNING
Read all safety warnings and instructions. Failure to follow the warnings and instructions
Save all warnings and instructions for future reference.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
or fumes.
Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a power
or medication. A moment of inattention while operating power tools may result in
serious personal injury.
Use personal protective equipment. Always wear eye protection.
Prevent unintentional starting. Ensure the switch is in the OFF position before installing
on the switch or energizing power tools that have the switch on invites accidents.
Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
cannot be controlled with the switch is dangerous and must be repaired.
Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
4
1248-202
4V MAX RETRACTABLE SCREWDRIVER KIT

Maintain power tools. Check for misalignment or binding of moving parts, breakage of
have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
battery pack.
Under abusive conditions, liquid may be ejected from the battery; avoid contact.
seek medical help. Liquid ejected from the battery may cause irritation or burns.
SERVICE
replacement parts. This will ensure that the safety of the power tool is maintained.
This tool is NOT a toy. Do not allow young children to operate the tool, as misuse can
result in serious injury.
Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to
loss of control.
Always wear safety goggles or eye protection when using this tool.
Always check to make sure the area where screws are being driven or where holes
are being drilled does not have any hidden wiring. Contact with a "live" wire will make
exposed metal parts of the tool “live” and could result in an electric shock to the
operator.
Do not drive screws or break into existing walls or other blind areas where electrical
wiring may exist. If this situation is unavoidable, remove all fuses or disconnect all
breakers feeding the work area.
Never hold the body of the screwdriver near the switch while changing bits. Accidentally
touching the switch may start the tool and possibly cause an injury.
Always use the correct shape of screwdriver bit that matches the head of the screw.
the screw.
Do not use worn or damaged screwdriver bits. Worn or damaged screwdriver bits will
not drive the screw properly and may jump out of the screw head, causing possible
injury and damage to the workpiece.
5

WARNING
If the lithium-ion battery no longer charges properly or is damaged, the screwdriver
must not be discarded as household trash, burned or thrown into water. The screwdriver
must be disposed of as hazardous waste in accordance with all municipal requirements.
Charge the battery only with the 4V USB charging cable supplied for this 4V Li-ion
screwdriver.
For best results, charge the battery when the temperature of the battery and the work
area is at or above 0° C (32° F) and below 45° C (113° F).
WARNING
charging system may damage the battery and possibly cause serious injury.
1. To charge the battery, plug the magnetic end of the charging cable (1) into the
matching receptacle on the base of the screwdriver handle (Fig. 1).
NOTE: You do not have to be concerned about polarity, just make sure the plug is held
in place magnetically.
1 3 2
Fig. 1
2. Plug the charging cable (2) into any USB port such as computer, cell phone charger,
cube or even car (Fig. 2). The LED light (3) on the base of the screwdriver handle will
glow RED when the battery is being charged (Fig. 1). The LED will glow GREEN when
the battery is fully charged.
NOTES: a) If the LED does not glow when the USB plug is inserted into the USB port,
it means that USB port is not "live". b) The time to fully charge a depleted battery will
vary depending upon the output of the USB device being used to charge the battery.
This can vary from 45 minutes to 5 hours or more.
6
1248-202
4V MAX RETRACTABLE SCREWDRIVER KIT

REMOVING A BIT FROM THE BIT STORAGE CARTRIDGE
1. Rotate the cartridge knob (1) until the desired bit is visible in the cartridge
window (2) Fig. 2.
2 1
Fig. 2 Fig. 3
2. Pull outward on the cartridge knob until the bits are fully exposed (Fig. 3).
3. Remove the desired bit and return the cartridge to its original position within
the screwdriver.
INSTALLING A SCREWDRIVER BIT
WARNING
screwdriver bits. Accidentally touching the switch may start the tool and possibly
cause an injury.
1. Insert the screwdriver bit (1) into the collet (2) until the bit is securely held in the
collet by the magnetized collet (Fig. 4).
1 2
Fig. 4
7

FORWARD/REVERSE SWITCH
1. To drive screws, press the upper portion of the trigger switch (1) (Fig. 5).
2. To remove screws, press the lower portion of the trigger switch (2).
1 2
Fig. 5
LED WORK LIGHT
The LED work light (1) will automatically turn ON when the trigger switch is activated
(Fig. 6). It will automatically turn OFF when the trigger switch is released.
1
Fig. 6
WARNING
For safety reasons, the operator must read the sections of this Owner’s Manual entitled
“GENERAL SAFETY WARNINGS”, “POWER TOOL SAFETY”, “SPECIFIC SAFETY RULES”,
and “BATTERY AND CHARGER SAFETY” before using this screwdriver.
Every time you use the screwdriver you should verify the following:
1. Screwdriver bit is the correct type & size, not worn and not damaged in any way.
2. Workpiece is properly secured.
3. Safety glasses are being worn.
Failure to adhere to these safety rules can greatly increase the chances of injury.
8
1248-202
4V MAX RETRACTABLE SCREWDRIVER KIT

GENERAL
DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage
from various types of commercial solvents and may be damaged by their use. Use a
clean cloth to remove dirt, dust, oil, grease etc.
WARNING
come into contact with plastic parts. They contain chemicals that can damage, weaken
or destroy plastic.
WARNING
When cleaning the tool with compressed air, always wear safety goggles. Flying debris
can cause serious eye damage. DO NOT abuse power tools. Abusive practices can
damage the tool and the workpiece.
WARNING
DO NOT attempt to modify tools or create accessories. Any such alteration or
serious injury. It will also void the warranty.
Lithium-ion batteries do not have a “memory” and do not require to be completely
discharged periodically. It is recommended that you charge your Lithium-ion batteries
after each use so they will be fully charged when needed.
NOTE: A fully charged battery will lose about 2% of its charge per month during storage.
PREPARATION FOR RECYCLING
To preserve our natural resources, please recycle or dispose of this tool properly.
The battery supplied with this tool may contain chemicals and metals that are harmful
to the environment. Never dispose of rechargeable batteries in your normal household
Consult your local waste authority for information regarding available recycling and
disposal options.
WARNING
Upon removal of the battery pack, cover the terminals of the battery pack with electrical
tape or heavy-duty adhesive tape. Never touch both terminals with metal objects or
body parts, because a short circuit may result. Keep away from children. Do not attempt
to destroy or disassemble battery packs or remove any of its components. Rechargeable
batteries must be recycled or disposed of properly. Failure to comply with these
9

If this Radley Tool fails due to a defect in material or workmanship within three years
from the date of purchase, return it to any Home Hardware store with the original bill
of sale for exchange. Two years for battery and charger. This warranty does not include
expendable parts including but not limited to blades, brushes, belts and light bulbs.
This warranty covers defects in material or workmanship only. It does not cover normal
wear and tear, failure due to abuse/misuse, or defects caused by careless or accidental
mishandling. If this Radley product is used for commercial or rental purposes, this
warranty does not apply Need Assistance?
9am – 5pm Eastern Time)
Technical questions Replacement parts missing from package.
10
1248-202
4V MAX RETRACTABLE SCREWDRIVER KIT

OWNER’S MANUAL
3 Year Limited Warranty on tool
Made in China
1248-202
RADLEY TOOLS
ST. JACOBS, ONTARIO N0B 2N0
© 2021 Home Hardware Stores Limited
1-866-349-8665
Customer Service/Tech Support
This Radley®product carries a three (3) year LIMITED
warranty against defects in workmanship and materials.
See Owner’s Manual for full details.
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR FACE
PROTECTION
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 4 volts. Nominal voltage is 3.6 volts.
JD5033M
E114847
