Rage RGRC2451 User manual

197mm 140mm 110mm 1:11.47 62mm 48mm 24mm 25mm
1:24 Four Wheel Drive EP Truggy

Caution

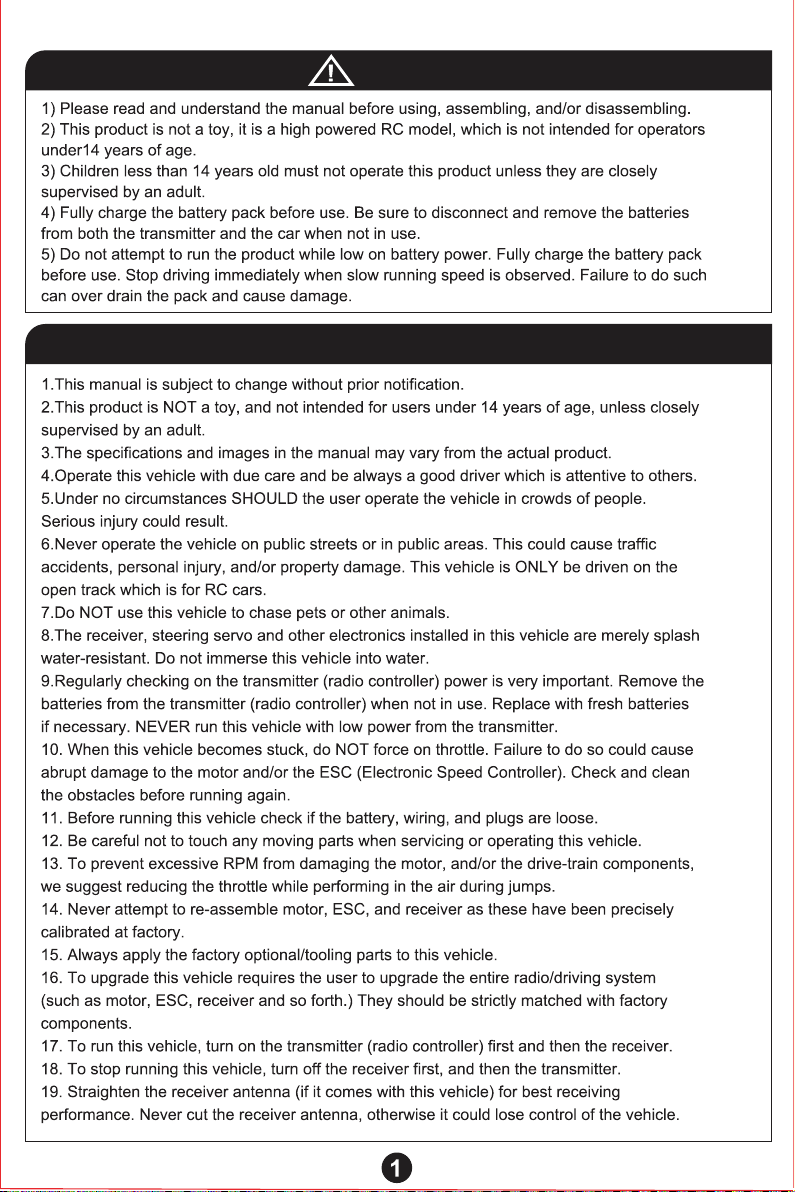

General Safety Information
1:24 Four Wheel Drive EP Truggy

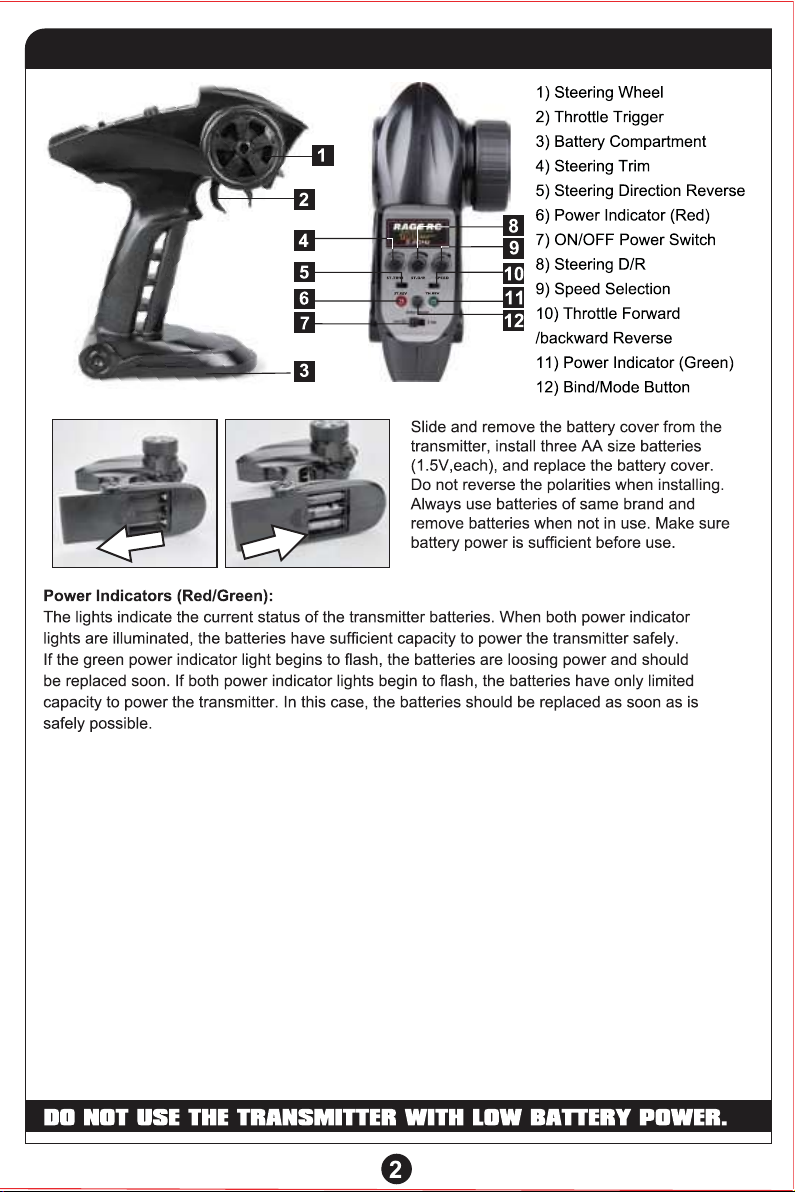

2.4GHz Transmitter Introduction

Getting Started
Pull the trigger to accelerate and release it to slow down, push
forward to apply brakes. Re-center the trigger and push
forward again to reverse.

Steering
Control
How to use the adjustable steering rate knob (ST.D/R)
The steering rate knob allows you to change the amount of steering servo travel compared to the
amount of physical movement of the steering wheel. The amount that you increase the steering
rate is proportional with how much you move the steering rate knob. The steering rate can be
adjusted while driving allowing you to fine-tune the steering during a race, ect. By increasing the
steering rate (turn the knob clockwise), you can increase the travel of the steering servo which can
reduce pushing in turns. By reducing the steering rate (turn the knob counter-clockwise), you can
make the steering servo travel less which will increase the radius of the turn.
9) Adjustable Steering Rate Steering Rate
Steering Rate

Red LED (Power LED)
Red LED (Power LED)
is solid on as long as the
charger is plugged on .(Even when no battery is load).
During charging, remains solid on ,
and flashes slowly.
becomes solid on after
the battery pack has been fully charged.
Alarm Indication :
flashes rapidly which means the battery pack is
damaged or over-discharged, which is not able
to take to charge. If it is the case, please replace
with the new battery pack.

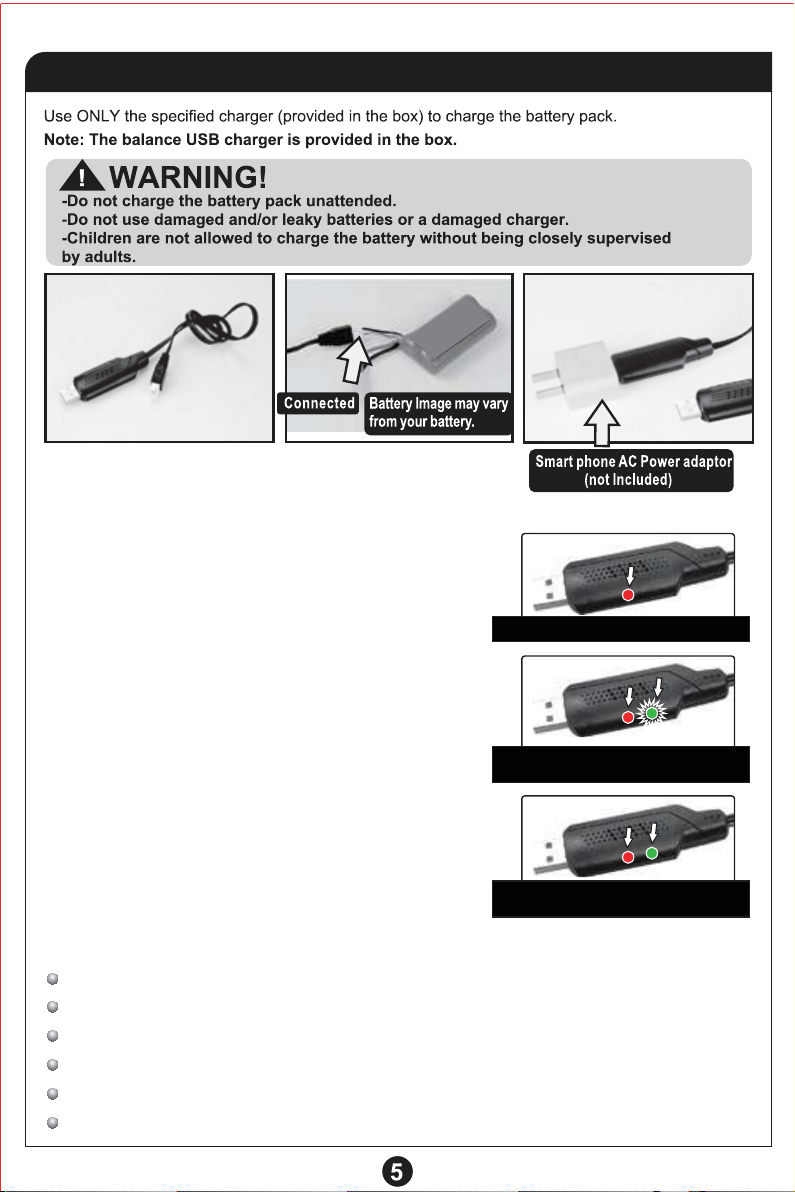

Red LED
Green LED (Charging LED)
Green LED (Charging LED)
Safety Precautions:
Always leave a dry, clean and safe place for charging.
Do not apply this USB cable to NON-rechargeable battery packs.
Do not leave unattended whilst charging.
Do not use a wet USB cable. Do not expose it to any source of heat and humidity.
Kids are not allowed charge unless they are closely supervised by adults.
Keep out of children’s reach when charging.
Charging: Green LED flashes slowly.
Red LED (Power LED) is solid on.
Malfunction: RED LED flashes rapidly.
both Red and Green LED are solid on.
Battery pack having been fully charged,
Charging Duration:
It will take 1.5 hours before your battery pack is
fully charged.
Tip: Smart phone AC POWER adaptors (5V,2A )
can be applied to reduce charging period.
Charging the Battery Pack

After Driving Instructions
Troubleshooting

Ball Stud.¶3.8
Wheel Shaft Pins (12P)
¶1.5*4.8 Wheel Shafts(4P)
PART LIST-1
Steering Hubs+Steering
Links+Servo Link+Body
Posts
Front Shock Tower+Rear
Shock Tower+Wing
Front Drive Shaft +
Rear Drive Shaft+Diff.
Outdrive Cups
Upper Deck + Servo
Cover+Gearbox Housing
Spur Gear+Diff.
Bevel Gears+Diff.Pinions
Diff.Case Housing+Drive
Gears+Motor Pinion Diff.Complete
Spoke Wheels Tires Wheels Complete Centre Drive Shaft
Chassis
Front Bumper+Battery
Cover+Wing Stay
Shock Assembly+
Steering Assembly Suspension Arms
Ball Stud.¶5.8
Diff. Shims
¶5.8*8.5*0.2 mm
7
RGRC2457RGRC2452
RGRC2456
RGRC2459 RGRC2455
RGRC2458 RGRC2460 RGRC2462
RGRC2461 RGRC2463 RGRC2464 RGRC2465
RGRC2466 RGRC2467 RGRC2468 RGRC2469
RGRC2470-1 RGRC2471-1
See your local hobby shop or place of purchase for parts availability. If necessary, parts can
be ordered direct at www.ragerc.com or call 1-866-724-3811 M-F, 9:00am to 5:00pm MT
RGRC2470-2 RGRC2471-2

Ball Bearings
¶6.35*9.53*3.2mm
PART LIST-2
Steering Posts
Rear Suspension Upper
Hinge Pins ( 12P)
Wheel Hex. Pins
(¶1.5*6.8)
Shock Springs (4P) Ball Stud.¶4.7
Rear Suspension
Arm Outside Pins (2*13mm)
8P
Lower
ESC/Receiver PCB
5-Wire Steering Servo RC 180 Motor Li-Po Battery Pack 7.4V
Lock Nut M2.5 ( P) Motor Heatsink
Ball Bearings
¶4*8*2mm
Ball Bearings
¶5*9*3mm
USB Charger
2.4GHz Radio Controller
Front/Rear Suspension
Lower Arm Inside Hinge
Pins
Headlight
8
RGRC2472 RGRC2473 RGRC2474 RGRC2477
RGRC2478 RGRC2479 RGRC2480
RGRC2475 RGRC2471-3
RGRC2487
RGRC2488RGRC2483-1
RGRC2481RGRC2484
8
RGRC2490
RGRC2492RGRC2491
RGRC2493
See your local hobby shop or place of purchase for parts availability. If necessary, parts can
be ordered direct at www.ragerc.com or call 1-866-724-3811 M-F, 9:00am to 5:00pm MT
Front/Rear
Upper Arm Hinge Pins
RGRC2483-2 RGRC2483-3

PART LIST-3
Car Body (Red) Car Body (Yellow) Body Clips (w/buckles)
Countersunk
screws 1.5x5mm
Countersunk
screws 2x3mm
Countersunk
screws 2x5mm
Countersunk self tapping
screws 2x6mm
Countersunk self tapping
screws 2x9mm
Pan Head self tapping
screws 2x6mm
Pan Head self tapping
screws 2x8mm
Pan Head self tapping
screws 2x6mm
Flange Head self tapping
screws 2x6mm
Flange Head self tapping
screws 2x9mm
12P 12P 12P 12P
12P 12P 12P 12P
12P 12P
9
RGRC2482RGRC2453YRGRC2453R
RGRC2485-1 RGRC2485-2 RGRC2485-3 RGRC2485-4
RGRC2485-5 RGRC2485-6 RGRC2485-7 RGRC2485-8
RGRC2485-9 RGRC2485-10
See your local hobby shop or place of purchase for parts availability. If necessary, parts can
be ordered direct at www.ragerc.com or call 1-866-724-3811 M-F, 9:00am to 5:00pm MT

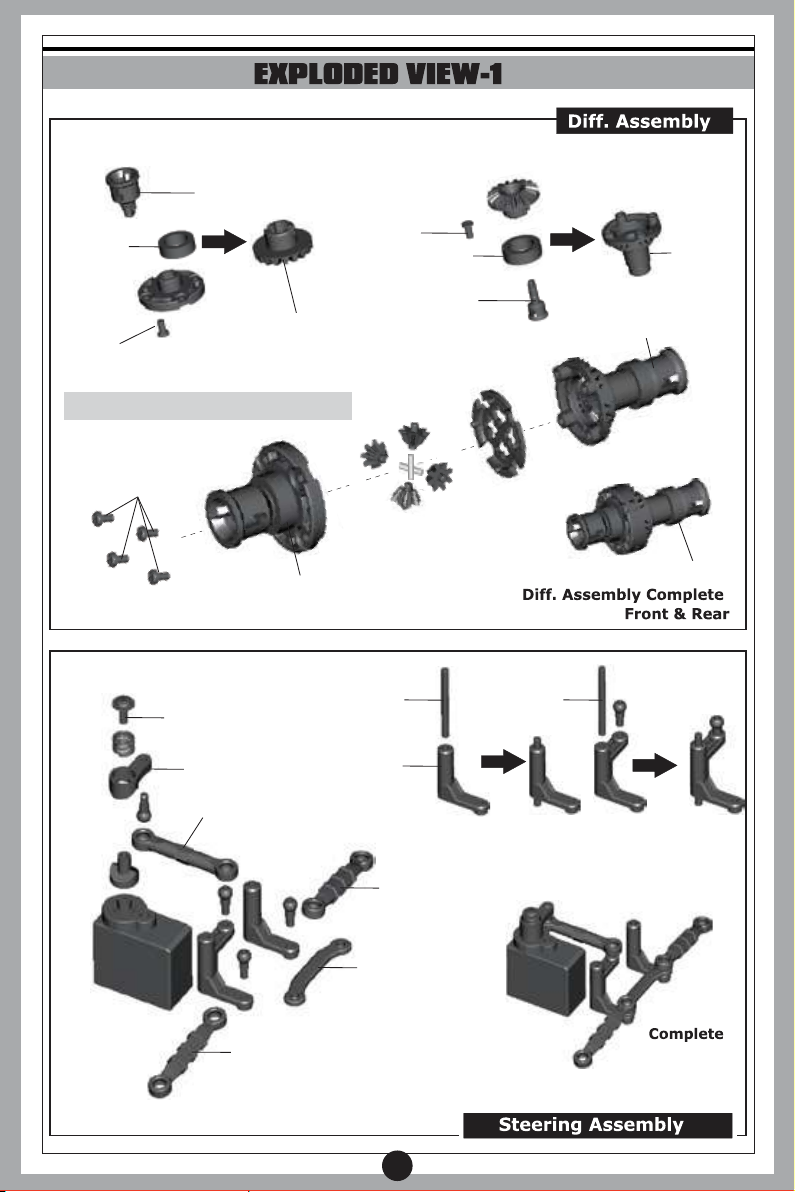

Lubricate the gears before assembling
10
RGRC2460
RGRC2460
RGRC2463
RGRC2463
RGRC2463
RGRC2464
RGRC2463
RGRC2483-3
RGRC2483-3
RGRC2472 RGRC2472
RGRC2459
RGRC2459
RGRC2456
RGRC2456
RGRC2456
RGRC2459
RGRC2485-10
RGRC2485-2
RGRC2485-1
RGRC2485-1

11

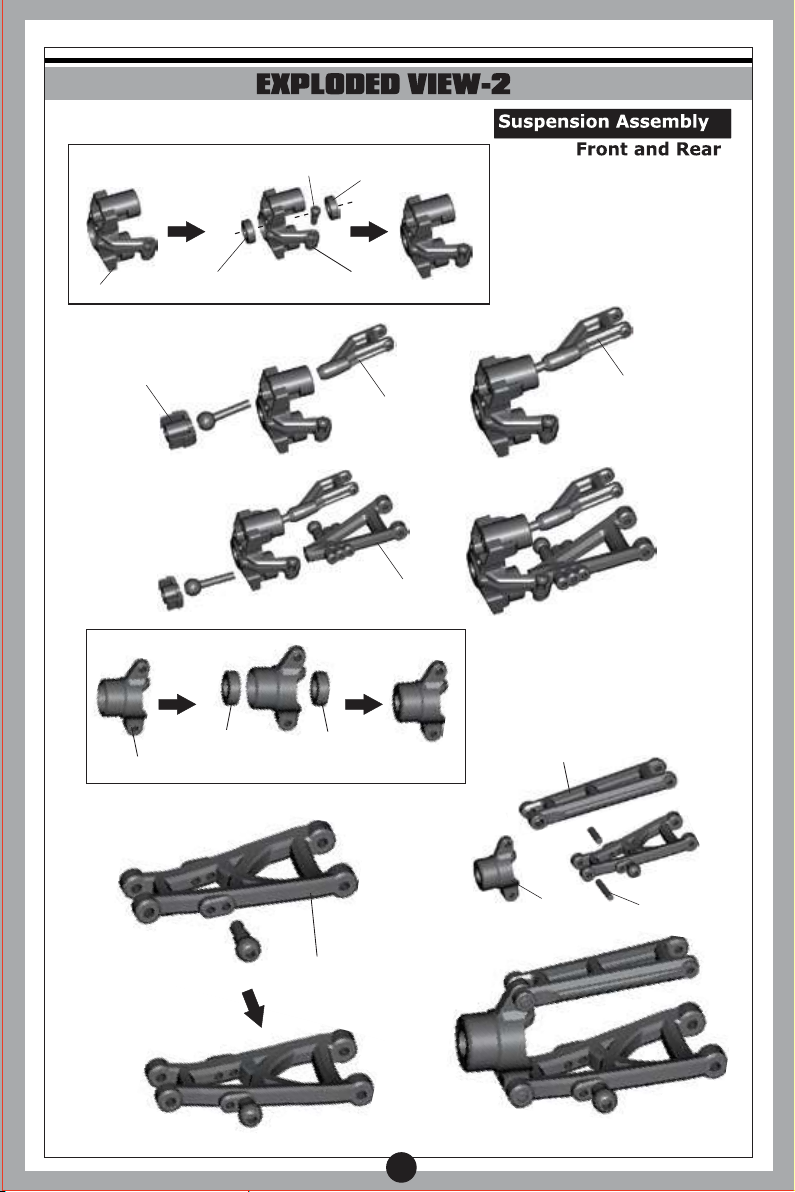

RGRC2456
RGRC2456
RGRC2456
RGRC2456
RGRC2455
RGRC2455
RGRC2455
RGRC2455
RGRC2455
RGRC2456
RGRC2483-1 RGRC2483-1
RGRC2483-1
RGRC2483-1
RGRC2471
RGRC2493

12
RGRC2464
RGRC2464
RGRC2452

13
RGRC2485-6
RGRC2485-6
RGRC2462
RGRC2462
RGRC2485-9

14
RGRC2485-6
RGRC2485-6
RGRC2485-7

15

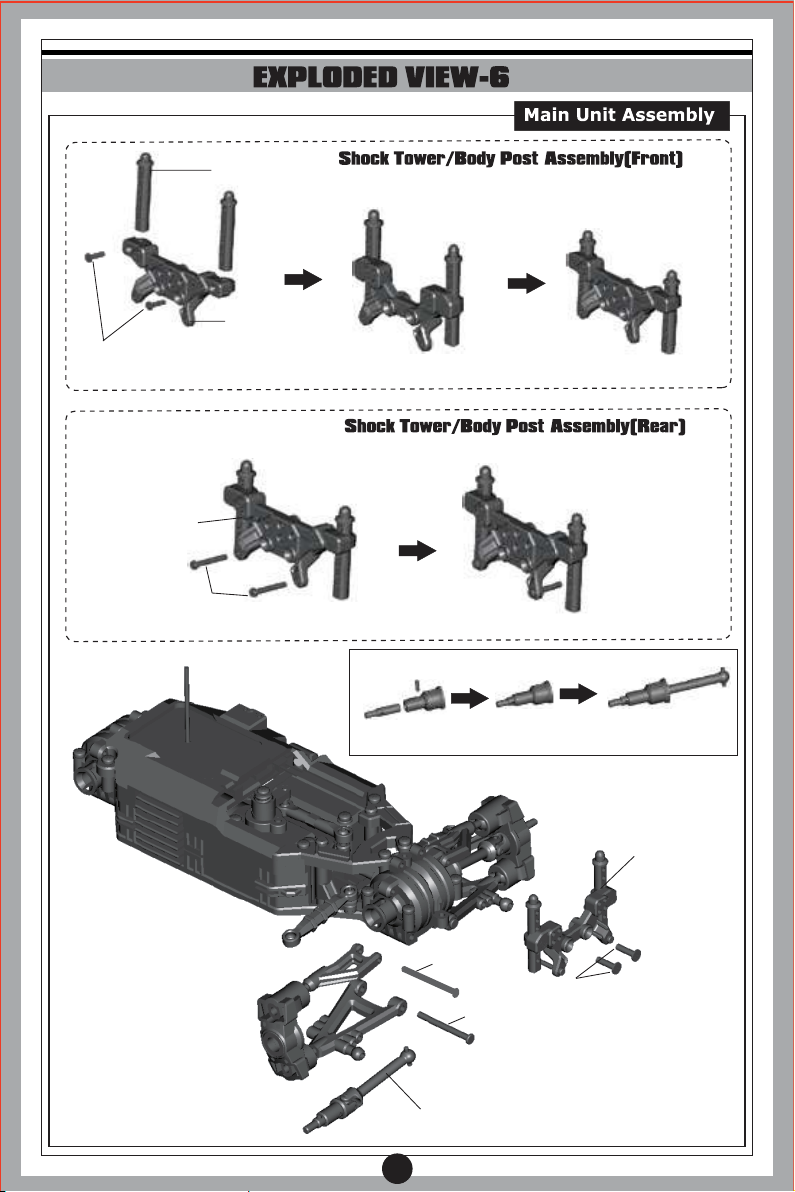

RGRC2456
RGRC2458
RGRC2458
RGRC2458
RGRC2460
RGRC2491
RGRC2485-1
RGRC2485-1
RGRC2492
RGRC2485-5

16

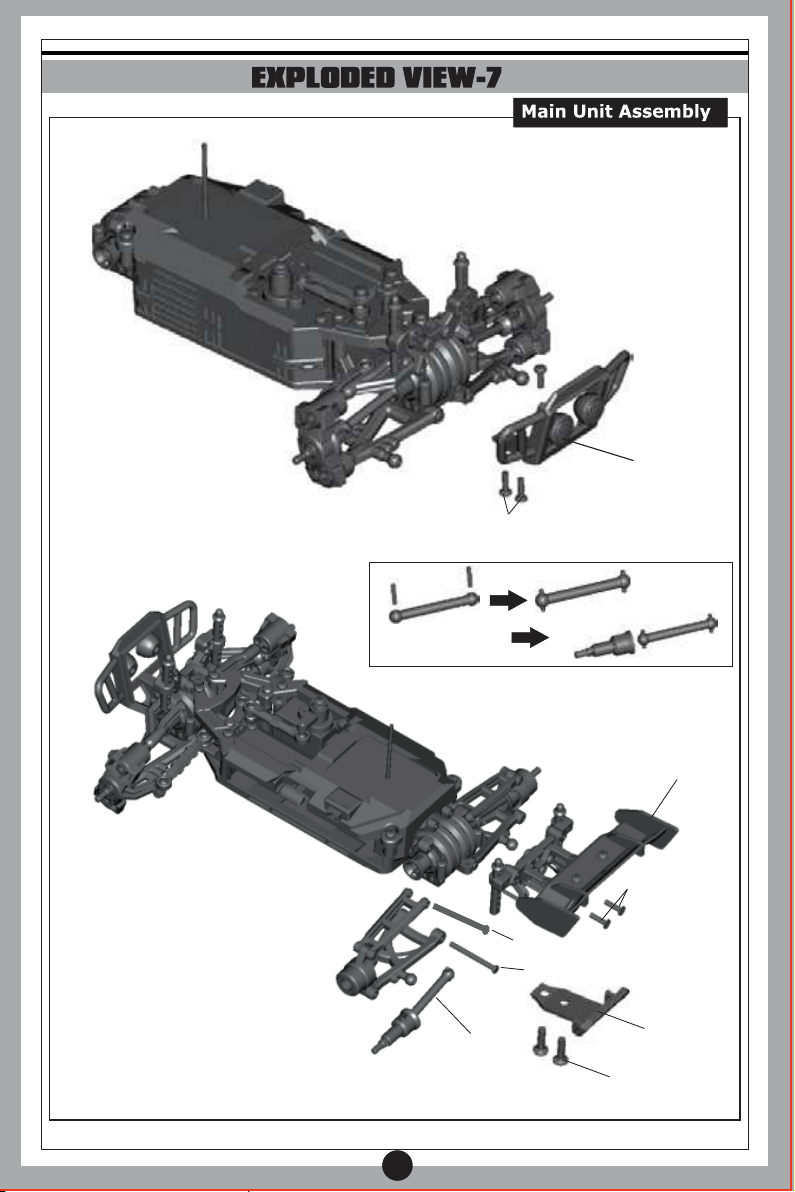

RGRC2457
RGRC2457
RGRC2460
RGRC2458
RGRC2485-5
RGRC2485-3
RGRC2485-3
RGRC2491
RGRC2492

17
RGRC2463
RGRC2463
RGRC2463
RGRC2485-7
RGRC2485-7

18
RGRC2470
RGRC2470
RGRC2468 RGRC2468
RGRC2482 RGRC2482
RGRC2482
RGRC2482
