RAMBO HG-8001E User manual

HG-8001E
ELLIPTICAL TRAINER
USER'S MANUAL

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of injury to persons, read the following important precautions and
information before operating the ELLIPTICAL TRAINER.
1. Before your starting to exercise, read the manual
carefully and also always keep this manual with you.
2. Before beginning any exercise program you should
consult your doctor first to determine if you have any
medical or physical conditions that could put your health
and safety at risk or prevent any damage. Your doctor’s
advise is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol
level.
3. Be aware of your body’s signals. Incorrect or excessive
exercise can damage your health. If you feel dizziness,
nausea, chest pain, back pain or other health symptoms
stop the workout at once and consult your doctor before
continuing.
4. Do not operate any exercise equipment if it is not
assembled well. Also you must inspect your machine
periodically to ensure your machine in good condition.
It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
5.. Keep children and pets away from the equipment. The
equipment is designed for adult use only. The
equipment is not suitable for therapeutic use.
6. Before using the machine, please check the nuts and
bolts are securely tightened.
7. Always use the equipment as mentioned. If any
defective components while assembling or checking the
equipment has been found, or you hear any unusual noises
from the equipment during use, stop immediately. Do not
use the equipment until the problem has been rectified.
8. Wear appropriate workout clothing while exercising. Do
not wear robes or other clothing that could become caught
in the machine. Running or aerobic shoes are also
required while using the machine.
9. Use the equipment on a flat level, clear surface. Do not
use the machine near the water or outdoors.
10. Keep hands away from all moving parts. While lifting
or moving the equipment, always do it carefully.
11. The equipment has been tested and certified to En957
under class H.C. for home use only.
Maximum weight of user: 120kg/270Lbs.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for person over the age of 35 or person with pre-existing health problems. Read all instructions
before using.
SAVE THESE INSTRUCTIONS
2
fitnessfaq.info

BEFORE YOU BEGIN
Thank you for selecting the revolutionary HG-8001E
ELLIPTICAL TRAINER. The HG-8001E offers an
impressive array of features to make your home workouts
more enjoyable and effective.
For your benefit, read this manual carefully before
using the ELLIPTICAL TRAINER. If you have additional
questions, please call our Customer Service Department To
help us assist you, please note the product model
number and serial number before calling. The model
number of the ELLIPTICAL TRAINER is HG-8001E. The
serial number can be found on a decal attached to the
ELLIPTICAL TRAINER. Before reading further, please

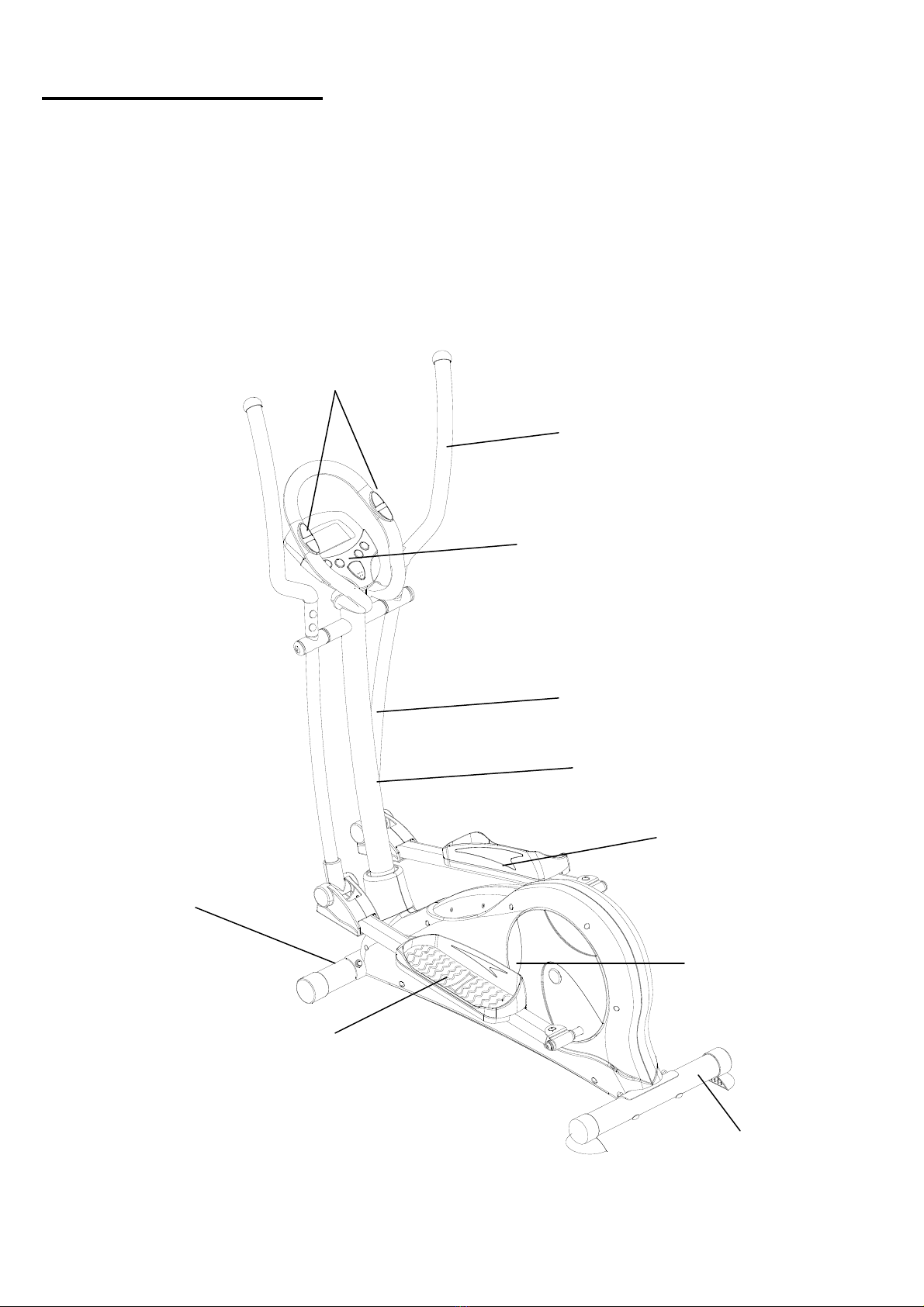

familiarize yourself with the parts that are labeled in the
drawing below.
`
`
LEFT SIDE
RIGHT SIDE
3
Computer
Hand Pulse
Upper Swing Bar
Lower Swing Bar
Upper Support
Left Pedal
Right Pedal
Main Frame
Front Stabilizer
Rear Stabilizer
fitnessfaq.info

126FUHZ
126FUHZ
12:DVKHU
¶¶7
PP$OOHQNH\ZUHQFK
126FUHZ0/
12&DS1XW0
12:DVKHU¶
¶7
126FUHZ0/
12&DUULDJHEROW0/
126SULQJ
12.QRE
12 :DVKHU¶¶7
&RPELQDWLRQ:UHQFK
PP
12&DS1XW0
12&DUULDJHEROW0/
12 :DVKHU¶¶7
12&DUULDJHEROW0/
12&DS1XW0
12:DVKHU¶¶7
ASSEMBLY
Assembly requires two people. Set the parts in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Identify your hardware
Unpacking your ELLIPTICAL TRAINER where will be using it. Being careful
Not to damage . Place your ELLIPCAL TRAINER on a level flat surface.
It is recommended that you place a protective covering on your floor.
4
fitnessfaq.info







67(3




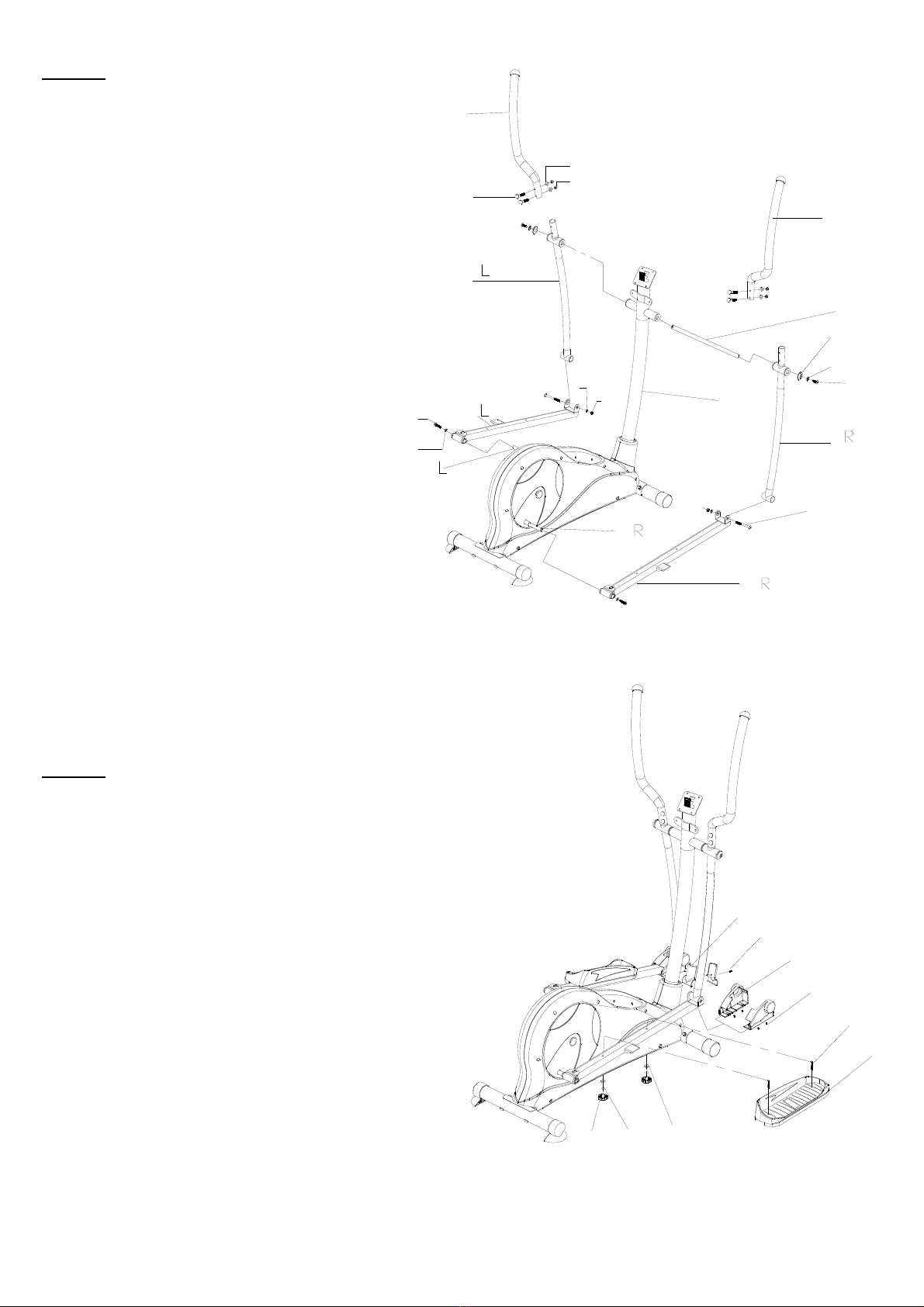

STEP 1
I. Fasten front stabilizer (73) with 2 carriage bolts
(24) from the underside of stabilizers. Secure
then with 2 washers (10) and cap nuts (11) to
main frame (45).
II. Fasten rear stabilizer (25) with 2 carriage bolts
(24) from the underside of stabilizers. And
secure them with 2 washers (10) and cap nuts
(11) to main frame (45).
STEP 2
I. Connect the upper computer cable (78) with the
lower computer cable (75) securely.
II. Put upper support (81) into main frame (45) and
secure it with washers (10 & 79) and screws
(80).
III. Attach rubber (77) and plastic cover (76) in to
main frame (45).
5




67(3



45
fitnessfaq.info

67(3





5
















 
67(3



/


5
STEP 3
I. Attach upper swing bar (6R & 6L) with
lower swing bar (12R & 12L) and fix it
with 2 carriage bolt (9), washer (10), and
cap nut (11).
II. Attach right swing bar (6R&12R) to arbor
of handlebar post (64).
III. Do the same to left swing bar (6L & 12L).
IV. Attach the end of the right pedal bar (28R)
to arbor of cross bar (22R). Secure with
washer (35) & screw (34) tightly.
V. Do the same for the left pedal bar (28L).
VI. Attach the end of right swing bar (6R &
12R) to the front of pedal bar (28R) with
screw (27), and then secure with washer
(29) and cap nut (30) tightly.
VII. Do the same for the left swing bar (6L &
12L).
STEP 4
I. Attach right pedal (17R) onto the right pedal bar with
carriage bolt (16). And secure them with washers (31),
springs (32) and knobs (33) tightly. Do the same for
the left pedal (17L).
I I . Attach the plastic cover (60) onto the front end of
pedal support and secure it with screw (60). Then attach
the plastic cover (15) and secure it with screws (46).
6

STEP 5
I. Keep the upper computer cable (78) out of upper
support (81).
II. Place handle bar (5) to metal parts (under computer (1))
on upper support (81), secure with 2 screws (66) and 2
washers (29) tightly.
III. Connect hand pulse cable (3) to back of computer (1).
Also connect the upper computer cable (78) with
computer (1).
IV. Put the computer (1) into the plate of upper support (81)
and fix it with screws (26). The machine is ready for
use.
METER OPEREATION
7
67(3







78

FUNCTION INSTRUCTION
POWER -- This model has been supplied with a power adapter. The specification for the adapter
Is 6V/1A.
AUTO ON -- Press any button or begin pedaling to automatically turn on the computer. If part of
the display malfunctions check the power adaptor and all connections.
AUTO OFF -- Without peddling the equipment after 4 minutes, the monitor will turn off
automatically.
RECOVERY -- Press this button to enter the fitness test. The ranking of the test resolute is
from F1.0 to F6.0.
USER -- Press this button to the personal data input.
ENTER
¾During the program choosing function, press this button to confirm the program you would
like to do the exercise.
¾During the setting mode, Press this button to confirm the value you would like to set up.
¾During the start mode, press this button to choose the time, speed, RPM, calorie, distance,
watt or pulse to display on the bigger digital number.
¾In the body fat measurement program, press this button to read the next result after body
exercise.
UP or DOWN
¾Press “ UP” or ”DOWN” button to select the program form Manual, Rolling, Valley, Fat Burn,
Ramp, Mountain, Intervals, User Setting Profile, Watt Control, 60% H.R.C. (Heart Rate
Control Program), 75% H.R.C., 85% H.R.C., to Body fat test.
¾Press “ UP” or ”DOWN” button to increase or decrease the setting value of Time, Distance,
Calories, height, weight, age, sex, and pulse.
¾During the start mode, Press “UP” or ”DOWN” button to increase or decrease the resistance
level.
¾Press the “START” button to start or stop exercise or begin to measure the body fat.
RESET -- Press the START/STOP button for 3 seconds to set all displayed values back to zero.
8

PROGRAM INTRUCTION
Manual Program: Manual
PROGRAM 1 is a manual program. Press “ENTER” key to select TIME, DISTANCE and CAL. Then,
Press ”UP” or ”DOWN” key to adjust the values. After pressing “START/STOP” key to exercise, please
also apply the heart rate detector appropriately. Users may exercise in any desire level (by
Pressing ”UP” or ”DOWN” Pressing the workout) with a period of time or a certain distance.
Preset Programs: Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals
PROGRAM 2 to PROGRAM 7 is the preset program. Press “ENTER” key to select TIME, DISTANCE,
and CAL. Then, press ”UP” or ”DOWN” to adjust the values. Users may exercise with different level of
loading in different intervals as the profiles show. After pressing “START/STOP” key to exercise, please
also apply the heart rate detector appropriately. Users may also exercise in any desire level (by
Pressing “UP” or “DOWN” Pressing the workout) with a period of time or a certain distance.
User Profile programs: User Setting Profile
Program 8 is the user-setting program. Users are free to edit the values in the order of TIME,
DISTANCE, CAL, and the level of loading in 10 intervals. The values and profiles will be stored in the
memory after setup. Users may also change the ongoing loading in each interval by turning the nut,
and they will not change the level of loading stored in the memory.
Speed Independent Program: Watt Control
Program 9 is a Speed Independent Program. Press “ENTER” key to select the values of TIME,
DISTANCE, and WATT. Then, Press “UP” or “DOWN” to adjust the values. After pressing
“START/STOP” key to exercise, please also apply the heart rate detector appropriately. During the
exercise, the level of loading is not adjustable. In this program, computer will adjust the level of
loading according to the value of WATT setup. For example, the level of loading may increase while
the speed is too slow. Also, the level of loading may decrease while the speed is too fast. As a
result, the calculated value of WATT will close to the value of WATT setup by users.
Heart Rate Control Programs: 60% H.R.C. (Heart Rate Control Program), 75% H.R.C., 85%
H.R.C.
Program 10 to Program 12 is the Heart Rate Control Programs. In Program 10 to Program 12, press
“Enter” key to select TIME, DISTANCE, Cal & AGE, and TARGET H.R. Then, Press “UP” or “DOWN”
to adjust the values. Users may exercise in a period of time or a certain distance with 60% Max Heart
Rate in Program10, 75% Max Heart Rate in Program 11, and 85% Max Heart Rate in Program 12.
After pressing “START/STOP” key to exercise, please also apply the heart rate detector appropriately.
Or you can choose Target H.R. working program under these 3 main programs, users may setup a
target heart rate to exercise in a period of time or a certain distance. In these programs, the computer
will adjust the level of loading according to the heart rate detected. For example, the level of loading
may increase while the heart rate detected is lower than TARGET H.R. Also, the level of loading may
decrease while the heart rate detected is higher than TARGET H.R. As a result, the user’s heart rate
will be adjusted to close the TARGET H.R. in the range of TARGET H.R. –5 and TARGET H.R. +5.
9

Body Fat Program: Body Fat Measurement
Program 13 is a special program designed to calculate users’ body fat ratio and to design a specific
loading profile for users. With 9 different body types, the computer can generate 9 different profiles for
each. Press “ENTER” key to select GENDER, HEIGHT, WEIGHT, and AGE. Then, Press “UP” or
“DOWN” to adjust the values. After pressing “START/STOP” key to calculate body fat, please also
apply the heart rate detector appropriately. If the detector cannot pick up any signals, an error
message “E3” will show up in the profile display. If it happens, press “START/STOP” key to calculate
again. Then, the calculation values of FAT%, BMR, BMI, BODY TYPE, and a designed profile will show
up shortly. Press “START/STOP” key to exercise. The profile shown in the display is specially
designed for your body type.
Fitness Test: Press the Pulse Recovery Button
The fitness note is for personal orientation and compares the pulse rate before and after training. You
will notice that your fitness will improve when exercising regularly.
¾Press the pulse recovery button directly after a training session.
¾Hold the hand on pulse connections or leave the chest transmitter attached.
¾Time will count down from 60 to 0 seconds.
¾Your personal fitness note appears (F1.0 – F6.0) on the display.
F1.0 = Excellent
F2.0=Good
F3.0 = Fair
F4.0=belowaverage
F5.0=NoGood
F6.0 = Poor
10

OPERATION INSTRUCTION
Plug in the power
Plug in the adaptor to the equipment. The monitor will produce a beep sound and turn on the
monitor.
Determine the User (Only Can Process in the STOP Mode.)
¾Press the User button to the USER DATA, only can use on the stop mode.
¾Press the Enter to the USER SELECT.
¾Press “ UP” or ”DOWN” button to select the User from U1 to U4.
¾Press the Enter to decide the User.
¾Press “ UP” or ”DOWN” button to set up your height, and then press the Enter to confirm your
setting value.
¾Press “ UP” or ”DOWN” button to set up your weight, and then press the Enter to confirm your
setting value.
¾Press “ UP” or ”DOWN” button to set up your age, and then press the Enter to confirm your
setting value.
¾Press “ UP” or ”DOWN” to set up your sex, and then press the Enter to confirm you are M
(male) or F (female).
¾Finish the user data input.

Program select and setting value
C-1 Manual Program
¾Press “ UP” or ”DOWN” button to select the Manual program, Press the Enter Button to
confirm the manual program.
¾The Time display will flash, and then press “ UP” or ”DOWN” to set up the desired time to do
the exercise. Press “ENTER “button to confirm your setting value.
¾The distance display will flash, and then press “ UP” or ”DOWN” button to set up the desired
distance value. Press “ENTER” button to confirm your setting value.
¾The Calories display will flash, and then press “ UP” or “DOWN” button to set up the desired
calories to be consumed. Press “ENTER” button to confirm your setting value.
¾Press the start/stop to begin exercise.
Note:
I. Time and distance cannot set up at the same time in this program.
II. When you reach the target, the monitor will produce beep sound and then stop.
III. If you set up more than one target and you would like to reach next target, press start to
exercise again.
11

C-2 Preset Program: Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals Program
¾Press “ UP” or ”DOWN” to select one of the above programs, Press the Enter Button to enter
this program.
¾The Time display will flash, and then press “ UP” or ”DOWN” button to set up the desired time
to do the exercise. Press ENTER button to confirm your setting value.
¾The distance display will flash, and then press “ UP” or ”DOWN” button to set up the desired
distance value. Press ENTER button to confirm your setting value.
¾The Calories display will flash, and then press “ UP” or ”DOWN” button to set up the desired
calories to be consumed. Press ENTER button to confirm your setting value.
¾Press the start/stop to begin exercise.
Note:
I. Time and distance cannot set up at the same time in this program.
When you reach the target, the monitor will produce beep sound and then stop.
II. If you set up more than one target and you would like to reach next target, press start to
exercise again.
C-3 User Setting Profile
¾Press “ UP” or ”DOWN” button to USER PROFILE.
¾Press the Enter Button to enter this program.
¾The Time display will flash, and then press “ UP” or “DOWN” button to set up the desired time
to do the exercise. Press “ENTER” button to confirm your setting value.
¾The distance display will flash, and then press “ UP” or “DOWN” button to set up the desired
distance value. Press “ENTER” button to confirm your setting value.
¾The Calories display will flash, and then press “ UP” or “DOWN” button to set up the desired
calories to be consumed. Press ENTER button to confirm your setting value.
¾The column 1 will flash, and then press “ UP” or “DOWN” button to create your personal
exercise profile.
¾Press the Enter button to confirm your first column of your exercise profile.
¾The column 2 will flash, and then press “ UP” or “DOWN” button to create your personal
exercise profile.
¾Press the Enter button to confirm your second column of your exercise profile.
¾Follow the above descriptions to finish your personal exercise profile.
¾Press the START/ST0P to begin exercise.
Note:
I. Your personal exercise profile will be stored in the memory of the monitor.
II. Time and distance cannot set up at the same time in this program.
III. When you reach the target, the monitor will produce beep sound and then stop.
IV. If you set up more than one target and you would like to reach next target, press start to
exercise again.
12

C-4 Watt Control Program
¾Press “ UP” or ”DOWN” button to select the watt control program.
¾Press the Enter Button to choose the manual program.
¾The Time display will flash, and then press “ UP” or ”DOWN” button to set up the desired
time to do the exercise. Press “ENTER” button to confirm your setting value.
¾The distance display will flash, and then press “ UP” or ”DOWN” button to set up the desired
distance value. Press “ENTER” button to confirm your setting value.
¾The Calories display will flash, and then press “ UP” or ”DOWN” button to set up the desired
calories to be consumed. Press ENTER button to confirm your setting value.
¾The watt display will flash, and then press “ UP” or ”DOWN” button to set up the watt to do
the exercise. Press “ENTER” button to confirm your setting value.
¾Press the start/stop button to begin exercise.
Hint:
WATT = TORQUE (KGM) * RPM *1.03. In this program, the WATT value will keep constant
value. It means that if you peddle quickly, the load will decrease and if you peddle slowly, the
load will increase. Always try to keep you in the same watt value.
Note:
I. Time and distance cannot set up at the same time in this program.
II. When you reach the target, the monitor will produce beep sound and then stop.
III. If you set up more than one target and you would like to reach next target, press start to
exercise again.
C-5 HEART RATE CONTROL PROGRAM: 60% H.R.C., 75%H.R.C., and 85% H.R.C.
¾Press the “ UP” or ”DOWN” button to select one of the heart rate control program, Press the
Enter Button to confirm your choice.
¾The Time display will flash, and then press “ UP” or ”DOWN” button to set up the desired time
to do the exercise. Press “Enter” button to confirm your setting value.
¾The distance display will flash, and then press “ UP” or ”DOWN” button to set up the desired
distance value. Press “ENTER” button to confirm you setting value.
¾The Calories display will flash, and then press “ UP” or ”DOWN” button to set up the desired
calories to be consumed. Press “ENTER” button to confirm your setting value.
¾The Age display will flash, and then press “ UP” or ”DOWN” button to set up your age. Press
“ENTER” button to confirm your setting value.
¾The T. H.R. (Target Heart rate) display will flash. Please check this number is suitable for you.
If you do not want to use this value for your target, you can press “ UP” or “DOWN” button to
set up the desired target heart rate you would like to keep during your exercise.
¾Press the start/stop to begin exercise.
Note:
I. Time and distance cannot set up at the same time in this program.
13

II. When you reach the target, the monitor will produce beep sound and then stop.
III. If you set up more than one target and you would like to reach next target, press start to
exercise again.
C-6 Body fat measurement
¾Press “ UP” or ”DOWN” button to select BODY FAT TEST program, Press the ENTER Button
to confirm your choice.
¾The HEIGHT display will flash, and then press “ UP” or ”DOWN” button to set up your height.
Press “ENTER” button to confirm your setting value.
¾The weight display will flash, and then press “ UP” or ”DOWN” button to set up your height.
Press “ENTER” button to confirm your setting value.
¾The AGE display will flash, and then press “ UP” or ”DOWN” button to set up your sex. Press
“ENTER” button to confirm your setting value.
¾The gender display will flash, and then press “ UP” or ”DOWN” button to set up your gender.
Press “ENTER” button to confirm your setting value.
¾Press START/STOP button to begin body fat measurement.
¾After finished your measurement, press the “ENTER” button to check your test results.
¾To quit this program, press “ UP” or ”DOWN” button to select your desired program.
Note:
The personal data will recall from USER SETTING DATE. If the data is correct, just simply press
the ENTER button to confirm the values. In this program, your personal data will not store in our
memory. If you need to change your personal data, please press the USER button to change
your personal information,
14

Things You Should Know Before Exercising
A. The values calculated or measured by the computer are for exercise purpose only,
not for medical purpose.
B. The Variables may need to change in the Programs:
x
x
x
The pre-set data will begin to count down after you start pedaling. Once a pre-set has been
reached the computer will beep and end the training program.
C. Body Types
There are 5 body types divided according to the FAT% calculated. Type 1 is from 5% to 14%.
Type 2 is from 15% to 24%. Type 3 is from 25% to 29%. Type 4 is from 30% to 39%. Type 5 is
from 40% to 50%.
D. BMR
Basal Metabolic Rate (metabolism) is the energy (measured in calories) expended by the body at
rest to maintain normal bodily function.
E. BMI
BMI means Body Mass Index, which is used for body shape adjustment.
F. FAT W E I G H T
The total body fat in our body measured by Kilogram.
Programs Variables
P1 ~ P7 TIME, DISTANCE, CAL
P8 TIME, DISTANCE, CAL, 10 Intervals
P9 TIME, DISTANCE, WATT.
P10 ~ P12 TIME, DISTANCE, CAL, AGE, TARGET HR
P13 GENDER, HEIGHT, WEIGHT, AGE
15

TRAINING INSTRUCTION
To achieve a considerable improvement of your physical resistance and your health, some
aspects of how to find the most efficient amount of training should be followed:
If you have not been physically active for a longer period of time and also avoid health risks
you should consult your general physician before starting exercise.
INTENSITY
To achieve maximum results the right intensity has to be chosen. The heart rate is used as guideline.
As a rule of thumb, the following formula is commonly used:
Maximum pulse rate=220-Age
While exercising the pulse rate should always be between 60и~85иof the maximum pulse rate.
When starting to exercise, you should keep your rate at 60% of your maximum pulse rate in the first
couple of weeks. With increasing improvement of fitness, the pulse rate should be slowly increased to
85% of your maximum pulse rate.
FAT BURING
The body starts to burn fat at approx. 60% of the maximum pulse rate. To reach an optimum at burning
rate, it is advisable to keep the pulse rate between 60%~70% of the maximum pulse rate. The optimum
training amount consists of three workouts per week 30 minutes each.
Example: You are 52 years of age would like to start exercising.
Maximum pulse rate=220-52(age) =168 pulse/min
Minimum pulse rate=168x 0.6=101 pulse/min
Highest pulse rate=168x0.7=117 pulse/min
During the first week it is advisable to start with a pulse rate of 101, afterwards increase it to 117. With
increasing improvement of fitness the training intensity should be increased to 70%~85% of your
maximum pulse rate. This can be done by increasing the resistance, a higher frequency or longer
training period.
16

Trainings hints
With buying this training item you have done the first step for healthy fitness. With the help of this item you can exercise your
muscles at home every time you feel like.
Further is the exercise good for your health as the training is also good for your endurance.
Goal of training :
Building of muscles
General fitness
Endurance
Better feeling
The training success is mainly depending on the following points.
Continuous training
Good nourishment
Control of training progress
Who can exercise?
Generally every healthy person, young or old, can start to exercise.
Capacity:
The body, especially the heard and the circulation, need time to adapt to the new circumstances.
Because of this reason it is really important to start really slowly with the training and to make brakes between and after the
training. Only exercise on a training level where you don’t reach your limit.
Start to exercise in a tempo that you feel comfortable with. After continuous training you can extend your training or adjust the
item to a higher level.
Important:
Start your exercise slowly and increase intensity of exercises gradually. You have a lot of time as you do your exercise at
home. You have to do some warming –up without item before training.
Start and end your training with a little expenditure or energy. After training you should also do some stretching.
Tips for a successful and healthy training:
·Always remember that the training with your item can be really helpful for your health if you follow the important rules.
It is not helpful to do some exercises in a short time, but in long-term and continuously.
·Please wear comfortable cloth, we propose to wear sporting cloth.
·Never exercise with a full stomach. Do not have a meal about one hour before and after the training.
·Do not exercise if you are already tired or feel exhausted.
·Always remember that your body needs enough liquid if you exercise.
You should follow this necessity.
17

Training:
Warming up should generally be done with every sportive activity. All physical and psychically components will be stimulated
and increased; further the risk or injury will be decreased. With the following exercises you will warm up the muscle groups,
this succeed the best by moving.
Run for about 5-10 minutes calmly on one place or through the room. You can jump in between a couple of times.
Stretching:
Following exercises are light but appropriate movements, which will wake up your body,
stimulate your circulation and make your ankles more flexible.
Please do these warming up exercises more than once before starting your training.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you
stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles. 18

8001E PARTS LIST
PART# DESCRIPTION Qty PART# DESCRIPTION Qty
1 Computer 1 43 10*16*22mml Tube 1
2 Hand Sponge 1 44 Power Plug 1
3 Hand Pulse Cable 1 45 Main Frame 1
4 Hand Pulse 2 46 Screw 9
5 Handle Bar 1 47 Sensor Set 1
6 Upper Swing Bar(R+L) 1 48 Screw 4
7 End Cap 2 49 Motor Plug 1
8 Upper Swing Sponges(R+L) 1 50 17x22x3 Washer 2
9 M8x35 mml Carriage Bolt 4 51 Belt Wheel 1
10 8x19x1.5 mmT Washer 14 52 Arbor 1
11 M8 Cap Nut 8 53 M8x15Lx1.25 Screw 3
12 Lower Swing Bar (R+L) 1 54 Screw 8
13 10x26x8 Washer 4 55 M5*15 4
14 Plastic Cover (Front+ Rear) 2 56 M4.5*25 5
15 Plastic Cover (R+L) 2 57 Plastic Cover 1
16 M6 Carriage Bolt 4 58 Screw 4
17 Pedals (R+L) 1 59 Crank Cover 2
18 Cover (R+L) 1 60 Screw 2
19 Rubber 2 61 Cap Nut 2
20 M8x25L Washer 2 62 8x16x1.5 Washer 2
21 Chain Cover (R+L) 1 63 Tube 2
22 Crank (R+L) 1 64 Arbor 1
23 Rear End Cap 2 65 19x38 Tube 6
24 8x70mml Carriage Bolt 4 66 Screw 2
25 Rear Stabilizer 1 67 3/8” Nut 2
26 Screw 4 68 10x19x3 Washer 2
27 10x78mml Screw 2 69 Chain Adjuster Set 2
28 Pedal Support (R+L) 1 70 Belt 1
29 8x19x2mmT Washer 4 71 Fly Wheel 1
30 M10 Cap Nut 3 72 Front End Cap 2
31 6x14x1 Washer 4 73 Front Stabilizer 1
32 Spring 4 74 Motor 1
33 Knob 4 75 Lower Computer Cable 1
34 Screw 2 76 Plastic Cover 1
35 Washer 2 77 Rubber 1
36 Screw 2 78 Upper Computer Cable 1
37 Tube 4 79 Washer 6
38 Washer 2 80 8x15mmlx1.25 (5mm) Screw 6
39 Nut 2 81 Upper Support 1
40 Spring 2 78 Upper Computer Cable 1
41 10x38mml Screw 1 79 Washer 6
42 Bearing 4
19

EXPLODED DRAWING Model No. 8001E
20


/
























 








       





























727$//<(;3/2'(
5






