DIGIMAT Wireless Nurse Call system

1
Wireless Nurse Call
systems
Contents
1. General Overview and functions...................................................2
2. System Contents…………………………………………………..5
3. System Installation and setup……….............................................8
3.1. Bedhead Call Unit..............................................................8
3.2. Handset Unit.......................................................................9
3.3. WC/ Bathroom Call Unit.................................................10
3.4. Door Mounted Warning Lamp.......................................11
3.5. Nurse Call Panel ..............................................................12
4. Possible problems and solutions...................................................18
5. Warranty conditions ……………………………………………23
6. Points to take under consideration ……………………………..24
7. Service Stations ………………………………………………….25

2
Wireless Nurse Call
systems
1. General Overview and functions
Digimat Wireless Nurse Call Systems, has been designed and manufactured
for the purpose of informing the personals working in hospitals, health care
institutions and home cares of an a emergency situations immediately, shortening
patient's waiting for intervention period and responding to patient requests
quickly.
The products is suitable for use in the hospital environment. In the bedhead
call units and handset buttons, calls can be made by pressing the section with the
nurse's picture. WC/ Bathroom buttons are conveniently manufactured for wet
walls. In order to use the WC/ bathroom buttons the patient shall only have to pull
the cord handle. All made calls are displayed as room numbers on the LED
Display (dashboard). The created calls are listed in order with the last call shown
in large size on the home screen and the other calls shown in small size on the
side screen. In case of another emergency call comes, this call will be displayed
on the main screen and the old last call goes to the side screen at the top of the
other calls.
When the nurse call button is pressed, the door mounted lamp lights up red
and the assigned room number lights up on the display, moreover an audio
warning is produced. The nurse sees either the red light on the warning lamp or
the number of the room that made the call and goes to handle the situation.
When she enters the room she should press the green tick symbol on the
bedhead call unit, this way the red light of the door lamp and the related display
leds turns to green indicating that there is a nurse in the room. After the nurse
finishes with the patient she should press the green tick once more. By doing that
the call will be cleared from the display and the warning lamp shut off.

3
Wireless Nurse Call
systems
If the nurse finds the situation needs an emergency help shecould firstpress
the green tick icon then the nurse call button on the bedhead unit. This case, the
assigned room number on the display room will appear with the word
"EMERGENCY" and the display's LED will light with blue, while the warning
lamp will flash with blue color. And as always by pressing the green tick icon
after the intervention has been made, the call will be cleared from the display and
the lamp turns off.
In case of an emergency call the panel produces a short discontinuous sound
whereas in case of a normal nurse call produces long discontinuous sound.

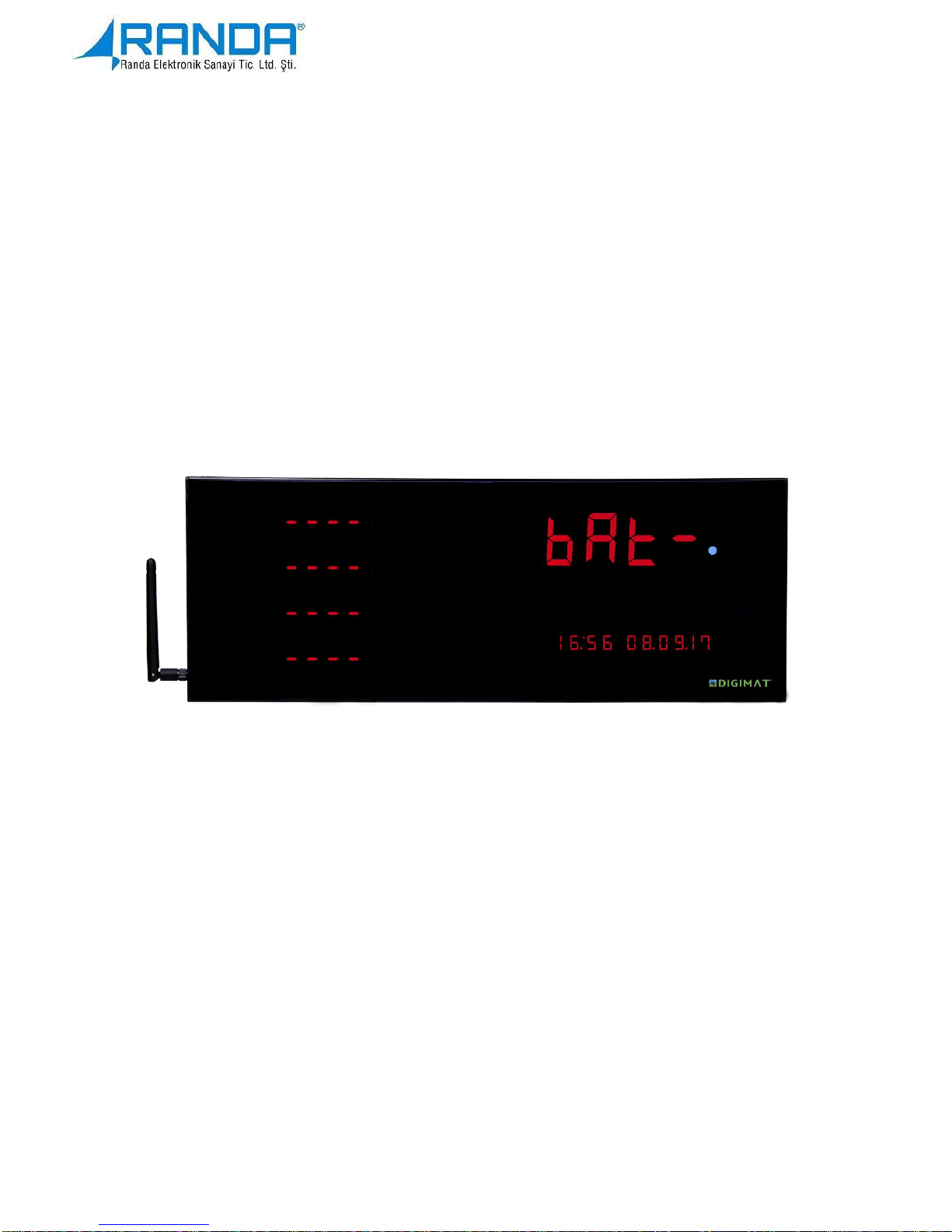

The panel produces a specific warning as an indication of low battery.
Confusion in emergency calls is avoided in hospitals.
It provides the immediate notification in case of emergency situations that
require an urgent intervention.
It ensures the rapid responding to the patient's requests.
Using this System

4
Wireless Nurse Call
systems
2. System Contents
Bedhead Call Unit
It is the unit that gives a light and audio
warning that allows the nurse to be called
from the patient's room. It performs the
call initiation and termination.
Features:
This product is also where to the handset call
unit is connected.
It has an ergonomic structure so that it can be
attached to the built-in junction boxes.
The RJ45 socket allows easy installation.
ABS raw material used.
Handset Call Unit
In cases where the patient is not able to
use the bed head call unit, he can use this
handset device without having to get up
of his bed.
Features:
It has a continuously illuminated nurse call
button, and a button to control the room
lighting and book reading lamp.
It has a cable to connect it to the bedhead
call unit.

5
Wireless Nurse Call
systems
WC / Bathroom Call Unit
It is a corded device that is used to
initiate an emergency call from WC/
bathroom in patients' rooms.
Features:
It has a fabric cord that ends with a
plastic handle which makes it easy to
pull and a make an emergency call
Its box designed to be easy fixed on wet
walls

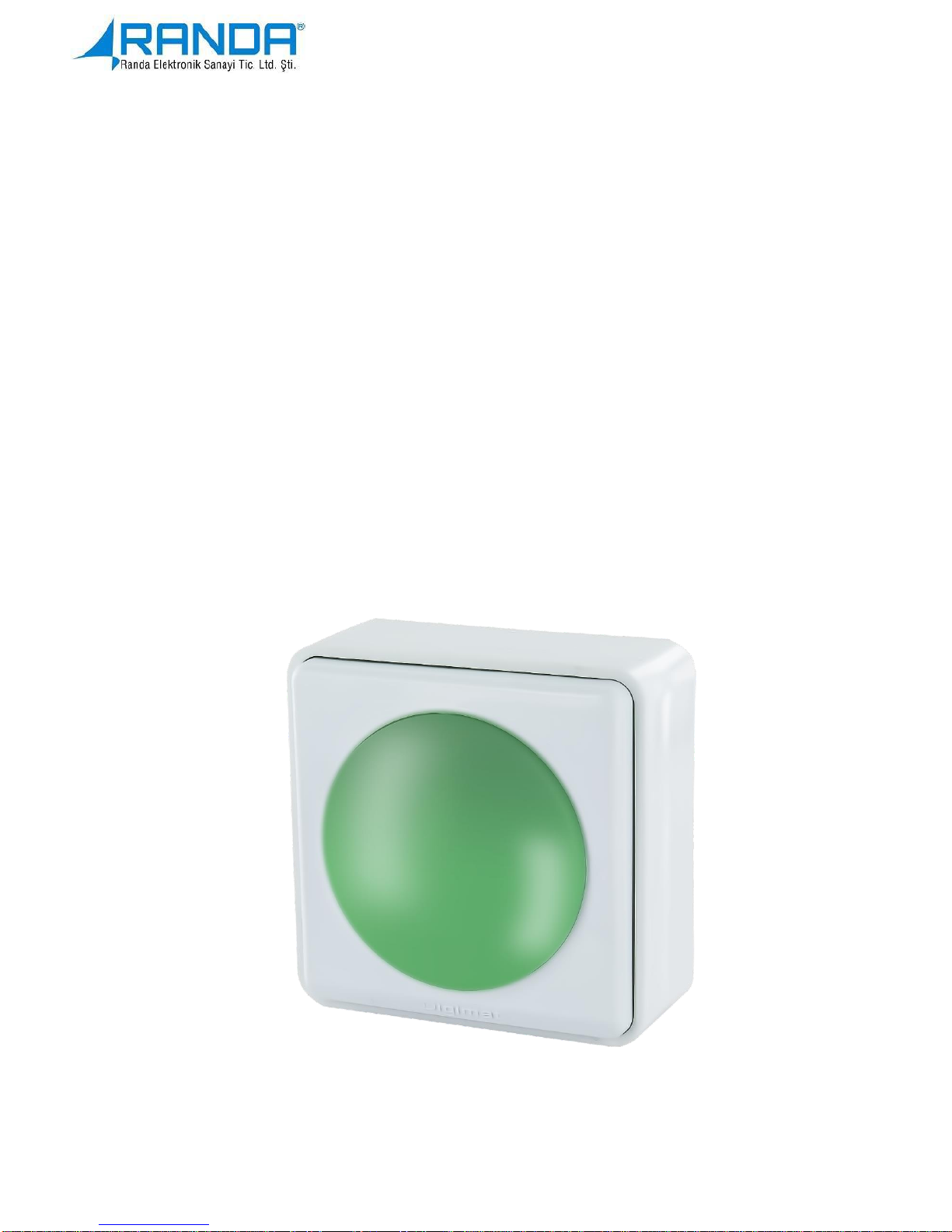

Door Mounted Corridor Lamp
It is a warning lamp which can light with
different colors according to the call
situation made from the patient's room.
Features:
It can light up with three colors, red, green and blue.
Can easily be mounted over the room’s door.

6
Wireless Nurse Call
systems

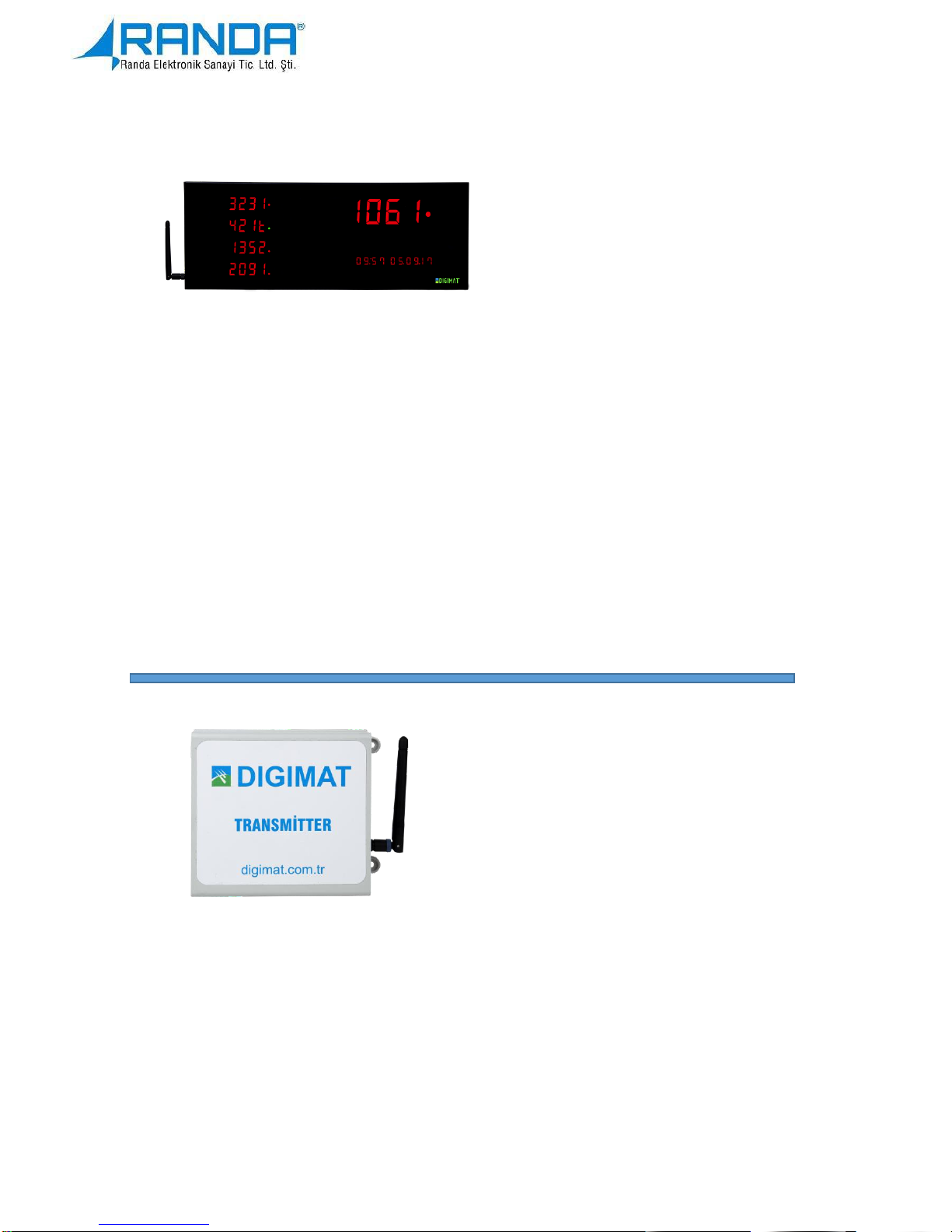

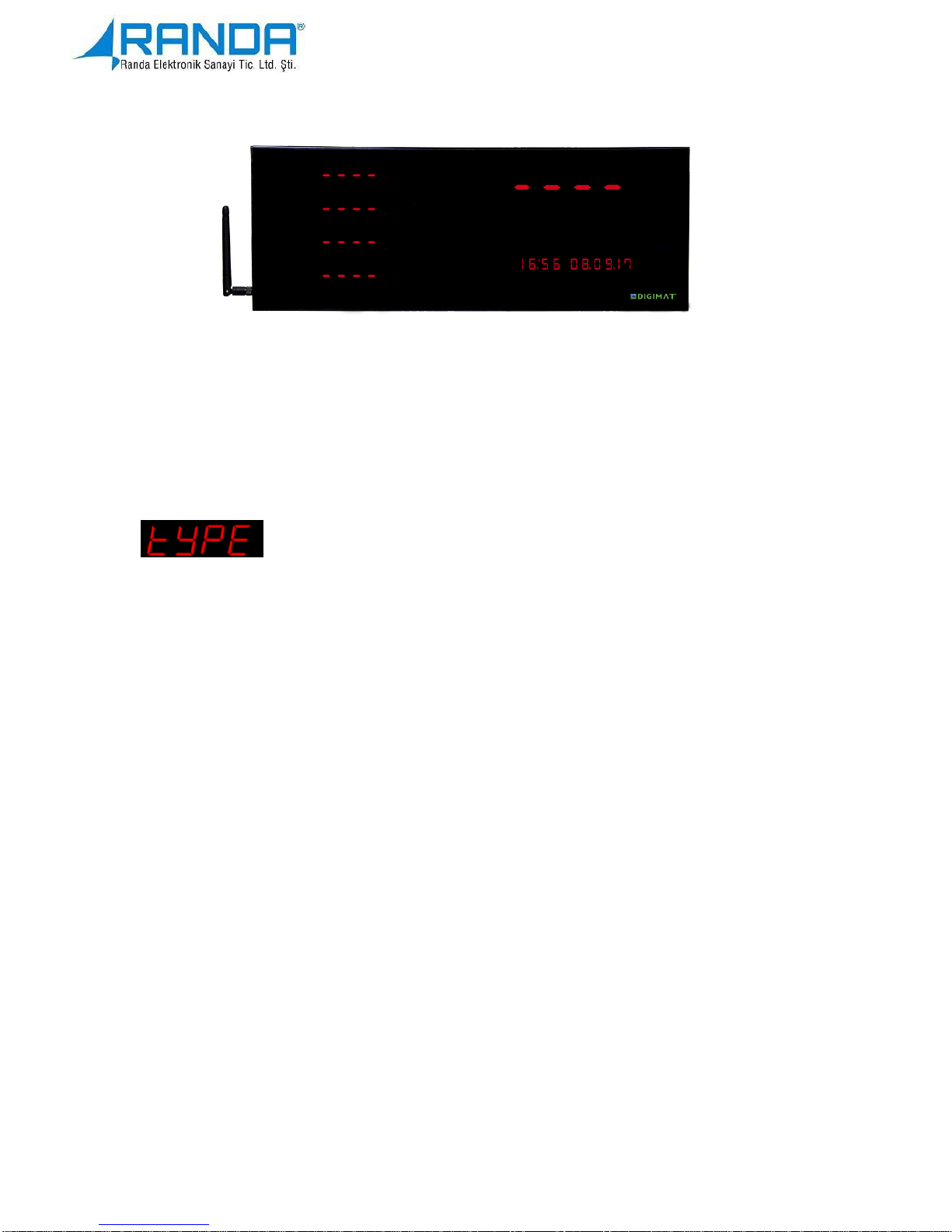

Nurse call Panel
It's the place on which the rooms
that made the call, the nurse room
information, the date and time and
the emergency consultation
information is stored and displayed.
Features:
It is an intelligent unit with microcontroller inside.
It works on its own and can be connected to the computer via the converter
device. It contains a Wireless Mode setting.
By defining the floor address it can respond to the information coming from the
call units and display them on the screen.
There are 6 Dot Matrix displays with 5 lines in this panel.
The system communicates with the address modules via wireless Rf -433 Mhz.
Other settings can be made with the keys found on the panel so there is no need
for a computer.
RF Transmitter Device
It is used to strengthen the call
signal in cases that call signals
could not reach the panel due to
physical reasons.
Features:
It broadcasts 433 Mhz in accordance
with KET regulations.

7
Wireless Nurse Call
systems
3. System Installation and setup
3.1. Bedhead Call Unit
Bedhead call unit is wireless and works with battery. In order to start the
call process the red icon shown in figure 1 must be pressed. When the call is
started, it gives audio and light warning. After the calls is started from this device
it starts showing on the nurse call panel.
In order to make the nurse finds and reaches the room that started the call
easily the over door (door-mounted) warning lamp lights with red light. After the
completing the intervention she ends the call by pressing the green button on the
relevant bedhead call unit.

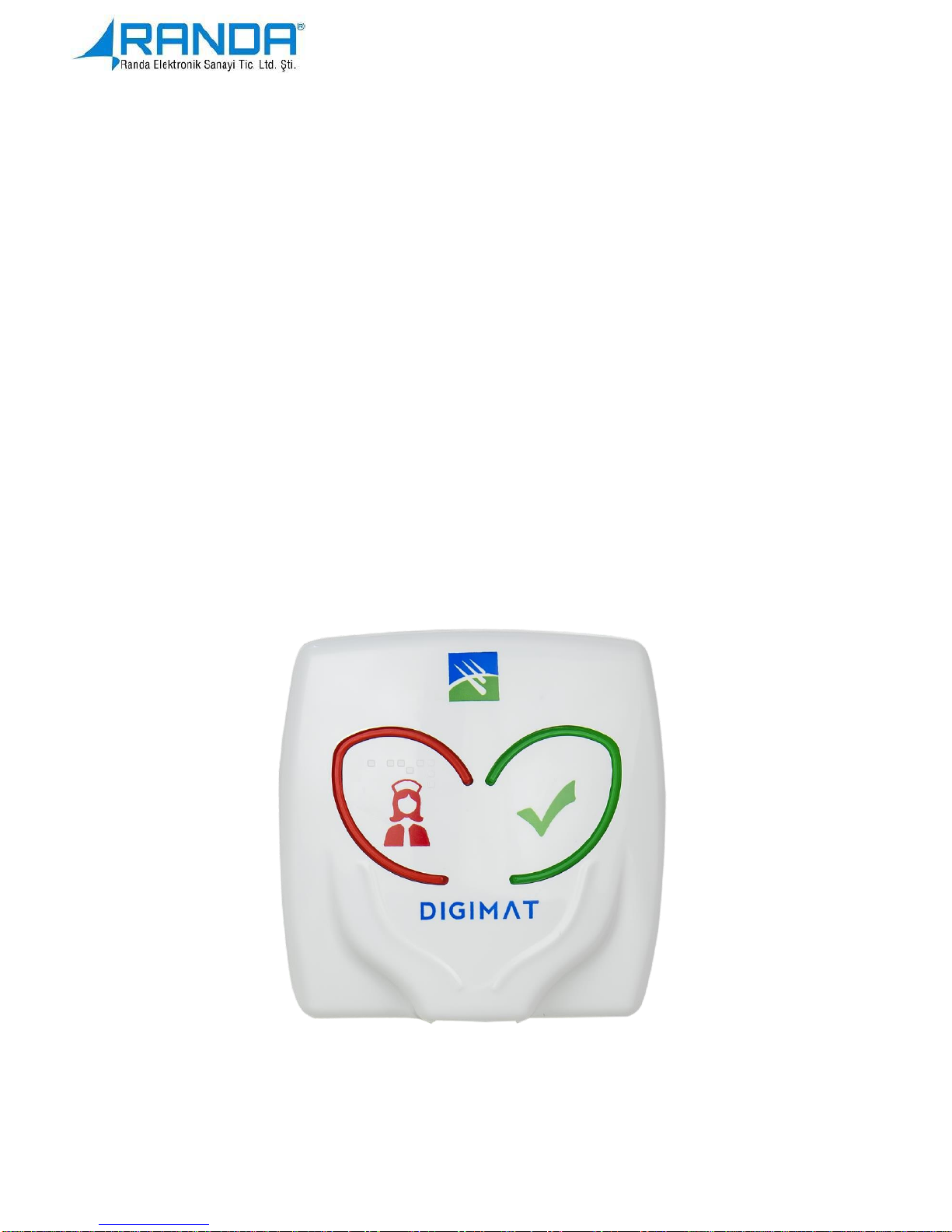

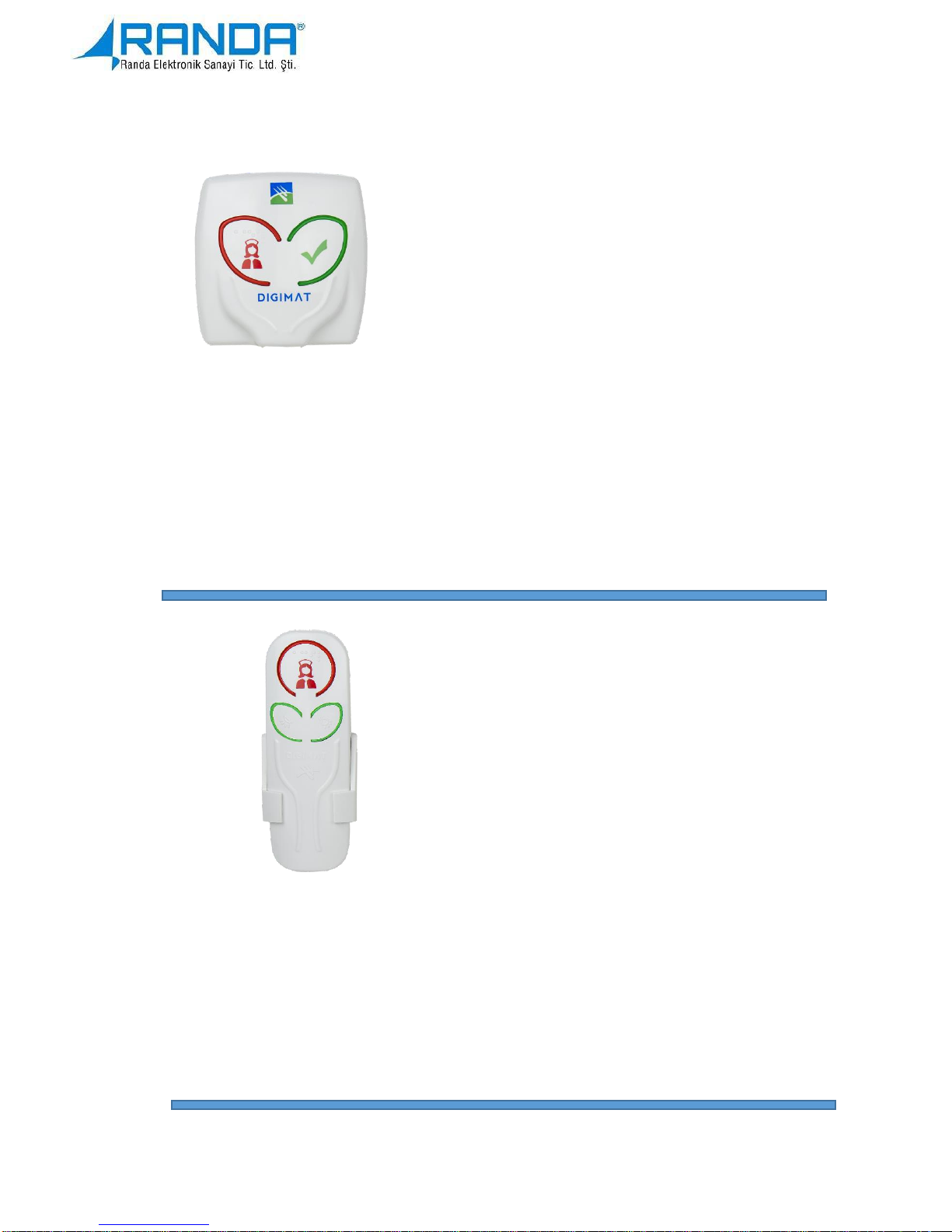

Figure 1: Bed head unit.

8
Wireless Nurse Call
systems
3.2. Handset Unit
In order to use this device the bedhead unit should be placed and the cable
connection is established. In order to send a call the button with the red nurse icon
shown in figure 2 must be pressed, as the call starts it generates audio and light
warning. The room number that sent the call will appear on the main screen of
the Nurse Call Panel. In order to make the nurse finds and reaches the room that
started the call easily the over door (door-mounted) warning lamp lights with red
light, the nurse arrives to the room and after the completing her intervention she
ends the call by pressing the green button on the relevant bedhead call unit.
There is no cancel (green tick) button in the handset call device, the buttons
under the nurse call initiation button are used for optional lighting, and it is
designed to control the room lighting and book reading lamp.

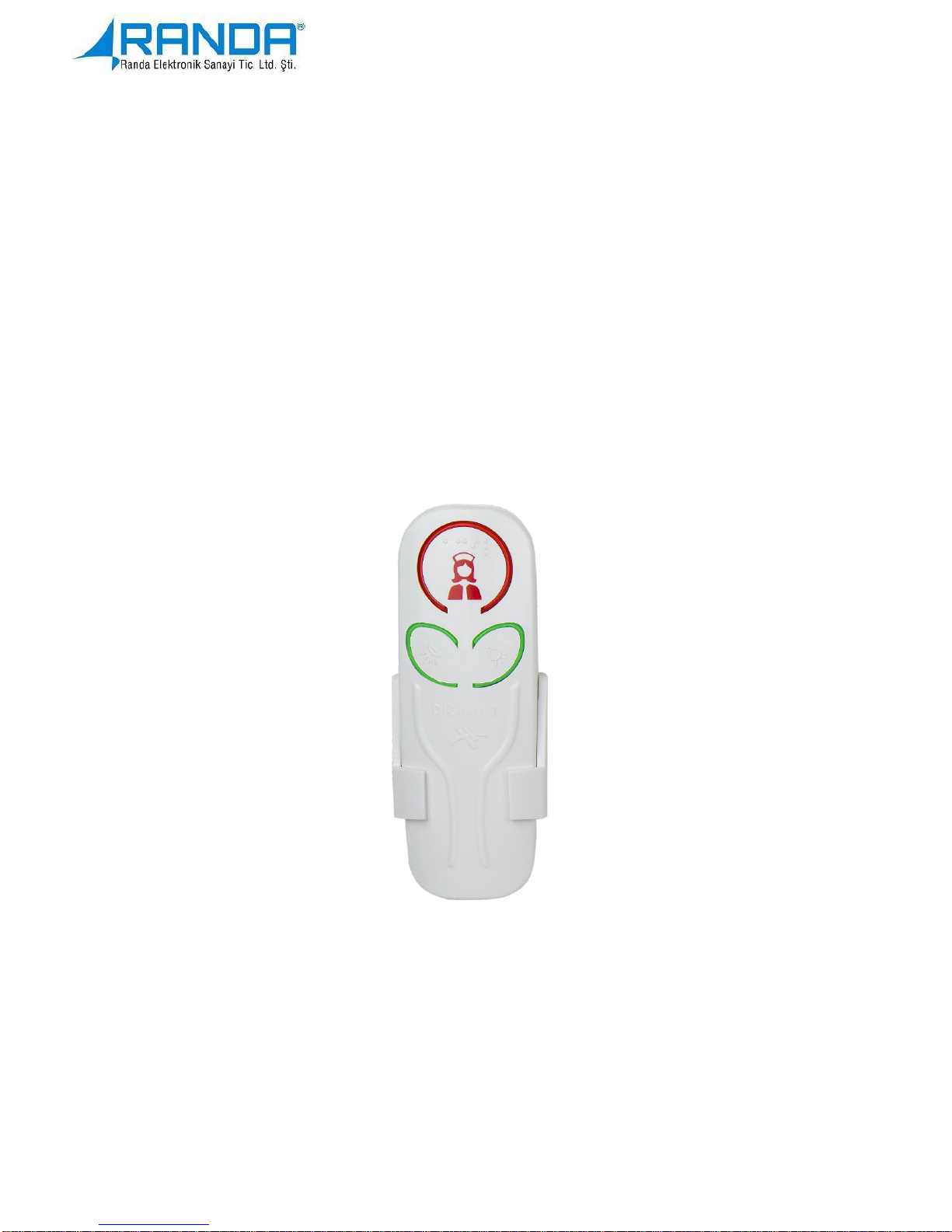

Figure 2: Handset Call Unit

9
Wireless Nurse Call
systems
3.3. WC/ Bathroom Call Unit
This device is wireless and works with battery. Calls that comes from the
WC/ Bathroom device always have a priority over the other calls. In order to start
a call, the cord handle must be pulled as shown in figure 3. The room number
from which the call came and the "EMERGENCY" word alternately displayed on
the Nurse Call Panel. When the call is initiated, the red led on the front of the WC/
Bathroom device starts flashing.

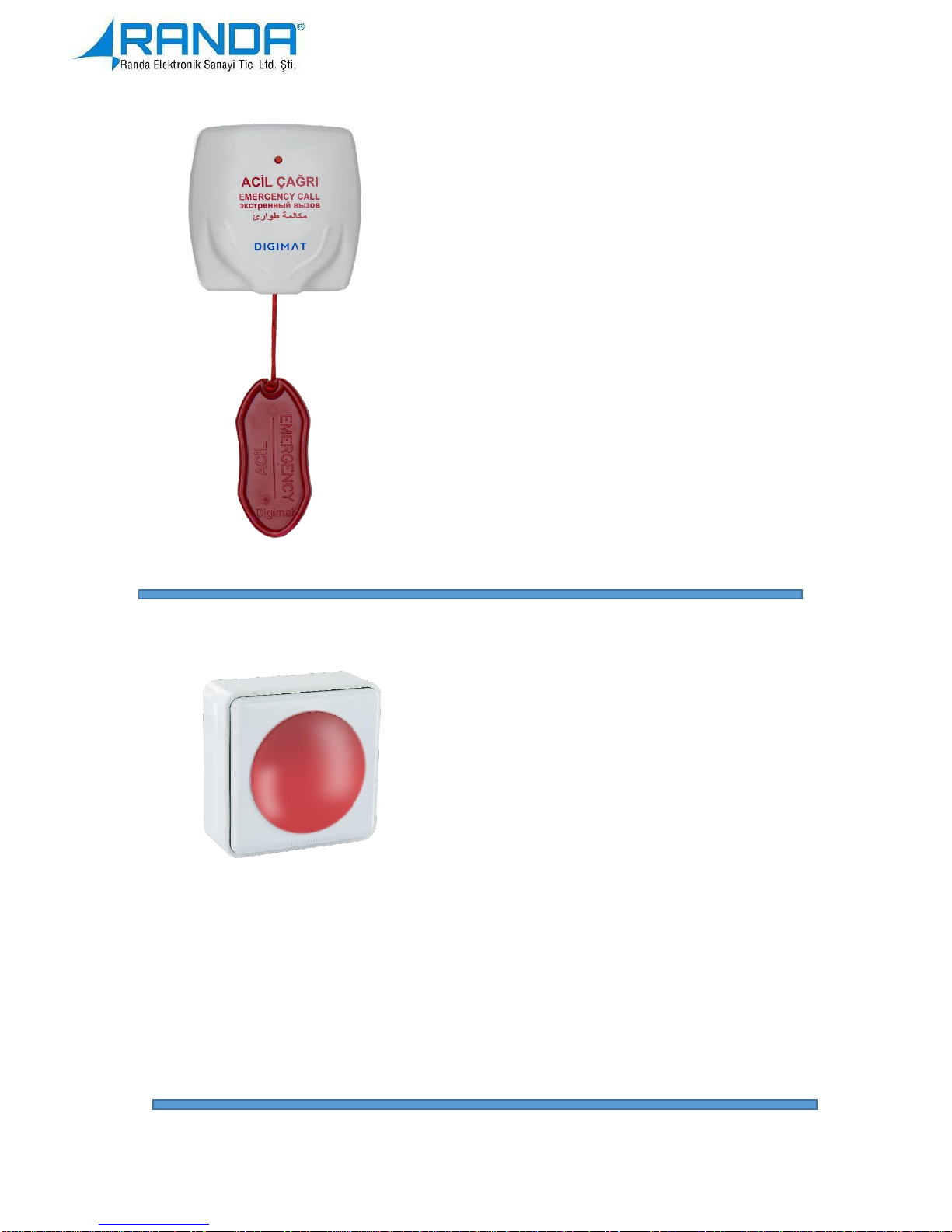

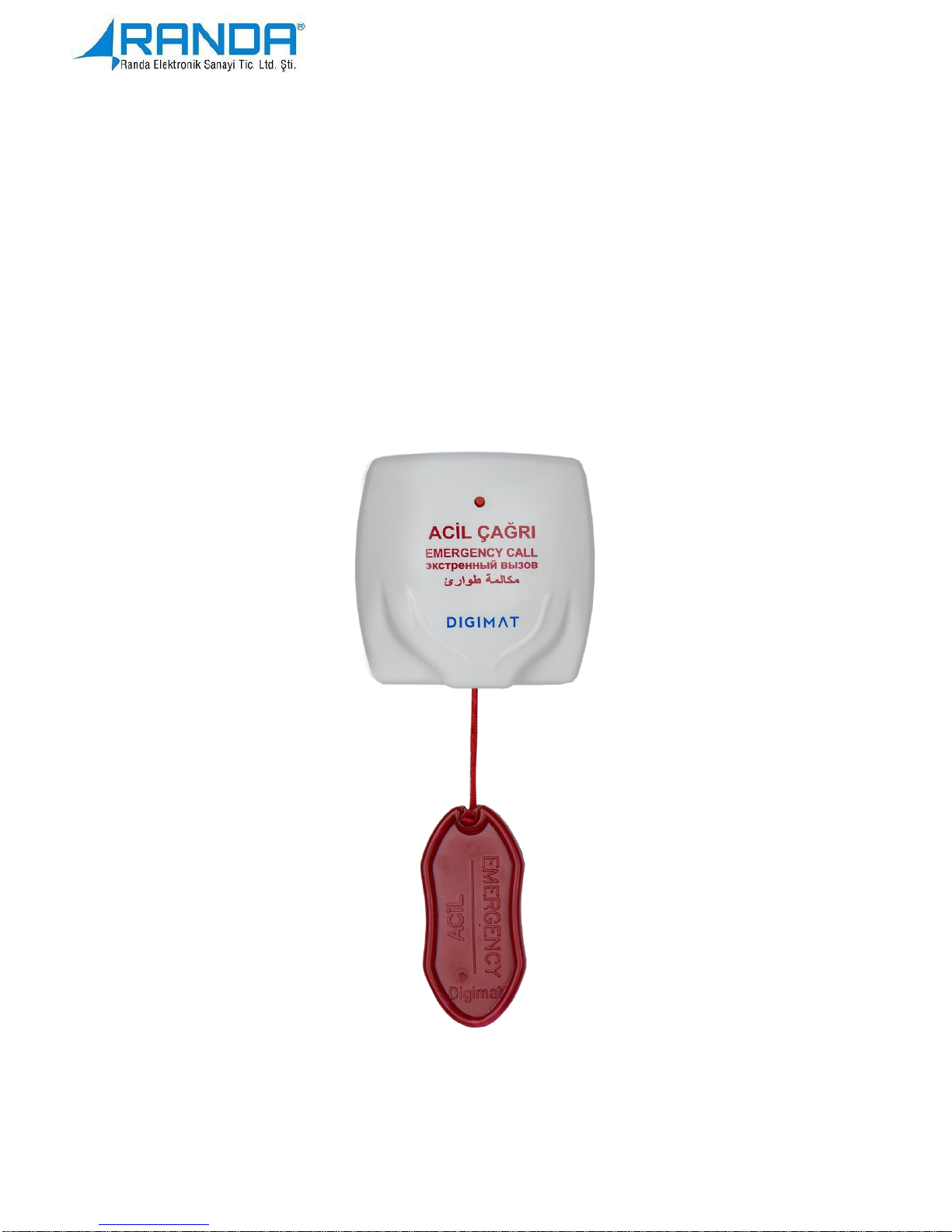

Figure 3: WC/Bathroom Call Unit
