R&T W5100S User manual

User Manual
Model : W5100S
Thank you for choosing our products.Please read the instructions carefully before installation
and keep it available for future maintenance or reference.

01
03
04
05
06
08
09
2.Replacement of battery
10
11
11
12
Safety instructions
List of materials
Technical drawings
Parts identification
Toilet Installation
Before Installation
Daily maintenance
1.Main unit care and maintenance
Emergency troubleshooting
1.Electricity and water supply cut-off
3.When the product is left unused for long time
The illustration of Main Unit Buttons

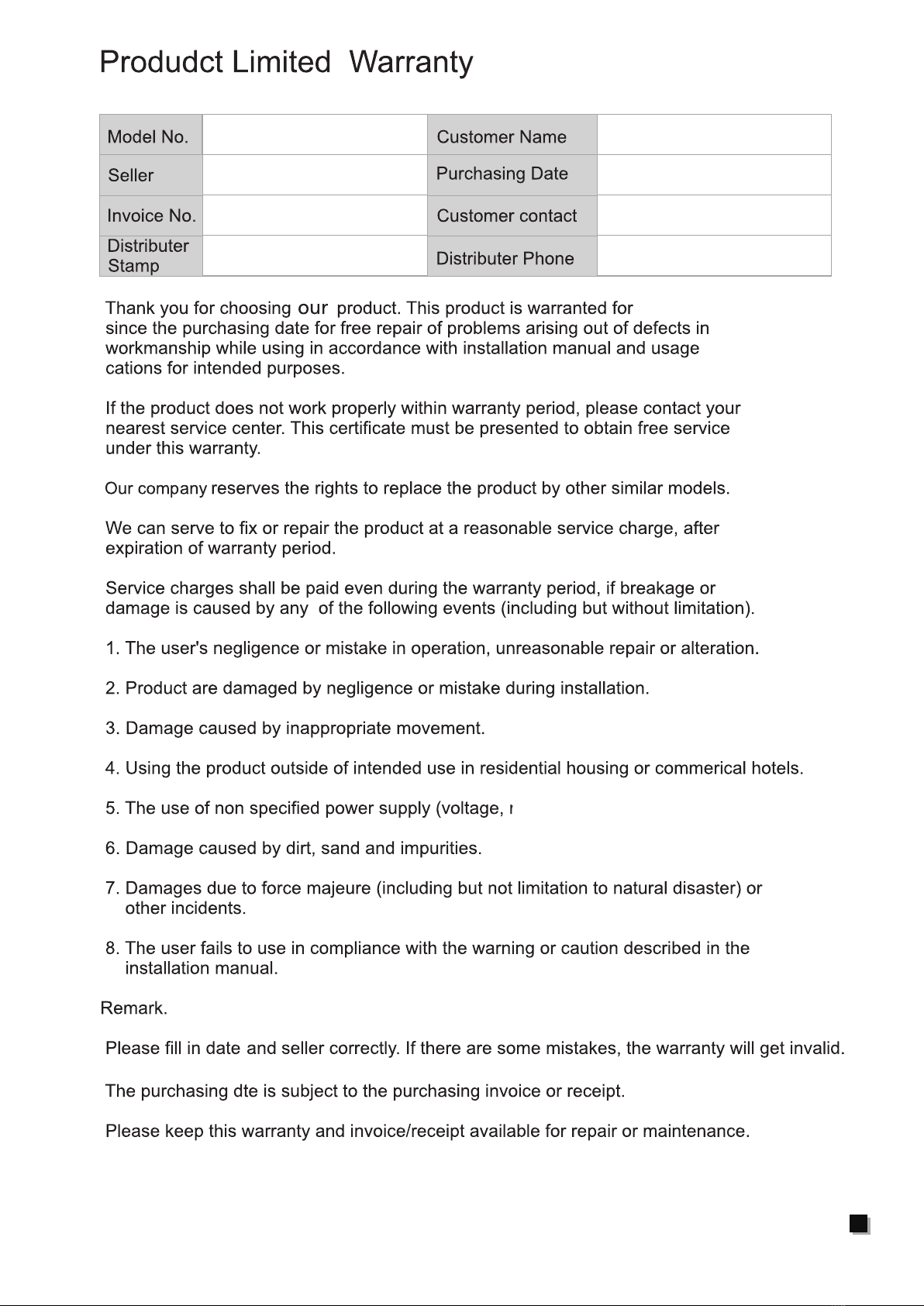

Warranty Card
Maintenance OthersInstallation
Content
2.Maintenance of filter net
Technical specification

01
Symbol lllustration
Safety instructions
Please read the instructions carefully before installation and keep it available for future
maintenance or reference.
Failure to follow these instructions can cause body injury and property damage.
Warning
Caution
Indicates that failure to follow the instruction may cause serious
injury or fatality.
Indicates that failure to follow the instruction may cause body
injury or property damage.
Symbol lllustration
Symbol Indication
Prohibited activities
Mandatory activities
Do NOT disassemble, repair or modify this product by yourself,
otherwise it may cause fire or malfunction.
Do NOT touch the battery box plug with wet hands, otherwise it may
cause malfunction.
If the electric wire of battery box is damaged, it must be replaced by
the manufacturer, its service center or equivalent specialist to avoid
malfunction.
Do NOT pour water or detergent on the main unit or battery box plug,
otherwise it may cause fire or electric shock.
Warning
This product is factory equipped with a specific battery device.
Do NOT use any battery device other than the factory equipped
battery device, otherwise it may cause fire or malfunction.
This product is an electric appliance, avoid direct contact with water
or other liquids.
Do not position the product on its side or upside down while making
electrical connections with the battery box, otherwise it may cause
fire or burning.
Mandatory
activities
Do not install or use the product in wet or damp locations such as in
a steam room.
Do not throw cigarettes and other burning stuff into toilet, otherwise
it might cause malfunction.

02
Warning
Mandatory
activities
Caution
Do not place or store product where it can fall or be pulled into a tub or sink.
Do not place in water or other liquid.
Do NOT touch the product that has fallen into water. Unplug the battery
box immediately
Do not stand on the toilet. Do not hit the ceramic. A heavy impact on ceramic
leads to damage and leakage.
Do not stand on toilet bowl, seat and cover.
Do not use varnish thinners, gasoline, liquid chemicals, detergents,
insecticides, toilet cleaners and scrubbing brush to clean the product.
Only use tap water or potable water.
Exposure to direct sunlight is prohibited.
This product is equipped with soft-closing seat and cover. Heavy pressing or
pushing may damage the soft-closing damper.
Do not connect the water supply hose to hot water valve. Make sure inlet
water temperature at 5-35℃, otherwise the built-in module will be damaged.
Do not lean against the seat cover when using the product to avoid damage.
Do not flush newspaper, diapers, sanitary napkins and other items into the
toilet which may result in toilet clogging.
If this product is malfunctioning, stop using immediately, unplug the battery
box, turn off water supply, and contact the service provider.
Mandatory
activities
Never embed ceramic toilet base in cementitious material ( such as cement
mortar). It may lead to expansion crack.
Before installation, disassembly, repair and maintenance of the product,
the power plug must be unplugged and the water supply valve must be
closed.
Do not use in an environment below 0 °C.
If this product will not be used for an extended period of time (over 3 days),
it is recommended to unplug the battery box, remove batteries, turn off
water supply, and drain water in the product.
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the following:
1. This product is not intended for children (without proper adult supervision).
2. This product is not intended for individuals with reduced physical, sensory,
or mental capabilities.
To prevent damage caused by freezing, please implement warmth
measures to increase the temperature of the toilet.
When moving the product from a cold or humid place to a warm room,
please wait for 2 hours before use - to volatilize the condensed water inside
the product. Otherwise it may cause short-circuiting.
Only use the factory equipped battery box and 1.5V “AA” alkaline battery.

03
Battery box
Main Unit Installation Cardboard
Installation Manual
Warranty Card
Flange
Angle Valve option 1 Angle Valve option 2
Sealing Flange
Braided hose
List of materials
15
Our company
Product Warranty Card
a
three(3) years
three
Mounting accessory kit
User Manual
Thank you for choosing our products.Please read the instructions carefully before installation
and keep it available for future maintenance or reference.
15/16-14UNS 5/8′′

04
690mm
410mm
471mm
390mm
Technical drawing
The product drawings are for reference only, and the company reserves
the right to modify the appearance of the product without notice.

05
Decorative piece

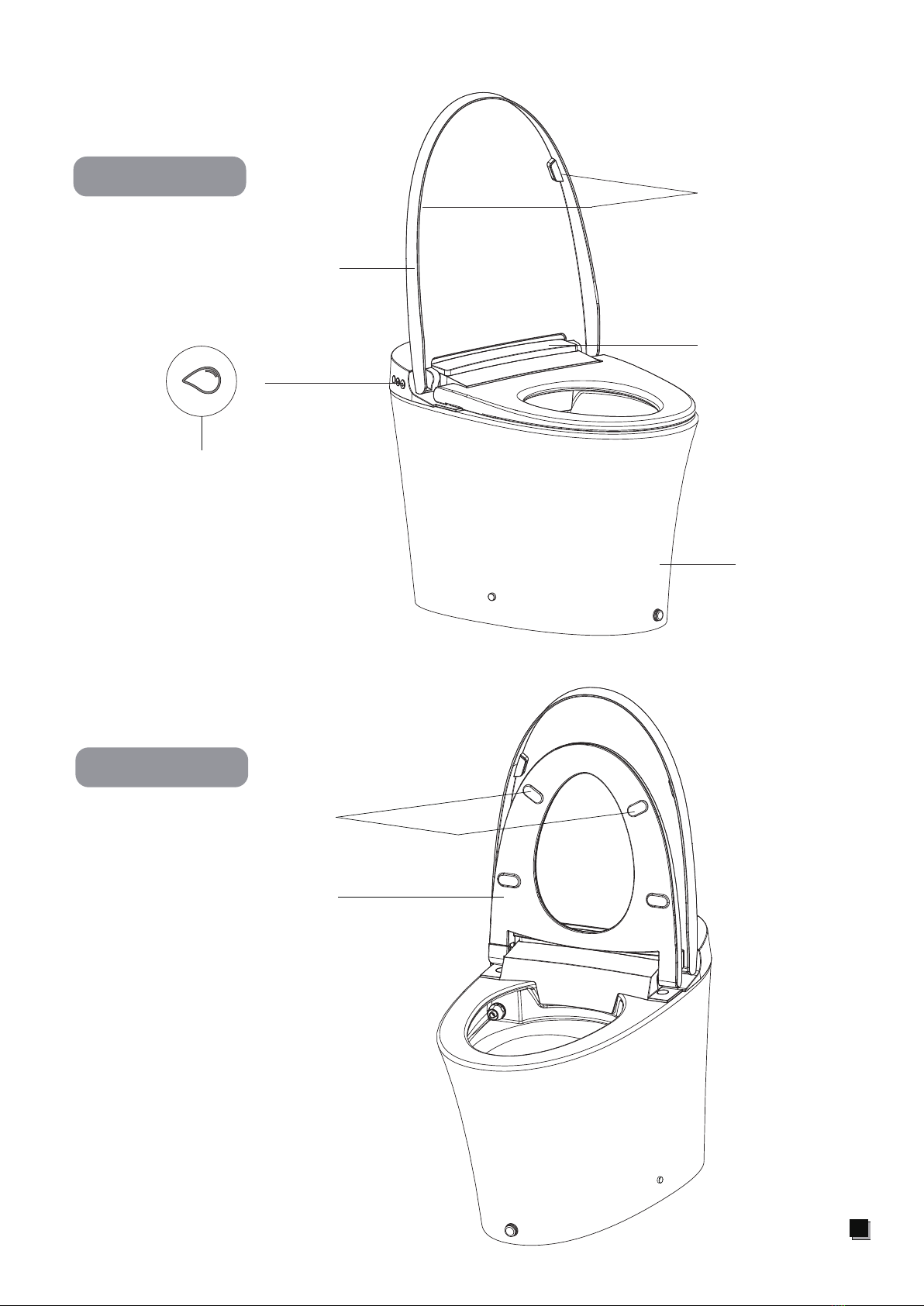

Parts identification
Left side
Right side
Ceramic toilet
Bumper
Bumper
Lid
Seat
Flush button

06
Installation of ceramic toilet
Cardboard
305mm
Precaution before installing
Choose the correct angle
valve in the package
that fits for your water inlet.
Minimum dynamic working water pressure:
0.09MPa or more (3.96Gal/min(15L/min) or
more), failure to meet this pressure will not
achieve the best flushing effect.
Remark: Apply the methods below if you
don’t have water pressure testing device.
Hose in the
package
Water storage
barrel
Open the angle valve and connect water inlet
for 10s, once the water volume is above 2.5L,
the minimum water pressure of the product is
ensured.
Draw drain outlet centerline on the floor,
Install angle valve at proper position on
wall according to dimension of toilet.
1. Installation of mating angle valve
Line
Drain outlet
Drain outlet
Mating angle valve
2. Cardboard installation
Align cardboard with the centerline of
drain outlet;
Draw contour line according to cardboard;
Angle valve connector Inlet connector
Flexible hose
3.Hose
Connect the water inlet and angle valve of the
toilet with the matching hose and tighten it
Nut
Bolt
4.Mounting bracket installation
Assemble the mounting bracket with bolts
and then install them to the pre-installed
flange plate on the ground and lock tight
with nuts.
Mounting bracket
Washer

07

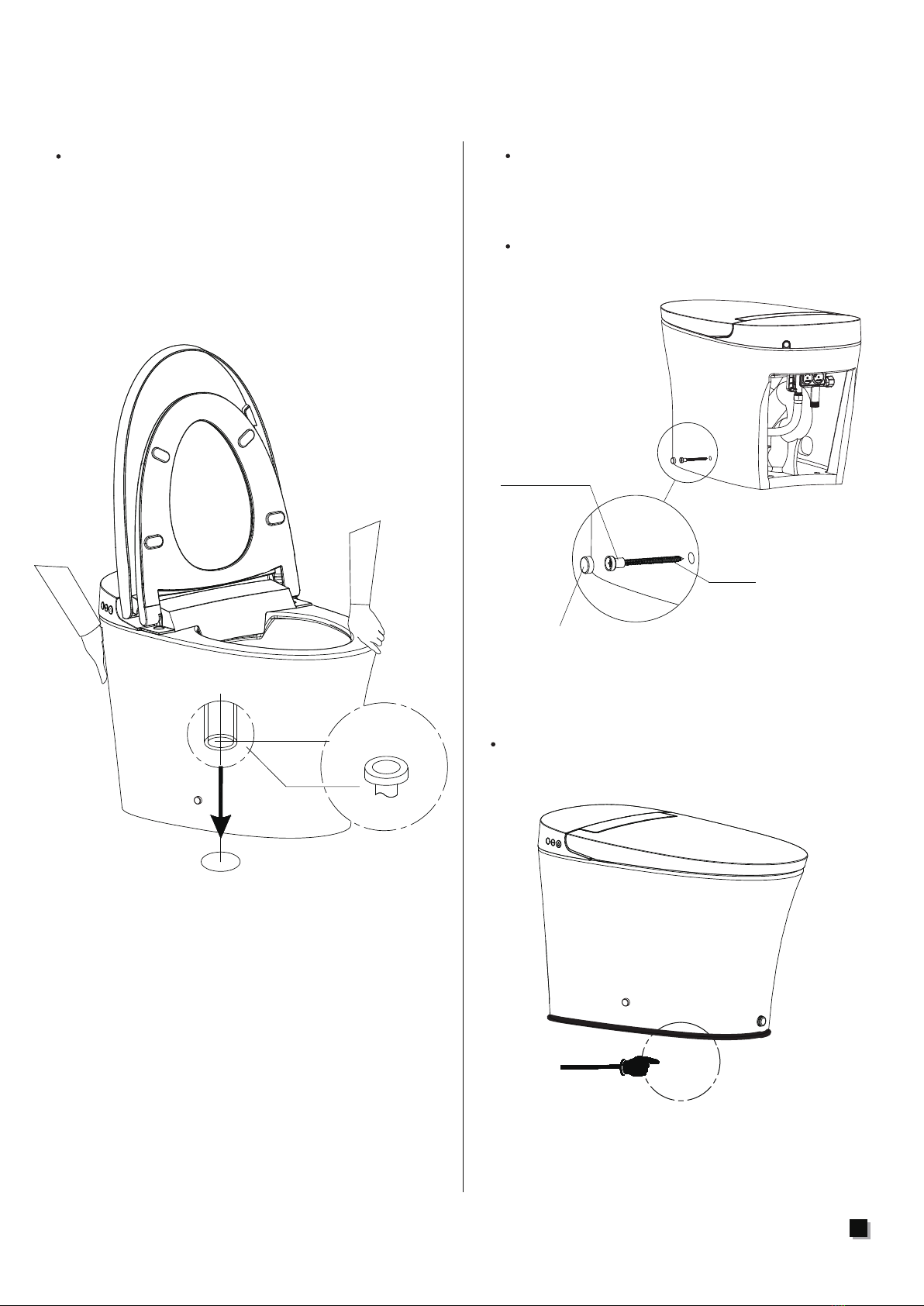

5.Ceramic toilet installtion
Install sealing flange into drain outlet;
Install ceramic toilet on corresponding
position according to contour line.
Toilet drain outlet
Sealing flange
7.Glass cement application
Glass
Cement
Tips:
Please clean the drain outlet;
Please make sure ceramic toilet outlet
sits perfectly on drain outlet.
Apply high quality mildew glass glue around
the lower edge of the toilet.
Fixing sleeve
Screw
Decorative cap
6.Screw installation
Put the screw through the fixing sleeve and
then install it through the holes(on both sides
of the toilet ceramic) to the mounting bracket
on the ground, and lock tight with a tool;
Put the decorative cap on the fixing sleeve.

08
When the batteries are successfully installed,
the red indicator light will flash once.
Take out the battery box from the accessory
kit and install 4pcs 1.5V “AA” alkaline batteries.
Plug the DC plug of battery box into the DC
socket of toilet and then stick the battery box
to the Velcro on the bottom of the toilet.
When re-installing the cover of battery box,
use your fingers to squeeze the side of rubber
plug to exhaust air out of the box and ensure
sealing.

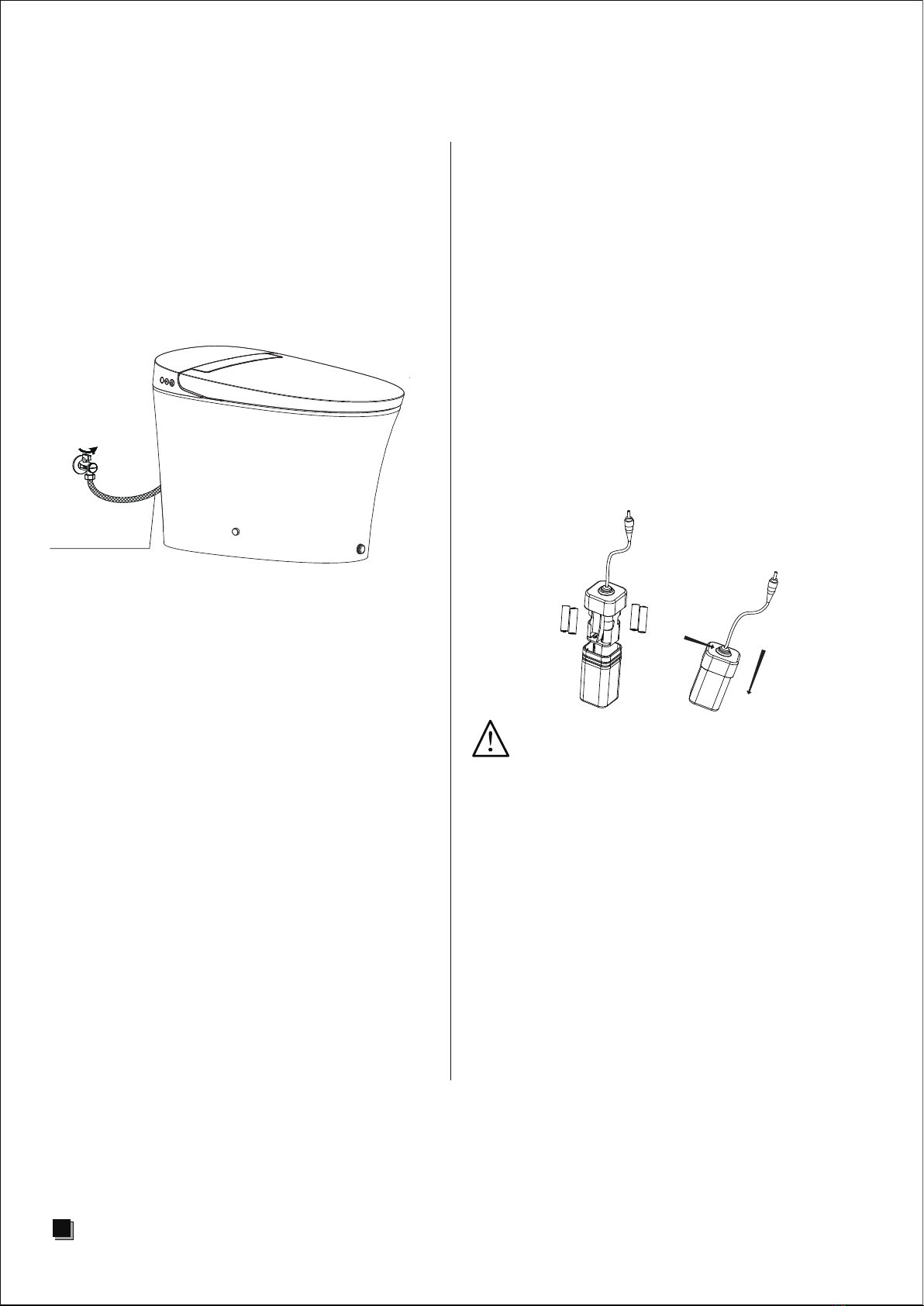

1. Turn on the angle valve
Check thread connection, make sure no
leakage is found,unscrew angle valve
anticlockwise to maximum opening.
(Tips: When opening for the first time, the
angle valve handle has a larger torque)
Angle valve
2.Power Connection
3. Self-inspection
Notes:
1.Must be 1.5V “AA” alkaline battery;
2.Batteries of different brands, new and used
batteries can not be used together.
3.Battery life will be significantly reduced when
using non-alkaline batteries;
4.When installing the inner box components,
follow the installation direction shown in the
label.
Before Installation

Use only a soft, damp cloth to clean.
Avoid using harsh chemicals.
Note: If the toilet is with off-seat auto flushing
function, it may activate auto flushing
during the cleaning.
09

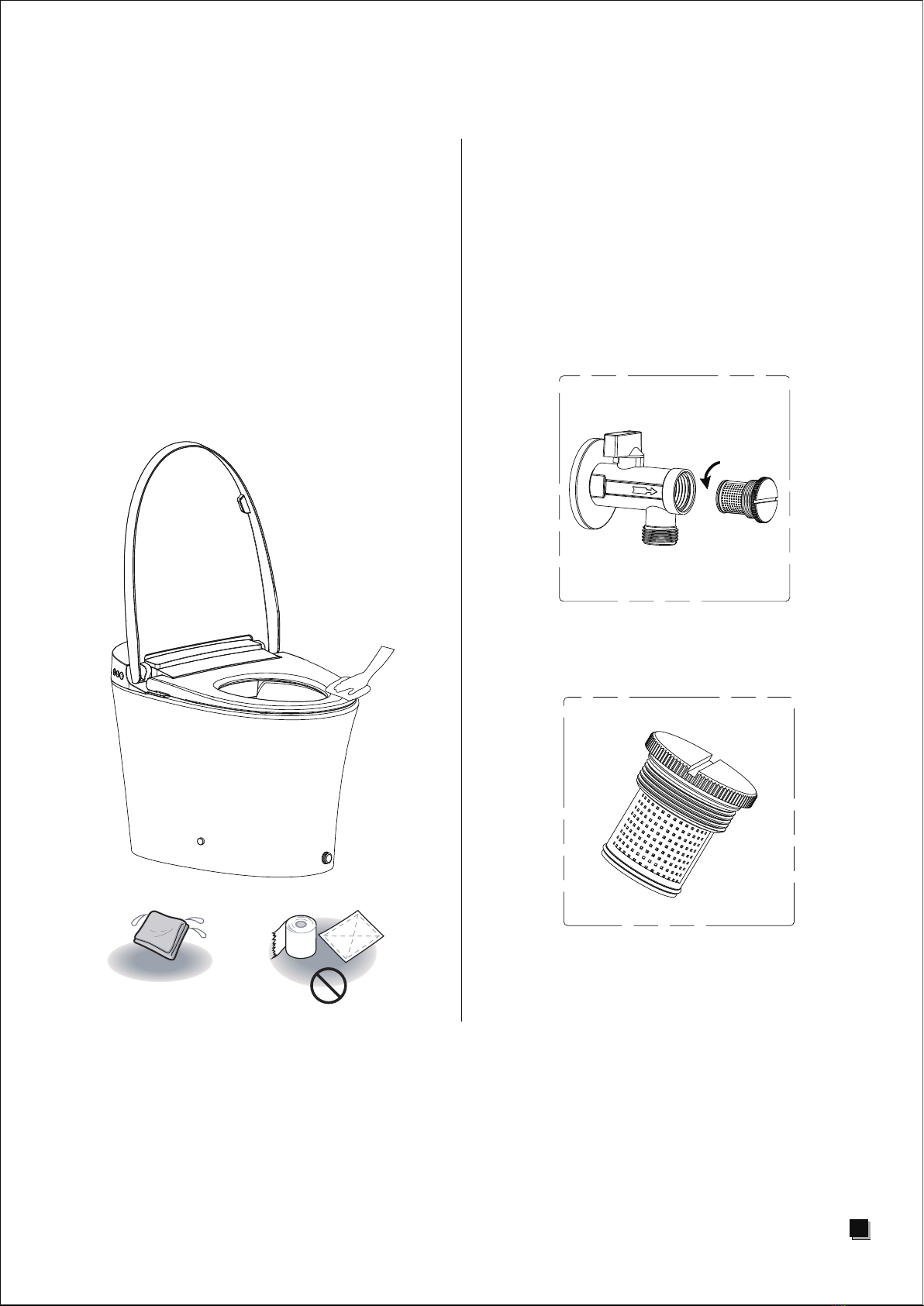

Daily maintenance
Main unit care and maintenace Maintenance of filter net
Time for maintenance: It is under
normal water pressure but poor
flush performance occurs.
2. Unscrew angle valve nut
1.Turn off power and the angle valve
3. Remove filter net
4. Use the brush to clean filter net
5. Reinstall filter net and angle valve nut
6.Turn on the angle valve and connect
power,then it can work normally after
self inspection.

10
Replacement of battery
Unplug the DC plug of the battery box and
remove the battery box from the bottom of
the toilet.
Remove the cover of battery box and
replace old batteries with new batteries,
and then re-install the cover.
Insert the DC plug of battery box into the
DC socket of toilet and then stick the
battery box to the Velcro on the bottom of
the toilet.

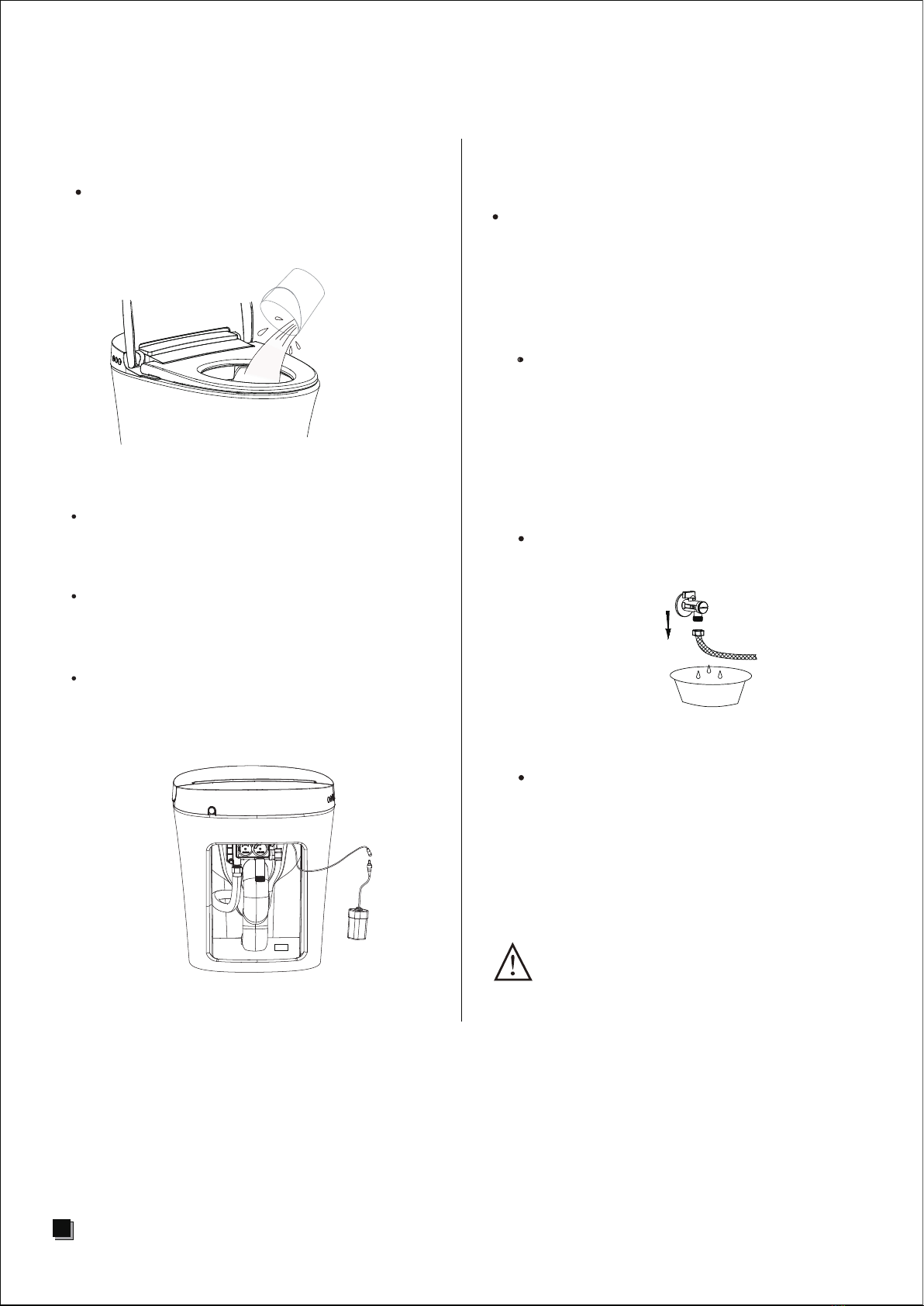

Emergency Troubleshooting
No water supply
Put around 2.1Gal (8L) water into a barrel
and flush the bowl .
Note: Avoid water spilling from bowl.
2.Unplug and remove the battery box and
then remove all batteries.
Tips: When using the toilet again, re-connect
the water supply and re-install the
battery box.
When the product is left unused for
long time
Especially in winter when no one at home
for a long time, please drain out the water
inside tank and pipe to prevent freezing.
To discharge water
1. Drain out the water in the bowl
Activate flushing, and then turn off angle
valve to prevent water inlet.
3. Drain out the water inside pipe
Unscrew the hose connector off angle
valve, drain the water in the pipe and
reinstall.
4. Handle the remaining water in bowl
It is suggested to put some
antifreeze into water inside
the bowl.
Note：Before draining out the water
inside the pipe, please ensure
drain out the water in the bowl
first!
Notes:
1.Must be 1.5V “AA” alkaline battery;
2.Different brands, different used and new
batteries cannot be mixed.
3.Battery life will be significantly reduced when
using non-alkaline batteries;
4.When installing the inner box components,
follow the installation direction shown in the
label.

11
press the "FLUSH" button to flush (full flush).
Flush
Notes:
1. Button light: If the battery is low, when pressing the flush button, the red light will flash.
2. Off-seat auto flushing: In the off-seat auto flushing mode, if a user is seated for ≥6s
and ≤1 min, and leaves the seat for ＞3s, the toilet will activate a half flush. If a user
is seated for ＞1 min, and leaves the seat for ＞3s, the toilet will activate a full flush.
DC:6V
Model W5100
Main Unit
Rated Voltage
2.1WRated Power
IPX4IP Rating
Full flush 6.0L/Half flush 4.1L
≤100mm
S-trap 305mm
Toilet
Flush volume
Flush Type Siphonic jet
Roughing in
Sewage outlet diameter
Water pressure range
0.09MPa (dynamic water pressure, flow rate
3.96Gal/min (15.0L/min) or more)--0.8MPa (static
water pressure)
Installation method Glass cement/ foundation bolts
seat
Caring device
Open and close device Quiet soft-closing device
Foot-touch flushing
function Kick the foot-touch button to flush
Automatic flushing
Low battery indication
Toilet will automatically flush as user walks away
If the battery is low, when pressing the flush button,
the indicator light will flash, indicating batteries need
to be replaced.
from bowl
SeatAntibacterial position
The illustration of Main Unit Buttons
Technical Specification
The illustration of main unit buttons

12
frequency)
three (3) years

The picture of product may not entirely consistent with actual appearance and color
because of products improvement, please in kind prevail.
ASWFAF0393000A-1.0
Xiamen R&T Plumbing Technology Co.,Ltd.
Add: No. 18, Houxiang Road, Haicang District, Xiamen, China
Tel: [phone]
Fax: [phone]
Http: //www.rtplumbing.com
E-mail: [email protected]
