Range Master CLA110DFF Instruction Manual

Classic 110 Dual Fuel
U111221 - 02
USER GUIDE &
INSTALLATION INSTRUCTIONS

To enter all you have to do is send in photos of your
Rangemaster kitchen and tell us in one sentence what
makes Rangemaster the heart of your kitchen? Entries
can be posted on our Facebook page, Instagram or Twitter
by tagging @RangemasterUK and using #MyRangemaster.
Or, if you prefer, simply send in your entry via e-mail to
[e-mail].
Rangemaster will feature a number of entries on the
website online gallery and on the Rangemaster Facebook
page, and some kitchens may be selected to be
professionally photographed.
Show off your kitchen with ...
#MyRangemaster
This is
SNAP SHARE
#MyRangemaster
To enter simply
and
*Terms & Conditions
1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page
using the advertised hashtag & tag. 3. If we would like to professionally photograph your kitchen, you will be contacted via e-mail, Facebook / Twitter message or Instagram comment. 4. We cannot guarantee your
kitchen will be professionally photographed. 4. Any photographs received and professional photographs taken will belong to AGA Rangemaster plc with full usage rights. E&OE.
Simply snap and share a picture of your kitchen and tag
#MyRangemaster for the chance to win £200 of
Rangemaster cookware. If selected we will also send a
photographer round to professionally photograph you at
home with your range. You might even feature in some
of the UK’s top home interest titles!
Our range cookers are well known for providing the best
possible cooking performance and years of faithful service.
However, a great cooker alone cannot guarantee perfect
results every time. The other vital ingredients are of course
enthusiasm and quality cookware.
We offer cookware to work perfectly with all fuel types
manufactured by Rangemaster, including induction hobs.
You can be assured of functionality with style, as well as the
quality and meticulous attention to detail you expect from
the pioneers of range cooking.
Visit www.rangemastercookshop.co.uk
*Terms & Conditions Apply
Search Rangemaster UK

i
1. Before You Start... 1
Personal Safety 1
Electrical Connection Safety 1
If You Smell Gas 3
Peculiar Smells 3
Cooling Fan 3
Ventilation 3
Maintenance 3
Grill/Glide-out Grill™ Care 6
Cooker Care 6
Cleaning 6
2. Cooker Overview 7
Hotplate Burners 7
Wok Burner 8
The Wok Cradle* (Optional) 9
The Griddle Plate 9
The Grill 10
The Ovens 11
Main Oven Lights 11
Accessories 12
Storage 12
Telescopic runners (optional) 13
3. 3 button clock 14
4. Cooking Tips 16
5. Cooking Table 17
6. Cleaning your cooker 18
Essential information 18
Hotplate burners 18
The Griddle (optional) 19
Glide-out Grill 19
Ovens 20
Cleaning table 21
7. Troubleshooting 22
8. Installation 24
Dear Installer 24
Safety Requirements and Regulations 24
Provision of Ventilation 24
Location of Cooker 25
Conversion 25
Positioning the Cooker 26
Moving the Cooker 26
Levelling 28
Fitting the Handles and Handrail 28
Gas Connection 29
Electrical Connection 30
Final Fitting 31
Final Checks 31
9. Circuit Diagram 32
10. Technical Data 33
Contents

1
Your cooker should give you many years of
trouble-free cooking if installed and operated
correctly. It is important that you read this
section before you start.
Personal Safety
This appliance is for cooking purposes only.
It must not be used for other purposes, for
example heating a room. Using it for any
other purpose could invalidate any warranty
or liability claim. Besides invalidating claims
this wastes fuel and may overheat the control
knobs.
This appliance is for use in Great Britain and
the Republic of Ireland. It is a Cat II2H3+ cooker
and is set for G20 at 20mbar. (A conversion kit
for LPG is available for the cooker).
• This appliance can be used by children
aged from 8years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• WARNING: Children less than 8 years
of age should be kept away unless
continuously supervised. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
• The cooker should not be placed on a base.
• This appliance is designed for domestic
cooking only. Use for any other purpose
could invalidate any warranty or liability
claim.
• Before operating the ovens please refer
to the oven shelf installation, in the
Accessories section.
• WARNING: The appliance and its
accessible parts become hot during use
and will retain heat even after you have
stopped cooking. Care should be taken to
avoid touching heating elements. Children
less than 8 years of age shall be kept away
unless continuously supervised.
• CAUTION: A long term cooking process
has to be supervised from time to time.
A short term cooking process has to be
supervised continuously.
• At the risk of fire DO NOT store items on
the cooking surfaces.
• To avoid overheating, DO NOT install the
cooker behind a decorative door.
• WARNING: Accessible parts will become
hot during use and will retain heat even
after you have stopped cooking. Keep
babies and children away from the cooker
and never wear loose-fitting or hanging
clothes when using the appliance.
• DO NOT use a steam cleaner on your
cooker.
• Always keep combustible materials, e.g.
curtains, and flammable liquids a safe
distance away from the cooker.
• DO NOT spray aerosols in the vicinity of
the cooker while it is on.
Electrical Connection Safety
A Gas Safe registered engineer should
service the cooker and only approved spare
parts should be used.
The electrical installation must be installed
in accordance with all relevant British
Standards/Codes of Practice, BS 7671.
Or with the relevant national and local
regulations and with the local gas and
electricity supply companies’ requirements.
1. Before You Start...

2
Otherwise, all installations must be in
accordance with the relevant instructions in
this booklet.
n WARNING: THE APPLIANCE MUST BE
EARTHED.
Note: The cooker must be connected to the
correct electrical supply as stated on the
voltage label on the cooker, through a suitable
cooker control unit incorporating a double-
pole switch, having a contact separation of at
least 3mm in all poles.
n The cooker MUST NOT be connected to
an ordinary domestic power point.
Access to the mains terminal is gained by
removing the electrical terminal cover box on
the back panel. Connect the mains cable to the
correct terminals for your electrical supply type
(Fig. 1.1 and Fig. 1.2). Check that the links are
correctly tted and that the terminal screws are
tight. Secure the mains cable using the cable
clamp.
Minimum temperature rating T105.
Read the instructions before installing or using
this appliance.
Gas Connection Safety
• This cooker is a Class 2 Subclass 1
appliance.
• This appliance can be converted for use on
another gas.
• Before installation, make sure that the
cooker is suitable for your gas type and
supply voltage. See the data badge.
• DO NOT use reconditioned or
unauthorised gas controls.
• Disconnect from the electricity and gas
supply before servicing.
• When servicing or replacing gas-carrying
components disconnect from the
gas supply before starting operation.
Check the appliance is gas sound after
completion.
ArtNo.130-0010 Electrical connections single-phase
L
N
230 V ac 50 Hz
10 mm² max
6 mm² max
L1
N
L3
L2
3N ac
230/400 V 50 Hz
6 mm² max
10 mm² max
6 mm² max
Fig. 1.1
Fig. 1.2

3
• Make sure that the gas supply is turned
on and that the cooker is wired in and
switched on.
• In your own interest and that of safety, it is
law that all gas appliances be installed by a
qualified person(s).
• An appliance for use on LPG must not be
installed in a room or internal space below
ground level, e.g. in a basement.
This cooker must be installed in accordance
with:
• British Standards/Codes of Practice, BS
5440 Part 2
• Natural Gas: BS 6172 and BS 6891
• LP Gas: BS 5482-1 (when the installation is
in a permanent dwelling)
• Gas Safety (Installation and Use)
regulations
• Relevant Building/IET regulations
If You Smell Gas
• DO NOT turn electric switches on or off
• DO NOT smoke
• DO NOT use naked flames
• Turn off the gas at the meter or cylinder
• Open doors and windows to get rid of the
gas
• Keep people away from the area affected
• Call your gas supplier
• If you are using Natural Gas in the UK,
ring the National Grid on: 0800 111 999
Peculiar Smells
When you rst use your cooker it may give o
an odour. This should stop after use.
Before using for the rst time, make sure that
all packing materials have been removed and
then, to dispel manufacturing odours, turn the
ovens to 200°C and run for at least an hour.
Before using the grill for the rst time you
should also turn on the grill and run for 30
minutes with the grill pan in position, pushed
fully back and the grill door open.
Make sure the room is well ventilated to the
outside air (see‘Ventilation’ below). People with
respiratory or allergy problems should vacate
the area for this brief period.
Cooling Fan
This appliance may have a cooling fan. When
the grill or ovens are in operation the fan will
run to cool the fascia and control knobs.
Ventilation
The use of a cooking appliance results in the
production of heat and moisture in the room
in which it is installed. Therefore, make sure
that the kitchen is well ventilated: keep natural
ventilation holes open or install a powered
cookerhood that vents outside. If you have
several hotplates/burners on, or use the cooker
for a long time, open a window or turn on an
extractor fan
Maintenance
• It is recommended that this appliance is
serviced annually.
• WARNING: Before replacing the bulb,
turn o the power supply and make sure
that the oven is cool.
• DO NOT use cooking vessels on the
hotplate that overlap the edges.
• Unless specified otherwise in this guide,
always allow the cooker to cool and then
switch it off at the mains before cleaning or
carrying out any maintenance work.
• DO NOT use the control knobs to
manoeuvre the cooker.

4
especially a deep fat fryer. Wait until the
fat is cool. Filling the pan too full of fat can
cause spill over when food is added. If you
use a combination of oils or fats in frying,
stir them together before heating, or as the
fats melt.
• Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan. Carefully watch for
spills or overheating of foods when frying at
high or medium high temperatures.
• DO NOT use the top of the flue (the slot
along the back of the cooker) for warming
plates, dishes, drying tea towels or
softening butter.
• DO NOT use water on grease fires and
never pick up a flaming pan. Turn the
controls off and then smother a flaming
pan on a surface unit by covering the pan
completely with a well fitting lid or baking
tray. If available, use a multi-purpose dry
chemical or foam-type fire extinguisher.
• DO NOT modify this appliance. This
appliance is not intended to be operated
by means of external timer or separated
remote-control system.
• If flammable materials are stored in the
drawer, oven(s) or grill(s) it may explode
and result in fire or property damage.
Oven Care
• When the oven is not in use and before
attempting to clean the cooker always be
certain that the control knobs are in the
OFF position.
• Use oven gloves to protect your hand from
potential burns.
• Cooking high moisture content foods can
create a ‘steam burst’ when the oven door
is opened (Fig. 1.3). When opening the
oven, stand well back and allow any steam
to disperse.
• NEVER operate the cooker with wet hands.
• DO NOT use a towel or other bulky cloth
in place of a glove – it might catch fire if
brought into contact with a hot surface.
• DO NOT use hotplate protectors, foil or
hotplate covers of any description. These
may affect the safe use of your hotplate
burners and are potentially hazardous to
health.
• NEVER heat unopened food containers.
Pressure build up may make the containers
burst and cause injury.
• WARNING: Use only hob guards designed
by the manufacturer of the cooking
appliance or indicated by the manufacturer
of the appliance in the instructions for use
as suitable or hob guards incorporated in
the appliance. The use of inappropriate
guards can cause accidents.
• DO NOT use unstable saucepans. Always
make sure that you position the handles
away from the edge of the hotplate.
• NEVER leave the hotplate unattended
at high heat settings. Pans boiling over
can cause smoking, and greasy spills may
catch on fire. Use a deep fat thermometer
whenever possible to prevent fat
overheating beyond the smoking point.
n WARNING: Unattended cooking on a
hob with fat or oil can be dangerous and
may result in re.
• NEVER try to extinguish a fire with water,
but switch off the appliance and then cover
the flame e.g. with a lid or a fire blanket.
• NEVER leave a chip pan unattended.
Always heat fat slowly, and watch as it
heats. Deep fry pans should be only one
third full of fat.
• WARNING: Danger of re: do not store
items on the cooking surfaces.
• NEVER try to move a pan of hot fat,

5
FRONT
Rear stop
Front
bracket
ArtNo.324-0001 Steam burst
Fig. 1.3
• The inside door face is constructed with
toughened safety glass. Take care NOT
to scratch the surface when cleaning the
glass panel.
• Accidental damage may cause the door
glass panel to fracture.
• Keep oven vent ducts unobstructed.
• DO NOT use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door
glass since they can scratch the surface,
which may result in shattering of the glass.
• Make sure the shelves are pushed firmly
to the back of the oven. DO NOT close the
door against the oven shelves.
• DO NOT use aluminium foil to cover
shelves, linings or the oven roof.
• When the oven is on, DO NOT leave the
oven door open for longer than necessary,
otherwise the control knobs may become
very hot.
• DO NOT use the timed oven if the
adjoining oven is already warm.
• DO NOT place warm food in the oven to be
timed.
• DO NOT use a timed oven that is already
warm.
• Use dry oven gloves when applicable –
using damp gloves might result in steam
burns when you touch a hot surface.
Oven Shelves
To t the glide-out shelf, hook the front of the
shelf onto the runners as shown (Fig. 1.4). The
rear of the shelf should rest on the runners, in
front of the rear stop (Fig. 1.4).
Standard oven shelves can be tted by lining
up the shelf with a groove in the oven ladders.
Push the shelf back until the ends hit the shelf
stop. Lift the front so the shelf clears the stops,
then lower the front so the shelf is level and
push it fully back.
Fig. 1.4

6
bleach, chlorine based bleach cleaners,
coarse abrasives or salt.
• DO NOT mix different cleaning products
– they may react together with hazardous
results.
• All parts of the cooker can be cleaned with
hot soapy water.
• Take care that no water seeps into the
appliance.
• Before you remove any of the grill parts for
cleaning, make sure that they are cool or
use oven gloves.
• DO NOT use any abrasive substances on
the grill and grill parts.
• DO NOT put the side runners in a
dishwasher.
• DO NOT put the burner heads in a
dishwasher.
• NEVER use caustic or abrasive cleaners as
these will damage the surface.
• DO NOT use steel wool, oven cleaning
pads or any other materials that will
scratch the surface.
• NEVER store flammable materials in the
drawer. This includes paper, plastic and
cloth items, such as cookbooks, plastic
ware and towels, as well as flammable
liquids.
• DO NOT store explosives, such as aerosol
cans, on or near the appliance.
• DO NOT use steel wool, oven cleaning
pads, or any other materials that will
scratch the surface.
• DO NOT attempt to disassemble or clean
around any burner while another burner
is on, otherwise an electric shock could
result.
Grill/Glide-out Grill™ Care
n WARNING: Unattended cooking under
the grill can be dangerous and may
result in re.
• When using the grill, make sure that the
grill pan is in position and pushed fully in,
otherwise the control knobs may become
very hot.
• DO NOT leave the grill on for more than
a few moments without the grill pan
underneath it, otherwise the knobs may
become hot.
• NEVER close the grill door when the grill is
on.
• Accessible parts may be hot when the grill
is in use. Young children should be kept
away
Cooker Care
As steam can condense to water droplets
on the cool outer trim of the oven, it may be
necessary during cooking to wipe away any
moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven
exterior by cooking vapours.
Cleaning
• Isolate the electricity supply before
carrying out any thorough cleaning. Allow
the cooker to cool.
• In the interests of hygiene and safety, the
cooker should be kept clean at all times as
a build up in fats and other food stuff could
result in a fire.
• Clean only the parts listed in this guide.
• Clean with caution. If a wet sponge or
cloth is used to wipe spills on a hot surface,
be careful to avoid steam burns. Some
cleaners can produce noxious fumes if
applied to a hot surface.
• NEVER use paint solvents, washing soda,
caustic cleaners, biological powders,

7
This User Guide covers a number of dierent models.
Although some of the illustrations will look dierent to your
particular model the functions will be the same.

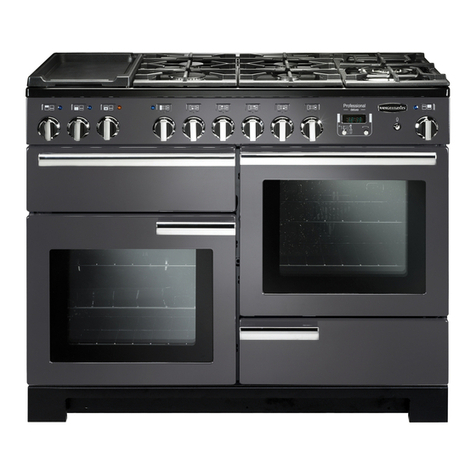

The 110 dual fuel cooker (Fig. 2.1) has the following features:
A. 6 hotplate burners including a wok burner
B. A control panel
C. A glide-out grill
D. A (programmable) fan oven
E. A Fan oven
F. Storage drawer
Hotplate Burners
The drawing by each of the central knobs indicates which
burner that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When the igniter button is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
M
A
B
C
D
E
F
Fig. 2.1
Fig. 2.2
2. Cooker Overview DocNo.020-0013 - Overview - 110DF - Classic, RM & Toledo lidded

8
To light a burner, press the igniter button, and push in and
turn the associated control knob to the high position as
indicated by the large ame symbol (), (Fig. 2.2).
The igniter should spark and light the gas. Keep holding the
knob pressed in to let the gas through to the burner for about
ten seconds.
If, when you let go of the control knob, the burner goes out,
then the FSD has not been bypassed. Turn the control knob
to the OFF position and wait for one minute before you try
again, this time making sure to hold in the control knob for
slightly longer.
Adjust the ame height to suit by turning the knob clockwise
(Fig. 2.3).
If a burner ame goes out, turn o the control knob and
leave it for one minute before relighting it.
Make sure that the ames are under the pans. Using a lid will
help the contents boil more quickly (Fig. 2.4).
Large pans should be spaced well apart.
Pans and kettles with concave bases or down-turned base
rims should not be used (Fig. 2.5).
Simmering aids, such as asbestos or mesh mats, are
NOT recommended (Fig. 2.6). They will reduce burner
performance and could damage the pan supports.
You should also avoid using unstable and misshapen pans
that may tilt easily, and pans with a very small base diameter,
e.g. milk pans, single egg poachers (Fig. 2.7).
The minimum recommended pan diameter is 120mm. The
maximum allowable pan base diameter is 260mm.
DO NOT use cooking vessels on the hotplate that overlap the
edges.
Wok Burner
The wok burner is designed to provide even heat over a large
area. They are ideal for large pans and stir-frying (Fig. 2.8).
For heating smaller pans, the aforementioned hotplate
burners may be more ecient.
You should wipe the enamel top surface of the cooker around
the hotplate burners as soon as possible after spills occur. Try
to wipe them o while the enamel is still warm.
NOTE: The use of aluminium pans may cause metallic
marking of the pan supports. This does not aect the
durability of the enamel and may be cleaned o with an
appropriate metal cleaner.
ArtNo.311-0005 Wok burner & pan support
ArtNo.311-0002 Pan with rim
ArtNo.311-0001 Right pans gas
Art No. 311-0003 Simmer aids
ArtNo.311-0004 Tipping wok
Fig. 2.3
Fig. 2.4 Fig. 2.5
Fig. 2.6 Fig. 2.7
Fig. 2.8

9
ArtNo.110-0013 Positioning the griddle on hotplate (right)
ArtNo.110-0014 Positioning the griddle on hotplate (wrong)
ArtNo.311-0006 Correct wok sizes
The Wok Cradle* (Optional)
The wok cradle is designed to t a 35cm wok. If you use a
dierent wok, make sure that it ts the cradle. Woks vary very
widely in size and shape. It is important that the wok sits
down on the pan support – however, if the wok is too small,
the cradle will not support it properly (Fig. 2.9).
The cradle should be used on the wok burner only. When you
t the cradle, make sure that it is supported properly on a pan
support and the wok is sitting level in the cradle (Fig. 2.10).
The cradle will get very hot in use – allow plenty of time for it
to cool before you pick it up.
The Griddle Plate
The griddle plate ts the left-hand pan support, front to
back (Fig. 2.11). It is designed for cooking food on directly.
DO NOT use pans of any kind on it. The griddle plate surface
is non-stick and metal cooking utensils (e.g. spatulas) will
damage the surface. Use heat resistant plastic or wooden
utensils.
n DO NOT put it crossways – it will not t properly and
will be unstable (Fig. 2.12).
n DO NOT put it on any other burner – it is not
designed to t in any of the other pan supports.
Position the griddle plate over the hotplate burners resting
on the pan support. Check that it is securely located.
The griddle plate can be lightly brushed with cooking oil
before use (Fig. 2.13). Light the hotplate burners. Adjust the
ame heights to suit.
Preheat the griddle plate for a maximum of 5 minutes
before adding food. Leaving it longer may cause damage.
Turn the control knobs towards the low position, marked with
the small ame symbol, to reduce the burner ames.
n Always leave space around the griddle plate for the
gases to escape.
n NEVER t two griddle plates side by side (Fig. 2.14).
After cooking, allow the griddle plate to cool before cleaning.
*Supplied with selected models only. Available as an optional
extra.
ArtNo.311-0007 Wok stand close-up
ArtNo.311-0009 Oil on griddle
ArtNo.311-0008 Griddle positioning
Fig. 2.9
Fig. 2.10
Fig. 2.11
Fig. 2.12
Fig. 2.13
Fig. 2.14

10
The Grill
n CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating.
n CAUTION: Accessible parts may be hot when the grill
is in use. Young children should be kept away.
Open the door and pull the grill pan forward using the handle
(Fig. 2.15).
The grill has two elements that allow either the whole area of
the pan to be heated or just the right-hand half.
Adjust the heat to suit by turning the control knob. To heat
the whole grill, turn the control knob clockwise (Fig. 2.16).
To heat the right-hand half, turn the control knob counter-
clockwise.
The neon indicator light by the grill control will come on.
For best results, slide the grill pan back into the grill chamber
and preheat the appropriate part(s) of the grill for two
minutes. The grill trivet can be removed and the food placed
on it while you are waiting for the grill to preheat.
Once the grill has preheated, slide the grill pan out again.
With the trivet back in place with the food on it, slide the grill
pan back into the grill chamber. Make sure that it is pushed
right in.
The grill trivet can be turned over to give two grilling
positions (Fig. 2.17).
DO NOT leave the grill on for more than a few moments,
without the grill pan underneath it.
n Never close the grill door when the grill is on.
ArtNo.331-0002 Grill pan high/low position
ArtNo.331-0001Grill pan pulled forwards
ArtNo.235-0007 - Classic
DL grill control
Fig. 2.15
Fig. 2.16
Fig. 2.17

11
ArtNo.235-0005 - Classic
DL oven control 2
ArtNo.235-0004 -
Classic DL oven 1
ArtNo.321-0002 Fan assisted oven
The Ovens
The clock must be set to the time of day before the ovens will
work. See the following section on ‘The Clock’for instructions
on setting the time of day.
References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed
from the front of the appliance.
The left-hand oven is a programmable fan oven (Fig. 2.18),
while the right-hand oven is a fan oven (Fig. 2.19).
The Fan Oven
The right-hand oven is a fan oven that circulates hot air
continuously, which means faster, more even cooking.
The recommended cooking temperatures for a fan oven are
generally lower than a conventional oven.
NOTE: Please remember that all cookers vary so
temperatures in your new ovens may dier to those in your
previous cooker.
Operating the Ovens
Fan Ovens
Turn the oven knob to the desired temperature (Fig. 2.20).
The oven indicator light will glow until the oven has reached
the temperature selected. It will then cycle on and o during
cooking (Fig. 2.21).
Main Oven Lights
Press the button to turn the lights on (Fig. 2.22).
If an oven light fails, turn o the power supply before
changing the bulb. See the ‘Troubleshooting’ section for
details on how to change the bulb.
Fig. 2.18
Fig. 2.19
Fig. 2.20
Fig. 2.21
Fig. 2.22
Fan oven
ArtNo.321-0002 Fan assisted oven
Fan oven
ArtNo.320-0026
- Oven light

12
Accessories
Oven Shelves
The oven shelves (Fig. 2.23) can be easily removed and
retted.
Pull the shelf forward until the back of the shelf is stopped by
the shelf stop bumps in the oven sides (Fig. 2.24).
Lift up the front of the shelf so the back of the shelf will pass
under the shelf stop and then pull the shelf forward
(Fig. 2.25).
To ret the shelf, line up the shelf with a groove in the oven
side and push the shelf back until the ends hit the shelf stop.
Lift up the front so the shelf ends clear the shelf stops, and
then lower the front so that the shelf is level and push it fully
back (Fig. 2.26).
The Handyrack (Main Oven)
The Handyrack (Fig. 2.27) ts to the left-hand oven door
only. Food cooking on it is easy to attend to, because it is
accessible when the door is open.
The maximum weight that can be held by the Handyrack
is 5.5kg (12 lb). It should only be used with the supplied
roasting tin, which is designed to t the Handyrack. Any other
vessel could be unstable.
It can be tted at two dierent heights. One of the oven
shelves must be removed and the other positioned to suit.
When the Handyrack is used in its highest position, other
dishes can be cooked on the bottom shelf position or base of
the oven.
When the Handyrack is used in its lowest position, other
dishes can be cooked on the second shelf position or base of
the oven.
To t the Handyrack, locate one side of it on the door bracket
(Fig. 2.28).
Then spring the other side out to clip it onto the other
bracket (Fig. 2.29).
Storage
The bottom drawer is for storing oven trays and other
cooking utensils. It can get very warm, so do not store
anything in it that may melt or catch re.
The drawer can be removed completely by pulling it right out
and up.
ArtNo.320-0013 Removing the shelf 3
ArtNo.320-0014 Handyrack on LH door
ArtNo.320-0015
Fitting the Handyack 1 ArtNo.320-0016
Fitting the handyrack 2
ArtNo.320-0011 Removing the shelf 1
ArtNo.320-0012 Removing the shelf 2
Shelf guard
Front
Fig. 2.23
Fig. 2.24
Fig. 2.26
Fig. 2.25
Fig. 2.27
Fig. 2.28 Fig. 2.29

13
Fig. 2.30
Fig. 2.31
Fig. 2.32
Fig. 2.33
1
2
FRONT
FRONT
Rear stop
Front
bracket
Telescopic runners(optional)
A glide-out oven shelf is available for either oven (Fig. 2.30).
Note: The Handyrack must be removed before tting the
glide-out shelf.
The rungs on the shelf supports are in pairs. The glide-out
shelf runners can be tted to any pair except the top.
To t the glide-out shelf runners
Hook the rear of the runner over the top rung of a pair of shelf
supports. Then hook the front of the runner onto the same
rung. Push to clip under the bottom rung (Fig. 2.31).
The front of the shelf runners can be identied by the bracket
(Fig. 2.33).
Ensure that the shelf runners are tted in the same position
on each side (Fig. 2.32).
To t the glide-out shelf
Check the shelf runners are secure before tting the glide-out
shelf.
Hook the front of the glide-out oven shelf onto the runners
as shown (Fig. 2.33). The rear of the shelf should rest on the
runners, in front of the rear stop (Fig. 2.33).
Ensure that the shelf sits at once in position.
n DO NOT put the glide-out shelf runners in a
dishwasher

14
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
Step. 1
Step. 1
Step. 2
Step. 3
Step. 1
Step. 2
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
n clock
loc
ock
n clock
ArtNo.306-0001 - 3-button clock
Press either [+] or
[-] buttons to set
the tiimer.
Press the [+]
and [-] buttons
simultaneously.
Once the specied
time has elapsed an
alarm will sound. To
stop the alarm press
any button.
3. 3 button clock
Minute Minder
Setting the minute minder
Note: The cook
symbol [ ] remains
visible during
normal operation.
Note: The cook
symbol [ ] remains
visible during
normal operation.
Note: The cook
symbol [ ] remains
visible during
normal operation.
Step. 1
Press either
[+] or [-]
buttons.
Step. 2
Step. 2
Step. 3
To stop the oven at a specific time of day
(main oven only) You have set the required temperature and
function mode and you would like the oven to automatically
stop.
Reset the minute minderSetting the time The clock must be set to the time of
day before the oven will work
Press 3 times
Set the time of day you
want the oven to stop
cooking, for example
add 1 hour.
Alarm will sound when
cooking has nished,
press any button to
stop the alarm.

15
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
Step. 1
Step. 1
To start and stop the oven automatically
(main oven only)
AUTO is showing, but you want to revert
to manual cooking (main oven only)
Changing the frequency of the alarm
Current time will be displayed along with the
word‘AUTO’. Set the oven to the required cooking
temperature and function.
ArtNo.306-0001 - 3-button clock
Alarm will sound when cooking has nished,
press any button to stop the alarm.
If the alarm is not stopped, it will stop automatically after 7
minutes.
Set the length of
time you want the
oven to cook for.
Press either [+] or
[-] buttons
Set the length of
time you want the
oven to cook for.
Press [M] button
again until current
time is diplayed.
Press [M] button
again until current
time is diplayed.
Press [M] button
again until current
time is diplayed.
Press either [+] or
[-] buttons to set
the‘stop time’.
In this example the
oven will come on
automatically at
10.30am and switch
o at 11.00am.
Press either [+] or
[-] buttons
Press either [+] or
[-] buttons
Step. 2
Step. 2
Step. 3
Step. 4
Step. 5
Step. 6
n REMEMBER
Turn the oven
control knob (s) to 0.

16
4. Cooking Tips
Tips on cooking with the timer
If you want to cook more than one dish, choose dishes that
require approximately the same cooking time. However,
dishes can be‘slowed down’slightly by using small containers
and covering them with aluminium foil, or‘speeded up’
slightly by cooking smaller quantities or placing them in
larger containers.
Very perishable foods such as pork or sh should be avoided
if a long delay period is planned, especially in hot weather.
n DO NOT place warm food in the oven to be timed.
n DO NOT use a timed oven that is already warm.
n DO NOT use the timed oven if the adjoining oven is
already warm.
Whole poultry must be thoroughly defrosted before being
placed in the oven. Check that meat and poultry are fully
cooked before serving.
General oven tips
The wire shelves should always be pushed rmly to the back
of the oven.
Baking trays with food cooking on them should be placed
level with the front edge of the oven’s wire shelves. Other
containers should be placed centrally. Keep all trays and
containers away from the back of the oven, as overbrowning
of the food may occur.
For even browning, the maximum recommended size of a
baking tray are:
• depth: 340mm (13 ⁄”) by width: 340 mm (13 ⁄”) in the
main oven
When the oven is on, DO NOT leave the door open for
longer than necessary, otherwise the knobs may get very
hot.
• Always leave a“finger’s width”between dishes on
the same shelf. This allows the heat to circulate freely
around them.
• To reduce fat splashing when you add vegetables to hot
fat around a roast, dry them thoroughly or brush lightly
with cooking oil.
• Where dishes may boil and spill over during cooking,
place them on a baking tray.
• The‘Cook & Clean’ oven liners (see‘Cleaning Your
Cooker’) work better when fat splashes are avoided.
Cover meat when cooking.
• Sufficient heat rises out of the oven while cooking to
warm plates in the grill compartment.
• If you want to brown the base of a pastry dish, preheat
the baking tray for 15 minutes before placing the dish in
the centre of the tray.

17
5. Cooking Table
Oven Shelf Positions
Top (T)
Centre (C)
Base (B)
ArtNo.050-0007
Oven shelf positions
The oven control settings and cooking times given in the table below are intended to be used as a
guide only. Individual tastes may require the temperature to be altered to provide a preferred result.
Food is cooked at lower temperature in a fan oven than in a conventional oven. When using recipes,
reduce the fan oven temperature by 10°C and the cooking time by 5-10 minutes. The temperature in
the fan oven does not vary with height in the oven so you can use any shelf.
Food Conventional Oven
°C (Shelf Position)
Fan Oven
Temperature Approximate Cooking Time
Meat
Beef (no bone)
Lamb
Pork
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
150 °C
190 °C
150 °C
190 °C
150 °C
190 °C
30-35 minutes per 500g +30-35 minutes.
20-25 minutes per 500g +20-25 minutes.
30-35 minutes per 500g +30-35 minutes.
25-30 minutes per 500g +25-30 minutes.
35-40 minutes per 500g +35-40 minutes.
25-30 minutes per 500g +25-30 minutes.
Thoroughly thaw frozen joints
before cooking. Meat may be
roasted at 220°C (210°C for
fan oven) and the cooking
time adjusted accordingly. For
stued and rolled meats, add
approximately 10 minutes per
500g, or cook at 200°C (190°C)
for 20 minutes then 160°C
(150°C) for the remainder.
Poultry
Chicken
Turkey
Duck
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
150 °C
190 °C
150 °C
190 °C
150 °C
190 °C
20-25 minutes per 500g +20-25 minutes.
15-20 minutes per 500g +15-20 minutes.
20 minutes per 500g +20 minutes.
15 minutes per 500g +15 minutes.
25-30 minutes per 500g.
20 minutes per 500g.
For stued poultry, you could
cook at 200°C (190°C) for 20
minutes then 160°C (150°C)
for remainder. Do not forget
to include the weight of the
stung. For fresh or frozen
pre-packed poultry, follow
instructions on the pack.
Thoroughly thaw frozen
poultry before cooking.
Casserole 140-150 (C) 130 °C-140 °C 2-4 hours according to recipe.
Yorkshire Pudding 220 (C) 210 °C Large tins 30-35 minutes; individual 10-20 minutes.
Cake
Very rich fruit - Christmas, wedding, etc.
Fruit 180 mm tin
Fruit 230 mm tin
Madeira 180 mm
Queen cakes
Scones
Victoria sandwich
180 mm tin
210 mm tin
140 (C/B)
150 (C/B)
150 (C/B)
160 (C/B)
190 (C/B)
220 (C/B)
180 (C/B)
180 (C/B)
130 °C
140 °C
140 °C
150 °C
180 °C
210 °C
170 °C
170 °C
45-50 minutes per 500g of mixture.
2-2½ hours.
Up to 3½ hours.
80-90 minutes.
15-25 minutes.
10-15 minutes.
20-30 minutes.
30-40 minutes.
Using the conventional oven:
When two tier cooking leave
at least one runner space
between shelves. Position
the baking tray with the front
edge along the front of the
oven shelf.
Up to three tiers can be
cooked on, in a fan oven, at
the same time. But make sure
to leave at least one runner
space between each shelf
being cooked on.
Desserts
Shortcrust tarts
Fruit pies
Tartlets
Pu pastry
Meringues
Baked egg custard
Baked sponge pudding
Milk pudding
200 (C/B)
200 (C/B)
200 (C/B)
210 (C/B)
100 (C/B)
160 (C/B)
180 (C/B)
140-150 (C/B)
190 °C
190 °C
190 °C
200 °C
90 °C
150 °C
170 °C
130 °C-140 °C
20-30 minutes on a preheated tray.
35-45 minutes.
10-20 minutes according to size.
20-40 minutes according to size.
2-3 hours.
45-60 minutes.
40-45 minutes.
2 to 3 hours.
Up to three tiers can be
cooked on, in a fan oven, at
the same time. But make sure
to leave at least one runner
space between each shelf
being cooked on.
Bread 210 (C) 200 °C 20-30 minutes.
Fish Fanned Grilling
Fillet
Whole
Steak
190 (C/B)
190 (C/B)
190 (C/B)
190 °C (C/B)
190 °C (C/B)
190 °C (C/B)
15-20 minutes
15-20 minutes per 500g.
Steaks according to thickness.
