Range Master 90 Dual Fuel User manual

90 Dual Fuel
Users Guide
Installation & Service Instructions
U102130-05

2
Be safe
Warning
Accessible parts will become hot in use.To avoid burns
and scalds children should be kept away.
You need clean fresh air - so does your cooker.Burner flames
produce exhaust gases, heat and moisture. Make sure that the
kitchen is well ventilated: keep natural ventilation holes open or
install a powered cooker hood that vents outside. If you have
several burners on or use the cooker for a long time, open a
window or turn on an extractor fan.For more detail see the
Installation Instructions.
We recommend you read the‘General Safety Instructions’ section
if you have not used a gas cooker before.We describe some basic
guidelines on how to use a gas cooker safely.
Gas and Electricity on
Make sure that the gas supply is turned on and that the cooker is
wired in and switched on.
The cooker needs electricity.
Peculiar smells
When you first use your cooker it may give off a slight odour.This
should stop after a little use.
Before using for the first time, make sure that all
packing materials have been removed and then to dispel
manufacturing odours, turn the ovens to 240°C and run for an
hour.
Make sure the room is well ventilated to the outside air, by
opening windows or turning on a cooker hood for example.
We recommend that people with respiratory or allergy
problems should vacate the area for this brief period.
Before using the grill for the first time you should also turn on
the grill and run for 30 minutes with the grill pan in position,
pushed fully back, and the grill door open.
Installation
In the UK the cooker must be installed by a CORGI registered
engineer.Failure to install the appliance correctly could invalidate
any warranty or liability claims and lead to prosecution
This appliance shall be installed in accordance with the regulations
in force and only in a well ventilated space. Read the instructions
before installing or using this appliance.
This appliance should not be installed in a boat or caravan.

3
Contents
Hotplate burners Page 4
The Griddle Page 5
The Grill Page 6
The Ovens Page 7
The Clock Page 8
Cooking using the timer Page 9
Oven cooking Page 10
Main Oven shelves Page 10
The Handyrack Page 11
Oven light Page 11
Tall oven shelves Page 11
Oven cooking guide Page 12
Cleaning your cooker Page 14
Moving your cooker Page 17
Troubleshooting Page 18
General Safety Instructions Page 20
Installation Page 22
Conversion to LP gas Page 29
Servicing Notes Page 30
Circuit Diagram Page 34
Technical Data Page 35

4
Hotplate burners
1
The drawing by each knob indicates which burner
that knob controls.
Press the igniter button, and push in and turn a knob
to the large flame symbol ( ). Alternatively light with
a match.
2
Adjust the flame height to suit by turning the knob.
On this cooker the low position is beyond high, not
between high and off.The small flame marks the ‘low
position’.Turn the knob towards it after the contents
of a pan have boiled.
3
Make sure flames are under the pans. Using a lid will
help the contents boil more quickly.
Pans and kettles with concave bases or down turned
base rims should not be used.
4
Simmering aids, such as asbestos or mesh mats,
are NOT recommended.They will reduce burner
performance and could damage the pan supports.
5
Avoid using unstable and misshapen pans that may
tilt easily and pans with a very small base diameter
e.g.milk pans, single egg poachers.The minimum
pan diameter recommended is 120mm.
Pans and kettles with down turned base rims should
not be used.
6
The Wok burner is designed to provide even heat over
a large area. It is ideal for large pans and stir frying.
For heating smaller pans the smaller burners may be
more efficient.
If a burner flame goes out, turn the control knob
off and leave it for one minute before relighting it.
You can remove the burner parts for cleaning,
see the ‘Cleaning uour cooker’ section of the
instructions.
You should wipe the enamel top surface of the
cooker around the hotplate burners as soon as
possible after spills occur.Try to wipe them off
while the enamel is still warm.

5
The Griddle

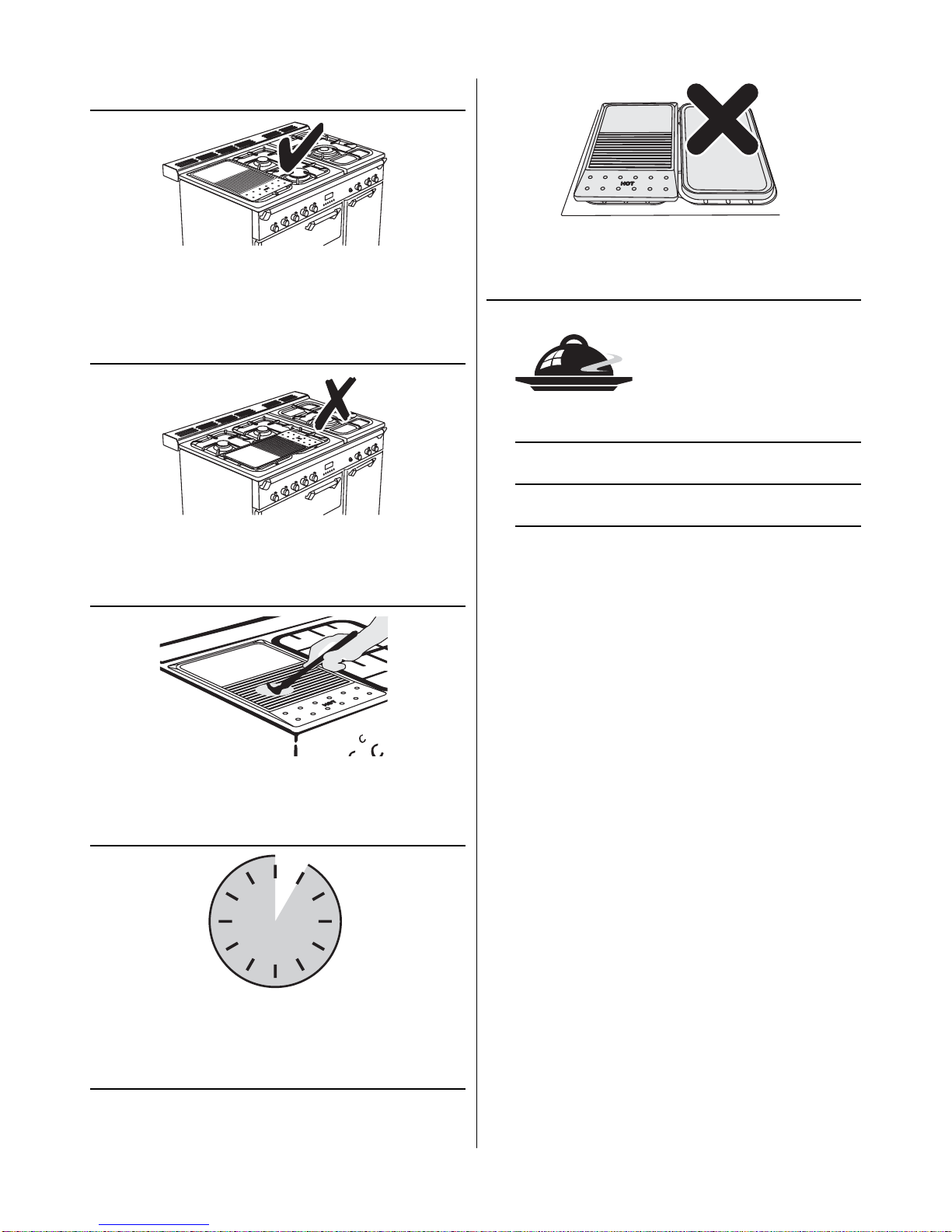

1
The griddle fits a single pan support, front to back.
It is designed for cooking food on directly. Don’t use
pans of any kind on it.The griddle surface is non-
stick and metal cooking utensils (e.g. spatulas) will
damage the surface. Use heat resistant plastic or
wooden utensils.
2
Don’t put it crossways - it will not fit properly and will
be unstable.
Don’t put it on the Wok burner - it is not designed to
fit the Wok burner pan support.
3
Position the griddle over the hotplate burners
resting on the pan support.The griddle can be
lightly brushed with cooking oil before use. Light the
hotplate burners.Adjust the flame heights to suit.
4
Preheat the griddle for a maximum of 5 minutes
before adding food.Leaving it longer may cause
damage.You can reduce the heat by turning the
control knobs towards the lower position (marked with
the small flame symbol).
5
Always leave space around the griddle for the gases
to escape. Never fit two griddles side by side. Large
pans should also be spaced well apart.The maximum
pan base diameter is 250mm.
Use the following heat settings as a guide for
griddle cooking.
High/medium:
Drop scones, Bacon, Chops, Steak, Burgers.
Medium/low:
Potato cakes, Eggs, Fish cakes.
Experience will soon familiarise you with the
correct setting to use for cooking.
After cooking allow the griddle to cool before
cleaning.

6
The Grill
CAUTION: Accessible parts may be hot when
the grill is in use.Young children should be
kept away.
Before using the grill for the first time turn
on the grill and run for 30 minutes with the
grill pan in position, pushed fully back, and
the grill door open. Make sure the room is
well ventilated to the outside air, by opening
windows or turning on a cooker hood for
example.

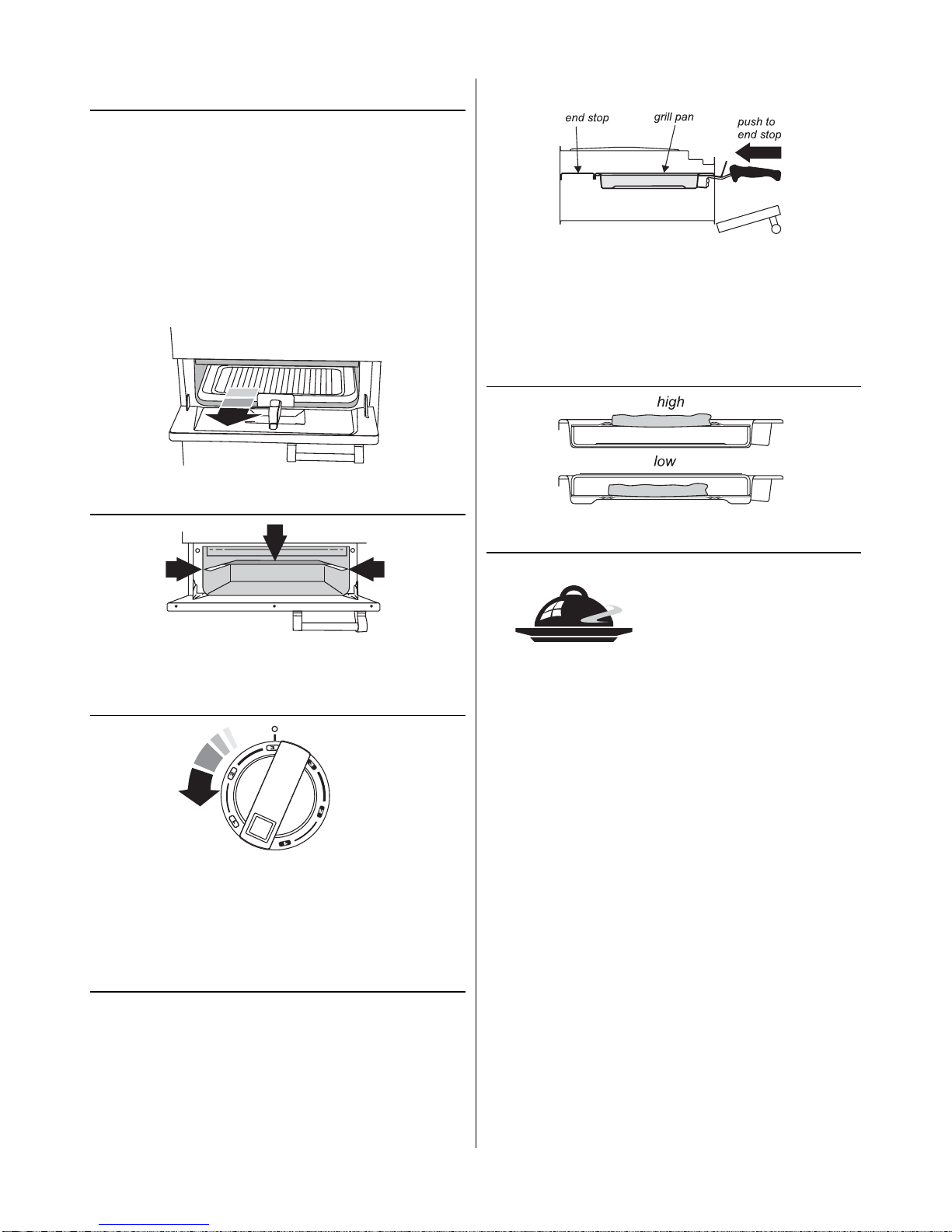

1
Remove the pan from the bottom of the grill
compartment.
2
After placing your food on the grill tray pan, slide
the grill pan onto the side supports just below the
elements.Make sure it is pushed right in and touches
the back stop.
3
The grill has two elements that allow either the whole
area of the pan to be heated or just the right hand
half.
To heat the whole grill, turn the knob clockwise to
position 3.
To heat the right hand half turn it anticlockwise.
4
For best results preheat for 2 minutes with the grill
pan in position. After placing your food on the grill pan
grid, slide the grill pan onto the side supports.Adjust
the heat to suit by turning the knob.
Make sure it is pushed right in and touches the
back stop.
Never close the grill door when the grill is on.
5
The grill pan grid can be turned over to give two
grilling positions.
Don’t leave the grill on for more than a few
moments, without the grill pan underneath it.
For best results, especially with toast,
preheat the grill with the grill pan in the
cooking position for two minutes before use.
The grill trivet can be removed and the food
placed on it while you are waiting for the grill to
preheat.
The grill pan grid can be turned over to give
two grilling positions.
You can brown the top of dishes cooked in the
oven, under the grill by placing the dish onto the
base of the grill pan, which can easily slide along
the floor of the grill cavity.

7
The Ovens
During use the appliance becomes hot. Care
should be taken to avoid touching the heating
elements inside the oven.
Before using for the first time, to dispel
manufacturing odours turn the ovens to
230°C and run for an hour.To clear the smell
make sure the room is well ventilated to the
outside air, by opening windows or turning on
a cooker hood for example.We recommend
that people with respiratory or allergy
problems should vacate the area for this brief
period.
The clock must be set to the time of day before
the ovens will work. See ‘The Clock’section for
instructions on setting the time of day.

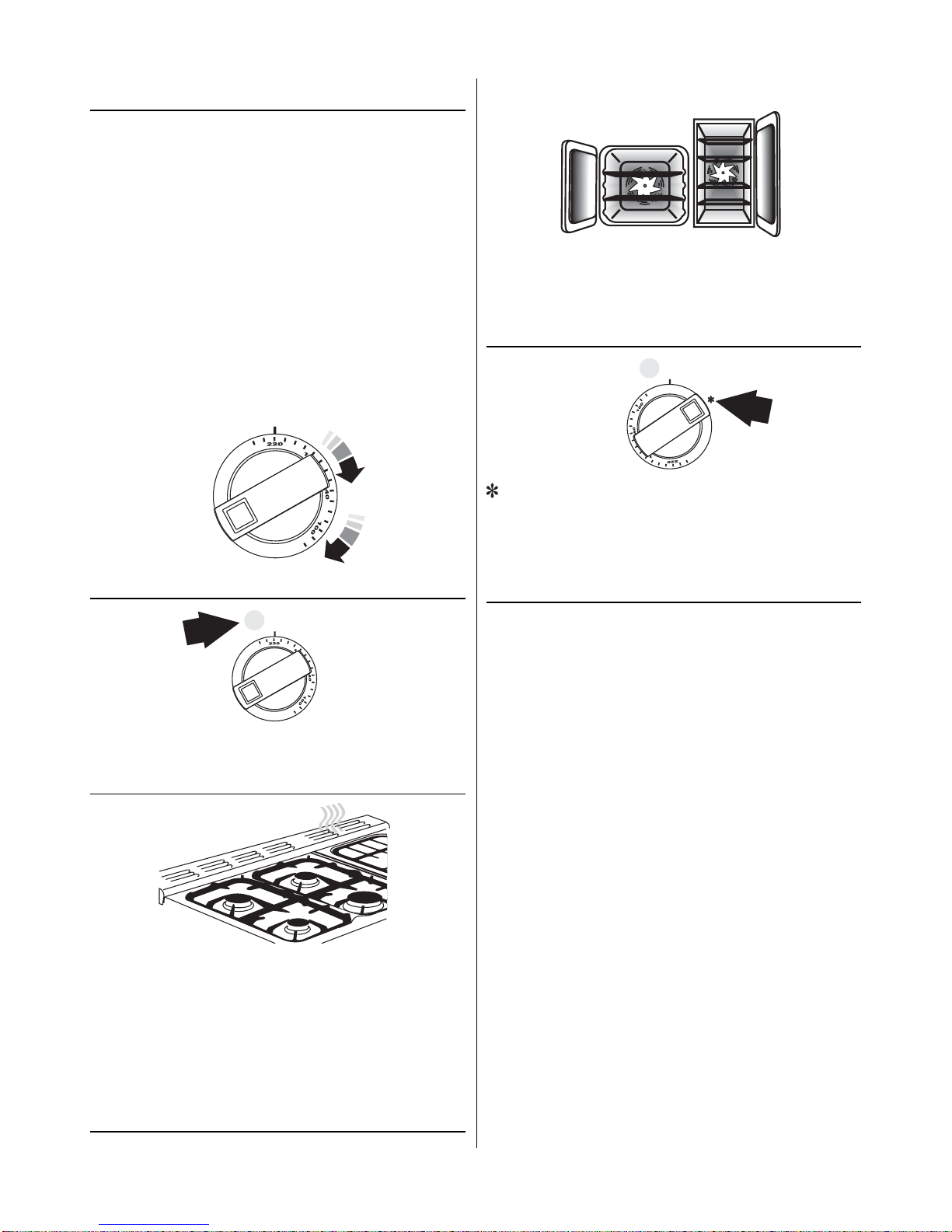

1
Turn the oven knob to the temperature you need.
2
The oven indicator light will glow until the oven has
reached the temperature you selected. It will then
cycle on and off during cooking.
3
During cooking, food naturally produces steam,
particulary when cooking foods with high water
content (e.g.oven chips).There may be some steam
visible at the grille at the rear of the hotplate.This
is perfectly normal. As this steam can condense to
water droplets on the cool outer trim of the oven,
it may be necessary during cooking to wipe away
any moisture with a soft cloth.This will also help to
prevent soiling and discolouration of the oven exterior
by cooking vapours.
4
The fans in both ovens circulate hot air continuously,
which means faster more even cooking.
The recommended cooking temperatures for a
fanned oven are generally lower than a non-fanned
oven.
5
The fan only setting.The fan circulates air inside
the oven but the heating element is not turned on.
This setting is useful for defrosting frozen foods.
Whole chickens and large joints of meat should be
defrosted in the refrigerator. Do not defrost in a warm
oven or whilst the adjoining oven is hot.

8
The Clock
You can use the timer to turn the ovens on and
off. The clock must be set to the time of day
before the ovens will work.

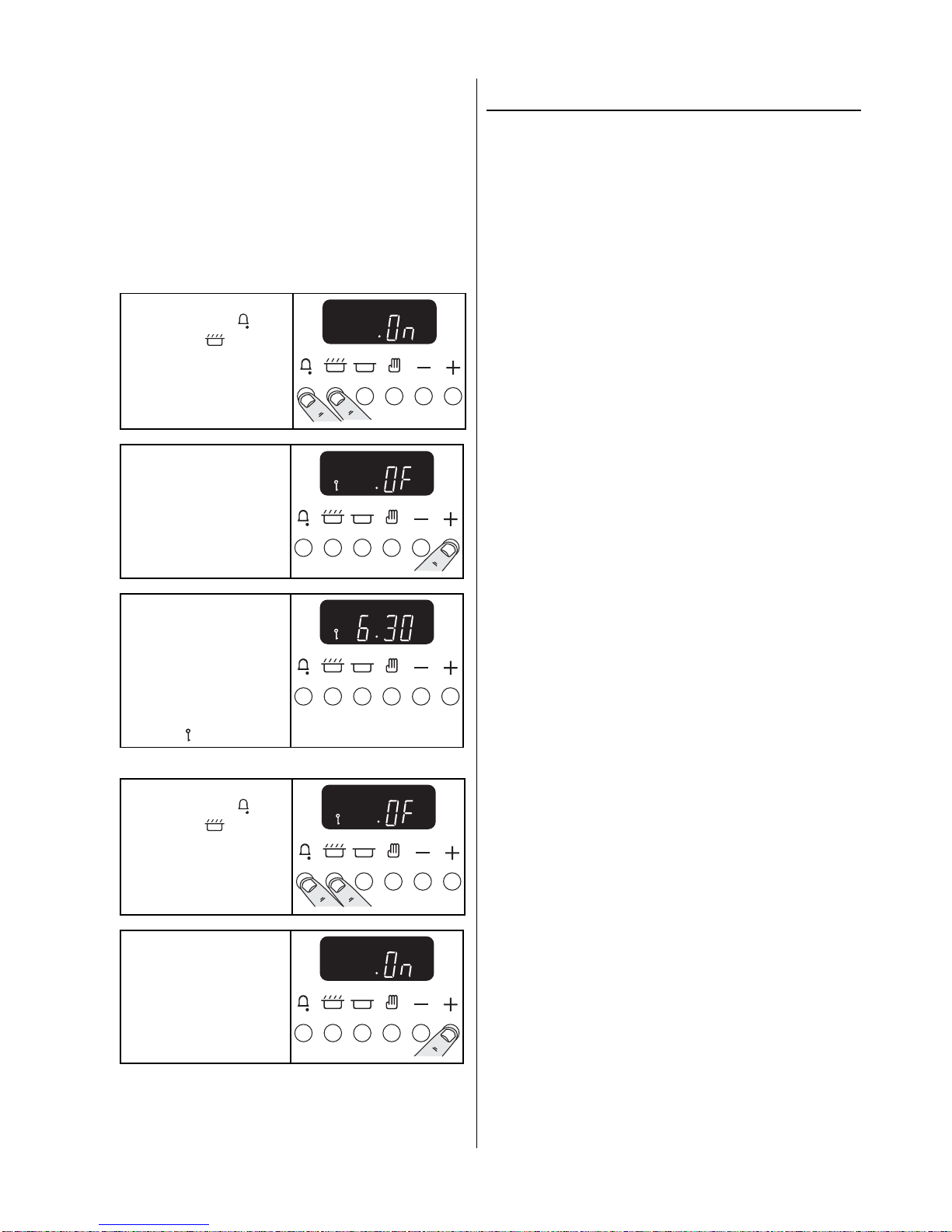

To set the time of day
Press and hold as above.At the same time, press
(-) or (+) until the correct time shows. Don’t forget
it’s a 24 hour clock. If you make a mistake or
press the wrong button, turn off the power supply
for a minute or two and start again.
To time something that’s cooking
(minute minder)
Press and hold the
Minute Minder ( ).
At the same time
press (-) or (+) until
the time you want to
cook for is shown.
You can check time remaining by pressing
and cancel the beeper by pressing
To stop automatically
Use when you have started the oven manually.
Press and hold the
Stop Time ( )
button.
At the same time press (-) or (+) until your
required ‘Stop Time’ shows. AUTO will show in
the display.When your cooking is finished the
beeper sounds.TURN THE OVEN KNOB TO
0 FIRST, then press once to stop the beep,
press again to return to manual cooking.
To start and stop the oven
automatically
Before you set the clock, you must have two
numbers clearly in mind.
The ‘cook period’, which is the period of time you
want the oven to cook.
The ‘stop time’, which is the time of day you want
the oven to stop cooking.
You cannot set a start time directly - this is set
automatically by setting the cooking period and
stop time.
Press and hold the
Cook Time ( )
button.At the same
time press (-) or (+)
until your required
‘cook period’ shows.
Press and hold the
Stop Time ( )
button.
At the same time
press (-) or (+) until
your required‘stop
time’ shows.
AUTO will show in the
display.
Set the oven to the required temperature.When
your cooking is finished the beeper sounds.
TURN THE OVEN KNOB TO 0 FIRST, then press
once to stop the beep, press again to return
to manual cooking.
If you are out, don’t worry about the beeper going
off, it stops after a while.When you return, TURN
THE OVEN KNOB TO 0 FIRST, then press
twice, to return to manual cooking.
AUTO is showing, you want to
reset to manual cooking.
When cancelling an automatic setting, any
cooking time already set must be returned
to 0.00 before you can return to manual, by
pressing the button.

9
Clock Special Features
Key Lock
When the key lock is activated, the clock can be
operated as usual but the oven is locked and will
not come on.This means that your child could
select a cook program but the program will not be
activated and oven will not be switched on.
To activate the key lock
Make sure that the clock is in manual mode and
cancel any active programs.
Hold the
Minute Minder ( ) and
Cooktime ( ) buttons
for about 8 seconds.
‘On’will appear on the
display.
Press the ‘+’ button
once.
‘Of’will appear on the
display.
The clock oven control
functions are now
locked.
After a few seconds
the display will revert
to show the time
of day and the key
symbol ( ).
To turn off the key lock
Hold the
Minute Minder ( ) and
Cooktime ( ) buttons
for about 8 seconds.
‘Of’will appear on the
display.
Press the ‘+’ button
once.‘On’ will appear
on the display.
After a few seconds the display will revert to show
the time of day.
The oven and the clock oven control functions
can now be used normally.
Cooking using the timer
The timer can be used to turn just one oven
or both on and off automatically.The start and
stop time must be the same for both ovens but
different cooking temperatures can be set.
If you want to turn one of the ovens on at the
same time as the timer is set for automatic
cooking, you must wait until the timer has
turned on the oven/ ovens first.Then you can
adjust either of them manually in the normal
way.
You can set the oven to turn on any time over the
following 24 hour period
If you want to cook more than one dish,
choose dishes that require approximately the
same time.However, dishes can be‘slowed
down’slightly by using small containers
and covering them with aluminium foil, or
‘speeded up’slightly by cooking smaller
quantities or placing in larger containers.
Very perishable foods such as pork or fish should
be avoided if a long delay period is planned,
especially in hot weather.
Don’t place warm food in the oven.
Don’t use an oven already warm.
Don’t use if an adjoining oven is warm.
Avoid using wine or beer if there is a delay
period, as fermentation may take place.
To avoid curdling, cream should be added to
dishes just before serving.
Fresh vegetables, which may discolour during a
delay period, should be coated in melted fat or
immersed in a water and lemon juice solution.
Many frozen foods are ideal for delayed
cooking and can be placed in the oven while
still frozen.
Fruit pies, custard tarts or similar wet mixtures
on top of uncooked pastry are only satisfactory if
there is a short delay period. Dishes containing
leftover cooked meat or poultry should not be
cooked automatically if there is a delay period.
Whole poultry must be thoroughly defrosted
before placing in the oven.
Check that meat and poultry are fully cooked
before serving.

10
Oven cooking
Both ovens are fanned ovens.The fan circulates
hot air continuously which results in faster heat
transfer to the food.
The wire shelves should always be pushed firmly
to the back of the oven.
Baking trays meat tins etcetera should be placed
level centrally on the oven’s wire shelves. Keep all
trays and containers away from the sides of the
oven, as overbrowning of the food may occur.
For even browning, the maximum recommended
size of a baking tray is 340 mm by 340 mm for
the Main oven and 230mm by 320mm for the Tall
oven.
Cooking high moisture
content foods can create
a ‘steam burst’, when
the oven door is opened.
When opening the oven
stand well back and allow
any steam to disperse.
When the oven is on, don’t
leave the door open for
longer than necessary,
otherwise the knobs may get
very hot.
• Always leave a‘fingers width’between dishes
on the same shelf.This allows the heat to
circulate freely around them.
• The Cook & Clean oven liners (see Cleaning
your cooker) work better when fat splashes are
avoided. Cover meat when cooking.
• To reduce fat splashing when you add
vegetables to hot fat around a roast, dry them
thoroughly or brush lightly with cooking oil.
• Sufficient heat rises out of the oven
while cooking to warm plates in the grill
compartment.
• If you want to brown the base of a pastry dish,
preheat a baking tray for 15 minutes before
placing the dish in the centre of the tray.
• Where dishes may boil and spill over during
cooking, place them on a baking tray.
Main Oven shelves
the shelf guard should be at the back pointing upwards
As well as the flat shelves some models are
supplied with a drop shelf.The drop shelf
increases the possibilities for oven shelf spacing.
The oven shelves can be easily removed and
refitted.
Pull the shelf forward
until the back of the
shelf is stopped by the
shelf stop bumps in the
oven sides.
Lift up the front of the
shelf so the back of the
shelf will pass under
the shelf stop and then
pull the shelf forward.
To refit the shelf, line up the shelf with a groove
in the oven side and push the shelf back until
the ends hit the shelf stop. Lift up the front so the
shelf ends clear the shelf stops, and then lower
the front so that the shelf is level and push it fully
back.

11
The Handyrack
The maximum weight that can be held by the
Handyrack is 5.5kg (12lb). It should only be used
with the supplied meat tin, which is designed
to fit the Handyrack. Any other vessel could be
unstable.
The Handyrack fits to the left hand oven door
only. Food cooking on it is easy to attend to,
because it’s accessible when the door is open. It
can be fitted at two different heights.One of the
oven shelves must be removed and the other
positioned to suit.
When the Handyrack is used in its highest
position, other dishes can be cooked on the
bottom shelf position of the oven or standing on
the base of the oven
When the Handyrack is used in its lowest
position, other dishes can be cooked on the
second shelf position of the oven or standing on
the base of the oven.
To fit the Handyrack,
locate one side of it on
the door bracket.
Then spring the other
side out to clip it onto
the other bracket.
Oven light
Press the appropriate button to turn on the main
oven light.
If the oven light fails, turn off the power
supply before you change the bulb. See the
‘Troubleshooting’ section for details on how
to change an oven light bulb.
Tall oven shelves
The tall oven is supplied with four normal cooking
shelves
and a plate warming shelf.
When using the tall oven you can cook on all four
shelves at the same time; but make sure they are
well spaced out to allow the hot air to circulate.

12
Oven cooking guide
Main & Tall Oven
Food Temperature Approximate Cooking Time
FISH 180°C Fillets 15-20mins.
180°C Whole 10mins.per 500g + 10mins.
180°C Steaks according to thickness.
ROAST MEATS
Beef with bone 150°C 20-25mins.per 500g + 20-25mins.
190°C 15-20mins.per 500g + 15-20mins.
Beef without bone 150°C 30-35mins.per 500g + 30-35mins.
190°C 20-25mins.per 500g + 20-25mins.
Lamb 170°C 30-35mins.per 500g + 30-35mins.
190°C 25-35mins.per 500g + 25-30mins.
Pork 150°C 35-40mins.per 500g + 35-40mins.
190°C 25-30mins.per 500g + 25-30mins.
Stuffed and rolled - Add approx.10 mins. per 500g to above cooking times or cook at 200°C for 20mins. then 160°C
for remainder. THOROUGHLYTHAW FROZEN JOINTS AND POULTRY BEFORE COOKING.
POULTRY
Chicken 150°C 20-25mins.per 500g + 20-25mins.
190°C 15-20mins.per 500g + 15-20mins.
Turkey 150°C 20-25mins.per 500g + 20-25mins.
190°C 15-20mins.per 500g + 15-20mins.
Stuffed Poultry - Cook at 200°C or at 200°C for 20mins. then 160°C for remainder. Prepacked (fresh or frozen) follow
packers cooking times
CASSEROLE 140°C 2-4hrs according to recipe
YORKSHIRE PUDDING 200°C Large tin 30-35mins.Individual 10-20mins.
CAKES
Very Rich Fruit 140°C 45-50mins.per 500g mixture
Rich fruit (180mm) 145°C 21/2-3hrs.
Madeira (180mm) 150°C 80-90mins.
Queen Cakes 180°C 15-25mins.
Scones 210°C 10-15mins.
Victoria Sandwich 170°C 20-30mins.
PASTRIES
Plate Tart 190°C 45-50mins. Interchange after 25mins.
Fruit Pie 190°C 35-40mins.
Tartlets 190°C 15-20mins.according to size.
Puff Pastry 200°C 20-40mins.according to size.
BREAD 200°C 20-30mins.
MERINGUES 100°C 2-21/2hrs
PUDDINGS
Baked Egg Custard 150°C 45mins.-1hr.
Baked sponge pudding 180°C 40-45mins.
Milk pudding 150°C 2-3hrs.
500g is approximately 1lb (1lb 2oz)

13
The oven control settings and cooking times given in the table opposite
are intended to be used only as a guide.Individual tastes may require the
temperature to be altered to provide a preferred result.
Food is cooked at lower temperature in a fan oven than in a conventional oven.
When using recipes, reduce the temperature by 10°C and the cooking time by 5-10
minutes.The temperature in a fanned oven does not vary with height in the oven - so
you can use any shelf.
Always leave at least one runner space between shelves when 2 tier cooking.
Place baking trays, individual cake tins or baking dishes centrally on the oven
shelf. For best results pre-heat the oven until the oven indicator light goes out.

14
Cleaning your cooker
Essential information
Before thorough cleaning isolate the electricity
supply. Remember to switch on the electricity
supply before use.
Never use paint solvents, washing soda,
caustic cleaners, biological powders,
bleach, chlorine based bleach cleaners,
coarse abrasives or salt. Don’t mix
different cleaning products - they may
react together with hazardous results.
Do not use a steam cleaner on your
cooker.
If you want to move your cooker for cleaning, see
the section called ‘Moving your cooker’.
All parts of the cooker can be cleaned with hot
soapy water - but take care that no surplus
water seeps into the appliance.
For cleaning materials see the ‘Cleaning Table’ at
the end of this section.
Hotplate burners
Some models have a separate trim ring, which
fits on the burner head.
The burner heads and caps can be removed
for cleaning. Make sure they are absolutely dry
before replacing.
The LH hotplate
A cap, B head, C notch, D base, E electrode
When refitting the burner head, make sure that
the notch lines up with the electrode or hole in
the base.Check that the burner head is level and
that the cap is fitted centrally on the burner head.
The Wok burner
The Wok burner is a little more complicated but it
also can be taken apart for cleaning.
Wok burner
inner burner cap
outer burner cap
inner burner head
outer burner head
Wok burner base
When reassembling the Wok burner, turn over
the large base ring and find the ‘D’shaped area.
burner base underside of burner head
Turn the head until the ‘D’ matches the one on
the burner base.Turn the head over and place it
on the burner base.

15
To fit the small inner burner, find the larger
electrode notch in the burner rim. Line this up
with the white ignition electrode and place the
inner burner on the large base ring.

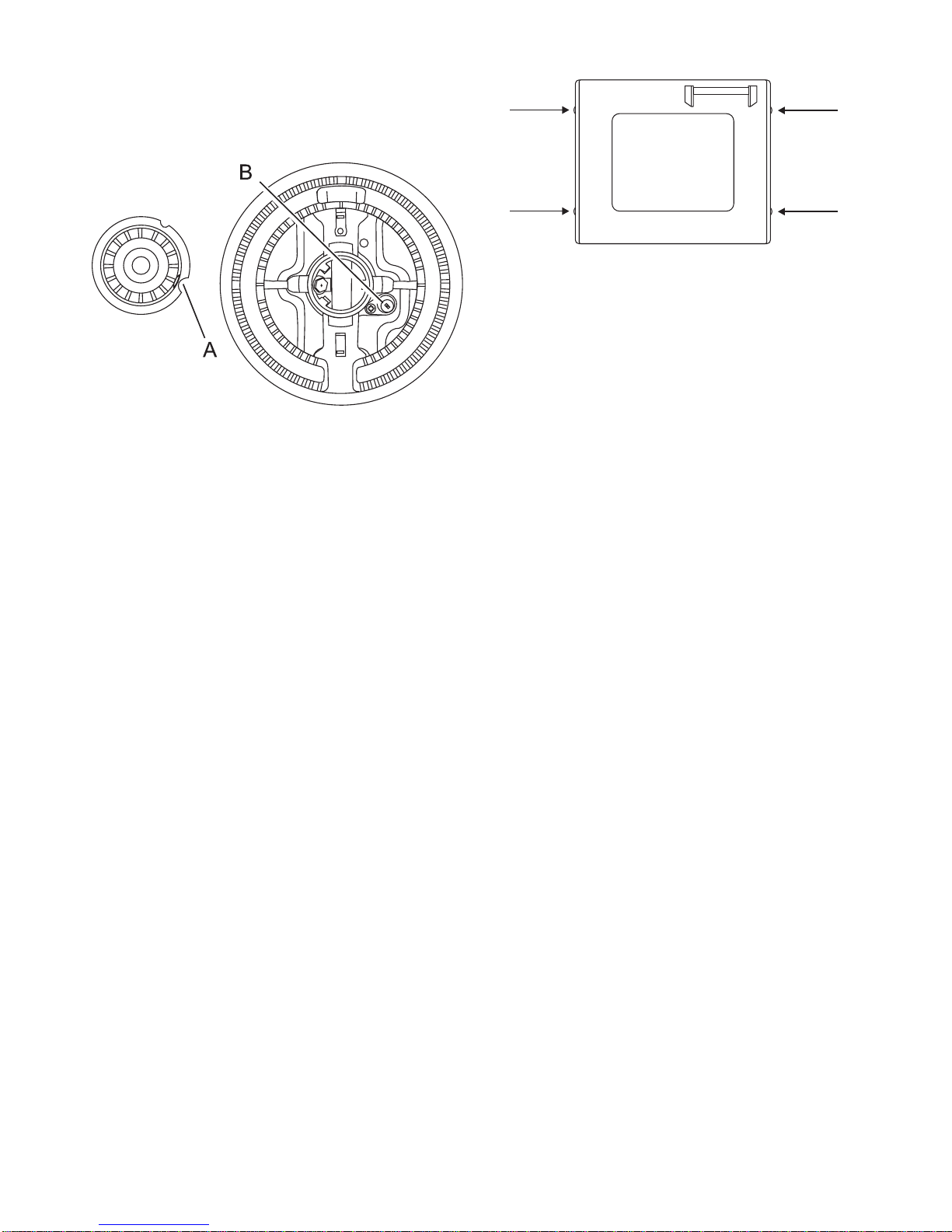

A electrode notch B ignition electrode
Now fit the two trim rings, making sure that they
are sitting down properly.
Griddle
Always clean the griddle after use.Allow to cool
completely before removing. Immerse the griddle
plate in hot soapy water.Use a soft cloth or, for
stubborn stains, a nylon washing up brush.
NEVER USE CAUSTIC OR ABRASIVE
CLEANERS AS THESE WILL DAMAGE THE
SURFACE.
Control Panel and Doors
The control panel and control knobs should only
be cleaned with a soft cloth wrung out in clean
hot soapy water - but take care that no surplus
water seeps into the appliance. Wipe with a
clean dampened cloth then polish with a dry
cloth.The oven doors should only be cleaned
with a soft cloth wrung out in clean hot soapy
water.
Cookers with window doors
On some models the oven door front panel can
be taken off so that the glass panels can be
cleaned. If the top edge of the oven door of your
cooker has a line of holes and there are screws
in the side edges then it can be taken apart for
cleaning.
Move the cooker forward to gain access to the
sides (see the ‘Moving the cooker’ section of
these instructions).
Open the oven door slightly and remove the front
panel fixing screws from the door sides (two each
side).
some window doors only
Carefully lift off the outer door panel.The inside
face of the glass panels can now be cleaned -
take care not to disturb or wet the door insulation.
Please note that the door is triple glazed but the
inner two panels are fixed and should not be
separated.After cleaning carefully refit the outer
door panel and replace the side fixing screws.
Grill
The grill pan and grid should be washed in hot
soapy water.After grilling meats or any foods that
soil, leave to soak for a few minutes in the sink
immediately after use.Stubborn particles may be
removed from the grid by using a nylon brush.
The Main Oven
The Main oven has panels which have been
coated with a special enamel that partly cleans
itself.This does not stop all marks on the lining,
but helps to reduce the amount of manual
cleaning needed.
The Cook & Clean panels work better above
200°C. If you do most of your cooking below
this temperature, occasionally remove the
panels and wipe with a lint free cloth and
hot soapy water.The panels should then be
dried and replaced and the oven heated at
200°C for about one hour.This will ensure
the Cook & Clean panels are working
effectively.
Don’t use steel wool (Brillo) or any other
materials that will scratch the surface. Don’t use
oven cleaning pads.

16
Cleaning Table
Hotplate
Part Finish Recommended Cleaning Method
Hotplate Top Enamel or
Stainless Steel Hot soapy water, soft cloth.Any stubborn stains remove gently with a nylon scourer.
Pan Supports, Wok Cradle
(some models only) Enamel coated Cast Iron or
Stainless Steel
Cif Cream Cleaner- Faberge Lever and a nylon scourer.
Dishwasher.
Warming Zone (some models
only) Toughened Glass Hot soapy water, cream cleaner/scourer if necessary.
Burner Caps Enamel Cream cleaner, nylon scourer. Dishwasher
Burner Trim Rings (some
models only) and Burner Head Aluminium Cif or other cream cleaner with a soft cloth. Be careful not to be over vigorous.
Griddle Plate (some models
only) Non-Stick Surface Allow to cool.Wash in hot soapy water.Do not use abrasive cleaners/scourers. Dishwasher.
Outside of cooker
Part Finish Recommended Cleaning Method
Door, Door surround and
Storage Drawer exterior. Enamel or paint Hot soapy water, soft cloth.
Any stubborn stains, remove gently with a liquid
detergent.
Stainless Steel E Cloth (Comet) or Vileda Microfibre Plus All
Purpose Cloth Freudenberg Household Products LP
(supermarket)
Sides and Plinth Painted surface Hot soapy water, soft cloth
Splashback/Rear Grille Enamel or
Stainless Steel Hot soapy water, soft cloth.Cream cleaner, with care, if necessary.
Control panel Paint, Enamel or
Stainless Steel Warm soapy water.Do not use abrasive cleaners on lettering.
Control Knobs/Handles Plastic/ Chrome Warm soapy water, soft cloth.
Oven Door Glass/Glass Lid Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Oven and Grill
Part Finish Recommended Cleaning Method
Sides, floor & roof of oven -
NOT COOK & CLEAN OVEN
PANELS (see below)
Enamel Any proprietary oven cleaner that is suitable for enamel.
CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS
- FOLLOW MANUFACTURERS INSTRUCTIONS. Do
not allow contact with the oven elements.
Cook & Clean Oven Panels
(some models only) Special enamel that partly cleans
itself
This surface cleans itself at 200°C and above, or the
panels can be removed and washed with hot soapy
water and a nylon brush. (see ‘The Ovens’in ‘Cleaning
your cooker’)
Oven Shelves, Handyrack, Grill
Trivet, Handygrill rack Chrome An oven interior cleaner that is suitable for chrome. Soap filled pad. Dishwasher.
Grill Pan/Meat Tin, Handygrill
Pan (some models only) Enamel Hot soapy water.Soap filled pad (Brillo). Dishwasher.
Cleaners listed are available from Supermarkets or electrical retailers as stated. Cleaner manufacturer in
Italics
For enameled surfaces use a cleaner that is approved for use on vitreous enamel.The vitreous enamel
association has a list of approved cleaners.Contact them via their website www.ive.org.uk or telephone:
01527 893031.
Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately.
To help keep your oven clean, cover meat when roasting, with foil or use a roasting bag.Brush vegetables
with fat before placing around the meat.

17
Removing the Main Oven Linings
Some of the lining panels can be removed for
cleaning and for cleaning behind. Remove the
shelves first.
On some models
the Main oven has a
removable oven roof
- if fitted slide the
roof liner forward and
remove.
The side panels of the main oven can be
removed.
Each side of the oven is fixed with four fixing
screws.You don’t have to remove the screws
to remove the oven linings.Lift each side panel
upwards and they will slide off the screws.Then
pull them forwards.
Once the linings are removed, the oven enamel
interior can be cleaned.
When replacing the linings fit the side linings first.
The Tall Oven
To clean the oven sides slide out the shelves,
unhook the supports from the oven sides and lift
out.
Moving your cooker
Switch off the electricity supply.
The cooker is heavy, two people may be
required to move it.There are two levelling
rollers at the back and also two screw down
levelling feet at the front.
Open the grill door and right hand oven door so
that you can get a good grip on the bottom of the
fascia panel as you move the oven.
Lift the front of the cooker slightly and pull
forward.
Do not move the oven by pulling the door
handles or knobs.
Move the oven a bit at a time, checking behind
it to make sure the gas hose is not caught.
Make sure both electricity and gas cables have
sufficient slack to move the cooker forward as
you go along.
If a stability chain is fitted, release it as you
ease the cooker out.Don’t forget to refit it
when you replace the cooker.
When you replace the cooker, again check
behind to make sure that the electricity and gas
cables are not caught or trapped.

18
Troubleshooting
Hotplate ignition or hotplate burners faulty
Is the power on? Is the clock illuminated? If
not there maybe something wrong with the
power supply.
See ‘power supply’section further on.
Are the sparker (ignition electrode) or burner
slots blocked by debris? Is the burner trim
correctly located? Are the burner caps
correctly located?
See the section entitled ‘Cleaning your cooker’
Hotplate burners will not light
If only one or all the hotplate burners will not
light, make sure that the parts have been
replaced correctly after wiping or removing for
cleaning.
Check that there is not a problem with your
gas supply.You can do this by making sure
that other gas appliances you may have are
working.
Do the burners spark when you push the
button? If not check the power is on - is the
clock illuminated?
Grill not cooking properly
Are you using the pan and trivet supplied with
the cooker? Is the pan being used on the
runners, not the floor of the compartment? Is
the grill tray pushed fully back to stop?
Steam is coming from the oven
During cooking, food naturally produces
steam, particulary when cooking foods with
high water content (e.g. oven chips).There
may be some steam visible at the grille at the
rear of the hotplate.This is perfectly normal.
Steam can condense to water droplets on
the cool outer trim or the oven door. It may be
necessary during cooking to wipe away any
moisture with a soft cloth.This will also help to
prevent soiling and discolouration of the oven
exterior by cooking vapours.
Take care when opening the oven door as
there may be a momentary puff of steam
when the oven door is opened. Stand well
back and allow any steam to disperse.
The oven fan is noisy
The note of the oven fan may change as the
oven heats up - this is perfectly normal.
The knobs get hot when I use the oven or the
grill, can I avoid this?
Yes, this is caused by heat rising from the
oven or the grill, and heating them up. Don’t
leave the oven door open. Make sure that the
grill pan is pushed right back to the ‘back stop’
when grilling.
Food is cooking too slowly, too quickly, or
burning
Cooking times may differ from your
previous oven. Check that you are using
the recommended temperatures and shelf
positions.See the ‘Oven cooking guide’
section of these instructions.The oven control
settings and cooking times are intended to be
used only as a guide.Individual tastes may
require the temperature to be altered either
way, to get the results you want.Try cooking at
a higher temperature setting.
The oven is not cooking evenly
Do not use a tin or baking tray larger than
340mm x 340mm in the Main oven or 232mm
x 321mm in the Tall oven.
If you are cooking a large item, be prepared to
turn it round during cooking.
If more than one shelf is used, check that
space has been left for the heat to circulate.
When a baking tray is put into the oven, make
sure it is placed centrally on the shelf.
Check that the door seal is not damaged and
that the door catch is adjusted so that the door
is held firmly against the seal.
A dish of water when placed on the shelf
should be the same depth all over.(For
example, if it is deeper at the back, then the
back of the cooker should be raised up or
the front lowered). If the cooker is not level
arrange for your supplier to level it for you.

19
Oven not coming on when turned on manually
Is the power on? Is the clock illuminated? If
not there may be something wrong with the
power supply. Is the cooker supply on at the
isolator switch? Is the clock flashing 0.00?
If so set it to the correct time of day. Has
the Timer been set to AUTO by mistake. If
AUTO is showing on the clock display, press
the ‘cook period’button and reduce any set
cooking time showing to 0.00, with the (+) and
(-) buttons. Press the button twice.
Is the key symbol ( ) showing in the display?
See the Clock section of the instructions for
more information on the key lock feature of the
clock.
Oven not coming on when automatic cooking
Timer set correctly but oven knob left OFF by
mistake?
Is the key symbol ( ) showing in the display?
See the Clock section of the instructions for
more information on the key lock feature of the
clock.
Oven temperature getting hotter as the cooker
gets older
If turning the knob down has not worked or
only worked for a short time then you may
need a new thermostat.This should be fitted
by a service person.
The oven light is not working
The bulb has probably blown.You can buy a
replacement bulb (which is not covered under
the guarantee) from a good electrical shop.
Ask for an Edison screw fitting 15w 230v lamp,
FOR OVENS. It must be a special bulb, heat
resistant to 300 °C.
Open the oven door and remove the
Handyrack (if fitted) and oven shelves.
Turn off the power supply.
Unscrew the bulb cover by turning
anticlockwise. Unscrew the old bulb. Screw in
the new bulb, screw back the bulb cover.Turn
on the electricity supply and check that the
bulb now lights.
Current Operated Earth Leakage Breakers
Where the cooker installation is protected by a
30 milliamp sensitivity residual current device
(RCD), the combined use of your cooker and
other domestic appliances may occasionally
cause nuisance tripping. In these instances
the cooker circuit may need to be protected
by fitting 100mA device.This work should be
carried out by a qualified electrician.
Power failure
In the event of a failure in the electrical supply
the hotplate may be lit using a match.
If there is an installation problem and I don’t get
my original installer to come back to fix it who
pays? You do. Service organisations will charge
for their call outs if they are correcting work
carried out by your original installer. It’s in your
interest to track down your original installer.
What cleaning materials are recommended for the
cooker?
See the ‘Cleaning your cooker’ section for
recommended cleaning materials.We do
not recommend Mr.Muscle, as it contains
chemicals that may damage the surfaces of
your cooker.

20
The cooker should be serviced by an Authorised
Person and only approved spare parts used.
Have the installer show you the location of the
cooker control switch.Mark it for easy reference.
Always allow the cooker to cool and then switch
off at the mains and before cleaning or carrying
out any maintenance work, unless specified
otherwise in this guide.
All parts of the cooker become hot with use
and will retain heat even after you have
stopped cooking.
Take care when touching cooker, to minimize
the possibility of burns, always be certain that
the controls are in the OFF position and that it is
cool before attempting to clean the cooker. Avoid
touching heating elements.
Use dry oven gloves when applicable - using
damp gloves might result in steam burns
when you touch a hot surface. Never operate
the cooker with wet hands.
Do not use a towel or other bulky cloth in place of
a glove.They might catch fire if they touch a hot
surface.
Clean with caution. If a wet sponge or cloth
is used to wipe spills on a hot surface,
be careful to avoid steam burns. Some
cleansers can produce noxious fumes if
applied to a hot surface.
Do not use unstable saucepans and position the
handles away from the edge of the hotplate.
The appliance is not intended for unsupervised
use by young children or infirm persons. Babies,
toddlers and young children should not be
allowed near the cooker at any time.They should
never be allowed to sit or stand on any part of the
appliance.Teach them not to play with controls or
any other part of the cooker.
Never store anything of interest to children in
cabinets above a cooker - children climbing on
the cooker to reach them could be seriously
injured.
Clean only parts listed in this guide.
In the interests of hygiene and safety the cooker
should be kept clean at all times as a build up in
fats and other food stuff could result in a fire.
General Safety Instructions
In the UK the cooker must be installed by a
CORGI registered engineer.
The installation must be in accordance with the
installation instructions and comply with the
relevant regulations and also the local gas and
electricity supply companies’ requirements..
If you smell gas
Don’t turn electric switches on or off.
Don’t smoke
Don’t use naked flames
Do turn off the gas at the meter or cylinder
Do open doors and windows to get rid of the gas
Call your gas supplier.
If you are using natural gas in the UK ring British
Gas - Trans Co on
0800 111 999
DO NOT SPRAY AEROSOLS IN THE VICINITY
OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
WHERE THIS APPLIANCE IS INSTALLED IN
MARINE CRAFT OR IN CARAVANS, IT SHALL
NOT BE USED AS A SPACE HEATER.
This appliance is designed for domestic
cooking only. Use for any other purpose
could invalidate any warranty or liability
claim.
The use of a gas cooking appliance results in
the production of heat and moisture in the room
in which it is installed. Ensure that the kitchen
is well ventilated: keep natural ventilation holes
open or install a mechanical ventilation device,
(mechanical extractor hood).
Prolonged intensive use of the appliance may call
for additional ventilation, for example opening a
window, or more effective ventilation, for example
increasing the level of mechanical ventilation
where present.
