Range Master Longstock 90 Induction Instruction Manual

Longstock 90 Induction
U110999 - 01
USER GUIDE &
INSTALLATION INSTRUCTIONS

To enter all you have to do is send in photos of your
Rangemaster kitchen and tell us in one sentence what
makes Rangemaster the heart of your kitchen? Entries
can be posted on our Facebook page, Instagram or Twitter
by tagging @RangemasterUK and using #MyRangemaster.
Or, if you prefer, simply send in your entry via e-mail to
[e-mail].
Rangemaster will feature a number of entries on the
website online gallery and on the Rangemaster Facebook
page, and some kitchens may be selected to be
professionally photographed.
Show off your kitchen with ...
#MyRangemaster
This is
SNAP SHARE
#MyRangemaster
To enter simply
and
*Terms & Conditions
1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page
using the advertised hashtag & tag. 3. If we would like to professionally photograph your kitchen, you will be contacted via e-mail, Facebook / Twitter message or Instagram comment. 4. We cannot guarantee your
kitchen will be professionally photographed. 4. Any photographs received and professional photographs taken will belong to AGA Rangemaster plc with full usage rights. E&OE.
Simply snap and share a picture of your kitchen and tag
#MyRangemaster for the chance to win £200 of
Rangemaster cookware. If selected we will also send a
photographer round to professionally photograph you at
home with your range. You might even feature in some
of the UK’s top home interest titles!
Our range cookers are well known for providing the best
possible cooking performance and years of faithful service.
However, a great cooker alone cannot guarantee perfect
results every time. The other vital ingredients are of course
enthusiasm and quality cookware.
We offer cookware to work perfectly with all fuel types
manufactured by Rangemaster, including induction hobs.
You can be assured of functionality with style, as well as the
quality and meticulous attention to detail you expect from
the pioneers of range cooking.
Visit www.rangemastercookshop.co.uk
*Terms & Conditions Apply
Search Rangemaster UK

i
Contents
1. Before you start... 1
Personal safety 1
Electrical connection safety 1
Peculiar smells 2
Ventilation 2
Maintenance 2
Induction care 3
Oven care 4
Hob care 5
Grill/glide-out grill™ care 5
Cooling fan 5
Cooker care 5
Cleaning 5
2. Cooker Overview 6
The Hob 6
Pan Detector, 7
Residual Heat Indicator, H 8
Automatic Heat-up, A 8
Child Lock, 8
Low Temperature Setting, L1/L2 9
Power Boost Setting, P 9
Overheat Function 9
Glide-out grill™ 10
Ovens 11
Accessories 12
Main Oven Light 12
3. 3 Button clock 13
4. Cooking tips 15
5. Cooking Table 16
6. Cleaning your cooker 17
7. Troubleshooting 21
8. Installation 23
Dear Installer 23
Safety Requirements and Regulations 23
Provision of Ventilation 23
Location of Cooker 23
Positioning the Cooker 24
Moving the Cooker 24
Lowering the Two Rear Rollers 25
Completing the Move 25
Fitting the Stability Bracket 25
Repositioning the Cooker Following
Connection 25
Levelling the Cooker 25
Electrical Connection 26
Final Checks 27
Final Fitting 27
Customer Care 27
9. Circuit Diagrams 28
10. Technical Data 30

ii

1
Your cooker should give you many years of
trouble-free cooking if installed and operated
correctly. It is important that you read this
section before you start.
Personal safety
This appliance is for cooking purposes only.
It must not be used for other purposes, for
example heating a room. Using it for any other
purpose could invalidate any warranty or
liability claim. Besides invalidating claims this
wastes fuel and may overheat the control knobs.
• This appliance can be used by children
aged from 8years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• WARNING: Children less than 8 years
of age should be kept away unless
continuously supervised. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
• The cooker should not be placed on a base.
• This appliance is designed for domestic
cooking only. Use for any other purpose
could invalidate any warranty or liability
claim.
• Before operating the oven(s) please
refer to the oven shelf installation, in the
Accessories section, of the instructions.
• WARNING: The appliance and its
accessible parts become hot during use
and will retain heat even after you have
stopped cooking. Care should be taken to
avoid touching heating elements. Children
less than 8 years of age shall be kept away
unless continuously supervised.
• CAUTION: A long term cooking process
has to be supervised from time to time.
A short term cooking process has to be
supervised continuously.
• WARNING: Danger of fire: DO NOT
store items on the cooking surfaces.
• To avoid overheating, DO NOT install the
cooker behind a decorative door.
• WARNING: Accessible parts will become
hot during use and will retain heat even
after you have stopped cooking. Keep
babies and children away from the cooker
and never wear loose-fitting or hanging
clothes when using the appliance.
• DO NOT use a steam cleaner on your
cooker.
• ALWAYS keep combustible materials,
e.g. curtains, and flammable liquids a safe
distance away from your cooker.
• DO NOT spray aerosols in the vicinity of
the cooker while it is on.
• NEVER try to extinguish a fire with water,
but switch off the appliance and then
cover flame e.g. with a lid or a fire blanket.
Electrical connection safety
This cooker must be installed in accordance
with the relevant instructions in this booklet,
with the relevant national and local regulations,
and with the local electricity supply companies’
requirements.
n WARNING: THE APPLIANCE MUST BE
EARTHED.
Note: The cooker must be connected to the
correct electrical supply as stated on the
voltage label on the cooker, through a suitable
cooker control unit incorporating a double-
pole switch, having a contact separation of at
least 3mm in all poles.
1. Before you start...

2
n The cooker MUST NOT be connected to
an ordinary domestic power point.
Access to the mains terminal is gained by
removing the electrical terminal cover box on
the back panel. Connect the mains cable to the
correct terminals for your electrical supply type
(Fig. 1.1 and Fig. 1.2). Check that the links are
correctly tted and that the terminal screws are
tight. Secure the mains cable using the cable
clamp.
Minimum temperature rating T105
Read the instructions before installing or using
this appliance.
• This appliance is heavy so take care when
moving it.
• The cable size and type should be suitable
for the Electrical Load of the appliance and
comply with the relevant national and local
requirements.
• The cooker may be installed in a kitchen/
kitchen diner but NOT in a room
containing a bath or shower.
• The cooker MUST NOT be connected to an
ordinary domestic power point.
• It is normal for the hob control display
to flash for about 2 seconds during first
power setting.
• Set the clock to make sure that the oven is
functional – see the relevant section in this
manual.
• The appliance must be installed in
accordance with the regulations in force
and only in a well ventilated space.
• Failure to install the appliance correctly
could invalidate any warranty or liability
claims and lead to prosecution.
• DO NOT install the appliance on a
platform.
• DO NOT manouvre the cooker while it is
plugged into the electricity supply.
ArtNo.130-0010 Electrical connections single-phase
L
N
230 V ac 50 Hz
10 mm² max
6 mm² max
L1
N
L3
L2
3N ac
230/400 V 50 Hz
6 mm² max
10 mm² max
6 mm² max
Fig. 1.1
Fig. 1.2

3
• Before electrical reconnection, check that
the appliance is electrically safe.
Peculiar smells
When you rst use your cooker it may give o
an odour. This should stop after use.
Before using your cooker for the rst time,
make sure that all packing materials have been
removed and then, to dispel manufacturing
odours, turn all the ovens to 200°C and run for
at least an hour.
Before using the grill for the rst time you
should also turn on the grill and run for 30
minutes with the grill pan in position, pushed
fully back and the grill door open.
Make sure the room is well ventilated to the
outside air (see‘Ventilation’below). People with
respiratory or allergy problems should vacate
the area for this brief period.
Ventilation
The use of a cooking appliance results in the
production of heat and moisture in the room in
which it is installed. Make sure that the kitchen
is well ventilated. Keep natural ventilation
holes open or install a powered cooker hood
that vents outside.
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening a window, or more eective
ventilation, for example increasing the level of
mechanical ventilation where present.
Maintenance
• Only a qualied service engineer
should service the appliance and only
approved spare parts should be used. It
is recommended that this appliance is
serviced annually.
• WARNING: Before removing replacing
the bulb, turn off the power supply and
make sure that the oven is cool.
• DO NOT use cooking vessels on the
hotplate that overlap the edges.
• ALWAYS allow the cooker to cool and then
switch it off at the mains before cleaning or
carrying out any maintenance work, unless
specified otherwise in this guide.
• DO NOT use the control knobs to
manoeuvre the cooker.
• NEVER operate the cooker with wet hands.
• DO NOT use a towel or other bulky cloth
in place of a glove – it might catch fire if
brought into contact with a hot surface.
• DO NOT use hotplate protectors, foil or
hotplate covers of any description. These
may affect the safe use of your hotplate
burners and are potentially hazardous to
health.
• NEVER heat unopened food containers.
Pressure build up may make the containers
burst and cause injury.
• WARNING: Use only hob guards designed
by the manufacturer of the cooking
appliance or indicated by the manufacturer
of the appliance in the instructions for use
as suitable or hob guards incorporated in
the appliance. The use of inappropriate
guards can cause accidents.
• DO NOT use unstable saucepans. ALWAYS
make sure that you position the handles
away from the edge of the hotplate.
• NEVER leave the hotplate unattended
at high heat settings. Pans boiling over
can cause smoking, and greasy spills may
catch on fire. Use a deep fat thermometer
whenever possible to prevent fat
overheating beyond the smoking point.
• WARNING: Unattended cooking on a
hob with fat or oil can be dangerous and
may result in fire.
• NEVER leave a chip pan unattended.

4
Induction care
• IMPORTANT INFORMATION FOR
PACEMAKER AND IMPLANTED
INSULIN PUMP USERS: The functions
of this hob comply with the applicable
European standards on electromagnetic
interference. If you are fitted with a
pacemaker or implanted insulin pump and
are concerned please consult your doctor
for medical advice.
• When the hob is in use keep magnetic
items away, such as credit and debit cards,
floppy disk, calculators, etc.
• To fully utilise the power of your
induction hob and to ensure longevity of
performance, we recommend the use of
AGA Rangemaster Induction cookware.
If you decide to purchase an alternative
set of cookware for use on your induction
cooker, we would strongly recommend
that composite aluminium cookware
with steel inserts, example shown Fig.
1.3, are avoided. This type of construction
can significantly reduce the lifetime and
performance of your induction cook top.
• Take care when touching the marked
cooking areas of the hob.
• Use adequately sized pans with flat
bottoms that are large enough to cover
the surface of the hotplate heating area.
The use of undersized pans will expose a
portion of the surface unit to direct contact
and may result in the ignition of clothing.
• Only certain types of glass, glass-ceramic,
earthenware or other glazed containers
are suitable for use on the warming zone;
others may break because of the sudden
change in temperature.
• Only certain types of stainless steel,
enamelled steel or cast iron cookware with
enamelled bases are suitable for induction
hob cooking.
• ALWAYS heat fat slowly, and watch as it
heats. Deep fry pans should be only one
third full of fat.
• NEVER try to move a pan of hot fat,
especially a deep fat fryer. Wait until the
fat is cool. Filling the pan too full of fat can
cause spill over when food is added. If you
use a combination of oils or fats in frying,
stir them together before heating, or as the
fats melt.
• Foods for frying should be as dry as
possible. Frost on frozen foods or moisture
on fresh foods can cause hot fat to bubble
up and over the sides of the pan. Carefully
watch for spills or overheating of foods
when frying at high or medium high
temperatures.
• DO NOT use the top of the flue (the slots
along the back of the cooker) for warming
plates, dishes, drying tea towels or
softening butter.
• DO NOT use water on grease fires and
never pick up a flaming pan. Turn the
controls off and then smother a flaming
pan on a surface unit by covering the pan
completely with a well fitting lid or baking
tray. If available, use a multi-purpose dry
chemical or foam-type fire extinguisher.
• DO NOT modify this appliance. This
appliance is not intended to be operated
by means of external timer or separated
remote-control system.
• If flammable materials are stored in the
drawer, oven(s) or grill(s) it may explode
and result in fire or property damage.
• ALWAYS allow any cookware to cool
before cleaning.

5
• Take care NOT to scratch the surface when
placing cookware on the glass panel.
• Only certain types of glass, glass-ceramic,
earthenware or other glazed containers are
suitable for hotplate cooking; others may
break because of the sudden change in
temperature. NEVER cook directly on the
hob surface (Fig. 1.4).
• DO NOT leave the hob zones switched on
unless being used for cooking.
• DO NOT stand or rest heavy objects on the
hob. Although the ceramic surface is very
strong, a sharp blow or sharp falling object
(e.g. a salt cellar) might cause the surface
to crack or break (Fig. 1.5).
• WARNING: Should a crack appear in
the surface, disconnect the appliance
immediately from the supply and arrange
for its repair.
• ALWAYS LIFT cookware off the hob.
Sliding the griddle plate or pans may cause
marks and scratches (Fig. 1.6).
• Take care NOT TO PLACE HOT LIDS onto
the hob surface (Fig. 1.7). Lids that have
been used to cover a hot pan can“stick”
or create a “vacuum” effect to the Glass
Hob. Should this occur, DO NOT attempt
to lift the lid off the glass surface, this may
damage the glass. Instead slide the lid to
the edge of the hob surface and remove,
taking care not to scratch the hob surface.
Alternatively wait until the lid has cooled to
room temperature, the vacuum has been
released, then remove the lid by lifting it
from the hob surface.
• DO NOT place anything between the
base of the pan and the hob surface (e.g.
asbestos mats, aluminium foil, wok stand).
• Take care NOT to place metallic objects
such as knives, forks, spoons and lids on
the hob surface since they can get hot.
ArtNo.312-0001 Not cooking surface
ArtNo.312-0001 Not cooking surface
ArtNo.312-0003 Moving pans
Fig. 1.3
Fig. 1.4 Fig. 1.5
Fig. 1.6
Fig. 1.7

6
• We recommend that you avoid wiping
any surface unit areas until they have
cooled and the indicator light has gone off.
Sugar spills are the exception to this (see
‘Cleaning your Cooker’). After cleaning, use
a dry cloth or paper towel to remove any
cleaning cream residue.
• The ceramic surface should be washed
after use in order to prevent it from
becoming scratched or dirty. However, you
should clean the hob with caution as some
cleaners can produce noxious fumes if
applied to a hot surface.
• DO NOT leave the hob unattended.
Care should be taken to not allow your
cookware to boil dry. It will damage your
cookware and Induction Glass Hob.
• After use, switch off the hob element by its
control. DO NOT rely on the pan detector.
Oven care
• When the oven is not in use and before
attempting to clean the appliance
ALWAYS be certain that the control knobs
are in the OFF position.
• Use oven gloves to protect your hand from
potential burns.
• Cooking high moisture content foods can
create a ‘steam burst’when the oven door
is opened (Fig. 1.8). When opening the
oven, stand well back and allow any steam
to disperse.
• The inside door face is constructed with
toughened safety glass. Take care NOT
to scratch the surface when cleaning the
glass panel.
• Accidental damage may cause the door
glass panel to fracture.
• Keep oven vent ducts unobstructed.
• DO NOT use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
FRONT
Rear stop
Front
bracket
ArtNo.090-0007 90 Ceramic:
oven steam out the back
ArtNo.324-0001 Steam burst
Fig. 1.8
Fig. 1.9
Fig. 1.10
Front
bracket
Rear stop
Front

7
door glass since they can scratch the
surface, which may result in shattering of
the glass.
• Make sure the shelves are pushed firmly
to the back of the oven. DO NOT close the
door against the oven shelves.
• DO NOT use aluminium foil to cover
shelves, linings or the oven roof.
• When the oven is on, DO NOT leave the
oven door open for longer than necessary,
otherwise the control knobs may become very
hot.
• DO NOT use the timed oven if the
adjoining oven is already warm.
• DO NOT place warm food in the oven to
be timed.
• DO NOT use a timed oven that is already
warm.
• Use dry oven gloves when applicable –
using damp gloves might result in steam
burns when you touch a hot surface.
Oven Shelves (dependant on
model)
To t the glide-out shelf, hook the front of the
shelf onto the runners as shown (Fig. 1.9). The
rear of the shelf should rest on the runners, in
front of the rear stop (Fig. 1.9).
Standard oven shelves can be tted by lining
up the shelf with a groove in the oven ladders.
Push the shelf back until the ends hit the shelf
stop. Lift the front so the shelf clears the stops,
then lower the front so the shelf is level and
push it fully back.
Hob care
• NEVER allow anyone to climb or stand on
the hob.
• DO NOT use the hob surface as a cutting
board.
• DO NOT leave utensils, foodstus or
combustible items on the hob when it
is not in use (e.g. tea towels, frying pans
containing oil).
• DO NOT place plastic or aluminium foil, or
plastic containers on the hob.
• ALWAYS turn the control to the OFF
position before removing a pan.
• Avoid heating an empty pan. Doing so may
damage both the hob and pan.
Cooker care
As steam can condense to water droplets
on the cool outer trim of the oven, it may be
necessary during cooking to wipe away any
moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven
exterior by cooking vapours (Fig. 1.10).
Grill/glide-out grill™ care
n WARNING: Unattended cooking under
the grill can be dangerous and may
result in re.
• When using the grill, make sure that the
grill pan is in position and pushed fully in,
otherwise the control knobs may become
very hot.
• DO NOT leave the grill on for more than
a few moments without the grill pan
underneath it, otherwise the knobs may
become hot.
• NEVER close the grill door when the grill is
on.
• Accessible parts may be hot when the grill
is in use. Young children should be kept
away.
Cooling fan
This appliance may have a cooling fan. When
the grill or oven is in operation the fan will run
to cool the fascia and control knobs.

8
Cleaning
• Isolate the electricity supply before
carrying out any thorough cleaning. Allow
the cooker to cool.
• The cooker should be kept clean at all
times as a build up in fats and other food
stuff could result in a fire.
• Clean only the parts listed in this guide.
• Clean with caution. If a wet sponge or
cloth is used to wipe spills on a hot surface,
be careful to avoid steam burns. Some
cleaners can produce noxious fumes if
applied to a hot surface.
• NEVER use paint solvents, washing soda,
caustic cleaners, biological powders,
bleach, chlorine based bleach cleaners,
coarse abrasives or salt.
• DO NOT mix different cleaning products
– they may react together with hazardous
results.
• All parts of the cooker can be cleaned with
hot soapy water.
• Take care that no water seeps into the
appliance.
• Before you remove any of the grill parts for
cleaning, make sure that they are cool or
use oven gloves.
• DO NOT use any abrasive substances on
the grill and grill parts.
• DO NOT put the side runners in a
dishwasher.
• DO NOT put the burner heads in a
dishwasher.
• DO NOT put the griddle plate in a
dishwasher.
• NEVER use caustic or abrasive cleaners as
these will damage the surface.
• DO NOT use steel wool, oven cleaning
pads or any other materials that will
scratch the surface.
• NEVER store flammable materials in the
drawer. This includes paper, plastic and
cloth items, such as cookbooks, plastic
ware and towels, as well as flammable
liquids.
• DO NOT store explosives, such as aerosol
cans, on or near the appliance.
• DO NOT use steel wool, oven cleaning
pads, or any other materials that will
scratch the surface.
• DO NOT attempt to disassemble or clean
around any burner while another burner
is on, otherwise an electric shock could
result.

9

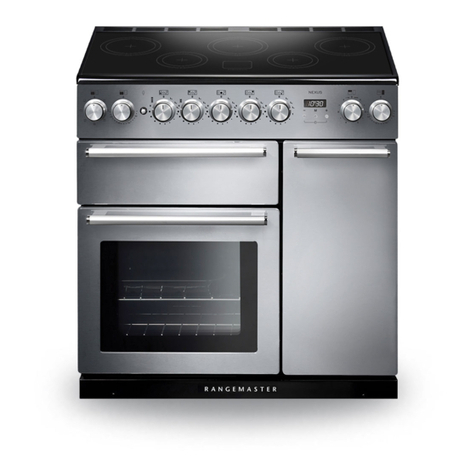

Your 90 induction cooker (Fig. 2.1) has the following features:
A. 5 induction cooking zones
B. Control panel
C. A separate grill or glide-out grill (depending on model)
D. Main programmable fan or multifunction oven
(depending on model)
E. Tall fan oven
The Hob
Use only pans that are suitable for induction hobs. We
recommend stainless steel, enamelled steel pans or cast iron
pans with enamelled bases. Note that some stainless steel
pans are not suitable for use with an induction hob so please
check carefully before purchasing any cookware.
Pans made of copper, aluminium or ceramic are not suitable
for use on an induction hob. The kind of pan you use and the
quantity of food aects the setting required. Higher settings
are required for larger quantities of food.
Pots and pans should have thick, smooth, at bottoms
(Fig. 2.2). This allows the maximum heat transfer from the
hob to the pan, making cooking quick and energy ecient.
Never use a round-bottomed wok, even with a stand.
ArtNo.025-0005 - Overview - 90 induction - 2 button clock & GO grill
2. Cooker Overview
Fig. 2.1
Fig. 2.2
Fig. 2.3
A
B
C
D
E

10
The very best pans have bases that are very slightly curved
up when cold (Fig. 2.3). If you hold a ruler across the bottom
you will see a small gap in the middle. When they heat up the
metal expands and lies at on the cooking surface.
Make sure that the base of the pan is clean and dry to prevent
any residue burning onto the hob panel. This also helps
prevent scratches and deposits.
n Take care when placing hot lids onto the hob
surface. Lids that have been covering boiling or
steaming foods can ‘stick’ to the ceramic glass.
Should this occur, DO NOT attempt to lift the lid
o the hotplate: this may damage the hob surface.
Instead, carefully slide the lid to the edge of the hob
surface and remove.
Always use pans that are the same size as (or slightly larger
than) the areas marked on the hob. Using a lid will help the
contents boil more quickly.
n Always take care before touching the surface, even
when the hob is turned o. It may be hotter than you
think!
The induction hob comprises of ve cooking zones
containing induction elements with dierent ratings and
diameters (Fig. 2.4) each with a pan detector and residual
heat indicator, and a hob control display.
The hob control display (Fig. 2.5) informs you of the following
induction hob functions:
• Pan detector
• HResidual heat indicator
• AAutomatic heat-up
• Child lock
• L1/L2 Low temperature setting
• PPower boost setting
Pan Detector,
n IMPORTANT: After use, switch o the hob element
by its control and DO NOT RELY on the pan detector.
If a cooking area is switched on and there is no pan in place
or if the pan is too small for the cooking area, then no heat
will be generated. The symbol [ ] will appear on the hob
control display; this is the “pan-missing symbol”. Place a pan
of the correct size on the cooking area and the [ ] symbol
will disappear and cooking can begin. After 10 minutes
without detecting a pan the cooking zone will switch o
automatically.
Table 2.1 shows the minimum pan sizes recommended for
each cooking zone.
Note: Using pans with a base diameter smaller than those
recommended will result in a power reduction.
Max: 1.85 kW
Boost: 2.5 kW
Max: 1.85 kW
Boost: 3.0 kW
Max: 1.85 kW
Boost: 2.5 kW
Max: 1.15 kW
Boost: 2.0 kW
Max: 1.15 kW
Boost: 2.0 kW
Zone 1
Zone 2
Zone 3 Zone 5
Zone 4
Fig. 2.4
Fig. 2.5
Table 2.1
Cooking Zone Minimum Pan Diameter
(Pan Base) mm
Front left 140
Rear left 180
Rear centre 180
Rear right 180
Front right 140

11
9
2
L
1
L
1
P
A
9
2
L
1
L
1
P
A
9
2
L
1
L
1
P
A
9
2
L
1
L
1
P
A
9
2
L
1
L
1
P
A
9
1
L
P
A
9
1
L
P
A
1
L
P
A
1
L
P
A
1
L
P
A
Table 2.2
Power Level Auomatic Heat-up Time at
100% (min:sec)
1 0:48
2 2:24
3 3:50
4 5:12
5 6:48
6 2:00
7 2:48
8 3:36
9
Residual Heat Indicator, H
After use, a cooking zone will remain hot for a while as heat
dissipates. When a cooking zone is switched o the residual
heat indicator symbol [H], will appear in the display. This
shows that the cooking zone temperature is above 60°C and
may still cause burns. Once the temperature has dropped to
below 60°C the [H] will go out.
Automatic Heat-up, A
This function is available on all of the cooking zones. It
allows rapid heating up of the element to bring the selected
cooking zone up to temperature. Once the zone is at the
required cooking temperature the power level will reduce
automatically to the preset level.
The function is selected by turning the control knob to the
‘A’position. Turn the control knob momentarily counter-
clockwise from the zero position until the symbol [A] is shown
on the hob control display.
Once the [A] is displayed, turn the control knob to the level
of your choice (1 to 9). The pan will heat up at 100% power
for a specied time before the power is reduced to the level
selected.
When the Automatic Heat-up function is activated, the hob
control display will ash alternately between the [A] setting
and the chosen power level.
Once the Automatic Heat-up time has ended the hob display
will stop ashing and will show the chosen power level.
The Automatic Heat-up function can be stopped by either
turning the control knob back to the“0”power setting or
turning the control knob to the“9”power setting.
For your guidance Table 2.2 shows the time available at
100% power depending on the power level selected in the
Automatic Heat-up mode.
Child Lock,
n IMPORTANT: The child lock can only be activated
when all the cooking zones are switched o.
To prevent the unwanted use by children, the hob can be
locked.
To lock the hob, simultaneously turn the two left-hand
controls counter-clockwise (Fig. 2.6) and hold until the
symbol appears in the centre of the hob control display
(Fig. 2.7).
Note: [A] will ash when locking the hob – this is normal.
Locking the hob will NOT aect the ovens; they can still be
used.
To unlock the hob, simultaneously turn the two left-hand
controls counter-clockwise and hold until the symbol
disappears from the centre of the hob control display.
Fig. 2.6
Fig. 2.7

12
Low Temperature Setting, L1/L2
n This function should only be used when heating
from cold
Each cooking area is equipped with 2 low temperature
settings:
• L1 will maintain a temperature of about 40 °C – ideal for
gently melting butter or chocolate.
• L2 will maintain a temperature of about 90 °C – ideal for
simmering (bring the pan to the boil and then select L2
to keep soups, sauces, stews, etc at an optimal simmer).
The maximum time this setting can be used is 2 hours. To
increase the heat, just turn the control knob to the required
level. The maximum times for all other power levels are
shown in Table 2.3.
Power Boost Setting, P
All of the induction cooking zones have Power Boost
available, activated by turning the control knob clockwise
until [P] is shown on the hob control display.
Power Boost allows additional power to be made available for
each of the cooking zones. This is useful to bring a large pan
of water to the boil quickly.
The Power Boost function operates for a maximum of 10
minutes on each zone, after which the power is automatically
reduced to setting 9.
When using the Power Boost function, the cooking zones are
linked.
Fig. 2.8 shows the hob layout. Zones A and B are linked
together as are zones C, D and E.
This means that when using zone A on Power Boost and then
switching zone B to Power Boost , the power to zone A will
reduce slightly. The last zone switched to Power Boost always
takes priority. Zones C, D and E work in the same way.
n This is a built-in safety device.
Deactivate the Power Boost function by turning the control
knob to a lower setting.
Overheat Function
This function identies when the temperature of the pan rises
rapidly and works to maintain a safe level of pan temperature.
It should not interfere with normal cooking.
Cookware with bases that become distorted (Fig. 2.2) when
heated may interfere with the operation of the Overheat
Function. This may result in damage to your cookware or
Induction Glass Hob.
n Please remember not to leave the hob unattended.
Care should be taken to not allow your cookware to
boil dry. Damage to your cookware and Induction
Glass Hob may result.
Please read and follow the manufacturers’instructions
carefully before using cookware on your induction hob.
Induction
A B C
DE
A & B linked
C, D & E linked
ArtNo.051-0002 - Min pan diameter
Power Level Maximum Operating Time
2 hours
6 hours
6 hours
5 hours
5 hours
4 hours
1.5 hours
1.5 hours
1.5 hours
1.5 hours
10 minutes
L1 and L2
1
2
3
4
5
6
7
8
9
Power Boost
Table 2.3
Fig. 2.8

13
Glide-out grill™
Open the door and pull the grill pan carriage forward using
the handle (Fig. 2.9).
The grill has two elements that allow either the whole area of
the pan to be heated or just the right-hand half.
Adjust the heat to suit by turning the knob. To heat the whole
grill, turn the knob clockwise (Fig. 2.10).
To heat the right-hand half, turn the knob counter-clockwise.
The neon indicator light by the grill control will come on.
For best results, slide the carriage back into the grill chamber
and preheat the appropriate part(s) of the grill for two
minutes. The grill trivet can be removed and the food placed
on it while you are waiting for the grill to preheat.
n DO NOT leave the grill on for more than a few
moments, without the grill pan underneath it,
otherwise the knobs may become hot.
Once the grill has preheated, slide the carriage out again.
With the trivet back in place with the food on it, slide the
carriage back into the grill chamber. Make sure that it is
pushed right in.
n Accessible parts may be hot when the grill is in use.
Young children should be kept away.
The grill pan trivet can be turned over to give two grilling
positions (Fig. 2.11).
n NEVER close the grill door when the grill is on.
ArtNo.331-0001Grill pan pulled forwards
3
3
3
3
ArtNo.331-0002 Grill pan high/low position
Fig. 2.9
Fig. 2.10
Fig. 2.11

14
Ovens
The clock must be set to the time of day before the
programmable ovens will work. See the following section
on ‘The Clock’ for instructions on setting the time of day.
References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed
from the front of the appliance.
The left-hand oven is a programmable fan oven (Fig. 2.12),
while the right-hand tall oven is a fan oven (Fig. 2.13).
Fan oven
Fan ovens circulate hot air continuously, which means
faster, more even cooking. The recommended cooking
temperatures for a fan oven are generally lower than those
for a non-fan oven.
NOTE: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.
Tall fan oven
The right-hand tall oven is a fan oven that circulates hot air
continuously, which means faster, more even cooking.
The recommended cooking temperatures for a fan oven are
generally lower than a conventional oven.
NOTE: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.
Operating the ovens
Fan Oven
Turn the oven knob to the desired temperature (Fig. 2.14).
The oven indicator light will glow until the oven has reached
the temperature selected (Fig. 2.15). It will then cycle on and
o during cooking.
ArtNo.321-0002 Fan assisted oven
ArtNo.323-0002 Tall oven
Fig. 2.12
Fig. 2.13
Fig. 2.14
Fig. 2.15

15
Accessories
Oven Shelves – Left-hand (Main) Oven
The oven shelves (Fig. 2.16) are retained when pulled
forward but can be easily removed and retted.
Pull the shelf forward until the back of the shelf is stopped by
the shelf stop bumps in the oven sides (Fig. 2.17).
Lift up the front of the shelf so the back of the shelf will pass
under the shelf stop and then pull the shelf forward
(Fig. 2.18).
To ret the shelf, line up the shelf with a groove in the oven
side and push the shelf back until the ends hit the shelf stop.
Lift up the front so the shelf ends clear the shelf stops, and
then lower the front so that the shelf is level and push it fully
back (Fig. 2.19).
Oven Shelves – Right-hand (Tall) Oven
The tall oven is supplied with four at cooking shelves
(Fig. 2.20), and a plate-warming shelf (Fig. 2.21).
When using the tall oven, you can cook on all four shelves at
the same time, but make sure that they are well spaced out
allow the hot air to circulate.
The Handyrack (optional extra)
The Handyrack (Fig. 2.22) ts to the left-hand oven door
only. Food cooking on it is easy to attend to, because it is
accessible when the door is open.
The maximum weight that can be held by the Handyrack
is 5.5kg (12lb). It should only be used with the supplied
roasting tin, which is designed to t the Handyrack. Any other
vessel could be unstable.
It can be tted at two dierent heights. One of the oven
shelves must be removed and the other positioned to suit.
When the Handyrack is used in its highest position, other
dishes can be cooked on the bottom shelf position or base of
the oven.
When the Handyrack is used in its lowest position, other
dishes can be cooked on the second shelf position or base of
the oven.
To t the Handyrack, locate one side of it on the door bracket
(Fig. 2.23).
Then spring the other side out to clip it onto the other
bracket (Fig. 2.24).
Main Oven Light
Press the button to turn the light on (Fig. 2.25). If the oven
light fails, turn o the power supply before changing the
bulb. See the‘Troubleshooting’section for details on how to
change the bulb.
Shelf guard
Front
ArtNo.320-0013 Removing the shelf 3
ArtNo.320-0011 Removing the shelf 1
ArtNo.320-0012 Removing the shelf 2
ArtNo.320-0014 Handyrack on LH door
ArtNo.320-0015
Fitting the Handyack 1
ArtNo.320-0016
Fitting the handyrack 2
Fig. 2.16
Fig. 2.17 Fig. 2.18
Fig. 2.19 Fig. 2.20
Fig. 2.21 Fig. 2.22
Fig. 2.23 Fig. 2.24
Fig. 2.25
ArtNo.324-0002 Oven shelf
ArtNo.324-0010 Plate warming shelf
ArtNo.320-0017
Main oven light

16
3. 3 Button clock
Using the clock
You can use the clock to turn the programmable oven on and
o. The clock must be set to the time of day before the
oven will work.
NOTE: When using the timer functions, rst set the clock as
required before setting the oven temperature.
The oven can be switched on when the cook symbol [ ]
is displayed. This symbol remains visible during normal
operation.
Setting the clock
1. The LCD clock is shown in (Fig. 3.1). Once the cooker is
connected and switched on, the display ashes (00.00 )
and the time starts from (00.00 ).
2. To set the clock press the [+] and [-] buttons
simultaneously, the point between hours and minutes
will start to ash for 5 seconds. Whilst the point is
ashing press either the [+] or [-] button to set the
correct time.
IMPORTANT: The timed oven will not operate unless the
clock has been set.
Program selection - Setting the minute minder
The minute minder [ ] provides the ability to set a
countdown from 00:01h to 23:59h, at the end of which an
alarm will sound.
1. Press the mode [M] button once (Fig. 3.2). The bell
symbol [ ] will ash on the display. Select the desired
countdown from 00:01h to 23:59h using the [+] button
(Fig. 3.3). The countdown will automatically begin and
the [ ] symbol will show in the display.
2. Once the specied time has elapsed an alarm will
sound.
3. To stop the alarm press any button.
Re-set the minute minder
To re-set the minute minder, rst select the minute minder
program by pressing the mode [M] button. Then press the
[+] and [-] buttons simultaneously.
• The‘cook period’, which is the length of time you want
the oven to cook for (dur).
• The‘stop time’, which is the time of day you want the
oven to stop cooking (End).
To stop the programmable oven at a specific time of day
1. Press the mode [M] button 3 times, until the display
ashes‘End’ (Fig. 3.4).
2. Select the ‘stop time’using the [+] or [-] buttons. The
display will show the current time along with the ‘AUTO’
and Cooking [ ] symbols (Fig. 3.5).
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
ArtNo.306-0001 - 3-button clock
Fig. 3.1
Fig. 3.2
Fig. 3.3
Fig. 3.4
Fig. 3.5
Fig. 3.6
