Range Master Elan 90 Induction User manual

90 Ceramic
Users Guide
Installation & Service Instructions
U105530-01

2
Be safe
Warning
Accessible parts will become hot in use.To avoid
burns and scalds children should be kept away.
Do not stand or rest heavy objects on the hob. Although the
ceramic surface is very strong, a sharp blow or sharp falling
object might cause the surface to crack. As soon as any crack
in the surface becomes visible disconnect the appliance
immediately from the supply and arrange for its repair. Care
should be taken that no water seeps into the appliance.
During use, and afterwards, the appliance will be warm, so
be careful with little children. If the younger members of your
family are allowed into the kitchen we strongly advise that
they are kept under supervision at all times.
If you have not used a ceramic electric cooker before, we
recommend you read the‘General Safety Instructions’ where
we describe some basic guidelines on how to use your
cooker safely.
Electricity on
Make sure that the electricity supply is turned on.
Peculiar smells
When you first use your cooker it may give off a slight odour.
This should stop after a little use.

3
Contents
Be safe Page 2
The Hob Page 4
The Grill Page 6
The Ovens Page 7
The Left Hand Oven Page 7
The Right Hand Tall Oven Page 7
The Clock Page 8
Both Ovens Page 13
Multi-function oven Page 14
Handyrack Page 15
Main Oven shelves Page 16
Steam Page 16
Oven light Page 16
Tall oven shelves Page 17
Multi-function Oven cooking guide Page 18
Oven Cooking chart 19
Cleaning your cooker Page 20
Moving your cooker Page 23
Troubleshooting Page 24
General Safety Instructions Page 26
Installation Page 28
Tecnical data Page 37
Circuit Diagram Page 39

4
The Hob
When you cook on a ceramic hob its very
important to use the right sort of pans...
1
Use only pans that are suitable for ceramic hobs.
We recommend stainless steel and enamelled
steel pans because pots and pans with copper or
aluminium bases leave traces on the hob that are
difficult to remove.
Glass-ceramic cookware is not suitable because of its
poor conductivity.
2
Pots and pans should have thick, smooth, flat bottoms.
This ensures that there is the maximum heat transfer from
the hob to the pan, making cooking quick and energy
efficient.
Never use a round bottomed Wok even with a stand.
3
The very best pans have bases that are very slightly
curved in when cold.If you hold a ruler across the bottom
you will see a small gap in the middle.When they heat up
the metal expands and lies flat on the cooking surface.
Make sure that the base of the pan is clean and dry to
prevent any residue burning onto the hob panel.This
also helps prevent scratches and deposits (such as lime
specks).
4
Always use pans that are the same size as (or slightly
larger than) the areas marked on the hob top. Using
smaller pans wastes heat, and any spillage will be burnt
on. Using a lid will help the contents boil more quickly.
5
Always lift pans off the hob.Sliding pans may cause
marks and scratches.Always turn the control to the off
position before removing a pan.
6
There are indicator lights for each of the cooking areas.
These come on when a hob control is turned on and
stay lit while the surface cools. Always take care before
touching the surface even when it is turned off - it may be
hotter than you think.
7
The ratings of the cooking areas are shown on the
diagram above.
8
Although the ceramic surface is very strong, a heavy or
sharp falling object (a salt cellar for example) might cause
the surface to crack.If you find a crack in the surface
immediately disconnect the appliance from the supply
and arrange for its repair.
Care should be taken that no water seeps into the
appliance.

5
9
The areas marked with two concentric circles have
an inner and an outer element.Turn the control knob
clockwise to heat the whole area for larger pans - turn it
the other way to just heat the inner part for smaller pans.
10
Never cook directly on the surface.
The kind of pan you use and the quantity of food
affects the setting required. Higher settings are
required for larger quantities of food.
Naturally, the surface must be washed after use
in order to prevent it from becoming scratched or
dirty.
Only scratches in the hob surface reported
within 14 days of cooker installation are
covered by the guarantee. Scratches caused
by usage are not covered.
When cooking on the hob you may see the
hob area you are using switch off and on.
This is caused by a safety device that limits
the temperature of the hob.It is quite normal,
especially when cooking at high temperatures. If
it happens a lot with a particular pan however it
may mean the pan is not suitable – perhaps too
small or too uneven - for a ceramic hob.
Sugar spillage will permanently damage the
hob and therefore must be cleaned off with care
immediately. Never let sugar spillage cool before
trying to remove it.
If sugar or foods with high sugar content,
aluminium foil or plastic items are accidentally
allowed to melt on the hob surface remove them
immediately from the hot cooking area using
a scraper to avoid any possible damage to the
surface.See ‘Cleaning your cooker’.
Never cut directly on the cooking surface.
Don’t cook directly on the hob surface i.e.
without a pan or utensil
Don’t use the hob as a work surface
Don’t drag or slide utensils across the hob
surface
Don’t place anything between the base of the
pan and the hob surface (i.e.asbestos mats,
aluminium foil, Wok stand)
Don’t leave utensils, foodstuffs or combustible
items on the hob when it is not in use.(e.g.tea
towels, frying pans containing oil)
Don’t place plastic or aluminium foil, or plastic
containers on the hob
Don’t leave the hob zones switched on unless
being used for cooking
Don’t place large preserving pans or fish kettles
across two heating zones
Don’t place utensils partly covering a heating
zone. Always place utensils centrally.
Never allow anyone to climb or stand on the
hob.

6
The Grill
CAUTION: Accessible parts may be hot when
the grill is in use.Young children should be
kept away.
Remove the pan from the bottom of the grill compartment.
After placing your food on the grill tray pan, slide the grill
pan onto the side supports just below the elements. Make
sure it is pushed right in and touches the backstop.
The grill has two elements that allow either the whole
area of the pan to be heated or just the right hand half.
Turn the knob to position 3.
For best results preheat for 2 minutes with the grill pan in
position. After placing your food on the grill pan grid, slide
the grill pan onto the side supports.Adjust the heat to suit
by turning the knob.
Make sure it is pushed right in and touches the back
stop.
Never close the grill door when the grill is on.
5
The grill pan grid can be turned over to give two grilling
positions.
Don’t leave the grill on for more than a few
moments, without the grill pan underneath it.
For best results, especially with toast,
preheat the grill with the grill pan in the
cooking position for two minutes before use.
The grill trivet can be removed and the food
placed on it while you are waiting for the grill to
preheat.
The grill pan grid can be turned over to give
two grilling positions.
You can brown the top of dishes cooked in the
oven, under the grill by placing the dish onto
the base of the grill pan, which can easily slide
along the floor of the grill cavity.

7
The Ovens
During use the appliance becomes hot. Care should be taken to avoid the touching heating
elements inside the oven.
The clock must be set to the time of day before the ovens will work. See ‘The Clock’section for
instructions on setting the time of day.
The Left Hand Oven The Right Hand Tall Oven
The left hand oven is a Multi-function oven.As well as
the oven fan and fan element, it is fitted with two extra
heating elements, one visible in the top of the oven and
the second under the oven base.Take care to avoid
touching the top element and element deflector when
placing or removing items from the oven.For more detail
on this oven see the section ‘Multi-function oven’.
The fan in the right hand oven circulates hot air
continuously, which means faster more even cooking.
The recommended cooking temperatures for a fanned
oven are generally lower than a non-fanned oven.
The Multi-function oven has two controls, a function
selector and a temperature setting knob. The right hand fan oven control is at the right hand end of the control panel.
Turn the function selector control to a cooking function.
This is the fan oven setting. Turn the oven temperature knob to the temperature you need.
Turn the oven temperature knob to the temperature you
need.
The oven heating light will glow until the oven has
reached the temperature you selected. It will then cycle
on and off during cooking.
The oven indicator light will glow until the oven has
reached the temperature you selected. It will then cycle
on and off during cooking

8
The Clock
You can use the timer to turn the ovens on and off.The clock must be set to
the time of day before the ovens will work.

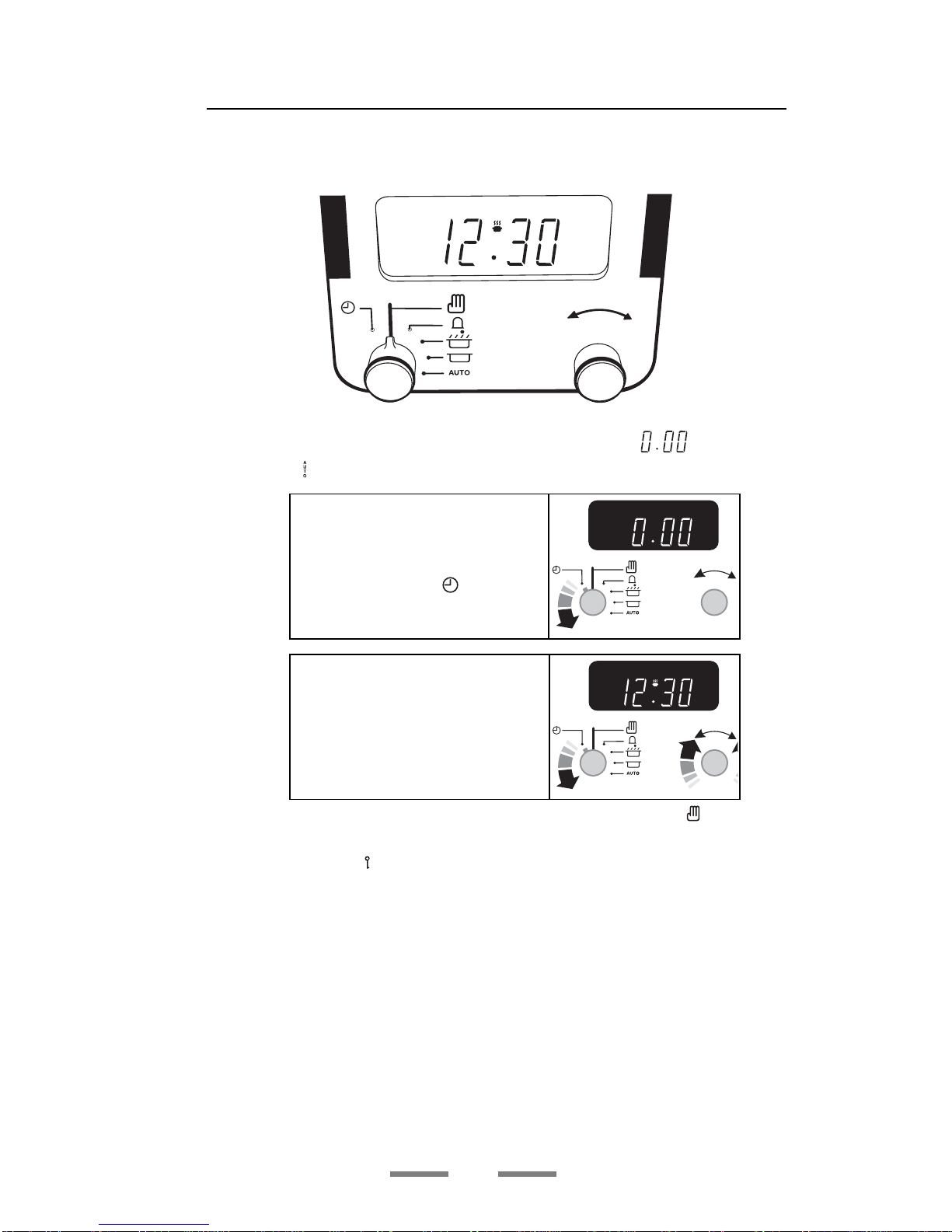

Setting the time of day
Timer knob Adjusting knob
When the clock is first connected the display will flash ( ) and
() alternately.
To set the clock to read the time of
day turn and hold the Setting knob
to the clock symbol ( ).
At the same time turn the
Adjusting knob left or right until the
clock shows the time of day.
Let go of the Setting knob and it will spring back to the vertical ( ) oven
manual setting.
If the key symbol ( ) appears on the left of the display you have accidentally
turned on the key lock feature. See the section ‘Clock Special Features’.

9
To time something that’s cooking (minute minder)
Turn theTimer knob to the right to the
( ) minute minder setting - it should
click into position.
Use the Adjusting knob to set the time
you need.
You can turn the knob back to the ( ) manual setting to keep an eye on the
time of day or leave it in the ( ) minute minder position as the time ticks
down.
To stop the beeper when it sounds
Turn the Adjusting knob anticlockwise
To stop automatically
Use when you have started the oven manually.
Turn theTimer knob to the ( )
position.
Use the Adjusting knob to set the time
you need.
‘Stop Time’ shows.
AUTO will show in the display.
Turn the Timer knob to the (AUTO) setting.
When your cooking is finished the beeper sounds.Turn theTimer knob to the
vertical ( ) to return to manual cooking.

10
To start and stop the oven automatically
Before you set the clock, you must have two numbers clearly in mind.
The ‘cook time’, which is the period of time you want the oven to cook.
The ‘stop time’, which is the time of day you want the oven to stop cooking.
You cannot set a start time directly - this is set automatically by setting the
cooking period and stop time.
Turn theTimer knob to the ( )
position.
Use the Adjusting knob to set the
‘cooking time’you need.
Turn theTimer knob to the ( )
position.The display will show the
current time of day plus the ‘cook
period’ you just set.
Use the Adjusting knob to set the
‘Stop time’you need.
‘Stop Time’ shows. AUTO will show in
the display.
Set the oven(s) to the cooking temperature you need (don’t forget to set a
function if using the Multi-function oven).
Turn the Timer knob to the (AUTO) setting.
When your cooking is finished the beeper sounds.Turn theTimer knob to the
vertical ( ) to return to manual cooking.
If you are out, don’t worry about the beeper going off, it stops after a while.
When you return, turn theTimer knob to the vertical ( ) to return to manual
cooking.Turn the thermostat to the off position.
AUTO is showing, you want to reset to manual cooking.
You can cancel any automatic settings by turning the Timer knob to the
vertical manual symbol ( ).
