Range Master Toledo 90 Gas User manual

Toledo 90 Gas
Users Guide
&
Installation Instructions
U1 228 02

2
Contents
2 Minute Tour Page 3
The hotplate burners Page 8
The griddle Page 8
The Warmer Page 8
The grill Page 8
The ovens Page 9
The Handyrack Page 9
‘S’ (Slow) cooking Page 10
Oven cooking guide Page 11
Cooking using the timer Page 12
The clock Page 13
Cleaning your cooker Page 14

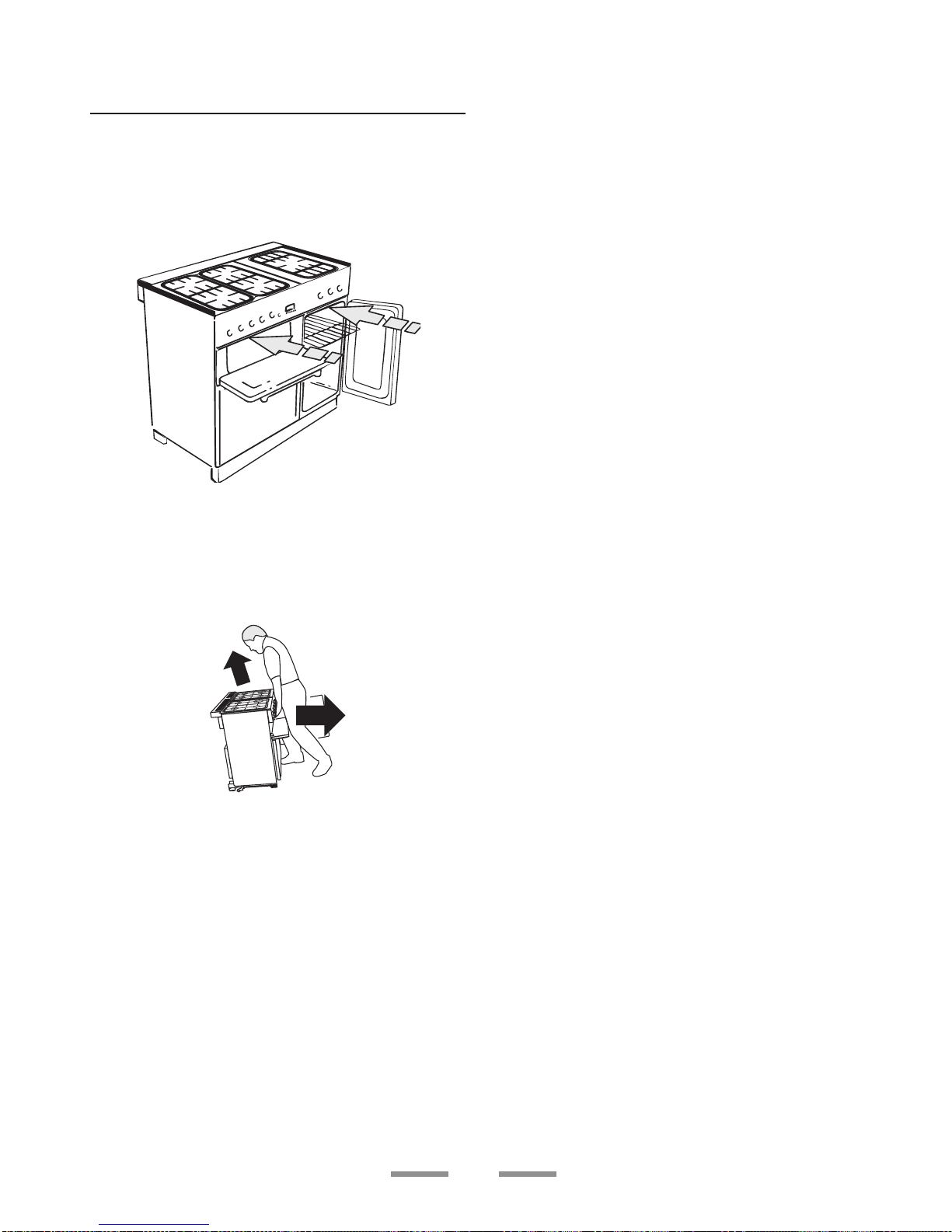

Moving your cooker Page 16
Troubleshooting Page 18
General Safety Instructions Page 20
Installation Page 22
Circuit Diagram Page 30
Technical Data Page 31

3
Make sure flames are under the
pans. Using a lid will help the
contents boil more quickly.
Pans and kettles with concave bases
or down turned base rims should not
be used.
4
2 Minute Tour
Be safe
You need clean fresh air - so does your cooker. Burner flames produce exhaust gases, heat and
moisture. Make sure that the kitchen is well ventilated: keep natural ventilation holes open or
install a powered cooker hood that vents outside. If you have several burners on or use the cooker
for a long time, open a window or turn on an extractor fan. For more detail see the Installation
Instructions.
We recommend you read pages 20 & 21 if you have not used a gas cooker before.
We describe some basic guidelines on how to use a gas cooker safely.
Gas and Electricity on
Make sure that the gas supply is turned on and that the cooker is wired in and switched on.
The cooker needs electricity.
Peculiar smells
When you first use your cooker it may give off a slight odour. This should stop after a little use.

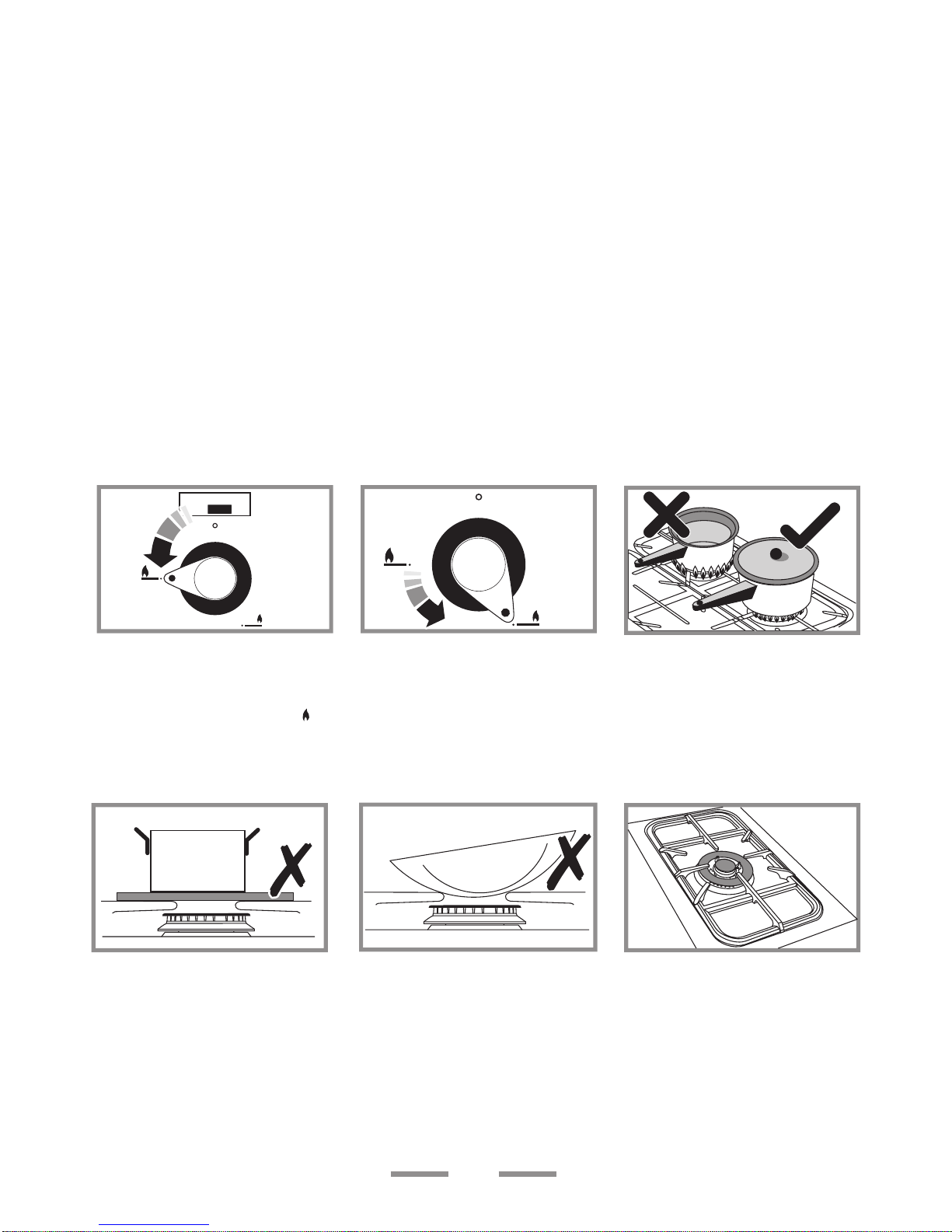

HOTPLATE BURNERS More about the burners on page 8
13
The drawing by each knob
indicates which burner that knob
controls. Push in and turn a
knob to the large flame symbol ( )
and press the igniter button or light
with a match.
2
Simmering aids, such as
asbestos or mesh mats, are
NOT recommended. They will
reduce burner performance and
could damage the pan supports.
5
Adjust the flame height to suit
by turning the knob. On this
cooker the low position is
beyond high, not between high and
off. The small flame marks the ‘low
position’. Turn the knob towards it
after the contents of a pan have
boiled.
6
Avoid using unstable and
misshapen pans that may tilt
easily and pans with a very
small base diameter e.g. milk pans,
single egg poachers. The minimum
pan diameter recommended is
120mm (about 43/4").
The Wok burner is designed to
provide even heat over a large
area. It is ideal for large pans
and stir frying. For heating smaller
pans the smaller burners may be
more efficient.
2 Minute Tour continues over the page...

4
2 Minute Tour - continued

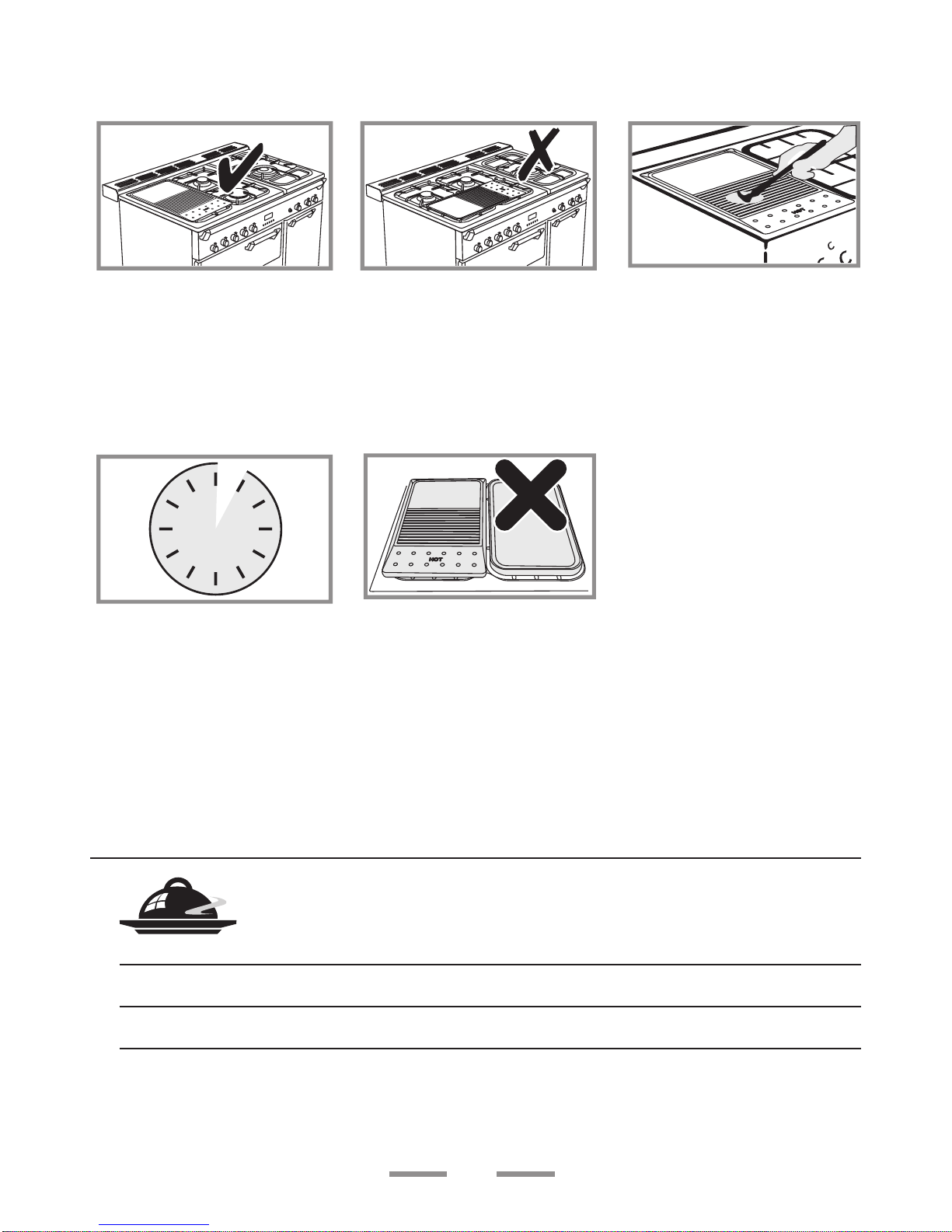

Preheat the griddle for a
maximum of 5 minutes before
adding food. Leaving it longer
may cause damage. The controls
can be turned to a lower position
simply by turning the control knobs
towards the lower position marked
with the small flame symbol.
Position the griddle over the
hotplate burners resting on the
pan support. The griddle can be
lightly brushed with cooking oil
before use. Light the hotplate
burners. Adjust the flame heights to
suit.
4
THE GRIDDLE
Don’t put it crossways - it will
not fit properly and will be
unstable.
Don’t put it on the Wok burner - it is
not designed to fit the Wok burner
pan support.
23
The griddle fits a single pan
support, front to back. It is
designed for cooking food on
directly. Don’t use pans of any
kind on it. The griddle surface is non-
stick and metal cooking utensils (e.g.
spatulas) will damage the surface.
Use heat resistant plastic or wooden
utensils.
1
Always leave space around the
griddle for the gases to escape.
Never fit two griddles side by
side. Large pans should also be
spaced well apart. The maximum
pan base diameter is 250mm (10in).
5
The Griddle
Use the following heat settings as a guide for griddle cooking.
High/medium:
Drop scones, Bacon, Chops, Steak, Burgers.
Medium/low:
Potato cakes, Eggs, Fish cakes.
Experience will soon familiarise you with the correct setting to use for cooking. After cooking allow the
griddle to cool before cleaning.
Don’t put it on the Wok burner - it is not designed to fit the Wok burner pan support.

5
CAUTION: Accessible parts may be hot when the grill is in use. Young children should be
kept away.

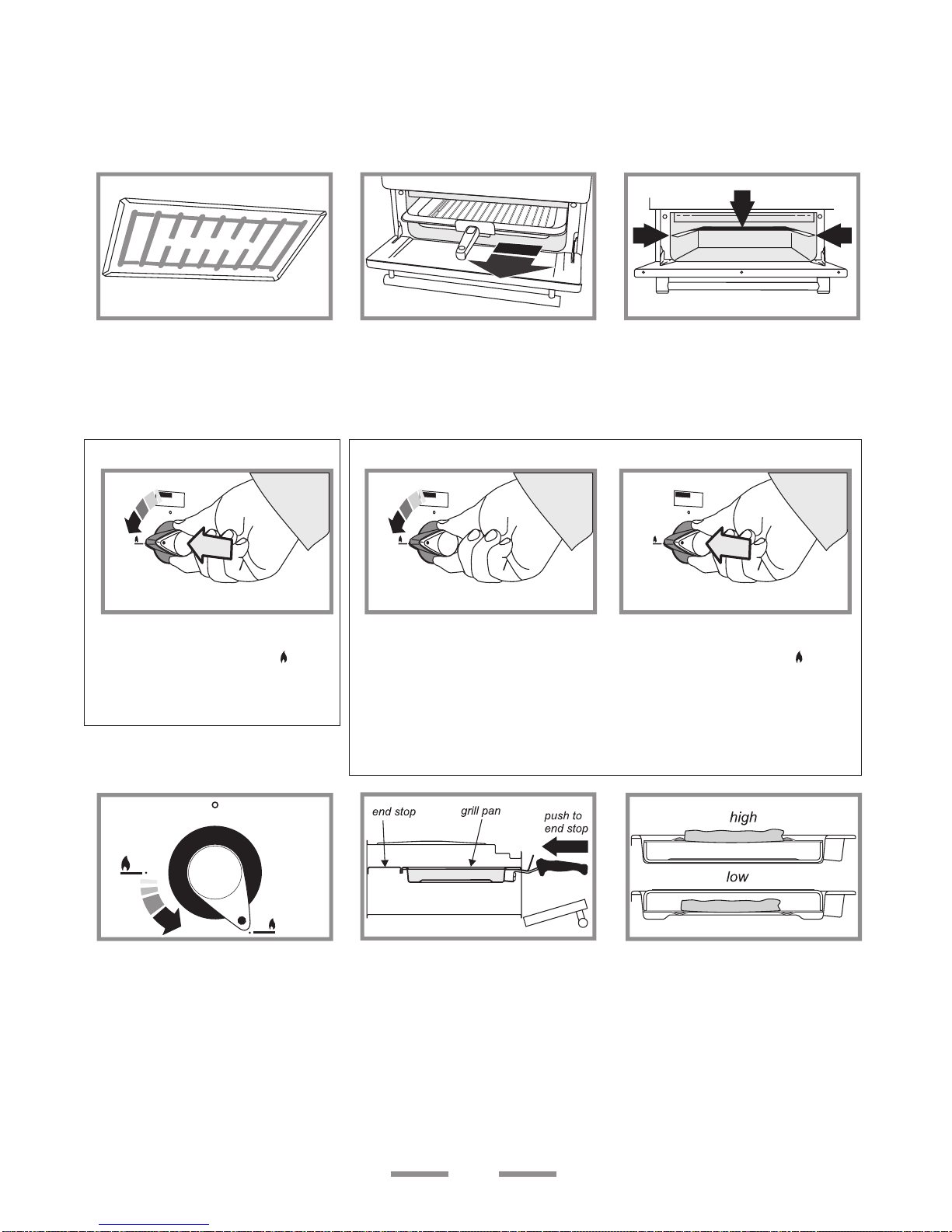

THE GRILL More about the grill on page 8
Remove the pan from the
bottom of the grill compartment. After placing your food on the grill tray pan, slide the grill pan
onto the side supports just
below the burners. Make sure it is
pushed right in and touches the back
stop.
1 2 3
The burner does not glow red -
food cooks from the heat of the
flame. The first time you light
the grill there may be a little smoke
given off - this is perfectly normal.
5For best results preheat for 2
minutes with the grill pan in
position. After placing your food
on the grill pan grid, slide the grill pan
onto the side supports just below the
burners. Adjust the flame height to
suit by turning the knob.
Make sure it is pushed right in and
touches the back stop.
6
The low position, marked with
the small flame symbol, is
beyond high, not between high
and off.
Never close the grill door when
the grill is on.
Press in the grill knob, turn to
the large flame symbol ( ) and
press the igniter button or light
with a match.
4
Natural gas cookers LP gas cookers
The grill has a special safety device with stops the flow of gas to the grill
if the flame goes out. Turn the knob to the large flame symbol ( ). Press
in the grill knob. This lets gas through to the burner. Keep holding the
knob pressed in and press the igniter button or light with a match. Keep
holding the button for about 10 seconds
If when you let go of the control knob the burner goes out, the safety device
has not held in. Turn off the grill and wait one minute then try again this time
holding in the control knob for slightly longer.
4
7The grill pan grid can be turned
over to give two grilling
positions.
2 Minute Tour continues over the page...

6
Dishes placed above the central
position will be cooked at
approx. one gas Mark higher,
dishes cooked below approx. one
gas Mark lower. You can therefore
cook dishes requiring different gas
Marks at the same time.
5
Dishes cooking on the central
shelf will cook at the gas mark
indicated on the knob.

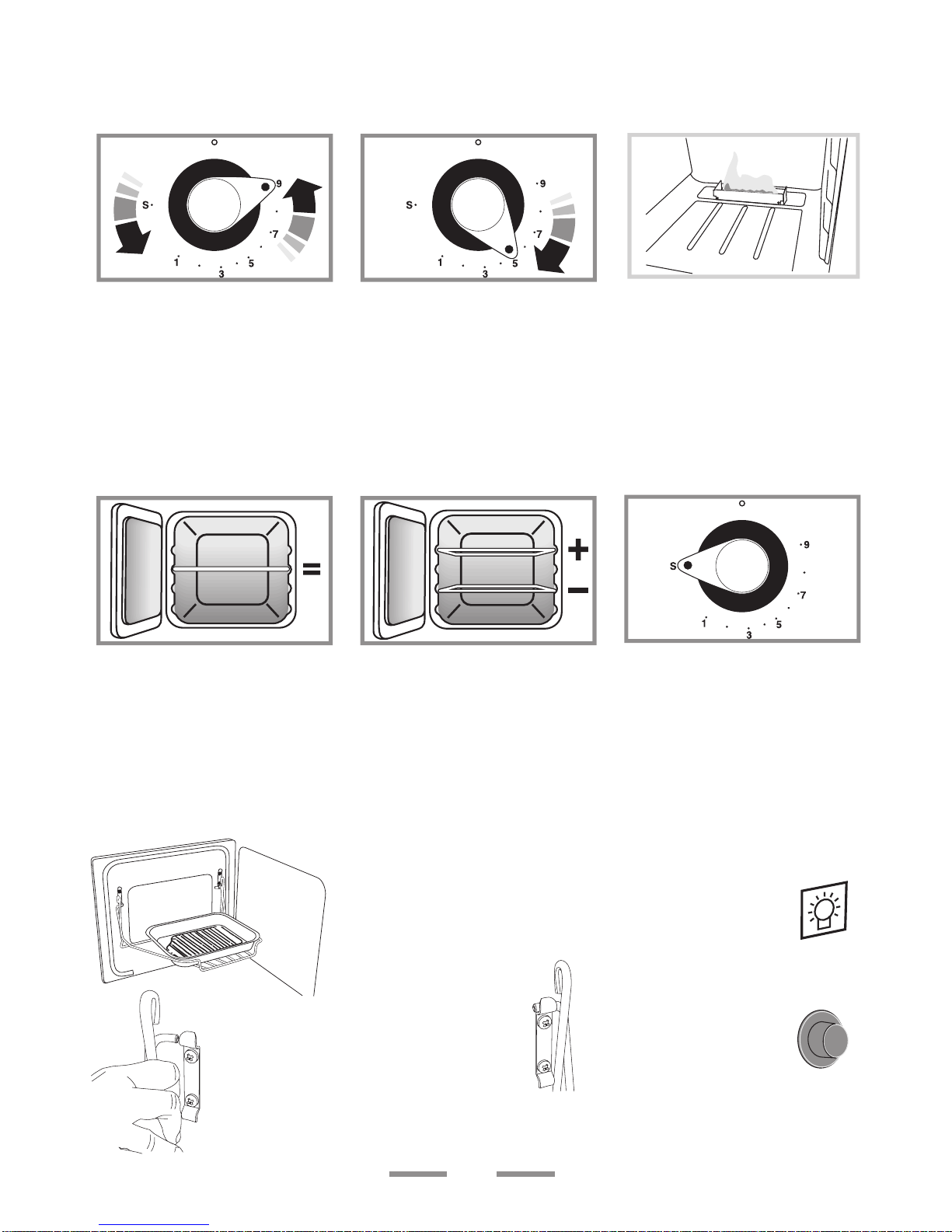

THE MAIN (GAS) OVEN More about the oven on page 9
Push in and turn the knob
controlling the oven to Gas Mark
9. The oven will light
automatically.
Turn the control knob back to
the Mark you wish to cook on
and for best results pre-heat the
oven for 15 minutes before placing
your dishes in it.
12
4
3The Main oven in your cooker
use the our special ‘Heatflow’
system.
Because the oven burner is not
hidden under the oven base you will
see the burner flames at the back of
the oven - this is perfectly normal.
Initially the gas will burn with a small
flame but after approximately one
minute the flame will become larger
indicating that the oven is full on.
Slow cooking
More about slow cooking on
page 9.
The ‘S’ setting is a very low
temperature for slow cooking,
overnight or while you are out or at
work. The ‘S’ setting can also be
used for keeping food warm.
Handyrack (Main Oven)
More about the Handyrack on page 9. The Handyrack fits to the left hand
oven door onl y. Food cooking on it
is easy to attend to, because it’s
accessible when the door is open.
It can be fitted at two different
heights. One of the oven shelves
must be removed and the other
positioned to suit.
To fit the Handyrack,
locate one side of it on the
door bracket.
Then spring the other side out to clip it onto
the other bracket.
6
Oven light
Press the button to turn
on the Main oven light.
If the oven light fails,
turn off the power
supply before you
change the bulb. See
the ‘Troubleshooting’
section for details on
how to change an oven
light bulb.
2 Minute Tour - continued

7

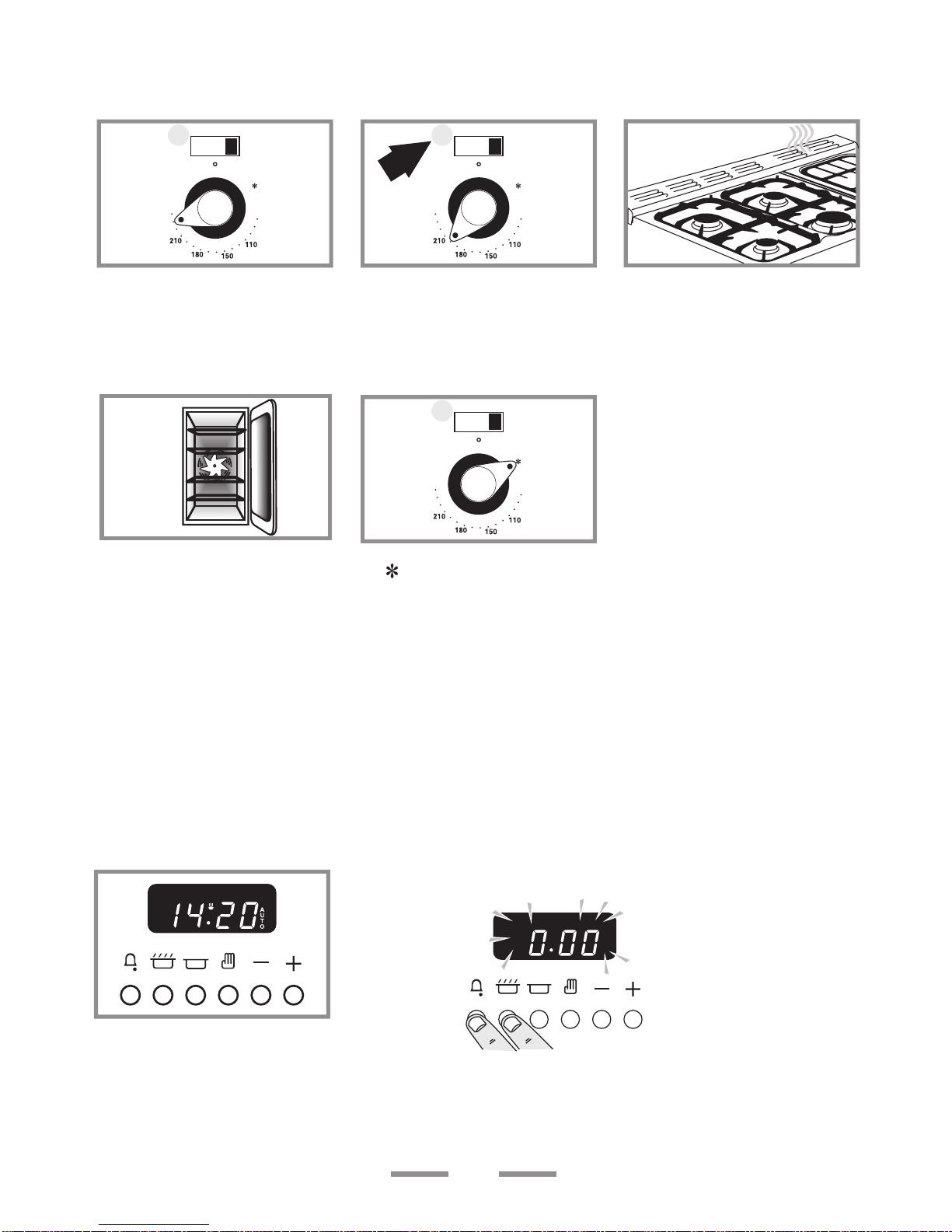

THE TALL OVEN ( ELECTRIC ) More about the tall oven on page 9
3When cooking foods with high
water content (e.g. oven chips)
there may be some steam
visible at the grille at the rear of the
hotplate. This is perfectly normal.
The oven indicator light will glow
until the oven has reached the
temperature you selected. It will
then cycle on and off during cooking.
2
Turn the oven knob to the
temperature you need.
1
The fan in the oven circulates
hot air continuously, which
means faster more even
cooking.
The recommended cooking
temperatures for a fanned oven are
generally lower than a non-fanned
oven.
4The fan only setting. The fan
circulates air inside the oven but
the heating element is not
turned on. This setting is useful for
defrosting small quantities frozen
foods.
Whole chickens and large joints of
meat should be defrosted in the
refrigerator.
5
You can use the timer to turn the
ovens on and off. Check clock is set
to time of day.
THE CLOCK More about the clock on page 12
To set the time of day
Press and hold as above. At the same time, press (-) or (+)
until the correct time shows. Don’t forget it’s a 24 hour clock.
If you make a mistake or press the wrong button, turn off the
power supply for a minute or two and start again.

8
The hotplate burners
You should read ‘hotplate burners’ in the ‘2
Minute Tour’ before all the following
information
If a burner flame goes out, turn the control knob
off and leave it for one minute before relighting it.

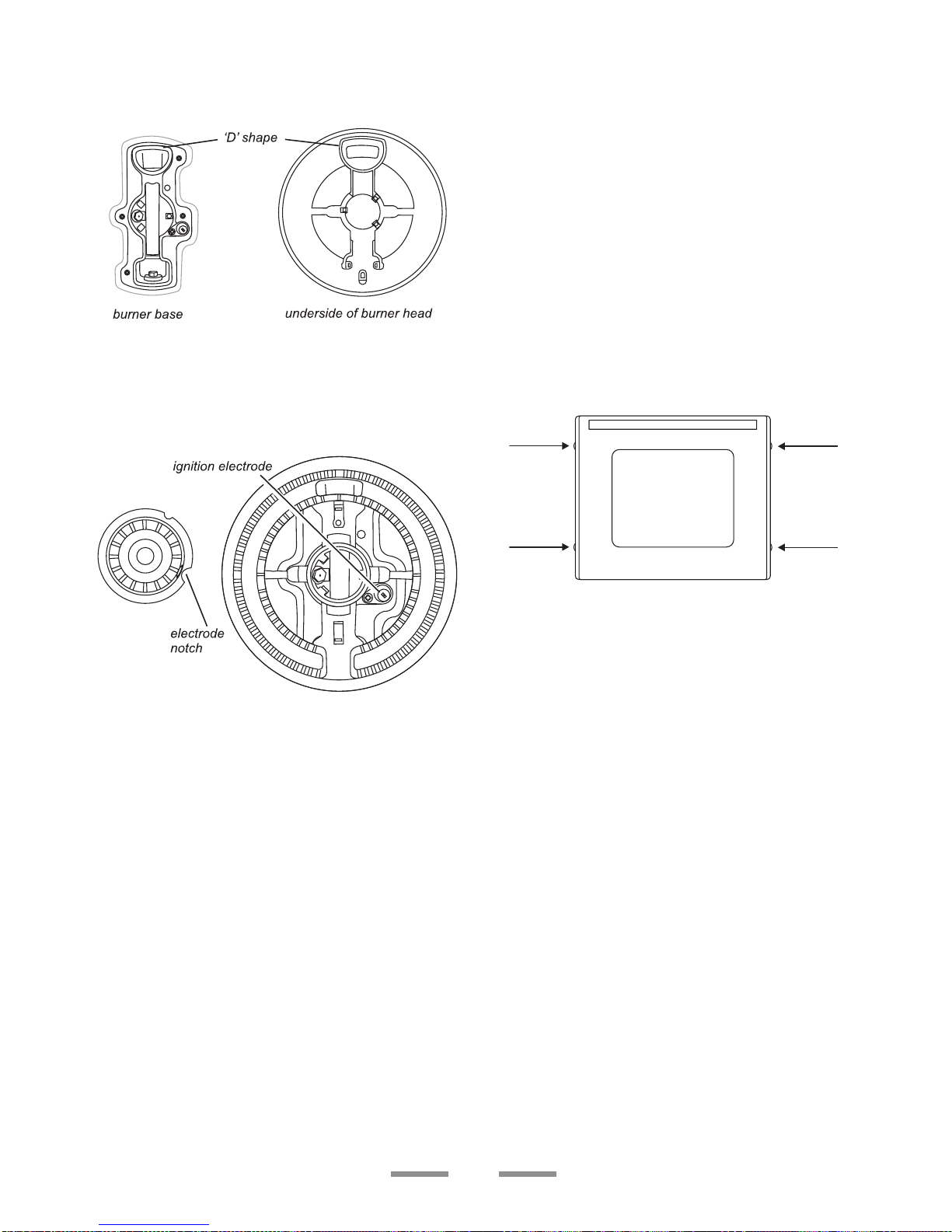

You can remove the burner parts for
cleaning, see page 14.
You should wipe the enamel top surface of the
cooker around the hotplate burners as soon as
possible after spills occur. Try to wipe them off
while the enamel is still warm.
Avoid using unstable and misshapen pans that
may tilt easily and pans with a very small base
diameter e.g. milk pans, single egg poachers.
The minimum pan diameter recommended is
120mm (about 43/4"). Smaller pans will be
unstable.
Pans and kettles with down turned base rims
should not be used.
The Grill
You should read ‘grill’ in the 2 Minute Tour’
before all the following information
Never close the grill door while the grill is
on.
Don’t leave the grill on for more than a few
moments, without the grill pan underneath it.
For best results, especially on toast, preheat the
grill with the grill pan in the cooking position for
two minutes before use.
The grill trivet can be removed and the
food placed on it while you are waiting
for the grill to preheat.
The grill pan grid can be turned over to give two
grilling positions.
The Ovens
You should read ‘the oven’ in the
‘2 Minute Tour’ before all the following
information
The wire shelves should always be pushed firmly
to the back of the oven.
Baking trays with food cooking on them should
be placed level with the front edge of the oven’s
wire shelves. Other containers should be placed
centrally. Keep all trays and containers away
from the back of the oven, as overbrowning of
the food may occur.
For even browning, the maximum recommended
size of a baking tray is 325mm (123/4") by 305mm
(12") for the main oven and 230mm (9”) by
320mm (121/2”) for the Tall oven.
When the oven is on, don’t leave the door open
for longer than necessary, otherwise the knobs
may get very hot.
• Always leave a ‘fingers width’ between dishes
on the same shelf This allows the heat to
circulate freely around them.
•
To reduce fat splashing when you add
vegetables to hot fat around a roast, dry them
thoroughly or brush lightly with cooking oil.
• Where dishes may boil and spill over during
cooking, place them on a baking tray.
The Main (gas) oven
The oven is protected by a safety cut off, which
reduces the supply of gas to the oven if the
flames go out, e.g. an interruption to the mains
supply.
• Plates can be warmed in the oven on the ‘S’
setting. The ‘S’ setting can be used to keep
foods hot for 3-4 hours after ‘normal’ cooking,
without drying out or overbrowning.
• The Cook & Clean oven liners (see Cleaning
your cooker) work better when fat splashes
are avoided. Cover meat when cooking.
• Sufficient heat rises out of the oven while
cooking to warm plates in the grill
compartment.
•
If you want to brown the base of a pastry dish,
preheat the baking tray for 15 minutes before
placing the dish in the centre of the tray.

9
The Tall (electric) oven
Cooking high moisture content foods can
create a ‘steam burst’, when the oven
door is opened. When opening the oven
stand well back and allow any steam to
disperse.
Main Oven shelves
the shelf guard should be at the back pointing upwards
The oven shelves can be easily removed and
refitted.
To refit the shelf, line up the shelf with a groove
in the oven side and push the shelf back until the
ends hit the shelf stop. Lift up the front so the
shelf ends clear the shelf stops, and then lower
the front so that the shelf is level and push it fully
back.
The Handyrack
You should read ‘the oven’ in the
‘2 Minute Tour’ before all the following
information
The maximum weight which can be held by the
Handyrack is 5.5kg (12lb).
When the Handyrack is used in its highest
position, other dishes can be cooked on the
bottom shelf position of the oven or standing on
the base of the oven
When the Handyrack is used in its lowest
position, other dishes can be cooked on the
second shelf position of the oven or standing on
the base of the oven.
The roasting tray supplied with the oven fits into
the Handyrack.
Tall oven shelves
The tall oven is supplied with four normal
cooking shelves
and a plate warming shelf.
When using the tall oven you can cook on all
four shelves at the same time; but make sure
they are well spaced out to allow the hot air to
circulate.
The oven control settings and
cooking times given over the page
are intended to be used only as a
guide. Individual tastes may require
the temperature to be altered to
provide a preferred result.
Always leave at least one runner
space between shelves when 2 tier
cooking. Place baking trays,
individual cake tins or baking dishes
centrally on the oven shelf. For best
results pre-heat the oven for 15mins
(Main oven) or until the oven
indicator light goes out (Tall oven).

10
Main Oven cooking guide
GAS SHELF POSITION APPROXIMATE COOKING TIME
Meat MARK FROM TOP
Beef (no bone) 3 3-4 30-35mins. per 500g.+30-35 mins.
6 3-4 20-25mins. per 500g.+20-25 mins.
Lamb 3 3-4 30-35mins. per 500g.+30-35 mins.
6 3-4 25-30mins. per 500g.+25-30 mins.
Pork and Veal 3 2-3 35-40mins. per 500g.+35-40 mins.
6 3-4 25-30mins. per 500g.+25-30 mins.
Poultry
Chicken (2.3kg) 3 3-4 20-25mins. per 500g.+20-25 mins.
6 3-4 15-20mins. per 500g.+15-20 mins.
Turkey (4.5kg) 3 3-4 25-30mins. per 500g.+25-30 mins.
6 3-4 20mins. per 500g.+20 mins.
(over 4.5kg) 3 4 20mins. per 500g.+20 mins.
6 4 15mins. per 500g.+15 mins.
Duck/ duckling 3 4 25-30mins. per 500g.
6 4 20mins. per 500g.
Casseroles 1-2 3-4 2-4 hours according to recipe.
Yorkshire Pudding 7 2 Large tin 30-35 mins. Individual, 10-20 mins.
Fish 5 2 Fillets 15-20 mins. Whole 15-20mins. per 500g.
5 2 Steaks according to thickness.
Cakes
Very rich fruit 1 4 45-50mins. per 500g. of mixture.
Christmas/ wedding etc.
Fruit 180mm tin 2 4 2 to 21/2hours.
Fruit 230mm tin 2 4 Up to 31/2hours.
Madeira 180mm 3 4 80-90 mins.
Queen cakes 5 2 & 4 or 3 15-25 mins.
Scones 7 2 & 4 or 3 10-15 mins.
Victoria sandwich
180mm tin 4 2 & 4 or 3 20-30mins.
230mm tin 4 2 & 4 or 3 30-40 mins.
Desserts
Shortcrust tarts 6 2 & 4 40-60 mins. on pre-heated tray.
Fruit pies 6 2-3 35-45 mins.
Tartlets 6 2-3 10-20 mins. according to size.
Flaky/rough puff 7 2-3-4 20-40 mins. according to size.
Puff pastry 8 2-3-4 20-40 mins. according to size.
Meringues ‘S’ 3 11/2to 2 hrs.
Baked egg custard 3 3 45-60 mins.
Baked sponge
pudding 5 3 40-45 mins.
Milk pudding 1-2 3 2-3 hrs.
For stuffed poultry, you could
cook at Mk. 6 for 20mins. and
then Mk.3 for remainder. Don’t
forget to include the weight of the
stuffing. For fresh or frozen
prepacked poultry, follow
instructions on the pack.
Thoroughly thaw frozen poultry
before cooking.
When two tier cooking leave at
least one runner space between
shelves. Position the baking tray
with the front edge along the
front of the oven shelf.
Rich fruit cakes made with self-
raising flour should be cooked on
Mk.4 for the first half hour at
least and then finished at the
setting shown.
If cooking more than one tart at
the same time, swap them over
at approx. 25 mins. For even
browning the maximum size of
baking tray recommended is
320mm x 305mm. This ensures
free heat circulation.
If cooking a two tier load, when
the top tray is removed, the tray
in the lower position should be
raised to the higher shelf, or the
trays interchanged, for the
remaining cooking time.
Thoroughly thaw frozen joints
before cooking. Meat may be
roasted at Mk. 7 and the cooking
time adjusted accordingly. For
stuffed and rolled meats, add
approx. 10 min. per 500g. or
cook at Mk. 6 or 20min, then
Mk. 3 for the remainder.

11
Tall Oven cooking guide
Oven
Food Temperature Approximate Cooking Time
Fish 180°C Fillets 15-20mins.
180°C Whole 10mins.per 500g + 10mins.
180°C Steaks according to thickness.
ROAST MEATS
Beef with bone 150°C 20-25mins. per 500g + 20-25mins.
190°C 15-20mins. per 500g + 15-20mins.
Beef without bone 150°C 30-35mins. per 500g + 30-35mins.
190°C 20-25mins. per 500g + 20-25mins.
Lamb 170°C 30-35mins. per 500g + 30-35mins.
190°C 25-35mins. per 500g + 25-30mins.
Pork 150°C 35-40mins. per 500g + 35-40mins.
190°C 25-30mins. per 500g + 25-30mins.
Stuffed and rolled - Add approx. 10 mins. per 500g to above cooking times or cook at 200°C for 20mins. then 160°C
for remainder.
Thoroughly thaw frozen joints and poultry before cooking.
POULTRY
Chicken 150°C 20-25mins. per 500g + 20-25mins.
190°C 15-20mins. per 500g + 15-20mins.
Turkey 150°C 20-25mins. per 500g + 20-25mins.
200°C 15-20mins. per 500g + 15-20mins.
Stuffed Poultry - Cook at 200°C or at 200°C for 20mins. then 160°C for remainder.
Prepacked (fresh or frozen) follow packers cooking times
THOROUGHLY THAW FROZEN POULTRY BEFORE COOKING
CASSEROLE 140°C 2-4hrs according to recipe.
YORKSHIRE PUDDING 200°C Large tin 30-35mins. Individual 10-20mins.
CAKES
Very Rich Fruit 140°C 45-50mins. per 500g mixture
Rich fruit (180mm) 145°C 21/2-3hrs.
Madeira (180mm) 150°C 80-90mins.
Queen Cakes 170°C 15-25mins.
Scones 200°C 10-15mins.
Victoria Sandwich 170°C 20-30mins.
PASTRIES
Plate Tart 190°C 45-50mins. Interchange after 25mins.
Fruit Pie 190°C 35-40mins.
Tartlets 190°C 15-20mins. according to size.
Puff Pastry 200°C 20-40mins. according to size.
BREAD 200°C 20-30mins.
MERINGUES 100°C 2-21/2hrs
PUDDINGS
Baked Egg Custard 150°C 45mins.-1hr.
Baked sponge pudding 180°C 40-45mins.
Milk pudding 150°C 2-3hrs.
500g is approximately 1lb (1lb 2oz)

12
‘S’ (Slow) cooking (Main oven)
The ‘S’ setting is a low temperature
setting.
You can cook on ‘S’ throughout, or use a 30
minute ‘boost’ period at gas mark 6 and then ‘S’
cook.
When roasting joints, poultry or pot
roasting, always cook at Mark 6 for 30
minutes at the beginning of the cooking
period.
You can ‘S’ cook for periods of 6 to 12 hours.
This technique is particularly useful if you want to
cook a dish overnight or while you are out at
work during the day.
Frozen foods must be thoroughly thawed
out before ‘S’ cooking.
Whole poultry should not be cooked on ‘S’.
Chicken casseroles are fine.
Casseroles must be brought to boiling
point on the hotplate immediately before
‘S’ cooking.
Poultry and rolled joints should not be stuffed
before cooking. The stuffing should be cooked
separately. Poultry and pork should be cooked in
the top half of the oven, and other meats not
lower than shelf position 4.
A roasting joint should be covered with
cooking foil, or with a roasting bag to
reduce shrinkage and retain juices.
Should further browning be necessary, uncover
the meat and increase the temperature to Mark 4
for a short period.
Cut root vegetables into small pieces
unless cooking whole, e.g. jacket
potatoes.
Cover dishes tightly with a lid or foil to prevent
evaporation and transfer of flavour.
Once the oven has been loaded and the
‘S” setting is in operation resist the
temptation to open the oven door. Heat
will be lost and the cooking time
extended.
A meat thermometer is recommended for
checking that a joint or poultry is sufficiently
cooked. Insert the probe through the thickest
part of the meat. The temperatures to be
expected are as follows.-
Beef rare 60°C/ 140°F
medium 71°C/ 160°F
well done 77°C/ 170°F
Lamb 82°C/ 180°F
Pork fresh 88°C/ 190°F
cured 77°C/ 170°F
Poultry 90°C/ 195°F
Veal 77°C/ 170°F
Cooking using the timer
The timer can be used to turn just one oven or
both on and off automatically. The start and stop
time must be the same for both ovens but
different cooking temperatures can be set.
If you want to turn one of the ovens on at
the same time as the timer is set for
automatic cooking, you must wait until
the timer has turned on the oven/ ovens
first. Then you can adjust either of them
manually in the normal way.
You can set the oven to turn on any time over
the following 24 hour period.
If you want to cook more than one dish,
choose dishes which require
approximately the same time. However,
dishes can be ‘slowed down’ slightly by
using small containers and covering
them with aluminium foil, or ‘speeded up’
slightly by cooking smaller quantities or
placing in larger containers.
Very perishable foods such as pork or fish
should be avoided if a long delay period is
planned, especially in hot weather.
Don’t place warm food in the oven.
Don’t use an oven already warm.
Don’t use if an adjoining oven is warm.
Avoid using wine or beer if there is a delay
period, as fermentation may take place.
To avoid curdling, cream should be
added to dishes just before serving.
Fresh vegetables which may discolour during a
delay period should be coated in melted fat or
immersed in a water and lemon juice solution.
Fruit pies, custard tarts or similar wet mixtures on
top of uncooked pastry are only satisfactory if
there is a short delay period. Dishes containing
leftover cooked meat or poultry should not be
cooked automatically if there is a delay period.
Whole poultry must be thoroughly
defrosted before placing in the oven.
Check that meat and poultry are fully
cooked before serving.

13
The clock
To set the correct time of day.
See the ‘2 Minute Tour’ at the beginning of this
guide.
To time something that’s cooking
(minute minder)
Press and hold as above. At the same time press
(-) or (+) until the time you want to cook for is
shown, as below.
You can check time remaining by pressing
and cancel the beeper by pressing
To stop automatically
Use when you have started the oven manually.
Press and hold as above. At the same time press
(-) or (+) until your required ‘Stop Time’ shows.
AUTO will show in the display. When your
cooking is finished the beeper sounds. TURN
THE OVEN KNOB TO 0 FIRST, then press
once to stop the beep, press again to return to
manual cooking.
To start and stop the oven automatically
Before you set the clock, you must have two
numbers clearly in mind.
The ‘cook period’, which is the period of time you
want the oven to cook.
The ‘stop time’, which is the time of day you want
the oven to stop cooking.
You cannot set a start time directly - this is set
automatically by setting the cooking period and
stop time.
Press and hold as above. At the same time press
(-) or (+) until your required ‘cook period’ shows.
Then press and hold as above. At the same time
press (-) or (+) until your required ‘stop time’
shows.
AUTO will show in the display.
Set the oven to the required temperature. When
your cooking is finished the beeper sounds.
TURN THE OVEN KNOB TO 0 FIRST, then
press once to stop the beep, press again to
return to manual cooking.
If you are out, don’t worry about the beeper going
off, it stops after a while. When you return, TURN
THE OVEN KNOB TO 0 FIRST, then press
twice, to return to manual cooking.
AUTO is showing, you want to reset to
manual cooking.
When cancelling an automatic setting, any
cooking time already set must be returned to 0.00
before you can return to manual, by pressing the
button.

14
Cleaning your cooker Hotplate burners
Some models have a separate trim ring, which fits
on the burner head.
The burner heads and caps can be removed for
cleaning. Make sure they are absolutely dry before
replacing.
The LH hotplate
When refitting the burner head, make sure that the
notch lines up with the electrode or hole in the
base. Check that the burner head is level and that
the cap is fitted centrally on the burner head.
The Wok burner
The Wok burner is a little more complicated but it
also can be taken apart for cleaning.
Essential information
Before thorough cleaning isolate the electricity
supply. Remember to switch on the electricity
supply before use.
Never use paint solvents, washing
soda, caustic cleaners, biological
powders, bleach, chlorine based
bleach cleaners, coarse abrasives or
salt. Don’t mix different cleaning
products - they may react together
with hazardous results.
Recommended cleaning materials are
shown in the chart below.
If you want to move your cooker for cleaning,
see the section called ‘Moving your cooker’.
All parts of the cooker can be cleaned with hot
soapy water - but take care that no surplus
‡ Indicates how to clean after the oven linings
have been removed. See opposite page for how
to remove the oven linings
* VEA is the Vitreous Enamel Association. Look
for aerosols with the VEA label.

15
When reassembling the Wok burner, turn over
the large base ring and find the ‘D’ shaped area.
Turn the head until the ‘D’ matches the one on
the burner base. Turn the head over and place it
on the burner base. To fit the small inner burner,
find the larger electrode notch in the burner rim.
Line this up with the white ignition electrode and
place the inner burner on the large base ring.
Now fit the two trim rings, making sure that they
are sitting down properly.
Grill
The face of the grill burner will darken with use -
this is perfectly normal. Any fat or grease will
burn off. Do not try to clean it - the small holes
could get blocked and affect burner performance.
The grill pan and grid should be washed in hot
soapy water. Stubborn particles may be removed
from the grid by using a nylon brush.
Control Panel and Doors
Avoid using any abrasive cleaners including
cream cleaners, e.g. Cif, on brushed Stainless
Steel surfaces. For best results use a liquid
detergent e.g. Domestos Multi Surface Cleaner.
The control panel and control knobs should only
be cleaned with a soft cloth wrung out in clean
hot soapy water - but take care that no surplus
water seeps into the appliance. Wipe with a
clean dampened cloth then polish with a dry
cloth. The oven doors should only be cleaned
with a soft cloth wrung out in clean hot soapy
water.
Cookers with window doors
On some models the oven door front panel can
be taken off so that the glass panels can be
cleaned. If the top edge of the oven door of your
cooker has a line of holes and there are screws
in the side edges then it can be taken apart for
cleaning.
Move the cooker forward to gain access to the
sides (see the ‘Moving the cooker’ section of
these instructions).
Open the oven door slightly and remove the front
panel fixing screws from the door sides (two
each side).
some window doors only
Carefully lift off the outer door panel. The inside
face of the glass panels can now be cleaned -
take care not to disturb or wet the door
insulation. Please note that the door is triple
glazed but the inner two panels are fixed and
should not be separated. After cleaning carefully
refit the outer door panel and replace the side
fixing screws.
The Main Oven
Cleaning is easier if carried out while the oven is
still warm. Before cleaning, cover the burner to
prevent the burner holes becoming blocked.
The inside of the oven and inner door panel can
be cleaned using any cleaner bearing the
Vitreous Enamel Association (VEA) label.
Take care not to disturb the oven thermostat
temperature sensor at the top of the oven
opening.

16
The enamelled oven burner trim (supplied with
some models only) can be removed for cleaning.
The oven burner trim hooks onto the front of the
oven burner bracket.
When refitting make sure that the trim is in the
middle of the front of the oven burner bracket.
The Main Oven side linings
The oven has removable oven side lining panels
that have been coated with special enamel that
partly cleans itself. This does not stop all marks
on the lining, but helps to reduce the amount of
manual cleaning needed.
The self cleaning panels work better
above gas Mark 6. If you do most of your
cooking below this temperature,
occasionally remove the panels and wipe
with a lint free cloth and hot soapy water.
The panels should then be dried and
replaced and the oven heated at Gas
Mark 7 for about one hour. This will
ensure the self cleaning panels are
working effectively.
Don’t use steel wool (Brillo) or any other
materials that will scratch the surface. Don’t use
oven cleaning pads.
Before cleaning the oven, cover the burner at the
rear to stop the holes getting blocked as you
clean. If they are accidentally blocked, clean
them out with thin wire, such as fuse wire.
Removing the Oven Linings
The lining panels can be removed for cleaning
and for cleaning behind. Remove the shelves
first.
Each side of the oven is fixed with four fixing
screws. You don’t have to remove the screws to
remove the oven linings. Lift each side panel
upwards and they will slide off the screws. Then
pull them forwards.
Once the linings are removed, the oven enamel
interior can be cleaned.
The Tall Oven
To clean the oven sides slide out the shelves,
unhook the supports from the oven sides and lift
out.

17
Moving your cooker
Switch off the electricity supply.
The cooker is heavy, two people may be
required to move it. There are two
levelling rollers at the back and also two
screw down levelling feet at the front.
Open the grill door and right hand oven door so
that you can get a good grip on the bottom of the
fascia panel as you move the oven. Lift the front
of the cooker slightly and pull forward.
Do not move the oven by pulling the door
handles or knobs.
Move the oven a bit at a time, checking behind it
to make sure the gas hose is not caught. Make
sure both electricity and gas cables have
sufficient slack to move the cooker forward as
you go along.
If a stability chain is fitted, release it as
you ease the cooker out. Don’t forget to
refit it when you replace the cooker.
When you replace the cooker, again check
behind to make sure that the electricity and gas
cables are not caught or trapped.

Troubleshooting
18
Food is cooking too slowly, too quickly, or burning
Cooking times may differ from your previous oven. The oven control settings
and cooking times are intended to be used only as a guide. Individual tastes
may require the gas mark to be altered one gas Mark either way, to get the
results you want. Try cooking at a higher shelf position and/or higher Mark.
Oven cooking times and temperatures may need to be increased when other
burners are in use. Are the Main oven burner ports blocked with spilt food?
The oven is not cooking evenly
Do not use a tin or baking tray larger than 340mm x 305mm in the main oven or
232mm x 321mm in the Tall oven.
If you are cooking a large item, be prepared to turn it round during cooking.
If more than one shelf is used, check that space has been left for the heat to
circulate. When a baking tray is put into the oven, make sure the front edge is
level with the front of the shelf.
Check that the door seal is not damaged and that the door catch adjusted so
that the door is held firmly against the seal.
NB the seal is intended to have a gap at the bottom of the door
A dish of water when placed on the shelf should be the same depth all over.
(For example, if it is deeper at the back, then the back of the cooker should be
raised up or the front lowered). If the cooker is not level arrange for your
supplier to level it for you.
Oven not coming on when turned on manually
Problems with the burner (main oven)
Are the oven burner ports blocked with spilt food? Are the burner flames
starting low and then rising to full height?
Electrical Problems
Is the power on? Is the clock illuminated? If not there may be something wrong
with the power supply. Is the clock flashing 0.00? If so set it to the correct time
of day. Has the Timer been set to AUTO by mistake? If AUTO is showing on the
clock display, press the ‘cook period’ button and reduce any set cooking time
showing to 0.00, with the (+) and (-) buttons. Press the button twice.
If this does not solve the problem contact a service person.
Oven not coming on when automatic cooking
Timer set correctly but oven knob left OFF by mistake?
Oven temperature getting hotter as the cooker gets older
If turning the knob down has not worked or only worked for a short time then
you may need a new thermostat. This should be fitted by a service person.
Steam is coming from the Tall oven
When cooking foods with a high water content (e.g. oven chips) there may be
some steam visible at the rear grille. Take care when opening the oven door as
there may be a momentary puff of steam when the oven door is opened. Stand
well back and allow any steam to disperse.
The Tall oven fan is noisy
The note of the oven fan may change as the oven heats up - this is perfectly
normal.

Troubleshooting
19
Grill Ignition faultyIs the power on? Is the clock illuminated? If not there maybe something wrong
with the power supply. See ‘power supply’ section further on.
Grill not cooking properly
Are you using the pan and trivet supplied with the cooker? Is the pan being
used on the runners, not the floor of the compartment? Is the grill tray pushed
fully back to stop?
Hotplate ignition or hotplate burners faulty
Is the power on? Is the clock illuminated? If not there maybe something wrong
with the power supply.
See ‘power supply’ section further on.
Are the sparker (ignition electrode) or burner slots blocked by debris?
Is the burner trim correctly located?
Are the burner caps correctly located?
See the section entitled ‘Cleaning’
Hotplate burners will not light
If only one or all the hotplate burners will not light, make sure that the parts have
been replaced correctly after wiping or removing for cleaning.
Check that there is not a problem with your gas supply. You can do this by
making sure that other gas appliances you may have are working.
Do the burners spark when you push the button? If not check the power is on -
is the clock illuminated?
The Main oven light is not working
The bulb has probably blown. You can buy a replacement bulb (which is not
covered under the guarantee) from a good electrical shop. Ask for an Edison
screw fitting 15w 240v lamp, FOR OVENS. It must be a special bulb, heat
resistant to 300 °C. See the HELP leaflet for spares by mail order.
There is a glass cover over the bulb which has to be removed before you can
replace the bulb.
Turn off the power supply.
Unscrew the bulb cover by turning anticlockwise and unscrew the bulb. Screw in
the new bulb and refit the bulb cover.
Power supply. You think there may be a problem with it
First check the socket by trying out another piece of electrical equipment in it.
If that works, replace the fuse in the cooker plug. Use a 13 amp fuse.
Power failure In the event of a failure in the electrical supply the grill and hotplate may be lit
using a match. The ovens however cannot be used either manually or
automatically until power is restored.
Oven ignition faulty (Main gas oven)
Is the power on? Is the clock running? - if not there may be something wrong
with the power supply.
See the section on ‘Checking the power supply’.
Check that the electrode and burner slots are not blocked by debris.
Has the Timer been set to auto by mistake, or after power cut?
Has the Timer been set correctly but oven tap not left OFF by mistake?

20
General Safety Instructions
The cooker must be installed by a CORGI
registered engineer in accordance with the
installation instructions. The installation must
comply with the relevant regulations and also the
local gas and electricity supply companies
requirements.
IF YOU SMELL GAS
Don’t turn electric switches on or off.
Don’t smoke
Don’t use naked flames
Do turn off the gas at the meter or cylinder
Do open doors and windows to get rid of the gas
Call your gas supplier.
If you are using natural gas in the UK ring British
Gas - Trans Co on
0800 111 999
This appliance is designed for domestic
cooking only. Use for any other purpose
could invalidate any warranty or liability
claim.
The use of a gas cooking appliance results in the
production of heat and moisture in the room in
which it is installed. Ensure that the kitchen is
well ventilated: keep natural ventilation holes
open or install a mechanical ventilation device,
(mechanical extractor hood).
Prolonged intensive use of the appliance may
call for additional ventilation, for example
opening a window, or more effective ventilation,
for example increasing the level of mechanical
ventilation where present.
The cooker should be serviced by a qualified
service engineer and only approved spare parts
used. Have the installer show you the location of
the cooker control switch. Mark it for easy
reference. Always allow the cooker to cool and
then switch off at the mains and before cleaning
or carrying out any maintenance work, unless
specified otherwise in this guide.
All parts of the cooker become hot with
use and will retain heat even after you
have stopped cooking.
Take care when touching cooker, to minimize the
possibility of burns, always be certain that the
controls are in the OFF position and that it is cool
before attempting to clean the cooker.
Use dry oven gloves when applicable -
using damp gloves might result in steam
burns when you touch a hot surface.
Never operate the cooker with wet
hands.
Do not use a towel or other bulky cloth in place
of a glove. They might catch fire if they touch a
hot surface.
Clean with caution. If a wet sponge or
cloth is used to wipe spills on a hot
surface, be careful to avoid steam burns.
Some cleansers can produce noxious
fumes if applied to a hot surface.
Do not use unstable saucepans and position the
handles away from the edge of the hotplate.
Babies, toddlers and young children
should not be allowed near the cooker at
any time. They should never be allowed
to sit or stand on any part of the
appliance. Teach them not to play with
controls or any other part of the cooker.
Never store anything of interest to children in
cabinets above a cooker - children climbing on
the cooker to reach them could be seriously
injured.
Clean only parts listed in this guide.
In the interests of hygiene and safety the cooker
should be kept clean at all times as a build up in
fats and other food stuff could result in a fire.
Always keep combustible wall coverings or
curtains etc. a safe distance away from your
cooker.
Do not spray aerosols in the vicinity of the
cooker while it is in on.
Do not store or use combustible
materials, or flammable liquids in the
vicinity of this appliance.
Do not use water on grease fires. Never pick up
a flaming pan. Turn the controls off. Smother a
flaming pan on a surface unit by covering the
pan completely with a well fitting lid or baking
tray. If available use a multipurpose dry chemical
or foam-type fire extinguisher.
