RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood
is 650 mm (some models can be installed at a lower height, please refer to
the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.

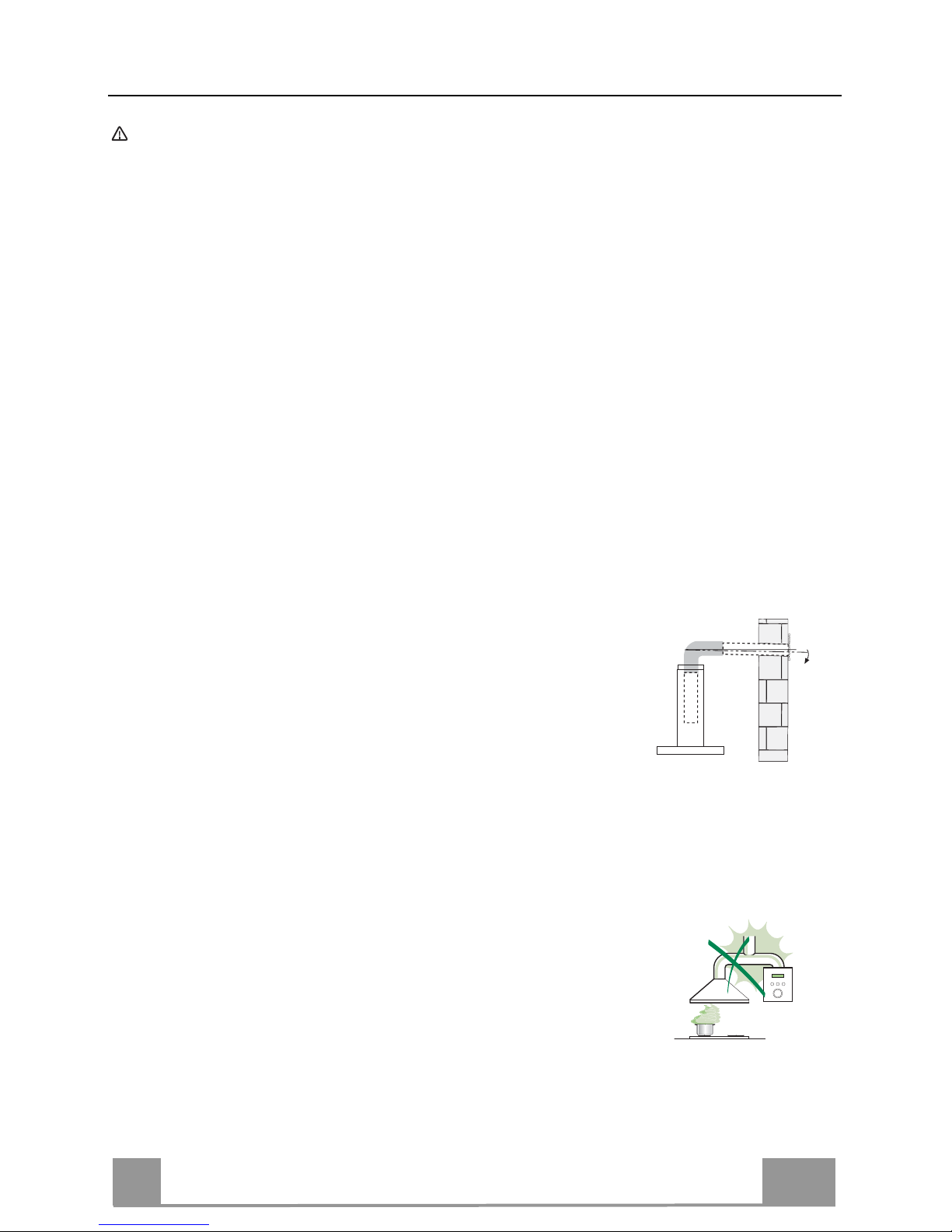

• Do not connect the extractor hood to exhaust ducts
carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient
degree of aeration must be guaranteed in the room in
order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the
cooker hood is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels (not applicable to appliances that only discharge the
air back into the room).
• In the event of damage to the power cable, it must be
replaced by the manufacturer or by the technical service
department, in order to prevent any risks.
2°

EN 4
4
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
•The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

EN 5
5
• “CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 6
6
CHARACTERISTICS
Components
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Filters, Motor.
21 Hood support plate.
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12a 4 Screws 4.2 x 44.4
Q.ty Documentation
1 Instruction Manual

EN 7
7
Dimensions

EN 8
8
INSTALLATION
This hood is designed to be mounted on the ceiling/on a shelf, above a free-standing Hob (min. 650
mm), in:
•Recirculation version: Internal recirculation.
Sequence of operations - Installation
• Preparing for installation
• Drilling the Ceiling/Shelf and Fixing the support plate
• Connections
• Fitting the hood body
• Functional Check
• Disposal of Packaging
Opening the Plate and preparing for assembly
• Unfasten the screws joining the Plate to its Cover.
• Take the Plate and position it the right way round, as shown in the figure.

EN 9
9

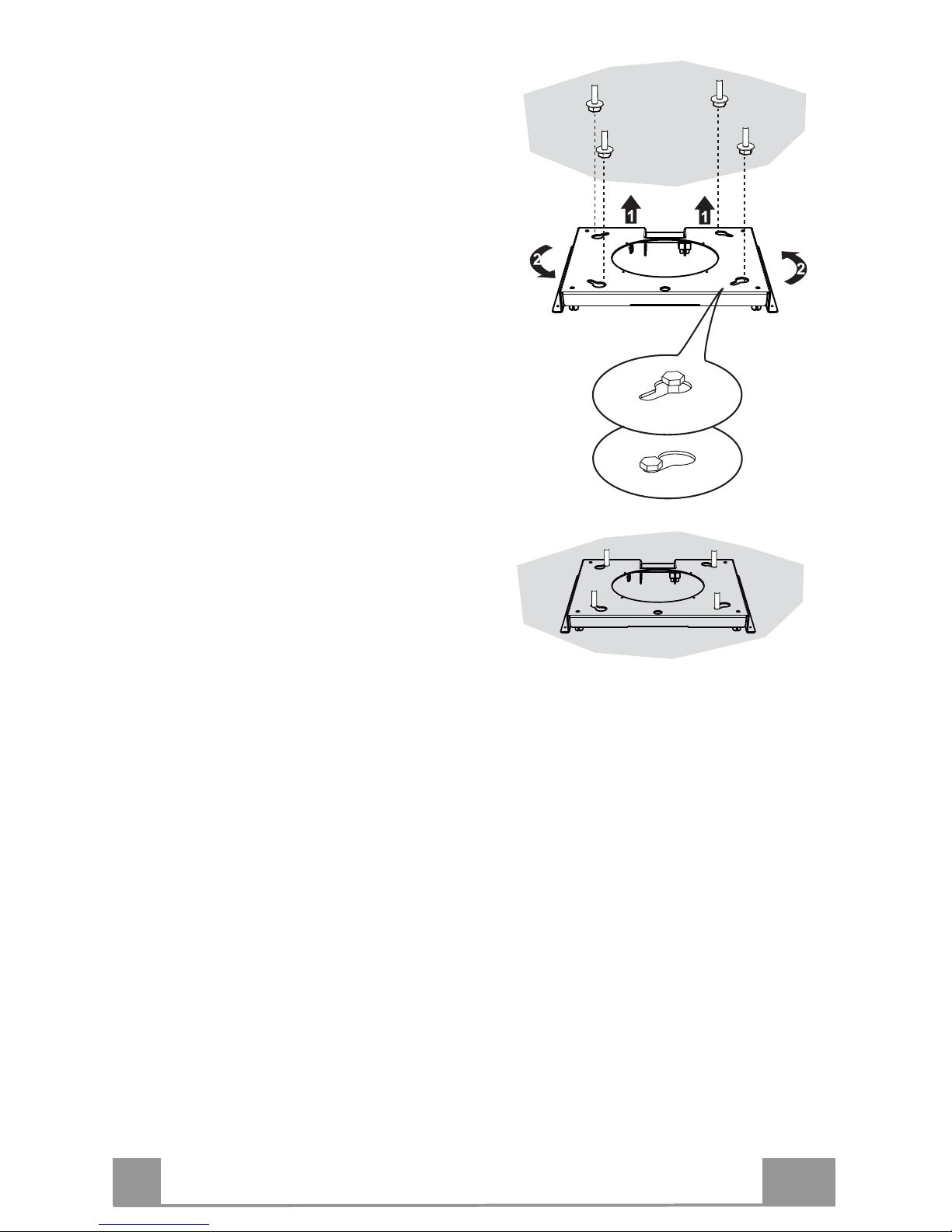

Ceiling/Shelf drilling and Plate Fixing
CEILING/SHELF DRILLING
• Use a plumb-line and mark the centre of the cooking hob on the Support Ceiling/Shelf
• Rest the Plate against the Ceiling/Shelf, making sure it is the right way up, as shown in the
figure.
• Mark the centres of the holes in the plate.
• Drill the following points:
• Ceilings in solid concrete: As per concrete plugs used.
• Ceilings in hollow bricks with 20 mm resistance thickness: Drill a hole ø 10 mm (insert
Plugs 11 supplied immediately).
• Ceilings with Wood Beams: As per Wood Screws used (not supplied).
• Wooden shelf, with a resistant thickness of 15 mm: drill a hole ø 7 mm.
• Feeding the electric supply cable: drill a hole ø 10 mm.
• Insert two screws, crossing them and leaving 4-5 mm from the ceiling:
• for solid concrete, concrete plugs, not provided.
• for hollow bricks with approx. 20 mm resistance thickness, screws 12a, provided.
• for wooden beams, wood screws, not provided.
• for wooden shelves, screws with washers and nuts, not provided.

EN 1
10
FIXING THE PLATE
• Lift up the Fixing plate and fit the slots onto the
two screws previously inserted in the ceiling,
and turn until they are at the centre of the ad-
justment slot.
Warning: The plate must be facing in the direc-
tion shown in the figure
• Tighten the two screws completely and screw
in the other two provided; before locking the
screws completely it is possible to make
adjustments by turning the piece, making sure
that the screws do not come out of the
adjustment slot.
• The unit must be securely fastened both due to
the weight of the Hood and the stress caused by
occasional sideways pressure on the Appliance
when in position. Once the unit has been fixed,
make sure that the plate is stable.
• In all cases where the Ceiling is not sufficiently
strong at the point of suspension, the
Installation technician must strengthen it with
suitable plates and counterplates, anchored to
structurally sound elements.
• Check that the plate is level on the ceiling.

EN 1
11
a
b
c
CONNECTING HOOD-PLATE CABLES
N.B. Before proceeding with installation the Hood must be raised to a height of at least 650
mm above the cooker hob by means of a support or with the assistance of another
person. Be careful not to exceed the maximum Hood extension indicated in the
dimensional drawing.
This operation is essential, as the Hood Cables are to be connected to the Plate mounted
on the ceiling, and this must be done without the weight of the Hood bearing down on
the structure.

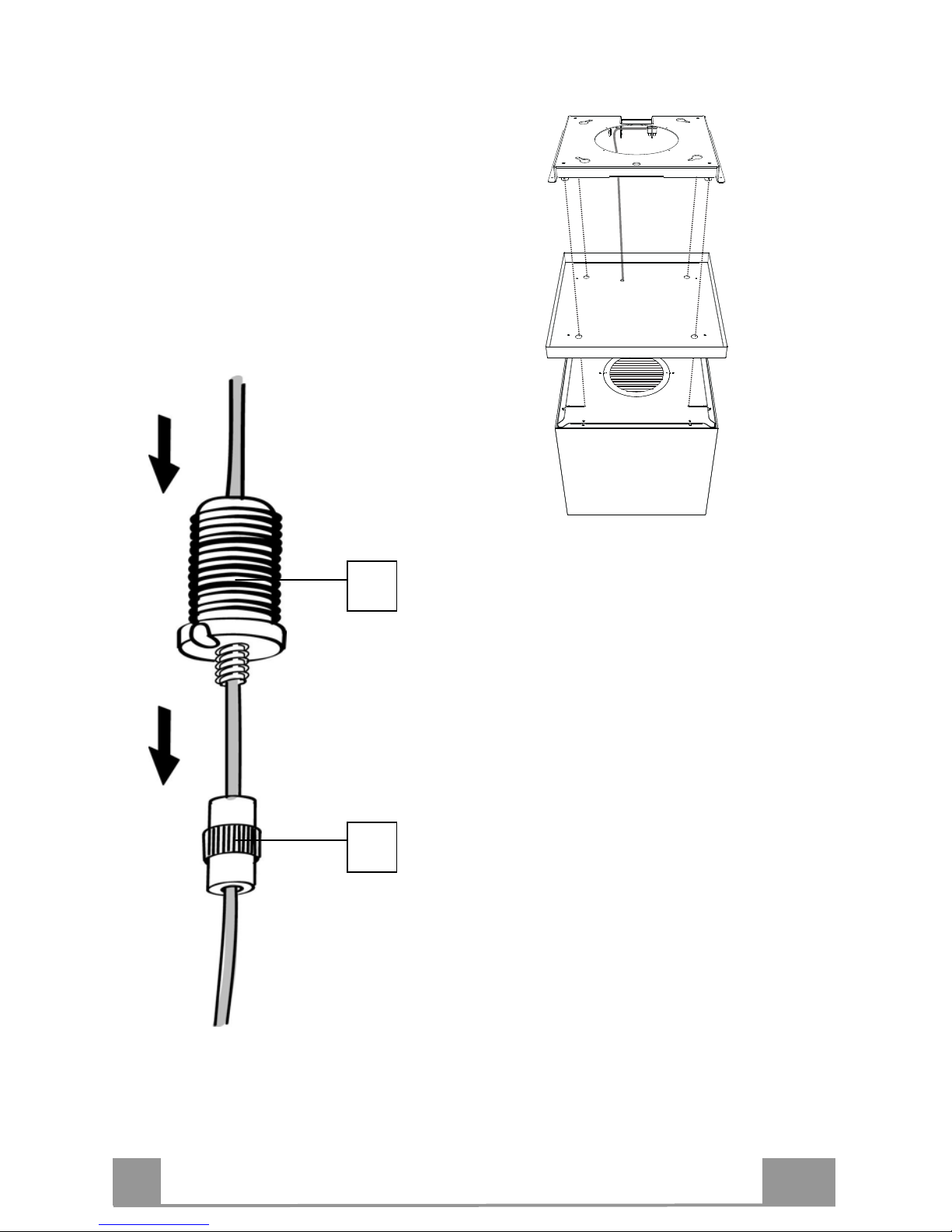

The system used to fix the 4 Cables comprises 3 components:
• Threaded pawl (a) already mounted on the ceiling Plate.
• Cable locking screw (b), provided.
• Safety knob (c), provided.
• Pass the 4 cables (connected to the
Hood Canopy) through the respective
holes in the Plate Cover after
dismantling as above, making sure that
they face the same way as the plate
connected to the ceiling.
• Insert the Hood power cable into the hole
provided in the Cover.

EN 1
12
B
C
• Pay attention to the direction in which the Plate
is fixed to the ceiling.
• Insert the safety knobs (c) into the
respective cables, with the thread to the
top.
• Insert the cable locking screws (b) into
the respective cables.

EN 1
13
• Pass the Cables into the slots on the threaded pawls (a) and
tighten the cable locking screws (b) into the pawls
themselves.
• When the operation has been
completed, the result should be as
shown in the figure for all 4
cables.
• At this point, all 4 cables are now
connected to the Plate.
Tension the Cables by pushing them
upwards, so that they slide inside the
cable locking screw and out through the
slot in the threaded pawl.
This is possible because the cable
locking screw involves a system that
allows the Cable to slide in one direction
only, preventing it from sliding in the
other direction.
Make sure that the Cables are all the
same length, to facilitate final levelling
operations. The left front cable must not
be slacker than the others.

EN 1
14
LEVELLING THE HOOD
• The hood canopy must be levelled.
• The Hood is levelled by adjusting the safety pawls
C.
• Rest a spirit level on the hood.
• Exerting an upwards pressure on the safety knobs
“unlocks” movement of the Cable. By inserting or
extracting the cable from the cable locking screw
it is possible to make adjustments to level the
mobile hood canopy.
• Once the hood has been set level, the safety knobs
must be tightened.
Warning:
• Make sure that all 4 of the support cables are taut.
• Make sure that none of the 4 support cables have been damaged during installation.
• Remember that the minimum distance between the Hood and the cooker hob must be
650mm and make sure that you do not exceed the maximum Hood extension
indicated in the dimensional drawing.

EN 1
15
FIXING THE POWER SUPPLY CABLE
• Tighten the power supply cable and fix it to the
Bracket on the ceiling mounted Plate, using the
tongue already mounted and 2 screws.
• Slot the rubber cable raceway already
threaded onto the power cable into the
slot to prevent future damage.
• Connect the Hood to the
Mains Power Supply,
inserting a bipolar switch
with a contact aperture of
at least 3 mm.
• Remove the Grease filters
(see paragraph
“Maintenance”) and make
sure that the Power cable
has been properly inserted
into the Suction fan
socket.
FITTING THE PLATE COVER
• Screw the Cover back onto the Plate using the
screws removed previously.

EN 1
16
USE Control panel
L T1
S1
Button Function Led
Turns the lights ON/OFF at maximum
intensity. -
L
Press and hold the button for approximately 4
seconds, with all the loads turned off (Motor
and Lights), to turn the Activated Charcoal
Filter alarm on/off.
LED S1 flashes twice = alarm
ON.
LED S1 flashes once = alarm
OFF.
Turns the motor on/off at speed one. -
T1 Press and hold the button for approximately 2
seconds, with all the loads turned off (Motor
and Lights), to reset the Activated Charcoal
Filter alarm.
LED S1 turns OFF (Fixed or
Flashing).
Signals the Metal Grease Filter saturation
alarm, indicating that it is necessary to wash the
filters. The alarm is triggered after the Hood
has been in operation for 100 working hours.
Fixed.
S1
When this is activated, it signals the Activated
Charcoal Filter saturation alarm, indicating that
the filter must be changed; the Metal Grease
Filters must also be washed. The Activated
Charcoal Filter saturation alarm comes into
operation after the Hood has been working for
200 hours.
Flashing.

EN 1
17
REMOTE CONTROL
The appliance can be controlled using a remote control powered by
a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA
type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Control panel
Button Function Display
Turns the Motor On/Off. -
Decreases the speed of the Motor. -
Increases the speed of the Motor. -
INTENSIVE
- Activates Intensive speed from any other speed.
To disable it, simply press the same button again or turn the motor off.
- Intensive speed is timed to run for 10 minutes. At the end of the 10 minutes the system
automatically returns to the speed set previously.
-
Press briefly for the Delay Function:
Can only be activated if the Intensive or 24h function is not active.
Activates and deactivates total shutdown of the hood (motor+lights) after 30 minutes:
To disable the Delay, simply press the button again or turn the motor off.
The led on the motor button
(on the hood controls) will
flash once every 0.5 seconds.
Press and hold for 2sec for the 24H Function:
Can only be activated if the Intensive or Delay function is not active.
Activates and deactivates the 24H function for 10 minutes every hour, for 24 hours. After this time it
is deactivated.
The led on the motor button
(on the hood controls) will
flash once every 2 seconds.
Turns the Hood lights On/Off at maximum intensity. -
Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity. -

EN 1
18
MAINTENANCE Grease filter
The filter must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a
dishwasher.
CLEANING METAL SELF- SUPPORTING GREASE FILTER
• Open the lighting unit by pulling on the nocth.
• Remove the filter one by one pushing it towards the back side
of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filter has to be avoided when wash-
ing it. Before fitting it again into the hood make sure that it is
completely dry.
• When fitting the filter into the hood pay attention that they are
mounted in correct position the handle facing outwards.
• Replace the lighting unit.
Activated Charcoal Filter
This cannot be washed or regenerated, and must be changed ap-
proximately once every 4 months, or more frequently in the case
of particularly intensive use.
CHANGING
• Open the light unit.
• Remove grease filter.
• Remove the saturated Activated Charcoal Filters, as indicated
(A).
• Fit the new Filters, as indicated (B).
• Fit the anti-grease filter and the Light Unit back into position.
A
B
Lighting unit
• For replacement contact technical support ("To purchase
contact technical support").

991.0302.745_ver3 - 161201
D001891_01
AGA RANGEMASTER GROUP PLC
