EN 2
2
Instructions Manual
INDEX
RECOMMENDATIONS AND SUGGESTIONS..................................................................................................................... 3
CHARACTERISTICS.............................................................................................................................................................4
INSTALLATION...................................................................................................................................................................... 6
USE........................................................................................................................................................................................9
MAINTENANCE...................................................................................................................................................................11

EN 3
3

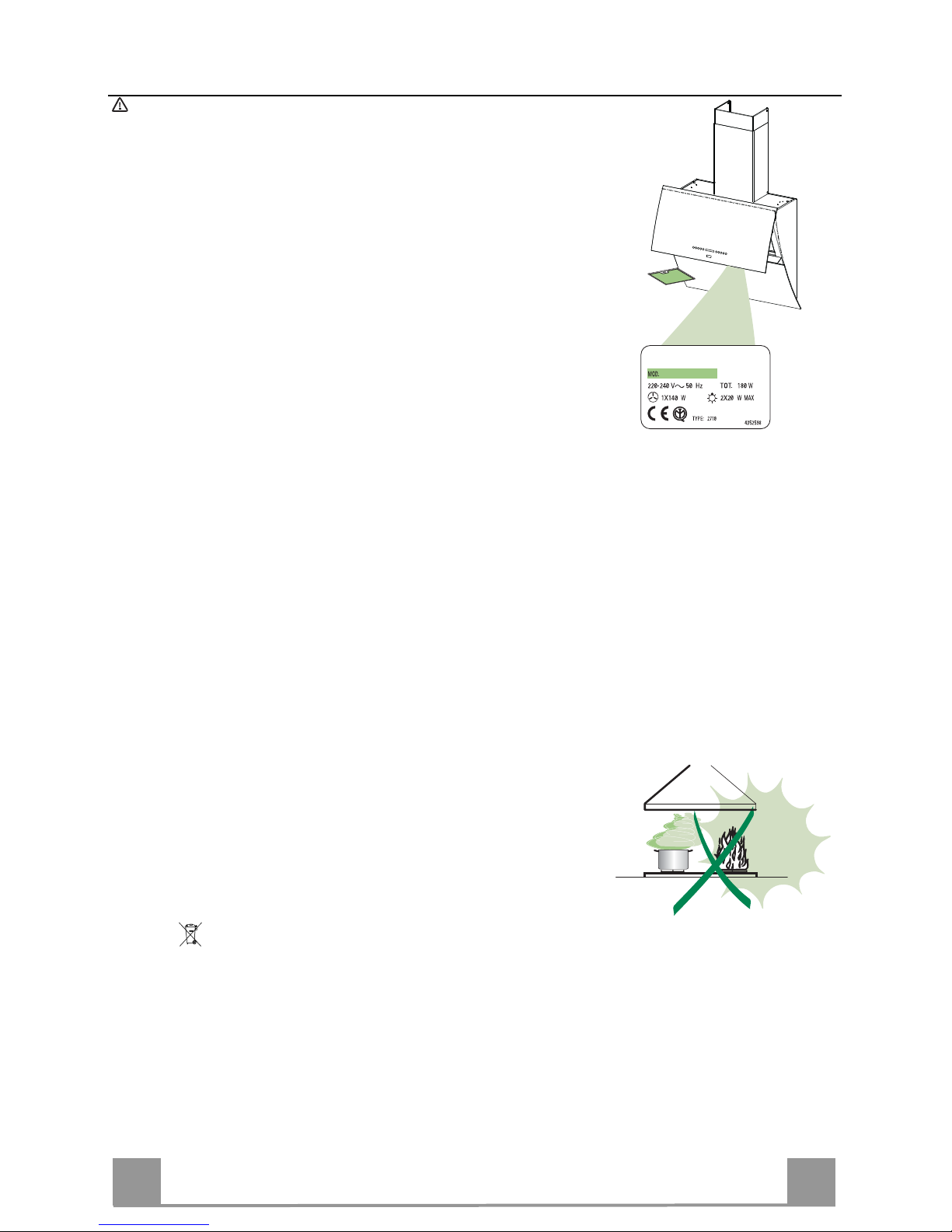

RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accord-
ingly, you may find descriptions of individual features that do not apply to your
specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incor-
rect or improper installation.
• Check that the mains voltage corresponds to that indicated on the rating plate
fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees ade-
quate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter
120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas
burning appliances), a sufficient degree of aeration must be guaranteed in the
room in order to prevent the backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open air in order to guarantee the
entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to elimi-
nate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can
burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appli-
ance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you purchased the
product.

EN 4
4
CHARACTERISTICS
Dimensions

EN 5
5

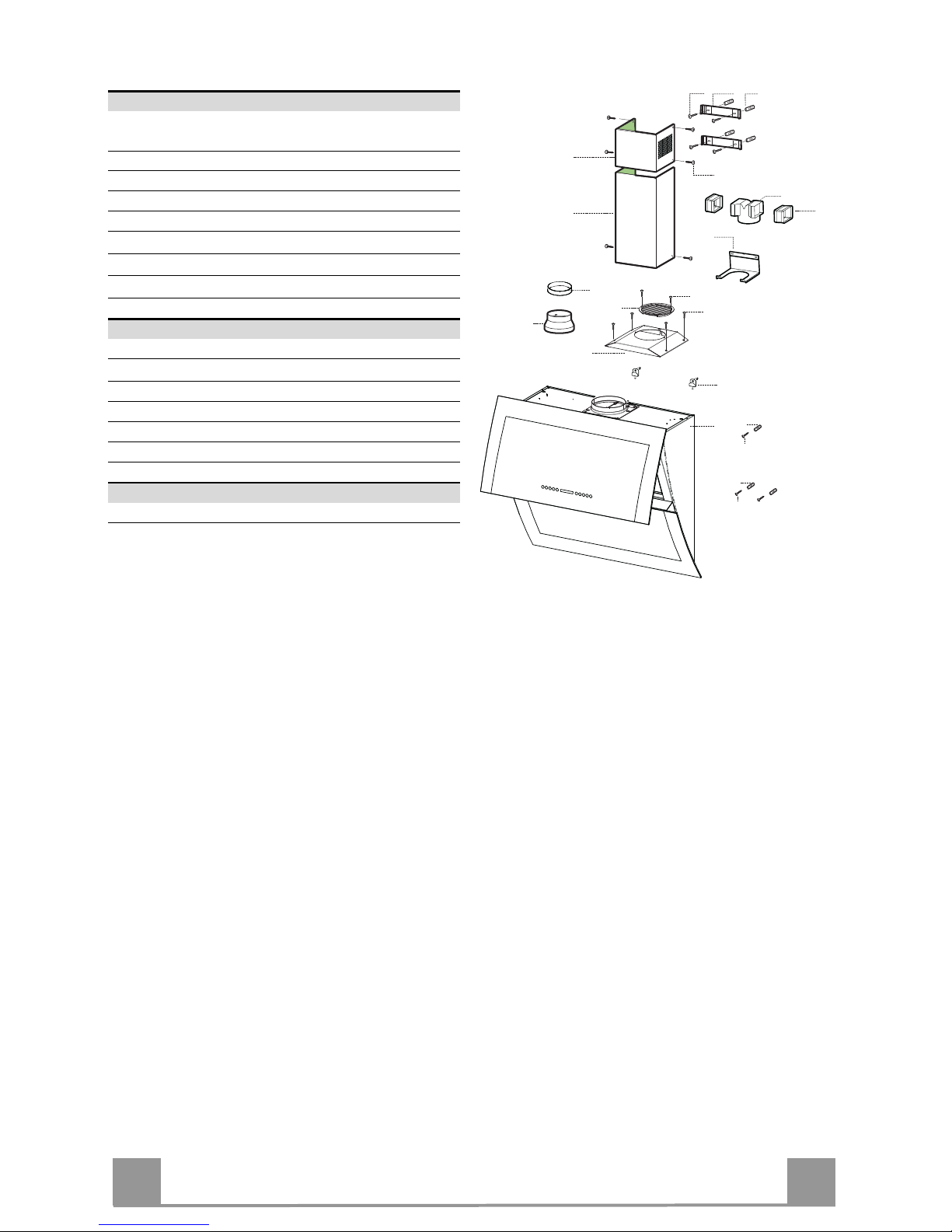

Components
Ref. Q.ty Product components
11 Cooker hood with control unit, lights,
blower unit, filters
2.1 1 Upper chimney
2.2 1 Lower chimney
81 Air outlet grid
91 Reducer flange Ø 150-120
10 1 Adapting ring ø 120-125 mm
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
16 1 Cover for recycling version
Ref. Q.ty Installation components
7.2.1 2 Fixing brackets for upper chimney
7.3 1 Air Outlet Connection Support
11 7 Plugs
11a 2 Plugs SB 12/10
12a 7 Screws 4,2 x 44,4
12c 10 Screws 2,9 x 6,5
12e 2 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction booklet
1
16
12c
12d
8
2.1
2.2
12c
12a 7.2.1 11
11
12a
11
12a
9
11a
7.3
14.1
15
10

EN 6
6
INSTALLATION

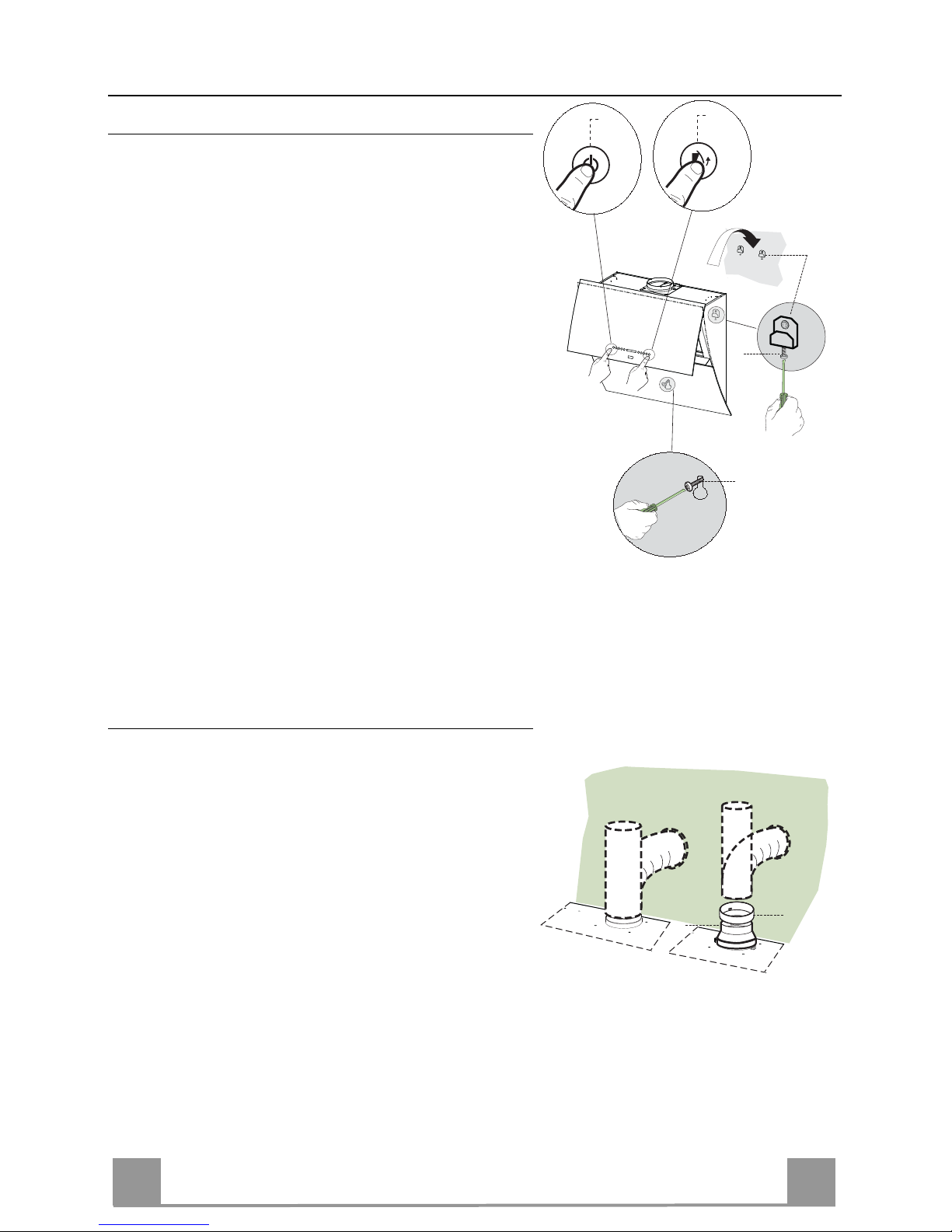

Hood body mounting
• Firstly, it is necessary to adjust the two Vr-screws of
the 11a-brackets, at minimun (B).
• Hang the hood body on the two brackets 11a.
• Connect the hood to the mains supply by means of a
bipolar switch with at least 3 mm contact gap.
• Press the “A”-key for one second (see Part USE) to
open the upper panel.
• Remove the metal filters.
• In order to align the hood it is necessary to adjust the
Vr-screws from inside the hood.
• Fasten the safety screw 11.
• Fit again the metal filters into their seats and close the
upper panel by pressing “L”-key for one second (see
Part USE).
• Disconnect the hood from the mains supply.
Attention: the upper panel stops if any barrier occurs in its
way during the panel opening or closing. To open the panel
it is enough to remove the barrier and press the key once
again.
(B)
L
A
11a
Vr
11
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid pipe ø 150
or 125 mm, the choice of which is left to the installer.
• To install a ø 125 mm air exhaust connection, insert
the reducer flange 9on the hood body air outlet and
the adapting ring ø120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove any activated charcoal filters.
9
ø 125
10
ø 150

EN 7
7

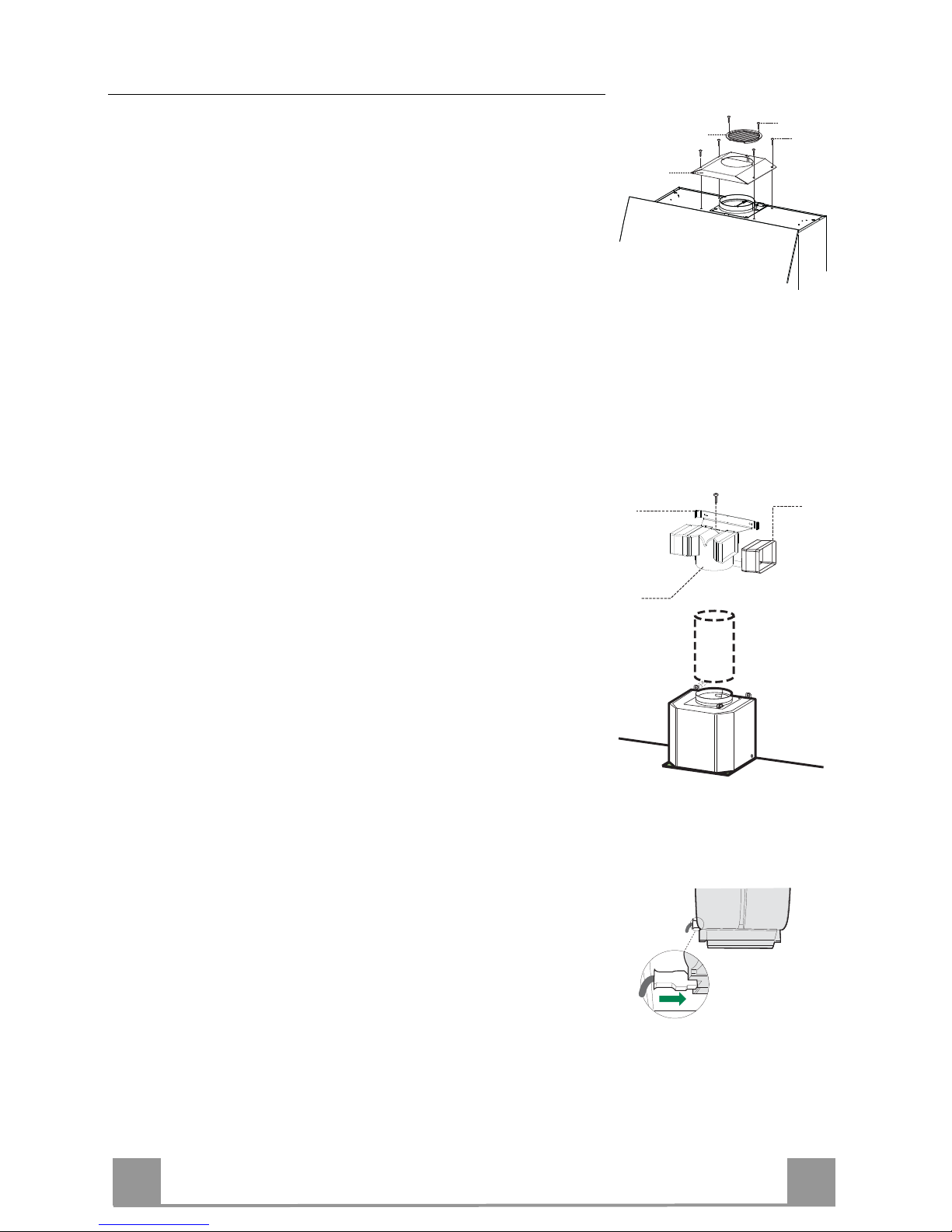

RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the optional charcoal
filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four screws 12c
(2.9 x 12.5).
• Fix the air outlet grid 8on the recirculation air outlet using the
2 screws 12d (2,9 x 9,5) provided.
16
12c
12d
8
RECIRCULATION VERSION AIR OUTLET
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it
with a screw.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet
using either a flexible or rigid pipe ø 150 mm, the choice of
which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.
ø 150
15
14.1
7.3

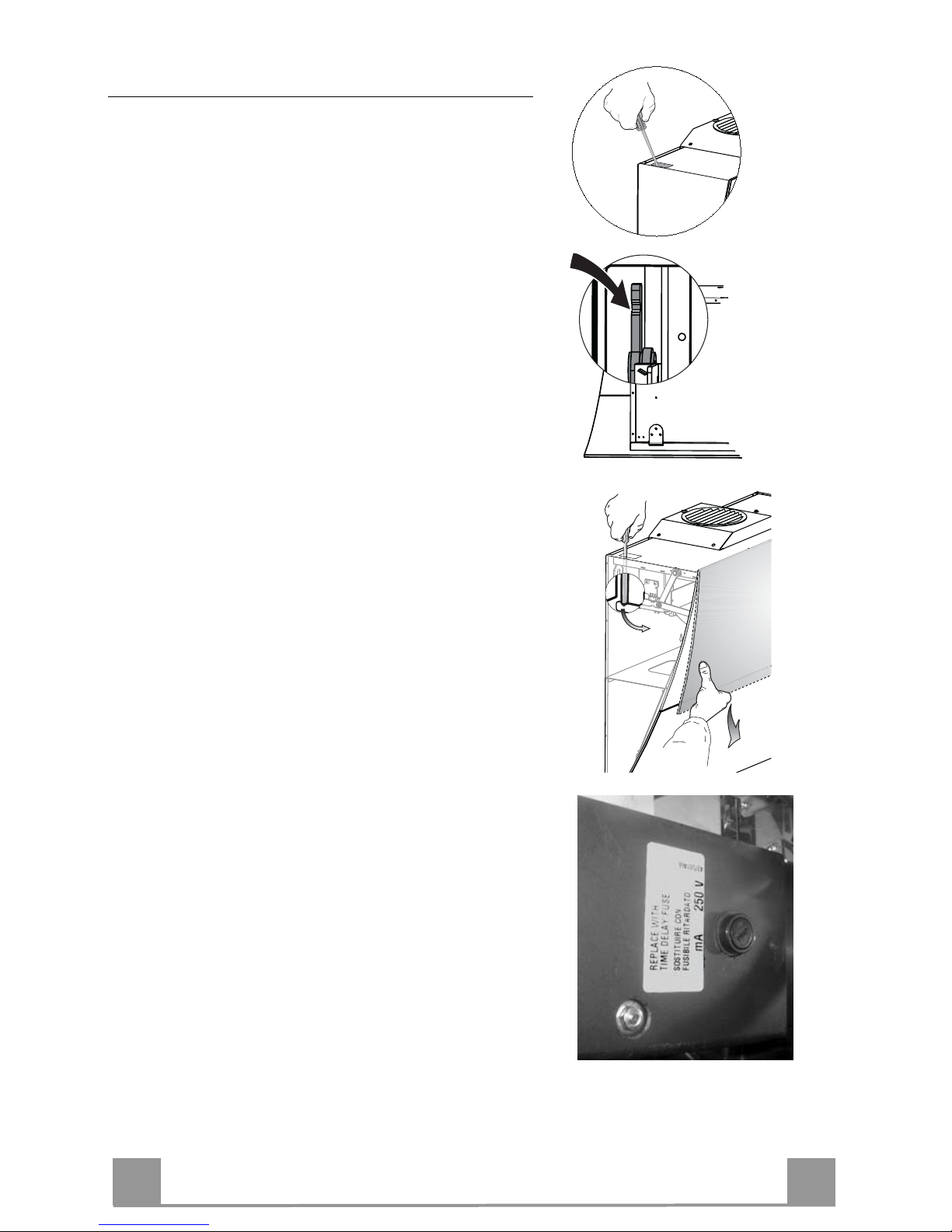

ELECTRICAL CONNECTION
• Connect the hood to the mains supply.
• Open the upper panel by pressing the A-key (See Part “USE” )
for at least 2 seconds.
• Remove the metal filters (See Part “MAINTENANCE”) and
make sure that the connector piece of the supply cable is cor-
rectly inside the hood socket.

EN 8
8

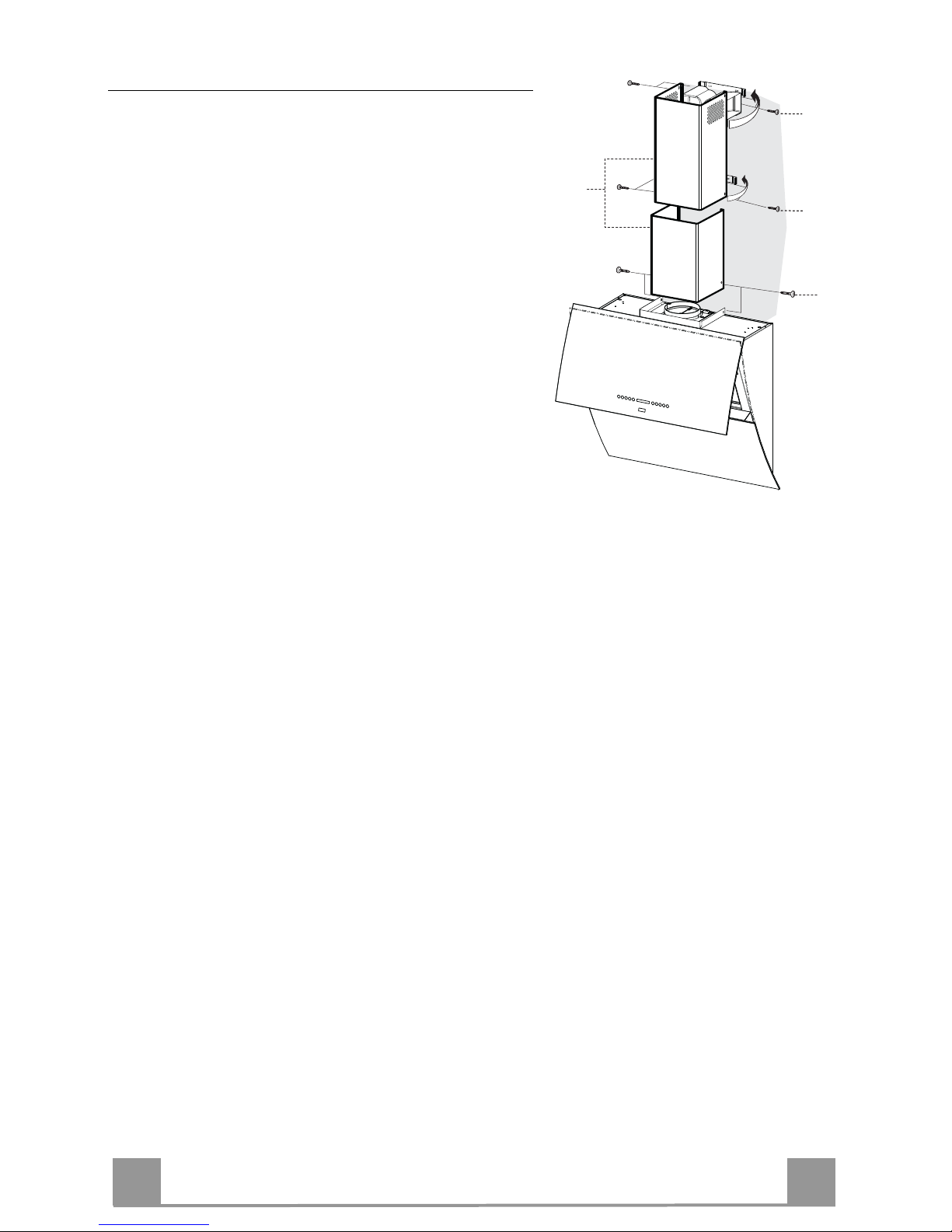

Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue and
hook them behind the brackets 7.2.1, making sure
that they are well seated.
• Secure the sides to the brackets using the 4 screws
12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is
aligned with the chimney outlets.
Lower exhaust flue
• Slightly widen the two sides of the flue and hook
them between the upper flue and the wall, mak-
ing sure that they are well seated.
• Fix the lower part laterally to the hood body using
the 2 screws 12c (2,9 x 9,5) supplied.
12c
12c
12c
2.1
2.2
2

EN 9
9

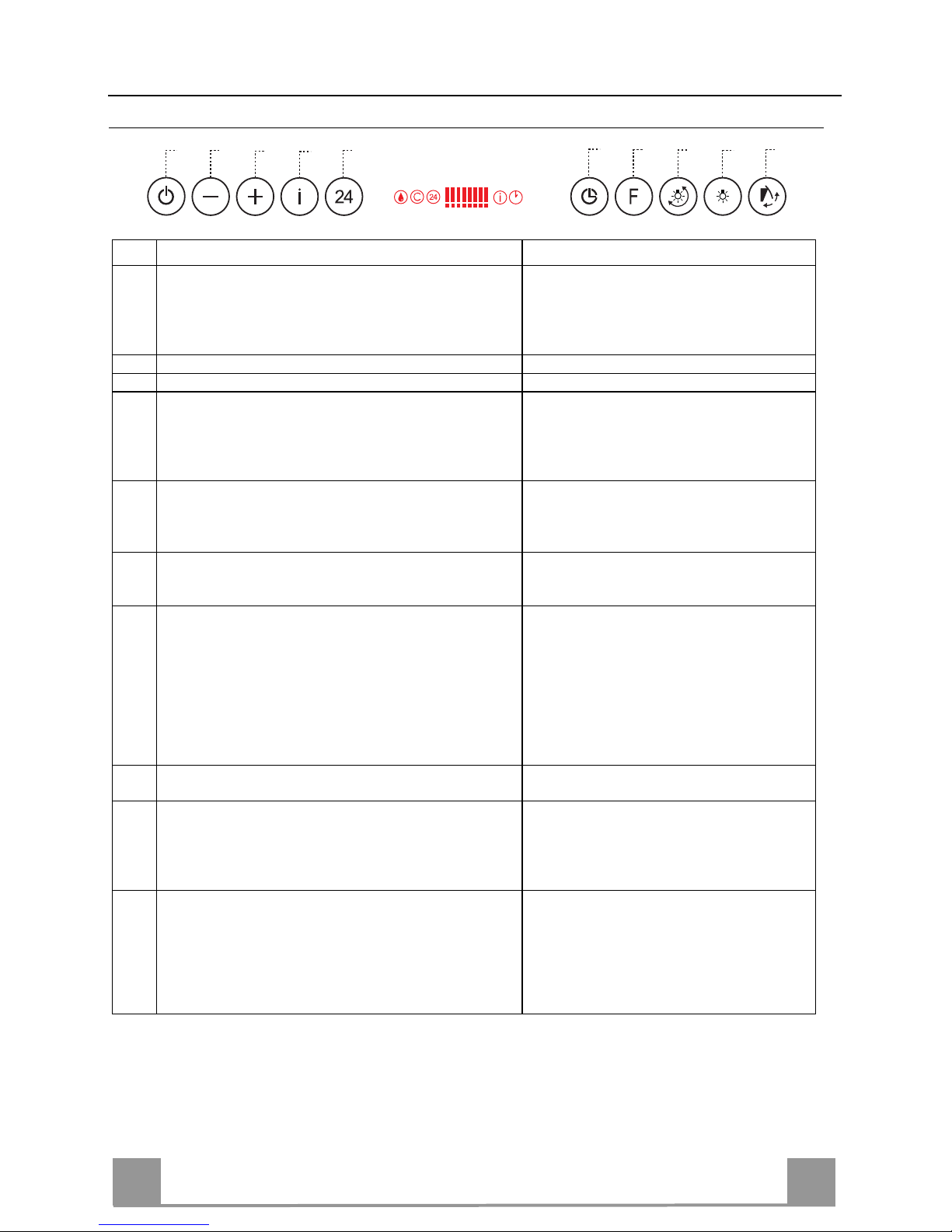

USE Control panel
Key Function Display
A Upper panel closed: when pressed for about one sec-
ond it opens the upper panel. It switches the motor on
at the latest selected speed.
Upper panel open: when shortly pressed it switches
the motor on/off.
Indicates the selected speed.
B Decreases the suction speed. Number of lit LEDS decreases.
C Increases the suction speed. Number of lit LEDS increases.
D Functioning only when the upper panel is open. This
speed has been timed at 10 minutes. After that time
the system activates automatically the latest selected
speed. The function is suitable for cooking conditions
when vapours and smells are of the utmost emission.
I flashes and all the LEDS on the display
are lit.
By pressing the key the function is deacti-
vated.
E Functioning only when the upper panel is open. By
pressing this key it is possible to set up the motor to a
suction speed at 100 m3/h .
24–symbol appears and the LEDS on the
display go off cyclically, one by one.
By pressing the key the function is deacti-
vated.
F Functioning only when the motor is on. By pressing
this key it is possible to set the delayed shutdown of
the motor and the lighting to 30 minutes.
A flashing clock symbol appears.
By pressing the key the function is deacti-
vated.
G By pressing this key for about 2 seconds it is possible
to reset the filter saturation alarm. A drop symbol indicates that the metal grease filters saturation alarm has been
activated, and the filters need to be
washed. The alarm is triggered after 100
working hours.
Cindicates that the charcoal filter satura-
tion alarm has been activated, and the filter
has to be replaced. The alarm s triggered
after 200 working hours.
H By pressing this key the intensity of the lighting sys-
tem can be modified up to five levels.
I Upper panel closed: when pressed for about 1 second
it opens the upper panel and sets the lights at the
maximum intensity.
Upper panel open: when shortly pressed it switches
the lights on/off.
L Upper panel closed: when pressed for about one sec-
ond it opens the upper panel and switches the motor
on at the third speed and the lights at the maximum
intensity.
Upper panel open: when pressed for about 1 second it
switches off motor and lights resetting every activated
function, and closes the upper panel.
Keyboard lock: it is possible to jam the keyboard when, for example, cleaning the glass. The
motor and lights are switched off, and upper panel can be open or closed.
By pressing the F-key (Delay) for about 5 seconds the keyboard block can be activated or de-
activated. This function is confirmed by a Beep and by moving motor LEDS on display.
B
AD
CEG
FI
HL

EN 1
10
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control
powered by a 1.5 V carbon-zinc alkaline batteries of the
standard LR03-AAA type.
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper
manner.
Remote control (control panel)
T1 Lighting Upper panel closed: opens the upper panel and sets the lights at the maximum inten-
sity.
Upper panel open: switches the lights on/off.
T2 Courtesy light Sets the lights at an intermediate intensity or switches the lights off (only when the
upper panel is open).
T3 Motor Upper panel closed: opens the upper panel, switches on the motor at the latest se-
lected speed.
Upper panel open: switches the motor on/off.
When pressed for about 2 Seconds:
upper panel closed: opens the upper panel and switches on the motor at the third
speed and the lights at the maximum intensity.
Upper panel open: switches off lights and motor and closes the upper panel.
T4 Decreases the speed at every short pressure.
When pressed for about 2 Seconds:
decreases the intensity of lights.
T5 Increases the speed at every short pressure.
When pressed for about 2 Seconds:
Increases the intensity of lights.
T6 Activates/deactivates the intensive speed.
T7 Delay / 24h Activates / deactivates the Delay-function.
When pressed for 2 seconds :
Activates/deactivates the 24H-function.
T1
T6
T2
T3
T4
T5
T7

EN 1
11
MAINTENANCE
Metal grease filters
Filters can be washed in the dish machine. They need to be
washed when Drop-sign appears on the display or in any case
every 2 months, or even more frequently in case of particularly
intensive use of the hood.
Alarm reset
• Press the G–key for at least 2 seconds.
Cleaning the filters
• Open the upper panel by pressing the A-key for 1 second (see
Part USE).
• Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The colour of the filter sur-
face may change throughout the time but this has no influence
to the filter efficiency).
• When fitting the filters into the hood pay attention that they are
mounted in correct position the handle facing outwards.

EN 1
12
Charcoal filter (recycling version)
This filter cannot be washed or regenerated. It must be replaced when the C appears on the
display or at least once every 4 months. The filter saturation alarm has to be activated already
before.
Activation of the alarm signal
• In the recycling version hoods the filter saturation alarm must be activated during the instal-
lation or later.
• Switch off the hood and the lights.
• Press the E-key for about 5 seconds until the last two segments of the motor LEDS are lit on
the display.
• By releasing the E-key the clock icon starts to flash.
• Within 3 seconds press the D-key to activate/deactivate charcoal filter saturation alarm.
• C-symbol lit - charcoal filter saturation alarm ACTIVATED.
• C-symbol unlit - charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER
Alarm reset
• Press the G-key for at least 2 seconds.
Replacing the filter
• Open the upper panel by pressing the A-key for about a second
(see Part USE).
• Remove the metal filters.
• Remove the saturated charcoal filter as indicated (A).
• Fit the new filters as indicated (B).
• Put the metal grease filters in their seats.
A
B
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Extract the lamp from the lamp holder by pulling gently.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.

EN 1
13

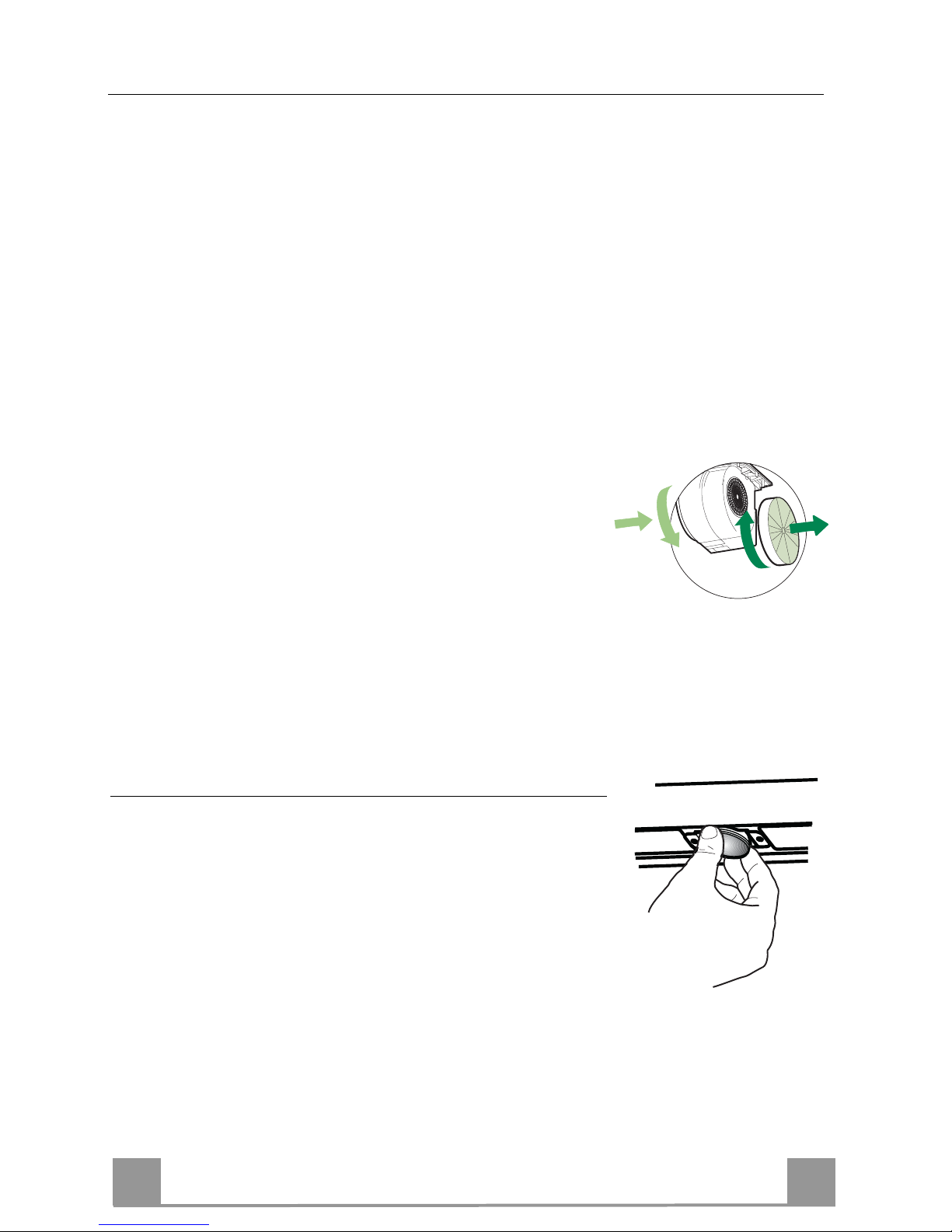

Replacing the fuser
The hood panel opening and closing mechanism is con-
trolled by a starter motor which is activated by a fuser.
This fuser works only on the starter motor. In case the
fuser gets damaged when the panel is closed it is be
necessary to manually unblock the panel. In this case
proceed as follows:
• Remove the cover placed up on the left side.
• Press the releasing lever with the screwdriver as
much as necessary to enable the manual opening of
the panel.
• After having completely opened the panel remove the
metal grease filters, as explained in the part concern-
ing the filter cleaning.
• The fuser is placed up on the right side. Turn the
fuser holder as indicated. Replace the fuser with one
having the same features.
• Put the fuser holder and grease filters into their place
again. Make sure that the hood functions correctly. In
case the panel doesn’t work correctly it is necessary
to contact an authorized technician.
If the fuser gets damaged being the panel open, it is suf-
ficient to simply remove the grease filters and replace
the fuser.

436004217_ver1
AGA RANGEMASTER LTD.
