R-31 Owner’s
Manual

TABLE OF CONTENTS
2
Table Of Contents ........................................................................................................ 2
Congratulations ........................................................................................................... 3
Safety .......................................................................................................................... 3
Symbol Glossary ........................................................................................................... 4
Specifications (Subject To Change Without Notice) ....................................................... 5
Equipment Location ..................................................................................................... 6
Starboard Fittings .................................................................................................. 6
Port Fittings ........................................................................................................... 7
Main Cabin Top Deck Components ....................................................................... 8
Stern Components ................................................................................................. 9
Fuse Location & Values .......................................................................................... 10
Main Cabin And Cockpit Lights ............................................................................. 11
Battery Compartment ............................................................................................ 12

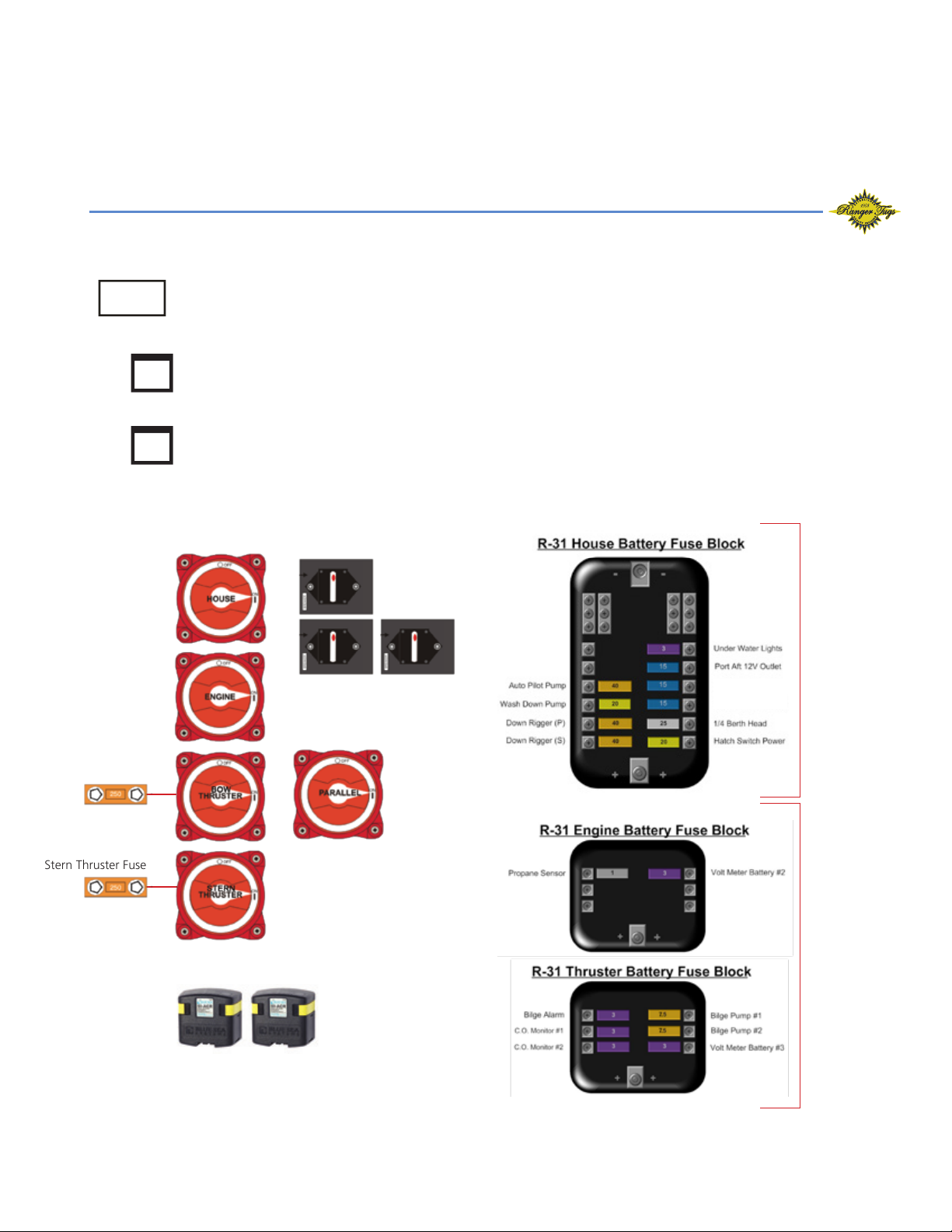

Power Distribution Panel (P.D.P) ............................................................................. 13

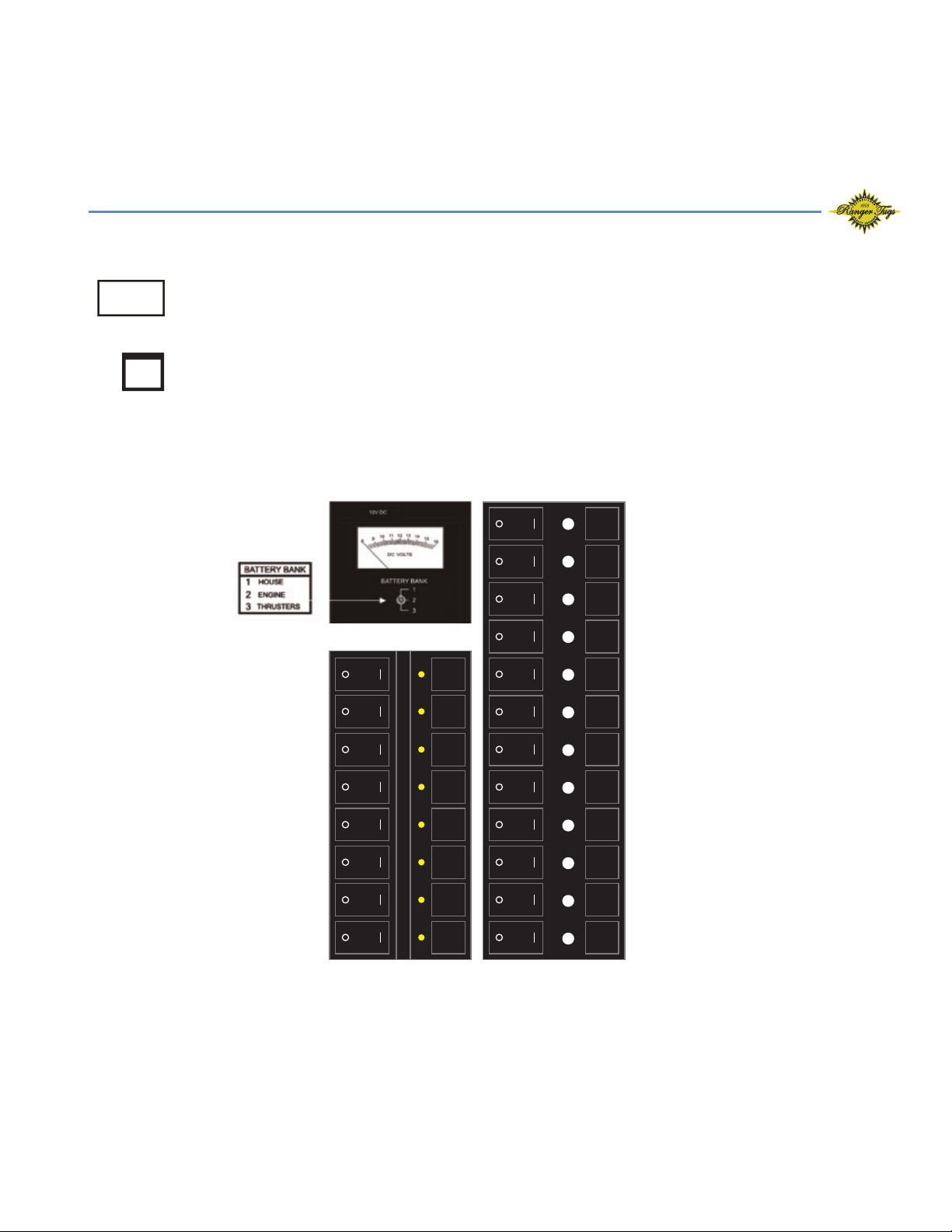

DC Distribution Panel, DC Bank Meter ................................................................... 14
AC Distribution Panel & Rotary Switch ................................................................... 15
12V Helm Control Operation ................................................................................ 16
Fuel System, Engine, Generator & Webasto Furnace .............................................. 17
Closed Engine Cooling System .............................................................................. 18
Sea Strainer System ............................................................................................... 19
Webasto Furnace .................................................................................................. 20
Solar Panel ............................................................................................................ 21
Power Panel and Solar Panel Controller Box ........................................................... 22
Air Conditioning .................................................................................................... 23
Raw Water Wash Down ......................................................................................... 24
Fresh Water Plumbing System ................................................................................ 25
Shower Sump ........................................................................................................ 26
Bilge Pump System ................................................................................................ 27
Waste System With Macerator Pump ..................................................................... 28
Mast Set Up And Takedown .................................................................................. 29
Ranger Tug R-31 Wiring Schematic (Acc. 1) ........................................................... 30
Ranger Tug R-31 Wiring Schematic (Acc. 2) ........................................................... 31
Ranger Tug R-31 Wiring Schematic (Acc. 3) ........................................................... 32
Ranger Tug R-31 Wiring Schematic (Lighting) ........................................................ 33
Ranger Tug R-31 Wiring Schematic (P.D.P.) ............................................................. 34
Ranger Tug R-31 Working Deck ................................................................................... 35
Care And Maintenance ................................................................................................ 36
Example Of A Preparation For The Road Checklist .................................................. 36
Example Of A Spring Pre-Launch Checklist ............................................................. 37
Example Of Winter Storage Checklist .................................................................... 38
Warning Label Locations .............................................................................................. 39
Contacts ...................................................................................................................... 40

3
CONGRATULATIONS
The Ranger Tug family has a passion for boating. We are committed to continuous
process improvement in all areas that affect our customer’s satisfaction with our
products and providing great customer service.
SAFETY
Safety is always a concern at Ranger Tugs. Please read all manuals to ensure that
equipment is used in a safe manner. We highly recommend attendance in a Coast
Guard approved boating safety course. Such courses are available from the Coast
Guard directly or from boating organizations. Owners should have annual inspec-
tions to ensure that all safety equipment is current.
Operating, servicing and maintaining
a recreational marine vessel can expose
you to chemicals including engine exhaust,
carbon monoxide, phthalates, and lead,
which are known to the State of California
to cause cancer and birth defects or other
reproductive harm. To minimize exposure,
avoid breathing exhaust, service your vessel
in a well-ventilated area and wear gloves or
wash your hands frequently when servicing
this vessel. For more information go to
www.P65warnings.ca.gov/marine.
Prop 65 Boat Owner’s
Manual Image
Notes on use of the above:
27 CCR § 25607.18
§ 25607.18. Recreational Vessel Exposure Warnings -
Method of Transmission. [Operative August 30, 2018]
(a) A warning for exposures that occur during the operation
or maintenance of a recreational vessel as defined in California
Harbor and Navigation Code Section 651(t) meets the
requirements of this subarticle if it complies with the content
requirements in Section 25607.19 and is provided as follows:
(1) The warning is printed in the owner's manual for the
specific recreational vessel, in no smaller than 12-point type
enclosed in a box printed or affixed to the inside or outside
of the front or back cover of the manual or on the first page
of the text, and;
(2) The warning is provided on a hang tag readily visible from
the helm of the vessel printed in no smaller than 12-point type.



STE
OPT

SYMBOL GLOSSARY
4
Attention! – Important Operating or Maintenance Instructions
Attention! – Electrical Shock Hazard
Fresh Water
Black Water
Fuel
Standard Equipment
Optional Equipment
Hints

SPECIFICATIONS
5
(Subject to Change Without Notice)
R-31 S
Length .......................................................................................... 31’ 2” 9.5 m
Length Overall (w/swim step) ........................................................ 35’ 2’’ 10.72 m
Beam ............................................................................................ 10’ 0” 3.05 m
Draft ............................................................................................. 28” .71 m
Weight, Dry .................................................................................. 11,000 lbs 4,989.52 kg
Water Bridge Clearance (mast up) ................................................. 14’ 0” 4.27 m
Water Bridge Clearance (mast down) ............................................ 9’ 8” 2.95 m
Height on Trailer (mast down) ....................................................... 13’ 1” 3.99 m
Fuel Capacity ................................................................................ 180 gal 681.37 L
Water Capacity (fresh) ................................................................... 60 gal 227.12 L
Holding Tank Capacity .................................................................. 40 gal 151.42 L
Hot Water Tank Capacity .............................................................. 11 gal 41.64 L
Length of boat on trailer (Standard factory trailer) ......................... 41’ 8” 12.7 m
R-31 CB
Length .......................................................................................... 31’ 2” 9.5 m
Length Overall (w/swim step) ........................................................ 35’ 2’’ 10.72 m
Beam ............................................................................................ 10’ 0” 3.05 m
Draft ............................................................................................. 28” .71 m
Weight, Dry .................................................................................. 11,500 lbs 5,216.31 kg
Water Bridge Clearance (bridge/mast up) ...................................... 17’ 9” 5.41 m
Water Bridge Clearance (bridge/mast down) ................................. 10’ 3” 3.12 m
Height on Trailer ........................................................................... 13’ 4” 4.06 m
Fuel Capacity ................................................................................ 180 gal 681.37 L
Water Capacity (fresh) ................................................................... 60 gal 227.12 L
Holding Tank Capacity .................................................................. 40 gal 151.42 L
Hot Water Tank Capacity .............................................................. 11 gal 41.64 L
Length of boat on trailer (Standard factory trailer) ......................... 41’ 8” 12.7 m

EQUIPMENT LOCATION
6
STARBOARD FITTINGS
1 2 3 4 5 6 7 8 9 10 11 12 14
13
Keep all vents, drains and exhausts clear of any obstructions
to ensure proper performance of each system.
STE
➊ Stern thruster
➋ Diesel Fill On Deck
➌ Fuel Tank Vent
➍ Water Fill
➎ Cockpit Sink Drain
➏ Aft Bilge Drain
➐ Forward Bilge Drain
➑ Galley Sink Drain
➒ Water Tank Vent
➓ Waste Tank Vent
Waste Pumpout
Door Well Drain
Webasto Exhaust
Bow Thruster
Drain Plug
11
13
12
14
15
15
➊
➍
➋
➏ ➑➒
11
13
12
14
➐➓
➌
➎

7
STE
PORT FITTINGS
1 2 5 6 7 8 10 11 12
3 4 9
Keep all vents, drains and exhausts clear of any obstructions
to ensure proper performance of each system.
➊ Anchor Locker Drain
➋ Bow Thruster
➌ Forward AC
➍ Aft AC
➎ Head Sink Drain
➏ Shower Sump Drain
➐ Macerator
➑Engine Exhaust
➒Generator Exhaust
➓ Stern Thruster
➓ Bow Thruster Zinc
➓ Stern Thruster Zinc
➑
➊
➒
➋
➌➍➎
➓
➏➐
11
11
12
12

MAIN CABIN TOP DECK COMPONENTS
8
STE
1 2 3 4 5 6 7
8
➊ Anchor Light
➋ Spreader Lights
➌ TV Antenna
➍ Radar
➎ Searchlight
➏ Horn
➐ Navigation Light
(RED Port, GREEN Starboard)
➑ GSM 53 XM/Weather Antenna
➊
➊
➋
➌
➌
➍
➍
➎
➎
➏
➏
➐
R-31 S R-31 CB
➑
➑

STERN COMPONENTS
9
STE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23
18 23 24
➊ Swim Platform Support Rails
➋ Cockpit Scupper with Flap
➌ Towing Strapdown Eye
➍ Trim Tab Ram
➎ Trim Tab
➏ Stern Thruster
➐ Prop
➑ Rudder
➒ Stern Plate
➓ Prop Zinc
Transom Zinc
Swim Platform
Swim Platform Fenders
Rail with Chain Gate
Propane Locker
Dinghy Cleats
Underwater Lights
Trim Tab Zincs
Thruster Zinc (inside tube)
Swim Ladder
Amber Courtesy LIghts
Flagstaff Mount
Dinghy Davit
Dinghy Standoff Mounts
11
12
13
14
15
16
➊ ➊ ➊ ➊
➋ ➋➌➌ ➍➍➍➍
➎➎
➏
➐
➒
➓
11
13 13 13 13
14
16 16
17
17 17
18
18 18
20
20
21
21 21
22
22
23
23 23
24
24 24
19
19
15
12
➑

FUSE LOCATION & VALUES
10
STE
The DC fuse blocks, windlass breaker and head breaker are located behind the helm, accessed
through the top teak cabinet in the v-berth. Fuses are automotive blade type and all values
shown below are in Amps.
3/27/14
* To reset, reinsert yellow arm
“up” into the breaker.
To test, press red button and the
yellow arm should flip down.
Optional fuse block located below
the bridge on CB models.
Navigation
Dash 1
Dash 2
Radar
Radar
NetworkTransducer
Switch Panel (4 switch)
Switch Panel (8 switch)
Switch Panel (8 switch)
Head
Webasto Remote
Tv #1
Tv #2
Antenna
Light Switch (Vberth)
12V Outlet (dinette)
Webasto Heater
Head Lights
12V Outlet (Vberth)
Wine Cooler
Shower Pump
VHF
12V Outlet (dash)
Heater
Stereo
Stereo Amp
Trim Tabs
Spotlight Remote
HEAD
NMEA 2000 Power
Cockpit Seat Light Fuse
Flybridge Switch Panel

MAIN CABIN AND COCKPIT LIGHTS
11
STE
Main Cabin
Switch
DC Breaker
Panel (On First)
Fixture
Switch
Forward
Cabin Switch
Head
Switch
Under-
water
Switch
Cockpit/
Transom
Switch
➊ V-Berth Cabin Lights ✓ ✓ ✓
➋ Head Lights ✓ ✓
➌ Under Bed Lighting ✓ ✓
➍ Indirect Cabin Lights ✓ ✓
➎ Cockpit & Transom Lights/
Indirect Exterior Lights
✓ ✓
➏ Hard Top Red/White Combo ✓
➐ Overhead Red/White Cabin Lights ✓ ✓
➑ Midberth Cabin Lights ✓ ✓
➒ Dinette Lights ✓ ✓
➓ Underwater Lights ✓ ✓
➊
➊
➊
➋
➌
➍
➍
➏
➐
➐
➐
➏
➏
➐
➐
➐
➏
➏
➐
➐
➐
➐
➏
➎
➎
➎
➎
➎➎
➎
➋
➋➋
➑
➑➊➌
➎
➎
➒
➒
➓
➓
➓

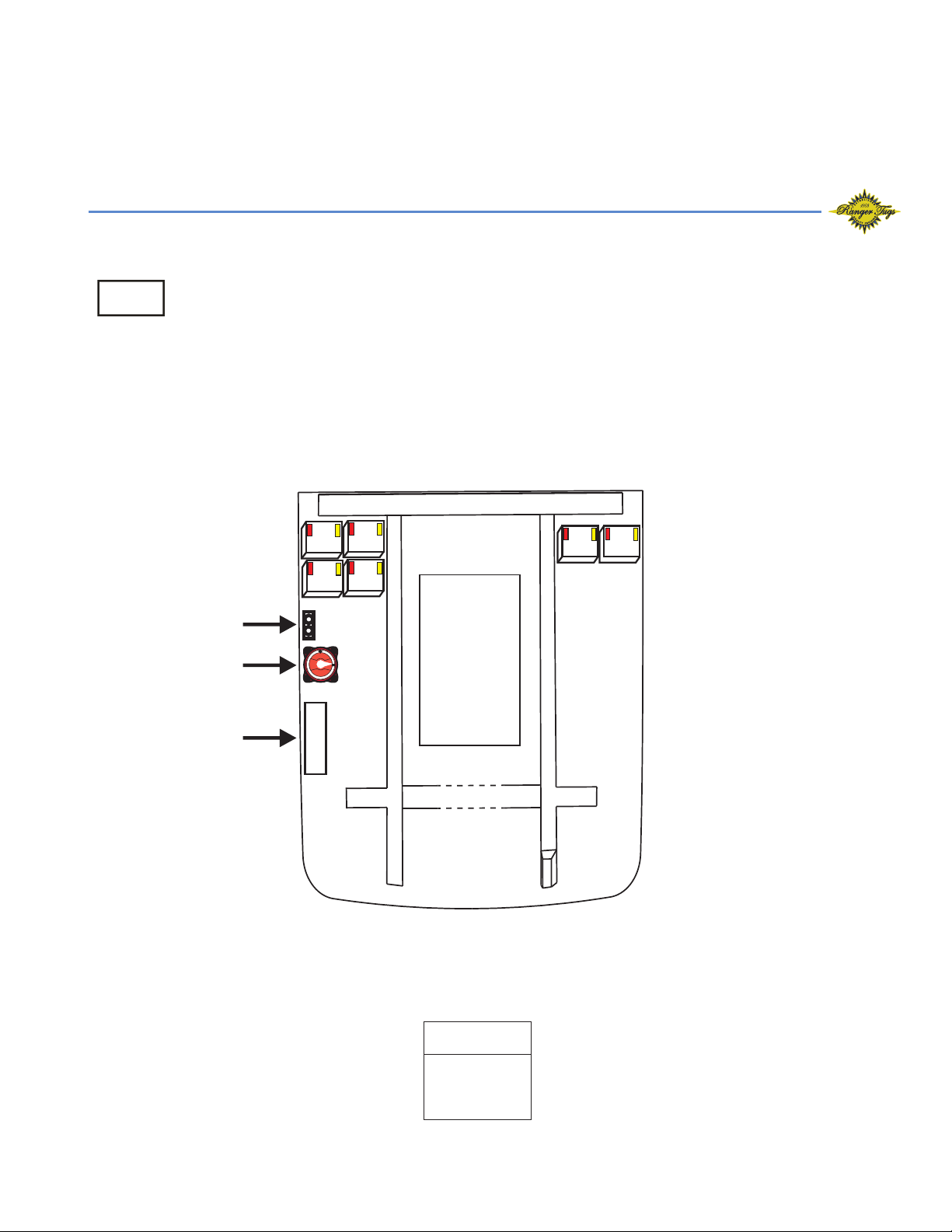

BATTERY CONFIGURATION
12
STE
House Batteries, Engine Battery, Thruster Battery, Inverter Fuse (300 AMP),
STERN
Inverter/Charger Power Switch
Inverter/Charger Combo Unit
Inverter Fuse (300 amp)
Engine
1
1
11
23
OFF
ON
ENG INE
Batteries
1= House
2= Engine
3= Thruster

POWER DISTRIBUTION PANEL (P.D.P)
13
STE
This Power Distribution Panel is located underneath the cockpit sink.
Once the EMERGENCY PARALLEL switch is placed in the on position the power from the
HOUSE batteries will be transferred to the ENGINE battery. Use only for EMERGENCY
starting. Turn the parallel switch off after engine is started.
All fuses hooked directly to the battery switches are labeled and powered all the
time whether the switch is set to the on or off position.
Stern Thruster Fuse
3/27/14
Bow Thruster Fuse
Dash Breaker
D.C. Panel
Breaker
Fly Bridge
Breaker
Automatic Charging
Relay (ACR)
Automatic Charging
Relay (ACR)
Wired directly
to batteries -
ALWAYS HOT
Switched on/
off with house
battery switch
Cockpit Hatch
12V Outlets

DC DISTRIBUTION PANEL, DC BANK METER
14
STE
The bilge pumps operate automatically with electronic float switches even when all switches
and breakers are in the OFF position.
However, the BILGE PUMP and BILGE PUMP2 will run continuously once their switches are placed
in the on position. Monitor the outflow accordingly. Do not run when dry.
CABIN
LIGHTS
COURTESY
LIGHTS
DECK AFT
LIGHTS
RUNNING
LIGHTS
DINETTE
LIGHTS
MID
CABIN
LIGHTS
V-BERTH
LIGHTS
HEAD
LIGHTS
ACCESSORY
ACCESSORY
ACCESSORY
10
10
10
10
10
10
10
10
10
10
10
10
20A
20A
10A WATER
PRESSURE
TRIM TABS
REFRIG /
WINE
COOLER
15A
5A BILGE
PUMP
5A BILGE
PUMP 2
20A HOLDING
TANK
20A SEARCH
LIGHT
HEATER
AFT
REFER

AC DISTRIBUTION PANEL & ROTARY SWITCH
15
STE
AC Rotary Selector Switch (Available with
Generator) AC Main Line 2 (with AC)
The AC Rotary Switch Selector Switch
will determine which source of incoming
120 Volt power to use for your AC
Distribution Panel.
*ELCI breaker is located below
aft cockpit seat.
Inverter only powers these breakers.
Inverter only
powers these
breakers.
AC Main 1 when “on” will automatically
turn on the charger/inverter combo unit
to “charge mode”. When turned “off”
the combo unit automatically goes into
“inverter” mode.
AC Distribution Panel
50A AC MAIN
LINE 1
REVERSE
POLARITY
15A
15A
15A ICE
MAKER
20A WATER
HEATER
25A COOK
TOP
OVEN
15A ACCESSORY
ACCESSORY
ACCESSORY
15A MICROWAVE
15A GALLEY
OUTLETS
15A FWD
OUTLETS
15A SALON
OUTLETS
30A AC MAIN
LINE 1
REVERSE
POLARITY
30A AC MAIN
LINE 2
(OPTION)
REVERSE
POLARITY
15A ICE
MAKER
20A WATER
HEATER
25A COOK
TOP
OVEN
15A ACCESSORY
20A FWD
AIR
25A AFT
AIR
15A AIR
RELAY
15A ACCESSORY
15A MICROWAVE
15A GALLEY
OUTLETS
15A FWD
OUTLETS
15A SALON
OUTLETS
Abso Inverter Charger
KISAE
SELECT POWER
Status
Charger
Inverter
Fault
DV Volts
KiloWatts
Display

12V HELM CONTROL OPERATION
STE
The high bilge alarm should be set to the “armed” position for it to automatically operate. This is
wired directly to battery power at the house cutoff switch. The high bilge alarm will still be active
when the main battery cutoff switches are set to the off position.
The Heater Control will operate the fan speed of the Heater Craft Heater. The Heater
Craft Cabin Heater will only warm as the engine reaches normal operating temperature.
Must turn on DC
breaker before
heater switch
will operate
TEST is up
OFF is in the middle
ARMED is down
Push
button
breakers
“Up” all Navigational lights on.
“Center” is all off.
“Down” is anchor light only.
WIPERS WIPERS WIPERS WIPERS FANS THRUSTER
REMOTE
NAV
LIGHTS
NAV
LIGHTS
HORN
BILGE ALERT
HIGH WATER ALARM
TEST
OFF
ARMED
WINDLASS
16

Main fuel fill
Main fuel vent
Webasto fuel
pump & filter
inside black box
(optional)
Engine fuel return
Webasto fuel pickup
(optional)
Engine fuel pickup
& shutoff valve
Generator pickup
& shutoff valve
Generator return
Engine fuel filter/separator
Generator fuel filter/separator Engine
Generator
FUEL SYSTEM, ENGINE, GENERATOR & WEBASTO FURNACE
STE
Volvo D4-300
180 gallon fuel tank
There is a secondary on engine fuel filter that is not shown on this drawing. You will be able to
find information about this filter in the diesel engine manual supplied with your boat. The water
fuel sensor is located on the engine mounted filter.
Main engine fuel shutoff is located underneath the hatch as you enter the main cabin.
STERN
17

18
CLOSED ENGINE COOLING SYSTEM
STE
Provides alternate heating system for the Fresh Water Heater and provides primary heating
source for the Forced Air Cabin Heater. This system is also designed to provide cooling to
the internal components of your engine. Please refer to your engine operations manual for
more information.
*Use only Volvo VCS (yellow) Coolant, do not mix coolants.
Engine
Cabin Heater
Hot
Water
Heater
There are 2 black handled
ball valves on the front of
the engine. In the event of
a leak on either the HO
heater, or the forced air
cabin heater, close both
valves to keep coolant in
the engine.

19
Engine sea strainer
Engine intake shutoff
Generator sea strainer
Generator intake shutoff
Washdown sea strainer
Washdown intake shutoff
AC intake shutoff
AC sea strainer
AC pump
Engine
Generator
STE
STE
STE
STE
SEA STRAINER SYSTEM
STE
Multi Port Sea Strainer for engine and raw water wash down.
NW Editions have individual strainers & valves.

20
WEBASTO FURNACE
Webasto furnace is located under access panel below refrigerator.
The control panel is located at the mid cabin power management center.
The fuel pump is in the salon floor hatch compartment inside of the black box.
Forward Air Intake Grill
(keep uncovered)
Vent
Vent
Control Panel
Webasto Unit
(Under
Helm Seat) Main Cabin
Air Intake Grill
(keep uncovered)
Vent
Exhaust
(keep unblocked/
gets very warm)
Fuel Pump / Filter
(inside black box)
