Rangertugs R-29 Sedan User manual

Quality Craftsmanship Since 1958
R-29 Sedan &
Command Bridge Owner’s Manual

TABLE OF CONTENTS
2
Table Of Contents ........................................................................................................ 2
Congratulations ........................................................................................................... 3
Safety .......................................................................................................................... 3
Symbol Glossary ........................................................................................................... 4
Specifications (Subject To Change Without Notice) ....................................................... 5
Equipment Location ..................................................................................................... 6
Starboard Fittings .................................................................................................. 6
Port Fittings ........................................................................................................... 7
Main Cabin Top Deck Components ....................................................................... 8
Stern Components ................................................................................................. 9
Main Cabin And Cockpit Lights ............................................................................. 10
Fuel System, Engine, Generator & Webasto Furnace .............................................. 11

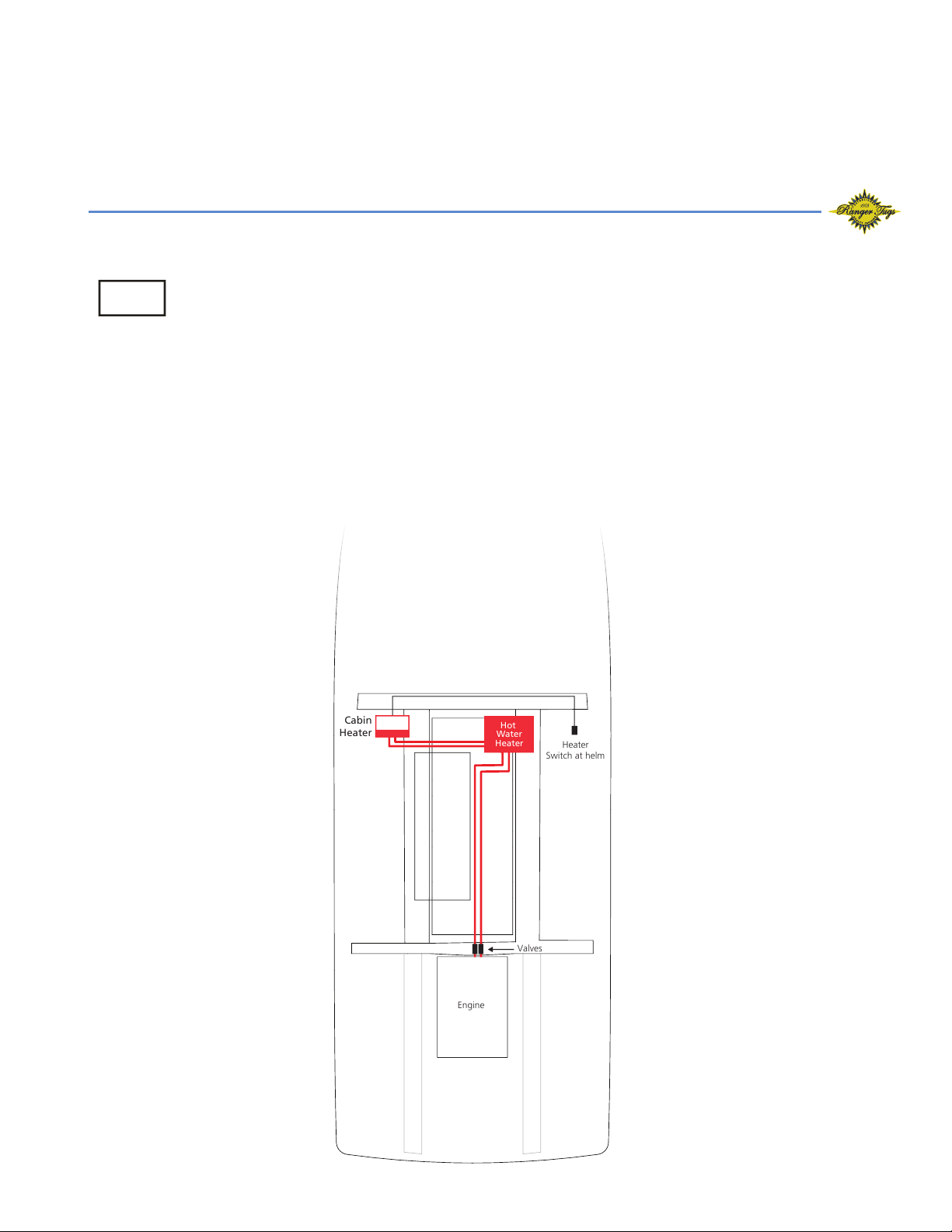

Closed Engine Cooling System .............................................................................. 12

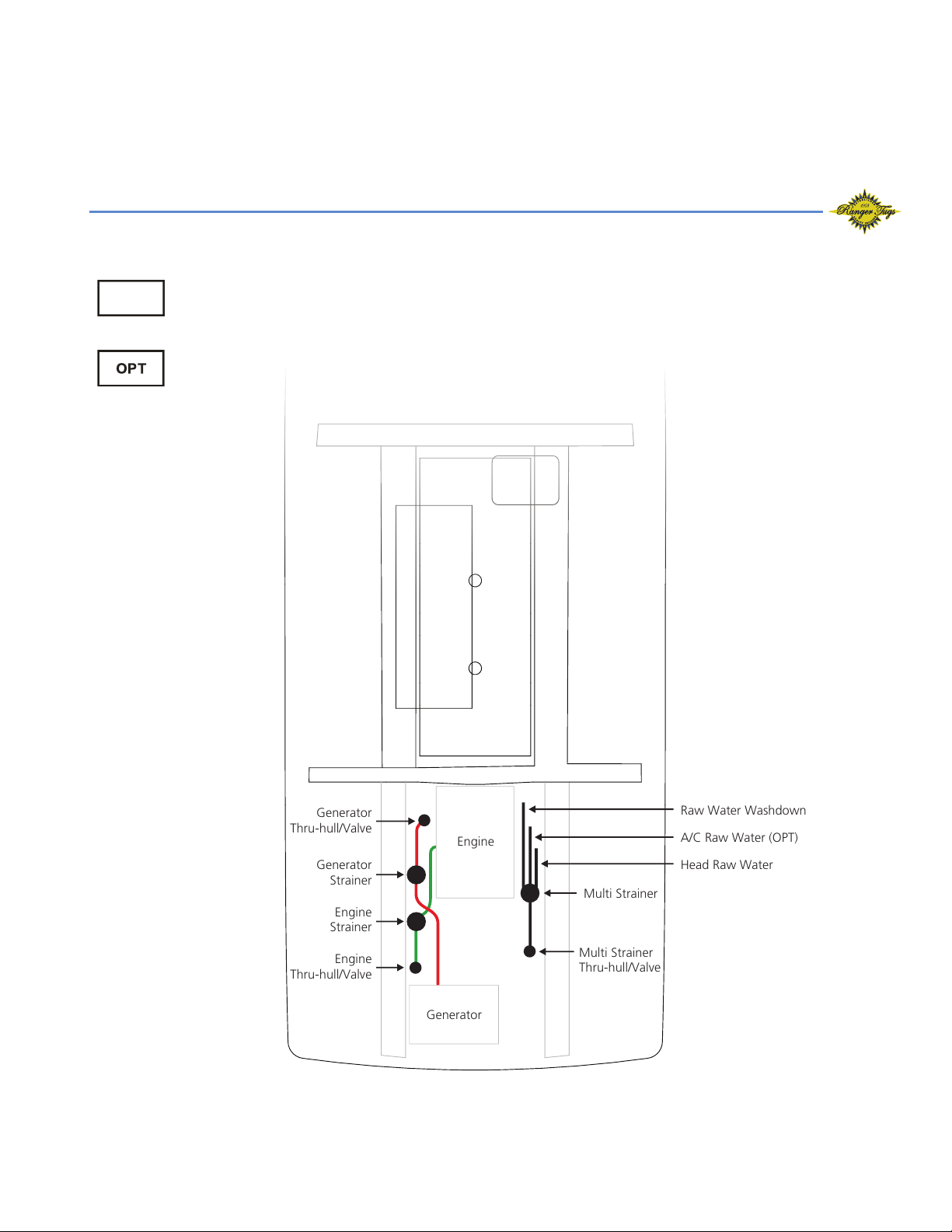

Raw Water / Sea Strainer System ........................................................................... 13

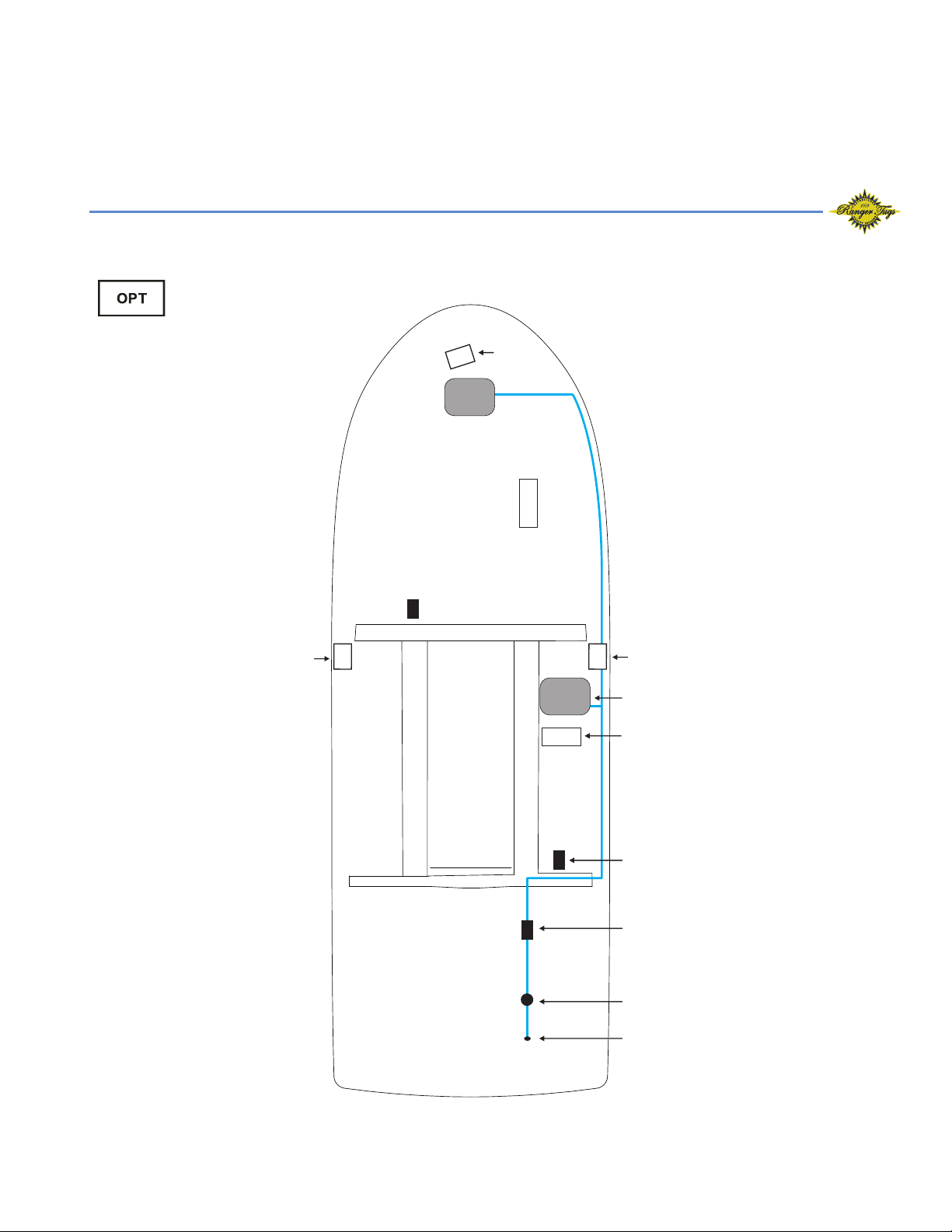

Fresh Water Plumbing System ................................................................................ 14

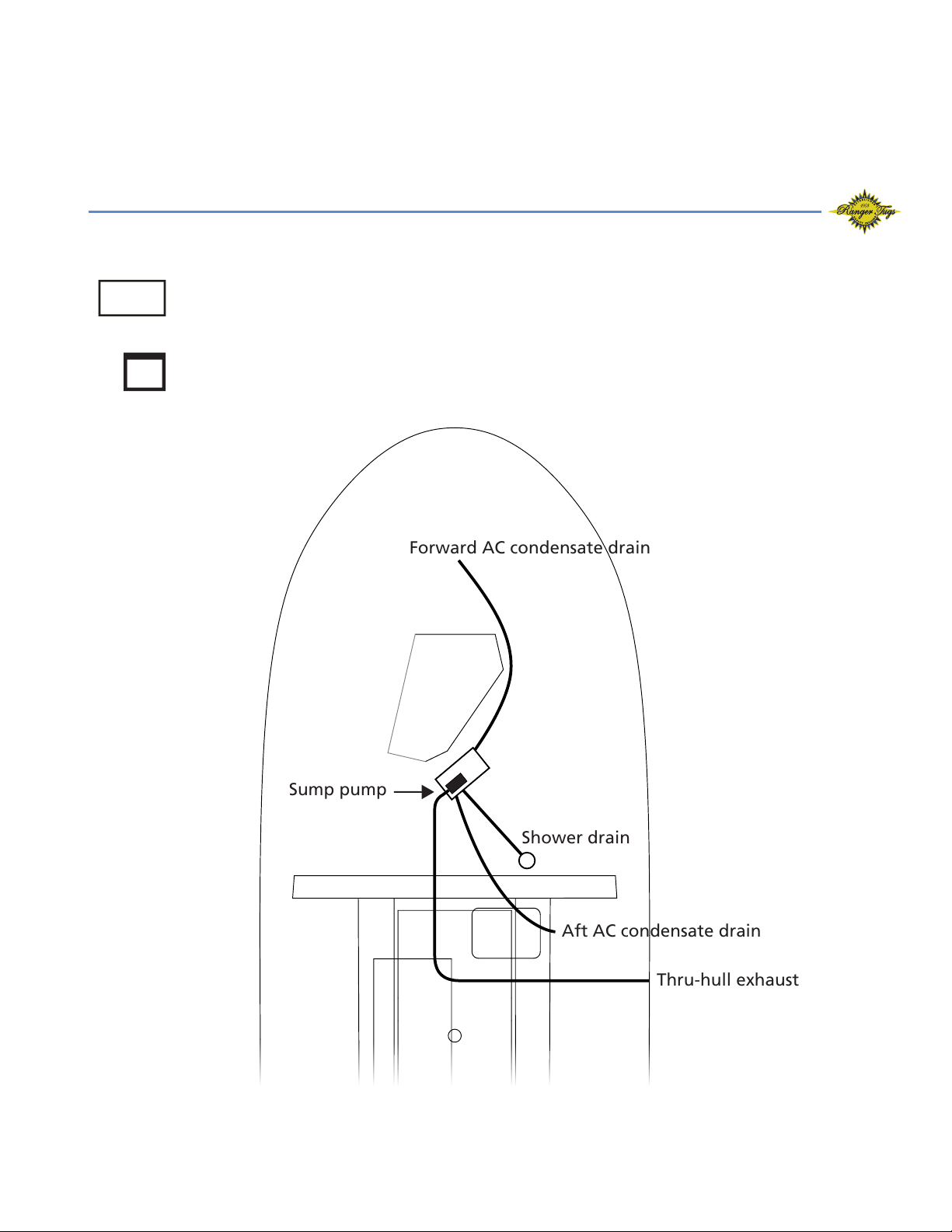

Shower Sump ........................................................................................................ 15

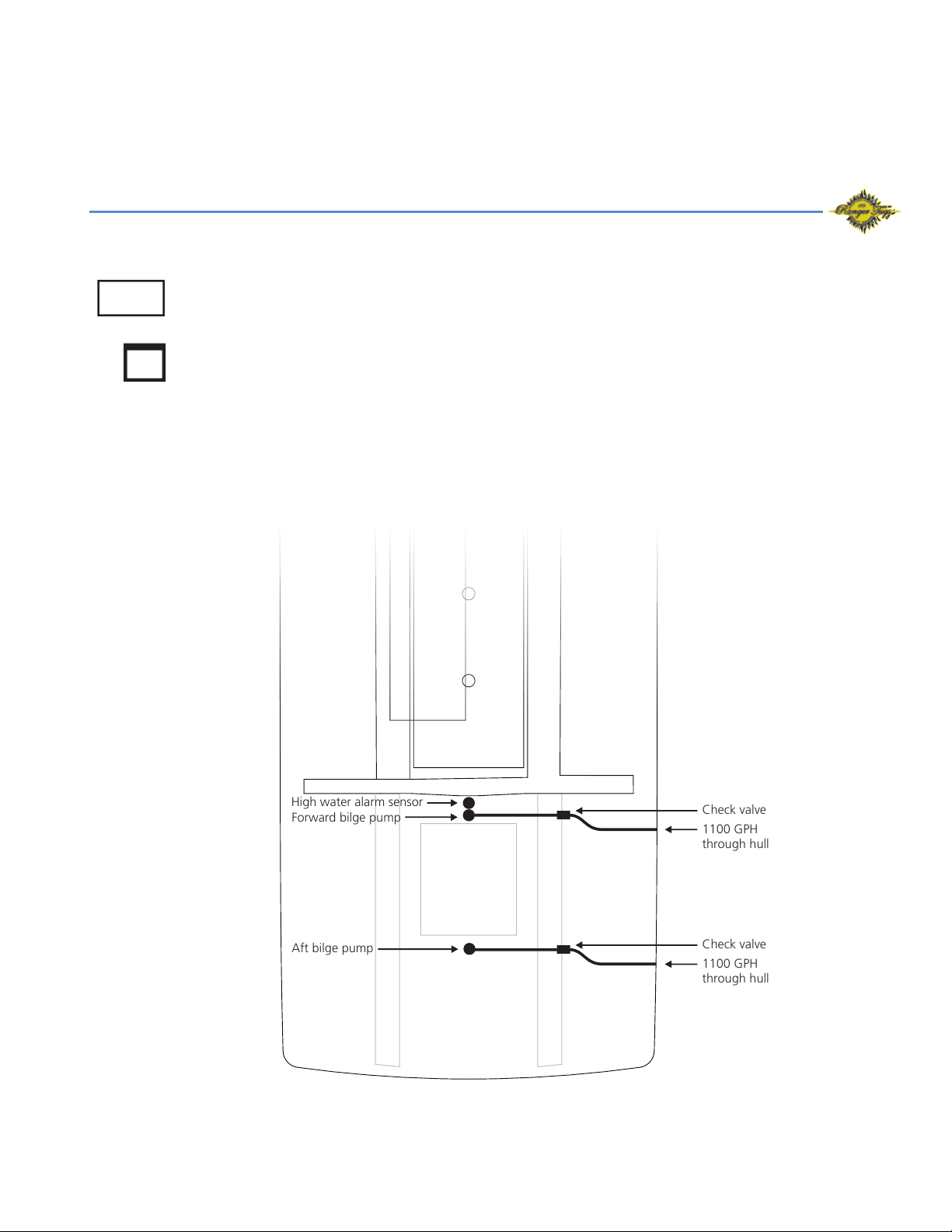

Bilge Pump System ............................................................................................... 16
Waste System With Macerator Pump ..................................................................... 17
Electric Pumps Onboard ......................................................................................... 18
Air Conditioning .................................................................................................... 19
Webasto Furnace .................................................................................................. 20
Solar Panel ............................................................................................................ 21
Battery Configuration ............................................................................................ 22
Fuse Location & Values .......................................................................................... 23
Fuse Location & Values .......................................................................................... 24
Power Panel And Solar Panel Control Box .............................................................. 25
Ac Distribution Panel & Rotary Switch .................................................................... 26
12V Helm Control Operation ................................................................................. 27
Ranger Tug R-29 Wiring Schematic (Acc. 1) ........................................................... 28
Ranger Tug R-29 Wiring Schematic (Acc. 2) ........................................................... 29
Ranger Tug R-29 Wiring Schematic (Acc. 3) ........................................................... 30
Ranger Tug R-29 Wiring Schematic (Lighting) ......................................................... 31
Ranger Tug R-29 Wiring Schematic (P.D.P.).............................................................. 32
Ranger Tug R-29 Working Deck ................................................................................... 33
Mast Set Up And Takedown ......................................................................................... 34
Care And Maintenance ................................................................................................ 35
Example Of A Preparation For The Road Checklist .................................................. 35
Example Of A Spring Pre-Launch Checklist ............................................................. 36
Example Of Winter Storage Checklist .................................................................... 37
Warning Label Locations .............................................................................................. 38
Notes ........................................................................................................................... 39
Table Of Contents ........................................................................................................ 2
Congratulations ........................................................................................................... 3
Safety .......................................................................................................................... 3
Symbol Glossary ........................................................................................................... 4
Specifications (Subject To Change Without Notice) ....................................................... 5
Equipment Location ..................................................................................................... 6
Starboard Fittings .................................................................................................. 6
Port Fittings ........................................................................................................... 7
Main Cabin Top Deck Components ....................................................................... 8
Stern Components ................................................................................................. 9
Fuse Location & Values .......................................................................................... 10
Main Cabin And Cockpit Lights ............................................................................. 11
Battery Compartment ............................................................................................ 12
Power Distribution Panel (P.D.P) ............................................................................. 13
DC Distribution Panel, DC Bank Meter ................................................................... 14
AC Distribution Panel & Rotary Switch ................................................................... 15
12V Helm Control Operation ................................................................................ 16
Fuel System, Engine, Generator & Webasto Furnace .............................................. 17
Closed Engine Cooling System .............................................................................. 18
Sea Strainer System ............................................................................................... 19
Raw Water Wash Down ......................................................................................... 20
Fresh Water Plumbing System ................................................................................ 21
Shower Sump ........................................................................................................ 22
Bilge Pump System ................................................................................................ 23
Waste System With Macerator Pump ..................................................................... 24
Mast Set Up And Takedown .................................................................................. 25
Ranger Tug R-29 Wiring Schematic (Acc. 1) ........................................................... 26
Ranger Tug R-29 Wiring Schematic (Acc. 2) ........................................................... 27
Ranger Tug R-29 Wiring Schematic (Acc. 3) ........................................................... 28
Ranger Tug R-29 Wiring Schematic (Lighting) ........................................................ 29
Ranger Tug R-29 Wiring Schematic (P.D.P.) ............................................................. 30
Ranger Tug R-29 Working Deck ................................................................................... 31
Care And Maintenance ................................................................................................ 32
Example Of A Preparation For The Road Checklist .................................................. 32
Example Of A Spring Pre-Launch Checklist ............................................................. 33
Example Of Winter Storage Checklist .................................................................... 34
Reference Material ....................................................................................................... 35
Contacts ...................................................................................................................... 36

3
CONGRATULATIONS
The Ranger Tug family has a passion for boating. We are committed to continuous
process improvement in all areas that affect our customer’s satisfaction with our
products and providing great customer service.
SAFETY
Safety is always a concern at Ranger Tugs. Please read all manuals to ensure that
equipment is used in a safe manner. We highly recommend attendance in a Coast
Guard approved boating safety course. Such courses are available from the Coast
Guard directly or from boating organizations. Owners should have annual inspec-
tions to ensure that all safety equipment is current.
Operating, servicing and maintaining
a recreational marine vessel can expose
you to chemicals including engine exhaust,
carbon monoxide, phthalates, and lead,
which are known to the State of California
to cause cancer and birth defects or other
reproductive harm. To minimize exposure,
avoid breathing exhaust, service your vessel
in a well-ventilated area and wear gloves or
wash your hands frequently when servicing
this vessel. For more information go to
www.P65warnings.ca.gov/marine.
Prop 65 Boat Owner’s
Manual Image
Notes on use of the above:
27 CCR § 25607.18
§ 25607.18. Recreational Vessel Exposure Warnings -
Method of Transmission. [Operative August 30, 2018]
(a) A warning for exposures that occur during the operation
or maintenance of a recreational vessel as defined in California
Harbor and Navigation Code Section 651(t) meets the
requirements of this subarticle if it complies with the content
requirements in Section 25607.19 and is provided as follows:
(1) The warning is printed in the owner's manual for the
specific recreational vessel, in no smaller than 12-point type
enclosed in a box printed or affixed to the inside or outside
of the front or back cover of the manual or on the first page
of the text, and;
(2) The warning is provided on a hang tag readily visible from
the helm of the vessel printed in no smaller than 12-point type.

STE
OPT
SYMBOL GLOSSARY
4
Attention! – Important Operating or Maintenance Instructions
Attention! – Electrical Shock Hazard
Fresh Water
Black Water
Fuel
Standard Equipment
Optional Equipment
Hints

SPECIFICATIONS
5
(Subject to Change Without Notice)
R-29 S
Length .......................................................................................... 28' 10" 8.79 m
Length Overall (w/swim step) ........................................................ 33' 4" 10.16 m
Beam ............................................................................................ 10' 0" 3.05 m
Draft ............................................................................................. 28" .71 m
Weight, Dry .................................................................................. 10,500 lbs 4,762 kg
Water Bridge Clearance (mast up) ................................................. 13' 11" 4.24 m
Water Bridge Clearance (mast down) ............................................ 9' 11" 3.02 m
Height on Trailer (mast down) ....................................................... 13' 3" 4.04 m
Fuel Capacity ................................................................................ 145 gal 548.89 L
Water Capacity (fresh) ................................................................... 60 gal 227.13 L
Holding Tank Capacity .................................................................. 40 gal 151.42 L
Hot Water Tank Capacity .............................................................. 8 gal 30.28 L
Length Overall on Trailer with no dinghy (RIB) ............................... 39' 6" 12.04 L
R-29 CB
Length .......................................................................................... 28' 10" 8.79 m
Length Overall (w/swim step) ........................................................ 33' 4" 10.16 m
Beam ............................................................................................ 10' 0" 3.05 m
Draft ............................................................................................. 28" .71 m
Weight, Dry .................................................................................. 10,800 lbs 4,899 kg
Water Bridge Clearance (mast up) ................................................. 13' 11" 4.24 m
Water Bridge Clearance (mast down) ............................................ 9' 11" 3.02 m
Height on Trailer ........................................................................... 13' 3" 4.04 m
Fuel Capacity ................................................................................ 145 gal 548.89 L
Water Capacity (fresh) ................................................................... 60 gal 227.13 L
Holding Tank Capacity .................................................................. 40 gal 151.42 L
Hot Water Tank Capacity .............................................................. 8 gal 30.28 L
Length Overall on Trailer with no dinghy (RIB) ............................... 39’ 6” 12.04 L

➊ Bow Ladder
➋ Shore Power Inlet(s)
➌ Diesel Fill On Deck
➍ Fuel Tank Vent
➎ Waste Outlet On Deck
➏ Holding Tank Vent
➐ Foredeck Anchor Windlass Switches
➑ Aft Bilge
➒ Forward Bilge
➓ Boarding Ladder
Rudder
Keel Drain Plug
Bow Thruster
Keel
Prop
Water Fill On Deck
Stern Thruster
Macerator
Shower Sump
Sink Drain
AC Aft
AC Forward
EQUIPMENT LOCATION
6

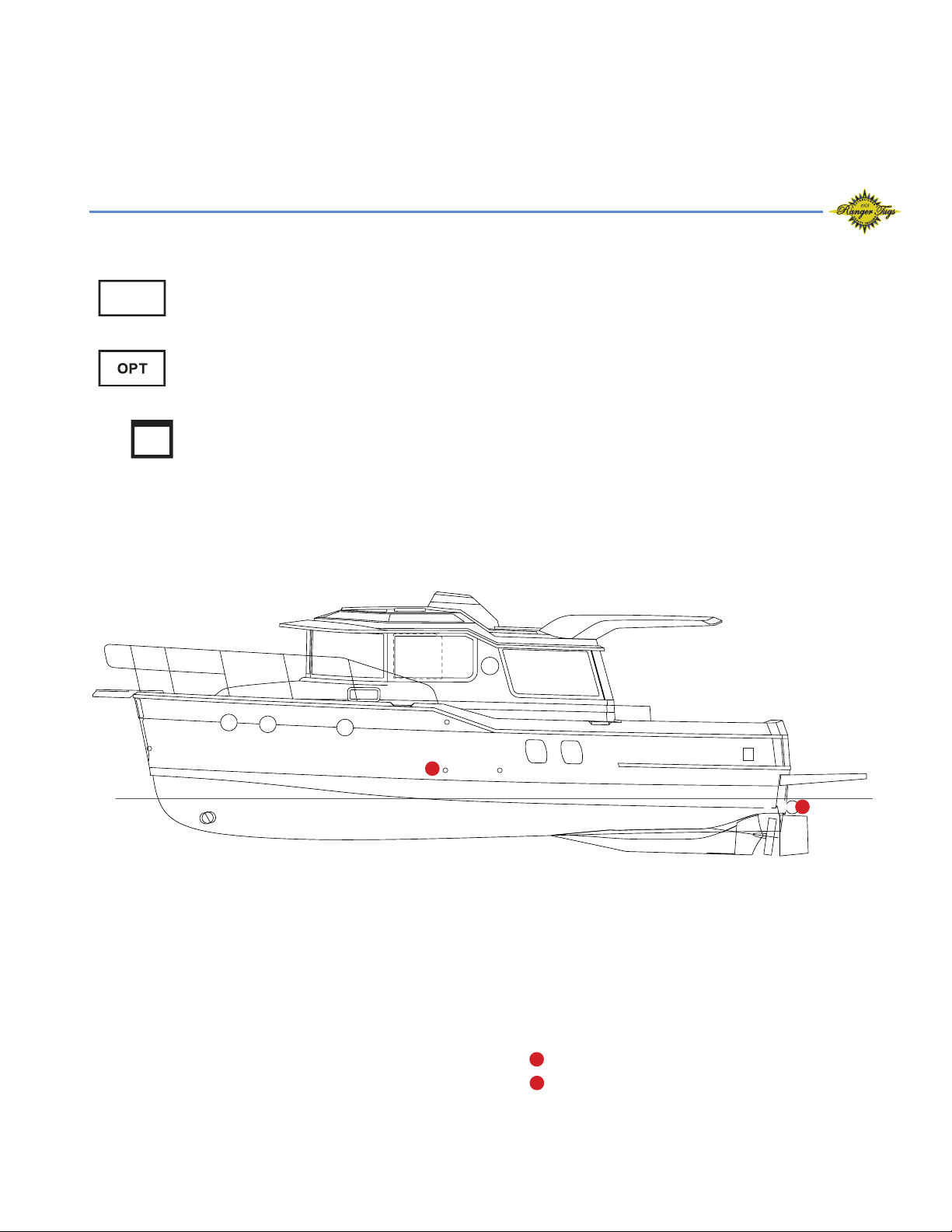

STARBOARD FITTINGS
1 2 3 4 5 6 7 8 9 10 11 12 13
D E
Keep all vents, drains and exhausts clear of any obstructions
to ensure proper performance of each system.
STE
➍
➋➏
➑➒
11
11
13
13
12
12
14
14
15
16
16
17
15
➐
➓
A
A
D
A
E
E
B
B
B
C
C
D
C
➌➎
(Luxury Edition)
(NW Edition)
➊
17

➊ Water Tank Vent
➋ Anchor Locker Drain
➌ Galley Sink Drain
➍ Bow Thruster
➎ Generator Vent Cover
➏ Generator Exhaust
➐ Engine Exhaust
➑Keel
➒Prop
➓Rudder
Webasto Diesel Heater Exhaust
Stern Thruster
7
STE
PORT FITTINGS
1 2
5 6
Keep all vents, drains and exhausts clear of any obstructions
to ensure proper performance of each system.
➑
➊
➒
➋
➌
➍
➎
➓
➏➐
11
11
12
12

MAIN CABIN TOP DECK COMPONENTS
8
STE
1 3 5 6 7 8
2 4
➊ Anchor Light
➋ Running Light
➌ TV Antenna
➍ Radar
➎ Searchlight
➏ Horn
➐ Navigation Light
(RED Port, GREEN Starboard)
➊
➋
➌
➍
➎
➏
➐

➊ Flagstaff Mount
➋ Deck Shower
➌ Amber Courtesy Lights
➍ Swim Platform Struts
➎ Cockpit Drain with Flap
➏ Towing Strapdown Eye
➐ Trim Tab Ram
➑ Trim Tab
➒ Under Water Lights
➓ Stern Thruster
Prop
Rudder
Prop Zinc
Transom Zinc
Swim Platform
Swim Platform Fenders
Rail Chain or Chain Gate
Propane Locker
Dinghy Cleats
Trim Tab Zincs
Thruster Zinc
Patio Railing
Stand Off Mounts
Dinghy Davit
STERN COMPONENTS
9
STE
1 2 3 4 5 6 7 8 10 11 12 13 14 15 16
9 18 19
➊
➋
➌ ➌
➍ ➍ ➍ ➍
➎➎ ➏ ➏
➐ ➐➐ ➐
➓
11
11
12
13
13
14
14
15
16
16
17
17
18
18
19
20
20 20
21
21
22
22
23
23
24
24
19 19
15
12
➑ ➑
➒➒
24

10
MAIN CABIN AND COCKPIT LIGHTS
STE
Main Cabin
Switch
Dash
Switch
Forward
Cabin Switch
Head
Switch
Cockpit
Switch Panel
Switch On
Fixture
➊ V-Berth Cabin Lights ✓
➋ Head Lights ✓
➌ Under Bed Lighting ✓
➍ Indirect Cabin Lights ✓
➎ Cockpit & Transom Lights ✓
➏ Red White Combo ✓
➐ Overhead White Lights ✓
➑ Exterior Red/White ✓
➒ Reading Lights ✓
➓ Underwater Lights ✓
➊➊➊
➋
➋➌
➍
➍
➍
➍
➎
➎
➐
➏
➏
➏
➏
➎
➎
➍
➋
➋
➌
➑
➑
➑
➑
➐
➒
➒
➓
➓

Engine
Generator
Generator
filters
Fuel filter
Fuel filter
Webasto Vent
Engine return
Engine supply
Generator return
Generator
shut-off valve
Generator supply
Fuel Tank
Sender
Engine
shut-off valve
Fuel fill
FUEL SYSTEM, ENGINE, GENERATOR & WEBASTO FURNACE
STE
Volvo D4 300hp
There is a secondary on-engine fuel filter that is not shown on this drawing. You will be able to
find information about this filter in the diesel engine manual supplied with your boat. The sec-
ondary filter is where the water-in-fuel sensor is located.
Main engine fuel shutoff is located underneath the forward engine hatch as you enter the main
cabin. The primary fuel filter is mounted on the bulkhead in the engine compartment. There is a
drain in the bottom of this filter for draining water.
STERN
11

12
CLOSED ENGINE COOLING SYSTEM
STE
Provides an alternate heating system for the Fresh Water Heater and provides primary heating
source for the Forced Air Cabin Heater. This system is also designed to provide cooling to the
internal components of your engine. Please refer to your engine operations manual for more
information.
• Use only Volvo VCS coolant in this system. Do not mix coolant types.
• Close black handled coolant valves on front of engine if a leak is suspected in either the fresh
water heater or forced air cabin heater. This will keep coolant inside of the engine where it is
needed most.
Engine
Valves
Heater
Switch at helm
Hot
Water
Heater
Cabin
Heater

13
RAW WATER / SEA STRAINER SYSTEM
STE
• Engine raw water thru-hull and strainer
• Multi port sea strainer for head and raw water wash down pump.
• Generator raw water thru-hull strainer
Generator
Strainer
Engine
Engine
Thru-hull/Valve
Generator
Multi Strainer
Thru-hull/Valve
Multi Strainer
Raw Water Washdown
A/C Raw Water (OPT)
Head Raw Water
Generator
Thru-hull/Valve
Engine
Strainer
• A/C Raw Water Input

14
FRESH WATER PLUMBING SYSTEM
STE
60 Gallon Fresh Water Tank, 8 Gallon Hot Water Heater, 3.5 GPM Fresh Water Pump.
Head sink cold
Head sink hot
Water tank sending unit
Fresh water pump/strainer
(under removable teak panel)
Galley sink hot
Transom shower
hot/cold
Water pump switch/gauge
located in midberth
Galley sink cold
Water Tank
Shower hot
Shower cold
Hot water
heater

SHOWER SUMP
STE
12V, 800 GPH
(This should be inspected for debris on a regular basis if shower is used frequently.)
Shower drain
Thru-hull exhaust
Aft AC condensate drain
Forward AC condensate drain
Sump pump
The shower sump box is located underneath a removable panel in the stateroom floor positioned
just outside the head door.
15

Forward bilge pump
Aft bilge pump
1100 GPH
through hull
Check valve
1100 GPH
through hull
High water alarm sensor
Check valve
BILGE PUMP SYSTEM
STE
The bilge pumps operate automatically with electronic float switches even with battery switches
and breakers in the OFF position.
However, the BILGE PUMP and BILGE PUMP2 will run continuously once their switches are placed
in the on position. Monitor the outflow accordingly. Do not run when dry.
• Manual switches/high water alarm switch are located at the helm.
12V 1100GPH
16

WASTE SYSTEM WITH MACERATOR PUMP
STE
STE
40 Gallon Tank with standard pump out, and vent
Waste tank level can be checked by utilizing the head control panel. Please refer to your head
operations manual.
Waste tank pump out stations are widely available.
Please follow the directions carefully for the pump out equipment you are using to avoid damage
to the waste system.
Boat owner is responsible for
following all applicable laws when
using the macerator system to pump
out into the surrounding waters.
Overboard shutoff valve is accessed
under berth inline with the
macerator pump.
Valve must remain either locked, or
only able to be opened by using a
tool when not using macerator.
Example: zip tie
Macerator pump out
17
Marine
Head
Vent
Pump Out
(on deck)
Raw water
into head
Macerator Discharge
Overboard Shutoff Valve
Macerator
Waste
Tank
Multi Strainer
Thru-hull/valve
Multi Strainer

18

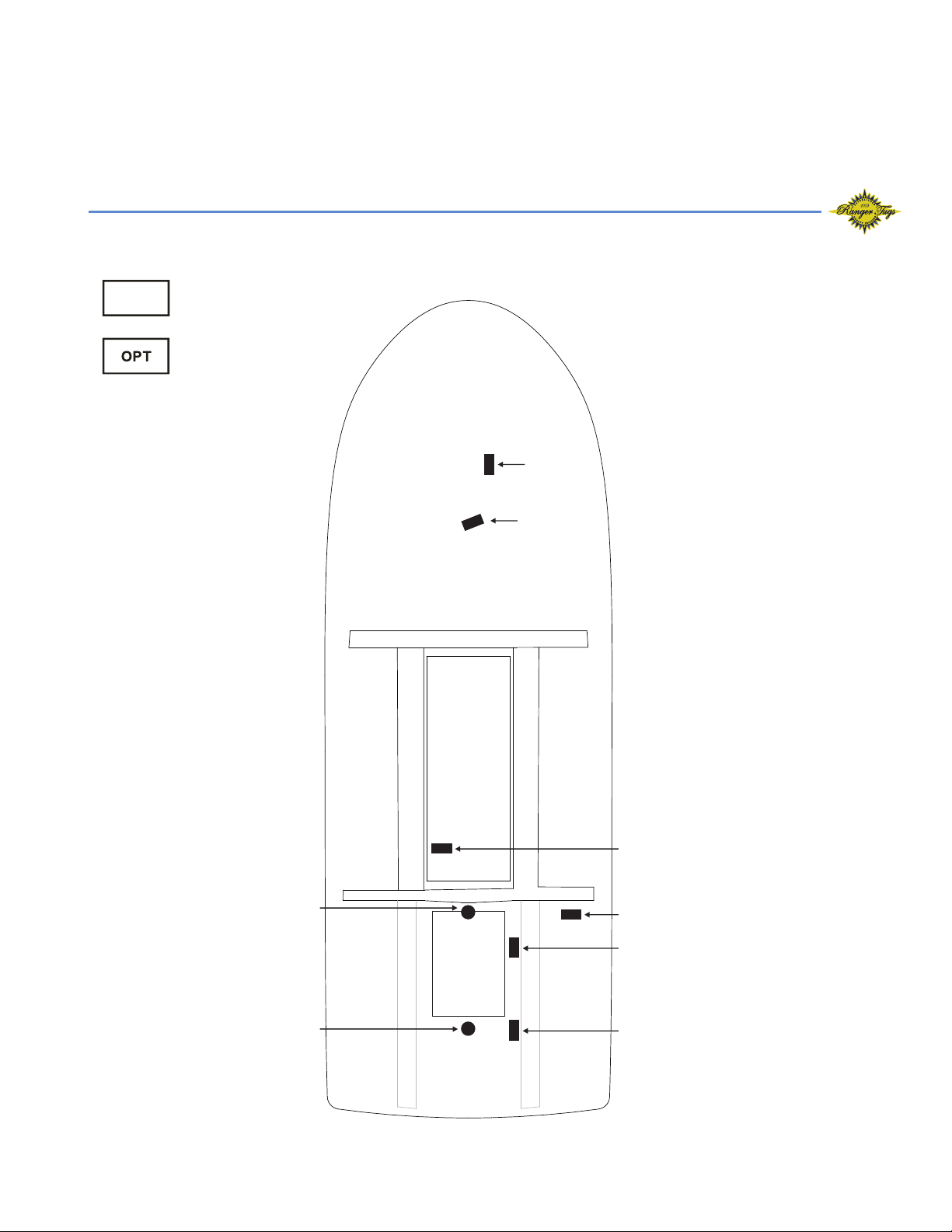

ELECTRIC PUMPS ONBOARD
STE
Engine
Macerator
(Under Berth)
Shower Sump
(Under floor panel
just outside of
head door)
Fresh Water Pump
(Under floor panel just inside cabin)
Toilet Water Pump
(Starboard lazerette forward)
Forward Bilge Pump
Aft Bilge Pump
A/C Pump (optional)
(Engine room bulkhead forward)
Washdown Raw Water Pump
(Engine room bulkhead aft)

19
AIR CONDITIONING
Front A/C Control Panel
Forward A/C Unit
(Under Berth)
Forward A/C
Air Intake Grill
(keep uncovered)
A/C Vent
A/C Vent
Main Cabin A/C Control
Panel (in Mid-Berth)
Main Cabin A/C Unit
(Under Helm Seat)
A/C Raw Water Pump
Multi Strainer
Thru Hull/Valve
Main Cabin A/C
Air Intake Grill
(keep uncovered)
A/C Vent

20
WEBASTO FURNACE
Webasto furnace is located under access panel below refrigerator.
The control panel is located at the quarter berth power management center.
The fuel pump is in the salon floor hatch compartment inside of the black box.
Webasto Furnace
Fuel Pump / Filter
(inside black box)
Interior
Heat Vent
Interior
Heat Vent
Exhaust
(keep unblocked/
gets very warm)
Exterior Heat Vent
