Ransburg 76652-01 User manual

SERVICE MANUAL
TE-98-01.7
(Replaces TE-98-01.6)
JUNE - 2014
PAINT, HIGH VOLTAGE & SCI
TEST EQUIPMENT
Service Manual Price: $50.00 (U.S.)
MODEL: 76652-01 HIGH VOLTAGE PROBE
76652-02 SPRAYABILITY/SCI METER
76652-03 PAINT RESISTIVITY METER
76652-04 DELUXE KIT
A11759-00 HIGH VOLTAGE PROBE ADAPTER
IMPORTANT: Before using this equipment,
carefully read SAFETY PRECAUTIONS, starting
on page 1, and all instructions in this manual.
Keep this Service Manual for future reference.

NOTE: This manual has been changed from revision TE-98-01.6 to revision TE-98-01.7.
Reasons for this change are noted under “Manual Change Summary” on page 23
of this manual.
Paint, High Voltage & SCI Test Equipment
TE-98-01.7

SAFETY: 1-5
SAFETY PRECAUTIONS ......................................................................................................1
HAZARDS / SAFEGUARDS ..................................................................................................2-5
PAGE
INTRODUCTION, OPERATION & MAINTENANCE: 6-17
MULTI-FUNCTION ELECTROSTATIC METER .................................................................... 6
MULTI-FUNCTION METERS / KITS ..................................................................................... 7
SPRAYABILITY, SCI, AND RESISTANCE MEASUREMENT KIT ......................................... 8-12
PAINT RESISTANCE MEASUREMENT KIT ..........................................................................13-14
HIGH VOLTAGE MEASUREMENT KIT..................................................................................14-16
GENERAL MAINTENANCE ...................................................................................................17
WARRANTY: 18
WARRANTY POLICY ............................................................................................................18
PAINT AND SOLVENT SPECIFICATIONS ............................................................................19
VISCOSITY CONVERSION CHART......................................................................................20-21
VOLUMETRIC CONTENT OF HOSE OR TUBE ...................................................................22
APPENDIX: 19-79
CONTENTS
Paint, High Voltage & SCI Test Equipment - Contents
TE-98-01.7

W A R N I N G
!
W A R N I N G
!
SAFETY
SAFETY PRECAUTIONS
Before operating, maintaining or servicing any
Ransburg electrostatic coating system, read and
understand all of the technical and safety liter-
ature for your Ransburg products. This manual
contains information that is important for you to
know and understand. This information relates to
USER SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this informa-
tion, we use the following symbols. Please pay
particular attention to these sections.
A WARNING! states information to alert you
to a situation that might cause serious injury
if instructions are not followed.
A CAUTION! states information that tells how
to prevent damage to equipment or how to
avoid a situation that might cause minor injury.
A NOTE is information relevant to the proce-
dure in progress.
While this manual lists standard specications
and service procedures, some minor deviations
may be found between this literature and your
equipment. Differences in local codes and plant
requirements, material delivery requirements,
etc., make such variations inevitable. Compare
this manual with your system installation draw-
ings and appropriate Ransburg equipment man-
uals to reconcile such differences.
Careful study and continued use of this manual will
provide a better understanding of the equipment
and process, resulting in more efcient operation,
longer trouble-free service and faster, easier
troubleshooting. If you do not have the manuals
and safety literature for your Ransburg system,
contact your local Ransburg representative or
Ransburg.
The hazards shown on the following pag-
es may occur during the normal use of this
equipment. Please read the hazard chart be-
ginning on page 2.
The user MUST read and be familiar with
the Safety Section in this manual and the
Ransburg safety literature therein identied.
This manual MUST be read and thor-
oughly understood by ALL personnel who
operate, clean or maintain this equipment!
Special care should be taken to ensure that
the WARNINGS and safety requirements for
operating and servicing the equipment are
followed. The user should be aware of and
adhere to ALL local building and re codes
and ordinances as well as NFPA-33 SAFE-
TY STANDARD, LATEST EDITION, prior
to installing, operating, and/or servicing this
equipment.
Paint, High Voltage & SCI Test Equipment - Safety
TE-98-01.7 1

Spray Area
AREA
Tells where hazards
may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Fire Hazard
Improper or inadequate
operation and
maintenance procedures
will cause a re hazard.
Protection against inadvertent
arcing that is capable of
causing re or explosion is lost
if any safety interlocks are
disabled during operation.
Frequent Power Supply or
Controller shutdown indicates
a problem in the system
requiring correction.
Fire extinguishing equipment must be present
in the spray area and tested periodically.
Spray areas must be kept clean to prevent the
accumulation of combustible residues.
Smoking must never be allowed in the spray area.
The high voltage supplied to the atomizer must
be turned off prior to cleaning, ushing
or maintenance.
When using solvents for cleaning:
•Those used for equipment ushing should
have ash points equal to or higher than
those of the coating material.
•Those solvents used for cleaning must have
a ash point at minimum of 5°C (9°F) greater
than the ambient temperature. It is the end
users responsibility to insure this condition
is met.
Spray booth ventilation must be kept at the
rates required by NFPA-33, OSHA, country, and
local codes. In addition, ventilation must be
maintained during cleaning operations using
ammable or combustible solvents.
Electrostatic arcing must be prevented. Safe
sparking distance must be maintained between
the parts being coated and the applicator. A
distance of 1 inch for every 10KV of output
voltage is required at all times.
Test only in areas free of combustible material.
Testing may require high voltage to be on, but
only as instructed.
Non-factory replacement parts or unauthorized
equipment modications may cause re or injury.
If used, the key switch bypass is intended for use
only during setup operations. Production should
never be done with safety interlocks disabled.
Never use equipment intended for use in
waterborne installations to spray solvent
based materials.
The paint process and equipment should be set
up and operated in accordance with NFPA-33,
NEC, OSHA, local, country, and European Health
and Safety Norms.
Paint, High Voltage & SCI Test Equipment - Safety
TE-98-01.7 2

AREA
Tells where hazards
may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area
Improper operation or mainte-
nance may create a hazard.
Personnel must be properly
trained in the use of this equip-
ment.
Explosion Hazard
Improper or inadequate oper-
ation and maintenance proce-
dures will cause a re hazard.
Protection against inadvertent
arcing that is capable of caus-
ing re or explosion is lost if
any safety interlocks are dis-
abled during operation.
Frequent Power Supply or
Controller shutdown indicates
a problem in the system requir-
ing correction.
General Use and
Maintenance
Electrostatic arcing must be prevented. Safe
sparking distance must be maintained between
the parts being coated and the applicator. A dis-
tance of 1 inch for every 10KV of output voltage
is required at all times.
Unless specically approved for use in hazard-
ous locations, all electrical equipment must be
located outside Class I or II, Division 1 or 2
hazardous areas, in accordance with NFPA-33.
Test only in areas free of ammable or combus-
tible materials.
The current overload sensitivity (if equipped)
MUST be set as described in the correspond-
ing section of the equipment manual. Protec-
tion against inadvertent arcing that is capable
of causing re or explosion is lost if the current
overload sensitivity is not properly set. Fre-
quent power supply shutdown indicates a prob-
lem in the system which requires correction.
Always turn the control panel power off prior to
ushing, cleaning, or working on spray system
equipment.
Before turning high voltage on, make sure no
objects are within the safe sparking distance.
Ensure that the control panel is interlocked with
the ventilation system and conveyor in accor-
dance with NFPA-33, EN 50176.
Have re extinguishing equipment readily avail-
able and tested periodically.
Personnel must be given training in accordance
with the requirements of NFPA-33, EN 60079-0.
Instructions and safety precautions must be
read and understood prior to using this equip-
ment.
Comply with appropriate local, state, and na-
tional codes governing ventilation, re protec-
tion, operation maintenance, and housekeep-
ing. Reference OSHA, NFPA-33, EN Norms
and your insurance company requirements.
Paint, High Voltage & SCI Test Equipment - Safety
TE-98-01.7 3

AREA
Tells where hazards
may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area /
High Voltage
Equipment
Electrical Discharge
There is a high voltage device
that can induce an electrical
charge on ungrounded objects
which is capable of igniting
coating materials.
Inadequate grounding will
cause a spark hazard. A
spark can ignite many coating
materials and cause a re or
explosion.
Parts being sprayed and operators in the spray
area must be properly grounded.
Parts being sprayed must be supported on con-
veyors or hangers that are properly ground-
ed. The resistance between the part and earth
ground must not exceed 1 meg ohm. (Refer to
NFPA-33.)
Operators must be grounded. Rubber soled in-
sulating shoes should not be worn. Grounding
straps on wrists or legs may be used to assure
adequate ground contact.
Operators must not be wearing or carrying any
ungrounded metal objects.
When using an electrostatic handgun, operators
must assure contact with the handle of the ap-
plicator via conductive gloves or gloves with the
palm section cut out.
NOTE: REFER TO NFPA-33 OR SPECIFIC
COUNTRY SAFETY CODES REGARDING
PROPER OPERATOR GROUNDING.
All electrically conductive objects in the spray
area, with the exception of those objects re-
quired by the process to be at high voltage, must
be grounded. Grounded conductive ooring
must be provided in the spray area.
Always turn off the power supply prior to ush-
ing, cleaning, or working on spray system equip-
ment.
Unless specically approved for use in hazard-
ous locations, all electrical equipment must be
located outside Class I or II, Division 1 or 2 haz-
ardous areas, in accordance with NFPA-33.
Paint, High Voltage & SCI Test Equipment - Safety
TE-98-01.7 4

Toxic Substances Certain material may be harmful
if inhaled, or if there is contact
with the skin.
Follow the requirements of the Material Safety
Data Sheet supplied by coating material manu-
facturer.
Adequate exhaust must be provided to keep the
air free of accumulations of toxic materials.
Use a mask or respirator whenever there is a
chance of inhaling sprayed materials. The mask
must be compatible with the material being
sprayed and its concentration. Equipment must
be as prescribed by an industrial hygienist or
safety expert, and be NIOSH approved.
AREA
Tells where hazards
may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Electrical
Equipment
Electrical Discharge
High voltage equipment is uti-
lized in the process. Arcing
in the vicinity of ammable or
combustible materials may oc-
cur. Personnel are exposed to
high voltage during operation
and maintenance.
Protection against inadvertent
arcing that may cause a re or
explosion is lost if safety circuits
are disabled during operation.
Frequent power supply shut-
down indicates a problem in the
system which requires correc-
tion.
An electrical arc can ignite coat-
ing materials and cause a re or
explosion.
Unless specically approved for use in hazard-
ous locations, the power supply, control cabinet,
and all other electrical equipment must be locat-
ed outside Class I or II, Division 1 and 2 hazard-
ous areas in accordance with NFPA-33 and EN
50176.
Turn the power supply OFF before working on
the equipment.
Test only in areas free of ammable or combus-
tible material.
Testing may require high voltage to be on, but
only as instructed.
Production should never be done with the safety
circuits disabled.
Before turning the high voltage on, make sure no
objects are within the sparking distance.
Explosion Hazard –
Incompatible Materials
Halogenated hydrocarbon sol-
vents for example: methylene
chloride and 1,1,1,-Trichlo-
roethane are not chemically
compatible with the aluminum
that might be used in many sys-
tem components. The chemical
reaction caused by these sol-
vents reacting with aluminum
can become violent and lead to
an equipment explosion.
Aluminum is widely used in other spray appli-
cation equipment - such as material pumps,
regulators, triggering valves, etc. Halogenated
hydrocarbon solvents must never be used with
aluminum equipment during spraying, ushing,
or cleaning. Read the label or data sheet for the
material you intend to spray. If in doubt as to
whether or not a coating or cleaning material is
compatible, contact your coating supplier. Any
other type of solvent may be used with aluminum
equipment.
Spray Area
Paint, High Voltage & SCI Test Equipment - Safety
TE-98-01.7 5

INTRODUCTION, OPERATION & MAINTENANCE
Meter Scale Ranges:*
kV: 0 to ±199.9 kVDC
mA: 0 to ±1999 mA
kW: 1 to 1999 kW(.001 to 1.999 MW)
MW: 00.1MW to 199.9 MW
GW: .1GWto 19.99 GW
* Note: For readings below 2 MW, more resolution
can be obtained by using the kWscale.
MULTI-FUNCTION
ELECTROSTATIC METER
The Ransburg Multi-Function Electrostatic
Spray Meter uses one meter to serve multi-func-
tions in electrostatic spray nishing. The meter
can be used to measure conductivity, paint resis-
tance, short circuit current, resistance, and high
KITS AND ADAPTERS
Part # Description
76652-01 Kit for measuring high voltage.
Includes 76634-00 Multi-Function Meter and 76667 High Voltage Probe Assembly.
76652-02 Kit for measuring short circuit current (SCI),resistance and spray-ability.
Includes 76634-00 Multi-Function Meter and 76664-00 Test Lead Assembly.
76652-03 Kit for measuring paint resistivity.
Includes 76634-00 Multi-Function Meter and 7922-00 Paint Probe Assembly.
76652-04 Deluxe Kit Performs all functions listed above.
Includes 76634-00 Multi-Function Meter, 7922-00 Paint Probe Assem-bly, 76664-00 Test
Lead Assembly, and 76667-00 High Voltage Probe Assembly.
A11759-00 High Voltage Probe Adapter
Adapter to measure the voltage coming from an individual probe (electrode) assembly
on all RMA-MMA Indirect Charge Robot Mounted Rotary Applicator, Aerobell 2.5 Indirect
Charge (A10924), and Aerobell II Indirect Charge (77603).
voltage. The meter is available in individual kits
focused on each function or a deluxe kit, which
includes accessories to perform all the functions
listed above.
The Ransburg Multi-Function Electrostatic Spray
Meter is powered by a single 9V alkaline battery.
The solid state circuitry only requires 9V input
to power the meter display and condition all the
signals from the accessory items.
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 6

Figure 1A: Multi-Function Meter
Figure 1B: Multi-Function Meter Kit Parts
20913-00 CONTACT ROD
3587-03 COMPRESSION NUT
76634-00 MULTI-FUNCTION TESTER
76667 HIGH VOLTAGE PROBE ASSEMBLY
7922-00
PAINT PROBE
ASSEMBLY
76664-00
TEST LEAD
ASSEMBLY
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 7

SPRAYABILITY, SCI,
AND RESISTANCE
MEASUREMENT KIT
Sprayability
The Sprayability Meter measures whether
materials normally considered being electrically
non-conductive could be electrostatically sprayed
or whether they need to be treated with solutions to
make the surface conductive. The meter measures
the surface resistance and indicates the degree of
sprayability in MW or GW. The target being sprayed
must be low enough in resistance to dissipate the
electrostatic charge. In some cases the internal
resistance of a target is lower than the surface
resistance. This might allow a target that does not
have a suitable surface resistance reading to be
coated electrostatically without additional surface
preparation. An example of this is certain types
of wood which on the surface are not conductive
but due to moisture content (12%-13%) may be
sprayable.
Since many non-conductive products must be
pre-treated with a conductive solution to make
them sprayable, the Ransburg Multi-Function
Electrostatic Spray Meter is useful to monitor and
maintain consistency in that application, once a
suitable reading is determined.
Operation
1. Set the meter dial to the MWor GWscale
(see Figure 2). Check the meter calibration by
touching the metallic end of the two (2) probes
on the meter to the stripped bare ends of a
single 12" long wire (see Figure 2). (If desired
the continuity of the wire may be veried by
using a Volt-Ohm meter). If the meter reads
zero, the meter is in calibration. If it does not
C A U T I O N
!
Ensure that meter's scale is properly
set for the function in which it is being used.
Damage to equipment may result if improp-
erly set.
read zero, verify the continuity of the wire and
re-perform the check. If the meter still does not
read zero, consult the factory for repair of the
meter.
2. With the metallic part of the meter probes
pressed rmly and perpendicular against the
surface of the article to be tested, the meter
automatically reads the resistance of the part.
Table 1 lists the readings from an 8333-00
meter and compares it to the readings of the
Multi-Function Meter.
Meter Readings
0Wto 1.0GW - The article is suitable for spraying
using the electrostatic process.
1.0GW to 1.5GW- The article is questionable for
spraying using the electrostatic process. In such
cases, paint a trial sample article to determine if
a conductive primer or conductive solution for the
part surface is required.
1.5GW to Innity - The article is NOT suitable
for spraying. A conductive primer or conductive
solution is required to treat the surface of the part.
Figure 2: Sprayability Test Meter
OBJECT TO
MEASURE
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 8

1 MW155 Suitable
2 MW150 Suitable
3 MW147 Suitable
4 MW145 Suitable
14 MW140 Suitable
60 MW135 Suitable
190 MWor .1 GW130 Suitable
320 MWor .3 GW125 Suitable
410 MWor .4 GW120 Suitable
500 MWor .5 GW115 Suitable
600 MWor .6 GW110 Suitable
760 MWor .7 GW105 Suitable
1020 MWor 1.0 GW100 Suitable
1.1 GW98 Test Sample Part
1.3 GW95 Test Sample Part
1.5 GW90 Test Sample Part
2.0 GW to Innity 85 or less Requires Surface Prep
TABLE 1 - COMPARISON TO 8333-00 SPRAYABILITY METER
WITH NEW MULTI-FUNCTION METER
8333-00 Sprayability
Meter Reading Spray Condition
New 76652-01 Multi-Function
Meter Reading
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 9

Resistance/Testing
Target/Product Ground
The Ransburg Multi-Function Meter may be used
to measure approximate resistance in kW, MW,
or GW. Applications for the meter range from
measuring the resistance of a 70430-XX resistor
to measuring the resistance of a target to ground.

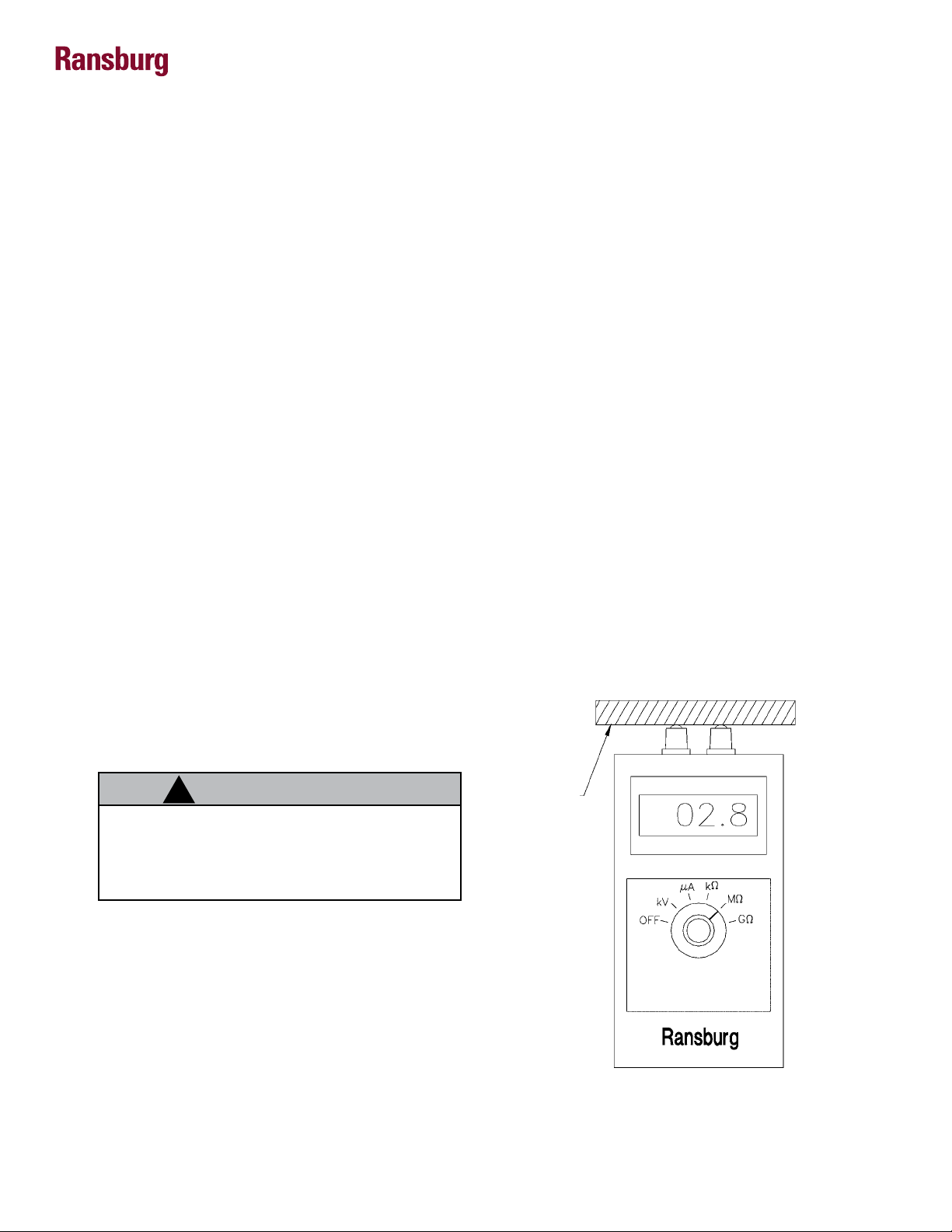

Figure 3: Calibration Check Resistance
Operation
1. Set the meter dial to the MWscale (see Fig-
ure 3). Plug the probe with two (2) alligator
clamp leads into the side of the meter. Check
the meter calibration by touching the metallic
ends of the two (2) probes together. If the
meter reads zero, the meter is in calibration.
If it does not read zero, verify the continuity of
the probe assembly and re-perform the check.
If the meter still does not read zero, consult
the factory for repair of the meter.
2. For ground checks, attach one alligator clip
to a clean, non-treated surface of the target
to be sprayed. Attach the other alligator clip
to a known true earth ground. Set the dial to
the MWscale. Read the resistance. If the
resistance is greater than 1.0 MWthe part is
not adequately grounded (reference NFPA-77,
NFPA-33).
3. For resistance checks, set the meter to MW
scale (see Figure 4). Attach one alligator clip
to the electrode wire of a 70430-XX screwed
onto a needle shaft (or similar component).
Attach the other lead to the shaft of the needle
shaft (or other end of a similar component).
The electrode reading should be approximately
14.5 MWto 19MW.
C A U T I O N
!
Ensure that meter's scale is properly set
for the function in which it is being used. Dam-
age to equipment may result if improperly set.
NOTE
When using the Multi-Function Me-
ter test leads to measure resistance
or current, ensure that the sprayability
probes do not come into contact with
any surface or the meter readings may
be altered.
W A R N I N G
!
If the reading between true earth ground
and the target is greater than 1.0 MW, then
the hooks, racks, supports, etc. must be
cleaned and eventually demonstrate a true
earth ground resistance of 1.0 MWor lower.
See NFPA-33 for further information.
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 10

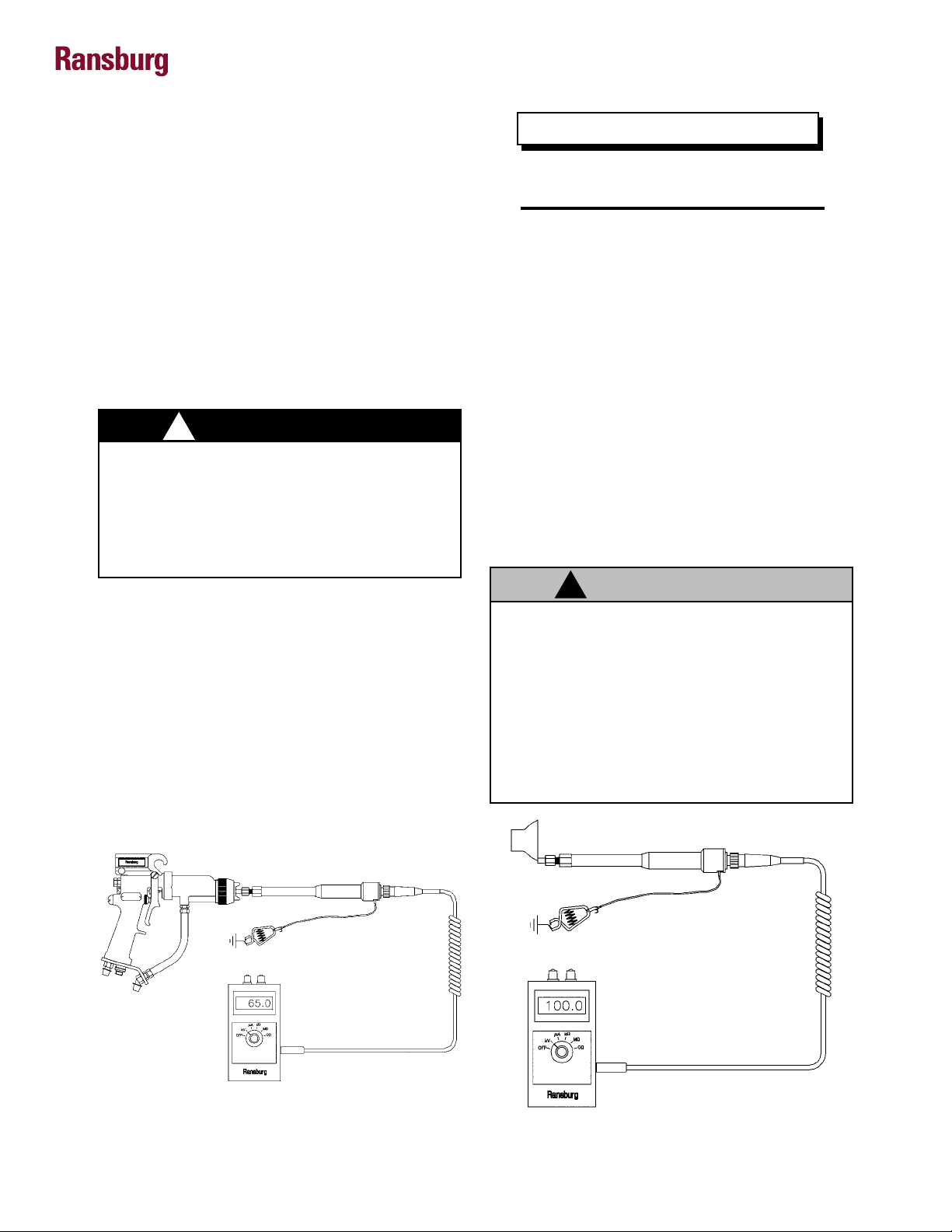

Figure 4: Measuring Electrode Resistance
Short Circuit Current-SCI
(Power Supplies)
The Ransburg Multi-Function Meter may be used to
measure the short circuit current of an electrostatic
product. The short circuit current measurement is
important in troubleshooting problems with electro-
static power supplies and applicators. These tests
should be performed when a noticeable decrease
in transfer efciency occurs. The measured short
circuit current value should be compared to the
value listed in the appropriate power supply or
applicator manual. This comparison indicates if
there are problems with the power source or the
applicator.
Ensure that meter's scale is properly set
for the function in which it is being used. Dam-
age to equipment may result if improperly set.
Operation
1. Set the meter dial to the µA scale (see Figure
5). Plug the probe with two (2) alligator clamp
leads into the side of the meter. Ensure the
meter reads zero. If it does not read zero,
consult the factory for repair of the meter.
2. Place appropriate test resistor in the high
voltage cable socket of the power supply.
See appropriate power supply or applicator
service manual. Be sure it is pushed clear
to the bottom or proper contact will not be
made. Attach one of the alligator clamps to
the lead of the test resistor. Attach the other
alligator clamp to a known true earth ground.
Turn the power supply on. Then trigger H.V.
by the air ow switch or jumper as required
by gun model. (See appropriate service man-
ual for further information.) Be sure that the
power supply lights indicate that high voltage
is being generated. Measure and record the
short circuit current from the meter. This value
should be compared to the value listed in the
appropriate power supply service manual.
W A R N I N G
!
Prior to starting the SCI tests, ensure the
voltage at the power supply is turned off.
C A U T I O N
!
Figure 5: Testing SCI on Power Supplies
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 11

Short Circuit Current - SCI
(Guns)
The Ransburg Multi-Function Meter may be
used to measure the short circuit current of an
electrostatic applicator. The short circuit current
measurement is important in troubleshooting
problems with electrostatic power supplies and
applicators. These tests should be performed
when a noticeable decrease in transfer efciency
occurs. The measured short circuit current value
should be compared to the value listed in the
appropriate power supply or applicator manual.
This comparison indicates if there are problems
with the power source or the applicator.
Operation
1. Set the meter dial to the µA scale (see Fig-
ure 5). Plug the probe with two (2) alligator
clamp leads into the side of the meter. Check
the meter calibration by touching the metallic
ends of the two (2) probes together. If the me-
ter reads zero, the meter is in calibration. If it
does not read zero, verify the continuity of the
probe assembly and re-perform the check. If
the meter still does not read zero, consult the
factory for repair of the meter.
Ensure that meter's scale is proper-
ly set for the function in which it is being
used. Damage to equipment may result if
improperly set.
Prior to starting the SCI tests, ensure the
voltage at the power supply is turned off.
W A R N I N G
!
C A U T I O N
!
2. Attach one of the alligator clamps to the elec-
trode (brush on the #2 process bell). Be sure
the clamp makes good contact with the elec-
trode (small wires on the #2 brush). Attach the
second alligator clamp to ground, preferably
the handle or bracket.
3. Apply voltage to the gun from the power supply.
The meter should read between the ranges
indicated in the power supply and applicator
manuals.
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 12

PAINT RESISTANCE
MEASUREMENT KIT
Paint Resistivity
The Ransburg Paint Resistance Measurement
Kit using the multi-function meter is designed to
provide measurement of the electrical resistance of
paint formulations for all electrostatic applications.
Once the resistance of a paint is determined and
found to spray successfully, measuring resistiv-
ity with this meter provides a way to duplicate
conditions. This is extremely important when
troubleshooting problems with spray or rotational
applicators. This meter has two (2) scales, MW
and kW that may be used for measurement of the
paint resistance.
Testing Metallic Paint In certain paint
formulations where materials of appreciable
content of metal ake or powder (i.e., alumi-
num, bronze, or metallic colors) are used, this
method of testing resistance can be mislead-
ing or inconclusive. This paint tester will NOT
indicate the metallic content of the formula.
Whenusing the paint tester with metal-
lic paints, the low voltage battery of the test
probe may not be enough to inuence the
metal particles, therefore, their presence may
go unrecog-nized by the meter. When such
formulations are placed in electrostatic ap-
plicators and high voltage applied, the metal
particles may become aligned by the electri-
cal eld. This may result in an appreciable
increase of current ow to ground by way of
the pain delivery system. While the ow of
current poses no immediate dangerous con-
dition, it may drain some or all of the voltage
from the electrode and may reduce or elimi-
nate electrostatic efciency.
Ensure that meter's scale is properly set
for the function in which it is being used. Dam-
age to equipment may result if improperly set.
C A U T I O N
!
C A U T I O N
!
Figure 6: Paint Tester Operation
Operation
1. Set the meter dial to the MWscale (see Figure
6). Plug the paint probe into the side of the
meter.
2. Immerse the probe vertically into a well-mixed
representative sample of the subject paint until
the holes at the bottom of the slots in the probe
sleeve are submerged (see Figure 6). Take a
reading within 5 to 10 seconds of submerging
the probe.
Do not immerse the paint probe past the
top of the sleeve.
INSERT TO THIS DEPTH INTO PAINT
C A U T I O N
!
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 13

Meter Readings
Table 4 lists the ranges of paint resistivity that work
best for specic Ransburg applicators.
To obtain MW- CM from the resistance in MW
from the meter, multiply by 132.
NEVER soak the paint probe. There
is no solvent seal at the point where the
handle screws into the body of the probe.
If solvent is allowed to enter at this point
or where the cable enters at the top of the
handle, the interior wiring will deteriorate
and have to be replaced.
MW- CM = MWreading X 132
(Ref. ASTM D5682)
Maintenance
The test probe MUST be cleaned IMMEDIATELY
after each use. Use a suitable solvent and clean
cloth to thoroughly clean the probe assembly.
1. Remove the probe sleeve and clean it inside
and out, removing all paint residues (it may
be soaked while probe is cleaned).
2. Thoroughly clean the outside of the probe with
the cloth and solvent.
3. Place the cleaned sleeve back on the probe.
TABLE 4 - PAINT RESISTIVITY
RANGES*
Applicator Paint Resistivity
Range
Rotary Atomizers 0.05 MWto 1.0MW
#2 Process Handgun 0.1 MWto 1.0MW
Handguns & Automatic Guns 0.1 MW to Innity
* Use this table as a guideline. Usually a trial for resistance
above listed values is recommended. When resistance
is below listed values, electrostatic effect will be reduced
due to a higher current draw to ground. To spray this
material may require other means of increasing distance
to ground such as adding coiled uid tubes.
C A U T I O N
!
HIGH VOLTAGE
MEASUREMENT KIT
High Voltage Measurement
The Ransburg High Voltage Measurement Kit
using the multi-function meter is designed to pro-
vide measurement of high voltage DC potential for
all electrostatic applicators to 200kV. Having an
accurate measurement of output voltage from an
applicator is very important when trouble-shooting
problems with an installation. The reading from this
device indicates whether the applicator and power
supply are operating correctly. This kit comes with
the following accessories:
1. A high voltage probe assembly to measure
DC voltage at a bell, disk or gun.
2. Five (5) feet of 3/8 inch diameter high voltage
cable to measure DC voltage from power
supplies of 90kV and higher.
3. Five (5) feet of 5/16 inch diameter high volt-
age cable to measure DC voltage from power
supplies producing less than 90kV.
Ensure that meter's scale is properly
set for the function in which it is being
used. Damage to equipment may result if
improperly set.
Operation
DO NOT exceed 30 seconds of continu-
ous use of the high voltage probe. The probe
is designed for instant readings
C A U T I O N
!
C A U T I O N
!
W A R N I N G
!
The ground clip MUST be connected to
a proven true earth ground BEFORE any
contact is made between the probe assembly
and the asembly being tested. All personnel
in the hazard (booth) area MUST be
grounded. See Ransburg bulletin "Personnel
Grounding".
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 14

2. Attach ground clamp to a proven earth ground.
For Guns
3. If measuring the voltage on an electrostatic
gun, line up the hole in the test probe and the
electrode. Slide the test probe straight over the
electrode wire of the gun. Be sure to push the
test probe tight against the nozzle to minimize
any voltage that may leak into the air during
the test.
W A R N I N G
!
To provide proper equipment to operator
ground, the conductive handle of the probe
MUST be held in the bare hand of the op-
erator. To avoid a shock hazard, the meter
should NEVER be disconnected fromthe
probe during high voltage contact.
These operating instructions MUST be read and
thoroughly understood by all personnel who use
this equipment. Special care should be taken to
ensure that all Warnings and Requirements for
operating the equipment safely are followed.
The user should be aware of and adhere to all
relevant local and company safety and re codes
and ordinances and the Occupational Heath Act
of 1970 (OSHA) prior to operating this equipment.
1.
Set the meter dial to the kV scale (see Figure 7).
Plug the high voltage probe into the side of
the meter.
Figure 7: Measuring High Voltage On
Electrostatic AIr Spray Gun
4. Holding the metal part of the high voltage probe
in your hand, trigger the gun so voltage exists
at the electrode.
5. Read the voltage displayed on the meter in 30
seconds or less.
6. Turn the voltage to the gun OFF, and pull the
test probe straight off the electrode.
For Bells or Disks
7. Turn the high voltage power supply on.
8. Make and maintain sure contact between the
test probe and the applicator (see Figure 8).
Make sure all grounded objects are
at least 2 feet away.
NOTE
Ensure that the applicator is NOT rotating
when contacting it with the probe. Also, to
get proper readings on resistive applicators,
the probe must be placed in contact with the
atomizing edge of the bell or disk as shown
in Figure 8. As this edge is sensitive to me-
chanical damage, use care when contacting
it with the probe. Rough handling may cause
damage to the applicator.
Figure 8: Measuring High Voltage
On Bells or Disks
C A U T I O N
!
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 15

9. Read the applicator high voltage displayed on
the meter in 30 seconds or less.
10. Disengage the test probe from the applicator.
11. Resume operation.
For Power Supply High Voltage
Measurement
12. Remove the metal test rod by loosening the
nut on the end of the wand.
13. Insert the proper diameter high voltage cable
into the wand of the high voltage probe.
14. Tighten the nut as necessary.
15.
Attach the ground clamp to a known true
earth ground.
W A R N I N G
!
The ground clip MUST be connected to a
proven true earth ground BEFORE any con-
tact is made between the probe assembly
and the assembly being tested.
16. Insert the cable into the high voltage tube of
the power supply, inserting it far enough to
make contact with the contact spring at the
bottom of the tube.
17. Turn the power supply on.
18. Read the voltage displayed on the meter, 30
seconds or less.
19. Turn the power supply off.
20.
Disengage the probe cable from the
power supply.
21. Restore the applicator connection to the power
supply and resume operation.
For Probe (Electrode) Assemblies
22. Turn on the high voltage power supply.
23. Place adapter on end of high voltage probe
(see Figure 9).
24. Tighten thumb screw.
25. Place adapter over probe (electrode) assembly
(see Figure 10).
26. Remove adapter from probe (electrode)
assembly.
27. Test other probe (electrode) assemblies or
resume operation.

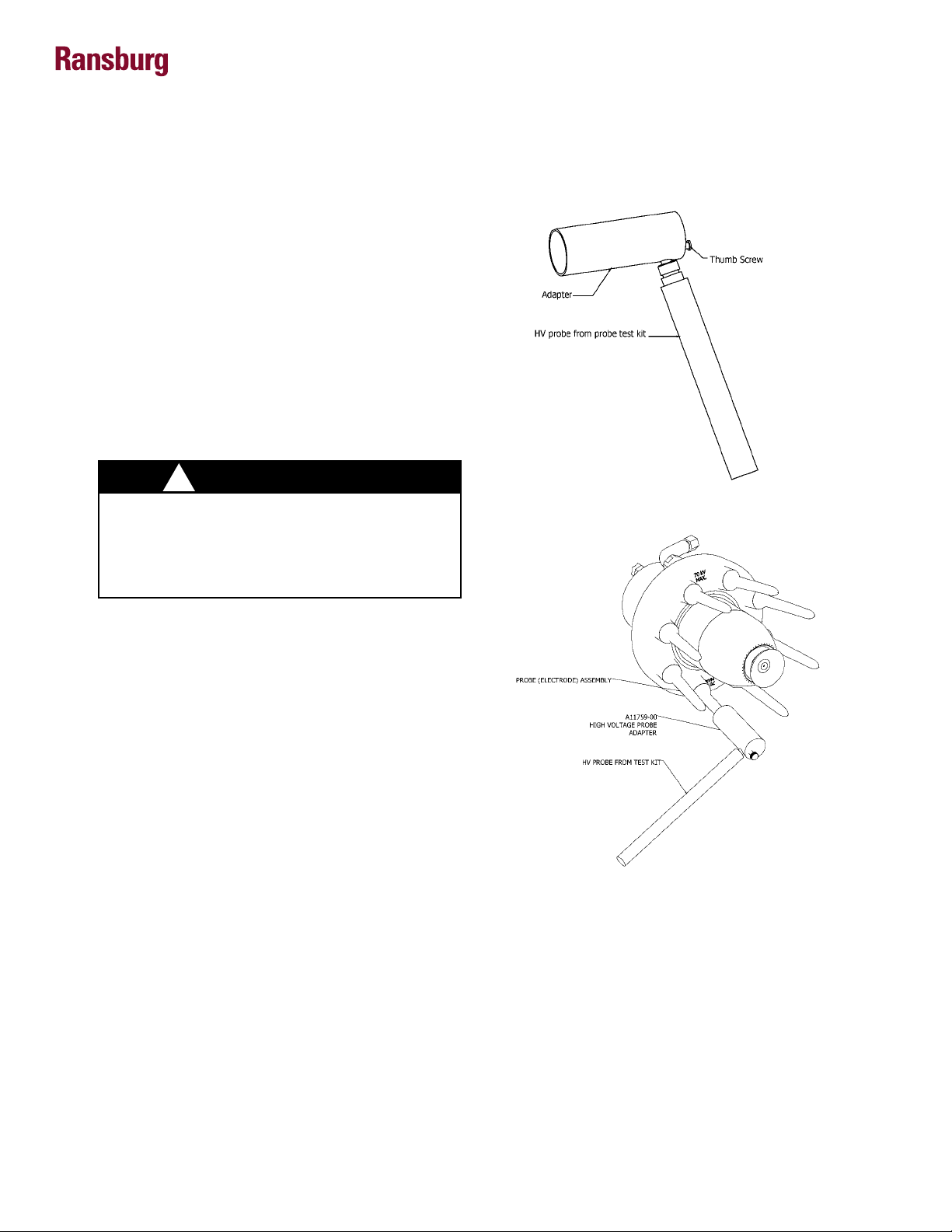

Figure 9: Probe Assembly View
Maintenance - Probe
1. Keep the test probe and the HV cables clean
to prevent contamination of the probe sockets.
Clean only with non-polar solvents.
2. Inspect the ground cable, its clamp and con-
nections for breaks or poor connections.
3. Do not bend or stress the white kV probe
assembly, as this may break the potted high
voltage resistor.
Figure 10: Electrode Test View
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 16

Calibration
The 76634-00 Multi-Function Meter is not eld
repairable. The meter should be returned to the
factory for repair or recalibration.
Ransburg recommends that the Multi-Function
Meter and its associated equipment (Paint probe,
kV Probe, and/or Test Leads) be sent in together
for recalibration at least once per year.
The best recalibration results the
Multi-Function Meter and accesories
(Paint probe, kV Probe, and/or Test
Leads) should be sent in together for
recalibration.
When shipped from the factory, and
after each calibration, the Multi-Function
Meter will be sealed with a calibration
sticker noting the next date when
calibration expires. Removal of this
seal will void calibration of the unit.
A certicate of calibration will also be
shipped with each calibrated unit.
NOTE
GENERAL MAINTENANCE
Maintenance - Battery Replacement
When required, the battery will need to be replaced.
It may be purchased locally and is a standard
alkaline type 9V battery. To replace the battery,
perform the following steps (refer to Figure 11).
1. Remove the sliding back cover of the meter.
2. Remove the existing battery from the two (2)
prong 9V connector.
3. Replace with new alkaline 9V battery.
4. Replace back cover.
5. Appropriately discard used battery.
The screen will go blank when the
battery needs to be replaced.
NOTE
Figure 11: Battery Replacement
Test Equipment - Introduction, Operation & Maintenance
TE-98-01.7 17
