Rapid Engineering BH-40 Operation manual

WARNING
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches.
4. DO NOT use any telephone in
your building.
5. Extinguish any open flame.
6. Leave the building.
7. Immediately call your local gas
supplier after leaving the building.
Follow the gas supplier’s
instructions.
8. If you cannot reach your gas
supplier, call the Fire Department.
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clear-
ances to combustibles away from
heater.
Some objects will catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property
damage.
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can result in death, injury or
property damage. Read the Installation, Operation
and Service Manual thoroughly before installing or
servicing this equipment.
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place in order to provide
your serviceman with necessary information.
Rapid Engineering LLC
1100 Seven Mile Road NW
Comstock Park, MI 49321
Telephone: [phone]
Fax: [phone]
Toll Free: 800.536.3461
www.rapidengineering.com
© 2012 Rapid Engineering LLC P/N RPBH170101NA Rev. B 02/12
RAPID™ BH
The Economical Unitary
Infrared Heater
Installation, Operation &
Service Manual
BH-40
BH-60
BH-80
BH-100
BH-115
BH-125
BH-140
BH-150
BH-175
BH-200

© 2012
Rapid Engineering LLC
All rights reserved. No part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Rapid Engineering LLC.
TABLE OF CONTENTS
SECTION 1: Heater Safety...................................................... 1
1.1 Manpower Requirements ............................................. 1
1. 2 S a fe t y L a bels and Their Placement ............................. 1
1.3 California Proposition 65 .............................................. 1
SECTION 2: Installer Responsibility ..................................... 4
2.1 Wall Tag ....................................................................... 4
2.2 Corrosive Chemicals.................................................... 4
2.3 National Standards and Applicable Codes .................. 4
SECTION 3: Clearances to Combustibles............................. 5
3.1 Required Clearances to Combustibles......................... 5
SECTION 4: National Standards and Applicable Codes ... 10
4.1 Gas Codes................................................................. 10
4.2 Aircraft Hangars ......................................................... 10
4.3 Public Garages .......................................................... 10
4.4 Electrical .................................................................... 10
4.5 Venting....................................................................... 10
4.6 High Altitude .............................................................. 10
SECTION 5: Major Components .......................................... 11
5.1 Standard Parts List .................................................... 12
SECTION 6: Heater Installation............................................ 14
6.1 Burner Tube Installation ............................................ 18
6.2 Tube Clamp Package Installation .............................. 19
6.3 Coupling and Tube Assembly.................................... 19
6.4 Turbulator Installation ................................................ 21
6.5 Reflector Installation .................................................. 22
6.6 Burner Installation...................................................... 24
SECTION 7: Optional Heater Accessories.......................... 25
7. 1 U - Tube Configuration.................................................. 25
7. 2 E l bowPackage Configuration..................................... 28
7.3 Reflector Side Extension ............................................ 31
7. 4 L o wer Clearance Shield Installation ........................... 32
7. 5 Two-Foot Decorative Grille Installation .......................32
7.6 Protective Grille Installation ........................................ 34
SECTION 8: Venting.............................................................. 35
8.1 Venting....................................................................... 35
8.2 Unvented Operation................................................... 36
8.3 Horizontal Venting......................................................36
8.4 Vertical Venting.......................................................... 36
8.5 Unvented Operation Tube Termination ...................... 36
8.6 Length Requirements ................................................ 36
8.7 Horizontal Ventilation 4'' (10 cm) Pipe........................ 36
8.8 Vertical Ventilation 4'' (10 cm) Pipe............................ 37
8.9 Common Side Wall Venting ....................................... 37
8.10 Common Vertical Venting ........................................38
8.11 Outside Combustion Air Supply ............................... 39
SECTION 9: Gas Piping........................................................ 41
SECTION 10: Wiring.............................................................. 43
10.1 Line Voltage Thermostat Wiring............................... 43
10.2 LowVoltage Thermostat Wiring............................... 44
10.3 Internal Wiring.......................................................... 45
10.4 Ladder Diagram....................................................... 46
10.5 Electrical Connection to the Burner ......................... 46
SECTION 11: Operation and Maintenance.......................... 47
11. 1 S e q uence of Operation ............................................ 47
11.2 To Shut Off Heater.................................................... 47
11.3 To Start Heater ......................................................... 47
11.4 Pre-Season Maintenance and Annual Inspection..... 47
11.5 Maintenance Checklist ............................................. 48
SECTION 12: Troubleshooting............................................. 50
12.1 Troubleshooting FlowChart ..................................... 51
12.2 Manifold Gas Pressure Setting ................................ 53
SECTION 13: Replacement Parts ........................................ 54
SECTION 14: General Specifications.................................. 57
14.1 Material Specifications............................................. 57
14.2 Heater Specifications............................................... 57
14.3 Suspension Specifications....................................... 57
14.4 Controls Specifications ............................................ 57
SECTION 15: The RAPIDTM BH Warranty.............................. 59
Printed in U.S.A.

TABLE OF FIGURES

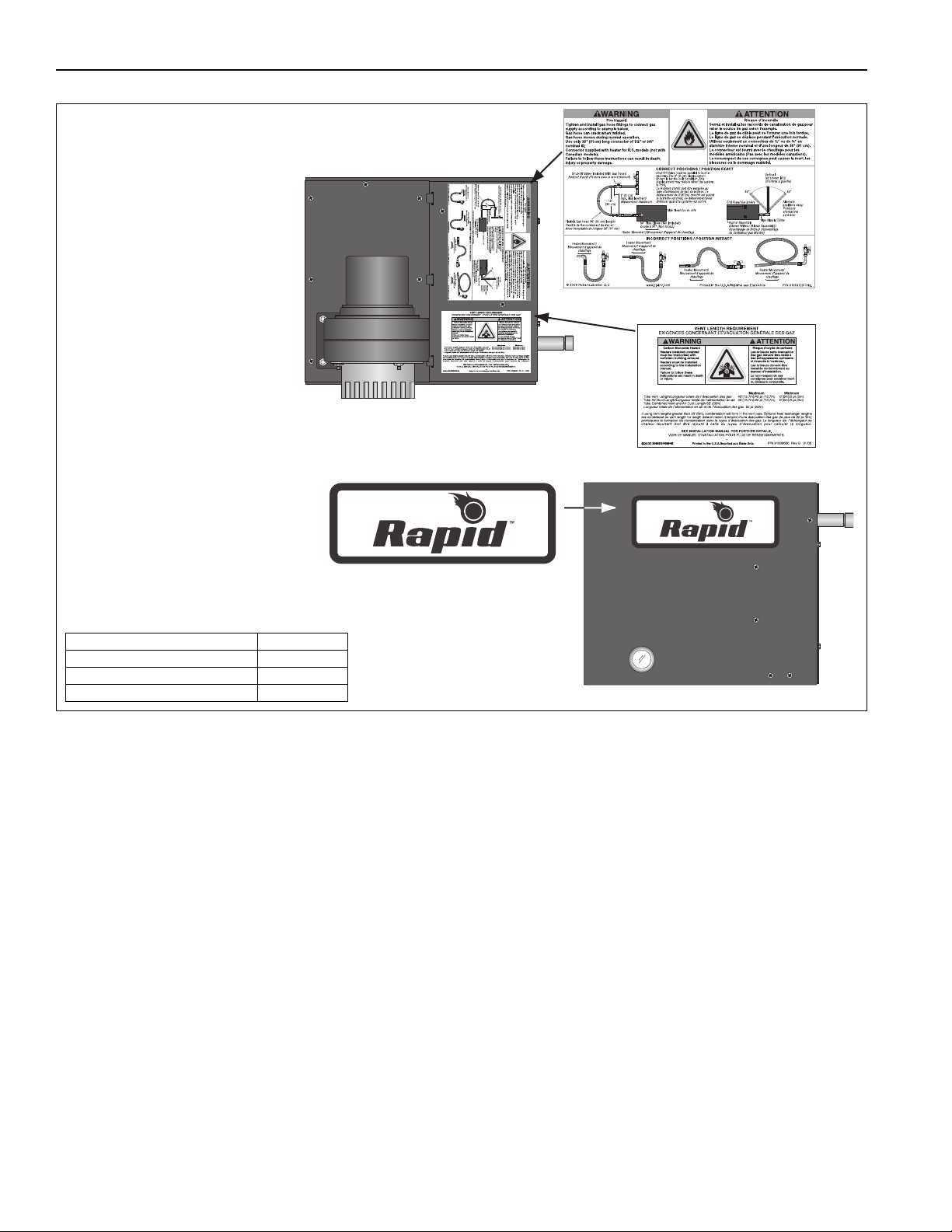

Figure 1: Top and Bottom Panel Label Placement .................... 2

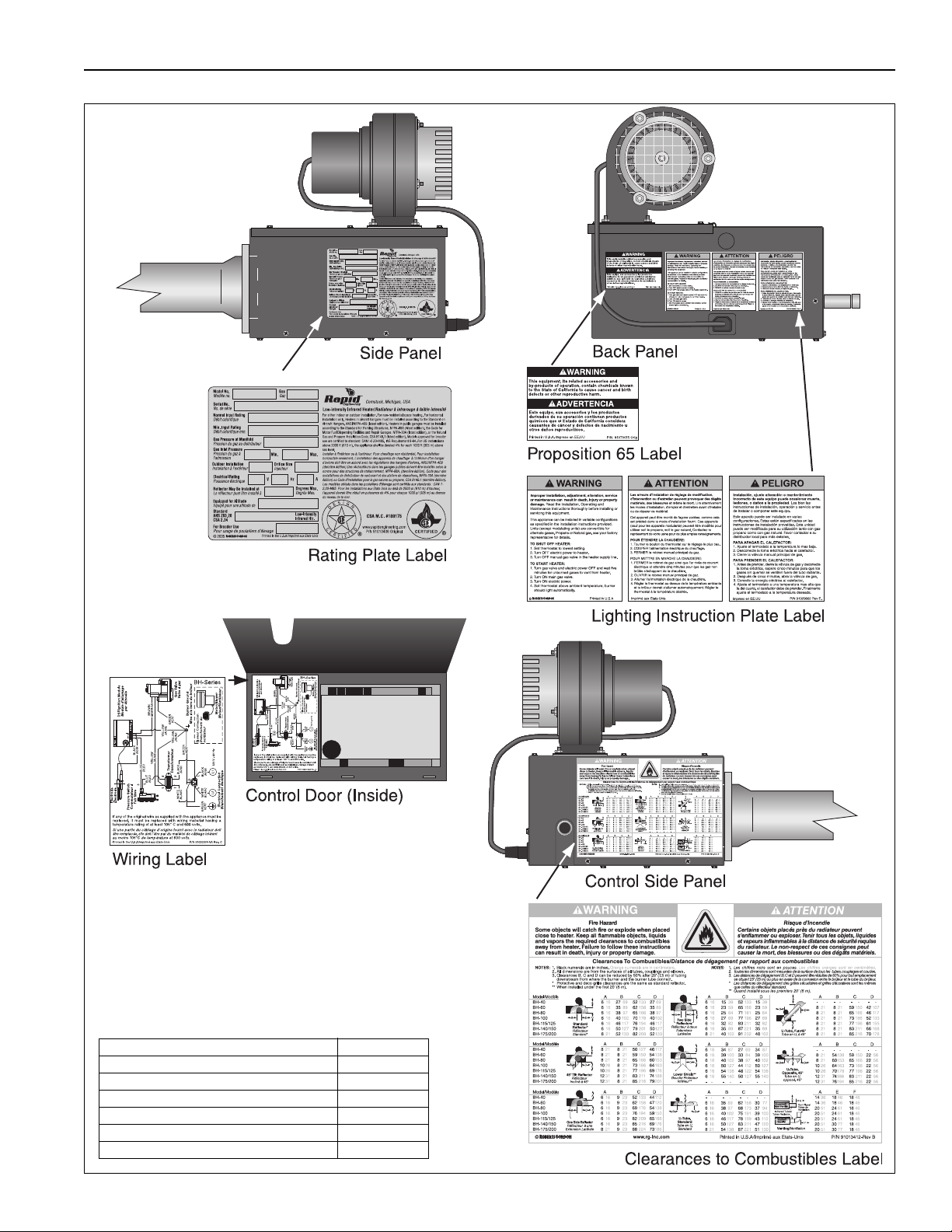

Figure 2: Side and Back Panel Label Placement...................... 3

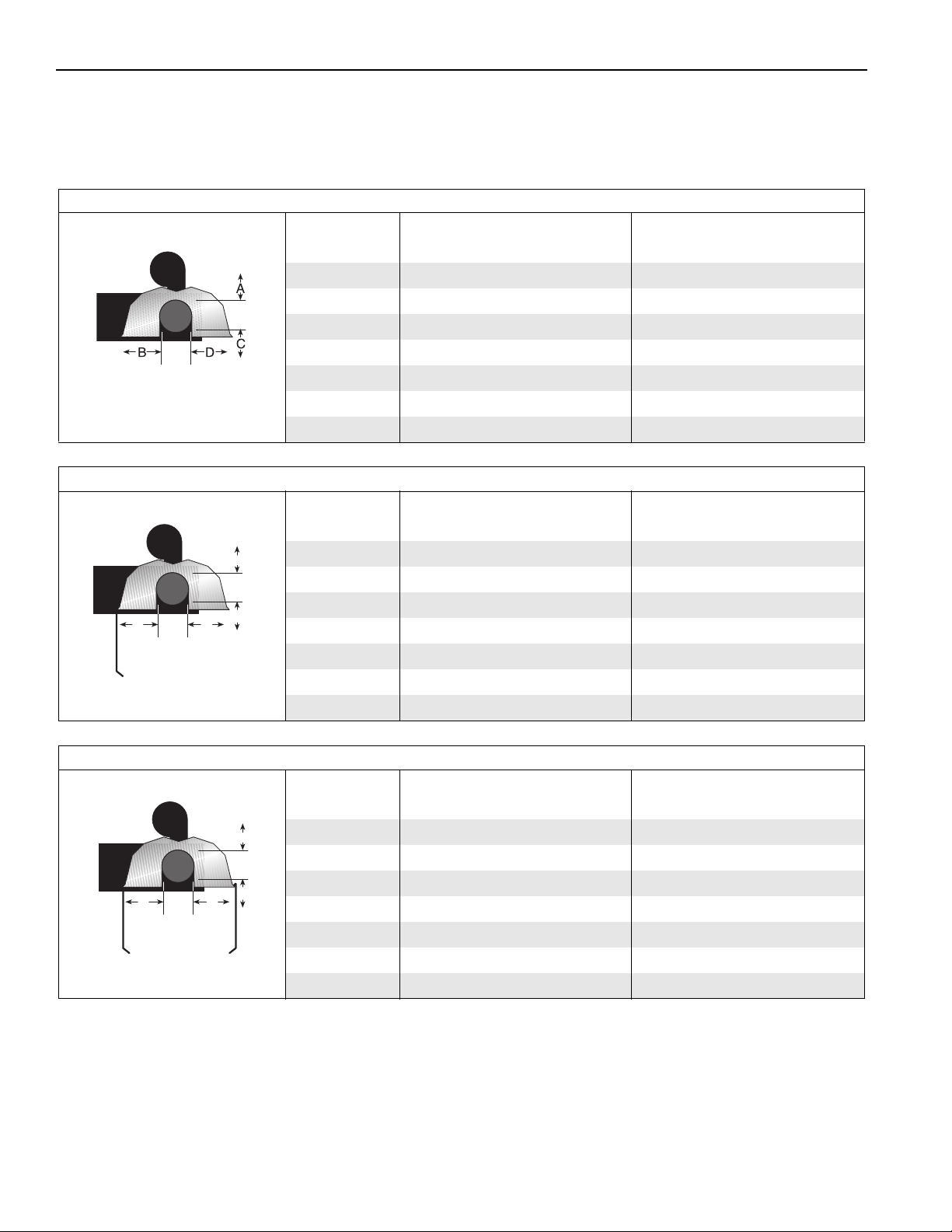

Figure 3: Standard Reflector ..................................................... 6
Figure 4: One Side Reflector..................................................... 6
Figure 5: Two Side Reflectors ................................................... 6
Figure 6: 45° Tilt Reflector ........................................................7
Figure 7: U-Tube, Standard Reflector........................................ 7
Figure 8: U-Tube, 45° ................................................................ 7
Figure 9: U-Tube, Opposite 45° Reflector ................................. 8
Figure 10: 2-Foot Deco Grille and Protective Grille ................... 8
Figure 11: Lower Clearance Shield ........................................... 8
Figure 12: Venting ..................................................................... 9
Figure 13: Major Component Descriptions.............................. 11
Figure 14: Critical Hanger Placement ..................................... 15
Figure 15: Linear Heater Assembly Overview........................ 16
Figure 16: Linear Heater Layout Overview............................. 17
Figure 17: Linear Heater Layout Overview(Continued) .......... 18
Figure 18: U-Tube Heater Assembly Overview...................... 26
Figure 19: U-Tube Heater Layout Overview........................... 27
Figure 20: U-Tube Layout Overview(Continued) .................... 28
Figure 21: Reflector Joint Detail .............................................. 30

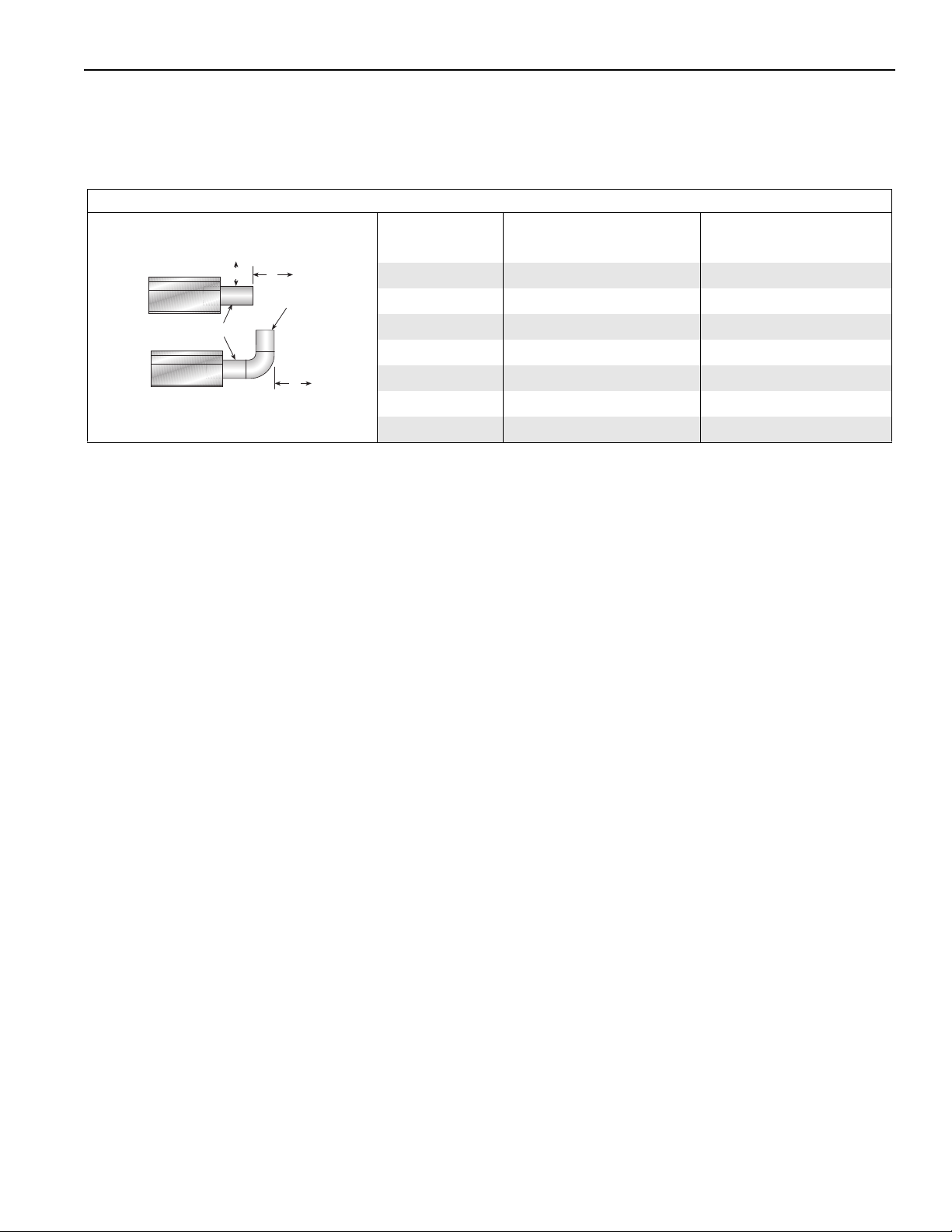

Figure 22: Tube Termination ................................................... 36
Figure 23: Gas Connection with Flexible Gas Hose................ 42
LIST OF TABLES
Table 1: Contents of BH-Series Burner Carton....................... 12
Table 2: Contents of Core and Extension Packages .............. 12
Table 3: BH-Series Component Package Guide .................... 13

SECTION 1: HEATER SAFETY
1 of 59
SECTION 1: HEATER SAFETY
Yo ur Safety is Important to Us!
This symbol is used throughout the
manual to notify youof possible fire,
electrical or burn hazards. Please pay
special attention when reading and
following the warnings in these
sections.
Installation, service and annual inspection of heater
must be done by a contractor qualified in the
installation and service of gas-fired heating
equipment.
Read this manual carefully before installation,
operation or service of this equipment.
This heater is designed for heating nonresidential
indoor spaces. Do not install in residential spaces.
These instructions, the layout drawing, local codes
and ordinances, and applicable standards that apply
to gas piping, electrical wiring, venting, etc. must be
thoroughly understood before proceeding with the
installation.
Protective gear is to be worn during installation,
operation and service. Thin sheet metal parts, such
as the reflector portion of the heater and the various
venting components, have sharp edges. To prevent
injury, the use of work gloves is recommended. The
use of gloves will also prevent the transfer of body
oils from the hands to the surface of the reflector.
Before installation, check that local distribution
conditions, nature of gas and pressure, and
adjustment of the appliance are compatible.
This heater must be applied and operated under the
general concepts of reasonable use and installed
using best building practices.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do no play with the
appliance.
For additional copies of the Installation, Operation
and Service Manual, please contact Rapid
Engineering LLC.
1. 1 M a n p o we r R e quirements
To prevent personal injury and damage to the heater,
two persons will be required for installation.
1.2 Safety Labels and Their Placement
Product safety signs or labels should be replaced by
the product user when they are no longer legible.
Please contact Rapid Engineering LLC or your
RAPIDTM independent distributor to obtain
replacement signs or labels. See Page 2, Figure
1through Page 3, Figure 2.
1.3 California Proposition 65
In accordance with California Proposition 65
requirements, a warning label must be placed in a
highly visible location on the outside of the
equipment (i.e., near equipment’s serial plate). See
label placement drawing on Page 3, Figure 2 for label
location. Avoid placing label on areas with extreme
heat, cold, corrosive chemicals or other elements. To
order additional labels, please contact Rapid
Engineering LLC or your RAPIDTM independent
distributor.

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
2 of 59
FIGURE 1: Top and Bottom Panel Label Placement
Logo Label
Vent Length Label
Top Panel
Bottom Panel
Gas Connection Label
Description Part Number
Logo Label 91031102
Vent Length Label 91039500
Gas Connection Label 91018123

SECTION 1: HEATER SAFETY
3 of 59
FIGURE 2: Side and Back Panel Label Placement
Description Part Number
Rating Plate Label 91010406
Lighting Instruction Plate Label 91029602
Wiring Label 91030301
Clearances to Combustibles Label 91013412
Proposition 65 Label 91070015
Thermostat Connection Label (not shown) 91037902

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
4 of 59
SECTION 2: INSTALLER RESPONSIBILITY
The installer is responsible for the following:
• To install the heater, as well as the gas and
electrical supplies, in accordance with applicable
specifications and codes. Rapid Engineering LLC
recommends the installer contact a local Building
Inspector or Fire Marshal for guidance.
• To use the information given in a layout drawing
and in the manual together with the cited codes
and regulations to perform the installation.
• To install the heater in accordance with the
clearances to combustibles.
• To furnish all needed materials not furnished as
standard equipment.
• To plan location of supports.
• To provide access on all sides for burner servicing
and removal.
• To provide the owner with a copy of this
Installation, Operation and Service Manual.
• To never use heater as a support for a ladder or
other access equipment and never hang or
suspend anything from heater.
• To ensure there is adequate air circulation around
the heater and to supply air for combustion,
ventilation and distribution in accordance with
local codes.
• To safely and adequately install heater using
materials with a minimal working load of 75 lbs
(33 kg).
• To ensure the heater is placed in an approved
application.
2.1 Wall Tag
A laminated wall tag is available for the heater as
a permanent reminder of the safety instructions and
the importance of the required clearances to
combustibles. Please contact Rapid Engineering LLC
or your RAPIDTM independent distributor to obtain the
wall tag. Affix the tag by peeling
off the backing of the adhesive strips on the rear
surface and position the tag on a wall near the
heater (e.g. thermostat or RAPIDTM Controller).
A copy of the wall tag (P/N 91037920) is illustrated on
the back cover. For an immediate solution, youmay
affix this copy on the wall near the heater.
Knowyour model number and installed configuration.
Model number and installed configuration are found on
the burner and in the Installation, Operation and
Service Manual. See Page 6, Figure 3 through Page
9, Figure 12. Write the proper clearance dimensions in
permanent ink according to your model number and
configuration in the open spaces on the tag.
2.2 Corrosive Chemicals
Rapid Engineering LLC cannot be responsible for
ensuring that all appropriate safety measures are
undertaken prior to installation; this is entirely the
responsibility of the installer. It is essential that the
contractor, the sub-contractor, or the owner identifies
the presence of combustible materials, corrosive
chemicals or halogenated hydrocarbons* anywhere
in the premises.
* Halogenated Hydrocarbons are a family of
chemical compounds characterized by the
presence of halogen elements (fluorine, chlorine,
bromine, etc.). These compounds are frequently
used in refrigerants, cleaning agents, solvents, etc.
If these compounds enter the air supply of the
burner, the life span of the heater components will
be greatly reduced. An outside air supply must be
provided to the burners whenever the presence of
these compounds is suspected. Warranty will be
invalid if the heater is exposed to halogenated
hydrocarbons.
2.3 National Standards and Applicable Codes
All appliances must be installed in accordance with
the latest revision of the applicable standards and
national codes. This refers also to the electric, gas
and venting installation. Note: Additional standards
for installations in public garages, aircraft hangars,
etc. may be applicable.
CAUTION
Product Damage Hazard
Do not use heater in area containing
corrosive chemicals.
Refer to appropriate Material Safety Data
Sheets (MSDS).
Failure to follow these instructions can result
in product damage.

SECTION 3: CLEARANCES TO COMBUSTIBLES
5 of 59
SECTION 3: CLEARANCES TO COMBUSTIBLES
3.1 Required Clearances to Combustibles
Clearances are the required distances that
combustible objects must be away from the heater to
prevent serious fire hazards. Combustibles are
materials that may catch on fire and include common
items such as wood, paper, rubber, fabric, etc.
Maintain clearances to combustibles at all times
for safety.
Clearances for all heater models are located on the
burner of the heater and on Page 6, Figure 3 through
Page 9, Figure 12 in this manual. Check the
clearances on each burner for the model heater
being installed to make sure the product is suitable
for your application and the clearances are
maintained. Read and followthe safety guidelines
below:
• Keep gasoline or other combustible materials
including flammable objects, liquids, dust or
vapors away from this heater or any other
appliance.
• The stated clearances to combustibles represents
a surface temperature of 90° F (50° C) above
room temperature. Building materials with a low
heat tolerance (such as plastics, vinyl siding,
canvas, tri-ply, etc) may be subject to degradation
at lower temperatures. It is the installer’s
responsibility to assure that adjacent materials
are protected from degradation.
• Maintain clearances from heat sensitive
equipment and workstations.
• Maintain clearances from vehicles parked below
the heater.
• Maintain clearances from swinging and overhead
doors, overhead cranes, vehicle lifts, partitions,
storage racks, hoists, building construction, etc.
• In locations used for the storage of combustible
materials, signs must be posted to specify the
maximum permissible stacking height to maintain
required clearances from the heater to the
combustibles. Signs must be posted adjacent to
the heater thermostat. In the absence of a
thermostat, signs must be posted in a
conspicuous location.
• Consult local Fire Marshal, Fire Insurance Carrier
or other authorities for approval of proposed
installation when there is a possibility of exposure
to combustible airborne materials or vapors.
• Hang heater in accordance to the minimum
suspension requirements on Page 15, Figure 14.
• If the radiant tubes must pass through the building
structure, be sure that adequate sleeving and fire
stop is installed to prevent scorching and/or fire
hazard.
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to
combustibles away from heater.
Some objects will catch fire or explode when
placed close to heater.
Failure to follow these instructions can result
in death, injury or property damage.

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
6 of 59
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 3: Standard Reflector
(inches) (centimeters)
Model ABCDABCD
BH-40 627 52 27 16 69 133 69
BH-60 6 35 62 35 16 89 158 89
BH-80 638 65 38 16 97 166 97
BH-100 6 40 70 40 16 102 178 102
BH-115/125 646 76 46 16 117 194 117
BH-140/150 6 50 79 50 16 127 201 127
BH-175/200 852 82 52 21 133 209 133
FIGURE 4: One Side Reflector
(inches) (centimeters)
Model ABCDABCD
BH-40 6 9 52 44 16 23 133 112
BH-60 6 9 62471623158120
BH-80 6 9 69 54 16 23 176 138
BH-100 6 9 76 59 16 23 194 150
BH-115/125 6 9 82 65 16 23 209 166
BH-140/150 6 9 85 69 16 23 216 176
BH-175/200 8 9 88 73 21 23 224 186
C
BD
A
FIGURE 5: Two Side Reflectors
(inches) (centimeters)
Model ABCDABCD
BH-40 615 52 15 16 39 133 39
BH-60 6 23 65 23 16 59 166 59
BH-80 625 71 25 16 64 181 64
BH-100 6 277727166919669
BH-115/125 632 83 32 16 82 211 82
BH-140/150 6 35 87 35 16 89 221 89
BH-175/200 840 91 40 21 102 232 102
C
BD
A

SECTION 3: CLEARANCES TO COMBUSTIBLES
7 of 59
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 6: 45° Tilt Reflector
(inches) (centimeters)
Model ABCDABCD
BH-40 8 8 50 46 21 21 127 117
BH-60 8 8 59542121150138
BH-80 8 8 65 60 21 21 166 153
BH-100 10 8 73 64 26 21 186 163
BH-115/125 10 8 77 69 26 21 196 176
BH-140/150 12 8 83 74 31 21 211 188
BH-175/200 12 8 85 79 31 21 216 201
FIGURE 7: U-Tube, Standard Reflector
(inches) (centimeters)
Model ABCDABCD
BH-40 - UNAPPROVED - - UNAPPROVED -
BH-60 6 35 62 30 16 89 158 77
BH-80 638 68 37 16 97 173 94
BH-100 6 40 75 39 16 102 191 100
BH-115/125 646 78 43 16 117 199 110
BH-140/150 6 50 83 47 16 127 211 120
BH-175/200 854 87 51 21 138 221 130
BD
C
A
FIGURE 8: U-Tube, 45°
(inches) (centimeters)
Model ABCDABCD
BH-40 - UNAPPROVED - - UNAPPROVED -
BH-60 8 8 59422121150107
BH-80 8 8 65 46 21 21 166 117
BH-100 8 8 73 52 21 21 186 133
BH-115/125 8 8 77 61 21 21 196 155
BH-140/150 8 8 83 66 21 21 211 168
BH-175/200 8 8 85 70 21 21 216 178
C
D
B
A

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
8 of 59
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
*When installed in the first 10' (3 m).
FIGURE 9: U-Tube, Opposite 45° Reflector
(inches) (centimeters)
Model ABCDABCD
BH-40 - UNAPPROVED - - UNAPPROVED -
BH-60 8 54 59 22 21 138 150 56
BH-80 860 65 22 21 153 166 56
BH-100 10 64 73 22 26 163 186 56
BH-115/125 10 70 77 22 26 178 196 56
BH-140/150 12 74 83 22 31 188 211 56
BH-175/200 12 76 85 22 31 194 216 56
B
A
CD
FIGURE 10: 2-Foot Deco Grille and Protective Grille
(inches) (centimeters)
Model ABCDABCD
BH-40 627 52 27 16 69 133 69
BH-60 6 35 62 35 16 89 158 89
BH-80 638 65 38 16 97 166 97
BH-100 6 40 70 40 16 102 178 102
BH-115/125 646 76 46 16 117 194 117
BH-140/150 6 50 79 50 16 127 201 127
BH-175/200 852 82 52 21 133 209 133
C
BD
A
FIGURE 11: Lower Clearance Shield*
(inches) (centimeters)
Model ABCDABCD
BH-40 634 27 34 16 87 69 87
BH-60 6 39 33 39 16 100 84 100
BH-80 640 38 40 16 102 97 102
BH-100 6 50 44 50 16 127 112 127
BH-115/125 654 48 54 16 138 122 138
BH-140/150 6 55 50 55 16 140 127 140
BH-175/200 - UNAPPROVED - - UNAPPROVED -
C
BD
A

SECTION 3: CLEARANCES TO COMBUSTIBLES
9 of 59
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 12: Venting
(inches) (centimeters)
Model A E F A E F
BH-40 14 18 18 36 46 46
BH-60 14 18 18 36 46 46
BH-80 20 24 18 51 61 46
BH-100 20 24 18 51 61 46
BH-115/125 20 24 18 51 61 46
BH-140/150 20 30 18 51 77 46
BH-175/200 20 30 18 51 77 46
Radiant Tubes
Vent
Pipes
Unvented
Vented
AE
F

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
10 of 59
SECTION 4: NATIONAL STANDARDS AND
APPLICABLE CODES
4.1 Gas Codes
The type of gas appearing on the nameplate
must be the type of gas used. Installation must
comply with national and local codes and
requirements of the local gas company.
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
4.2 Aircraft Hangars
Installation in aircraft hangars must be in
accordance with the following codes:
United States: Refer to Standard for Aircraft
Hangars, NFPA 409 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
In aircraft storage and servicing areas, heaters
shall be installed at least 10' (3 m) above the
upper surface of wings or of engine enclosures
of the highest aircraft which may be housed in
the hangar. The measurement shall be made
from the wing or engine enclosure (whichever is
higher from the floor) to the bottom of the heater.
• In shops, offices and other sections of aircraft
hangars communicating with aircraft storage or
servicing areas, heaters shall be installed not
less than 8' (2.4 m) above the floor.
• Suspended or elevated heaters shall be so
located in all spaces of aircraft hangars that they
shall not be subject to injury by aircraft, cranes,
movable scaffolding or other objects. Provisions
shall be made to assure accessibility to
suspended heaters for recurrent maintenance
purposes.
4.3 Public Garages
Installation in garages must be in accordance
with the following codes:
United States: Refer to Standard for Parking
Structures NFPA 88A - latest revision or the
Code for Motor Fuel Dispensing Facilities and
Repair Garages, NFPA 30A - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
• Heaters must not be installed less than 8'
(2.4 m) above the floor. Minimum clearances to
combustibles must be maintained from vehicles
parked belowthe heater.
• When installed over hoists, minimum
clearances to combustibles must be maintained
from the upper most point of objects on the hoist.
4.4 Electrical
The heater must be electrically grounded in
accordance with the following codes:
United States: Refer to National Electrical Code®,
NFPA 70 - latest revision. Wiring must conform to
the most current National Electrical Code®, local
ordinances and any special diagrams furnished.
Canada: Refer to Canadian Electrical Code,
CSA C22.1 Part 1 - latest revision.
4.5 Venting
The venting must be installed in accordance with
the requirements within this manual and the
following codes:
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
4.6 High Altitude
These heaters are approved for installations up
to 2000' (610 m)(US), 4500' (1370 m)(Canada)
without modification. Consult factory if US
installation is above 2000' (610 m) or Canadian
installation is above 4500' (1370 m).

SECTION 5: MAJOR COMPONENTS
11 of 59
SECTION 5: MAJOR COMPONENTS
FIGURE 13: Major Component Descriptions
Burner with Tube Gasket
Must be installed with the
flame observation window
facing down.
Reflector (Aluminum or
Stainless Steel)
Alternate overlap as shown on
overviewand on Page 17,
Figure 16. Minimum overlap is
6'' (16 cm).
Tube and Reflector Hanger
with Clamp Package
Position this hanger no more
than 4” (10 cm) away from the
burner.
CouplingAssembly with Lock
Reflector End Cap
Punch out center section to
accommodate tube.
Tube and Reflector Hanger
Suspend system from these
hangers.
Flex Gas Line with
Shut Off Cock
Tube
Hot rolled or heat treated
aluminized tube supplied in
10' (3 m) lengths.
Burner Tube
Supplied in 10' (3 m) lengths.
Burner tube is always the first
tube after the burner.
Reflector Support Strap &
Wire Form Turbulator
Turbulator must be installed in the
last standard section of tube.
Turbulator is not required on the
BH-125/150/175/200. For
installation, see Page 21, Step 6.4
Vent Adapter

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
12 of 59
5.1 Standard Parts List
*Canadian models: Rubber (Type 1) Gas Hoses available as an accessory. See Page 41.
Table 1: Contents of BH-Series Burner Carton
Part No. Description BH-40 BH-60 BH-80 BH-100BH-115BH-125BH-140BH-150BH-175BH-200
RP71XXXXXBurner(RateandFuelVaries) 1111111111
90709700BlowerAssemblywithCord 1111111111
02568200Gasket(BurnertoBurnerTube) 1111111111
90709801Gasket(BlowertoBurner) 1111111111
RPBH170101NAInstallation,OperationandServiceManual 1111111111
91201708 Pipe Nipple (Black) 1/2" NPT x 4" 1111111111
94273914HexHeadBolts5/16"-18Rolok 4444444444
96411600SplitLockWasher 4444444444
*91412200FlexibleStainlessSteelGasHose,1/2"NPT(USModelsOnly)111111----
*91412204FlexibleStainlessSteelGasHose,3/4"NPT(USModelsOnly)------1111
91907302S-Hooks 2222222222
91911700OutsideAirCollar 1111111111
94118106#8x3/8HexWasherHead(forOutsideAirCollar) 3333333333
92311800KepsNut 4444444444
03051503TurbulatorAdapter 11111-1- - -
03051504Turbulator2.5'(76cm),AluminizedSteel 24413-1- - -
03051505Turbulator2.5'(76cm),StainlessSteel 1---------
Table 2: Contents of Core and Extension Packages
Core Packages Extension Packages
Hot Rolled Aluminized Hot Rolled Aluminized
Part No. Description 20
'
(6m)
30 '
(9m)
40 '
(12m)
10 '
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
10 '
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
10 '
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
91409300 Tube, Hot Rolled Steel, 10
' (3 m) 123----1234----
91409408 Tube, HT Aluminized, 10
' (3 m) ----123----1234
03051101 Burner Tube, ALUMI-THERM
®
Steel, 10 ' (3 m) -11--11--------
03051601 Burner Tube, HT ALUMI-THERM
®
Steel, 10 ' (3 m) 1--11----------
01312700 Coupling Assembly 1 2 3 - 1 2312341234
02750303 Standard Reflector, 8
' (3.5 m) 346234623462346
02750800EndCap 2222222--------
03090100TubeandReflectorHanger 345234512341234
91907302S-Hook 345234512341234
03050010ReflectorSupportPackage(Strap,WireForm,Screws)235123523462346
91107720 U-Clip Package 111111111111111
90502700VentAdapter 1111111--------
01318901TubeClampPackage 1111111--------
Part Number
CP20HRS CP30HRS CP40HRS
CP10ALUM CP20ALUM CP30ALUM CP40ALUM
EXP10HRS EXP20HRS EXP30HRS EXP40HRS
EXP10ALUM EXP20ALUM EXP30ALUM EXP40ALUM

SECTION 5: MAJOR COMPONENTS
13 of 59
Additional tubing length may be added to heater. Tubing must be heat-treated, aluminized or porcelain
coated. Any additional tubing lengths are considered as vent length for length determination. Maximum
venting length for minimum heater length is 45' (13.7 m) total.
Table 3: BH-Series Component Package Guide
Model TubingLength Core Packages
Minimum Standard Aluminized
BH-40 10' (3 m) -CP10ALUM
BH-60 20' (6 m) CP20HRS CP20ALUM
BH-80 20' (6 m) CP20HRS CP20ALUM
BH-100 30' (9 m) CP30HRS CP30ALUM
BH-115 30' (9 m) CP30HRS CP30ALUM
BH-125 40' (12 m) CP40HRS CP40ALUM
BH-140 40' (12 m) CP40HRS CP40ALUM
BH-150 50' (15 m) CP30HRS + EXP20HRS CP30ALUM + EXP20ALUM
BH-175 50' (15 m) CP30HRS + EXP20HRS CP30ALUM + EXP20ALUM
BH-200 60' (18 m) CP30HRS + EXP30HRS CP30ALUM + EXP30ALUM

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
14 of 59
SECTION 6: HEATER INSTALLATION
To ensure your safety and comply with the terms of
the warranty, all units must be installed in
accordance with these instructions.
The gas or the electrical supply lines must not be
used to support the heater.
Do not locate the gas or electric supply lines directly
over the path of the flue products from the heater.
The heater must be installed in a location that it is
readily accessible for servicing.
The heaters must be installed in accordance with
clearances to combustibles as indicated on the rating
plate and in this instruction manual.
The minimum and maximum gas inlet pressures
must be maintained as indicated on the rating plate.
Typical installation configurations are shown on
Page 15, Figure 14.
Expansion and contraction of the tube dictates that
the minimum suspension lengths must be
maintained. See table on Page 15, Figure 14.
WARNING
Severe Injury Hazard
Secure burner to burner tube with bolts and
lockwashers.
Hang heater with materials with a minimum
working load of 75 lbs (33 kg).
Failure to follow these instructions can result
in death, injury or property damage.
WARNING
Cut/Pinch Hazard
Wear protective gear during installation,
operation and service.
Edges are sharp.
Failure to follow these instructions can result
in injury.
