SmartLock Kit Quick Setup Guide
- DX2-DH2C2
1
SmartLock_DX2DH2C2_QSG_1A_3.4.0
255-90-0006-00

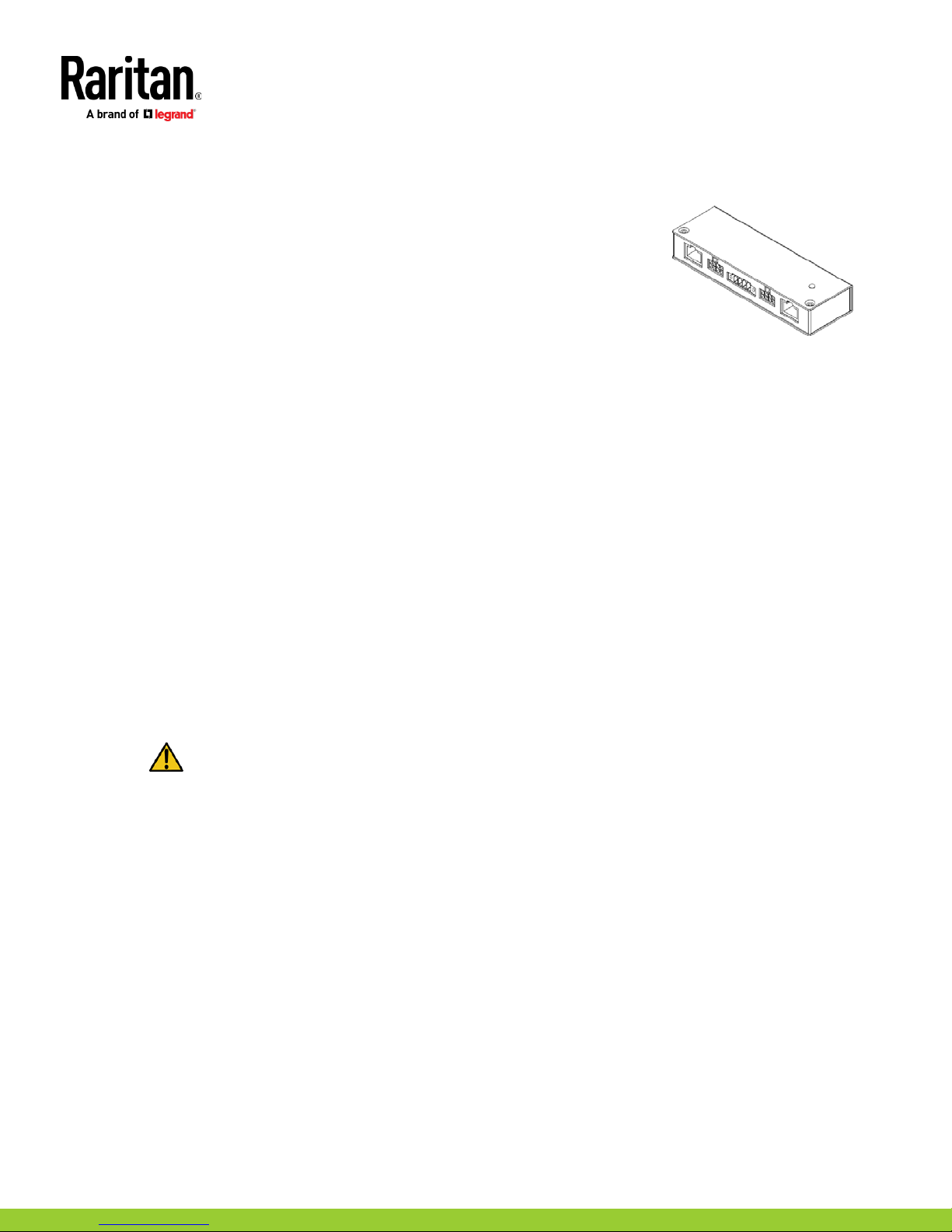

SmartLock with DX2-DH2C2
Raritan’s SmartLock is an electronic door access and control system for all types of data center enclosures.
Supported Components
DX2-DH2C2 door handle controller supports the following components:
•PDU: PX3 or PX3TS series
•Xerus 3.4.0 and up
•Door handles:
Emka Agent E
Emka 1150-U5x
Southco H3-EM-67-100 with integrated card reader: supports MIFARE Classic, MF DESFire, HID iClass cards, up to 7 bytes
UID
Southco H3-EM-66-100 with integrated card reader: supports MIFARE Classic, MF DESFire cards
Restrictions for DX2-DH2C2
•Max. of 1 DX2-DH2C2 with up to 2 electronic door handles per PX3 Sensor port
•Max. cable length PDU to DX2-DH2C2: 5m
•Max. cable length DX2-DH2C2 to door handle: 4m
•No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are
powered. Risk of equipment damage.
SMARTLOCK QUICK SETUP GUIDE
MODEL NUMBER: DX2-
DH2C2
COMPATIBILITY: PX3, PX3TS

SmartLock Kit Quick Setup Guide
- DX2-DH2C2
2
SmartLock_DX2DH2C2_QSG_1A_3.4.0
255-90-0006-00
DX2-DH2C2 Installation with PX3
SENSOR I/0
RJ-45 ports
Connect to PX3 or PX3TS Sensor Port:
DOOR HANDLE 1 - DOOR HANDLE 2
Electronic door handle ports
Use wiring provided with your door handles.
Connect the 8-pin connector end to the door handle port.
CONTACT CLOSURE
Contact closure sensor channels
CC sensors and wiring not included.
Connect CC sensors according to their instructions.

SmartLock Kit Quick Setup Guide
- DX2-DH2C2
3
SmartLock_DX2DH2C2_QSG_1A_3.4.0
255-90-0006-00
Next Steps
Login to your PX PDU to use door handle features in the web interface, or access using CLI.
More Info
Raritan Product Support:
https://www.raritan.com/support/product/px3
