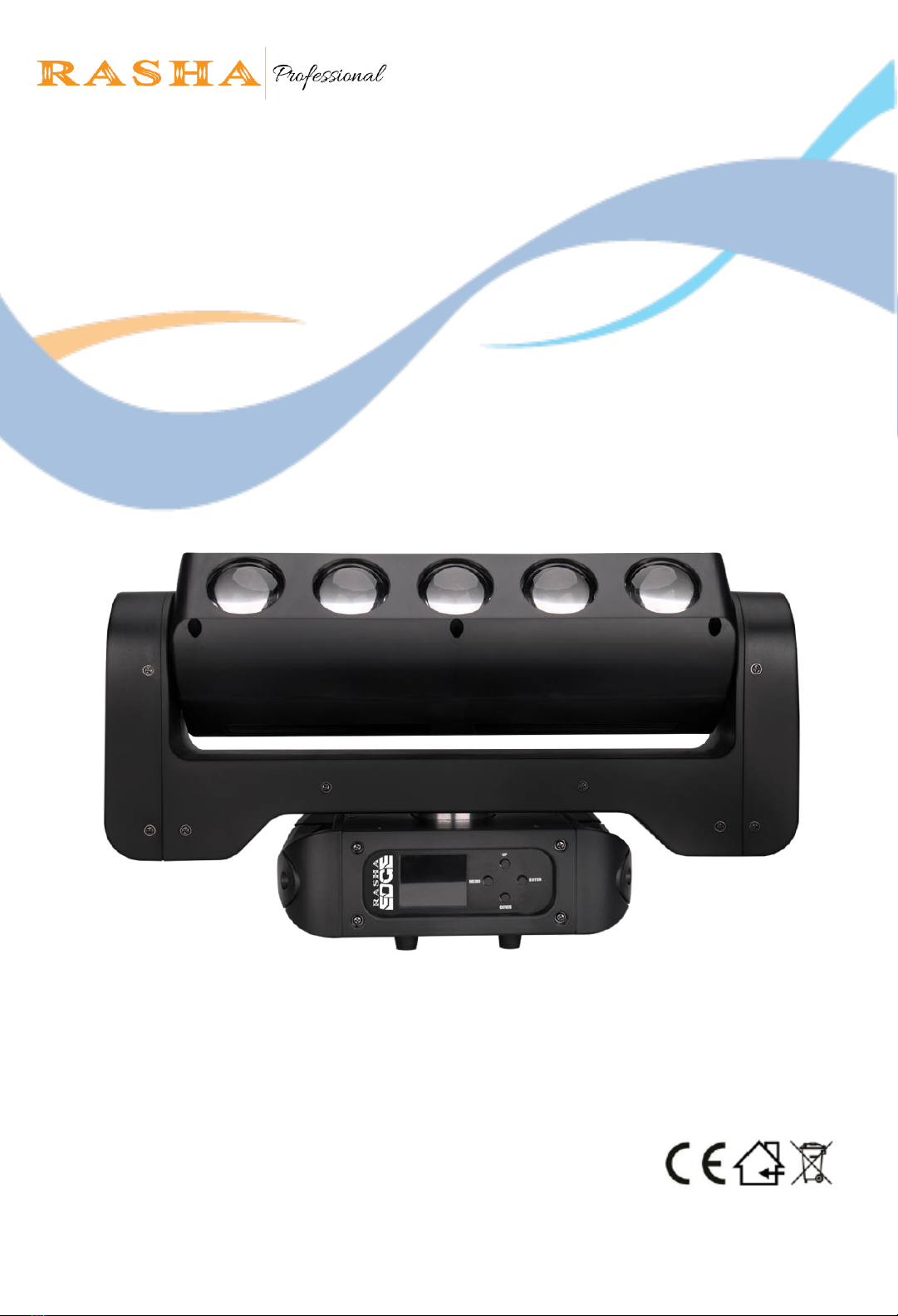

RASHA PROFESSIONAL A/S Owner's manual

QUICK USER MANUAL
RASHA PROFESSIONAL A/S
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail] 1
User Manual
Please read this user manual before using this product.

2
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
I. Checking before Using
No.
Items
Quantity
Unit
1
Edge
1Pc
2
Hanging Bracket
2 Pcs
3
Power Cable
1Pc
4
User Manual
1Pc
5
Hook
Optional
6
Safety Wire
7
DMX Cable
1. When opening the packing, take all accessories out, and remove the light to a
horizontal table for good operation. First check whether the accessories are
complete, then check carefully whether the whole light has no damage. If there is
any damage, please contact us as soon as possible.
2. AC Power: Check whether the local power supply is accordance with the
requirements of the product rated voltage.3.The product is only suitable for indoor
working environment. The light should keep dry, keep away from wet, overheat or
dusty environment. Don't come into contact with water and other liquids to prevent
or reduce the risk of electric shock or fire.
3.The product is only suitable for indoor working environment. The light should keep
dry, keep away from wet, overheat or dusty environment. Don't come into contact
with water and other liquids to prevent or reduce the risk of electric shock or fire.
4. Please do not install the light directly on the surface of the combustible
substance. 5. The people who install, operate and maintain of light professional
certificate required.
6. When there are faults of the light, please stop using the light immediately. Don't
try to repair, please contact the nearest authorized technical assistance center, if the
parts damage, always use the same type of parts replaced.
7. Don't touch any electrical wiring in the process of operation to prevent the
risk of electric shock.

3
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
8. To make sure the light working environment temperature, the highest do not
exceed 40℃，the lowest do not exceed - 20 ℃.
9. Under the stable cooling working situation, the highest temperature of the
housing of the light can reach 80 ℃, please do not touch.
10. The light is design according to the type of electric shock protection. The light
should be use in good connection grounding power system and the earth sign port
of the light should be connected to the installing fixtures.
11.Do not use the damage of the insulating layer wire and also do not use the
power cord overlap on the other wire. When not in use or clean the light, please
disconnect the power, don't pull the plug in hard or just drag the wires.
12. There are no components inside for maintenance. Before start operation the
light, please check whether all of the shell is installed. In the case of the shell open
used the light is prohibited. Note: Under any installation, maintenance and clean the
light, please confirm that has cut off the power cord!
II. Safety Instruction
★For security reasons and in accordance with the term’s, reassemble or modify the
product is not allowed without permission. Please note that due to human damage caused
by improper use of the product, will break the warranty qualification. Moreover, the
unprofessional operation may lead to short circuits, burns or electric shock, and so on.
★This device has been full inspection before shipping. For your safety, please operate it
according the User Manual.
★If any damage caused by improper operation will result in the termination of the
warranty claims. The manufacturer does not accept any responsibility of property damage
due to improper operation or personal injury due to non-compliance with the operating
instructions.
★Keep the manual in a safe place for future reference as well as after the product sale,
lease, etc..
★Note: Based on product improvements, specification may change without notice.
Changes in product specifications related rights will be reserved.

4
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
III. Product Specification
1.Built-in Master/Slave, DMX, Sound Active, powerful effects mode.
2.LCD 2.4 inch TFT LCD screen, easy to operate.
3.Suitable for discotheques, clubs, bars, parties, mobile DJs, concerts and more.
4.DMX Channel: 16CH, 21CH and 36CH.
5.Four Operational Modes: Sound (Audio) Active, Show Mode, DMX, Master /
Slave;
6.Unlimited rotation, X/Y 360 ° infinite rotation.
7.Voltage: AC100-240V 50-60Hz.
8.Fuse: F5AL250V.
9.Power Consumption: P = 300W
10. light source: 5*40W RGBW 4in1, 250*0.2W RGB strobe.
11. Net weight: 11kg
12. Size: 51.5 * 18.0 * 28.2cm
13. Lumine
LED Color @1M
Beam
Unit
1 Pcs 40W LED
1R 8200
6 LUX
1G 15000
1B 19000
1W 20000
1RGBW 56000
250*0.2W RGB
Strobe
R165
G430
B400
RGB 930

5
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
IV. Function Instruction
Item SO Silkscreen Function
Button
1 Menu
Enter/Check Menu
2Up
Check the Last Menu
3 Down
Check the Next Menu
4 Enter
Enter the Menu or Confirm
V. LCD Display Main Function
System Settings
Menu 1 Menu 2 Menu 3
Function
DMX Address 512
001 -512
DMX Address Code
DMX Mode
CH-16
16 DMX Channel
CH-21
21 DMX Channel
CH-36
36 DMX Channel
Auto Mode
Show Mode Auto 0
Random Shoe
Auto 1-4
Show 1
-4
Show Speed 01 -99
Slow Fast
Sound Mode Off
Sound Open
On
Sound Close
Speed 00 - 99 00 -99
Sound Sensitivity

6
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
System Settings
Menu 1 Menu 2 Menu 3
Function
Slave Mode Slave 1
Slave 1
Slave 2
Slave 2
Advanced Settings
Reset No/Yes
Reset, No/Yes
Pan Invert No/Yes
Pan inverse, No/Yes
Tilt Invert No/Yes
Tilt inverse, No/Yes
Display Off/On
LCD Switch, Off/On
Display Inverse
No/Yes
Display Inverse No
Language English
English
Chinese
Chinese
DMX Fail, No DMX
Auto
Auto
Black
Black
Hold
Hold
Soft Ware V1.0
V1.0
VI. How to Operation (Here are 2 Ways to Operate)
1. Master/slave build-in program to control
2. DMX controller
A. Main and auxiliary functions
All lamps and lanterns are initially installed on the main machine, and the
lamps and lanterns are connected in series. You can also specify one for the host
and the rest for slave.
VII. DMX Controller
If controlled by DMX controller, you need to set the DMX address code to control
the light, the address code value is between 1-512, then the light will receive the
signal accordingly.
Press MENU button, select Address menu, press ENTER button, address will
strobe. Use △/▽to select DMX512 address, our factory value set as “Address
001”. After setting DMX address, press ENTER button.

7
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]

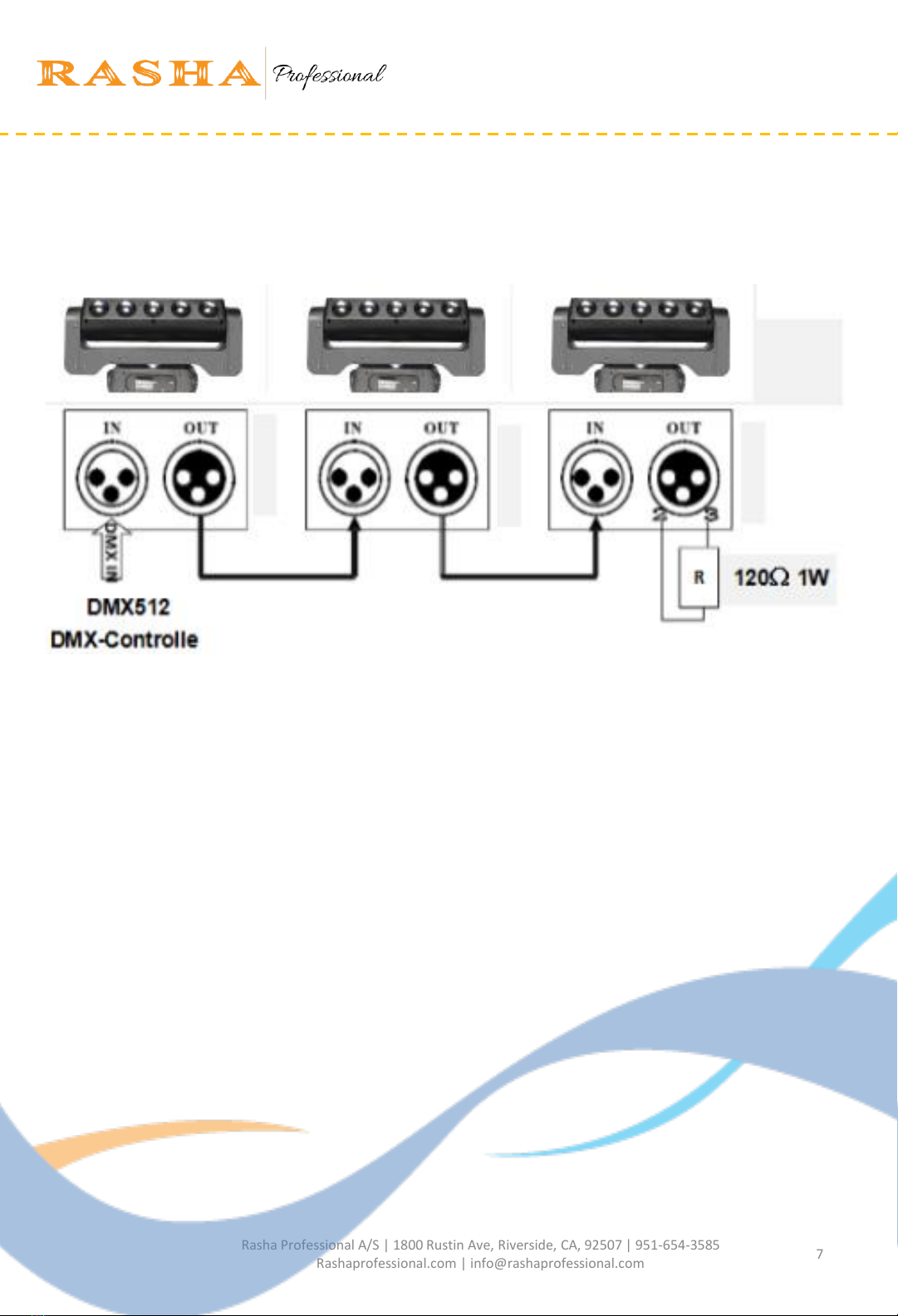

Connect the DMX512 console output port to the first slave device DMX input, and
connect the first slave device DMX output signal to the second slave device DMX input
signal, until all slave connections are complete.
During the installation, if the signal line is too long, or in relatively noisy electrical
environments, such as dance halls, we recommend using DMX terminator (circuit
connection). It can avoided the control signal turbidity due to electrical noise.
DMX terminal is connected by a simple XLR head (2-pin and 3-pin) connecting a 120Ω
resistor, please set the terminal into the final device output port, please refer to the
diagram.

8
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
VIII. Specification
Physical
Weight
11.3kg (24.9 lbs)
Dimensions
539.75x184.15x323.85 mm
(21.25x7.25x12.75 in)
Dynamic Effeects
Color Mixing
RGBW & RGB
Pan/Tilt
Unlimited Rotation,X/Y 360u00ba
Infinite Rotation
Electronic Dimming
0
-
100%, Four Dimming Curve Options
Tilt Speed
Adjustable Via on
-
board Control Panel
& DMX
Stobe & Pluse Effect
Variable Speed, Random Strobe
Optics
Light Source
5x40W RGBW & 250x.2W RGB Strobe
Minimum LED
Lifetime
50,000 Hrs(>70% Luminous Output )*
*Obtained under Manufactures test conditions
Control & Programming
Control Options
DMX, Master/Slave, Sound Active &
Show Mode
DMX Channels
16,21 & 36 Ch
Setting, Addressing
& Pro.
Control Panel with LCD
Protocol
USITT DMX 512/1990 or DMX512
Universal
Trans
-Reciver RS-
485
Stand
-
Alone Trigger
Option
Auto Trig, Sound Trig
Construction
Color
Black
Housing
UV-Resistant Fiber-
Reinorced
Composite/Thermal
Reflector
High Precious Optical Lens
Protection Rating
IP20
Electrical
Power Consumption
300W
Power Supply Unit
Auto-Ranging Electronic Switch-
Mode
AC Power Input
Powercon In
AC Power Through
Put
Powercon Out
DMX Data In/Out
3-
Pin Locking XLR
Fuse
F5AL250V
Approval
EU Safety / EU EMC
EN 60598
-2-17/EN 55015, EN 55103-
1,
EN 61547
Canadian Safety (US
Model)
UL 1573/ FCC Part 15 Class A
Included Items
Omega Clamp
Bracket
P/N 890505
Power Input Cable
5ft with PowerCon
Blue Connector
P/N 890507
DMX Input Cable
5ft with 3 Pin
P/N 890508
Accessories
Wireless DMX
Transmitter*
P/N 920101
Safety Wire*
P/N 890110
Road Case 2 in 1*
P/N 816102
*All Accessories Sold Separately
Installation
Mounting
Surface or Truss Mount / Free
Standing
Orientation
Any
Location
Indoor Use Only
Thermal
Maximum Ambient
Temperature (Ta
Max.)
50° C (122°
F)
Minimum Ambient
Temperature (Ta
Min.)
0°C (32°
F)
Cooling System
Internal Cooling Fan
Ordering Information
Edge in Card Board
Box
P/N 816100
Edge Road Case 2
in 1
P/N 816102

9
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
IX. Channel (Select DMX address 001 default address)
(Schedule 1) DMX Channel (16 CH) –(DMX Address 001)
CH Value Function
CH1 000 -255
Tilt movement,540
°Adjustable
Pan
CH2 000 -255
Speed fast
-slow
CH3
000 -049
No Function
050 -149
Anticlockwise unlimited rotation,
150 -255
Stop rotation
156 -255
Clockwise unlimited rotation
CH4 000 -255
Tilt movement,360
°Adjustable
CH5 000 -255
Move speed fast
-slow
CH6
000 -049
No Function
Tilt
050 -149
Unlimited rotation (Down), Fast Slow
150 -155
Stop rotation
156 -255
Unlimited rotation (up), Slow
-Fast
CH7 000 -255
Brightness 0
-100% Dimmer
CH8 000 -255
Red linear dimmer 0
- 100%
40W LED
CH9 000 -255
Green linear dimmer 0
- 100%
CH10 000 -255
Blue linear dimmer 0
-100%
CH11 000 -255
White linear dimmer 0
-100%
CH12 000 -255
Red linear dimmer 0
- 100%
SMD RGBCH13 000 -255
Green linear dimmer 0
- 100%
CH14 000 -255
Blue linear dimmer 0
-100%
CH15
000 -007
LED Open
LED Switch /
Strobe
008 -015
LED Close
016 -131
Strobe, Slow to fast, 1
-25Hz
132 -139
LED Open
140 -181
LED quick slow off, slow
-fast
182 -189
LED Open
190 -231
LED quick off slow on, slow
-fast
232 -239
LED Open
240 -247
Random Strobe
248 -255
LED Open
CH16
000 -199
No Function
Reset
200 -209
Automatic reset after 3S
210 -255
No function

10
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
(Schedule 2) DMX Channel (21 CH) –(DMX Address 001)
CH Value Function
CH1 000 -255
Tilt movement,540
°Adjustable
Pan
CH2 000 -255
Speed fast
-slow
CH3 000 -255
X fine
CH4
000 -049
No Function
050 -149
Anticlockwise unlimited rotation,
150 -155
Stop rotation
156 -255
Clockwise unlimited rotation
CH5 000 -255
Tilt movement,360
°Adjustable
Tilt
CH6 000 -255
Move speed fast
-slow
CH7 000 -255
Y fine
CH8
000 -049
No Function
050 -149
Unlimited rotation (Down), Fast Slow
150 -155
Stop rotation
156 -255
Unlimited rotation (up), Slow
-Fast
CH9 000 -255
Brightness 0
-100% Dimmer
CH10 000 -255
LED1 static dimmer
40W LED
CH11 000 -255
LED2 Static dimmer
CH12 000 -255
LED3 static dimmer
CH13 000 -255
LED4 static dimmer
CH14 000 -255
LED5 static dimmer
CH15 000 -255
Red linear dimmer 0
- 100%
SMD RGB
CH16 000 -255
Green linear dimmer 0
- 100%
CH17 000 -255
Blue linear dimmer 0
-100%
CH18
000 -007
LED Open
LED Switch
/ Strobe
008 -015
LED Close
016 -131
Strobe, Slow to fast, 1
-25Hz
132 -139
LED Open
140 -181
LED quick slow off, slow
-fast
182 -189
LED Open
190 -231
LED quick off slow on, slow
-fast
232 -239
LED Open
240 -247
Random Strobe
248 -255
LED Open

11
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
CH19
000
-007
No Function
Show /
Sound
Active
008
-022
Show 1
023
-037
Show 2
038
-052
Show 3
053
-067
Show 4
068
-082
Show 5
083
-097
Show 6
098
-112
Show 7
113
-127
Show 8
128
-142
Show 9
143
-157
Show 10
158
-172
Show 11
173
-187
Show 12
188
-202
Show 13
203
-217
Show 14
218
-232
Show 15
233
-247
Show 16
248
-255
Sound active
CH20
000
-127
Show speed, Slow
-fast
Speed/Soun
d Switch
128
-240
Sound close
241
-255
Sound open
CH21
000
-199
No Function
Reset
200
-209
Automatic reset after 3S
210
-255
No Function

12
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
(Schedule 3) DMX Channel (36 CH) –(DMX Address 001)
CH Value Function
CH1 000 -255
Tilt movement,540
°Adjustable
Pan
CH2 000 -255
Move Speed, Fast
-Slow
CH3 000 -255
X fine
CH4 000 -255
Unlimited rotation
CH5 000 -255
Tilt movement, 360
°adjustable
Tilt
CH6 000 -255
Move Speed, Fast
-Slow
CH7 000 -255
Y fine
CH8 000 -255
Unlimited rotation
CH9 000 -255
Brightness 0
- 100% Dimmer
CH10 000 -255
R1 dimmer 0
-100%
LED1
CH11 000 -255
G1 dimmer 0
- 100%
CH12 000 -255
B1 dimmer 0
-100%
CH13 000 -255
W1 dimmer 0
- 100%
CH14 000 -255
R2 dimmer 0
-100%
LED2
CH15 000 -255
G2 dimmer 0
-100%
CH16 000 -255
B2 dimmer 0
-100%
CH17 000 -255
W2 dimmer 0
-100%
CH18 0 -255
R3 dimmer,0
-100%
LED3
CH19 0 -255
G3 dimmer,0
-100%
CH20 0 -255
B3 dimmer,0
-100%
CH21 0 -255
W3 dimmer,0
-100%
CH22 0 -255
R4 dimmer,0
-100%
LED4
CH23 0 -255
G4 dimmer,0
-100%
CH24 0 -255
B4 dimmer,0
-100%
CH25 0 -255
W4 dimmer,0
-100%
CH26 0 -255
R5 dimmer,0
-100%
LED5
CH27 0 -255
G5 dimmer,0
-100%
CH28 0 -255
B5 dimmer,0
-100%
CH29 0 -255
W5 dimmer,0
-100%
CH30 0 -255
Red linear dimmer,0
-100%
SMDCH31 0 -255
Green linear dimmer,0
-100%
CH32 0 -255
Blue linear dimmer,0
-100%%

13
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
CH33
000 -007
LED open
LED Switch/
Strobe
008 -015
LED close
016 -131
Strobe, slow to fast, 1
-25Hz
132 -139
LED open
140 -181
LED quick on slow off, slow
-fast
182 -189
LED open
190 -231
LED quick off slow on, slow
-fast
232 -239
LED open
240 -247
Random strobe
248 -255
LED open
CH34
000 -007
No function
Show/Sound
active
008 -022
Show 1
023 -037
Show 2
038 -052
Show 3
053 -067
Show 4
068 -082
Show 5
083 -097
Show 6
098 -112
Show 7
113 -127
Show 8
128 -142
Show 9
143 -157
Show 10
158 -172
Show 11
173 -187
Show 12
188 -202
Show 13
203 -217
Show 14
218 -232
Show 15
233 -
247
Show 16
248 -255
Sound Active
CH35
000 -127
Show Speed, Slow
- Fast Speed /
Sound
Switch
128 -
240
Sound Close
241 -255
Sound open
CH36
000 -199
No Function
Reset200 -209
Automatic reset after 3S
210 -255
No Function

14
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
X. Product Care & Clean
Please pay attention to the following points when testing this product:
★All screws and components of the installed product must be tightly connected and
cannot be rusted;
★The outer casing, lens, fixing parts and installation location (such as ceiling, hanger,
truss, etc.) cannot be deformed;
★The power cord must not be damaged.
The installation and use of the product must be carried out by trained professional
technicians, and it must be ensured that safety hazards are eliminated.
It is important to keep the fixture clean, not only to keep the light output at maximum
brightness, but also to extend its service life. It is recommended to use high-quality
professional glass cleaner and a soft cloth to clean, any alcohol or chemical solvents is
not allowed during the cleaning. The inside of the lamp and the fan should be cleaned
by vacuum cleaner at least one time quarterly.

15
Rasha Professional A/S | 1800 Rustin Ave, Riverside, CA, 92507 | 951-654-3585
Rashaprofessional.com | [e-mail]
Notes:
