RASHA PROFESSIONAL Kryos Owner's manual

QUICK USER MANUAL
RASHA PROFESSIONAL A/S
Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
1

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
2
Edition Notes
The Kryos™, User Manual Rev. 1 covers the description,
safety precautions, installation, programming, operation,
and maintenance of the Kryos™. Rasha released this
edition of the Kryos™ User Manual in February 2017.
Trademarks
Rasha®is a registered trademark of RASHA
PROFESSIONAL A/S. (d/b/a RASHA®or Rasha). The
RASHA® logo in its entirety including the RASHA®name
and the Globe wiht Rings, and all other trademarks in this
manual pertaining to services, products, or marketing
statements are owned or licensed by RASHA®. Any other
product names, logos, brands, company names, and other
trademarks featured or referred to within this document
are the property of their respective trademark holders.
Copyright
Notice
RASHA owns the content of this User Manual in its
entirety, including but not limited to pictures, logos,
trademarks, and resources. © Copyright 2015 RASHA. All
rights reserved. Electronically published by Rasha in the
United States of America.
Manual Use
Rasha authorizes its customers to download and print this
manual for professional information purposes only. Rasha
expressly prohibits the usage, copy, storage, distribution,
modication, or printing of this manual or its content for
any other purpose without written consent from Rasha.
Document
Printing
For better results, print this document in color, on letter
size paper (8.5 x 11 in), double-sided. If using A4 paper
(210 x 297 mm), congure your printer to scale the content
accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or
maintaining this product should completely read through
the guide that shipped with the product, as well as this
manual, before installing, operating, or maintaining this
product.
Document
Revision
The Kryos™ User Manual Rev. 1 supersedes all previous
versions of this manual. Discard any older versions of
this manual and replace with this version. Go to www.
rashaprofessional.com for the latest version.
Author Date Editor Date
Robert Becerra 2/13/17

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
3
Table of Contents
1. Before You Begin................................. 4
What Is Included .................................. 4
Claims .................................................. 4
Manual Conventions ............................ 4
Symbols ............................................... 4
Safety Notes......................................... 5
Personal Safety.................................... 5
Mounting And Rigging .......................... 5
Power And Wiring................................. 5
Operation ............................................. 5
Chapter 1
2. Installation and attention.................... 1
1. Maintenance ................................... 1
2. Statement ....................................... 1
3. Safety Precaution ........................... 1
4. Product Instruction.......................... 2
5. Cable connection (DMX)................. 3
6. Rigging (Optional)........................... 3
Chapter 2
3. Panel operation.................................... 5
1. Brief ................................................ 5
2. Operation ........................................ 5
1. Operate light ............................... 5
2. Parameter value setting.............. 6
3. Parameter setting ....................... 6
4. Sub Menu (Parameter) ............... 7
3. Parameter instruction...................... 7
1. Set DMX Address ....................... 7
2. Set Light work mode ................... 8
3. Set display .................................. 9
4. Test light.................................... 10
5. Set light run parameter ..............11
6. View status ................................11
Chapter 3
4. Channel description Channel table . 13
1. Channel Detail .............................. 19
1. PAN/TILT................................... 22
2. GOBO ....................................... 23
3. COLOR ..................................... 25
4. Prism......................................... 26
5. Prism Rotation .......................... 26
6. Frost Effect ............................... 26
7. Zoom/Focus.............................. 26
8. Strobe/Flash ............................. 27
9. Dimmer ..................................... 27
10. Reset & lamp .......................... 27
11. Extend Channel ...................... 28
6. Technical specications ................... 29
Returns ............................................. 30
Contact us......................................... 31

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
4
What Is
Included
• Rasha Kryos™
• Nutrix Power Cord
• DMX Cable
• Quick reference guide
Claims
Carefully unpack the product immediately and check the
box to make sure all the parts are in the package are in
good condition. If the box or the contents (the product and
included accessories) appear damaged from shipping or
show signs of mishandling, notify the carrier immediately,
not Rasha. Failure to report damage to the carrier
immediately may Void your claim. In addition, keep the
box and contents for inspection.
For other issues, such as missing components or parts,
damage not related to shipping, or concealed damage, le
a claim with Rasha within 7 days of delivery.
Manual
Conventions
Convention Meaning
1–512 DMX value range in number
50/60 A set of mutually exclusive values in the text
<SET> A button on the product’s control panel
Settings A product function or a menu option
0-512 A sequence of menu options
1-10 A range of menu values from which to choose in a menu
Yes/No A set of two mutually exclusive menu options in a menu
ON A unique value to be entered or selected in a menu
Symbols
Symbols Meaning
The term “DMX” used throughout this manual refers to the DMX512 digital
data transmission protocol

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
5
Safety Notes
Read all the following Safety Notes before working with this product. These
notes include important information about the installation, usage, and
maintenance of this product. This product contains no user-serviceable
parts. Any reference to servicing in this User Manual will only apply to
properly trained Rasha certied technicians. Do not open the housing or
attempt any repairs. All applicable local codes and regulations apply to
proper installation of this product.
Personal
Safety
Avoid direct eye exposure to the light source while the product is on. Always
disconnect this product from its power source before servicing. Always
connect this product to a grounded circuit to avoid the risk of electrocution.
Do not touch this product’s housing during operation because it may be
very hot.
Rigging
This product is for indoor use only! To prevent risk of re or shock, do
not expose this product to rain or moisture. (IP20) CAUTION: When
transferring product from extreme temperature environments, (e.g. cold
truck to warm humid ballroom) condensation may form on the internal
electronics of the product. To avoid causing a failure, allow product
to fully acclimate to the surrounding environment before connecting it
to power. Mount this product in a location with adequate ventilation,
at least 20 in (50 cm) from adjacent surfaces. Make sure there are
n o  a m m a b l e m a t e r i a l s c l o s e t o t h i s p r o d u c t w h i l e i t i s o p e r a t i n g .
Always carry this product by the handles. Do not carry from the head.
When hanging this product, always secure to a fastening device using a
safety cable.
Power And
Wiring
Always make sure you are connecting this product to the proper voltage
in accordance with the specications in this manual or on the product’s
specication label. Never connect this product to a dimmer pack or
rheostat. Never disconnect this product by pulling or tugging on the power
cable.
Operation
Do not operate this product if you see damage to the housing, lenses,
or cables. Have the damaged parts replaced by an authorized technician
at once. To eliminate unnecessary wear and improve its lifespan, during
periods of non-use completely disconnect the product from power via
breaker or by unplugging it. Do not cover the ventilation slots when
operating to avoid internal overheating. Do not aim this product toward
the Sun. The lenses could concentrate the solar energy and cause internal
overheating. The maximum ambient temperature is 113 °F (45 °C). Do
not operate this product at a higher temperature. In case of a serious
operating problem, stop using this product immediately!
Use on Dimmer Auto Programs
Outdoor Use Auto-Ranging Power Supply
Sound-Activated Replaceable Fuse
DMX User-Serviceable
Master/Slave
The term “DMX” used throughout this manual refers to the DMX512 digital data
transmission protocol

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
6
Features • 230W HRI Metal halide lamps
• Brightest smooth beam, gobo, prism, rotating gobo wheel, gobo shake,
strobe and iris
• Battery-powered TFT touch screen display and jog wheel navigation
• Electronic ballast, fast lamp re-strike and icker free light
• Interchangeable 8/16-facet rotating and indexable prism
• Mechanical and electronic strobe effect 2 - 10 Hz, pulse effects,
• Display lamp & light using time
• Built-in wireless DMX receiver(Optional)
Description
The Kryos™ features the revolutionary Philips® Platinum 7R discharge
lamp technology (8500°K, 2,000 hr). The Kryos™ produces a perfectly
parallel, laser-like beam, mid-air effects with an incredible output. It also
offers a at, even spot eld and even more saturation of colours. Kryos™
has adopted the compact form, impressive speed, superior light quality
and beautiful colors.it is much lighter in weight and more compact than
other moving heads in its class. It’s very tight; 3-degree beam with extreme
output makes it ideal for applications where a small beam is necessary.
Kryos™ available in a shiny mirror-nish chrome version, adding glamour
to sets while making lights a less invasive presence.
INTRODUCTION

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
7
OVERVIEW

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
8
SETUP
Power Supply
Each Kryos™ has an auto-ranging power supply that works with an
input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power
requirements for each Kryos™ refer to the label afxed to the product.
You can also refer to the Technical Specications chart in this manual.
The listed current rating indicates the maximum current draw during
normal operation. For more information, you may download Sizing Circuit
Breakers from the Rasha website: www.rashaprofessional.com

Always connect this product to a protected circuit with an appropriate
electrical ground to avoid the risk of electrocution or re. To eliminate
unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect this product to a rheostat (variable resistor) or dimmer
circuit, even if the rheostat or dimmer channel serves only as a 0 to 100%
switch.
AC Plug
The Kryos™ comes with a power input cord terminated with a Neutrik®
powerCON®A connector on one end and an Edison plug on the other end
(U.S. market). If the power input cord that came with your product has no
plug, or if you need to change the Edison plug, use the table below to wire
the new plug.
Fuse
Replacement
1. Disconnect this product from the power outlet.
2. Using a at-head screwdriver, lift the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a another fuse of the same
type and rating (T 5 A).
4. press the fuse holder cap back in place and reconnect power.
Make sure to disconnect the product’s power cord before replacing a
blown fuse. Always replace the blown fuse with another of the same type
and rating
Power Linking
You can link 22 Fixtures @ 110V and 33 xtures @ 220V.
DMX
Personalities
• The Kryos™ uses a 3- or 5-pin DMX data connection for the 7 or 12
channel DMX personalities.
• Refer to the Introduction chapter for a brief description of each DMX
personality.
• Refer to the Operation chapter to learn how to congure the Kryos™ to
work in these personalities.
• The DMX Values section provides you with detailed information regarding
the DMX personalities
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity,
or the DMX cables needed to link this product to a DMX controller, download the DMX Handbook from
the Rasha website: www.rashaprofessional.com

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
9
Before mounting this product, read and follow the Safety Notes. For our
Rasha®Professional line of mounting clamps, go to
http://rashaprofessional.com/en/accesories
Orientation Always mount this product in a safe position and make sure there is
adequate room for ventilation, conguration, and maintenance
Rigging
Rasha recommends using the following general guidelines when mounting
this product.
• When selecting an installation location, consider easy access to
this product for operation, programming adjustments, and routine
maintenance.
• Make sure to mount this product away from any ammable material as
indicated in the Safety Notes.
• Never mount in places where rain, high humidity, extreme temperature
changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can
support the product’s weight. See the Technical Specications for the
weight-bearing requirements of this product.
• When hanging this product, always secure to a fastening device using
a safety cable.
Procedures
The Kryos™ comes with a preinstalled mounting surface to which you will
be able to attach most of our clamps found at www.rashaprofessional.com/
en/accesories. Make sure the clamps are capable of supporting the weight
of this product. Use at least 1 mounting point per product. In addition, use
a safety cable to link the product to the structure.
MOUNTING

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
10
Chapter 1 Installation and attention
1. MAINTENANCE
To reduce the risk of electrical shock or re, do not expose this unit to rain or moisture.
Intermittently using will extend this item’s service life.
Please clear the fan, fan net and optical lens in order to keep good work state.
Do not use the alcohol or any other organic solvent to wipe the shell.
2. STATEMENT
The product has perfect performance and integrity packing. All users should be strictly
complying with the warning and operating instructions as stated. Or we aren’t in charge
of any result by misusing. Any damage resulting by misuse is not within the Company’s
warranty. Any fault or problem caused by neglecting the manual is also not in the
charge of dealers.
Note: All information is subject to change without prior notice.
3. SAFETY PRECAUTION
• In order to guarantee the product’s life, please don’t put it in the damp places or
even the environment over 60º.
• Always mount this unit in safe and stable matter.
• Install or dismantle should operate by professional engineer.
• Using lamp, the change rate of power voltage should be within±10%, If the
voltage is too high, it will shorten the light’s life; If it’s not enough, will inuence
the effect.
• Please restart it 20 minutes later after turning off light , until full-cooling. Frequent
switching will reduce the life span of lamps and bulbs; intermittent using will
improve the life of bulbs and lamps. In order to make sure the product is
used well, please read the Manual carefully.
4. PRODUCT INSTRUCTION
• LampOsram Dual head metal lamp 230W 7R
• (life:200 hours Color temperature: 8500K)
• Channel mode:20 DMX512 Channel
• Pan scan: 540°(16bit) Electric correction
• Tilt scan: 270° (16bit) Electric correction
• Amazing dot matrix, four tact switch, 180° turning show
• Color wheel: one color wheel, 14 kinds of color chips in one color wheel
• Gobo: 17 gobos
• Effect Wheel: Rotation eight prism, effect move , frost

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
11
• 0-100% mechanical dimming, mechanical dimming and free dimming available.
• strobe macro control available.
• Lens optical system mechanical focus .beam angle 0-4°
• Over heat protection
• Power Input: 100-240V/50/60Hz
• Power Dissipation: 350W
• IP level :IP20
• Magnetic ballast and AC/Dc power supply
• Product Size:523×337×511mm
• Packing Size: 635X440X725
• Net weight: 19.5KG
5. CABLE CONNECTION (DMX)
Use a cable conforming to specications EIA RS-485: 2-pole twisted, shielded, 120Ohm
characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or
other cable with characteristics differing from those specied. The end connections
must be made using XLR type 3 or 5-pin male/female connectors. A terminating plug
must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W)
between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal
casing of the connectors. The casing itself must be connected to the shield braid
and to pin 1 of the connectors.
Figure DMX Cable connection
DMX512
DMX512
3 Pin
DMX512
5 Pin
1. Screen
2. – Signal
3. +Signal
5 2
3
24
2 1
3
1. Screen
2. – Signal
3. +Signal

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
12
6. RIGGING (OPTIONAL)
This equipment can be positioned and xed by clamps in various direction of the stage.
Locking system makes it easy to fasten to the bracket.
Attention! Two clamps is needed to x the equipment. Every clamp is locked by
fastener of 1/4 kind. Fastener can only be locked clockwise.
Attention! Fasten a safety cable to the additional hole of side aluminum piece.
The secondary accessory cannot hang on the delivery handle.
Check if rigging clamp (not including the one inside) damaged or not? If stand ten times
weight as the equipment. Make sure the architecture can stand ten times weight as all
the equipments, clamps, wirings and other additional xtures.
• Screws for clamping must be xed rmly. Take one M12 screw (Grade 8.8 or
higher) to clamp bracket, and then screw the nuts.
• Level the two hanging points at the bottom of clamp. Insert fastener to the bottom,
lock the two levers by 1/4 rotating clockwise; then install another clamp.
• Install on safety string which stands at least ten times weight as equipment.
Terminal of the accessory is designed for clamps.
• Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from
equipment to ammable material or lighting source.

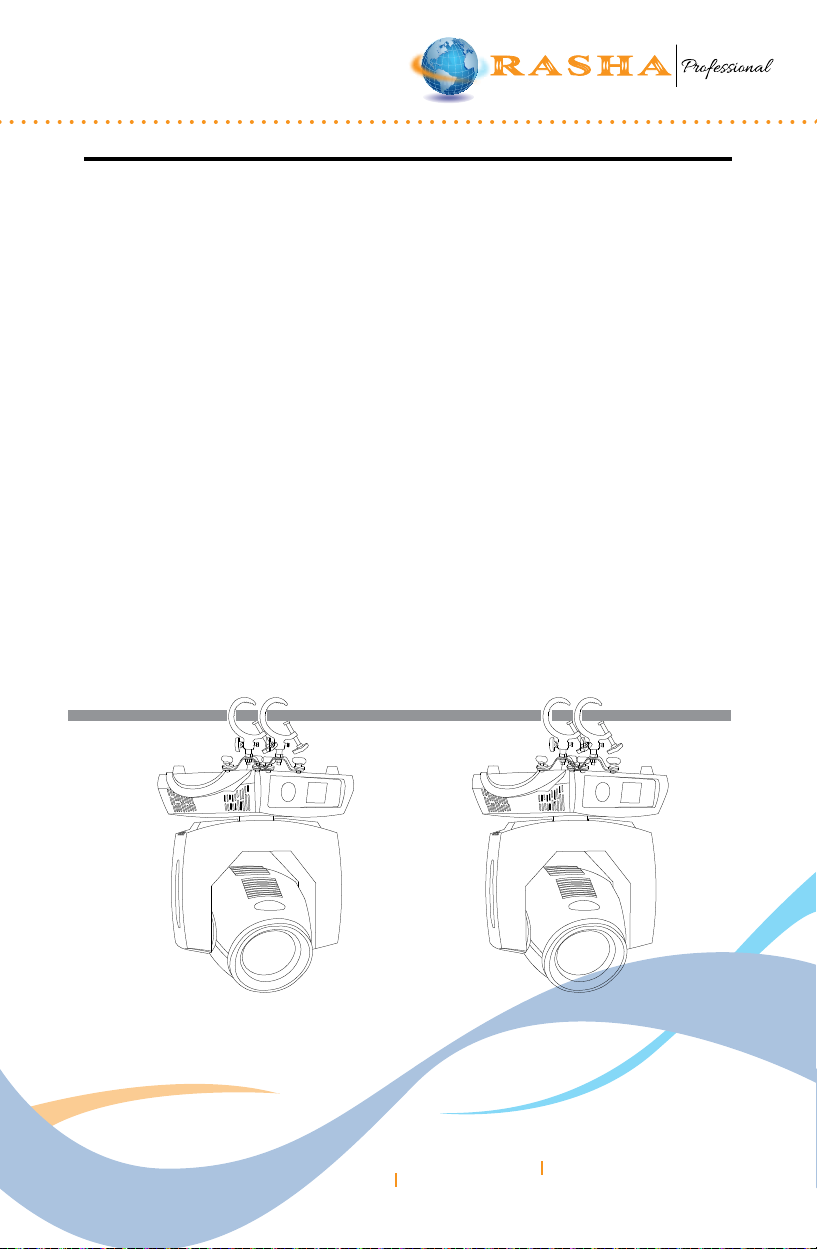

Figure Installation

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
13
CHAPTER 2 PANEL OPERATION
The light panel diagram is shown below
The Left area is TFT Display, this display supports touch as well as the encoder button
to the right.the tough operation is just like ANY Touch Screen on the market, touching
the item will set or modify your setting.
Note: Prevent damage the touch or TFT displayer, Can not use sharp objects
chick displayer.
Panel diagram
2. OPERATION
1. Operate light with touch or encoder button
The left area is TFT Displayer and touch, Pess to select or set item and its value with
your nger to complete the operation of seting the light parameters.
The area on the right hand side is rotary encoder with button, As an auxiliary input
interface, if the touch function is disable, the encoder can been used to set or view
the item, and then press the encoder button to conrm the selection, rotary encoder
again set the parameter value, nally, Press encoder button one again to save value or
setting.
2. Parameter value setting
When the selected item is value need to been modied, the dialog shown in Figure will
popup.
Dialog of value setting
ENTER
DOWN
UP
001
apply
1
2
3
4
5
1. Quick Adjust
2. Mirror
3. Apply Value*
4. Adjust Value
5. Save Quit

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
14
Modify values: You can quickly modify a value via the Quick Adjust slider (1) at the top
of the menu, or click the button of ‘up’ or ‘down’ whit nger on the right side to set the
exact desired value, another way is roll encoder on the right hand side of panel.
Apply value: When Value had been modied, Then press the bottom of ‘apply’ in the
left corner to apply to the light, but haven’t saved
Save Value: Any time, click on the lower right corner of the “OK” button, the setting will
been saved into internal memory.
3. Parameter setting
When the selected parameters is a Boolean value (such as ON or OFF), can directly
modify setting by chick corresponding item, the setting will been saved right now.
When the parameter is a key item, chick corresponding item, a dialog shown in Figure
will been popup ask for the conrm. Chick ‘sure’ to conrm.
Dialog of conrm
4. Sub Menu (Parameter)
Select or press the item of main menu, enter corresponding sub menu, shown in the
image below, total 6 sub menu, includes class of parameter and status:
Parameter menu
• ADDRESS: Set light DMX address.
• WORKMOD: Set light work mode, master or slave mode when in auto run mode.
• DISPLAY: Set display parameter, eg. select language.
SURE ON
Address
WorkMode
Display
Test
Advance
Status
Escape
001
Address
WorkMode
Display
Test
Advance
Status
Escape
DMX Crtl √
Auto Run
Sound Ctrl
M/S Choose OFF
Light Switch OFF
Channel Qty Simple
Address
WorkMode
Display
Test
Advance
Status
Escape
Screen Save OFF
Screen Rotate ON
Touch Enable ON
Touch Rectify
Address
WorkMode
Display
Test
Advance
Status
Escape
Pan 000
TILT 000
FOCUS 000
Color 000
GOBO 000
PRISM 000
FROST 000
STROBE 000
Address
WorkMode
Display
Test
Advance
Status
Escape
PanInvert OFF
TILT Invert OFF
P/T Rectify ON
Pan Offset 010
Tilt Offset 010
Lamp When PowerON
Data Hold OFF
Factory Setting
Address
WorkMode
Display
Test
Advance
Status
Escape
Work Mode DMX...
Address 001
Version A2. 12 Y. 0
Elapse 000 H 00M
total 00022 H 00M
DMXCLR SysRst

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
15
• TEST: Used for test light, modify DMX channel data to test function, the
corrsponding function of reference channel function table.
• ADVANCE: Set light running parameter.
• STATUS: view light current status.
3. Operation and parameter instruction
To enter the sub menu (parameter menu) shown in below
In main menu, select 1 of the 6 function button into corresponding parameter menu.
In the sub menu screen, select main item on the left side of display.
1. Set DMX Address
Click and select the “Address” , you can enter the page of DMX address setting, select
the range from 1 to 512, the address code should not be greater than 512 (channels
quantity), otherwise the light will not been controlled.
Enter the DMX address, as shown in below, click the blank area in right side of display
will pop-up dig log as in Figure below, modify value, then Press ‘ENTER’ to conrm and
save DMX address code.
DMX Address
2. Set Light work mode
Enter “WORK MODE” as shown in the gure on the following Page, and modify your
settings.
DMX Mode: The light receive data from the DMX controller.
AUTO RUN: The light will run with Preset code (data),
Note* this will ignore data from the DMX controller.
Address
WorkMode
Display
Test
Advance
Status
Escape
001
001
apply
1
2
3
4
5
1. Quick Adjust
2. Mirror
3. Apply Value*
4. Adjust Value
5. Save Quit

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
16
SOUND Ctrl: The light responds to loud sound, the light will run a scene, otherwise it
will keep the last scene.
M/S Choose: “M/S Choose” is available when light in “AUTO RUN” or “SOUND Ctrl”
mode. If this item is set as ‘“OFF”, the light will not send data to the other lights via
DMX Cable. When ‘ON’, the data will send to other lights slave light immediately.
Lamp control: Turn on lamp when this item is set to “ON”, otherwise this will turn off
lamp. The gap between operation is limited to 30 second.
Channel mode: Light support 2 DMX Channel mode: sample or extend.
Work mode
3. SET DISPLAY
Light support 2 language, rotation display,
Language: Select display as English.
Screen Saver: when panel is idle(these is no operation in 10 second), displayer will
enter saver status. When set as ‘mode 1’saver status is close display, as ‘mode 2’
saver status will display DMX address code(DMX MODE) or display LOGO(AUTO RUN
or SOUND CTRL). As ‘OFF’, keep light up displayer and show main menu
Screen Rotation: rotate displayer.
Touch enable: Disable or enable touch function, when disable, use encoder to operate
light and set parameter.
Touch Rectify: Adjust touch function (Do not enter this item unless instructed by
RASAH Professional)
Address
WorkMode
Display
Test
Advance
Status
Escape
DMX Crtl √
Auto Run
Sound Ctrl
M/S Choose OFF
Light Switch OFF
Channel Qty Simple
Address
WorkMode
Display
Test
Advance
Status
Escape
Screen Save OFF
Screen Rotate ON
Touch Enable ON
Touch Rectify

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
17
4. TEST LIGHT
This will put the Fixture into test mode.
The light does not receive the data for DMX controller if placed in test mode
PAN: range for 0 to 255;
TILT: range for 0 to 255;
FOCUS: range for 0 to 255;
COLOR: range for 0 to 255;
GOBO: range for 0 to 255;
PRISM: range for 0 to 255;
FROST: range for 0 to 255;
STROBE: range for 0 to 255;
Test Menu
5. SET LIGHT RUN PARAMETER (ADVANCE)
To set the parameter of Fixture:
Pan Invert: Reverse PAN move.
Tilt Invert: Reverse TILT mover.
P/T rEC: when this is set as “OFF” PAN or TILT will disable Rectify function.
If this is ‘ON’, when PAN or TILT lose steps, light will rectify auto.
Pan Offset: Set PAN original position.
Tilt Offset: Set TILT original position.
Lamp on when: Select lamp on mode:
1. Power on
2. After reset done
3. Manual.
Factory setting: restore all parameter to factory setting.
Address
WorkMode
Display
Test
Advance
Status
Escape
Pan 000
TILT 000
FOCUS 000
Color 000
GOBO 000
PRISM 000
FROST 000
STROBE 000

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
18
Advance Menu
6. VIEW STATUS
View light current status, version and hours
DMXClr: Click to clear all DMX data to ”0”.
SysRst: Click to reset light.
Advance Menu
Address
WorkMode
Display
Test
Advance
Status
Escape
PanInvert OFF
TILT Invert OFF
P/T Rectify ON
Pan Offset 010
Tilt Offset 010
Lamp When PowerON
Data Hold OFF
Factory Setting
Address
WorkMode
Display
Test
Advance
Status
Escape
Work Mode DMX...
Address 001
Version A2. 12 Y. 0
Elapse 000 H 00M
total 00022 H 00M
DMXCLR SysRst

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
19
No. Channel DMX value Description
1 Pan 0-255
2Pan ne 0-255
3 Tilt 0-255
4Tilt ne 0-255
5 Pan/Tilt speed 0-255 Speed adjustment
6 Gobo
0-3 Open
4_7 Gobo1
8_11 Gobo2
12_15 Gobo3
16-19 Gobo4
20-23 Gobo5
24-27 Gobo6
28-31 Gobo7
32-35 Gobo8
36-39 Gobo9
40-43 Gobo10
44-47 Gobo11
48-51 Gobo12
52-55 Gobo13
56-59 Gobo14
60-63 Gobo15
64-67 Gobo16
68-71 Gobo17
72-113 Gobo rotation, forward
114-118 Stop
119-160 Gobo rotation, backward
161-165 Stop
166-171 Gobo 2 Shake
(slow to quick)
172-177 Gobo 3 Shake
(slow to quick)
178-183 Gobo 4 Shake
(slow to quick)
184-189 Gobo 5 Shake
(slow to quick)
190-295 Gobo 6 Shake
(slow to quick)
20 DMX CHANNEL

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
20
No. Channel DMX value Description
6 Gobo
296-201 Gobo 7 Shake
(slow to quick)
202-207 Gobo 8 Shake
(slow to quick)
208-213 Gobo 9 Shake
(slow to quick)
214-219 Gobo 10 Shake
(slow to quick)
220-225 Gobo 11 Shake
(slow to quick)
226-231 Gobo 12 Shake
(slow to quick)
232-237 Gobo 13 Shake
(slow to quick)
238-243 Gobo 14 Shake
(slow to quick)
244-249 Gobo 15 Shake
(slow to quick)
250-255 Gobo 16 Shake
(slow to quick)
7 Color
0-5 white
6_11 white / orange
12_17 orange
18-23 orange / light blue
24-29 light blue
30-35 light blue/ light green
36-41 light green
42-47 light green / green
48-53 green
54-59 green / Rose
60-65 Rose
66-71 Rose / Pink
72-77 Pink
78-83 Pink / Yellow
84-89 Yellow
90-95 Yellow / Light red
96-101 Light red
102-107 Light red / blue
108-113 Blue
