Rato RBEI40 User manual

Battery
Battery charger
RBEI40
RBAT40
Read all safety rules and instructions carefully before operating this tool
WWW.RATO-EUROPE.COM

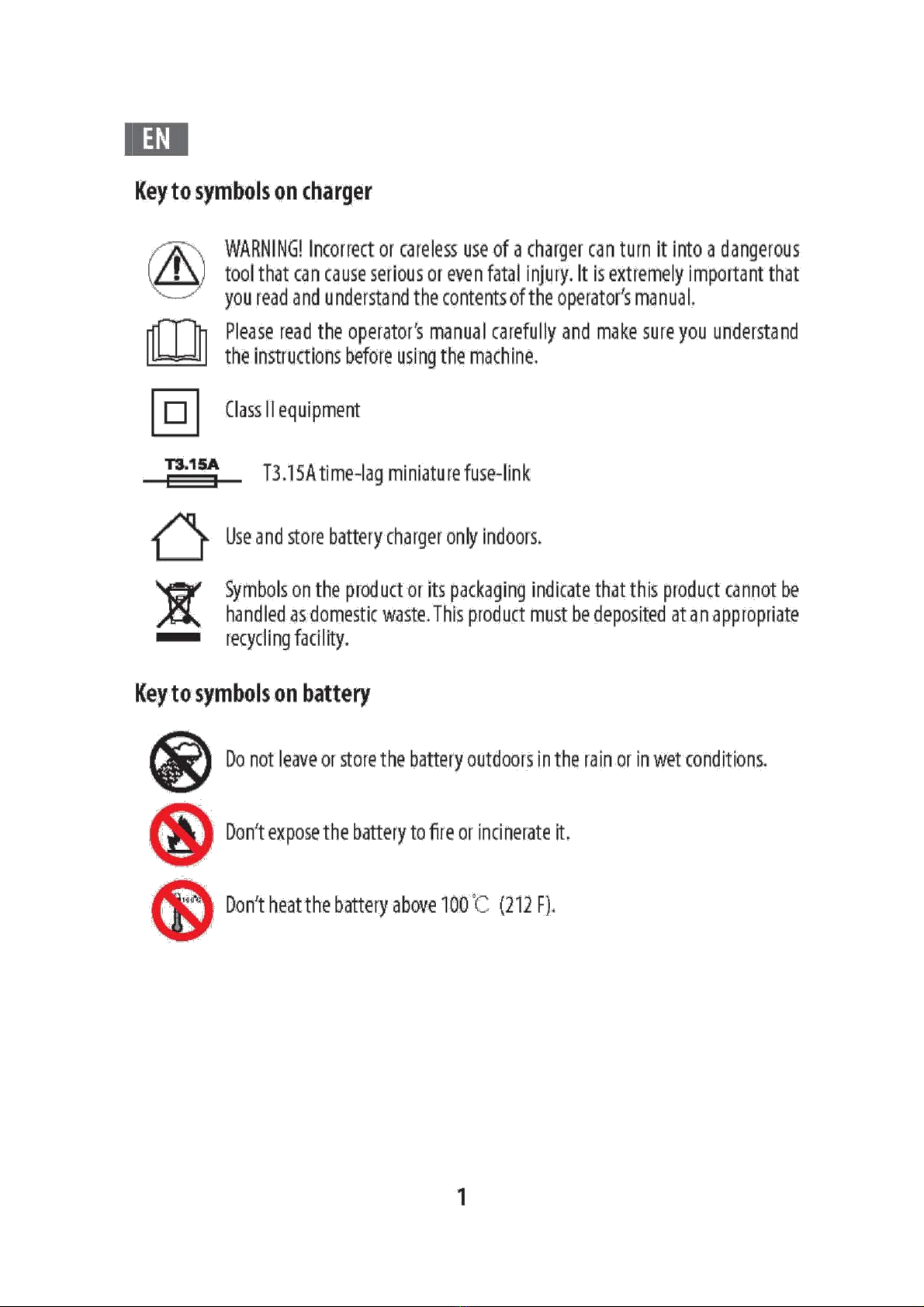

EN
Battery and battery charger
This section describes the battery and battery charger safety for your battery product.
Only use RATO original batteries for RATO products and only charge them in an
original battery QC charger from RATO. The batteries are software encrypted.
1
Electric plug
1
5
2
Battery charger
2
3
Changing LED light
(green)
4
Fault LED light (red)
5
Battery
6
Electric energy button
6
7
7
Electric energy LED
light
3
4
IMPORTANT SAFETY INSTRUCTIONS
Battery charger
The battery chargers, are only used for fast charging of RATO replacement batteries.
This manual contains important safety and operating instructions for battery charger.
Before using battery charger, read all instructions and cautionary markings on battery
charger, and product using battery.
CAUTION! Charge only RATO Li-on Batteries. Other types of batteries may burst
causing personal injury and damage.
If the shape of the plug does not fi t the power outlet, use an attachment plug adapter
of the proper configuration for the power outlet.
WARNING! Minimise the risk of electric shock or short circuit as follows:
Never insert any object into the charger’s cooling slots. Do not try to dismantle
the battery charger. Never connect the charger terminals to metal objects as
this can short circuit the battery charger. Use approved and intact wall sockets.
WARNING! This machine produces an electromagnetic field during
operation. This field my under some circumstances interfere with
active or passive medical implants. To reduce the risk of serious or
fatal injury, we recommend persons with medical implants consult
their physician and the medical implant manufacturer before operating
this machine. Do not use product when a thunderstorm is approaching.
2

EN
Regularly check that the battery charger connection wire is intact and that there are no
cracks in it.
Never carry the battery charger using the cord and never pull out the plug by pulling
the cord.
Keep all cords and extension cords away from water, oil and sharp edges. Make sure
the cord is not pinched in doors, fences or the like. Otherwise it can cause the object
to become live.
Never clean the battery or the battery charger with water.
Never allow the children to use the battery charger.
When charging, the charger must be placed in a well ventilated area and under a roof
to keep out moisture.
WARNING! Do not charge non-rechargeable batteries in
the battery charger or use them in the machine.
WARNING! Do not use the battery charger close to corrosive or
flammable mate-rials. Do not cover the battery charger. Pull out the
plug to the battery charger in the event of smoke or fir. Risk of fire.
Use the battery charger only when the surrounding temperature is between 0 °C (32 °F)
and 44 °C (111.2 °F). Use the charger in an environment which is well ventilated, dry and
free from dust.
Do not use:
–A faulty or damaged battery charger
–The battery in the battery
charger outdoors. Do not charge:
–Or never use a faulty, damaged or deformed battery.
–The battery in the rain or in wet conditions.
–The battery in direct sunlight.
Battery
Do not dismantle, open or shred secondary batteries.
Keep batteries out of the reach of children.
Do not expose batteries to heat or fi re. Avoid storage in direct sunlight.
Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer
where they may short-circuit each other or be short-circuited by other metal objects.
Do not remove a battery from its original packaging until required for use.
Do not subject batteries to mechanical shock.
In the event of a cell leaking, do not allow the liquid to come in contact with the skin or
eyes. If contact has been made, wash the affected area with copious amounts of
water and seek medical advice.
3

EN
Do not use any charger other than that specifi cally provided for use with the equipment.
Do not use any battery which is not designed for use with the equipment.
Always purchase the battery recommended by the device manufacturer for the equipment.
Keep batteries clean and dry.
Wipe the battery terminals with a clean dry cloth if they become dirty.
Secondary batteries need to be charged before each use. Always
use the correct charger and refer to the manufacturer’s instructions
or equipment manual for proper charging instructions.
Do not leave a battery on prolonged charge when not in use.
After extended periods of storage, it may be necessary to charge and
discharge the batteries several times to obtain maximum performance.
Retain the original product literature for future reference.
Use the battery only in the application for which it was intended.
When possible, remove the battery from the equipment when not in use.
Dispose of properly.
OPERATION
WARNING! Risk of electric shock and short circuiting. Use
approved and intact wall sockets. Make sure that the cable is not
damaged. Replace cable if it ap-pears to be damaged in any way.
Connect the battery charger
Connect the battery charger to the voltage and frequency
specified on the rating plate.
Put the electric plug in an earthed socket-outlet. The charging LED light lit
green in the begin 5s, then the light will offif no battery in the charger.
Connect the battery to the battery charger
The battery must be charged before using it the fi rst time. The
battery is only 30% charged when delivered.
NOTE! During charging monitoring the charging process and never leave the battery in the
charger when charging is complete.
Push the battery into the battery charger.
The charging LED light always flashes green when the battery is charging.
The charging LED light always light if the battery is fully charged.
The battery will not be charged if the battery temperature is deviation. In that case the
fault LED light flashes until the battery cool down to normal temperature.
4

EN
The battery will never be charged if the battery is
damaged. In that case the fault LED light always lit.
The electric energy is divided into 3 grades, If you
want to check the electric energy of battery, you
need to press down the electric energy button.
When the battery is recharged the battery charger will stop charging (switch to stand by),
and the charging LED will light always until the battery is removed from the charger. There
are no restrictions on how long a battery can remain in the charger. Recommended is to
remove the battery from the battery charger when the battery is recharged.
Pull out the plug. Never jerk the power supply cable to disconnect it from the wall socket.
Maintenance
Make sure the battery and battery charger are clean and that the
terminals on the battery and the battery charger are always clean
and dry before the battery is placed in the battery charger.
Keep the battery guide tracks clean. Clean plastic parts with a clean and dry cloth.
Transport and storage
Store the equipment in a lockable area so that it is out of reach
of children and unauthorized persons.
Store the battery and the battery charger in a dry, moisture-free and
frost-free space. Store the battery where the temperature is between
5 °C (41 °F) and 25 °C (77 °F) and never in direct sunlight.
Store the battery charger only in an enclosed and dry space.
Be sure to store the battery separate from the battery charger.
Fault codes
Troubleshooting the battery and the battery charger during charging.
LED display
Possible faults
Possible action
Charger LED and the fault
The battery is ok, but
Charge the battery in
LED flashing red.
temperature deviation.
surroundings where
temperatures are between
0 °C (32 °F) and 44 °C
(111.2 °F). Wait the battery
cool down.
Charger LED and the fault
Cell difference too much
Contact your service agent.
LED always light red.
(1V).
5

EN
Disposal of the battery, battery charger and machine
Symbols on the product or its packaging indicate that this product cannot be
handled as domestic waste. It must instead be submitted to an appropriate
recycling station for the recovery of electrical and electronic equipment.
By ensuring that this product is taken care of correctly, you can help to
counteract the potential negative impact on the environment and people that can
otherwise result through the incorrect waste management of this product. For
more detailed information about recycling this product, contact your municipality,
your domestic waste service or the shop from where you purchased the product.
Technical data
Battery charger
Model
RBAT40
Input Voltage, V
AC 100-240
Frequency, Hz
50-60
Output Voltage, V
20
Output current, A
1.8*2
Power, W
90
Battery
Model
RBEI40
Cells (pcs)
10
Ah
2.5
Voltage
40 VDC
6
