Ravaglioli G1180.30SLIM User manual

• For any further information please contact your local dealer or call:
GB
For spare parts drawings refer to the section “LIST OF COMPONENTS”.
INSTRUCTION MANUAL
TRANSLATION FROM THE
ORIGINAL INSTRUCTIONS
- Rev. n. 10 (05/2020)
G1180.30SLIM
G1180.30SLIMIT
7105-M002-10_R
7105-M002-10_R
Technical services: RAVAGLIOLI S.p.A. - Via 1° Maggio, 3 - 40037 Pontecchio Marconi - Bologna Italy
Phone [phone] - Telex 510697 RAV I - Fax [phone] - e-mail: [email protected]

Page 2 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
SUMMARY
1.0 GENERAL INTRODUCTION __________ 7
1.1 Introduction ____________________________ 7
2.0 INTENDED USE _____________________ 7
2.1 Staff training __________________________ 7
3.0 SAFETY DEVICES ___________________ 8
3.1 Residual risks __________________________ 8
4.0 GENERAL SAFETY RULES __________ 8
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT ________________________ 9
6.0 UNPACKING ________________________ 10
7.0 MOBILIZATION_____________________ 10
8.0 WORKING ENVIRONMENT CONDI-
TIONS ______________________________ 11
8.1 Working position ______________________11
8.2 Working area __________________________11
8.3 Lighting _______________________________11
9.0 MACHINE ASSEMBLY ______________ 11
9.1 Anchoring system _____________________11
9.2 Fixtures contained in the packing_____12
9.3 Assembly procedures _________________12
10.0 ELECTRICAL CONNECTION ________ 13
10.1 Working area modification ____________14
10.2 Electrical checks ______________________15
11.0 CONTROLS_________________________ 15
11.1 Control device _________________________15
11.2 Pedalboard ____________________________16
12.0 USING THE MACHINE ______________ 17
12.1 Precaution measures during tyre re-
moval and fitting ______________________17
12.2 Preliminary operations - Preparing
the wheel ______________________________17
12.3 Wheel clamping _______________________17
12.3.1 Reverse wheel pan protection ______19
12.4 Bead breaking through vertical
rollers _________________________________19
12.4.1 Bead breaking operations__________20
12.5 Demounting the tyre __________________21
12.6 Mounting the tyre _____________________23
12.7 Tyre inflation with machine without
tubeless inflation______________________24
12.8 Tyre inflation with machine with tube-
less inflation __________________________24
12.9 Special use of the bead-breaker _______24
13.0 ROUTINE MAINTENANCE __________ 24
14.0 TROUBLESHOOTING TABLE _______ 26
15.0 TECHNICAL DATA__________________ 27
15.1 Weight _________________________________27
15.2 Dimensions____________________________28
16.0 STORING___________________________ 29
17.0 SCRAPPING ________________________ 29
18.0 REGISTRATION PLATE DATA ______ 29
19.0 FUNCTIONAL DIAGRAMS __________ 29
Table A - Electric diagram __________________30
Table B - Pneumatic diagram
(G1180.30SLIM) ___________________32
Table C - Pneumatic diagram
(G1180.30SLIMIT) _________________35
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 3 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
1
2
3
4
5
6
7
10
9
8
11 12
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

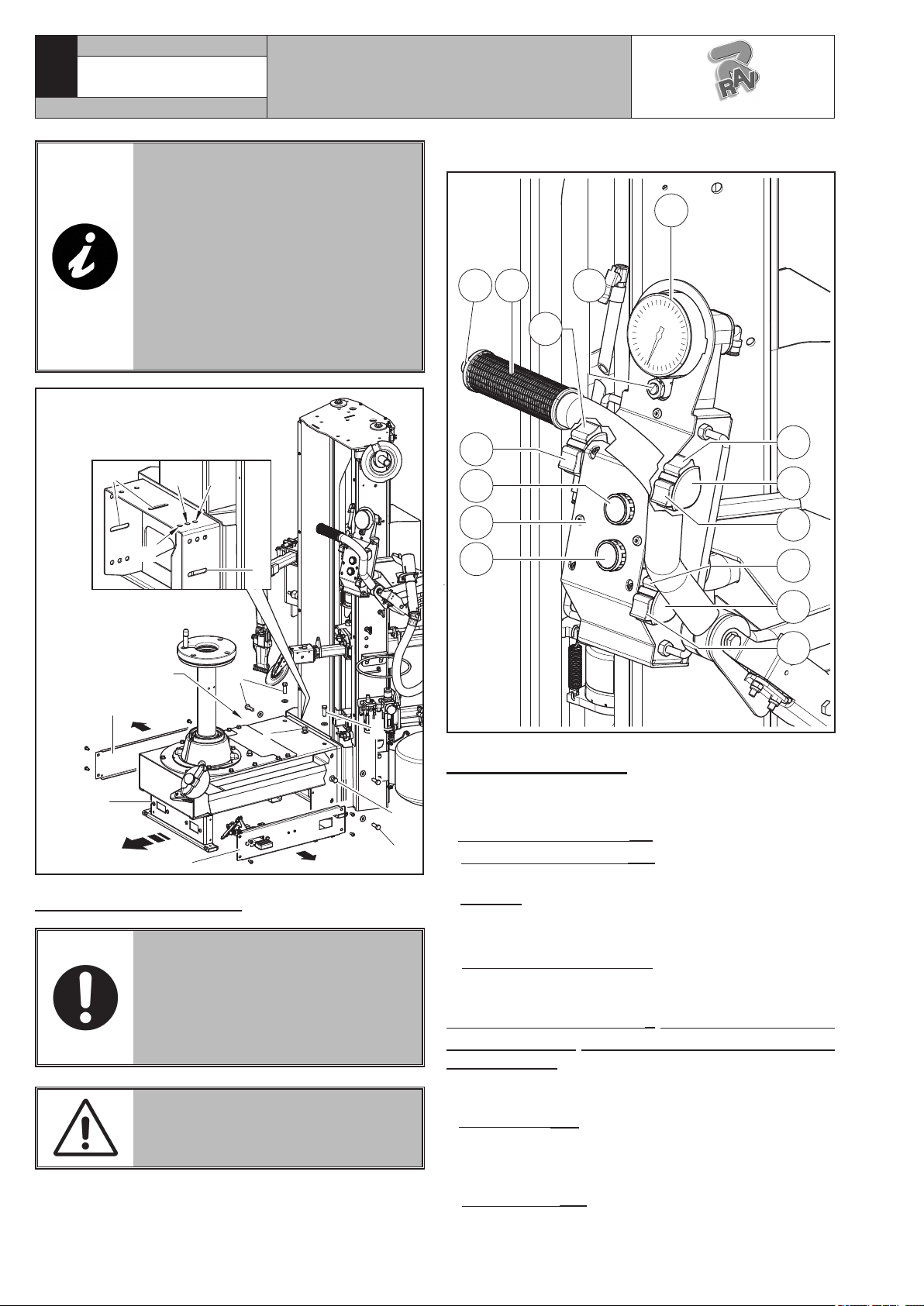

FIG. 1 - G1180.30SLIM - G1180.30SLIMIT
KEY
1 – Mandrel
2 – Tool
3 – Upper bead breaker
4 – Lower bead breaker
5 – Control panel
6 – Pedalboard
7 – Cables handle
8 – Complete column
9 – Filter unit - pressure reducer
10 – Locking device
11 – Entrainer
12 – Tubeless inflating unit (only for G1180.30SLIMIT)

Page 4 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
SYMBOLS USED IN THE MANUAL AND ON THE MACHINE
Symbols Description
B2167000
Read instruction manual.
FORBIDDEN!
Wear work gloves.
Wear work shoes.
B2167000
Wear safety earcaps.
99990758
Shock hazard.
999911770
Danger! Moving mechanical parts.
Caution: hanging loads.
Mandatory. Operations or jobs to
be performed compulsorily.
Danger! Be particularly careful.
Symbols Description
Move with fork lift truck or pallet
truck.
Lift from above.
B1541000
General danger.
Wear safety goggles.
Technical assistance necessary.
Do not perform any intervention.
B6419000
Mandrel rotation index plate.
B2166000
Risk of hands crushing.
Warning. Be particularly careful
(possible material damages).
Note. Indication and/or useful
information.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 5 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
INFORMATION PLATE LOCATION TABLE
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 6 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Code numbers of plates
B1541000 Danger plate
B1594000 Date indicating plate
B2166000 Bead breaker danger plate
B2167000 Obligation to wear protective clothing plate
B2168000 Burst danger indicating plate
B3691000 Inflation pedal plate
B4182000 Electric motor specifications plate
B4244000 Rotating parts danger plate
B6419000 Mandrel rotation plate
99990758 Electricity danger plate
710211210 Rotation direction plate
999916011 Motoinverter plate
999916311 Rubbish skip label
999916410 Control plate
• Serial number plate
* Machine nameplate
♦ Manufacturer name plate
IF ONE OR MORE PLATES DISAPPEAR FROM THE MACHINE OR BECOMES DIFFICULT
TO READ, REPLACE IT AND QUOTE ITS/THEIR CODE NUMBER/S WHEN REORDERING.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 7 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
SOME OF THE PICTURES PRE-
SENT IN THIS MANUAL HAVE
BEEN OBTAINED FROM PICTURES
OF PROTOTYPES, THEREFORE
THE STANDARD PRODUCTION
MACHINES AND ACCESSORIES
CAN BE DIFFERENT IN SOME
COMPONENTS.
1.0 GENERAL INTRODUCTION
This manual is an integral part of the product and
must be retained for the whole operating life of the
machine.
Carefully study the warnings and instructions con-
tained in this manual. It contains important instruc-
tions regarding FUNCTIONING, SAFE USE and
MAINTENANCE.
KEEP THE MANUAL IN A KNOWN,
EASILY ACCESSIBLE PLACE FOR
ALL ACCESSORY OPERATORS
TO CONSULT IT WHENEVER IN
DOUBT.
THE MANUFACTURER DISCLAIMS
ALL RESPONSIBILITY FOR ANY
DAMAGE OCCURRED WHEN THE
INDICATIONS GIVEN IN THIS
MANUAL ARE NOT RESPECTED:
AS A MATTER OF FACT, THE NON-
COMPLIANCE WITH SUCH INDI-
CATIONS MIGHT LEAD TO EVEN
SERIOUS DANGERS.
1.1 Introduction
Thank you for preferring this electro-hydraulic tyre
changer. We feel sure you will not regret your decision.
This machine has been designed for use in profes-
sional workshops and in particular it stands out for
its reliability and easy, safe and rapid operation: with
just a small degree of maintenance and care, this tyre
changer will give you many years of trouble-free service
and lots of satisfaction.
2.0 INTENDED USE
The machines described in this manual and their
different versions, are tyre-changers for car tires
projected to be used exclusively for the mounting,
demounting, and inflation of wheels with dimen-
sions of max. diameter of 45" and max. width of 15".
THIS ACCESSORY MUST ONLY BE
USED FOR THE PURPOSE FOR
WHICH IT IS SPECIFICALLY DE-
SIGNED.
ANY OTHER USE IS CONSIDERED
IMPROPER AND THEREFORE UN-
ACCEPTABLE.
THE MANUFACTURER CANNOT
BE HELD RESPONSIBLE FOR ANY
DAMAGE CAUSED BY IMPROPER,
ERRONEOUS, OR UNACCEPTABLE
USE.
AN INTENSIVE USE OF THE EQUIP-
MENT IN INDUSTRIAL ENVIRON-
MENT IS NOT RECOMMENDED.
2.1 Staff training
The machine may be operated only by suitably
trained and authorized personnel.
Given the complexity of the operations necessary to
manage the machine and to carry out the operations
safely and efficiently, the personnel must be trained
in such a way that they learn all the information
necessary to operate the machine as intended by the
manufacturer.
A CAREFUL READING OF THIS
INSTRUCTION MANUAL FOR
USE AND MAINTENANCE AND A
SHORT PERIOD OF TRAINING
WITH SKILLED PERSONNEL CAN
BE AN ENOUGH PREVENTIVE
PREPARATION.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 8 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
3.0 SAFETY DEVICES
PERIODICALLY, AT LEAST MONTH-
LY, CHECK THE INTEGRITY AND
THE FUNCTIONALITY OF THE
SAFETY AND PROTECTION DE-
VICES ON THE MACHINE.
All the machines are equipped with:
• man-operated controls (immediate stop of operation
when the control is released) for all operating devices;
• mandrel rotation;
• tool translation;
• bead breaking roller translation.
• Non-adjustable pressure limiter.
This allows inflation of tyres in reasonable safety.
Inflation of tyres to over 4,2 ± 0,2 bar (60 PSI) is
not allowed.
• Controls logic disposition.
Its function is to prevent the operator from danger-
ous mistakes.
• Fixed guards and shelters
The machine is fitted with a number of fixed guards
intended to prevent potential crushing, cutting and
compression risks.
These protections have been realized after risks
evaluation and after all machine operative situations
have been considered.
All protections, specially the rubber ones, have to be
periodically checked in order to evaluate their wear
state.
PERIODICALLY CARRY OUT THE
MAINTENANCE OF THE PROTEC-
TIONS, SHELTERS AND SAFETY
DEVICES IN GENERAL, AS INDI-
CATED IN CHAPTER 13. ROUTINE
MAINTENANCE.
• Motor protection devices.
The new “Invemotor” motor is equipped with elec-
tronic protection devices. They stop the motor if
working defected conditions appear to avoid that the
motor itself can be damaged and that the operator
safety can be compromised (overvoltage, overload,
overtemperature). For other details, see the chapt.
14 “Fault-Finding”.
3.1 Residual risks
The machine was subjected to a complete analysis of
risks according to reference standard EN ISO 12100.
Risks are as reduced as possible in relation with tech-
nology and product functionality.
This manual stresses possible residual risks, also
highlighted in pictograms on the present manual and
adhesive warning signals placed on the machine: their
location is represented in “PLATE LOCATION ON MA-
CHINE INFORMATION TABLE” on page 5.
4.0 GENERAL SAFETY RULES
• Any tampering with or modification to the machine
not previously authorized by the manufacturer ex-
empts the latter from all responsibility for damage
caused by or derived from said actions.
• Removing of or tampering with the safety devices or
with the warning signals placed on the machine leads
to serious dangers and represents a transgression of
European safety rules.
• Use of the machine is only permitted in places free
from explosion or fire hazard and in dry places
under cover.
• Original spare parts and accessories should be used.
THE MANUFACTURER DENIES
ANY RESPONSIBILITY IN CASE
OF DAMAGES CAUSED BY UNAU-
THORIZED MODIFICATIONS OR
BY THE USE OF NON ORIGINAL
COMPONENTS OR EQUIPMENT.
• Installation must be conducted only by qualified
personnel exactly according to the instructions that
are given below.
• Ensure that there are no dangerous situations dur-
ing the machine operating manoeuvres. Immediately
stop the machine if it miss-functions and contact the
assistance service of an authorized dealer.
• In emergency situations and before carrying out any
maintenance or repairs, disconnect all supplies to
the machine by using the main switch.
• The machine electrical supply system must be
equipped with an appropriate earthing, to which
the yellow-green machine protection wire must be
connected.
• Ensure that the work area around the machine is free
of potentially dangerous objects and that there is no
oil since this could damage the tyre. Oil on the floor
is also a potential danger for the operator.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 9 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
OPERATORS MUST WEAR SUIT-
ABLE WORK CLOTHES, PROTEC-
TIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM
THE SPRAYING OF DANGEROUS
DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFT-
ING OF HEAVY PARTS. DANGLING
OBJECTS LIKE BRACELETS MUST
NOT BE WORN, AND LONG HAIR
MUST BE TIED UP. FOOTWEAR
SHOULD BE ADEQUATE FOR THE
TYPE OF OPERATIONS TO BE CAR-
RIED OUT.
• The machine handles and operating grips must be
kept clean and free from oil.
• The workshop must be kept clean and dry. Make sure
that the working premises are properly lit.
The machine can be operated by a single operator.
Unauthorised personnel must remain outside the
working area, as shown in Fig. 4.
Avoid any hazardous situations. Do not use air-
operated or electrical equipment when the shop is
damp or the floor slippery and do not expose such
tools to atmospheric agents.
• During inflation do not lean on the tyre or remain
above it. When beading in the tyre, keep hands away
from tyre and the rim edge.
• During inflation always stay to the side of the machine
and never in front of it.
• When operating and servicing this machine, carefully
follow all applicable safety and accident-prevention
precautions.
The machine must not be operated by professionally
unskilled persons.
• Never activate the inflation device (only on models
with tubeless inflation) if the tyre has not been cor-
rectly locked.
IN CASE OF A CHANCE SUPPLY
FAILURE (WHETHER ELECTRICI-
TY OR COMPRESSED AIR), MOVE
THE PEDALS TO THE NEUTRAL
POSITION.
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED
PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE PACKED MACHINE (see para-
graph “TECHNICAL SPECIFICATIONS”).
The machine is packed completely assembled. The
machine is inside a carton box which size is mm
1730x1160x2200.
Movement must be by pallet-lift or fork-lift trolley.
The fork lifting points are indicated on the packing.

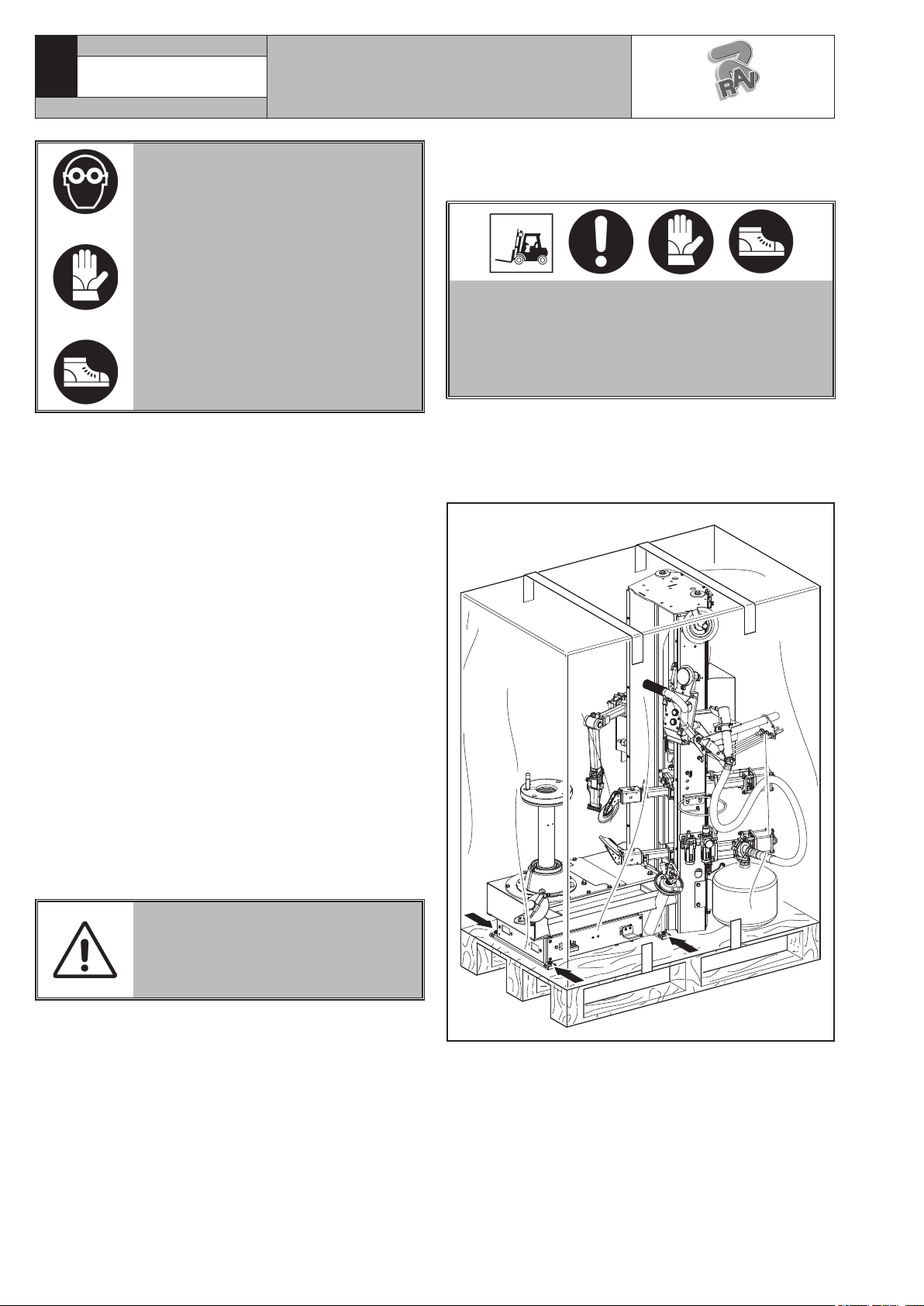

Fig._2
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 10 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
6.0 UNPACKING
DURING UNPACKING, ALWAYS
WEAR GLOVES TO PREVENT ANY
INJURY CAUSED BY CONTACT
WITH PACKAGING MATERIAL
(NAILS, ETC.).
The cardboard box is supported with plastic strap-
ping. Cut the strapping with suitable scissors. Use a
small knife to cut along the lateral axis of the box and
open it like a fan.
It is also possible to unnail the cardboard box from
the pallet it is fixed to. After removing the packing,
and in the case of the machine packed fully assembled,
check that the machine is complete and that there is
no visible damage.
If in doubt do not use the machine and refer to pro-
fessionally qualified personnel (to the seller).
The packing (plastic bags, expanded polystyrene, nails,
screws, timber, etc.) should not be left within reach
of children since it is potentially dangerous. These
materials should be deposited in the relevant collec-
tion points if they are pollutants or non biodegradable.
THE BOX CONTAINING THE FIX-
TURES IS CONTAINED IN THE
WRAPPING. DO NOT THROW IT
AWAY WITH THE PACKING.
7.0 MOBILIZATION
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE MACHINE (SEE PARAGRAPH
TECHNICAL SPECIFICATIONS). DO NOT AL-
LOW THE LIFTED MACHINE TO SWING.
During the machine handling from the unpacking po-
sition to the installation one, follow the instructions
listed below.
• Protect the exposed corners with suitable material
(Pluribol/cardboard).
• Do not use metallic cables for lifting.
• Make sure that the electricity supply is not connected.
• Sling with belts with capacity load greater than 2500
Kg as indicated in Fig._3.
• Lift and transport with suitable device with adequate
dimensions.
Fig._3
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 11 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
8.0 WORKING ENVIRONMENT CONDI-
TIONS
The machine must be operated under proper condi-
tions as follows:
• temperature: 0° + 55° C
• relative humidity 30 - 95% (dew-free)
atmospheric pressure: 860 - 1060 hPa (mbar).
The use of the machine in ambient conditions other
than those specified above is only allowed after prior
agreement with and approval of the manufacturer.
8.1 Working position
In Figure 4 it's possible to define work positions A and
B which will be referred to during the description of
the machine operating phases.
Position A is the main position for wheel fitting and
removal with the mandrel, while position B is ideal to
follow tyre inflation operations.
Working in these positions allows better precision and
speed during operating phases as well as greater safety
for the operator.
8.2 Working area

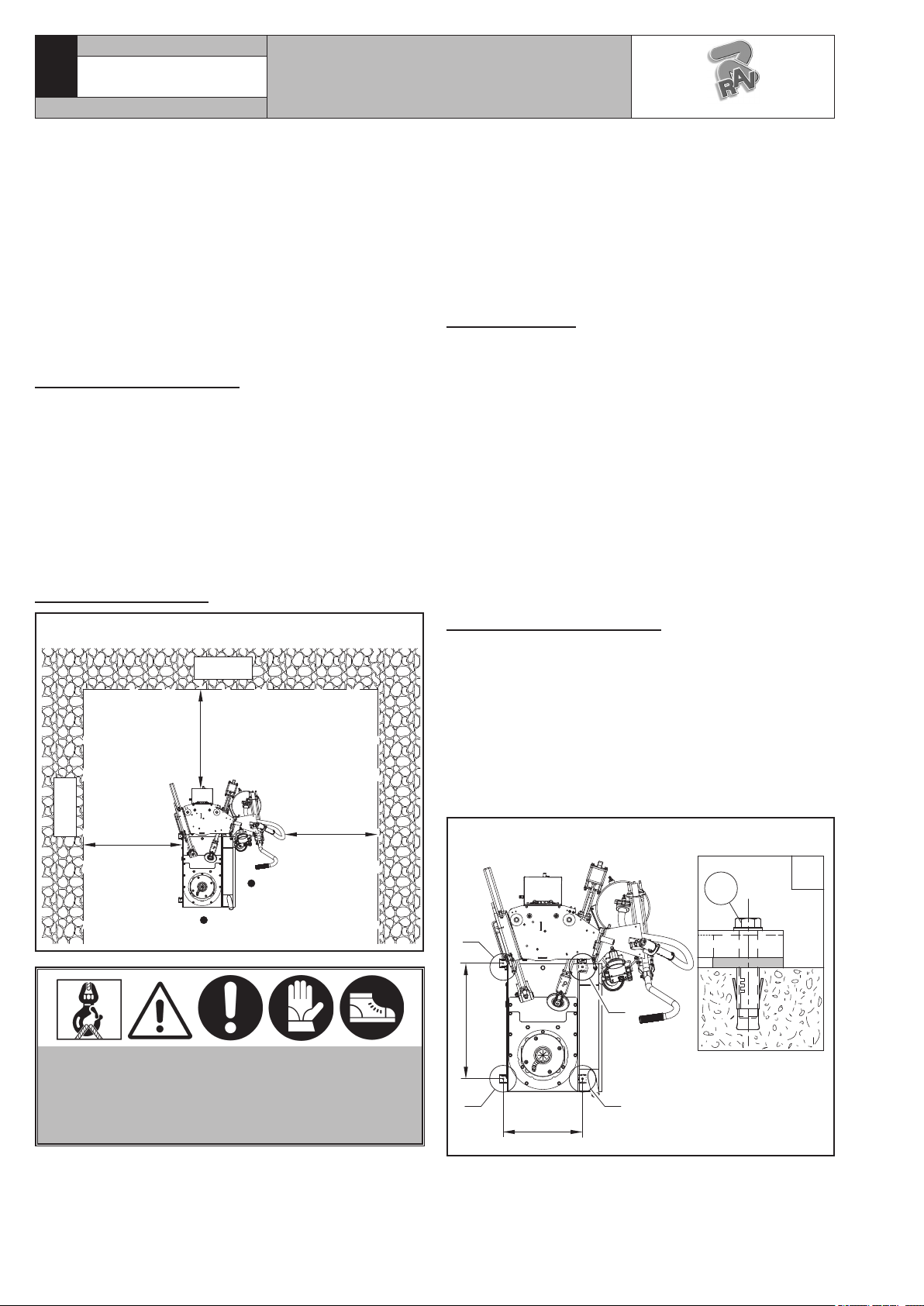

Fig._4
~ 1000
~ 1000
3090
2310
~ 1000
B
A
USE THE MACHINE IN A DRY AND AD-
EQUATELY LIT PLACE, POSSIBLY INDOORS
OR ANYWAY IN A ROOFED AREA, THIS PLACE
MUST BE IN COMPLIANCE WITH APPLICABLE
SAFETY REGULATIONS.
The location of the machine requires a usable space as
indicated in Figure 4. The positioning of the machine
must be according to the distances shown. From the
control position the operator is able to observe all
the machine and surrounding area. He must prevent
unauthorized personnel or objects that could be dan-
gerous from entering the area. The machine must be
fixed on a flat floor surface, preferably of cement or
tiled. Avoid yielding or irregular surfaces. The base
floor must be able to support the loads transmitted
during operation. This surface must have a capacity
load of at least 500 kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.3 Lighting
The machine does not require its own lighting for
normal working operations. However, it must be used
in an adequately lit environment.
In case of poor lighting use lamps having total power
800/1200 Watt.
9.0 MACHINE ASSEMBLY
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1 Anchoring system
The packed machine is fixed to the support pallet
through the holes prearranged on the frame. Such
holes can be used also to fix the machine to the ground,
through floor anchor small blocks (excluded from sup-
ply). Before carrying out the definitive fixing, check that
all the anchor points are laid down flat and correctly
in contact with the fixing surface itself. If not so, insert
shimming profiles between the machine and the fixing
lower surface, as indicated in Fig. 5.
b
a
X
X
X
X
X
1
a=641 mm
b=440 mm
Fig._5
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 12 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
• Execute 4 holes with 12 mm diameter on the floor
by the holes on the bottom floor;
• insert the small blocks (excluded from supply) into
the holes;
• fix the machine to the ground with 4 M12x120 mm
screws (excluded from supply) (Fig. 5 ref. 1) (or
with 4 12x80 mm stud bolts (excluded from supply)).
Tighten the screws with an approximate tightening
torque of 70 Nm.
• Before clamping completely the machine to the floor,
level its rear part rotating the feet (Fig. 6 ref. 1).
1
Fig._6
9.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed are there.
Code Description N.
B1157000 Two-faced cone 1
710013421 Reverse wheels protection 1
710012941 Entrainer pin extension 1
710090481 Pin protection 1
790011620 Bead sliding foil 1
790011640 Instructions for bead sliding
foil
1
710590840 Bead insertion belt kit 1
9.3 Assembly procedures
1. Assemble “Tubeless inflation” unit to the machine
keeping to the following instructions:
- fix the tank (Fig._7 ref._6) to the support flange
(Fig._7 ref._2) using the screws (Fig._7 ref._4)
and nuts (Fig._7 ref._5) equipped on issue;
- fix the flange (Fig._7 ref._2) to the machine (Fig._7
ref._3) using the screws (Fig._7 ref._1);
1
2
3
4
4
5
5 6
Fig._7
2. Connect the black pipe (Fig._8 ref._1) and the blue
pipe (Fig._8 ref._2) on the provided quick couplings
as shown in Figure 8.
1
2
Fig._8
3. Mount the grease bucket holder ring (# 0223000)
(Fig._9 ref._1), in the fixture box, using the 2 screws
provided (Fig._9 ref._2) to the machine body (Fig._9
ref._3).
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 13 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

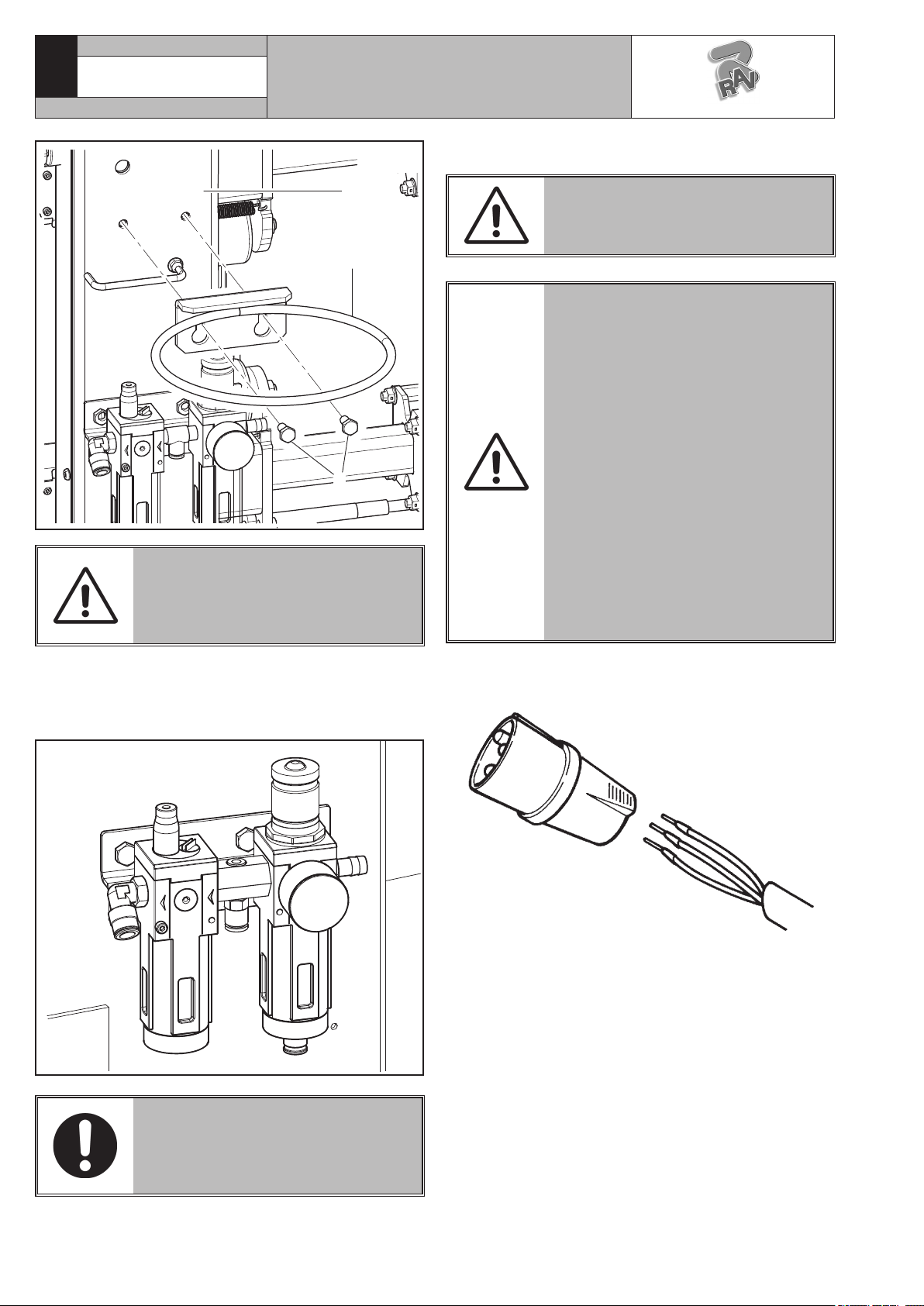

1
2
3
Fig._9
IN CASE OF A CHANCE SUPP-
LY FAILURE, AND/OR BEFORE
ANY PNEUMATIC CONNECTIONS,
MOVE THE CONTROLS TO THE
NEUTRAL POSITION.
4 - Connect the mains pneumatic power supply by us-
ing the union placed on filter unit of the machine.
The pressurized pipe coming from the mains must
have a section of 10x19 (see Fig. 10).
Fig. 10
IF OTHER PNEUMATIC CONNEC-
TIONS SHOULD BE EXECUTED,
REFER TO THE PNEUMATIC DIA-
GRAMS ILLUSTRATED IN CHAP-
TER 19.
10.0 ELECTRICAL CONNECTION
EVEN THE TINIEST PROCEDURE
OF AN ELECTRICAL NATURE
MUST BE CARRIED OUT BY PRO-
FESSIONALLY QUALIFIED STAFF.
BEFORE CONNECTING THE MA-
CHINE MAKE SURE THAT:
• THE MAIN POWER RATING COR-
RESPONDS TO THE MACHINE
RATING AS SHOWN ON THE
MACHINE PLATE;
• ALL MAIN POWER COMPO-
NENTS ARE IN GOOD CONDI-
TION;
• THE ELECTRICAL SYSTEM
IS PROPERLY GROUNDED
(GROUND WIRE MUST BE THE
SAME CROSS-SECTION AREA
AS THE LARGEST POWER SUP-
PLY CABLES OR GREATER);
• MAKE SURE THAT THE ELEC-
TRICAL SYSTEM FEATURES A
CUTOUT WITH DIFFERENTIAL
PROTECTION SET AT 30 mA.
As envisaged by the regulations in force, the machine is
not equipped with a master circuit breaker, but simply
has a plug-socket connection to the electrical mains.
The machine is supplied with 3 mt. of free cable. A plug
corresponding to the following requirements must be
connected to the cable:
• Conformity to Norm IEC 309
• 230 Volt – 16A
• 2P + Ground
• IP 44
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 14 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
10.1 Working area modification
After the delivery, the machine is prearranged to op-
erate on wheel of 50” maximum diameter and a rim
diameter (10” - 30”). It’s also possible to move the tools
column to enlarge the working area from 52” (with rim
diameter of 12” - 32”) up to 54” (with rim diameter of
14” - 34”) (see Figure 12).

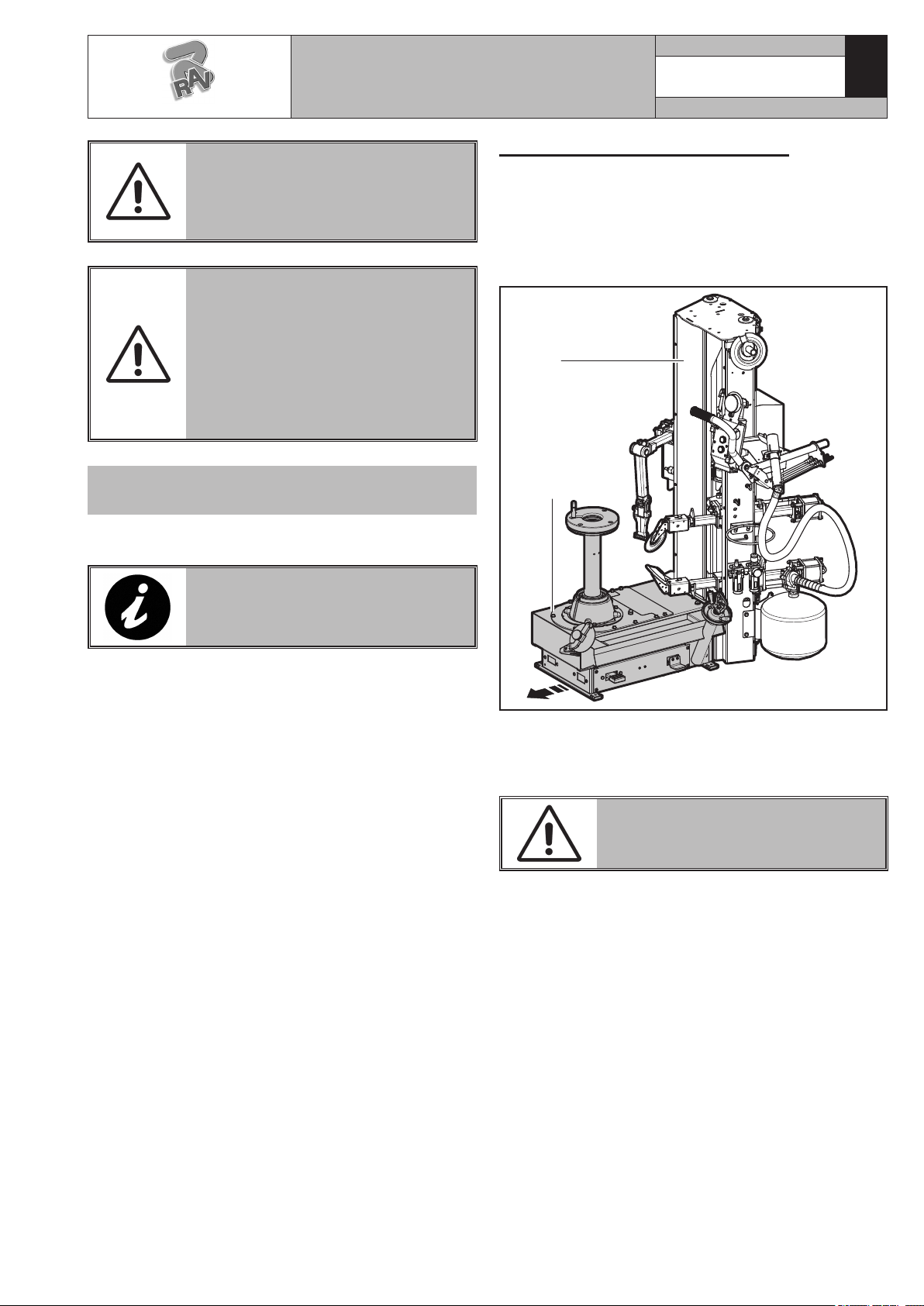

Fig._11
A
B
The column is moved by unloosing the fixing screws of
the base (Fig._11 ref._A) to the column (Fig._11 ref._B)
and by sliding the base (Fig._11 ref._A) itself into the
proper slots until the required measure.
MAKE SURE THE TYRE-CHANGER
COLUMN IS STABLE: USE A CA-
BLE, HELD BY A HOIST.
1. Remove the lateral guards (Fig._12 ref._1-2) of the
machine.
2. Unscrew the screws (Fig._12 ref._3) and the nuts
near the central slots (Fig._12 ref._4) paying atten-
tion not to remove the nuts from the proper screws.
3. Remove the six remaining screws (Fig._12 ref._5).
4. Move the base (Fig._12 ref._6) into the required
position (to 43” or 45”) and if necessary, use a lift-
ing device.
5. Lock the base three screws (Fig._12 ref._3) with a
couple of 80 Nm.
6. Place six screws (Fig._12 ref._5) previously removed
and lock them on the bases side with a couple of
80 Nm.
7. Assemble again the lateral guards (Fig._12 ref._1-2)
of the machine.
FIT A TYPE-APPROVED PLUG
TO THE MACHINE CABLE (THE
GROUND WIRE IS YELLOW/GREEN
AND MUST NEVER BE CONNECT-
ED TO THE PHASE LEADS).
MAKE SURE THAT THE ELECTRI-
CAL SYSTEM IS COMPATIBLE
WITH THE RATED POWER AB-
SORPTION SPECIFIED IN THIS
MANUAL AND APT TO ENSURE
THAT VOLTAGE DROP UNDER
FULL LOAD WILL NOT EXCEED
4% OF RATED VOLTAGE (10%
UPON START-UP).
VERSION WITH
SINGLE-PHASE MOTOR
On delivery, the machine is pre-set to operate at a
single-phase voltage of 200 ÷ 265 V - 50/60 Hz.
FAILURE TO OBSERVE THE ABOVE
INSTRUCTIONS WILL IMMEDIATE-
LY INVALIDATE THE WARRANTY.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 15 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
11.0 CONTROLS
A
B
C
E
DF
F2
F1
G
G2
G1
H
I
LM
Fig._13
11.1 Control device
The control device consists of a panel with integrated
keys and push buttons.
•Inflation pressure gauge “A” for tyre pressure readout.
•Inflation push button “B” when pushed allows to
deflate the tyre at the required pressure.
•Lever M, through a thrust and return movement,
together with L unlocking push button, enables tools
setting on wheel diameter.
•Unlocking push button Lmust be pushed before
operating lever M for arms positioning. Releasing
the push button, the arms lock into the set position.
ATTENTION: push button Lmust be pressed before
operating lever Motherwise the lever does not allow
any movement.
Panel Cconsists of:
• Push button “D” has one maintained action position
and once pushed it controls the operation of the cam
for the insertion of the upper bead breaking roll into
the rim.
• Push button “E” has one maintained action posi-
tion and once pushed it controls the operation of
the cam for the insertion of the lower bead breaking
roll into the rim.
AFTER THE ASSEMBLY, CHECK
THE CORRECT POSITION OF THE
TOOLS. LOCK THE RIM ON THE
MANDREL CENTRE. WITH THE
BEAD BREAKER ARM, CHECK
THAT THE DISTANCE BETWEEN
THE ROLL AND THE RIM EDGES
(UPPER AND LOWER) IS THE
SAME. REPEAT ALL THE PROCE-
DURES STARTING FROM POINT
1 IF THE DISTANCE IS NOT THE
SAME.
1
2
3
3
5
6
3
5
4
443" 41"
45"
5
Fig._12
10.2 Electrical checks
BEFORE STARTING UP THE TYRE-
CHANGER, BE SURE TO BECOME
FAMILIAR WITH THE LOCATION
AND OPERATION OF ALL CON-
TROLS AND CHECK THEIR PROP-
ER OPERATION (SEE PAR. “CON-
TROLS”).
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 16 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Version with tubeless inflation
The inflation pedal has two functions. The supply of
air at a controlled pressure as in the previous version,
and a second function of a jet of air from the inflation
nozzle to assist the beading in of the tyre.
DO NOT CHANGE THE SET OP-
ERATING PRESSURE VALUE BY
MEANS OF THE MAXIMUM PRES-
SURE VALVES. THE MANUFAC-
TURER SHALL NOT BE RESPON-
SIBLE FOR INJURY OR DAMAGE
ARISING FROM UNAUTHORISED
CHANGES.
KEY (pedal ref._B)
ref. 1 - Tyre inflation with pressure gauge
ref. 2 - Tyre inflation with pressure gauge + infla-
tion nozzle

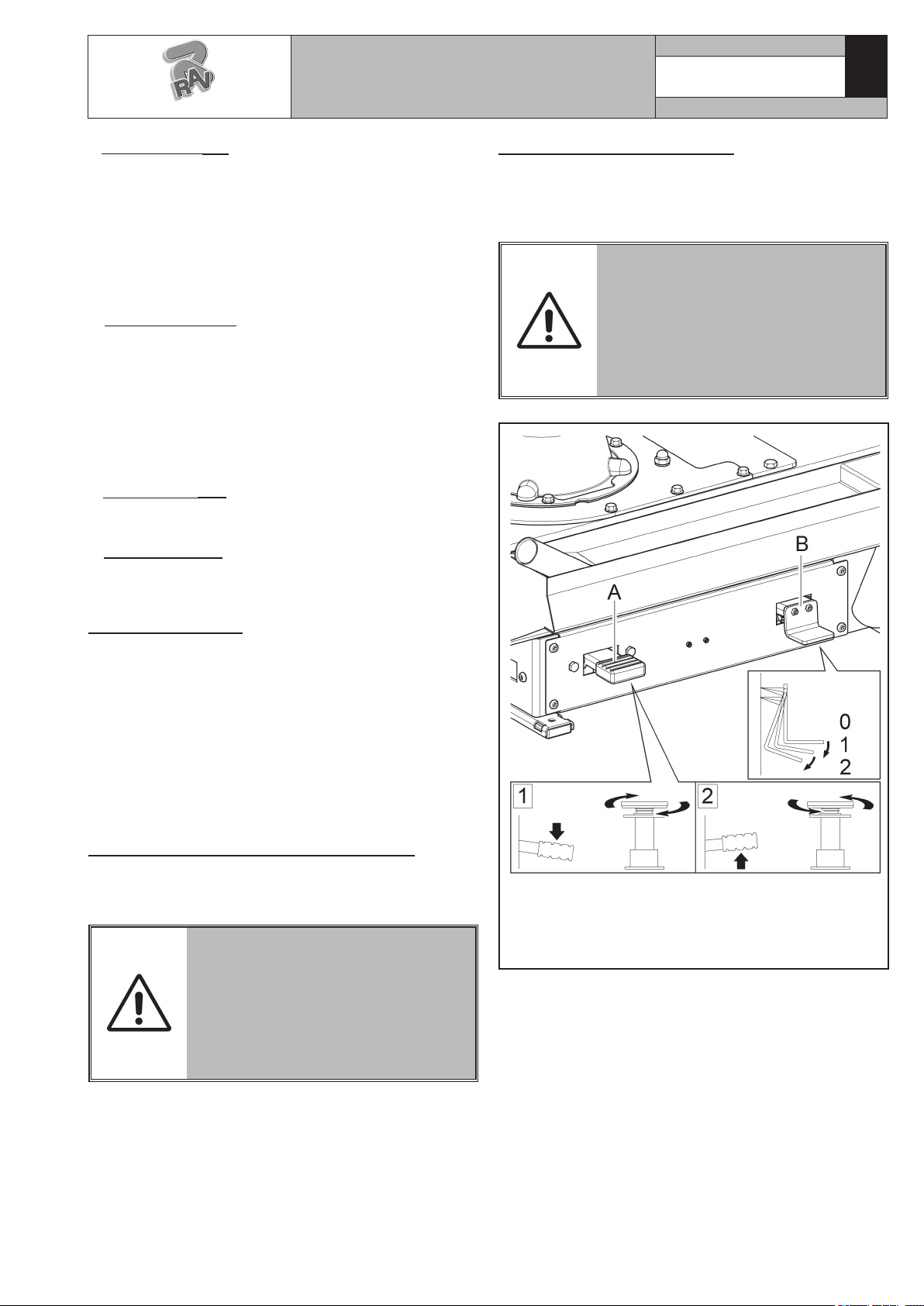

Fig._14
• Push buttons “F” have a maintained action position
and they control the vertical translation of the upper
bead breaker roll. When pressed in its lower part
(F2), it operates the downwards translation. When
pressed in its upper part (F1), it operates the up-
wards translation. When push button (F1) is pressed,
the release of the cam of the upper bead breaker roll
is also operated, if it has been previously introduced
with push button (D).
• Push buttons “G” have a maintained action posi-
tion and they control the vertical translation of the
lower bead breaker roll. When pressed in its lower
part (G2), it operates the downwards translation.
When pressed in its upper part (G1), it operates
the upwards translation. When push button (G2)
is pressed, the release of the cam of the lower bead
breaker roll is also operated, if it has been previously
introduced with push button (E).
• Push button “H” has a maintained action position.
When pressed, it controls the tool vertical down-
wards translation.
• Push button “I” has a maintained action position.
When pressed, it controls the tool vertical upwards
translation.
11.2 Pedalboard
“Pedal A” has two maintained action operative posi-
tions. When it is pushed downwards it controls man-
drel motor clockwise rotary movement. When the pedal
is lifted upwards it operates the opposite movement.
NOTE:The mandrel unit speed can be continuously
adjusted up to the maximum speed through
a progressive pressure on the pedal, only in
clockwise direction.
“Pedal B” has a different function according to the
version present on the machine.
Version with inflation with pressure gauge
The inflation pedal in this version has only one func-
tion. A continuous pressure supplies air at a controlled
pressure (max 4 ± 0,2 bar 60 PSI).
DO NOT CHANGE THE SET OP-
ERATING PRESSURE VALUE BY
MEANS OF THE MAXIMUM PRES-
SURE VALVES. THE MANUFAC-
TURER SHALL NOT BE RESPON-
SIBLE FOR INJURY OR DAMAGE
ARISING FROM UNAUTHORISED
CHANGES.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 17 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
12.3 Wheel clamping
All wheels must be locked on the rubber plate (Fig. _ 15
ref. _ 1) through the central hole using the proper locking
device (Fig. _ 15 ref. _ 2).
1
2
Fig._15
NOTE: in case of use of rims without central hole, it’s
necessary to use the proper fixture (available
on demand).
To lock a rim proceed as follows:
1. Extract the central locking shaft and its cone (Fig._16
ref._1) through the proper handle (Fig._16 ref._2)
and, if necessary, turn it to facilitate its extraction.
2
1
Fig._16
12.0 USING THE MACHINE
12.1 Precaution measures during tyre re-
moval and fitting
Before fitting a tyre, observe the following safety rules:
• rim and tyre must be clean, dry and in good condi-
tion; if necessary, remove the balancing weights and
clean the rim. Check:
- neither the bead nor the tread of the tyre are dam-
aged;
- the rim does not produce dents and/or deformation
(especially for alloy rims, dents can cause internal
micro-fractures, that pass unobserved at visual
inspection, and can compromise the solidity of the
rim and constitute danger even during inflation);
• adequately lubricate the contact surface of rim and
tyre bead, using specific tyre lubricants only;
• replace the inner tube valve with a new valve, if the
tyre tube has a metal valve, replace the grommet;
• make sure that the tyre is the right size for the rim;
on the contrary, never fit a tyre unless you are sure
it is the right size (the rated size of the rim and tyre
is usually printed directly on each of them);
• do not use compressed air or water jets to clean the
wheels on the machine.
12.2 Preliminary operations - Preparing the
wheel
• Remove the wheel balancing weights from both sides
of the wheel.
REMOVE THE VALVE STEM AND
ALLOW THE TYRE TO COMPLETE-
LY DEFLATE.
• Establish from which side the tyre should be de-
mounted, checking the position of the groove.
• Find the rim locking type.
• Try to establish the special types of wheels, such as
“EH2” and “EH2+”, in order to improve locking, bead
breaking, assembly and disassembly performances.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 18 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

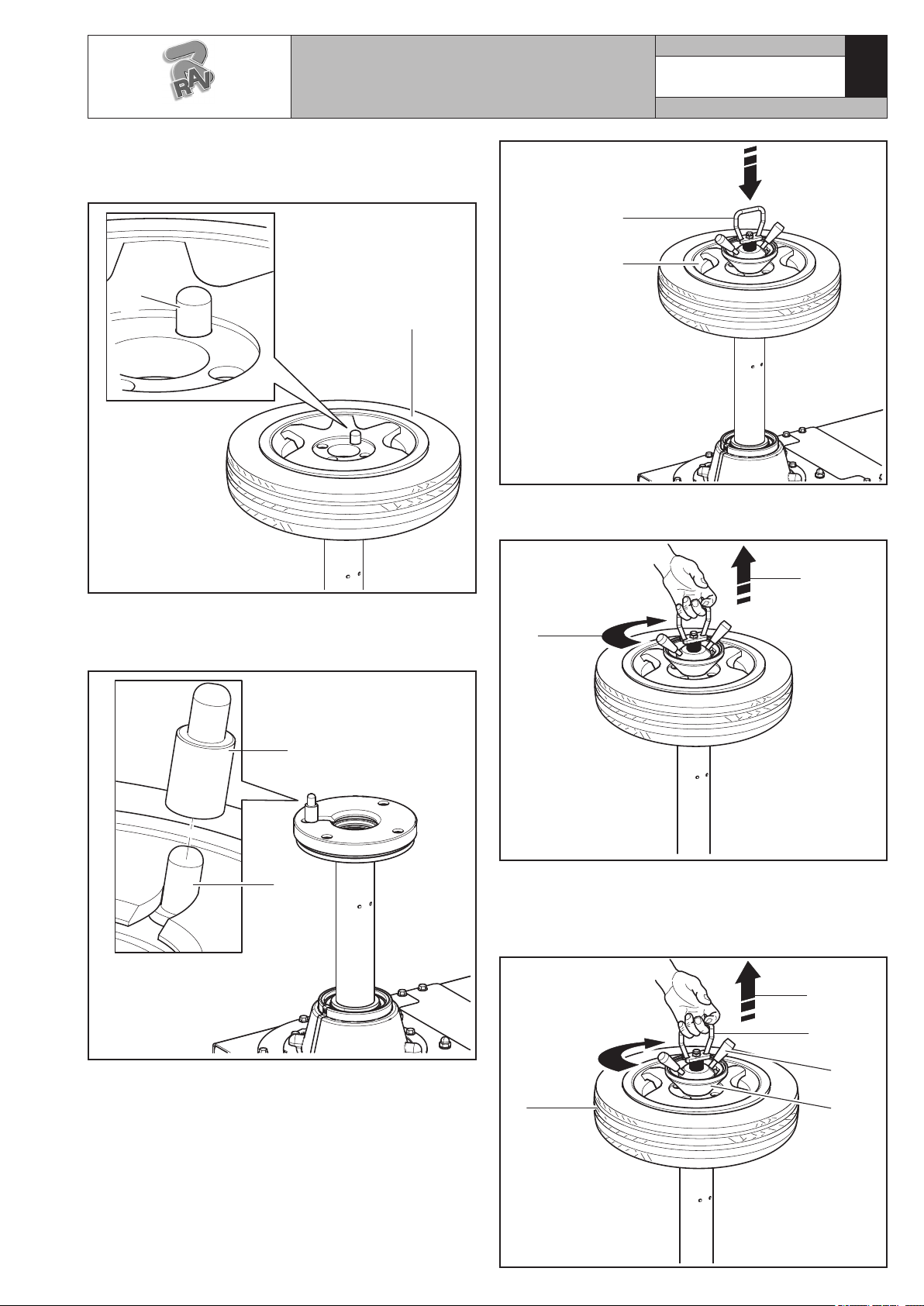

2. Dowel the wheel (Fig._17 ref._1) on the locking
platform and check that the dragging pin (Fig._17
ref._2) enter in a hole placed on the rim hub.
21
Fig._17
3. If the wheel hub is higher then the dragger (Fig._18
ref._2), use the extension (Fig._18 ref._1) supplied
on issue.
1
2
Fig._18
4. Insert the shaft complete with cone (Fig._19 ref._1)
on the rim (Fig._19 ref._2).
1
2
Fig._19
5. Turn through 90° (Fig._20 ref._1) and lift the shaft
(Fig._20 ref._2) in order to hook it inside the hole.
2
1
Fig._20
6. Keeping the shaft lifted (Fig._21 ref._1) through the
handle provided (Fig._21 ref._2), rotate the ring nut
(Fig._21 ref._3) up to the complete tightening of the
cone (Fig._21 ref._4) on the wheel (Fig._21 ref._5).
1
2
3
4
5
Fig._21
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.

Page 19 of 37 INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

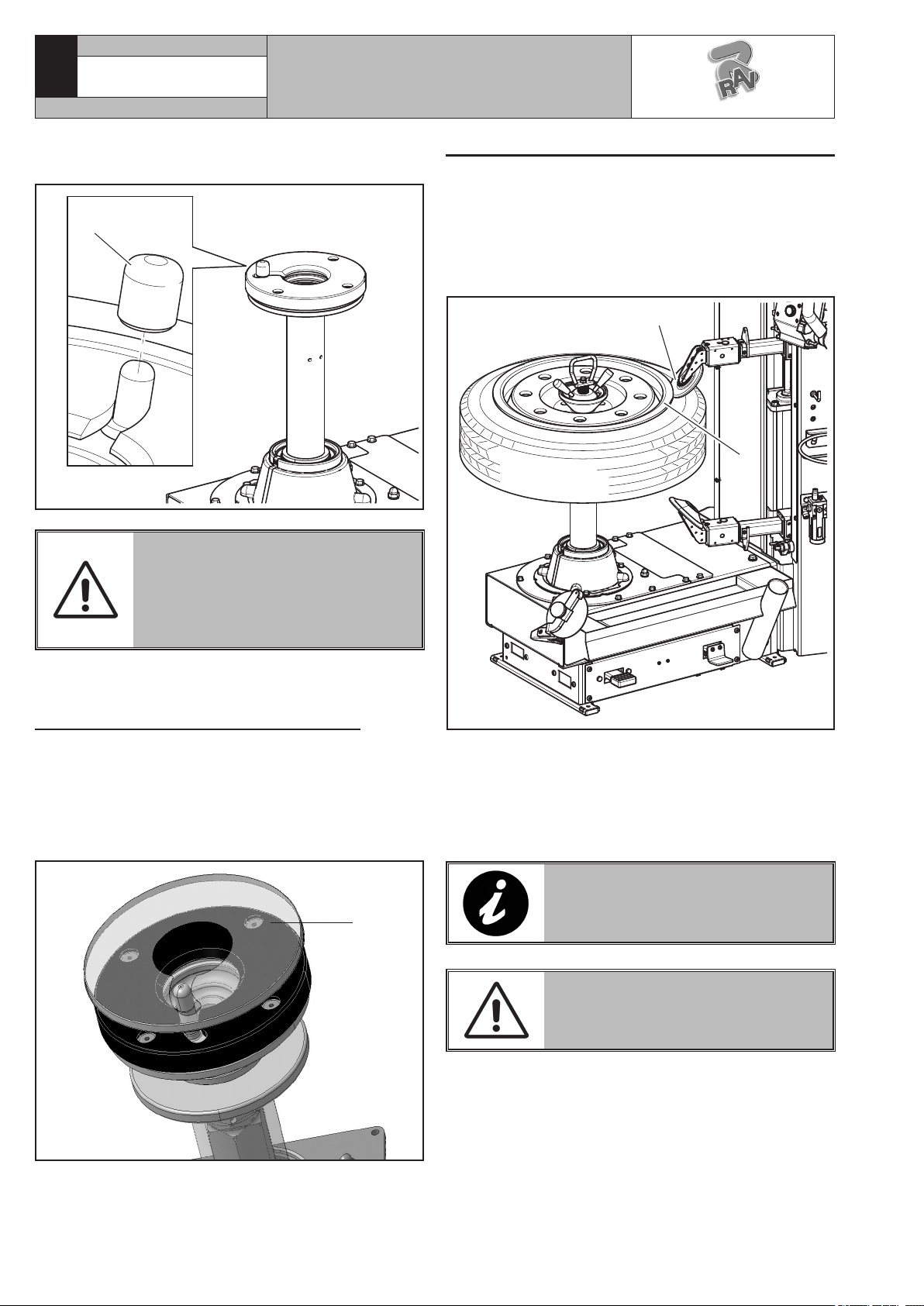

7. For wheels with alloy rims, use the proper plastic
guard (Fig._22 ref._1).
1
Fig._22
NEVER LEAVE THE WHEEL FIT-
TED ON THE MACHINE FOR A
PERIOD LONGER THAN NECES-
SARY FOR CARRYING WORK AND
IN ANY CASE NEVER LEAVE IT
UNATTENDED.
To release the wheel, carry out the previously opera-
tions on the contrary way.
12.3.1 Reverse wheel pan protection
In case of use of reverse wheels, to protect the rim,
apply on the rubber platform a protection made of
a transparent plastic material available on demand
(Fig._23 ref._1). We suggest a constant replacement
of it and in any case if there are visible damages (see
Fig._23).
1
Fig._23
12.4 Bead breaking through vertical rollers
1. After having clamped the wheel, move the upper
bead breaker roll close (Fig._24 ref._2) to the rim
edge (Fig._24 ref._1), pressing push button (Fig._13
ref._F2).
2. Establish the tools diameter (rolls and tool) with
the help of push button L and of lever M.
2
1
Fig._24
3. Keep on approaching, activating wheel clockwise
rotation (see Fig._25) pushing the pedal (Fig._14
ref._A) and at the same time activate the push
button (Fig._13 ref._F2), keeping it pressed until
there's room enough for the roll to progress with
the cam.
THE BEADING DISC MUST EXERT
PRESSURE ON THE TYRE BEAD
BUT NEVER ON THE RIM.
USE VERY CAREFULLY THE VER-
TICAL BEAD BREAKING ROLLERS
IN ORDER TO AVOID POSSIBLE
HANDS CRUSHING.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT

Page 20 of 37
INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
12.4.1 Bead breaking operations
1. Activate the upper cam pushing push button
(Fig._13 ref._D) and keep on bead breaking until
the operation is complete.
Fig._25
2. Move the lower roll close (Fig._26 ref._1) with the
key (Fig._13 ref._G1).
1
Fig._26
3. Only now turn the wheel clockwise pressing the
pedal (Fig._14 ref._A) and, at the same time, the
push button (Fig._13 ref._G1), keeping it pressed
until there's room enough for the bead breaking.
WHILE THIS OPERATION IS BEING
CARRIED OUT PAY ATTENTION
NOT TO DEFORM THE TYRE SIDE.
GREASE THE BEAD BEFORE THE
ROLL RE-ENTERS.
4. Once bead breaking in the lower part has been
completed, move the lower roll to rest position
activating push button (Fig._13 ref._G2).
NOTE: until both upper and lower rolls are not back
to rest position it is not possible to carry out
a new diameter adjustment, as described in
Paragraph 12.4 point 2.
5. Rotate the rim until the valve is positioned on the
immediate right of the roll.
WHILE THIS OPERATION IS BEING
CARRIED OUT PAY ATTENTION
NOT TO DEFORM THE TYRE SIDE.
GREASE THE BEAD BEFORE THE
ROLL RE-ENTERS.
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.
