Raven B463 User manual

B463 GRASS BAGGER
OWNER’S MANUAL
D142100:R1.11.14
PRODUCT FOR
RESIDENTIAL USE ONLY
D142100 R1 Bagger Manual_Final - English.indd 1 4/9/2015 8:50:21 AM

Denver Global Products
MPV Bagger Model# B463
S/N B463-XXXX
RAVEN B463 Bagger System
CongratulationsonthepurchaseofyournewRavenBaggingunit.Thisproductwascarefullydesigned
to work with the Raven Multi Purpose Vehicle (MPV), and was assembled in the USA to provide the
best performance when properly operated and maintained.
This manual provides information regarding the operation and maintenance of this product. Denver
Global Products (DGP) has made every effort to ensure the accuracy of the information presented
here. Please read the entire manual prior to installing and operating with your MPV and retain it for
further reference. It instructs you how to safely and easily set up and operate the bagger unit. Failure
to carefully follow recommended safety and operating practices with the MPV could result in serious
injury or death.
Shouldyou experience any problemsorhaveany questions regarding yourbaggerunitplease contact
Denver Global Products directly via the contact information listed below. DGP customer support is
committed to ensuring your complete satisfaction at all times.
Please visit:
www.ravenamerica.com/
Or call: 1-888-321-5700
Or write to:
Denver Global Products
1000 E. Powell Drive
Lincolnton, NC 28092
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules in this manual and exercise caution when operating your MPV.
• READ AND UNDERSTANDALL INSTRUCTION, WARNING, AND DANGER LABELS.
Register Your Bagger
To receive important product updates and other important information register your product with Denver Global Products
by lling out the registration card in the manual packet or going on-line to www.ravenamerica.com.

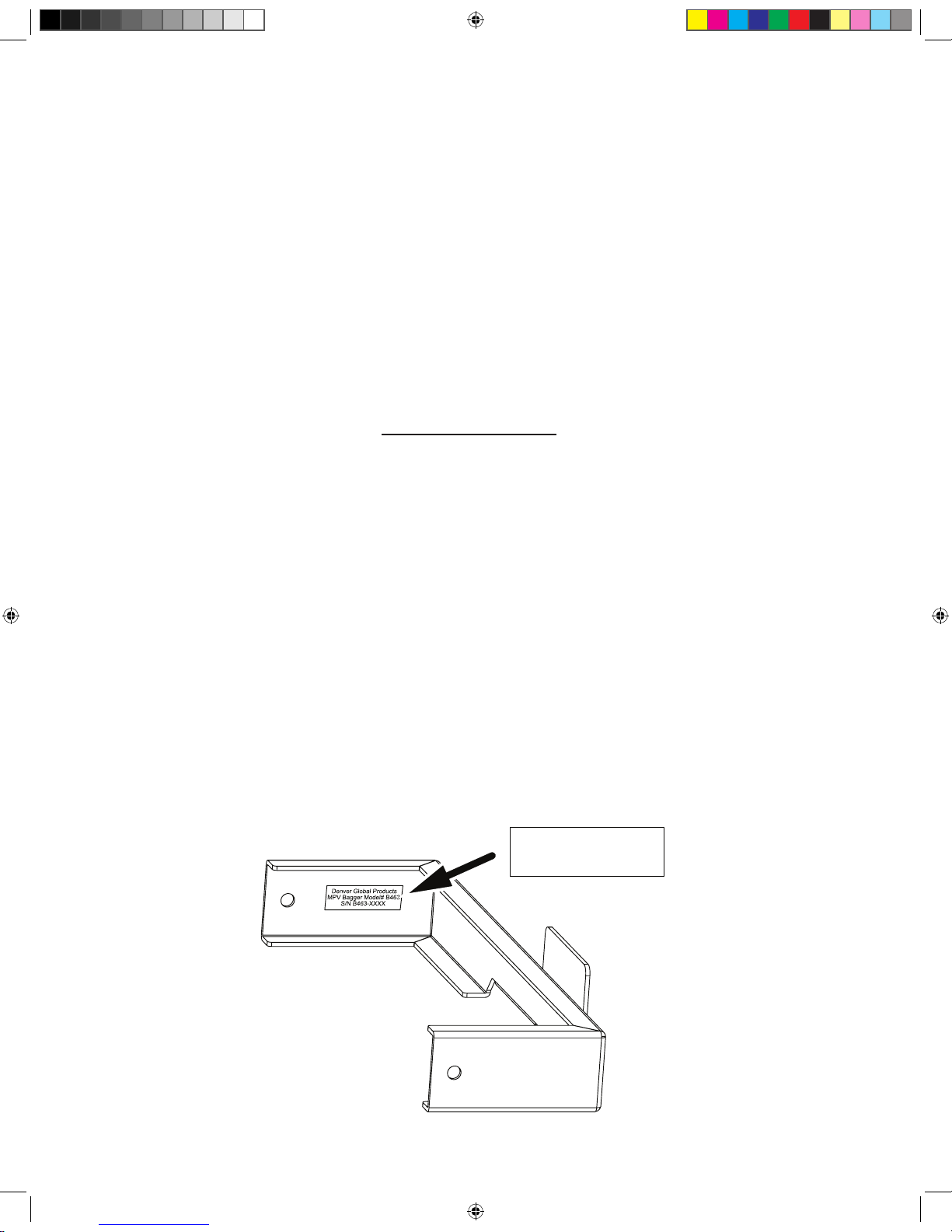

Serial Number Label
Information contained on the serial number label is essential to the registration process. The serial number is located on
the inside of the body mount frame. Record this information on the registration card and for your personal reference in the
event you need to contact Denver Global for any reason.
2
D142100 R1 Bagger Manual_Final - English.indd 2 4/9/2015 8:50:21 AM

WARNING!
www.ravenamerica.com
SAFETY & PRECAUTIONS.............................................................................................................. 4
UNPACKING..................................................................................................................................... 6
ASSEMBLY....................................................................................................................................... 7
OPERATION ....................................................................................................................................11
PARTS LISTS ................................................................................................................................. 12
WARRANTY.................................................................................................................................... 15
TABLE OF CONTENTS
SERIOUS INJURYOR EVEN DEATH CAN OCCUR IF INSTRUCTIONSARE NOT FOLLOWED.
FAILURE TO READ THIS MANUAL BEFORE OPERATING THIS PRODUCT CAN RESULT IN
SERIOUS INJURY OR DEATH.
3
D142100 R1 Bagger Manual_Final - English.indd 3 4/9/2015 8:50:21 AM

DANGER!DANGER!
WARNING!
CAUTION!
IMPORTANT WARNING
DANGER
RAVEN B463 Bagger System
Safety & PrecautionS
SAFETY AND OPERATING SYMBOLS
Familiarize yourself with the safety and warning symbols
present on the MPV and their meanings to ensure safe &
proper operation.
Safety labels warn of potentially dangerous situations and
areas of the MPV that can cause serious injury. Read and
understand all labels. If a label becomes damaged and
you are no longer able to read it, please contact DGP at
1-888-321-5700 for a replacement.
Your safety and the safety of others is very important. There
are important safety messages in this manual and on the
generator. Please read this information carefully.
A safety message alerts you to potential hazards. Each
safety message is preceded by one of these words:
DANGER, WARNING, CAUTION or IMPORTANT.
General Operation
• Read, understand and follow all instructions in the
manual and on the machine before starting.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clear the area of objects such as rocks, stones, etc.,
which could be thrown by the blades.
• Be sure the area is clear of all people and pets before
mowing. Stop the machine if anyone enters the area.
• Never carry passengers or children even with blades
off.
DEATH OR SERIOUS INJURY WILL OCCUR IF
INSTRUCTIONS ARE NOT FOLLOWED.
SERIOUS INJURY OR EVEN DEATH CAN OCCUR IF
INSTRUCTIONS ARE NOT FOLLOWED.
INJURY CAN OCCUR IF INSTRUCTIONS ARE NOT
FOLLOWED.
DAMAGE TO THE MPV OR OTHER PROPERTY COULD
RESULT IF INSTRUCTIONS ARE NOT FOLLOWED
• Do not mow in reverse unless absolutely necessary.
Alwayslook down andbehindbefore andwhilebacking.
• Be aware of the mower discharge direction and do not
direct it towards anyone. Do not operate the mower
without either the entire grass catcher or the guard in
place.
• Slow down before turning.
• Never leave the machine unattended when the engine
is running. Always turn off the blades, set the parking
brake, stop the engine and remove the key before
leaving the machine.
• Turn off blades when not mowing.
• Stop engine before removing grass catcher or
unclogging chute.
• Mow only in daylight or good articial light.
• Do not operate the machine while under the inuence
of alcohol or drugs.
• Watch out for trafc when operating near or crossing
roadways.
• Use extra care when loading and unloading the
machine onto a trailer or truck.
• Keep machine free buildup from debris which can
burn if they contact hot exhaust/ engine parts. Plowing
leaves or other debris can cause buildup to occur.
• Clean any oil or fuel spillage before operating or storing
the machine.
• Allow machine to cool before storage.
The operation of any mower can result in foreign objects
thrown into the eyes, which can result in severe eye
damage. ALWAYS wear safety glasses or eye shields
before starting your mower and while mowing. We
recommend a wide vision safety mask for over the
spectacles or standard safety glasses.
THE CUTTING MACHINE IS CAPABLE OF
AMPUTATING HANDS AND FEET AND THROWING
OBJECTS. FAILURE TO OBSERVE THE FOLLOWING
SAFETY INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
4
D142100 R1 Bagger Manual_Final - English.indd 4 4/9/2015 8:50:21 AM

WHEN OPERATING ON VARIABLE
INCLINATIONS IT IS SUGGESTED
TO USE THE RAVEN FRONT
WEIGHT KIT.
SI TRABAJA EN INCLINACIONES VARIABLES
SE SUGIERE UTILIZAR EL KIT RAVEN
ENFRENTE PARA AGREGAR PESO.
CAUTION
PRECAUCIÓN
www.ravenamerica.com

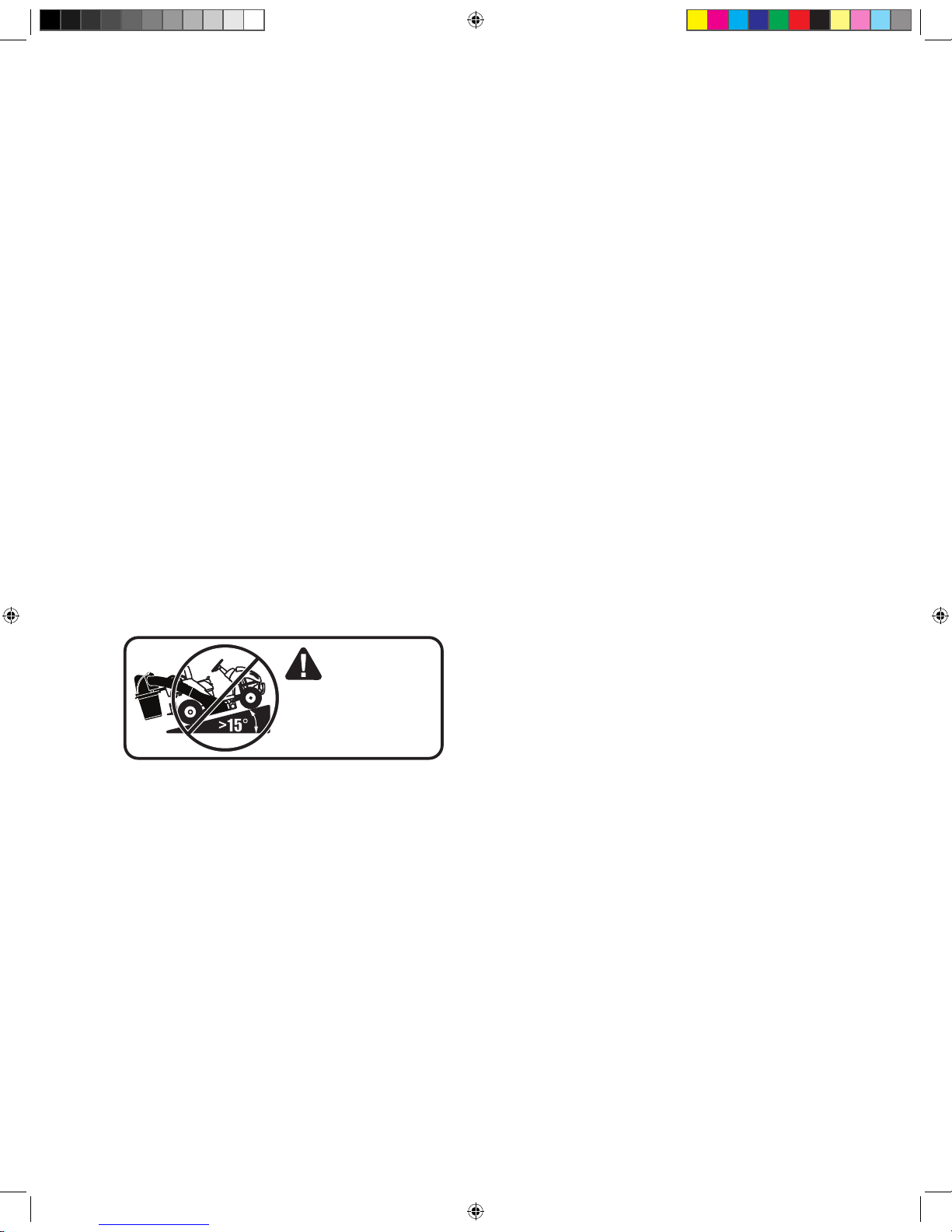

Slope Operation
Slopes are related to loss-of-control and tip-over accidents,
which can cause severe injury or death. Exercise caution
on all slopes. Do not mow on a slope with an incline of
greater than 15 degrees.
DO
• Mow up and down slopes (15° Max.), not across.
• Remove obstacles before mowing.
• Watch for uneven terrain which could overturn the
machine. Be aware that tall grass can hide obstacles.
• Use slow speed and avoid stopping on a slope.
• The grass catcher can change the stability of the
machine. Keep all movement on slopes slow and
gradual. Avoid sudden changes in speed or direction
and stopping and starting on slopes.
• If tires lose traction,stop the blades and guide the MPV
slowly down the slope.
DO NOT
• Do not mow near drop-off, ditches, or embankments.
The mower could suddenly turn over if a wheel is over
the edge of a cliff or ditch,or if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not try to stabilize the machine by putting your foot
on the ground.
Service
The operation of any mower can result in foreign objects
thrown into the eyes, which can result in severe eye
damage. Always wear safety glasses or eye shields while
operating your mower or performing any adjustments or
repairs.
We recommend a wide vision safety mask over spectacles
or standard safety glasses.
Use extra care in handling gasoline and other fuels. They
are ammable and vapors are explosive.
• Use only an approved container.
• Never remove gas cap or add fuel with the engine
running.
• Allow engine to cool before refueling.
• Do not smoke.
• Never refuel the machine indoors.
• Never store the machine or fuel container inside where
there is an open ame, such as a water heater.
• Never run a machine inside a closed area.
• Keep nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris
buildup. Clean oil or fuel spillage.Allow machine to cool
before storing.
• Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine
running.
• Grass catcher components are subject to wear,
damage, and deterioration, which could expose moving
parts or allow objects to be thrown.
• Frequently check components and replace with
manufacturer’s recommended parts, when necessary.
• Mower blades are sharp and can cut. Wrap the blade(s)
or wear gloves, and use extra caution when servicing
them.
• Check brake operation frequently. Adjust and service
as shown in the Operator’s Manual.
Safety & PrecautionS
Children
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.
• NEVER allow children to operate the machine.
• Keep children out of the mowing area and under the
watchful care of another responsible adult.
• Be alert and turn off the machine if children enter the
area.
• Before and when backing, look behind and down for
small children.
• Never carry children. They may fall off and be seriously
injured or interfere with safe machine operation.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure vision.
• Remove & store key when machine is not in operation
or unattended to prevent unauthorized operation.
5
D142100 R1 Bagger Manual_Final - English.indd 5 4/9/2015 8:50:22 AM

B460 GRASS BAGGER
OWNER’S MANUAL
D142100:R1.11.14
PRODUCTFOR
RESIDENTIALUSE ONLY
RAVEN B463 Bagger System
unPacking
UNPACKING INSTRUCTIONS
• Remove all parts and packing materials from carton
• Check carton contents against list. Be sure all parts are
there.
• If any parts are missing and/or damaged, please call
DGP Customer Service @ 1-888-321-5700.

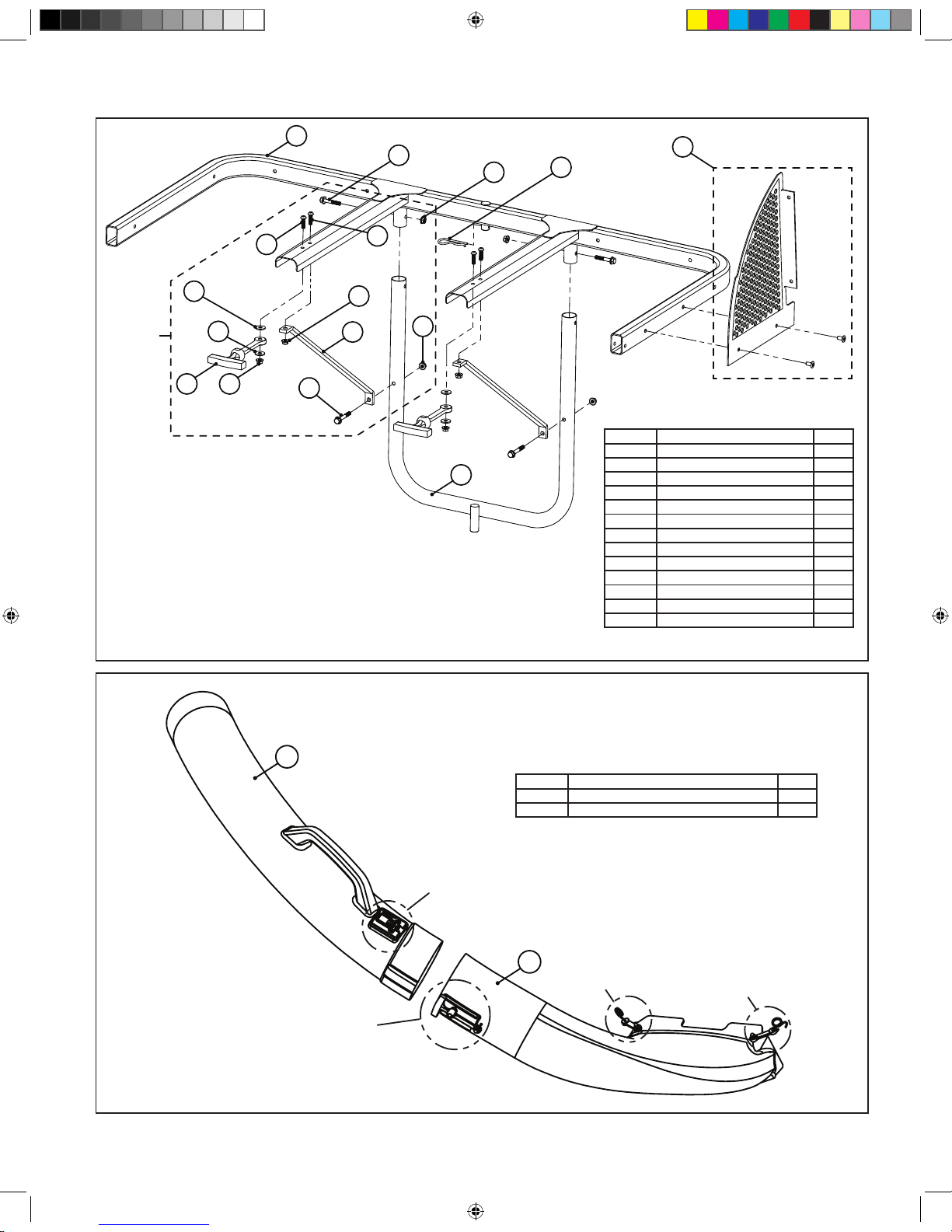

Container Contents
1. (3 ) - Soft Grassbag
2. (1) - Owner’s Manual w/Registration Card
3. (1) - Hardware Package
7. (1) - Adapter Frame w/Angle Bracket & Pins
8. (1) - Upper Chute (located inside of Lid Assembly)
9. (1) - Lower Chute with Straps
10. (1) - Lid Assembly w/Frame & Straps
Tools Required
Blade Removal/Installation
• 17mm Socket
• Ft/Lbs Torque Wrench
• Wood Block (optional)
Unit Assembly
• 12mm Wrench
• 10mm Wrench
• 10mm Socket
• Socket Wrench
• 1/4” Hex Drive Bit
(4) M6 Bolt - Long, (2) M6 Screw - Short,
(6) M6 Hex Nut, (1) R-Clip, (2) Blade Nut
4. (2) - High Lift Blades
5. (2) - Support Brackets
6. (1) - “U” Subframe
123
45
6
7
8
9
(Bottom view shown for clarity)
10
6
D142100 R1 Bagger Manual_Final - English.indd 6 4/9/2015 8:50:22 AM

CAUTION
www.ravenamerica.com
ASSEMBLY INSTRUCTIONS
6. Thread the new locking nut onto the stud and use a
torque wrench to tighten to 40 ft/lbs.
NOTE: Ensure the blade is seated properly on the
blade adapter before torquing down the locking nut.
aSSembly
Before assembling your RAVEN Grass Catcher to you
MPV:
• Locate your MPV on a rm and level surface.
• Set parking brake.
• Place all motion controls to “NEUTRAL”.
• Turn ignition to “OFF” and remove the key.
• Ensure that the blades and all moving parts have
completely stopped.
• Disconnect the spark plug and place wire where it
cannot come in contact with the plug.
Wear ANSI-approved eye protection and work gloves
when assembling this unit.
New Blade
Blade Adapter
Text on Blades
High Lift Blade Installation
For more detailed instructions concerning removing the
mower deck and the installation of new mower blades,
please refer to your MPV Owner’s Manual.
1. Turn the deck over - this requires two people.
2. Use a 17mm socket wrench to remove the old locking
nut and discard. Remove the domed washer and set
aside.
3. Remove the old blades.
4. Fit the high-lift mulch blades included with the bagger
assembly onto the blade adapter with the blade text
showing
5. Replace the domed washer onto the new blades with
the curved side up (Fig. D).
17mm Socket
Wrench
Tighten to 40 ft/lbs
Domed Washer
Curved Side Up
Seat Blade on Adapter
7. Carefully turn the deck back over and reattach to your
MPV.
7
D142100 R1 Bagger Manual_Final - English.indd 7 4/9/2015 8:50:25 AM

RAVEN B463 Bagger System
aSSembly
2 On the rear of your MPV, located the (4) bolts (2 per
side) directly below the tailgate. Use a 10mm and
12mm wrench to loosen and remove all (4).
3. Mount the “L” Brackets as below. HAND TIGHTEN
ONLY.
4. Locate theAdapter Frame and slide it between the tabs
of the “L” Brackets oriented as shown. Slide the Snap
Pins through the brackets and the frame and secure.
5. Locate the Lid/Frame Assembly place it on a smooth,
flat surface oriented as shown.
Unit Assembly
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting cover assembly
to tractor.
1. Locate Adapter Frame and remove the (2) small “L”
Brackets and (2) Snap Pins from it.
“L” Brackets
Snap Pins
Adapter Frame
Left Bracket Right Bracket
Snap Pin Snap Pin
Tab Tab
LEFT RIGHT
Rear View - FullyAssembled
6. Locate the “U” Subframe and slide it onto the short
stubs located at the bottom of the main frame. Ensure
the locating pin at the bottom of the “U” Subframe is
oriented as shown. Locate the (2) long hex bolts and
(2) hex nuts and install through holes of “U” Subframe
HAND TIGHT ONLY.
CAUTION
Do not remove discharge guard from mower. Raise and
hold guard when attaching lower chute and allow it to
rest on chute while in operation.
8
D142100 R1 Bagger Manual_Final - English.indd 8 4/9/2015 8:50:49 AM

www.ravenamerica.com
aSSembly
8. Open lid and lift the bagger assembly by the two center
arms of the frame. Carefully set the assembly onto the
mower, ensuring that the top pin on the frame lines up
with the hole on the adapter frame and the bottom pin
lines up with the hole in the bottom hitch of MPV. It
may be necessary to apply some pressure downward
so that the top of the frame is seated firmly onto the
adapter frame.
9. With the frame correctly mounted onto the MPV, locate
the large R Clip and insert into the hole at the end
of the top pin. A properly installed frame will look as
shown below.
7. Locate the (2) support brackets, (2) long hex bolts,
(2) short cap screws and (4) hex nuts. Assemble as
shown. Use the long hex bolts on the bottom and the
short cap screws on top at the main frame. When both
brackets are installed, tighten these (4) fasteners, as
well as the (2) fasteners from Step 6, securely.
Long Hex Bolts
Short Caps
Screws
10. Locate the upper and lower tubes and assemble them
together. Pull the Tube Strap on the bottom tube up
and onto the stud on the upper tube.
R Clip Installed
9
D142100 R1 Bagger Manual_Final - English.indd 9 4/9/2015 8:51:07 AM

RAVEN B463 Bagger System
11. Insert round end of tube assembly into the open hole
on the bagger housing and push it in approximately
8-10”.
aSSembly
12. Lift the mower discharge chute and guide the end of
the tube down onto the opening. Keep the top tube end
inserted into the bagger housing. Ensure that the top
lip of the tube chute is on top of the mower deck and
the bottom lip is under the support bar. With the bottom
chute correctly in place, attach the chute hooks into the
holes near the deck wheels as shown.
13. A correctly installed tube assembly will look as shown
below. At this point, TIGHTEN THE (4) BOLTS FROM
STEP 3 SECURELY.
Lift Discharge Chute
14. Locate the (3) Grass Bags and slide them onto the
main frame.
15. Close lid and secure it with the (2) lid straps as shown.
10
D142100 R1 Bagger Manual_Final - English.indd 10 4/9/2015 8:51:33 AM

EMPTY
FULL
WHEN OPERATING ON VARIABLE
INCLINATIONS IT IS SUGGESTED
TO USE THE RAVEN FRONT
WEIGHT KIT.
SI TRABAJA EN INCLINACIONES VARIABLES
SE SUGIERE UTILIZAR EL KIT RAVEN
ENFRENTE PARA AGREGAR PESO.
CAUTION
PRECAUCIÓN
www.ravenamerica.com
oPeration
CAUTION
• Do not operate mower with grass catcher partially
installed.
• Disengage blades and stop engine before leaving
tractor seat to empty containers, unclogging chutes,
etc.
• Close cover before starting.
• Disengage mower when crossing drive ways or
gravel surfaces and other areas where thrown
objects could be a hazard.
• Do not attempt to vacuum up cans or other
potentially hazardous projectiles.
OPERATION
Follow the mower operation instructions in your tractor
owner’s manual.
When operating your grass catcher on a lawn where grass
and leaf bagging equipment has not been used, you are
picking up thatch and debris that has accumulated for long
periods of time. The amount collected and the total time
of operation may be greater than you will experience with
regular use of your grass catcher.
• Always run throttle at full speed when bagging.
• Select a gear low enough to give good mower cutting
performance, good quality cut and good bagging
performance. It may be necessary to overlap width of
cut to suit your conditions.
• If grass is extremely tall, it should be mowed twice. The
rst time relatively high, the second time to desired
height.
• Use left hand side of mower for trimming.
• Plastic trash bags can be inserted inside grass catcher
containers for ease of debris disposal.
• Avoid cutting wet grass or in the morning while the dew
is still heavy. Grass clippings collected under these
conditions tend to be sticky and adhere to the walls of
the ow path causing clogging.
NOTE: To help prevent clogging of chutes, check/empty
bags when the indicator is up. Experience will teach you
the best time to empty the bags.
Care should be taken not to damage the parts and that the
indicator moves freely at the beginning of each use.
If the grass catcher fails to pick up cut grass or leaves, it is
an indication that clogging has occurred in the system or
that the grass catcher containers are full.
Usually this is indicated by the raising of the full bagger
indicator.
• Disengageblades, shiftintoneutral,engagethe parking
brake and stop the engine.
• Unlatch and raise lid.
• Slide out containers and dispose of clippings .
• Replace containers, close lid, and latch.
• Unlatch chutes and check for clogging.
• Remove all debris in chutes.
• Reassemble and latch chutes
• Check to insure full bagger indicator has not become
clogged.
• The air passage hole must be clear of debris.
• Gently insert a small twig or wire into pas sage way to
clear.
General Recommendations
• Always observe safety rules when performing any
maintenance.
• Before each use check for loose fasteners.
• Clean unit thoroughly after each use.
Blade Care
For best results mower blades must be kept sharp. Replace
bent or damaged blades. See BLADE CARE instructions in
your tractor owner’s manual.
Storage
When grass catcher is to be stored for a period of time,
clean it thoroughly, remove all dirt, grass, leaves, etc. Store
in a clean, dry place.
Your bagger is equipped with a full bagger indicator.
11
D142100 R1 Bagger Manual_Final - English.indd 11 4/9/2015 8:51:33 AM

1
2
3
4
4
5
6
78
9
8
9
RAVEN B463 Bagger System
Parts List
Part Description Qty
1 COVER LID 1
2GASKET, TRIM LID 1
3 COVER BODY 1
4 HINGE ROD 2
5 R CLIP - SMALL 4
6 GASKET, FRONT LIP 3
PLEASE READ THE FOLLOWING CAREFULLY
This parts list and assembly diagram has been provided as a reference tool only. Denver Global Products states that
all repairs and part replacements should be undertaken by certied and licensed technicians, and not by the Buyer. The
Buyer assumes all risks and liability arising out of his or her repairs to the original product or replacement parts.
Part Description Qty
7 ADAPTER FRAME 1
8 L BRACKET 2
9 LOCKING PIN 2
12
D142100 R1 Bagger Manual_Final - English.indd 12 4/9/2015 8:51:33 AM

10
11
12
13
14
18 15
16
16
15
2x 15
20
15
19
17 17
21
22
*
*
**
www.ravenamerica.com
Part Description Qty
21 UPPER TUBE 1
22 LOWER TUBE 1
Part Description Qty
10 UPPER FRAME WELDMENT 1
11 U SUBFRAME WELDMENT 1
12 DISCHARGE SCREEN ASSY 1
DISCHARGE SCREEN 1
DOMED BLIND RIVET 2
13 SUPPORT BRACKET 2
14 LID STRAP, T-HANDLE 2
15 HEX NUT 8
16 FLAT WASHER 4
17 SCREW 4
18 SCREW 2
19 SCREW 2
20 R CLIP - LARGE 1
Parts List
*See Details on Next Page
13
D142100 R1 Bagger Manual_Final - English.indd 13 4/9/2015 8:51:34 AM

32
33
33
23
26
26
27
28
27
29
30
26
27
31
24 25
35 36
34
RAVEN B463 Bagger System
Part Description Qty
32 INDICATOR ASSEMBLY 1
33 SCREW 2
Part Description Qty
23 TUBE STRAP, T-HANDLE 1
24 CHUTE STRAP 2
25 HOOK 2
26 CAP NUT 4
27 FLAT WASHER 4
28 SPRING CLIP 1
29 BOLT 1
30 BOLT 1
31 BOLT 2
* 2x Per Chute
Parts List
Part Description Qty
35 HI-LIFT BLADE 2
36 BLADE NUT 2
Part Description Qty
34 BAG ASSEMBLY 3
14
D142100 R1 Bagger Manual_Final - English.indd 14 4/9/2015 8:51:34 AM

www.ravenamerica.com
B 4 6 3
-B 4 6 3 X X X X
S   J  
1 3 1 3   M      NL 51 0 0 5 5 1 2 1 2
  A    RO 51 2 3 4
        @     . 
20 1 0 1 0 1 5 
PRODUCT WARRANTY AND REGISTRATION
Fill out the registration card in the owner’s manual packet or
goon-linetowww.ravenamerica.comtoregister.Registered
owners will receive important product updates and other
important information from Denver Global Products.
Warranty
The Manufacturer warrants to the original consumer
purchaser that this product as manufactured is free from
defects in materials and workmanship. For a period of two
(2) years from date of purchase by the original consumer
purchaser, we will repair or replace, at our option, without
charge for parts or labor incurred in replacing parts, any
part which we nd to be defective due to materials or
workmanship. This Warranty is subject to the following
limitations and exclusions:
1 Transportationchargesforthemovementofanypower
equipment unit or attachment are the responsibility
of the purchaser. Transportation charges for any
parts submitted for replacement under this Warranty
must be paid by the purchaser unless such return is
requested by the manufacturer.
2 This Warranty applies only to products which have
been properly assembled, adjusted, operated, and
maintained in accordance with the instructions
furnished.ThisWarrantydoes notapplyto anyproduct
which has been subjected to alteration, misuse,
abuse, improper assembly or installation, delivery
damage, or to normal wear of the product.
3 Exclusions: This warranty does not cover: normal
wear; damage as a result of use in a manner for
which the product was not designed; damage caused
by modication or use of unsuitable attachments or
accessories, or other misuse and neglect; damage
caused by failure to follow the prescribed warnings,
operating practices, maintenance, and storage
procedures; parts affected or damaged by accident
and/or collision; damage due to transporting, handling,
storage or any other causes other than defects in
material or workmanship of the product.
4 In the event you have a claim under this Warranty, you
must work with an authorized service location.
Should you have any unanswered questions concerning
this Warranty, please contact 1-888-321-5700 with the
model number, serial number and date of purchase of your
product.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL
OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED
WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR OUR EXPRESSED
WARRANTIES. Some areas do not allow the limitation
of consequential damages or limitations of how long an
implied Warranty may last, so the above limitations or
exclusions may not apply to you. This warranty gives you
specic legal rights, and you may have other rights which
vary from locale to locale.
Product Registration
Product Registration
Thank you for your Purchase. To ensure you receive up to
the minute information regarding your MPV Bagger System
inthe eventofproduct updates,pleaseregisteryour product
within 30 days of purchase.
Your information will be held in condence and not sold
to third parties for any reason. While registration provides
benets of current and future product knowledge, it does
not void or diminish your warranty rights.
Please complete the included registration card, or register
on-line at www.ravenamerica.com.
Please visit:
www.ravenamerica.com/
Or call: 1-888-321-5700
Or write to:
Denver Global Products
1000 E. Powell Drive
Lincolnton, NC 28092
Warranty
15
D142100 R1 Bagger Manual_Final - English.indd 15 4/9/2015 8:51:35 AM

DGP CUSTOMER SERVICE CONTACT INFORMATION:
Have your unit’s model number and serial number ready when contacting DGP.
Phone (Toll Free):1-888-321-5700
Email: [email protected]. Please allow up to 24 hours for a response.
Additional details about your product can be found at www.ravenamerica.com.
D142100 R1 Bagger Manual_Final - English.indd 17 4/9/2015 8:51:35 AM

EMBOLSADORA DE CÉSPED B463
MANUAL DEL PROPIETARIO
D142100:R1.11.14
ESTE PRODUCTO ES SOLO
PARA USO RESIDENCIAL
D142100 R1 Bagger Manual - 032415 - For Review_SP.indd 1 08/04/15 2:14 AM

Denver Global Products
Embolsadora MPV
Modelo B463
S/N B463-XXXX
Sistema de embolsadora RAVEN B463
Felicitaciones por la compra de su nueva unidad embolsadora Raven. Este producto fue diseñado
cuidadosamente para funcionar con el Vehículo multipropósito Raven (MPV) y fue ensamblado en los
Estados Unidos para ofrecer el mejor desempeño cuando es operado y mantenido adecuadamente.
Este manual ofrece información relacionada al funcionamiento y mantenimiento de este producto.
Denver Global Products (DGP) realiza esfuerzos para asegurar la precisión de la información que aquí
se presenta. Por favor lea el manual completo para la instalación y el funcionamiento de su MPV y
manténgalo a mano para futura referencia. Le instruye sobre la manera en que se prepara y se pone en
funcionamiento la unidad embolsadora. Si no se siguen cuidadosamente las prácticas recomendadas
de seguridad y de funcionamiento con el MPV, esto podría ocasionar lesiones graves o la muerte.
Si experimenta cualquier problema o tiene alguna pregunta sobre su unidad enbolsadora, por favor
póngaseencontactoconDenverGlobal Products directamente a través de la información decontacto
listada a continuación. El departamento de apoyo al cliente de DGP está comprometido con asegurar
su satisfacción completa todo el tiempo.
Visite:
www.ravenamerica.com/
O llame al: 1-888-321-5700
O puede escribir a:
Denver Global Products
1000 E. Powell Drive
Lincolnton, NC 28092
RESPONSABILIDADES DEL CLIENTE
• Lea y observe las reglas de seguridad en este manual y vaya con cuidado cuando esté operando su MPV.
• LEAY COMPRENDA TODAS LAS INSTRUCCIONES Y LAS ETIQUETAS DE ADVERTENCIAY PELIGRO.
Registre su embolsadora
Pararecibiractualizacionesimportantesdelosproductosademásdeotrotipodeinformaciónimportante,registresuproducto
con Denver Global Products llenando la tarjeta de registro en el bolsillo del manual o visitando www.ravenamerica.com.
Etiqueta del Número de Serie
La información contenida en la etiqueta del número de serie es esencial para el proceso de registro. El número de serie
está ubicado en la parte interior del marco de montaje del cuerpo. Registre esta información en la tarjeta de registro y
para su referencia personal dado el evento que necesite ponerse en contacto con Denver Global por cualquier motivo.
2
D142100 R1 Bagger Manual - 032415 - For Review_SP.indd 2 08/04/15 2:14 AM

¡ADVERTENCIA!
www.ravenamerica.com
SEGURIDAD Y PRECAUCIONES.................................................................................................... 4
DESEMPAQUE ................................................................................................................................. 6
ENSAMBLAJE.................................................................................................................................. 7
FUNCIONAMIENTO.........................................................................................................................11
LISTAS DE PARTES....................................................................................................................... 12
GARANTÍA...................................................................................................................................... 15
TABLA DE CONTENIDO
PUEDEN PRODUCIRSE LESIONES GRAVES O INCLUSO LA MUERTE SI NO SE SIGUEN
LAS INSTRUCCIONES. NO LEER ESTE MANUAL ANTES DE OPERAR EL PRODUCTO
PUEDE PROVOCAR LESIONES GRAVES O LA MUERTE.
3
D142100 R1 Bagger Manual - 032415 - For Review_SP.indd 3 08/04/15 2:14 AM

IMPORTANTE
ADVERTENCIA
¡PELIGRO!
ADVERTENCIA
PELIGRO
¡PRECAUCIÓN!
Sistema de embolsadora RAVEN B463
SÍMBOLOS DE SEGURIDAD Y FUNCIONAMIENTO
Familiarícese con los símbolos de seguridad y aviso que
se encuentran en el MPV y su signicado para asegurar un
funcionamiento adecuado y seguro.
Las etiquetas de seguridad avisan sobre situaciones
potencialmente peligrosas y áreas del MPV que pueden causar
lesiones graves. Lea y comprenda todas las etiquetas. Si una
etiqueta se deteriora y no es posible leerla, por favor póngase en
contacto con el DGP al 1-888-321-5700 para su reemplazo.
Su seguridad y la seguridad de los demás es muy importante.
Hay mensajes importantes de seguridad en este manual y en el
generador. Por favor lea esta información cuidadosamente.
Un mensaje de seguridad lo alerta contra peligros potenciales.
Cada mensaje de seguridad está precedido por una de las
siguientes palabras: PELIGRO, ADVERTENCIA, PRECAUCIÓN
o IMPORTANTE.
Funcionamiento general
• Lea,comprenda y siga todas las instruccionesdeestemanual
y las que se encuentran en la máquina antes de empezar.
• Sólo permita que adultos responsables, quienes estén
familiarizados con las instrucciones, pongan a funcionar esta
máquina.
• Limpie el área de objetos tales como piedras, peñascos, etc.
que podrían ser lanzados por las hojas de corte (cuchillas).
• Asegúrese de que no haya personas ni mascotas en el área
antes de empezar a cortar el césped. Detenga la máquina si
alguien ingresa en esta área.
• Nunca lleve pasajeros ni niños aunque haya desconectado
las cuchillas.
SE PRODUCIRÁ LAMUERTE O LESIONES GRAVES SI NO
SE SIGUEN LAS INSTRUCCIONES.
PUEDEN PRODUCIRSE LESIONES GRAVES O INCLUSO
LA MUERTE SI NO SE SIGUEN LAS INSTRUCCIONES.
PUEDEN PRODUCIRSE LESIONES SI NO SE SIGUEN LAS
INSTRUCCIONES.
PUEDEN PRODUCIRSE DAÑOS AL MPV U OTROS
ARTÍCULOS SI NO SE SIGUEN LAS INSTRUCCIONES.
• Nocorteelcéspedenreversaamenosqueseaabsolutamente
necesario. Siempre mire hacia abajo y hacia atrás antes y
mientras está retrocediendo.
• Esté pendiente de la dirección de descarga del cortador de
césped y no lo dirija hacia ninguna persona. No ponga a
funcionar el cortador de césped sin antes haber colocado el
receptor de hierba o el protector.
• Reduzca la velocidad antes de cambiar de dirección.
• Nunca deje la unidad desatendida mientras el motor esté
funcionando. Siempre desconecte las hojas de corte
(cuchillas), je el freno de estacionamiento, detenga el motor
y extraiga la llave antes de dejar la máquina.
• Apague las hojas de corte (cuchillas) cuando no esté
cortando césped.
• Detenga el motor antes de extraer el receptor de hierba o de
destapar el tubo de descarga.
• Corte el césped solamente durante las horas del día o bajo
una luz articial potente.
• No ponga a funcionar la máquina mientras esté bajo la
inuencia de alcohol o drogas.
• Esté pendiente del tráco cuando éste operando la máquina
cerca de, o cruzando, las calles.
• Vaya con mucho más cuidado cuando esté cargando o
descargando la máquina sobre un tráiler o camión.
• Mantenga la máquina libre de acumulación de suciedad, que
podría quemarse si se pone en contacto con el escape u
otras partes del motor calientes. El arado de hojas u otro tipo
de desechos puede causar este tipo de acumulación.
• Limpie cualquier derrame de aceite o combustible antes de
poner a funcionar o de almacenar la máquina.
• Permita que la máquina se enfríe antes de almacenarla.
El funcionamiento de cualquier cortadora de césped puede
provocar el lanzamiento de objetos hacia los ojos, lo que
podríacausardañosseveros en losojos. SIEMPREuselentes
de seguridad o protectores para los ojos antes de arrancar su
cortadora de césped y mientras esté en el proceso de cortar
el césped. Recomendamos una máscara de seguridad de
amplia visión colocada encima de lentes o lentes estándares
de seguridad.
LA MÁQUINA DE CORTE ES CAPAZ DE AMPUTAR MANOS
Y PIES Y DE LANZAR OBJETOS. NO OBSERVAR LAS
SIGUIENTES INSTRUCCIONES DE SEGURIDAD PODRÍA
OCASIONAR LESIONES GRAVES O LA MUERTE.
Seguridad yPrecaucioneS
4
D142100 R1 Bagger Manual - 032415 - For Review_SP.indd 4 08/04/15 2:14 AM
