RAYLASE SUPERSCAN IV-10 User manual

2
-AXIS DEFLECTION UNITS
Translation of the original manual
SUPERSCAN
IV
SUPERSCAN IV
-10, SUPERSCAN IV-15, SUPERSCAN IV-20, SUPERSCAN IV-30

This manual has been created by RAYLASE for its customers and employees.
RAYLASE reserves the right to modify the product described in this manual and the information it contains
without prior notification. All rights reserved. Duplication of this manual, including extracts – particularly
by photocopying, scanning or photographing – and any other form of reproduction is only permitted with
the prior written approval of RAYLASE.
Information correct at: 2022/10

CONTENTS
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
3
CONTENTS
1ABOUT THIS MANUAL__________________________________ 5
1.1 Basic information .................................................................................................................5
1.2 Display conventions.............................................................................................................5
1.3 Other applicable documents................................................................................................5
1.4 Manufacturer........................................................................................................................6
1.5 Customer service.................................................................................................................6
1.6 Warranty ..............................................................................................................................6
2GENERAL SAFETY INFORMATION ______________________ 8
2.1 Designated use....................................................................................................................8
2.2 Classification of laser systems.............................................................................................8
2.3 Laser area............................................................................................................................9
2.4 Hazards due to laser radiation...........................................................................................10
2.5 Required training and instruction of operating personnel..................................................11
2.6 Required protection measures ..........................................................................................11
2.7 Behaviour in case of destroyed zinc selenide (ZnSe) lenses............................................11
3PRODUCT DESCRIPTION______________________________12
3.1 Items included, accessories and spare parts ....................................................................12
3.2 General description............................................................................................................12
3.3 Product versions................................................................................................................17
3.4 Examples of use ................................................................................................................17
3.5 Status LEDs.......................................................................................................................18
3.6 Signage..............................................................................................................................19
3.7 Technical data ...................................................................................................................21
3.8 Lifespan .............................................................................................................................31
4INSTALLATION _______________________________________32
4.1 Safety during installation....................................................................................................32
4.2 Installation location............................................................................................................33
4.3 Preparing for installation....................................................................................................33
4.4 Installing the lens...............................................................................................................33
4.5 Installing the protective window.........................................................................................33
4.6 Installing the deflection unit ...............................................................................................33
4.7 Completing installation.......................................................................................................35
5START-UP ____________________________________________36
5.1 Safety during start-up and operation .................................................................................36
5.2 Checking the installation....................................................................................................37

CONTENTS
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
4
5.3 Start-up..............................................................................................................................37
6MAINTENANCE _______________________________________38
6.1 Cleaning.............................................................................................................................38
6.2 Servicing............................................................................................................................39
6.3 Replacing the protective window.......................................................................................40
7UNINSTALLING _______________________________________42
7.1 Safety when uninstalling....................................................................................................42
7.2 Uninstalling the deflection unit...........................................................................................42
8STORAGE ____________________________________________43
9TRANSPORTATION ___________________________________44
10 DISPOSAL____________________________________________45
11 TROUBLESHOOTING__________________________________46
INDEX ____________________________________________________47

1 ABOUT THIS MANUAL
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
5
1ABOUT THIS MANUAL
1.1 Basic information
This manual provides general information about handling SUPERSCAN IV series deflection units. In
subsequent chapters, the general designations “deflection unit” or “product” are used to refer to the
SUPERSCAN IV. The product version is indicated by the type code on the rating plate (see page19,
Signage).
This manual contains important information about professional and safe handling of the deflection
unit. As a result, you should familiarise yourself with the content of this manual before starting to use
the deflection unit. In case of any queries, please contact RAYLASE Customer Service for information
(see page 6, Customer service).
The manual must be accessible to anyone involved in developing, installing, uninstalling or using a
laser system with a RAYLASE deflection unit. If the deflection unit is sold on, this manual or an
authorised copy must be passed on with it.
1.2 Display conventions
The signal word WARNING indicates hazards that can lead to injuries or damage unless
precautionary measures are taken.
The signal word NOTE indicates general precautionary measures to be observed when handling the
product to prevent damage to the product itself.
Bullet points in a list are shown with a square at the beginning of the line.
Instructions are introduced with an objective and are shown with numbered actions. If necessary, an
intermediate result and a final result are specified.
1. First instruction
2. Second instruction
An intermediate result is represented by an arrow symbol.
3. Further instruction
An end result is represented by a tick.
1.3 Other applicable documents
Declaration of incorporation
Production log
Manuals for optional accessories

1 ABOUT THIS MANUAL
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
6
1.4 Manufacturer
RAYLASE GmbH
Argelsrieder Feld 2+4
82234 Wessling
Germany
T: [phone] | F: [phone]
www.raylase.de | [e-mail]
Referred to in this text as RAYLASE.
1.5 Customer service
The USB stick supplied contains the manual and answers numerous questions about RAYLASE
products. If any questions are not answered, RAYLASE Customer Service will be pleased to assist:
Monday to Friday between 08:00 and 17:00
Germany (Wessling)
T: [phone] | F: [phone]
[e-mail]
China (Shenzhen)
T: [phone] | F: [phone]
[e-mail]
1.6 Warranty
The customer's rights in the event of any material or legal defects in the product are set out in
RAYLASE’s general terms and conditions of business. These can be viewed at:
https://www.raylase.de/en/terms-and-conditions.html
RAYLASE GmbH has no obligation to repair any defects occurring under the following circumstances:
If the product has been operated outside the specifications.
If unauthorised repairs have been carried out on the product.
If unauthorised modifications have been made to the product.
If the product has been connected to non-compatible devices.
If the product has been damaged by unacceptably high laser power or by focusing the laser on
optical surfaces.
If the product has been damaged by unqualified cleaning of the optics.
If the warranty has elapsed.
Component Surfaces
Surfaces of aluminium products are either chemically anodised or powder coated to protect the
aluminium parts from environmental damage.
Powder coating can cause small visible differences in surface colour or sheen. Anodized surfaces can
show milling tracks, areas of slight shading, and localized colour changes.
These variations are due to the production process, and have absolutely no influence on the product's
functionality. Such variations are excluded from the warranty.

1 ABOUT THIS MANUAL
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
7
There is no implicit guarantee or warranty regarding suitability for particular purposes. RAYLASE is not
responsible for damage resulting from the application. Individual assemblies or other assemblies
manufactured by RAYLASE may be subject to different warranty terms. Further information can be
found in the corresponding manuals.

2 GENERAL SAFETY INFORMATION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
8
2GENERAL SAFETY INFORMATION
2.1 Designated use
The deflection unit is intended to deflect laser radiation within an appropriate operating range for the
purposes of material processing.
The deflection unit is designed as a sub-assembly for laser systems and is classed as an incomplete
machine as defined in the Machine Directive. Each product version may only be operated with the
wavelength specified in the type code (see page 19, Signage) and with the specified beam diameter
(see page 21, Technical data).
Depending on the version, the SUPERSCAN IV is designed for lasers with wavelengths of 355 nm to
11,000 nm and an input aperture of 10, 15, 20 or 30 mm.
2.2 Classification of laser systems
The deflection unit can be installed on a range of different laser systems. Every laser system is assigned
to a laser class, which must be specified at the output location of the laser radiation (e.g. using a laser
warning sign).
The following laser classes are defined in DIN EN 60825-1 and described in DGUV Regulation 11:
Class Description
1 The accessible laser radiation is not dangerous under reasonably foreseeable conditions.
1M The accessible laser radiation is in the wavelength range 302.5 nm to 4,000 nm. The accessible laser
radiation is not dangerous to the eyes, provided the beam cross-section is not reduced by optical
instruments (e.g. magnifiers, lenses, telescopes).
2 The accessible laser radiation is in the visible spectral range (400 nm to 700 nm). Short exposure times
(up to 0.25 s) are not dangerous to the eyes. Additional beam components outside the wavelength
range 400 nm to 700 nm meet the conditions for Class 1.
2M The accessible laser radiation is in the visible spectral range 400 nm to 700 nm. Short exposure times
(up to 0.25 s) are not dangerous to the eyes, provided the beam cross-
section is not reduced by optical
instruments (e.g. magnifiers, lenses, telescopes). Additional beam components outside the wavelength
range 400 nm to 700 nm meet the conditions for Class 1M.
3R The accessible laser radiation is in the wavelength range 302.5 nm to 106nm and is dangerous to the
eyes. The power or energy is a maximum of five times the permitted Class 2 radiation limit in the
wavelength range 400 nm to 700 nm and five times the Class 1 limit for other wavelengths.
3B The accessible laser radiation is dangerous to the eyes and frequently also to the skin.
4 The accessible laser radiation is very dangerous to the eyes and dangerous to the skin. Diffusely
scattered radiation can also be dangerous. The laser radiation can cause a risk of fire and explosion.
Note that the deflection unit changes the beam output location of the laser system. The new beam
output must be indicated by a laser warning sign on the deflection unit, stating the corresponding
classification.
The use of a deflection unit can change the laser system’s laser class. This can necessitate additional
protective measures.

2 GENERAL SAFETY INFORMATION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
9
2.3 Laser area
For the purposes of accident prevention, the laser area refers to the area in which the maximum
permitted radiation value can be exceeded. Laser systems must be assigned and marked according to
their laser class and use.X2-010.1
With a corresponding beam intensity, the laser area is defined by the total radiation angle of the
deflection unit and by the reflection of all objects that can be irradiated by it. It is important to note
that, in addition to reflective surfaces, matt and dark surfaces can also reflect laser radiation and that a
laser beam reflected several times can still be dangerous. In addition, the deflection unit can be
destroyed by back reflection.X2-010. 2
The laser area must have permanently and legibly attached markings in accordance with
DIN EN 60825-1. Laser systems must be fitted with the protective mechanisms required for safe
operation according to their class and use.X2 -010 .3
No combustible or explosive objects and liquids may be located in the laser area, as the energy of the
laser beam can ignite them.X2-010.4
1 Laser 5 Deflected laser beam
2 Protective housing 6 Reflected laser beam
3 Beam stop or attenuator (shutter) 7 Laser area
4 Deflection unit 8 Processing area (example)
Fig. 1: Laser area

2 GENERAL SAFETY INFORMATION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
10
2.4 Hazards due to laser radiation
WARNING
This chapter describes hazards that can result due to interaction with the higher-level laser system.
The operator of the higher-level laser system is responsible for safe operation and for securing the
surrounding area to prevent hazards that can be caused by laser radiation. They must ensure
compliance with all applicable conditions, regulations, laws, standards and directives.X2-020
2.4.1 General safety measures
The following general safety measures are to be observed:
To ensure that the laser beam is immediately switched off in the event of a fault, the laser process
must always be monitored. Alternatively, the entire beam path can be in a radiation-proof housing.X2-030 .1
The laser system must be designed in such a way that the laser beam can only be emitted at the
beam output on the deflection unit.X2-030.2
Appropriate protection mechanisms must be in place to prevent unauthorised activation or use of
the laser system.X2-030.3
The maximum permitted input beam diameter may not be exceeded.X2-03 0.4
If the materials to be processed can result in toxic vapours, safe extraction of these must be
ensured. Oxidising material processing and processing with material removal that is precipitated
onto the optics must be handled properly.X2-030.5
2.4.2 Measures to prevent uncontrolled escape of laser radiation.
If the mirrors in the deflection unit are destroyed, the laser beam no longer exits the deflection unit at
the intended beam output but remains inside the deflection unit. This leads to heating and, in some
cases, destruction of the housing and can lead to uncontrolled escape of the laser beam.X2-040
To prevent destruction of the mirrors, the following points must be observed:
At the laser beam input, it is essential that the laser beam strikes the centre of the mirrors. If the
laser beam strikes a mirror towards the edge, the mirror can be overheated and destroyed.X2-04 0.1
To prevent a loss of control, the plug connections to the deflection unit may only be disconnected
when the laser system and the power supply are switched off.X2 -04 0.2
The deflection unit should always be operated with a lens or protective window.X2-040. 3
The maximum permitted laser power may not be exceeded.X2 -040.4
The deflection unit must be installed in such a way that the mirrors cannot come into contact with
liquids. Liquids change the reflective properties of the mirrors, which can lead to them being
destroyed by the laser beam.X2-040. 5
Before processing highly reflective materials, RAYLASE must be contacted as reflections can lead to
the destruction of the deflection unit.X2-040 .6
In general, correct and careful handling of the optical components must be ensured, particularly
during maintenance and cleaning work. Contaminated or scratched optics can absorb
unacceptable amounts of laser power and thus be destroyed.X2-040.7

2 GENERAL SAFETY INFORMATION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
11
2.5 Required training and instruction of operating personnel
The deflection unit is designed exclusively for use in an industrial environment.X2-050. 1
Start-up, operation, installation, maintenance and repairs may only be carried out by trained personnel
who have been instructed by the laser protection officer and are sufficiently qualified to perform the
relevant work.X2-050.2
2.6 Required protection measures
If present in the laser area, protective equipment such as laser protection goggles or special protective
clothing is required. The required protective equipment is stipulated by the laser protection officer
based on the individual hazards caused by the laser equipment. The laser area must be marked so that
the required protective equipment is clearly indicated to all personnel who intend to enter the laser
area.
2.7 Behaviour in case of destroyed zinc selenide (ZnSe) lenses
WARNING
Zinc selenide properties hazardous to health
Destruction of zinc selenide lenses can result in dust containing hydrogen selenide and selenium
dioxide. This dust can be carcinogenic and is very toxic when inhaled.02-010
To improve the optical properties of the material, zinc selenide is frequently given an anti-reflective
coating that may contain thorium fluoride. Thorium is a radioactive element. The quantity of thorium
contained in the coating and the relative size of the decomposed area of the lens surface mean that,
even in the worst cases, the resulting radioactive exposure levels are normally well below the limits set
out in the Radiological Protection Ordinance.
If lenses are damaged:
1. Switch off the laser system immediately.
2. Leave the room for at least 30 minutes.
3. Never remove the lens or the protective window from the deflection unit. Toxic dust or fragments
may have been produced in the deflection unit.
4. If the deflection unit should be opened and fragments fall out, the fragments must only be
collected up using appropriate protective clothing and breathing apparatus and disposed of as
hazardous material in line with the applicable conditions, regulations and legislation.
5. Label the defective deflection unit with a clear warning notice and send the deflection unit to
RAYLASE in air-tight protective packaging.
6. The personnel charged with uninstalling the deflection unit must wear appropriate protective
clothing and breathing apparatus.
7. The room in which the zinc selenide lens was destroyed must be adequately cleaned,
decontaminated and ventilated.
8. Wear gloves and mouth protection when carrying out the subsequent tasks.
9. Carefully collect all fragments and pack them in an air-tight sealable container.
10. Clean all contaminated system components and surfaces with a damp cloth and pack the cleaning
cloths in an air-tight sealable container.
11. Send the containers to the supplier of the optics. They are responsible for proper disposal of the
material.
Only for deflection
units with
ZnSe F-Theta lens

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
12
3PRODUCT DESCRIPTION
3.1 Items included, accessories and spare parts
The items included are typically:
Deflection unit
USB stick containing manual, declaration of incorporation and design data
Production log
The product can be expanded with the following optional components:
F-Theta lens
Protective window
Collimator Bracket Set
Collimator
Control card
Adapter card / interface electronics between control card and deflection unit
Software package
3.2 General description
3.2.1 Deflection unit
The deflection unit can be used to deflect a laser beam in the X and Y direction. This results in a two-
dimensional area in which the laser can be directed to any position. This area is referred to as the
processing area. Deflection is performed by two mirrors, each of which is moved by a galvanometer
scanner.
The beam output can be fitted with an optional focusing lens (see page 14, F-Theta lens) or an
optional protective window (see page 14, Protective window).
NOTE
On the input side, the laser beam must be input precisely into the optical axis (see page 32,
Installation).C1-070.1
Only suitable lasers may be input (see page 19, Signage).C1-070.2

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
13
1 XY2-100 interface 7 Cooling water outlet (optional)
2 Power supply 8 Input aperture
3 SL2-100 interface 9 Beam output
4 Air inlet (optional) 10 Processing area
5 Air outlet (optional) 11 Galvanometer scanner with mirror
6 Cooling water inlet (optional) 12 Status LEDs
Fig. 2: Principle of operation

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
14

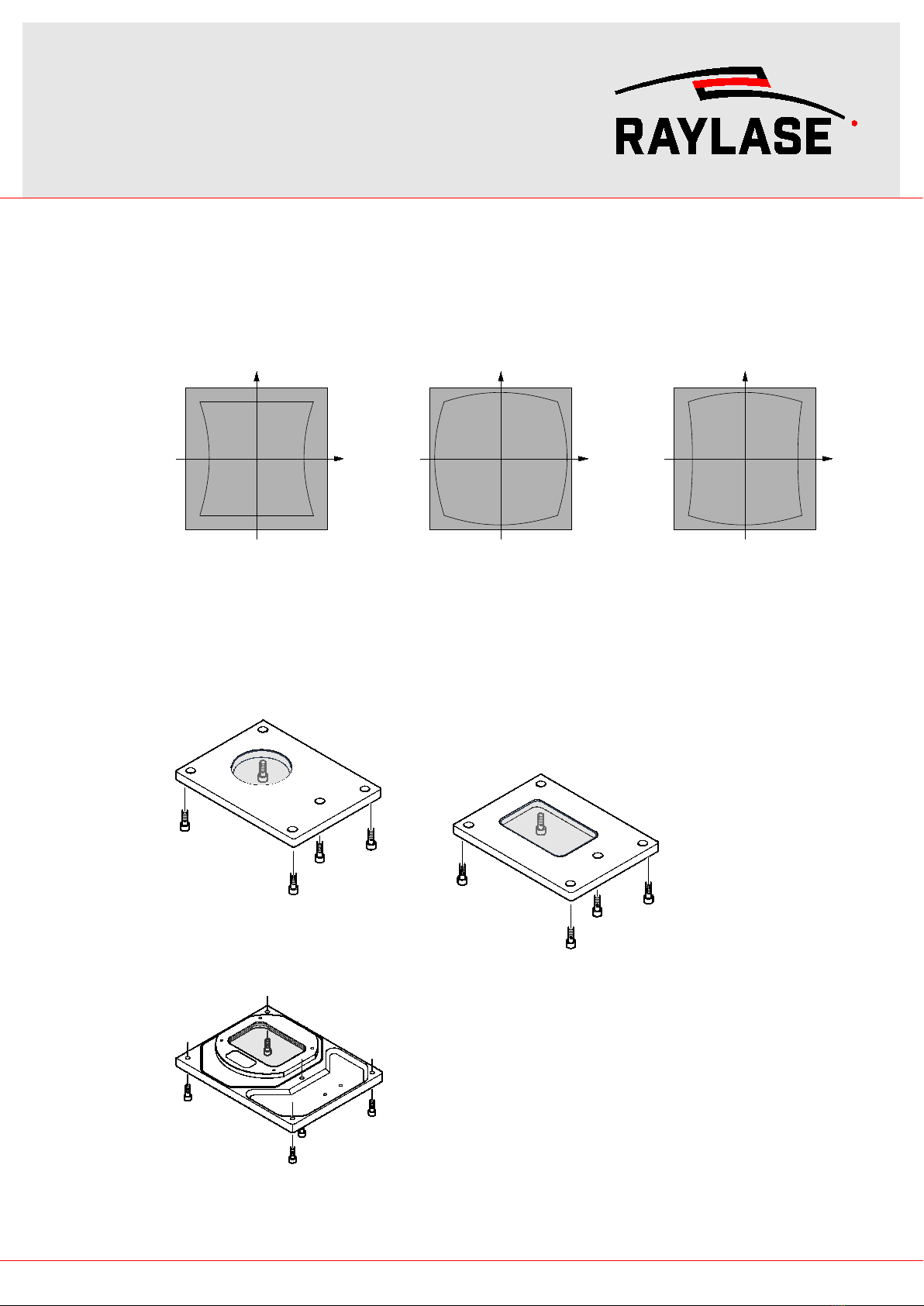

3.2.2 F-Theta lens
The optional F-Theta lens is specially designed for use with 2-axis deflection units. It focuses the laser
beam at maximum quality on any position in the processing area. At the same time, it partially optically
compensates for the barrel-shaped distortion that is unavoidably produced by 2-axis deflection units.
The remaining distortion (see figure) must be compensated by the deflection unit.
Distortion caused by XY
deflection
Distortion caused by F-Theta
lens
Distortion caused by XY
deflection with F-Theta lens
3.2.3 Protective window
For operation of the deflection unit without F-Theta lens it is strongly recommended to use a
protective window for safety reasons and in order to protect the mirrors from contamination. If the
protective window itself becomes contaminated, it must be cleaned (see page 39, Cleaning the
protective window).
Fig.3: Protective window variations 1 and 2
Fig. 4: Protective window variation 3
Optional
Optional

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
15
3.2.4 Collimator Bracket Set
The optional Collimator Bracket Sets are used to connect a collimator to the deflection unit (see page
34, Installation with Collimator Bracket Set). The Collimator Bracket Set contains the collimator bracket
as well as the aligning pins and screws in order to connect it to the deflection unit as shown in the
following figures.
Fig. 5: Collimator Bracket Set 002 for connecting a D25
collimator to SUPERSCAN IV-15
Fig. 6: Collimator Bracket Set 001 for connecting a
D50 collimator to SUPERSCAN IV-30
3.2.5 Collimator
A collimator produces a beam with parallel rays or in other words a collimated beam. A fibre laser can
be connected to a RAYLASE deflection unit using a collimator and the corresponding Collimator
Bracket Set (see page 34, Installation with Collimator Bracket Set).
Fig. 7: D25 collimator Fig. 8: D50 collimator
A choice of collimators with beam output diameters up to 25 mm (D25) or up to 50 mm (D50) can be
purchased from RAYLASE.
Optional
Optional

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
16
3.2.6 Connections
The SUPERSCAN IV has the following connections:
to a laser system (mechanical and optical)
to a focusing unit (e.g. F-Theta lens) (optional – see page 14, F-Theta lens) or
to a protective window (optional – see page 14, Protective window)
to a water cooling (optional – see page 31, Requirements for cooling water)
to an air flush for the mirrors (optional – see page 31, Requirements for cooling air)
The power is supplied to a D-SUB-3W3-M connector. Depending on the model the data signals are
supplied to a D-SUB-25-F or D-SUB-9-F connector (see page 26 ff.).
NOTE
Controlled deflection is only possible if the specified power supply is connected. In addition
proper control using the specified control commands must be guaranteed at all times.C1-060

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
17
3.3 Product versions
Every deflection unit in the SUPERSCAN IV series is configured for the parameters defined when
ordering and can only be used within these parameters. The parameters are specified in the type code
on the rating plate. Further information on the specifications on the rating plate can be found on the
Internet at:
https://www.raylase.de/en/product-naming.html
3.4 Examples of use
The following graphic shows two typical laser systems realised using RAYLASE modules (red outline)
and customer-specific modules (dotted lines).

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
18
3.5 Status LEDs
The status LEDs allow you to check important functions and statuses of the deflection unit. They are
located on top of the deflection unit.
The status LEDs are lettered. The first letter refers to the axis (XY) or the supply voltage (V) of the
deflection unit. The subsequent letters and their meaning is described below.
Fig. 9: LED XY
Name Colour Meaning
... Par Err red Parity Error Flashes for each parity error. The flash duration is extended so
that even short-lived errors are visible.
On continuously if the clock or sync signals of the interface are
faulty.
... Err red Error On continuously to indicate a general fault on the axis, and also
during the boot sequence of the axis.The boot sequence lasts
for a few seconds.
As long as this LED is on, the output stage of the axis is disabled.
... Dat yellow Data Change Flashes whenever data changes on the channel.The flash
duration is extended so that even short-lived changes are visible.
... OK green Operational On continuously when the axis is ready for use.
... Warn yellow Warning Flashes whenever the axis is fully loaded. The flash duration is
extended so that even short-lived peak loads are visible.
... Inp OK green Power input On when the external supply voltage is applied and within the
required range.
... Amp OK green Power amplifier On when the output stage is ready.

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
19

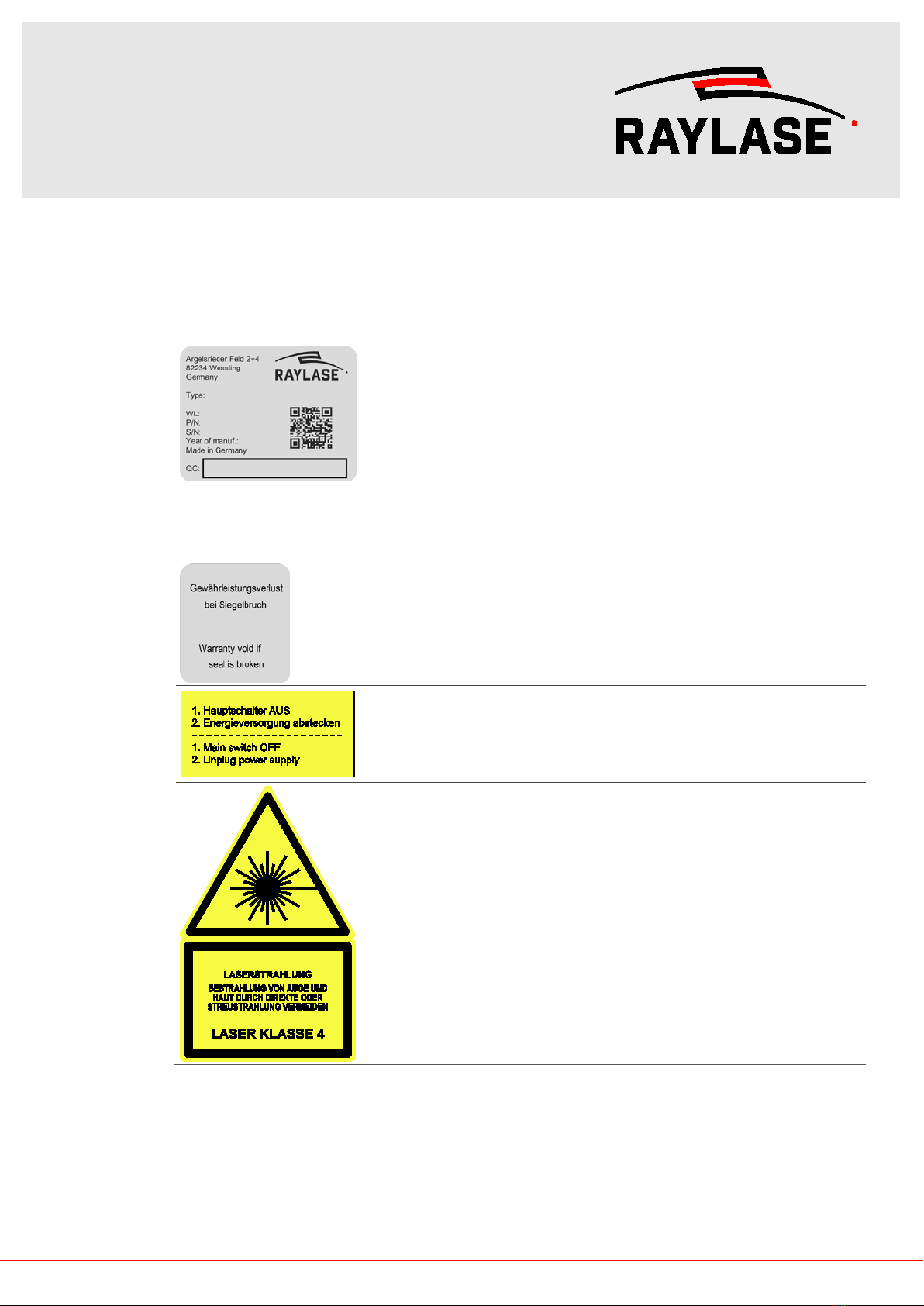

3.6 Signage
The signs listed below must be attached to the deflection unit. These signs must not be removed. Any
signs that become illegible must be replaced.
The rating plate and the type code printed on it allow key properties of
the product to be determined (see page 17, Product versions). The
rating plate contains at least the following information:
Company name and address
Product designation
Wavelength for which the product is designed
Product number
Serial number
Year of production (month)
The product and serial number are also used to identify the product.
The protective seal warns against unauthorised opening of the product.
If the seal is broken, all warranty entitlements against RAYLASE are
rendered void.
Describes the most important safety measures to be followed before
maintenance work is carried out.
A laser warning sign must be attached at the beam output, providing
information about the type of radiation, the specific hazards and the
protection class. The laser warning sign must be attached in line with
DIN EN 60825-1, see page 8, Classification of laser systems, by the
manufacturer of the laser system.

3 PRODUCT DESCRIPTION
©
2022 RAYLASE GmbH SUPERSCAN IV
MN105
-en / v1.0.12
20
The following additional signs may be attached to the deflection unit.
Identifies product variants with digitally controlled position signals
of the moving optical elements.
RAYLASE is continuously working on optimizing the manufacturing
process for our products in order to save energy and CO2. Among
other things, we do not use surface finishing processes of a
cosmetic nature. This can lead to optical deviations in the surfaces,
which, however, have no influence on the function of the product.
