Raymarine STV60 Installation instructions

© 2017 Raymarine UK Limited
81375-1Document number:
06-2017Date:
English (EN)
INSTALLATION & OPERATION
INSTRUCTIONS
STV60

2
Raymarine Satellite TV Antenna Systems
Raymarine STV60 Serial Number
This serial number will be requested for all troubleshooting or service Inquiries.
Notice
All Rights Reserved
Raymarine®is a registered trademark of Raymarine Belgium BVBA. All other trademarks contained in this document are the registered trademarks of
Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc. The information contained in this manual
is the property of Raymarine. Any and all parts of this manual shall not be reproduced and distributed in any form without prior written consent by
Raymarine. The information contained in this manual shall be subject to change at any time without notice due to the functional upgrade of the product.

3
Table of Contents
INTRODUCTION
INTRODUCTION TO STV60
FEATURES
BASIC SYSTEM CONFIGURATION
INSTALLATION
SYSTEM COMPONENTS
TOOLS REQUIRED FOR INSTALLATION
PLANNING THE INSTALLATION
INSTALLATION AND MOUNTING OF ANTENNA
INSTALLING THE ACU
ACU DIMENSIONS
SELECTING ACU INSTALLATION SITE
CONNECTING THE SYSTEM CABLES
CONNECTING THE SYSTEM TO A GPS
DC OUT PORT
ADJUSTING THE LNB SKEW ANGLE (LINEAR
POLARIZATION ONLY)
PC TO ACU COMMUNICATION SETUP
OPERATION INSTRUCTION
INTRODUCTION
OPERATING THE ACU
ACU SOFT KEYS
NORMAL MODE
SETUP MODE
ANTENNA CONTROL SOFTWARE
INTRODUCTION TO APTUS®
SOFTWARE INSTALLATION
PC TO ACU COMMUNICATION SETUP
ESTABLISH A DATA COMMUNICATION
AUTO UPDATE
TOOLBAR MENUS
SYSTEM PROPERTY STATUS DASHBOARD
WORK VIEW TABS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : TECHNICAL
SPECIFICATION
7
7
7
9
7
10
13
14
16
19
19
19
21
24
25
26
28
30
30
28
30
31
32
57
57
57
58
58
59
60
63
66
77
78
79

Safety notices
Warning: Product installation and
operation
This product must be installed and operated in
accordance with the instructions provided. Failure to
do so could result in personal injury, damage to your
boat and/or poor product performance.
Caution: Power supply protection
When installing this product ensure the power source
is adequately protected by means of a suitably-rated
fuse or automatic circuit breaker.
Caution: Use correct lifting point
When lifting the antenna unit, always lift from the base
plate. Do NOT use the antenna cover or damage to
the cover could occur.
Caution: Do not damage connectors
Take care to avoid damage to the connectors
underneath the antenna base plate when moving the
unit. Do NOT use these connectors to lift the unit.
Caution: Remove transit packing
Before installing or operating the product, open the
antenna unit cover and remove the foam transit
packing inserts from the unit base.
Caution: Antenna coating
Do NOT paint or apply any other finish to the antenna
This could degrade performance beyond
acceptable limits.

Please carefully read and follow the installation, operating and
maintenance procedures, to ensure optimum performance.
Geographic location
Your STV system will operate in various geographic regions,
dependant upon the type of satellite signal available.
Broadly speaking dierent regions around the globe use either
circular or linear polarization for DVB satellite broadcasts. Each
signals.
Some examples of regions using circular and linear polarization
are below.
Circular polarization:
• North America
Linear polarization:
• Europe
• Australia
• New Zealand
• China
• Middle East
For further assistance please refer to your regional satellite service
providers or Raymarine technical support.
Changing location
If you change your area of operation, you may need to arrange for
•Adjust the antenna low noise block (LNB) as appropriate for the
area in which you are operating.
• Update the region information using your control unit (ACU) or a
PC running the GUI software.
• Ensure that your satellite receivers (IRDs) will operate and receive
DVB broadcasts at your new location.
Important: Please refer all servicing/component replacement to
authorized Raymarine agents.
Satellite coverage
Up to date coverage maps and satellite information may be found
on the appropriate website of your satellite service provider.
Television reception
For full functionality of your STV System, you must subscribe to the
relevant service(s) from the appropriate service provider(s). Full
details of service providers are given.
EMC installation guidelines
Raymarine equipment and accessories conform to the appropriate
Electromagnetic Compatibility (EMC) regulations, to minimize
electromagnetic interference between equipment and minimize the
eect such interference could have on the performance of your
system
Correct installation is required to ensure that EMC performance is
not compromised.
For optimum EMC performance we recommend that wherever
possible:
• Raymarine equipment and cables connected to it are:
– At least1m(3 ft) from any equipment transmitting or cables
carrying radio signals e.g. VHF radios, cables and antennas.
STV unit is configured to receive either Linear or Circular polarized
modification to your STV system.

In the case of SSB radios, the distance should be increased
to7ft (2 m).
– More than2m(7 ft) from the path ofaradar beam. A radar
beam can normally be assumed to spread 20 degrees above
and below the radiating element.
• The product is supplied fromaseparate battery from that used
for engine start. This is important to prevent erratic behavior
and data loss which can occur if the engine start does not have
a separate battery.
• Cables are not cut or extended, unless doing so is detailed in
the installation manual.
Note: Where constraints on the installation prevent any of
the above recommendations, always ensure the maximum
possible separation between dierent items of electrical
equipment, to provide the best conditions for EMC performance
throughout the installation
Product disposal
Dispose of this product in accordance with the WEEE Directive.
The Waste Electrical and Electronic Equipment (WEEE)
Directive requires the recycling of waste electrical and electronic
equipment. Whilst the WEEE Directive does not apply to some
Raymarine products, we support its policy and ask you to be aware
oow to dispose of this product.
Warranty registration
To register your STV Satellite television system ownership, please
the box, or visit www.raymarine.com and register on-line.
It is important that you register your product to receive full warranty
serial number of the unit. You should stick this label to the warranty
registration card.
Technical accuracy
To the best of our knowledge, the information in this document was
correct at the time it was produced. However, Raymarine cannot
accept liability for any inaccuracies or omissions it may contain. In
addition, our policy of continuous product improvement may change
liability for any dierences between the product and this document.
Suppression ferrites
Raymarine cables may be tted with suppression f errites. These
are important for correct EMC performance. If aferrite has to be
removed for any purpose (e.g. installation or maintenance), it must
be replaced in the original position before the product is used.
Use only ferrites of the correct type, supplied by Raymarine
authorized dealers.
Connections to other equipment
Requirement for ferrites on non-Raymarine cables
If your Raymarine equipment is to be connected to other equipment
using a cable not supplied by Raymarine, a suppression ferrite
MUST always be attached to the cable near the Raymarine unit.
• Raymarine specified cables are used.
take a few minutes to fill out the warranty registration card found in
benefits. Your unit package includes a bar code label indicating the
specifications without notice. As a result, Raymarine cannot accept

7
Introduction to Raymarine STV60
Raymarine STV60 is a digital satellite antenna system
designed specifically for all types of vessels (Anchored
or transit) to automatically identify, track and capture
satellite signals from the Digital Video Broadcasting (DVB:
the international standard for digital TV transmissions)
compatible satellites.
Specifically, Raymarine STV60 has Wide Range Search
(WRS) algorithm, which minimizes the search time during
initialization, and Dynamic Beam Tilting (DBT) technology,
which dynamically shapes the antenna beam to utilize
stabilization. While tracking the target satellite, DBT
technology uses a high-performance, constantly adjusting
sub-reflector which allows the antenna to remain relatively
still, eliminating the constant whine of stepper motors while
staying locked on to the satellites.
The STV60 has a built-in GPS system which enhances the
speed of satellite signals acquisitions. The STV60 has an
embedded auto skew angle control system to maintain the
optimal signal strength and increase the quality of satellite
receptions in weak satellite single coverage area.
Introduction
Features of Raymarine STV60
Enjoy satellite broadcasts at sea
Raymarine STV60 is the most modern antenna system that
enables you to receive a high quality broadcasting signal at
sea.
High quality antenna
High tech parabolic antenna technology has been adopted
for this antenna system, which is optimal for marine
conditions. This enables you to receive the optimal signal
level even when it is raining or snowing.
Fast and ecient search for the satellite
The WRS (Wide Range Search) algorithm allows for the
antenna system to search the satellite within the shortest
amount of time and to detect the satellite signal under any
position and with any directional movement of the ship.
Easy installation and outstanding reliability
Raymarine STV60 uses only one RF cable for installation.
Power, RF and Data signals transfer from the antenna to
the ACU through this single cable. In addition, the STV60
provides highly reliable system through the implementation
of a modularized design, and the use of strictly proven
components.

8
Raymarine Satellite TV Antenna Systems
Built-in GPS
Raymarine STV60 has an embedded GPS, which allows for
the system to upload the GPS data automatically into the
system for an even faster and more stable system.
Built-in automatic skew angle control system
The automatic skew control system allows the STV60 to
maintain the optimal skew angle at all times and ensure
maximum level of satellite signal level.
Ethernet Port for management
The Ethernet Port on the rear panel of the ACU enables
direct and simple network connection between a PC and
the ACU. By connecting to an ISP or the modem linked with
VSAT systems, STV60 can be monitored, controlled, and
diagnosed remotely from anywhere, anytime through the
TCP/IP protocol.
This can not only save tremendous time but also saves the
cost generated from the hundreds of routine maintenance
activities such as operating firmware upgrades, tracking
parameters resets, and system diagnostics.
Wireless Connectivity and Aptus mobile
The built-in WiFi enables the ACU to be wirelessly
connected. Any kind of wireless devices such as PCs,
laptops and smartphones can be used to connect to the ACU
and monitor, control and change the settings of the system
wirelessly. The Aptus mobile app is available for download
to access the ACU via Wi-Fi and operate the antenna from
iPhone, iPad or other network devices.
iPhone and iPad are registered trademarks of Apple Inc.

9
Figure 01 : Basic System Configuration
Basic System Configurations
For your satellite TV system to work properly, the system will have to be connected with all of the
provided components correctly, as shown in the figure below (see the “Installation” section of this
manual). Separate purchase of a satellite receiver and a TV is required.
Note: Dish and Bell TV users please refer to the separate Dish MIM Installation and User Manual.
ACU
9-30V DC Power NMEA
connection
(e.g. GPS)
PC Cable PC (Not supplied)
Satellite Receiver
(Not supplied)
TV (Not supplied)
Satellite Receiver
(Not supplied)
TV (Not supplied)

10
Raymarine Satellite TV Antenna Systems
Figure 02 : Antenna Unit
System Components
Antenna Unit
The STV60 antenna is manufactured with the following com-
ponents for the optimum search and reception of the satellite
signal.
Mechanical Unit – manipulates the antenna to receive the
optimal satellite signal regardless of the movement of the
vessel.
• Control Unit – controls mechanical operation of the
antenna.
• RF Unit – transmits the optimum satellite signal to the
receiver.
• Radome – protects the antenna from the severe marine
environment.
Installation
The components of the Raymarine STV60 have been
designed to be modular, enabling simple installation on all
types of vessels.

11
Figure 03 : Antenna Control Unit (ACU)
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the
antenna and controls the various settings of the antenna.
Additionally, the Vacuum Fluorescent Display (VFD) allows
you to operate the ACU in the dark.
The functions of ACU are as follows:
• Provide power for the antenna unit
• Monitor the antenna status
• Change the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
Front
Rear
Antenna Control Unit

12
Raymarine Satellite TV Antenna Systems

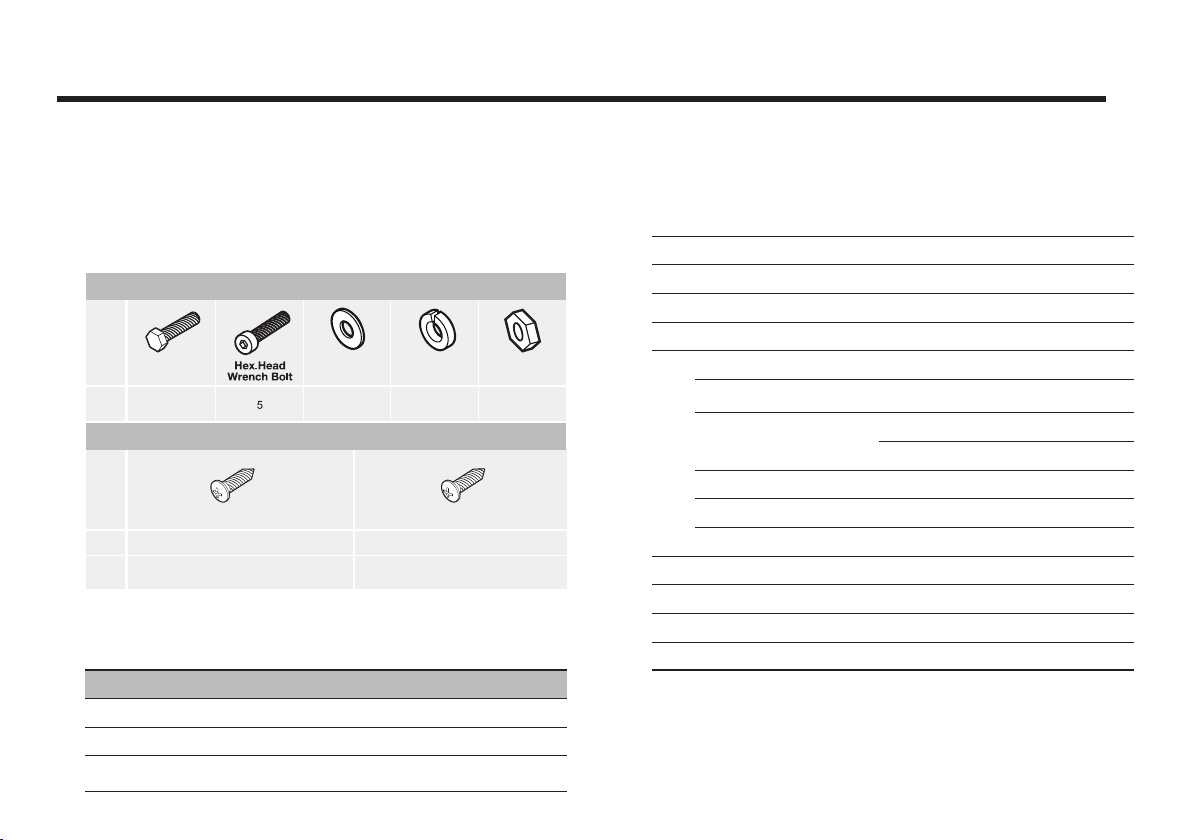

Installation Kit
Contains the items required for securing the antenna unit and
ACU to the vessel.
Other Components
Figure 05 : List of the Supplied Parts
Figure 04 : Installation Bolt Kit
4 Power Cable 10m 1
5 PC Serial Cable 1.8m 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8
Hex Bolt M8x50L 5
Hex Head Wrench Bolt M6x35L 5
Self-Tapping Screw ø4x16L 5
ø3x8L 5
Flat Washer M8 5
Spring Washer M8 5
Nut M8 5
9 Aptus CD - 1
10 Manual - 1
11 Mounting Template - 1
12 Quick Installation Guide - 1
No Components Size Qty
1 ACU Bracket - 2
2 RG6 (Antenna - ACU RF Cable) 15m 1
3 RG6 (ACU - Receiver Cable) 3m 1
Hex.Bolt
5
Hex. Nut
5
Spring Washer
5
Flat Washer
5
Antenna
Item
Qty
ACU
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)

13
Tools Required for Installation
Figure 06 : Required Tools for Installation
Power Drill 11 mm Spanner
Cross-Head
Screwdriver 13 mm Spanner
10 mm Drill Bit
Ø80 mm
Hole Saw
Pencil
5 mm
Allen/Hex key

14
Raymarine Satellite TV Antenna Systems
Planning the Installation
Selection of Antenna Installation Site
The antenna should be installed in a place where there is all
round clear view of the horizon. Please be sure there are no
obstacles within 15° above the antenna. Any obstacles can
prevent the antenna from tracking the satellite signal (Refer
to the drawing on the right).
Do not install the antenna near the radar especially on the
same plane. Its energy levels may overload the antenna
front-end circuits. It is recommended to position the antenna
at least 4 feet (1.2m) above or below the level of the radar
and minimum of 15 feet (4.6m) away from the high power
short wave radars.
The mounting platform should be rigid and not subjected
to excessive vibration. The movement of the antenna can
be minimized by installing at the center of the vessel. For
optimal performance of the antenna, it is not recommended
to install at any corner of the vessel, where the movement of
the vessel is the greatest. Install the bottom of the antenna
parallel to the surface of the sea and fix tightly to the
structure of the vessel.
When setting the antenna down, be careful not to damage
the RF connector. Striking the connectors on the bottom
directly will damage the connector.
Figure 07 : Elevation Limit of Obstacles
15°
Antenna Unit Obstacle

15
Extending the Cables
The cables that have been supplied with your Raymarine
system should be of adequate length to complete the
installation on most boats. If you do need to extend any of
the cables, refer to Technical Support for advice.
Power Cable
This cable is supplied at a length of 10m.
Note: Exceeding the indicated cable lengths will result in
reduced performance of your system.
Cables
Pre-installation considerations.
• All cables need to be well clamped and protected from physical
damage and exposure to heat and humidity.
• Cables with severe bends are not allowed.
• Where a cable passes through an exposed bulkhead or
deckhead, a watertight grommet or swan neck tube should be
used.
Power Requirements
You need to follow the power requirements to avoid damage to
the system.
Raymarine STV60 has been designed to work on a boat’s power
supply rated at 12V / 24 V DC (acceptable range: 9~30 V DC).
If your receiver(s) and television(s) require a 110V/240V AC power
supply, you will need to install a suitable DC to AC converter to
operate the unit(s) from your boat’s DC power supply.
RF Cable
This cable is supplied at a length of 15m. If a longer length is required
you should replace this cable with an extended RG6 RF cable (available
separately).

16
Raymarine Satellite TV Antenna Systems
Installation and Mounting of Antenna
The method of installing and mounting the antenna may
vary due to vessel design, but the following procedures are
applicable in most situations, and will result in a secure and
eective installation.
Confirmation of Size Prior to Installation
• Confirm the height and diameter of the bottom surface of
the antenna before installing.
• The space must be sucient for installing the antenna unit
considering the height and diameter of the antenna.
• The height and the diameter of the bottom surface of the
antenna are as shown in the following drawing. If possible,
install the antenna using a “power tower”.
Note: Before installing the antenna open the radome and
remove the shipping constraints from the antenna interior.
Reinstall the radome before operating the system. The
system will not perform properly if the radome is open.
Figure 08: Radome Dimension of STV60
Ø70 cm (27.5”)
72 cm (28.3”)

17
Marking the Antenna Mounting Position
Referring to the mounting template, mark where the antenna
will be mounted onboard (it must be a flat surface) or on a
separate “power tower”, by drawing a square of 30.4 cm (12”)
Note: If a “power tower” is not suitable to mount the antenna,
separate cable shock and waterproofing measures must be
taken to protect the RF connector from being exposed to the
sea water and external shocks. An exposed cable may cause
electric shock and cause serious damage to the equipment.
Figure 10 : Mounting Hole Position of STV60
30.4 cm (12”)
30.4 cm (12”)

18
Raymarine Satellite TV Antenna Systems
Connection of the Cable
Remove the rubber cap from the RF connector. Connect the
RF cable to the RF connector under the base plate through
the access hole using an 11mm spanner. Be careful not to
over tighten, as you may damage the connector.
Note: Do not overtighten or use excessive force when using
the spanner, as this will damage the threads. Ensure that
the connectors do not contact the mounting surface of the
antenna, as this may cause a critical malfunction and serious
damage to the equipment.
Securing Holes for Bolts and Cable Ways
Make 4 bolt holes of 10mm diameter, one at each corner of a
rectangle drawn as below, and make a circular hole of 80mm
diameter at the center of the rectangle, through which the
cable will run.
Ø80mm
Hole Saw
Ø 10mm
Drill
Figure 11 : Drilling Instruction Figure 12 : Connectors on Bottom of Antenna
Antenna Unit
RF Cables
11mm
Spanner

19
Mounting the Antenna
Attach the antenna by using the supplied hex head bolts
(M8X50L), M8 spring washers, and M8 flat washers.
Figure 13 : Mounting the Antenna
Installing the ACU
Figure 14 : Dimension of ACU
ACU Dimensions
Radome Base
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
The ACU should be installed below deck, in a location that is :
• Dry, cool, and ventilated.
• Easy accessible from your main TV viewing area.
7.5 cm (2.95”)
17.8 cm (7”)
17.8cm (7”) 5.4cm (2.1”)
22.8cm(9”)
18.5cm (7.3”)
21.7cm(8.5”)

20
Raymarine Satellite TV Antenna Systems
Installing the ACU
1. The ACU should be installed using the 2 supplied mounting
brackets, which allow for a top or bottom mounting configu-
ration.
2. Using the supplied self tapping screws, attach the mount-
ing brackets to the sides of the ACU.
3. Place the ACU in the location where it is going to be
installed.
4. Connect the cables to the rear of the ACU.
5. Use a pencil to mark the 4 hole positions (2 each side),
and use the appropriate drill bit to drill them.
Figure 15 : Installation of ACU
