RAYN Rosa 600 User manual

RAYN Installation Guide
Rosa 600 Luminaire
RAYN Growing Syste ms | Middlet on, WI | +1 844 907 RAYN
© 2021 RAYN Growing Syst ems, LLC. | All Rights Reserved.
Trademark and pat ent info:rayngrowingsystems.com/ip | All product
information and specifications subject to change. | RAYN Growing
Systemsintends this document to be provided in its entirety.
7430M2100 Rev A Released 2021–04
r a y n g r o w i n g s y s t e m s .c o m
Overview
The Rosa 600 luminaire provides high-intensity LED illumination for plant
science and horticultural research.
A Rosa 600 luminaire may be fitted with standard or customized arrays of
LED emitters depending on the particular growing requirements of the
installation. More details may be found at rayngrowingsystems.com.

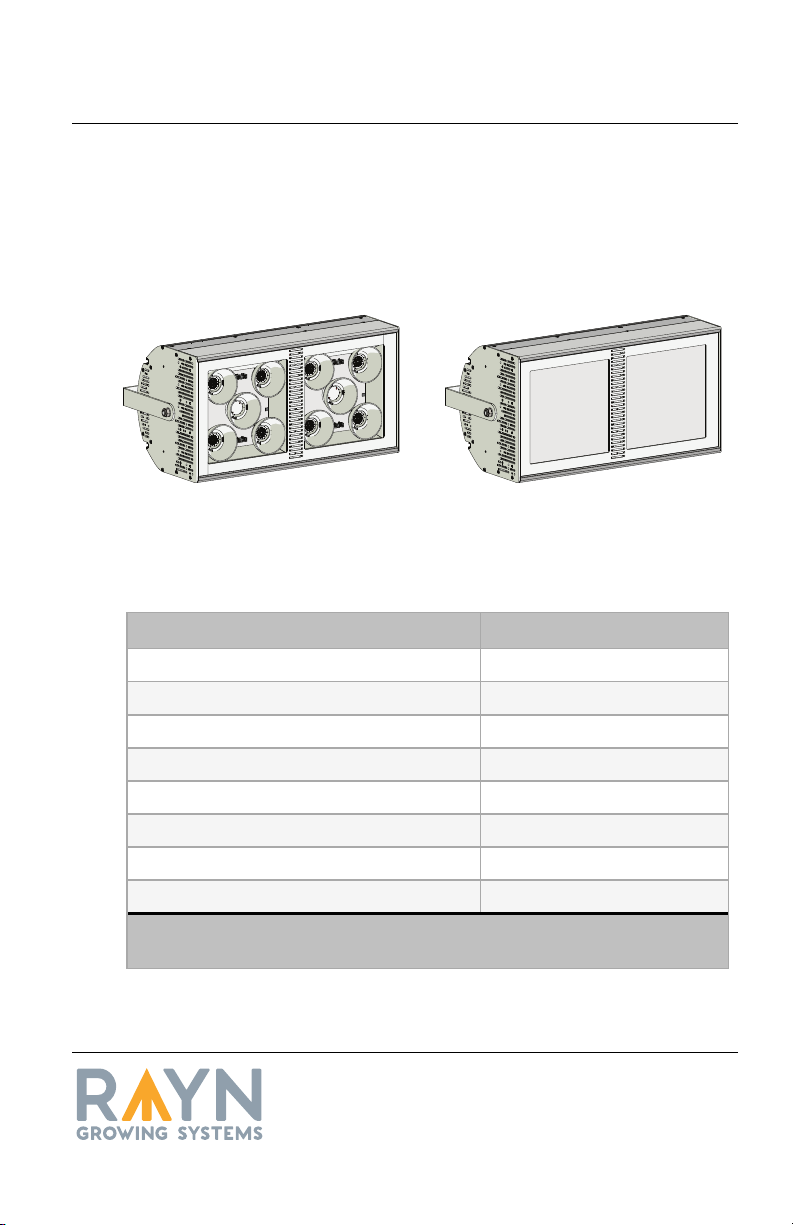

Accessories
Depending on the luminaire model ordered, the unit may include either
secondary diffusion optics or reflectors pre-installed at shipment. Optical
properties can be altered with field-swappable accessories.
Description Part Number
Narrow Reflector (~20 degrees) OP2121
Medium Reflector (~30 degrees) OP2122
Wide Reflector (~50 degrees) OP2123
Extra Wide Reflector (~91 degrees) OP2128
Color Mixing Sub Lens* OP2114
Acrylic Kit** 7430K1006
C-clamp (for pipe mounting) 7060A2009
DMX Termination Plug SGE1507
*Requires a corresponding reflector per sub lens.
**Acrylic Kit includes a set of two front lenses.

RAYN Installation Guide
Rosa 600 Luminaire
When ordering reflectors or color mixing sub lenses, please note the
number of sources in your luminaire model and the total number of
luminaires you want to refit. Order this amount of reflectors and sub lenses,
if needed. For example: 4 luminaires x 8 sources = 32 reflectors needed.
Rosa 600 luminaire may have 8 or 10 sources, depending on configuration.
Safety
Rosa 600 luminaires are intended for professional use only. Read this
entire manual before using this equipment.
The luminaire must be
installed at least 0.1m
(4.0in) away from all
lighted objects.
Le luminaire doit être installé
à au moins 0,1m (4,0po.) de
tout objet éclairé.
Do not stare at the
operating light source.
Ne pas regarder la source de
lumière lorsqu’elle
fonctionne.
Caution: Risk Group 2 -
Possibly hazardous optical
radiation emitted from this
product. Do not stare at
operating lamp. May be
harmful to the eyes.
Attention: Rayonnement
optique potentiellement
dangereux émis par ce
produit.Ne regardez pas la
lampe en fonctionnement.
Peut être nocif pour les yeux.
This product should not be
discarded as unsorted
waste but must be sent to
separate collection
facilities for recovery and
recycling.
Ce produit ne doit pas être
jeté avec les déchets
ménagers mais doit être
déposé dans une collecte de
déchets électroniques ou
dans un point de collecte.
WARNING: Disconnect the fixture from power and DMX
and allow it to cool before performing any cleaning and
maintenance.
AVERTISSEMENT : Débrancher la lampe de son
alimentation et du DMX et la laisser refroidir avant
d’effectuer un nettoyage ou un entretien.
Rosa 600 Luminaire Page 2 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Specifications
Environment
CAUTION: Rosa 600 luminaires are not suitable for use in
spaces with restricted air flow. Enclosing the luminaires will
result in overtemp errors and may cause damage to the
luminaire.
•
For indoor use only.
•
Operates in ambient temperatures of 0°C-40°C (32°F-104°F), and
includes a variable-speed fan.
•
Additional temperature specifications:
-
Maximum recommended ambient operating temperature:
Ta=40°C (104°F)
-
Maximum anticipated external surface temperature at 40°C
ambient: Tmax = 67°C (153°F)
-
External temperatures after 5 minutes of full- brightness operation
at 25°C (77°F) ambient: 36°C (97°F)
-
External Temperature (steady state achieved) at 25°C (77°F):
67°C (153°F)
•
Operates in relative humidity of 0%-90% non-condensing / non-
corrosive.
Note: Where dewing is anticipated, please contact RAYN Growing
Systems about heating and ventilation mitigation.
Mounting
The installation location and mounting hardware must support the weight
of the luminaire, all cables, and accessories. See Weights and Dimensions
on the next page.
Each luminaire ships with a yoke bracket that can be bolted to in-place
structures or suspended by C-clamp for mounting on standard schedule
pipework or Unistrut with supporting mounting hardware.
Additionally, two channels are provided on the luminaire enclosure for use
with t-nut style hardware.
Rosa 600 Luminaire Page 3 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Attachment point (x5) for use with
safety cable/Unistrut/C-clamp
Attachment point
(x2) for use with
t-nut hardware
422 mm
(16.6 in)
454 mm
(17.9 in)
227 mm
(8.94 in)
31.75 mm
(1.25 in)
188 mm
(7.4 in)
A AB B B
A Ø 11.9 mm (0.47 in)
B Ø 12.7 mm (0.5 in)
Weights and Dimensions
The noted weights and dimensions are for the luminaire only.
•
Weight 15.8 kg (34.9 lbs)
•
Dimensions: 533x280x235 mm (21x11x9.23 in)
Rosa 600 Luminaire Page 4 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Electrical
Operates between 100-240 VAC, 50/60 Hz
100 VAC 120 VAC 230 VAC
Quiescent Power 5.28 W / 0.11 A 5.24 W / 0.11 A 4.65W / 0.12 A
Peak Power 670 W / 6.7 A 670W / 5.59 A 670W / 2.91 A
Power Factor 0.97 0.97 0.97
Inrush n/a n/a 11.75 A RMS (100 ms)
Wiring
Power Input
A 120 VACRosa 600 luminaire is provided with a 3 m (10 ft) power input
cable with a NEMA 5-15P connector.
A 230 VAC Rosa 600 luminaire is provided with a 3 m (10 ft) power input
cable with bare ends. A suitably instructed person (electrically) or
electrician must install a compatible connector. See Electrical above.
Custom pre-fitted connectors are available. Contact RAYN Growing
Systems for ordering details.
Wire Color Code
(International
Standard)
Wire Color Code
(North American
Standard)
Connection Type Terminal
Green/Yellow Green Earth/Ground
Blue White Neutral N
Brown Black Line (Live) L
Note: The Rosa 600 luminaire is a Class 1 (IEC 61140) appliance
and must be operated with suitable protective earthing/grounding.
Rosa 600 Luminaire Page 5 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Data
Rosa 600 luminaires are DMX-512/RDM compliant and include two five-pin
XLR connectors, one for DMXIn and one for DMXThru.
Use the following standard pinout when preparing DMXcable (Belden
9729 or equivalent) with an XLR connector. The second data pair in the
recommended cable type is not used, but is reserved future service.
DMX-512 Pinout
for five-pin XLR
Pin Use
1
2
3
4
5
Push
1
2
3
4
5
1 Common (shield)
2 Data -
3 Data +
4 not connected
5 not connected
Terminate DMX-512
The last luminaire in the DMXcontrol run must be terminated to prevent
signal reflections. Signal reflections cause noise on the data line resulting in
corrupted data between the control source and the luminaire. This can
result in random flashing of the luminaires on that control run.
To terminate the control run, install a DMX termination plug (RAYN Growing
Systems part number SGE1507) on the DMX Thru connector on the last
luminaire on that run.
Rosa 600 Luminaire Page 6 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Before You Begin
Review the following sections before beginning installation. Certain
elements of this installation should only be completed by a qualified
installer or electrician. General adjustments and maintenance of the
luminaire are acceptable end user tasks.
Power Disconnect Device
Before installation, make sure you have a main circuit breaker or other
readily accessible input power disconnect device installed ahead of your
luminaire.
WARNING: Risk of electric shock! This device utilizes
hazardous voltage and should only be installed by a suitably
skilled person (electrically) or electrician. Follow all local
codes and requirements for installation. Before terminating
the AC power wiring verify that the main breaker is in the
off position and follow the proper lockout/tag out
procedures per NFPA Standard 70E or local requirements.
AVERTISSEMENT : Risque de décharge électrique! Cette
appareil utilise une dangereuse tension et ne doit être
installé que par un personne qualifiée (en électricité).
Suivez tous les codes locaux pour l'installation. Avant de
raccorder le câblage d'alimentation en alternatif, vérifiez
que le disjoncteur principal est en position d'arrêt et suivez
les procédures de verrouillage / étiquetage appropriées
conformément à la norme NFPA 70E ou aux exigences
locales.
WARNING: Circuits that are installed without an
accessible power disconnect device cannot be serviced or
operated safely.
AVERTISSEMENT : Il est imprudent d'utiliser ou de
réparer les circuits installés sans qu'un dispositif de
déconnexion de l'alimentation ne soit accessible.
Rosa 600 Luminaire Page 7 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire

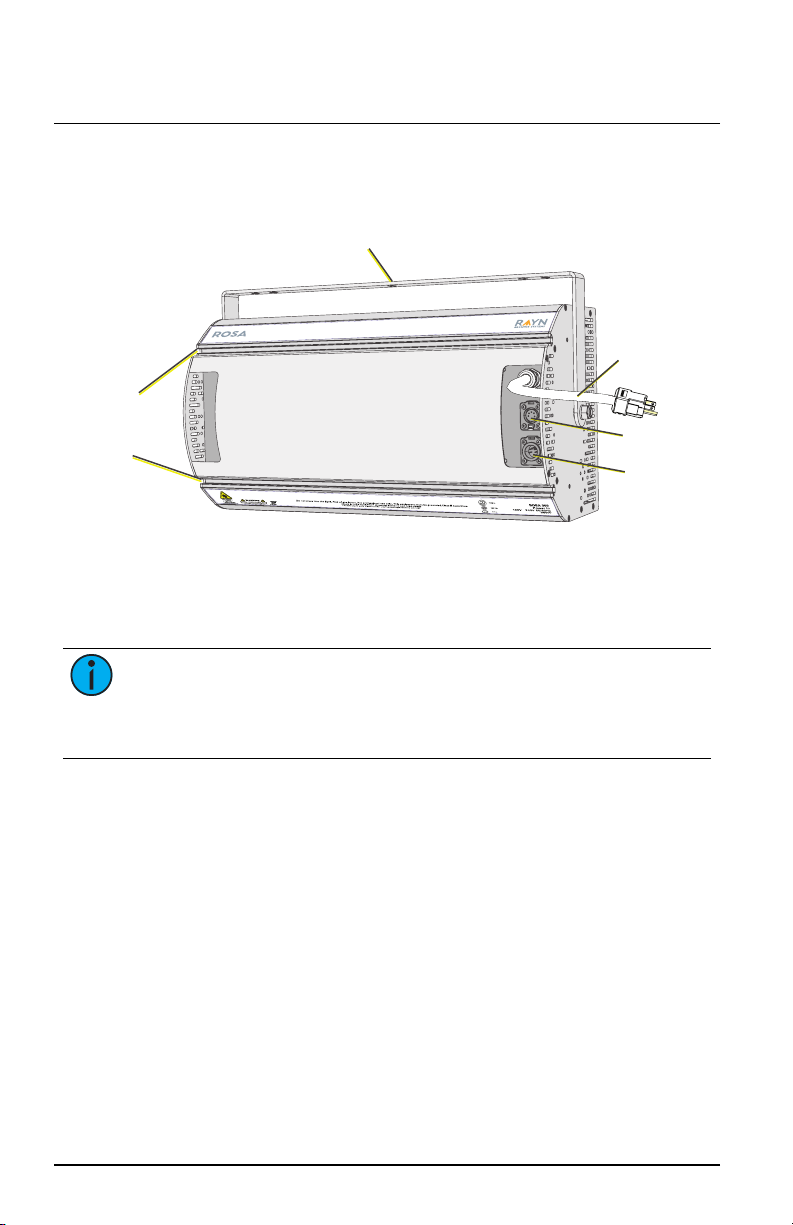

Installation
Setup the Luminaire
DMX Thru
DMX In
Power input
cable
Attachment point (x5) for use with
safety cable/Unistrut/C-clamp
Attachment point
(x2) for use with
t-nut hardware
1. Install the mounting hardware (not provided)to an installation
attachment point on the luminaire yoke or use the provided channels
on the enclosure.
2. Mount the luminaire to the installation location.
Note: The installation must follow local codes and standard
practices for overhead rigging. When the luminaire is mounted in an
overhead rigged position, it is recommended that you also secure it
in place using a secondary safety cable (not provided).
3. Make DMX connections. See Wiring on page 5 for details.
a. Connect the DMXinput cable to the DMXIn XLR receptacle.
b. If you are continuing the data run to the next luminaire, connect
a patch cable to the DMXThru XLR. If you are not continuing
the data run, terminate DMX at the luminaire. See Terminate
DMX-512 on page6.
4. Plug the power cord into a single phase supply receptacle, ensuring
that the supply is capable of providing sufficient current according
to the power consumption table. See Electrical on page 5.
Powering Up
1. Apply power to the luminaire and the control system.
2. Access the user interface to set the DMXaddress. See User
Interface on page 9.
Rosa 600 Luminaire Page 8 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Adjust Tilt
When mounted using the provided hanging yoke, the luminaire can be tilted
up and down as needed.
Trunnion
Locking
Nuts (x2)
1. Loosen, but do not remove the
two trunnion locking nuts that
attach the yoke to the luminaire.
2. Tilt the luminaire to the desired
angle.
3. Tighten the trunnion locking nuts.
User Interface
The user interface is located behind the
removable panel on the end of the
luminaire.
Increment and
Decrement
User interface
(display)
Future use
Future use
Access the user interface to set the DMX start address of the luminaire.
After five seconds of inactivity when DMX is present, the display turns off.
The display will blink the DMX address when no DMX is present.
The DMXstart address of the luminaire can also be set remotely via RDM
using the RAYN Touch lighting controller. See the RAYN Touch Controller
User Manual or online help system within the software for details.
Rosa 600 Luminaire Page 9 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Setting the DMXAddress
1. Press any button to wake the display. The display shows the current
DMX address (001 by default).
2. Use the increment and decrement buttons to set the DMX address
for the luminaire. Set each luminaire to a unique address for
independent control. Rosa 600 luminaires utilize 17 channels of
control.
Note: Each Rosa 600 luminaire ships from the factory labeled with
the luminaire array type, which is a three-digit alphanumeric code
that is formatted similarly to R3a, R3e, etc. This luminaire array
type is required when setting up the luminaire for control by the
RAYN Touch Controller.
A
B
A- location of UL
luminiare array type label
B- location of CE
luminiare array type label
When using the luminaire with a control system other than a RAYN
Touch Controller, contact your RAYN Growing Systems provider
for DMX channel specifications.
Rosa 600 Luminaire Page 10 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Firmware Update
RAYN Growing Systems recommends using UpdaterAtor software to
manage firmware updates to the luminaire.
For more information on UpdaterAtor, see the UpdaterAtor Software
Quick Guide, which you can download for free from
etcconnect.com/Products/Networking/Software/UpdaterAtor.aspx.
Error Codes
There are three error codes that may be shown on the user interface.
•
OtP: Screen toggles between OtP and ERR to indicate that the
fixture has gone into over-temperature protection mode to avoid
damaging the fixture. Once the fixture has self-cooled, the error will
automatically clear.
•
CBL: Screen toggles between CBL and ERR to indicate that a
control card or the internal cabling is damaged or unplugged.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Use UpdaterAtor software
(see Firmware Update above) to reload software to clear the error.
If any of the above error codes persist, please contact RAYN Growing
Systems at [e-mail] for additional
troubleshooting assistance.
Rosa 600 Luminaire Page 11 of 12 RAYN Growing Systems

RAYN Installation Guide
Rosa 600 Luminaire
Rosa 600 Luminaire Page 12 of 12 RAYN Growing Systems
