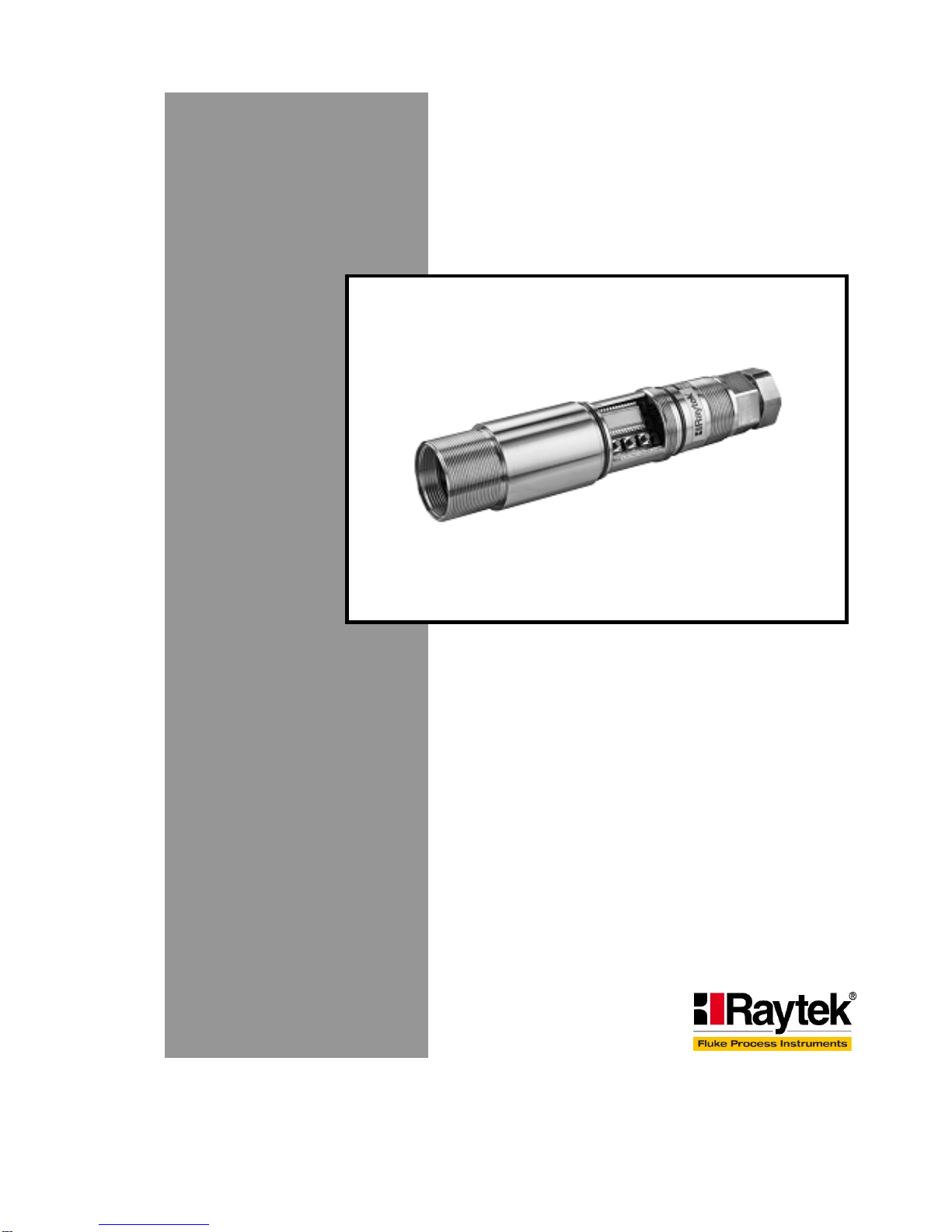

RayTek XR User manual

XR
Infrared Sensor
Operating Instructions
Rev. B2 Feb 2017
57301

Contacts
Fluke Process Instruments

Americas
Santa Cruz, CA USA
Tel: [phone] (USA and Canada, only)
[phone]
[e-mail]
EMEA
Berlin, Germany
Tel: [phone]
[e-mail]
China
Beijing, China
Tel: [phone]
[e-mail]
Worldwide Service
Fluke Process Instruments offers services,
including repair and calibration. For more
information, contact your local office.
www.flukeprocessinstruments.com
© Fluke Process Instruments
Specifications subject to change without notice.

WARRANTY
The manufacturer warrants this instrument to be free from defects in material and workmanship under normal use
and service for the period of two years from date of purchase. This warranty extends only to the original purchaser.
This warranty shall not apply to fuses, batteries, or any product which has been subject to misuse, neglect, accident,
or abnormal conditions of operation.
In the event of failure of a product covered by this warranty, the manufacturer will repair the instrument when it
is returned by the purchaser, freight prepaid, to an authorized Service Facility within the applicable warranty
period, provided manufacturer’s examination discloses to its satisfaction that the product was defective. The
manufacturer may, at its option, replace the product in lieu of repair. With regard to any covered product returned
within the applicable warranty period, repairs or replacement will be made without charge and with return freight
paid by the manufacturer, unless the failure was caused by misuse, neglect, accident, or abnormal conditions of
operation or storage, in which case repairs will be billed at a reasonable cost. In such a case, an estimate will be
submitted before work is started, if requested.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS, OR
ADEQUACY FOR ANY PARTICULAR PURPOSE OR USE. THE MANUFACTURER SHALL NOT BE LIABLE
FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, WHETHER IN CONTRACT, TORT,
OR OTHERWISE.
SOFTWARE WARRANTY
The manufacturer does not warrant that the software described herein will function properly in every hardware
and software environment. This software may not work in combination with modified or emulated versions of
Windows operating environments, memory-resident software, or on computers with inadequate memory. The
manufacturer warrants that the program disk is free from defects in material and workmanship, assuming normal
use, for a period of one year. Except for this warranty, the manufacturer makes no warranty or representation,
either expressed or implied, with respect to this software or documentation, including its quality, performance,
merchantability, or fitness for a particular purpose. As a result, this software and documentation are licensed “as
is,” and the licensee (i.e., the User) assumes the entire risk as to its quality and performance. The liability of the
manufacturer under this warranty shall be limited to the amount paid by the User. In no event shall the
manufacturer be liable for any costs including but not limited to those incurred as a result of lost profits or revenue,
loss of use of the computer software, loss of data, the cost of substitute software, claims by third parties, or for other
similar costs. The manufacturer’s software and documentation are copyrighted with all rights reserved. It is illegal
to make copies for another person.
Specifications subject to change without notice.
The device complies with the requirements of the European Directives.
EC –Directive 2004/108/EC (EMC)

Content
1SAFETY INSTRUCTIONS.......................................................................................................................................7
2TECHNICAL DATA ...............................................................................................................................................8
2.1 MODELS ........................................................................................................................................................8
2.2 OPTICAL DIAGRAMS...................................................................................................................................10

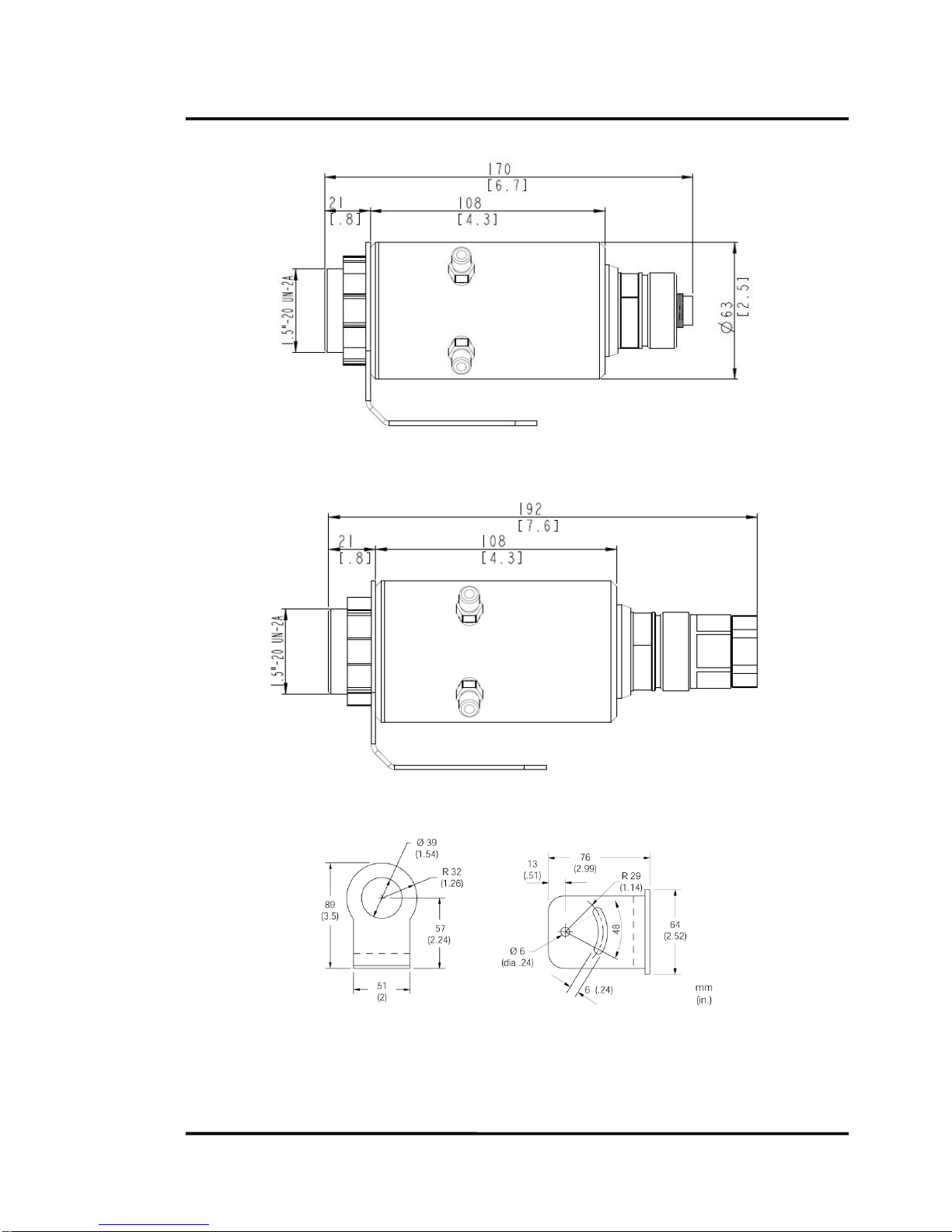

2.3 DIMENSIONS OF SENSOR.............................................................................................................................12
2.4 SCOPE OF DELIVERY....................................................................................................................................14
3BASICS................................................................................................................................................................15
3.1 MEASUREMENT OF INFRARED TEMPERATURE ...........................................................................................15
3.2 DISTANCE AND SPOT SIZE ..........................................................................................................................15
3.3 AMBIENT TEMPERATURE............................................................................................................................16
3.4 ATMOSPHERIC QUALITY.............................................................................................................................16
3.5 ELECTRICAL INTERFERENCE.......................................................................................................................16
3.6 EMISSIVITY OF TARGET OBJECT ..................................................................................................................16
4OPERATION........................................................................................................................................................17

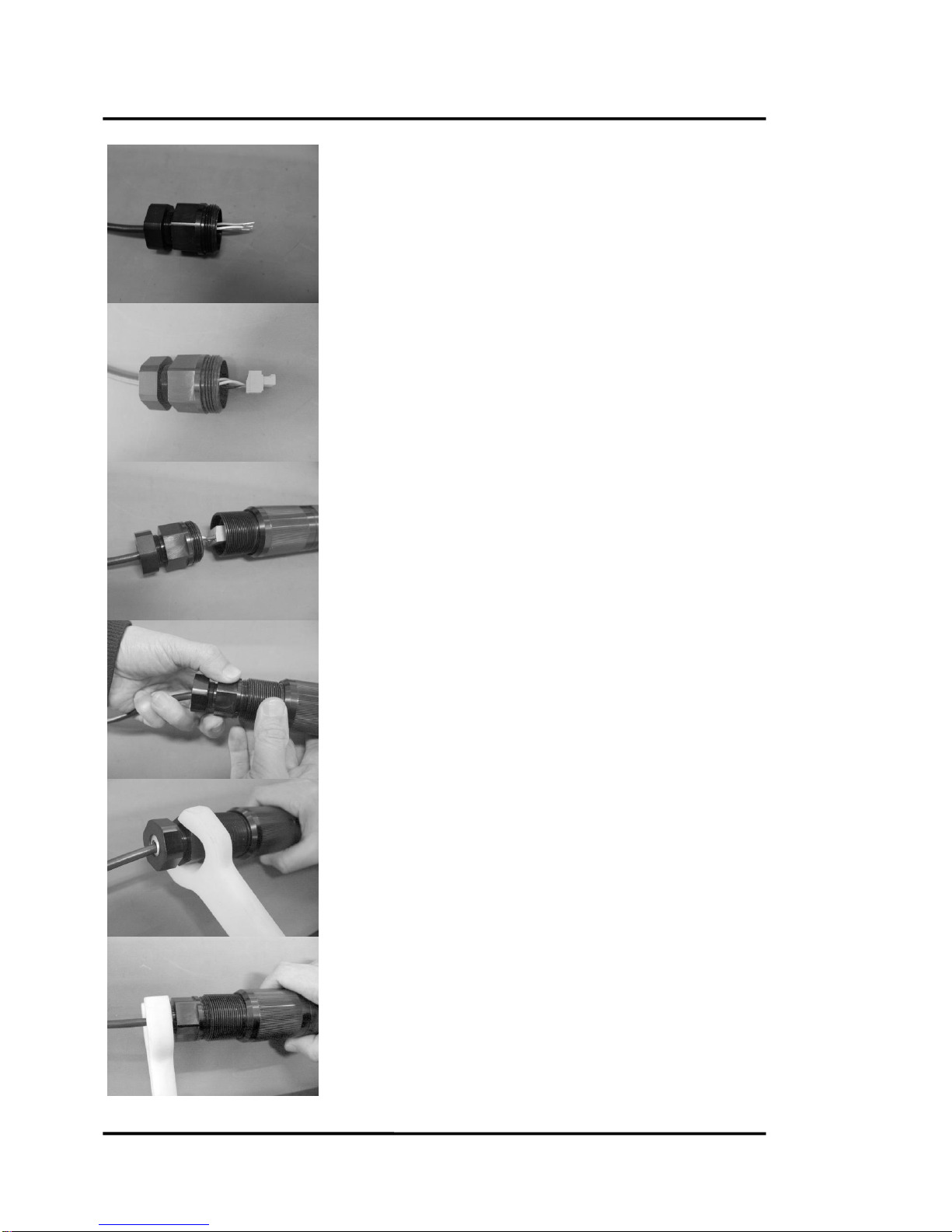

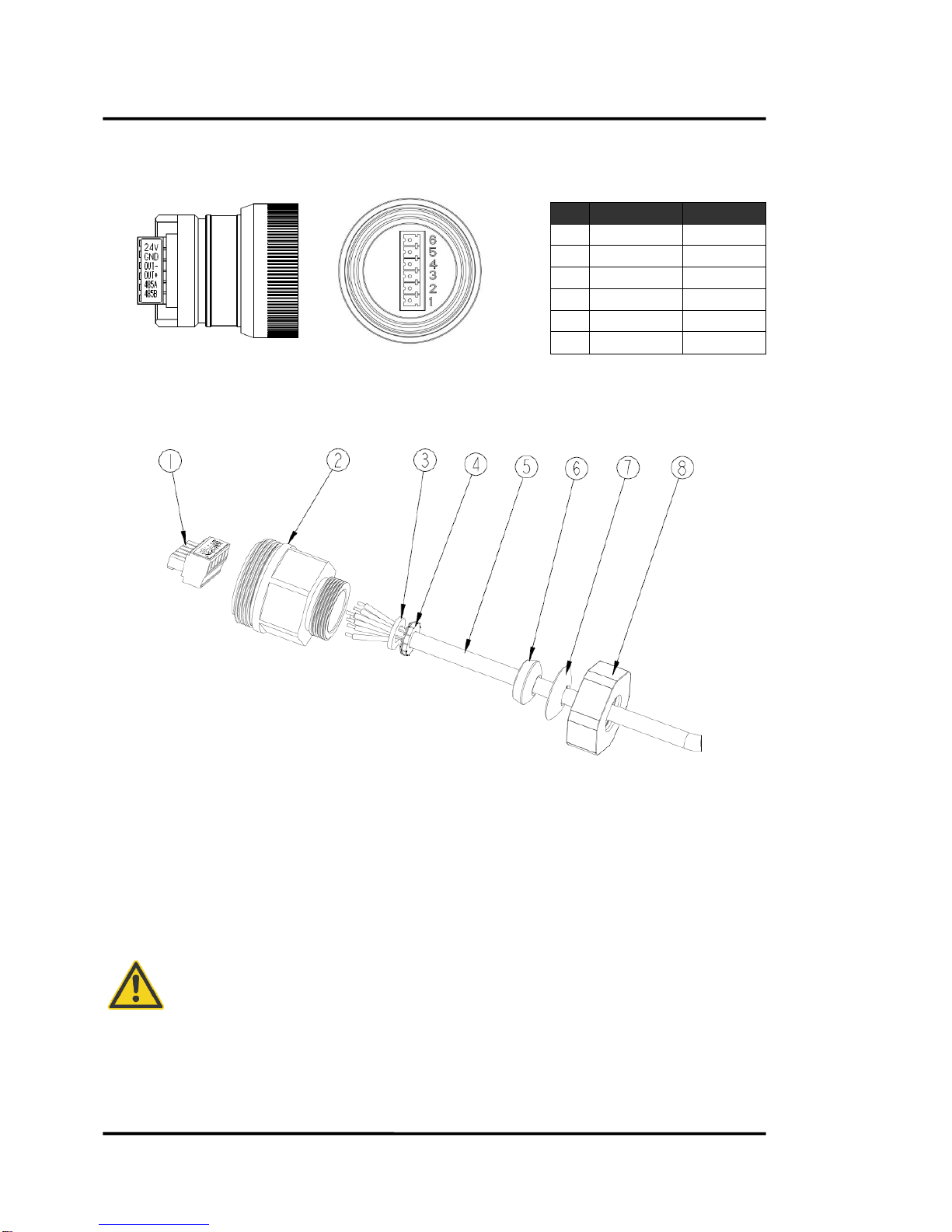

4.1 DIN QUICK CONNECTION .........................................................................................................................17

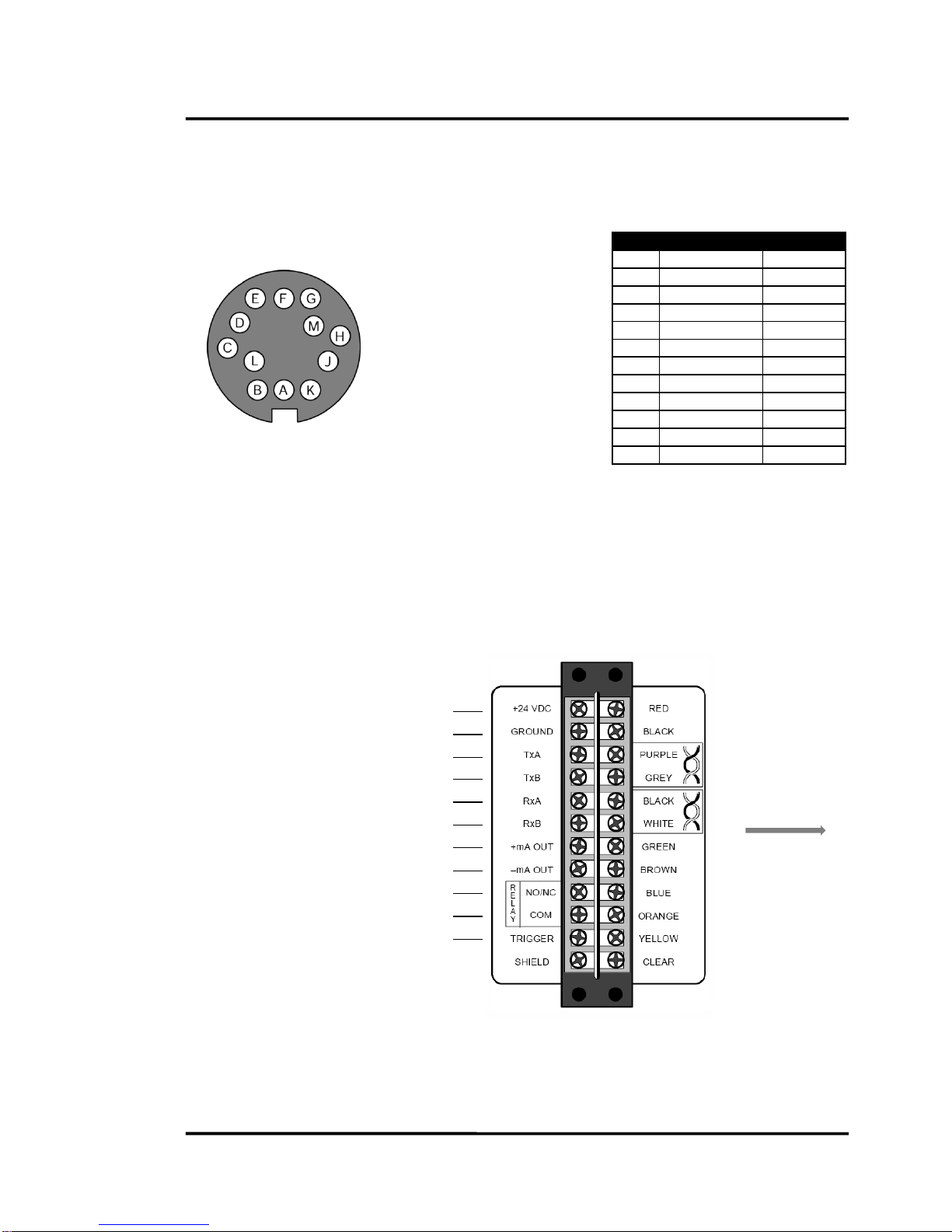

4.2 TERMINAL STRIP CONNECTION .................................................................................................................18
4.3 OPERATION MODES....................................................................................................................................21
4.4 POST PROCESSING.......................................................................................................................................25
4.4.1 Averaging............................................................................................................................................25
4.4.2 Peak Hold ............................................................................................................................................25
4.4.3 Valley Hold..........................................................................................................................................26
4.4.4 Advanced Peak Hold ...........................................................................................................................26
4.4.5 Advanced Valley Hold.........................................................................................................................27
4.4.6 Advanced Peak Hold with Averaging .................................................................................................27
4.4.7 Advanced Valley Hold with Averaging ..............................................................................................27
4.5 INPUTS FTC ................................................................................................................................................28
4.5.1 Emissivity Setting (analog).................................................................................................................28
4.5.2 Emissivity Setting (digital).................................................................................................................28
4.5.3 Ambient Temperature Compensation .................................................................................................30
4.5.4 Trigger/Hold/Laser..............................................................................................................................31
4.6 RS485 COMMUNICATION...........................................................................................................................32
4.6.1 PC Connection via USB/RS485 Converter.........................................................................................32
4.6.2 PC Connection via RS232/485 Converter ..........................................................................................33
4.6.3 Multiple Sensor Installation ...............................................................................................................34
4.7 FACTORY DEFAULTS...................................................................................................................................35
5ACCESSORIES.....................................................................................................................................................36
5.1 OVERVIEW...................................................................................................................................................36
5.2 ADJUSTABLE BRACKET ...............................................................................................................................37
5.3 AIR PURGE COLLAR....................................................................................................................................37
5.4 RIGHT ANGLE MIRROR...............................................................................................................................37
5.5 SIGHTING VIEWER ......................................................................................................................................38
5.6 ADJUSTABLE PIPE ADAPTER.......................................................................................................................38
5.7 PROTECTIVE WINDOW................................................................................................................................39
5.8 AIR/WATER-COOLED HOUSING ................................................................................................................40
5.8.1 Connecting ..........................................................................................................................................40

5.8.2 Avoidance of Condensation ................................................................................................................ 41
5.9 THERMOJACKET ......................................................................................................................................... 42
6SOFTWARE ......................................................................................................................................................... 43
6.1 REQUIREMENTS .......................................................................................................................................... 43
6.2 SOFTWARE INSTALLATION......................................................................................................................... 43
6.3 SETUP MENU .............................................................................................................................................. 44
6.3.1 Sensor Setup ....................................................................................................................................... 44
7PROGRAMMING ................................................................................................................................................ 45
7.1 TRANSFER MODES...................................................................................................................................... 45
7.2 GENERAL COMMAND STRUCTURE ............................................................................................................ 45
7.3 DEVICE SETUP ............................................................................................................................................ 46
7.3.1 Temperature Calculation .................................................................................................................... 46
7.3.2 Selection of Emissivity and Alarm Outputs....................................................................................... 46
7.3.3 Post Processing................................................................................................................................... 48
7.4 DYNAMIC DATA......................................................................................................................................... 48
7.5 DEVICE CONTROL ...................................................................................................................................... 48
7.5.1 Controlling the output for the target temperature.............................................................................. 48
7.5.2 Analog output, scaling ....................................................................................................................... 48
7.5.3 Alarm output...................................................................................................................................... 49
7.5.4 Factory default values......................................................................................................................... 49
7.5.5 Lock mode ........................................................................................................................................... 49
7.5.6 Mode Setting for the digital input FTC 3 ........................................................................................... 49
7.5.7 Ambient Temperature Compensation................................................................................................. 49
7.6 MULTIPLE UNITS IN A NETWORK (MULTIDROP MODE)........................................................................... 50
7.7 LASER ......................................................................................................................................................... 50
8MAINTENANCE.................................................................................................................................................. 51
8.1 TROUBLESHOOTING MINOR PROBLEMS .................................................................................................... 51
8.2 ERROR CODES............................................................................................................................................. 52
8.3 AUTOMATIC ERROR INDICATION .............................................................................................................. 52
8.4 CLEANING THE LENS ................................................................................................................................. 53
8.5 REPLACING A PROTECTIVE WINDOW........................................................................................................ 54
9APPENDIX .......................................................................................................................................................... 55
9.1 DETERMINATION OF EMISSIVITY................................................................................................................ 55
9.2 TYPICAL EMISSIVITY VALUES..................................................................................................................... 55
9.3 COMMAND LIST ......................................................................................................................................... 59
NOTIZEN

Safety Instructions
XR Rev. B2 Feb 2017 7
1Safety Instructions
This document contains important information, which should be kept at all times with the instrument
during its operational life. Other users of this instrument should be given these instructions with the
instrument. Eventual updates to this information must be added to the original document. The
instrument can only be operated by trained personnel in accordance with these instructions and local
safety regulations.
Acceptable Operation
This instrument is intended only for the measurement of temperature. The instrument is appropriate
for continuous use. The instrument operates reliably in demanding conditions, such as in high
environmental temperatures, as long as the documented technical specifications for all instrument
components are adhered to. Compliance with the operating instructions is necessary to ensure the
expected results.
Unacceptable Operation
The instrument should not be used for medical diagnosis.
Replacement Parts and Accessories
Use only original parts and accessories approved by the manufacturer. The use of other products can
compromise the operation safety and functionality of the instrument.
Instrument Disposal
Disposal of old instruments should be handled according to professional and
environmental regulations as electronic waste.
Operating Instructions
The following symbols are used to highlight essential safety information in the operation instructions:
Helpful information regarding the optimal use of the instrument.
Warnings concerning operation to avoid instrument damage and personal injury.
The instrument is equipped with a Class 2 laser. Class 2 lasers shine only within the visible
spectrum at an intensity of 1 mW. Looking directly into the laser beam can produce a
slight, temporary blinding effect, but does not result in physical injury or damage to the
eyes, even when the beam is magnified by optical aids. At any rate, closing the eye lids is
encouraged when eye contact is made with the laser beam. Pay attention to possible
reflections of the laser beam. The laser functions only to locate and mark surface
measurement targets. Do not aim the laser at people or animals.
Incorrect use of 110 / 230 V electrical systems can result in electrical hazards and personal
injury. All instrument parts supplied with electricity must be covered to prevent physical
contact and other hazards at all times.

Technical Data
8 Rev. B2 Feb 2017 XR
2Technical Data
2.1 Models
LT
Temperature range -40 to 600°C (-40 to 1112°F)
Optical resolution* (90% energy, at focal distance) 33 : 1
Spectral response 8 to 14 µm
Focus Options SF, CF1, CF2
LTH
Temperature range -40 to 600°C (-40 to 1112°F)
Optical resolution* (90% energy, at focal distance) 50 : 1
Spectral response 8 to 14 µm
Focus Options SF, CF2
MT
Temperature range 250 to 1200°C (482 to 2192°F)
Optical resolution* (90% energy, at focal distance) 30 : 1
Spectral response 3.9 µm
Focus Options SF, CF2
G5
Temperature range 250 to 1650°C (482 to 3002°F)
Optical resolution* (90% energy, at focal distance) 33 : 1
Spectral response 4.8 to 5.2 µm
Focus Options SF, CF2
P7
Temperature range 10 to 350°C (50 to 662°F)
Optical resolution* (90% energy, at focal distance) 30 : 1
Spectral response 7.9 µm
Focus Options SF

Technical Data
XR Rev. B2 Feb 2017 9
Measurement Parameters
Accuracy
1
± 1 % or ± 1°C (± 2°F) of reading, whichever is greater
± 2°C (± 3.6°F) for temperatures < 10°C (50°F)
± 2°C (± 3.6°F) for temperatures < 90°C (194°F) for P7 models
± 1.2% or ± 1.2°C (± 2.2°F), for thermocouple
Repeatability ± 0.5 % or ± 0.5°C (± 1°F) of reading, whichever is greater
Response time (95 %) 150 ms
Temperature resolution (analog) 0.5°C
Temperature resolution (digital) 0.1°C
Emissivity 0.100 … 1.100 (adjustable)
Transmissivity 0.100 … 1.000 (adjustable)
Electrical Parameters
Output (OUT) 0 - 20 mA or
4 - 20 mA or
0 - 5 V
J Thermocouple (only on terminal block connector versions)
K Thermocouple (only on terminal block connector versions)
Alarm output Opto-coupled contact closure for head ambient temperature,
switches if internal sensor temperature exceed 70°C (158°F) or
output for alarm relay (software controlled)
Power 22 - 26 VDC, 100 mA
General Parameter
Environmental rating IP65
Bore-Sight tolerance 1° (at focal distance)
Ambient operating range 0 to 70°C (32 to 158°F)
with air cooling 120°C (248°F)
with water cooling 175°C (347°F)
with ThermoJacket 315°C (599°F)
with Laser 0 to 40°C (-4 to 104°F)
Storage temperature -20 to 70°C (-4 to 158°F)
Vibration IEC 68-2-6 (MIL STD 810D), 3 axis, 11 bis 200 Hz, 3 G
Shock IEC 68-2-27 (MIL STD 810D), 3 axis, 11 ms, 50 G
Dimensions L: max. 192 mm (7.6 in); Ø: 42 mm (1.7 in)
Weight 585 g (21 oz)
Housing A model: Aluminum
S model: 316L stainless steel
1
at ambient temperature 23°C ± 5°C (73°F ± 9°F)

Technical Data
10 Rev. B2 Feb 2017 XR
2.2 Optical Diagrams
The optical diagrams indicate the target spot diameter at any given distance between the target object
and the sensing head.
All target spot sizes indicated in the optical diagrams are based on 90% energy.
Target Spot Diameter
(S) and Measuring
Distance (D) in Close
Focus in inches
Target Spot Diameter S (in)
Distance D (in)
Target Spot Diameter
(S) and Measuring
Distance (D) in Close
Focus in mm
Target Spot Diameter S (mm)
Distance D (mm)
Distance between Sensor and Object [in]
Distance between Sensor and Object [mm]
Close Focus D : S = Proportion between Distance (D) to Target Spot
and Target Spot Diameter (S) in Close Focus
Far Field D : S = Proportion with Distances 10 times greater than the
Close Focus Distance
Calculating the Target Spot Size
To calculate the target spot size from two known points within an
optical diagram the following formula can be used:
 
   








 nf
nf
nx
nx SS
DD DD
SS
Sx= unknown diameter of target spot
Sn= smallest known diameter of target spot
Sf= greatest known diameter of target spot
Dx= distance to unknown target spot
Dn= distance to smaller known target spot
Df= distance to greater known target spot
Figure 1: How to read the optical diagrams
