Razer RC30-030702 User manual

Date: 18 June 2020
Product Manual for Gaming Keyboard
Gaming Keyboard Model: RC30-030702
USB Dongle: DGRFG6
.

A big part of producing top-quality work comes from the quality of your
office equipment—so why settle for anything less? Take your
productivity to the next level with a wireless keyboard that offers a
superior typing experience, engineered for the optimal balance of
performance and comfort. The Gaming keyboard is built to keep up
with the rigors of demanding office work and is well-suited to deliver
consistent, reliable performance over long periods of intense use.
FOR GAMERS. BY GAMERS.™1

CONTENTS
1. WHAT’S INSIDE / WHAT’S NEEDED................................................................................................
......
2. LET’S GET YOU COVERED ................................................................................................
...................
3. TECHNICAL SPECIFICATIONS................................................................................................
..............
4. SETTING UP YOUR KEYBOARD................................................................................................
...........
5. USING YOUR Gaming Keybaord................................................................................................
............
6. CONFIGURING YOUR Gaming Keybaord................................................................
..............................
7. SAFETY AND MAINTENANCE ..............................................................................................................
2
8. LEGALESE.............................................................................................................................................
2
FOR GAMERS. BY GAMERS.™2

1. WHAT’S INSIDE / WHAT’S NEEDED
WHAT’S INSIDE
Gaming Keyboard model: RC30-030702, USB Dongle Model: DGRFG6
A. Volume control keys
B. Media keys
C. Backlight control keys
D. Sleep mode key
E. Reset button
F. Type C charging-only port
G. Mode switch (2.4 / OFF / BT )
H. Power indicator
I. LED indicators*
J. Magnetic USB dongle
compartment
K. Kickstand
*Limited functionality on selected devices.
USB wireless dongle
Type C to Type A cable
Important Product Information Guide
WHAT’S NEEDED
Product Requirements
PC with a free USB port or Bluetooth 4.0 connectivity
Razer Synapse Requirements
Windows® 7 64-bit (or higher)
Internet connection for software installation
FOR GAMERS. BY GAMERS.™3

FOR GAMERS. BY GAMERS.™1

2. LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage.
Now maximize its potential and score exclusive Razer benefits by registering
at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s
serial number can
be found here.
FOR GAMERS. BY GAMERS.™2

3. TECHNICAL SPECIFICATIONS
FEATURES
Razer™ Orange Mechanical Switch with 80 million keystroke lifespan
Full-sized keyboard with soft-touch coating
Wireless connection via Bluetooth® and 2.4GHz
Detachable USB-C braided fiber cable
Multi-host connection for up to 4 devices
Fully programmable keys with macro recording
Backlit keys (white LED)
10-key rollover
Battery Life: Up to ~7 hours on Bluetooth® and 2.4GHz with back-lighting on, or up to
~84 hours without back-lighting on Bluetooth® and ~78 hours on 2.4GHz
Metal top cover
Razer Synapse 3 enabled
APPROXIMATE SIZE & WEIGHT
Length: 441 mm / 17.4 in
Width: 133 mm / 5.2 in
Height: 39.8 mm / 1.6 in
Weight: 906 g / 2.0 lbs
FOR GAMERS. BY GAMERS.™3

4. SETTING UP YOUR KEYBOARD
1. Connect your keyboard to a powered USB port using the Type C to Type A cable to
charge your keyboard. The power indicator will turn solid green when the keyboard is
fully charged.
For best results, fully charge your keyboard before using it for the first time. It
takes approximately 2 hours to fully charge your keyboard. You may continue
using the keyboard while plugged in.
When your keyboard is not charging, the power indicator will only briefly display its
battery status.
Mode Charged Low Critical*
2.4 / BT
OFF
*Critical status indicates that the keyboard’s battery is less than 3%. This lighting
sequence will repeat until the battery is drained or the keyboard is being charged.
FOR GAMERS. BY GAMERS.™4

2. Set the mode switch to your preferred mode.
2.4 GHz mode
1. Set the mode switch to 2.4.
2. Detach the USB wireless dongle from the dongle compartment and connect it to
your computer.
BT mode
1. Set the mode switch to BT.
FOR GAMERS. BY GAMERS.™5

2. Up to 3 Bluetooth devices can be paired and registered to your keyboard (one for
each profile). To activate the pairing mode of your preferred profile, press and hold
its corresponding shortcut for 5 seconds. The LED indicators will then display which
Profile has been activated.
3. Enable Bluetooth on your device and select Gaming Keybaord from the list of
devices found. The device will pair with your keyboard and the connection will be
registered on the active profile.
Pressing the fn key will display which profile is active on the LED indicators.
Moreover, when pairing new devices with your keyboard, it is recommended
that you register the new device on a different profile so you may still use the
other profiles to reconnect with previous devices. Learn more about
Bluetooth profiles
4. Use the Razer Synapse* app to change your keyboard’s lighting effect and even
customize other features available on your keyboard.
*Install Razer Synapse when prompted or download the installer
from razer.com/synapse.
Shortcut Profile Status
fn + 1 Profile 1
fn + 2 Profile 2
fn + 3 Profile 3
FOR GAMERS. BY GAMERS.™6

5. USING YOUR RAZER GAMING KEYBAORD
Pressing the fn key in combination with the function keys will activate their secondary features
on your PC.
Function Keys Features Description
The audio volume controls allow you to mute ( ),
decrease ( ) and increase ( ) the audio output.
The media keys allow you to play/pause ( ) a track
or skip tracks backward ( ) and forward ( ).
The backlight control keys allow you to decrease
() or increase ( ) the brightness of your
keyboard’s LEDs.
FOR GAMERS. BY GAMERS.™7

The sleep key allows you to suspend all operating
system activities. This function allows you to save
electricity while the computer is idle.
UNDERSTANDING BLUETOOTH PROFILES
Switching between profiles
To switch between any of the Bluetooth profiles available on your keyboard, simply press the
corresponding shortcut of the profile your device is registered to.
Activating a profile pairing mode
Press and hold the corresponding shortcut of the profile that you want to activate. The status
of the corresponding profile will start blinking to show that the profile is now in pairing mode.
Displaying the active profile
The LED indicators will display which profile is currently active while the fn key is pressed.
FOR GAMERS. BY GAMERS.™8

6. CONFIGURING YOUR RAZER GAMING KEYBAORD
Internet connection is required for installation, updates and cloud-based features.
Registering for a Razer ID account is recommended, but optional. All listed features
are subject to change based on the current software version, connected device(s),
and supported apps and software.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse.

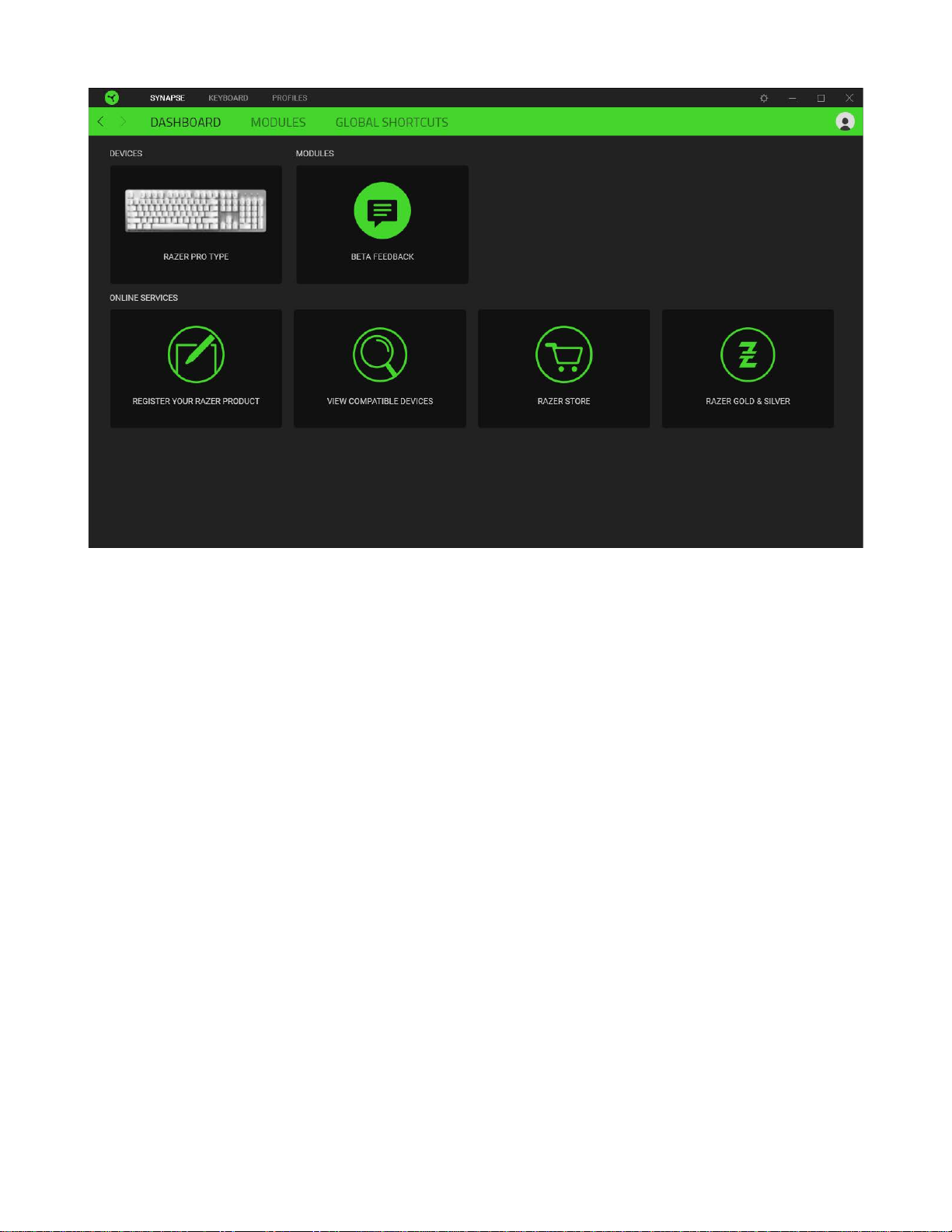

Dashboard
The Dashboard subtab is an overview of your Razer Synapse where you can access all your
Razer devices, modules, and online services.
FOR GAMERS. BY GAMERS.™9

Modules
The Modules subtab displays all installed and available modules for installation.
FOR GAMERS. BY GAMERS.™10

Global Shortcuts
Bind operations or Razer Synapse functions to custom key-combinations from any Razer
Synapse-enabled device inputs which apply across all device profiles. Learn more about
Profiles
Only Razer Synapse-enabled device inputs will be recognized.
FOR GAMERS. BY GAMERS.™11

KEYBOARD
The Keyboard tab is the main tab for your Gaming Keybaord. From here, you can change
your device settings such as key assignments and your device’s lighting. Changes made
under this tab are automatically saved to your system and cloud storage.
Customize
The Customize subtab is for modifying your keyboard’s key assignments.
Profile
Profile is a data storage for keeping all your Razer peripheral’s settings. By default, the profile
name is based on your system’s name. To add, import, rename, duplicate, export, or delete a
profile, simply press the profile’s corresponding Miscellaneous button ( ).
Keyboard Properties
Allows you to open the Windows Keyboard Properties where you can modify other keyboard
settings such as Repeat delay, Repeat Rate, and Cursor blink rate, or view all keyboard
drivers installed in your PC.
FOR GAMERS. BY GAMERS.™12

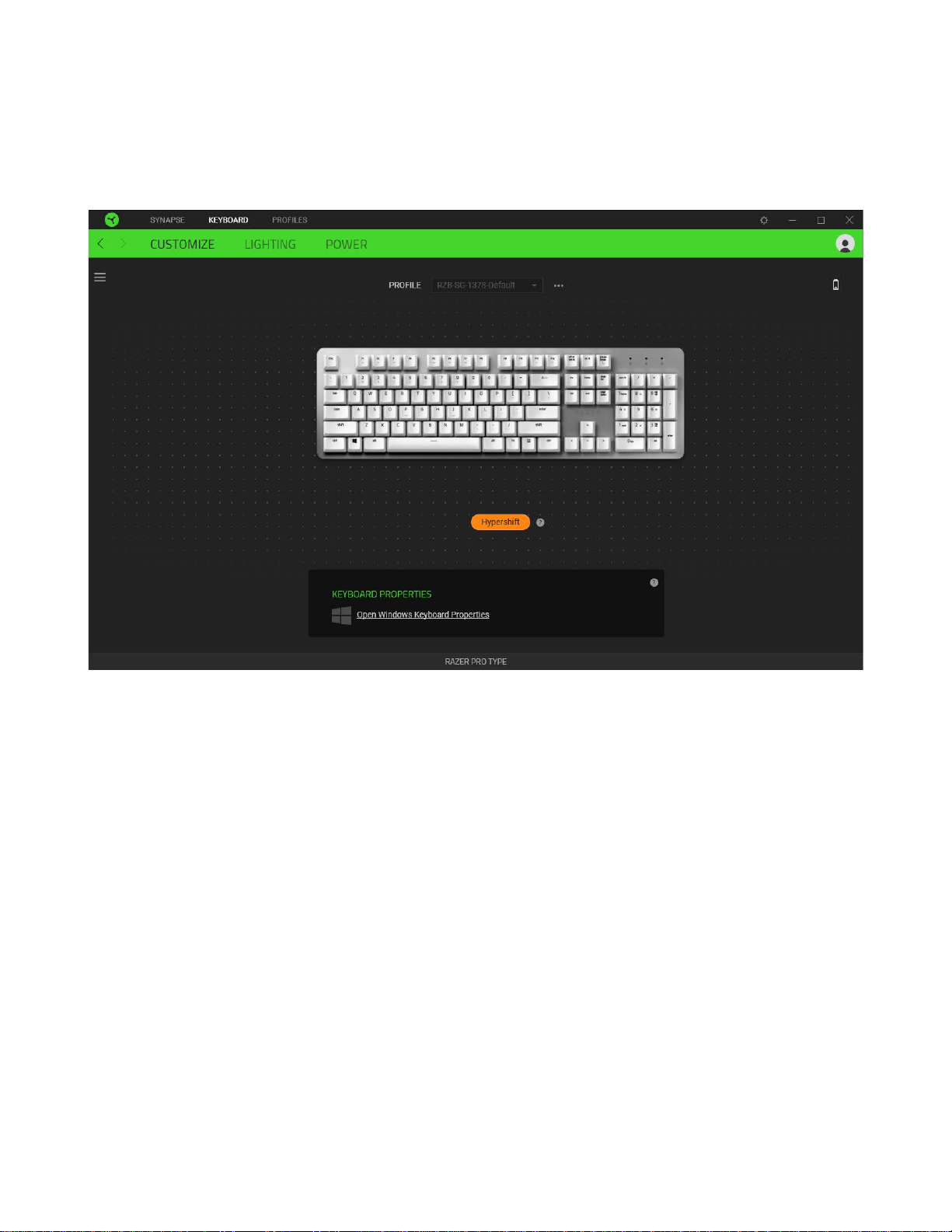

Hypershift
Hypershift mode is a secondary set of key assignments that is activated when the Hypershift
key is held down. By default, the Hypershift key is assigned to the fn key of your Razer
Synapse supported keyboard however, you can also assign any key as a Hypershift key.
FOR GAMERS. BY GAMERS.™13

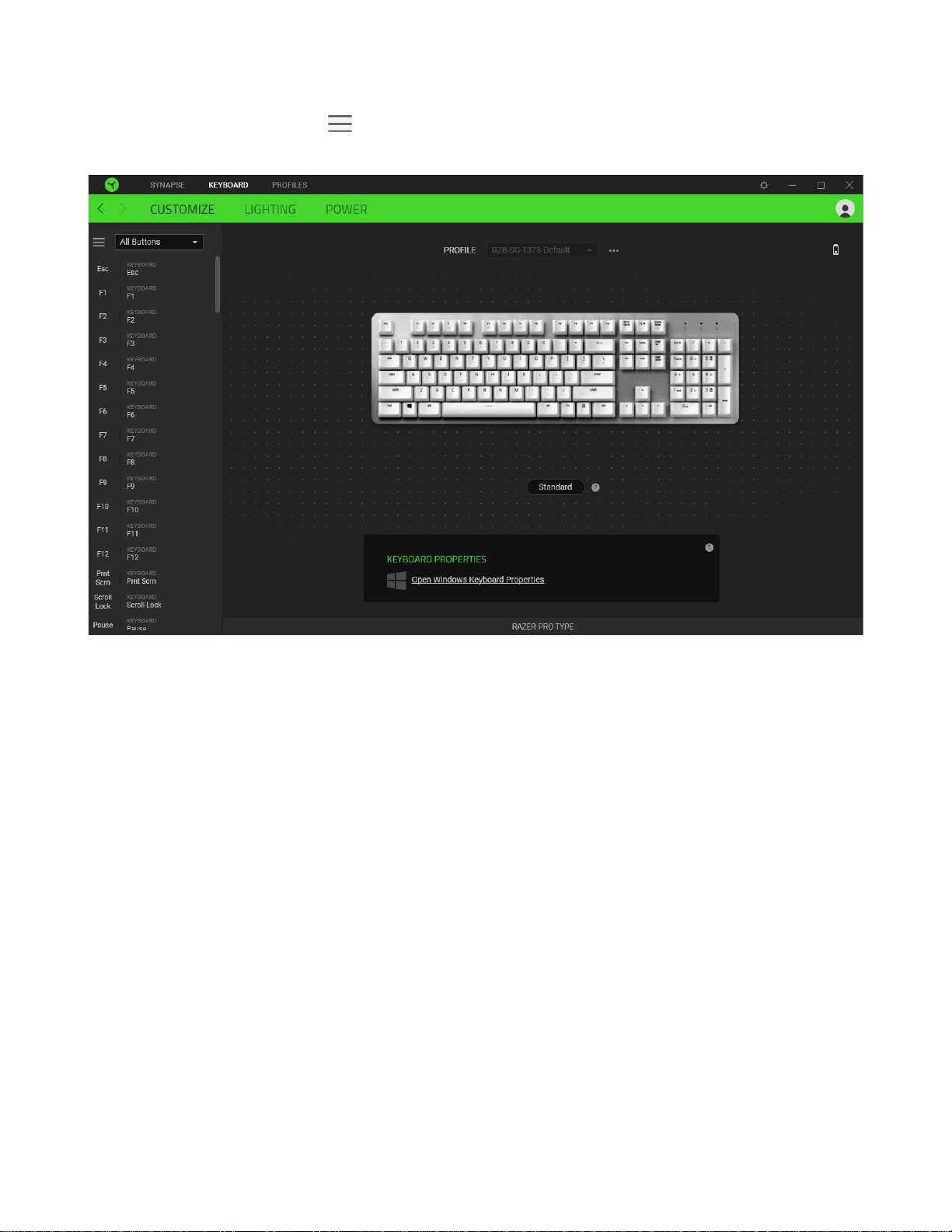

Sidebar
Clicking the Sidebar button ( ) will reveal all current key assignments for your Gaming
Keybaord.
Alternatively, you can skip to a specific key assignment by selecting it on the Customize tab.
FOR GAMERS. BY GAMERS.™14

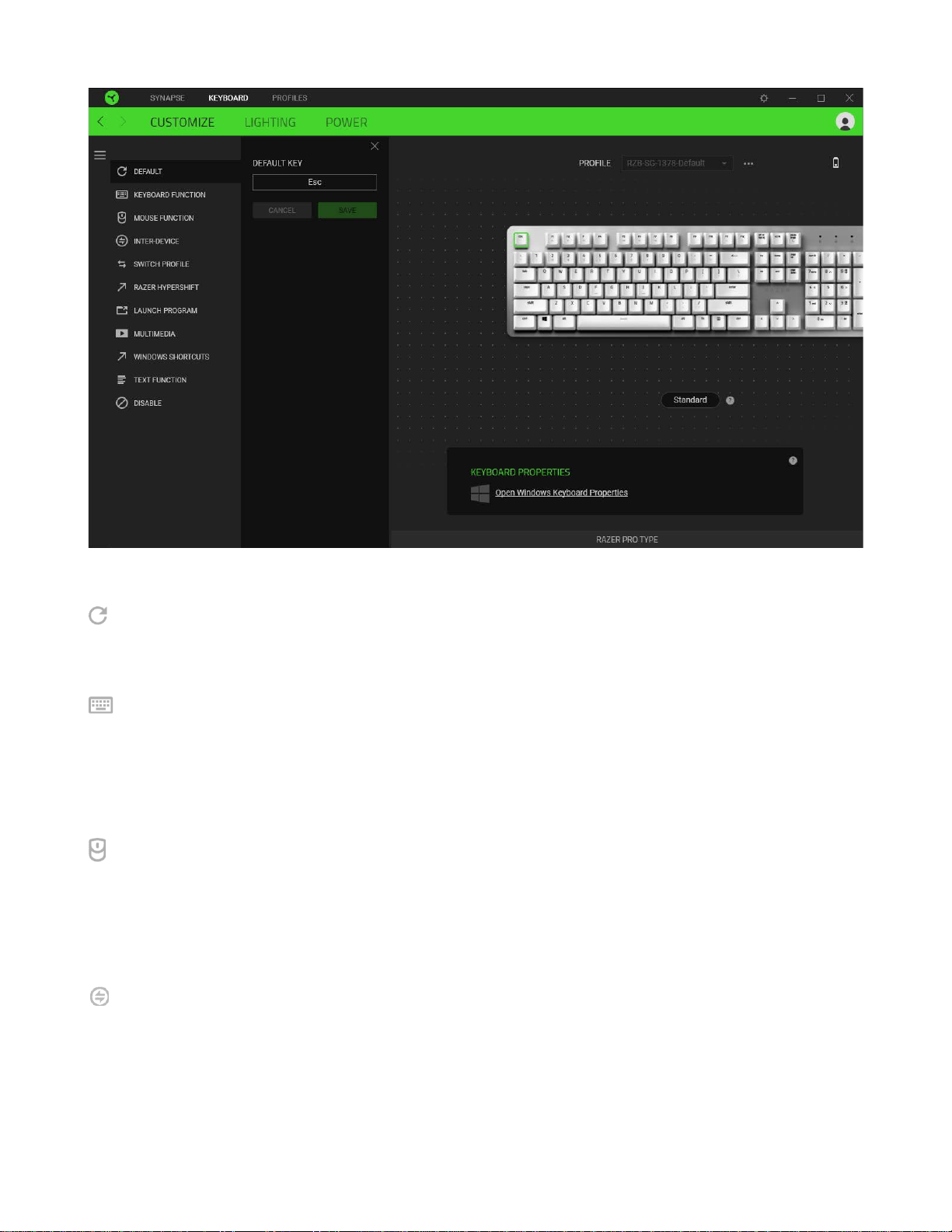

Upon selecting a key assignment, you may then change it to one of the following functions:
Default
This option enables you to return the selected key to its original setting.
Keyboard Function
This option changes the key assignment into a keyboard function. You can also choose
enable Turbo mode which allows you to emulate repeatedly pressing the keyboard function
while the key is held down.
Mouse Function
This option allows you to change any key into a mouse function. You can also choose to
enable Turbo mode in some of the mouse functions to control how many times the function
will be pressed while the key is held down.
Inter-device
Inter-device allows you to change the functionality of other Razer Synapse-enabled devices.
Some of these functionalities are device-specific such as using your Razer gaming keyboard
to change the Sensitivity Stage of your Razer gaming mouse.
FOR GAMERS. BY GAMERS.™15

Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with
precise timing. By setting the key function to Macro, you can conveniently execute a chain of
commands. This function will only be visible when the Macro module is installed.
Switch Profile
Switch Profile enables you to quickly change profiles and load a new set of key assignments.
An on-screen notification will appear whenever you switch profiles.
Switch Lighting
Switch Lighting allows you to easily switch between all advanced lighting effects. This function
will only be visible when the Chroma Studio module is installed.
Razer Hypershift
Setting the key to Razer Hypershift will allow you to activate Hypershift mode if the key is held
down.
Launch Program
Launch Program enables you to open an app or a website using the assigned key. When you
select Launch Program, two choices will appear which requires you to search for a specific
app you want to open, or write the address of the website you want to visit.
Multimedia
This option allows you to assign multimedia controls to your Razer device.
Windows Shortcuts
This option allows you to assign your preferred key into a Windows Operating System
shortcut command. For more information, please visit: support.microsoft.com/kb/126449
Text Function
Text Function enables you to type a prewritten text with a touch of a key. Simply write your
desired text on the given field and your text will be typed whenever the assigned key is
FOR GAMERS. BY GAMERS.™16
