Razor iMod User manual

Owner’s Manual
Read and understand this entire manual before riding!
Item Number:
iMod 15130699
Owner’s Manual
*The iPod product name is used for identification purposes only. iPod is a registered trademark of Apple Inc.

WARNING: Riding the iMod can be a hazardous activity.
Certain conditions may cause the equipment to fail without fault of the
manufacturer. Like other electric vehicles, the iMod can and is intended to
move, and it is therefore possible to lose control, fall off and/or get into
dangerous situations that no amount of care, instruction or expertise can
eliminate. If such things occur you can be seriously injured or die, even when
using safety equipment and other precautions. RIDE AT YOUR OWN RISK
AND USE COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to maintain, inspect or properly use your iMod.
Because any incident can result in serious injury or even death, we do not
repeat the warning of potential serious injury or death each time such a
possibility is mentioned.
APPROPRIATE RIDER USE AND
PARENTAL SUPERVISION
This manual contains important safety information. It is your responsibility
to review this information and make sure that all riders understand all
warnings, cautions, instructions and safety topics and assure that young
riders are able to safely and responsibly use this product. Razor recommends
that you periodically review and reinforce the information in this manual
with younger riders, and that you inspect and maintain your children’s
vehicle to insure their safety.
The recommended rider age of 12 and older for iMod is only an estimate,
and can be affected by the rider’s size, weight or skills. Any rider unable to fit
comfortably on the iMod should not attempt to ride it. A parent’s decision
to allow his or her child to ride this product should be based on the
child’s maturity, skill and ability to follow rules.
Keep this product away from small children and remember that this product
is intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the vehicle.
DO NOT EXCEED THE WEIGHT LIMIT OF 170 pounds (77kg).
Rider weight does not necessarily mean a person’s size is appropriate to fit
or maintain control of the iMod.
Do not touch the motor on your iMod when in use as it can become very hot.
Refer to the section on safety for additional warnings.
ACCEPTABLE RIDING PRACTICES AND
CONDITIONS
Always check and obey any local laws or regulations which may affect
the locations where the iMod may be used on public property. The iMod is
meant to be used only in controlled environments free of potential traffic
hazards and not on public streets or sidewalks. Do not ride your iMod in any
areas where pedestrian or vehicle traffic is present.
Ride defensively. Watch out for potential obstacles that could catch your
wheel or force you to swerve suddenly or lose control. Be careful to avoid
pedestrians, skaters, skateboards, scooters, bikes, children or animals who
may enter your path, and respect the rights and property of others.
Do not attempt or do stunts or tricks on your iMod. The iMod is not made to
withstand abuse from misuse such as jumping, curb grinding or any other
type of stunts.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to ride the
iMod.
Keep your fingers and other body parts away from the drive chain, steering
system, wheels and all other moving components.
Never use headphones, earbuds or a cell phone when riding.
Not suited for video iPod use.
Give full attention to riding. Stop riding and turn of the iMod power switch to
“off” before adjusting volume or changing channels.
Never attempt to access iPod compartment while riding.
Never hitch a ride with another vehicle.
Do not ride the iMod in wet weather and never immerse the iMod in water, as
the electrical and drive components could be damaged
by water or create other possibly unsafe conditions.
The iMod is intended for use on solid, flat, clean and dry surfaces such as
pavement or level ground without loose debris such as rocks or gravel. Never
use near steps or swimming pools. Wet, slick or uneven and rough surfaces
may impair traction and contribute to possible accidents. Do not ride the iMod
in mud, ice, puddles or water. Avoid excessive speeds that can be associated
with downhill rides. Never risk damaging surfaces such as carpet or flooring
by use of a iMod indoors.
Do not ride at night or when visibility is impaired.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety helmet.
Elbow pads and kneepads are recommended. A helmet may be legally
required by local law or regulation in your area. Always wear shoes, never
drive barefooted or in sandals, and keep shoelaces tied and out of the way of
the wheels, motor and drive system.
USING THE CHARGER
The charger supplied with the iMod should be regularly examined for damage
to the cord, plug, enclosure and other parts, and in the event of such damage,
the iMod must not be charged until the charger has been repaired or replaced.
Use only with the recommended charger.
Use caution when charging. Do not exceed charging time.
The charger is not a toy. Charger should be operated by an adult.
Do not operate charger near flammable materials.
Unplug charger and disconnect from the battery operated product when not in
use.
Always disconnect from the charger prior to wiping down and cleaning your
scooter with liquid.
FAILURE TO USE COMMON SENSE AND HEED THE
ABOVE WARNINGS INCREASES RISK OF SERIOUS
INJURY. USE WITH APPROPRIATE CAUTION AND
SERIOUS ATTENTION TO SAFE OPERATION.
SAFETY WARNINGS
1
Safety Warnings ............................................................ 1
Before You Begin........................................................... 2
Assembly and Set-Up................................................. 3-5
Repair and Maintenance............................................. 6-7
Troubleshooting Guide................................................ 8-9

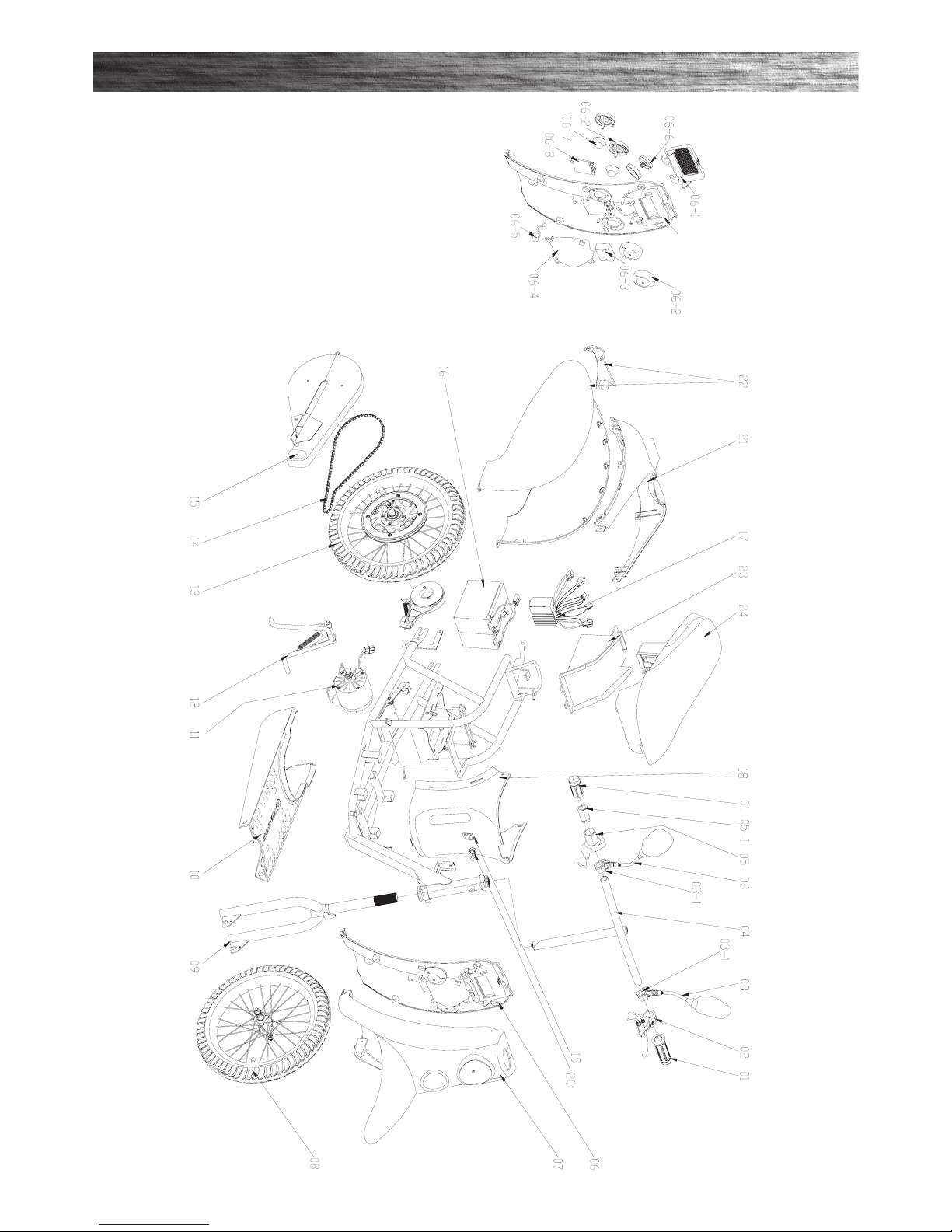

iMod Parts .............................................................. 10-11
Safety Reminders........................................................ 13
Warranty ...................................................................... 13
CONTENTS

Remove contents from box. Remove the foam separators that protect the components from damage during shipping.
Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have occurred during
shipping. Because the iMod was 95 percent assembled and packed at the factory, there should not be any problems,
even if the box has a few scars or dents.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult with experience in bicycle mechanics.
Allow up to 15 minutes for assembly, not including initial charge time.
Allow up to 18 hours for initial charge (see page 3 for charging information).
BEFORE YOU BEGIN
2
WARNING:
DO NOT USE NON-RAZOR
PRODUCTS WITH YOUR
RAZOR iMOD.
The iMod has been built to certain
Razor design specifications. The
original equipment supplied at the
time of sale was selected on the
basis of its compatibility with the
frame, fork and all other parts.
Certain aftermarket products may
or may not be compatible.
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or call toll-free
at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
2.5mm, 3mm, 5mm, 6mm
hexagonal key wrench
(included)
Bicycle-style tire pump
for Schrader valve tires,
with pressure gauge
(not included)
14mm & 15mm wrenches
(included)
spoke wrenches
(included)
Kick Stand
Chain Guard
Storage Compartment
Under Seat
Brake Lever
Adjuster
Brake Lever
Front Fork
Speed Control
On/Off
Switch
Charger
Port
Required Tools
Some tools may be supplied; however, we recommend the use of mechanic’s grade tools. Use the supplied tools only
as a last resort.
Charger
Charger
Plug
Charger
Port

3
ASSEMBLY AND SET-UP
q Charging the Battery
Your iMod may not have a fully charged battery; therefore it is a good idea to charge the battery prior to use.
• Initialchargetime:18hours •Runtime:upto40minutes
• Rechargetime:upto12hours •Averagebatterylife:250charge/dischargecycles
depending on the level of depletion
1Turn off power switch before
charging. Plug the charger into the
charger port on the iMod.
2Plug the charger plug into a wall
outlet.
WARNING:
Rechargeable batteries are only to
be charged under adult supervision.
Always disconnect your iMod from
the charger before cleaning with
liquid.
Note: If your charger does not
look like the one illustrated,
your unit has been supplied
with an alternative charger.
The specifications and charging
procedure would not change.
The charger has a small window
with one LED or two LEDs to
indicate the charge status. Refer
to the illustration on the charger
unit for the actual “charging” and
“charged” status indications for
your model charger.
Chargers have built-in over-charge
protection to prevent battery from
being over-charged.
Be sure to properly align the
groove on the charger input
plug with the corresponding
socket on the case; otherwise,
no charging action will occur.
Charger
Plug
Charger
Port
WARNING: Failing to
properly adjust and tighten the
bolts that affix the handlebar can
cause you to lose control and fall.
1Remove the plastic cover end
of the handlebars before inserting
the handlebars. Insert handlebar
assembly through front fairing and
into fork until it stops. Raise to de-
sired height keeping the handlebars
and fairing aligned within the red
arrows of the safety zone.
2Tighten down the hexagonal
bolt with the 6mm hexagonal key
wrench.
q Attaching the Handlebars
q Attaching the Side View Mirrors
1Adjust the rear view mirror
socket into fixed place and tighten
down half hexagonal bolts with
3mm hexagonal key wrench.
2Insert the rear view mirror into
sockets and tighten down the nuts
with 14mm supplied wrench.

4
Check the Razor web site for any updates on the latest repair and maintenance procedures.
Turn power switch off before conducting any maintenance procedures.
q Adjusting the Brakes
1To adjust the play, thread the
brake lever adjuster in or out 1/4
to 1/2 turn until the desired brake
adjustment is attained. Most
adjustments are complete at this
step. If brake still needs further
adjustment, proceed to step 2.
2 If the brake lever adjuster is
threaded outward and the brake
still has too much slack, use the
rear brake adjuster for additional
adjustment.
WARNING: The brake
is capable of skidding the tire and
throwing an unsuspecting rider.
Practice in an open area free from
obstacles until you are familiar with
the brake function. Avoid skidding
to a stop as this can cause you to
lose control or damage the rear tire.
Note: The brake lever contains a
safety switch to stop the motor
when the brake is applied. In an
emergency, applying the brake
will always stop the motor. Do not
disable or replace this lever with
anything other than a genuine Razor
replacement part.
q Testing the Brakes
To use the brake, squeeze the lever to increase the pressure on the brake. The brake lever is fitted with a cable adjuster
to compensate for cable stretch and/or to fine-tune the lever movement to brake engagement. If brake is not engaging
properly, follow instructions for adjusting the brakes below.
1Remove the packing material
from the front fork.
2Insert the wheel into the front
fork with the lock washers on the
outside of the fork.
q Attaching the Front Wheel
3Insert the tab on the lock
washer into the hole on the front
fork and tighten the nuts with the
supplied wrenches.
ASSEMBLY AND SET-UP
q Checking Spoke Tension
1 Verify spoke tension by grasping and shacking each spoke. Spoke
should not be loose from hub. Look for any play between spoke flange
and hub. Try to turn nipple using your fingers. You should not be able to
turn any nipple by hand. Check all spokes and tighten if necessary.
2 Start with spoke closest to tire valve
and tighten each nipple. In sequence,
exactly 1/4 to 1/2 turn. A single 1/4 to
1/2 turn may not be enough to bring the
spokes into proper tension. Continue
tightening all spokes no more than 1/2
turn in sequence until all spokes are
tight.
WARNING: Regularly
check the spoke tension and
retighten the spokes whenever
loose. If you have any doubt, ask an
experienced motorcycle or bicycle
mechanic to inspect your spokes
to determine if the spokes need
tightening or adjusting.
Note: Tightening each nipple more
than a 1/2 turn each can cause the
wheel to become distorted and
wobbly thus permanently damaging
the wheel.
Spoke
Flange
Spoke
Nipple
Hub
Flange
Spoke
Flange
Rim
Nipple
1
2
3
28
27

q Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of manufacturing and
your purchase.
1Using a bicycle style tire pump
equipped for a Schrader-type valve,
inflate the tires to the PSI
indicated on the sidewall of the
tires.
Note: The pressurized air supplies
found at gasoline stations are
designed to inflate high-volume
automobile tires. If you decide to
use such an air supply to inflate
your iMod tires, first make sure the
pressure gauge is working, then
use very short bursts to inflate to
the correct PSI. If you inadvertently
over-inflate the tire, release the
excess pressure immediately.
ASSEMBLY AND SET-UP
q Attaching your iPod
q Installing batteries for speakers
1Open the battery port located
under the power controller. Install
4AA batteries in the battery port.
(Batteries not included)
1Open the iPod compartment and
attach player to the 30 pin connec-
tor. Place the iPod in the compart-
ment and securely fasten the cover.
5
*The iPod product name is used for identification purposes only.
iPod is a registered trademark of Apple Inc.
WARNING: It is your
responsibility to secure your iPod
player. Razor is not responsible for
iPod damage.
Note: This product was designed
to accommodate ONLY iPods in
production as of January 2008. Not
recommended for use with video
iPod players.
2A.) To turn on speakers, press the power
button.
B.) To turn on iPod function, press the iPod
button.
C.) To listen to the FM Radio, press the FM
button.
D.) FM stations are adjusted by the buttons
on the bottom of controller.
E.) Volume adjuster ( )
D
A
Battery Port
E
B
C

REPAIR AND MAINTENANCE
4 With two 15mm wrenches,
loosen the axle. Push the wheel
forward in the slots to loosen the
chain.
5Pull the wheel out. Note the
arrangement of the hardware
sequence.
Note: Your hands will get greasy
doing this.
6Install the new chain or wheel
by slipping the chain around the
axle. Slide the axle into the slots
on the frame. Slide the wheel
forward and maneuver the chain
onto the rear sprocket, front
sprocket and chain tensioner.
q Chain and Rear Tire Replacement
Tools required: Phillips screwdriver, 10mm wrench, two (2) 8mm wrenches, and two (2) 17mm wrenches.
1With a Phillips screwdriver,
remove the screws that secure the
chainguard. Remove chainguard.
2With a 8mm wrench, loosen the
brake cable anchor and
disconnect the cable.
3With two 10mm wrenches,
loosen brake housing anchor and
disconnect. Keep the spacer and
washers together.
7Tighten the brake housing
anchor securely.
8Re-attach the chain guard. Test
ride and check. Readjust as needed.
6

q Battery Care and Disposal
Do not store the battery in temperatures above 75° or below -10° F.
CONTAINS SEALED LEAD ACID BATTERIES. BATTERIES MUST BE RECYCLED.
Disposal: Your Razor product uses sealed lead-acid batteries which must be recycled or disposed of in an
environmentally sound manner. Do not dispose of a lead-acid battery in a fire. The battery may explode or leak. Do not
dispose of a lead-acid battery in your regular household trash. The incineration, land filling or mixing of sealed lead-
acid batteries with household trash is prohibited by law in most areas. Return exhausted batteries to a federal or state
approved lead-acid battery recycler or a local seller of automotive batteries. If you live in Florida or Minnesota, it is
prohibited by law to throw away lead-acid batteries in the municipal waste stream.
q Charger
The transformer/charger supplied with the iMod should be regularly examined for damage to the cord, plug, enclosure
and other parts, and, in the event of such damage, the iMod must not be charged until it has been repaired or replaced.
Use ONLY with the recommended charger.
q Replacement Parts
The most frequently requested replacement parts (wheels, tires, tubes, batteries and chargers) are available for
purchase at some Razor retail partners or online at www.razor.com.
q Repair Centers
For a list of authorized Razor repair centers:
•Checkonlineatwww.razor.com
•Sendane-mailorcall866-467-2967forthecenternearestyou.
WARNING: If a battery
leak develops, avoid contact with
the leaking acid and place the
damaged battery in a plastic bag.
Refer to the disposal instructions at
left. If acid comes into contact with
skin or eyes, flush with cool water
for at least 15 minutes and contact
a physician.
REPAIR AND MAINTENANCE

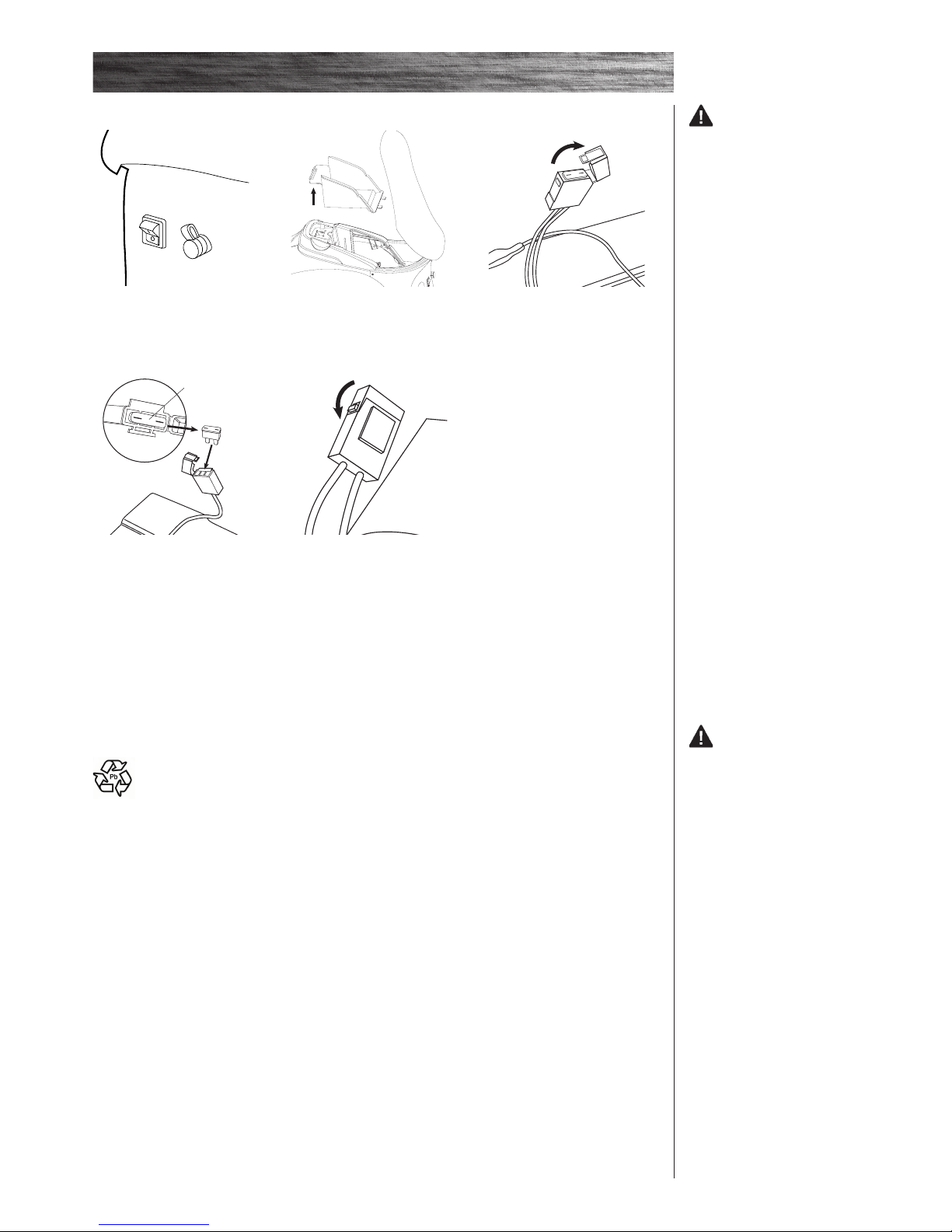

qReplacing the Fuse WARNING:
To prevent shock or short circuit,
please follow the instructions
accordingly and do not skip or
combine any steps.
2Lift up the seat and remove the
storage compartment.
5Close the fuse cover. Replace
the storage compartment and close
the seat cover.
4Remove the fuse and replace
with a new one of equal
amperage.
Note: Amperage rating is
located on top of fuse. Fuse must
be replaced with one of equal
amperage.
Amperage
number
1Make sure the power switch is
turned OFF.
3Locate fuse cover on
top of battery assembly. Open the
fuse cover to expose the fuse.
7

iMod does not run
iMod was running but
suddenly stopped
Short run time (less than
30 minutes per charge)
iMod runs sluggishly
Problem Possible Cause Solution
Undercharged battery
Charger is not working
Loose wires or connectors
Burned out fuse
Motor or electrical switch damage
Undercharged battery
Battery is old and will not accept
full charge
Brakes are not adjusted properly
Driving conditions are too stressful
Tires are not properly inflated
iMod is overloaded
Brakes are not adjusted properly
Charge the battery. A new battery should have been charged for at least 18
hours before using the vehicle for the first time and up to 12 hours after each
subsequent use.
Check all connections. Make sure the charger is tightly plugged into the
charging port on the iMod, and that the charger is plugged into the wall.
Make sure power flow to the wall outlet is on.
You may check to see if your charger is working by using a volt meter or
asking your local Razor authorized service center to test your charger for you.
Check all wires and connectors to make sure they are tight.
The fuse will burn out and automatically shut off the power if the motor is
overloaded.
An excessive overload, such as too heavy a rider or too steep a hill, could
cause the motor to overheat. Replace the fuse with a new one of equal
amperage. Correct the conditions that caused the fuse to burn out and avoid
repeatedly burning out fuse.
Contact your local Razor authorized service center for diagnosis and repair.
Charge the battery. A new battery should have been charged for at least 18
hours before using the vehicle for the first time and up to 12 hours after each
subsequent use.
Check all wires and connectors. Make sure the battery connector is tightly
plugged into the charger connector and that the charger is plugged into
the wall.
Make sure power flow to the wall outlet is on.
Even with proper care, a rechargeable battery does not last forever. Average
battery life is 1 to 2 years depending on iMod use and conditions. Replace
only with a Razor replacement battery.
Refer to adjusting the brakes instructions on page 4.
Use only on solid, flat, clean and dry surfaces such as pavement or level
ground.
The tires are inflated when shipped, but they invariably will lose some
pressure between the point of manufacturing and your purchase.
Refer to instructions on page 5.
Make sure you do not overload the iMod by allowing more than one rider
at one time, exceeding the 170 lb. maximum weight limit, going up a hill
or towing objects behind the iMod. If the iMod is overloaded, the fuse will
blow.
Refer to adjusting the brakes instructions on page 4.
TROUBLESHOOTING GUIDE
8

Sometimes the iMod
doesn’t run, but other
times it does
Charger gets warm during
use
iMod does not stop when
applying the brake
iMod makes loud noises or
grinding sounds
Problem Possible Cause Solution
Loose wires or connectors
Motor or electrical switch damage
Normal response to charger use
Brakes are not adjusted properly
Chain adjustment is too tight or too
loose
Chain is too dry
Check all wires around and all connectors to make sure they are tight.
Contact your local Razor authorized service center for diagnosis and repair.
No action required. This is normal for some chargers and is no cause for
concern. If your charger does not get warm during use, it does not mean
that it is not working properly.
Refer to adjusting the brakes instructions on page 4.
Refer to instructions on page 6 of this manual to properly adjust chain and
sprocket.
Apply a lubricant such as 3 in 1TM or Tri-FlowTM to the chain.
TROUBLESHOOTING GUIDE
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or call toll-free
at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
9

Keep your Pocket Mod running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
POCKET MOD IMOD PARTS
1 Handlebar Grip (Right/Left)
2 Brake Lever Assembly
3 Side View Mirror (Right/Left)
3-1 Side View Mirror Socket
4 Handlebar
5 Twist Grip Throttle
5-1 Sleeve
6 Front Fairing Cover
6-1 iPod Case
6-2 Speaker Cover
6-3 Audio PC Board
6-4 Audio Cover
6-5 iPod Plug
6-6 Control Board
6-7 Speaker
6-8 Battery Cover
7 Fairing w/Headlamp Cover
8 Front Wheel Complete
9 Front Fork
10 Base Fairing
11 Motor (24V 350W)
12 Kickstand
13 Rear Wheel Complete
14 Chain
15 Chain Guard
16 Battery (2-12V/10AH) w/Fuse
17 Control Module
18 Front Seat Fairing
19 On/Off Switch
20 Charger Port w/Wires
21 Seat Fairing
22 Rear Fairing w/Trim (Right/Left)
23 Bottom Cover of Storage Compartment
24 Storage Compartment
10

POCKET MOD IMOD PARTS
11

SB 1918 (CALIFORNIA) DECLARATION
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS
INVOLVING THE USE OF THIS SCOOTER/ELECTRIC VEHICLE. TO DETERMINE
IF COVERAGE IS PROVIDED, YOU SHOULD CONTACT YOUR INSURANCE
COMPANY OR AGENT.
12

Tire Inflation
Periodically inspect the tires for excess wear
and replace as required, and regularly check the
tire pressure and re-inflate as necessary. If you
get a flat tire, the inner tube can be patched or
a new tube can be purchased from Razor or an
authorized repair center.
Safety Gear
Always wear proper protective equipment such
as an approved safety helmet. Elbow pads and
kneepads are recommended. Always wear shoes,
never drive barefooted or in sandals, and keep
shoelaces tied and out of the way of the wheels,
motor and drive system.
Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects
for a period of 90 days from date of purchase. This Limited Warranty does
not cover normal wear and tear, tires, tubes or cables, or any damage, failure
or loss caused by improper assembly, maintenance, or storage or use of the
Razor Pocket Mod.
This Limited Warranty will be void if the product is ever
•usedinamannerotherthanforrecreation;
•modiedinanyway;
•rented.
The manufacturer is not liable for incidental or consequential loss or damage
due directly or indirectly to the use of this product.
Razor does not offer an extended warranty. If you have purchased an
extended warranty, it must be honored by the store at which it was
purchased.
WARRANTY
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or call toll-free
at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
For your records, save your original sales receipt with this manual and write
the serial number below.
__________________________________________
Item Number:
iMod 15130699
Loose Parts
There should not be any unusual rattles or sounds
from loose parts or broken components. If you are not
sure, ask an experienced mechanic to check.
Brake
Check the brake for proper function. When you
squeeze the lever, the brake should provide positive
braking action. When you apply the brake with the
speed control on, the brake cut-off switch will stop
the motor.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although
broken frames are rare, it is possible for an aggressive
driver to bash into a curb or wall and wreck and bend
or break a frame. Get in the habit of inspecting yours
regularly.
SAFETY REMINDERS
q
q
q
q
q
PRE-RIDE CHECKLIST
13
061208
DO NOT RETURN TO STORE
Do not use this vehicle for the first time until you
have inflated the tires to the correct PSI and
charged the battery for at least 18 hours.
Failure to follow these instructions may damage
your vehicle and void your warranty.
Printed in China for:
Razor USA LLC
PO Box 3610
Cerritos, CA 90703
Copyright © 2003 - 2008 Razor USA LLC. All rights reserved. RAZOR and the Razor Logo
Design are among the registered trademarks of Razor USA LLC in the United States and/or
select foreign countries.
