rba ALFA RBA1043 Series Manual

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
Note: This product should be installed, by suitably qualified persons, in a fit for purpose application, to
suitable materials, using suitable fixings and comply with any relevant codes. It should be inspected
periodically for signs of wear and tear that may affect performance or safety.
Dimensions are subject to manufacturer’s tolerance of +/-10mm. Rough-in should be completed with each
fixture.
Important: Installation Instructions are subject to change without notice.
Please visit www.rba.com.au for latest revision.
Spare Parts
4
FIGURE 2
RBA1047 SERIES
RBA1043-999-002
RBA 1043-999-006
RBA1047-999-001
RBA1083-999-006
RBA 1083-999-006
RBA Code Part Description
Number
RBA1043-999-002 Cartridge with Coloured Plugs
RBA1083-999-005 Aerator Perlator 5Lpm
RBA1083-999-008 Aerator Perlator 8Lpm
RBA1043-999-005 Aerator Cache 5Lpm w/key
RBA1043-999-008 Aerator Cache 8Lpm w/key
RBA1083-999-001 Spanner
RBA1083-999-006 Brass Locknut
RBA1043-999-006 Aerator Cache Key
5L RBA1043-999-005
8L RBA1043-999-008
RBA1083-999-001
5L RBA1083-999-002
8L RBA1083-999-003
RBA1043-999-006
5L RBA1043-999-005
8L RBA1043-999-008
RBA1047-999-001 Cartridge with Coloured Plugs
7 seconds
15 seconds
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
RBA1043 SELF CLOSING PILLAR TAPS MODELS
‘RIO’
RBA1044 SERIES
‘GOOSENECK’
RBA1047 SERIES
AS 1172.1:2014
Lic. 000291
Date 01/03/19
Model
RBA1043
Supercedes all previous
Doc# ii/rba1043-
series/0319
3.6litres
average flush
6 L per full flush / 3 L per half flush
In accordance withAS/NZS 6400
Licence No. 0115
RBA Group
The more
stars the more
water efficient
WATER RATING
www.waterrating.gov.au
WATER RATING
www.waterrating.gov.au
‘ALFA’
RBA1043 SERIES

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
2
Technical Data
Inlet 1/2” BSP (G1/2”)
Operating pressure 200 – 500 kPa
Flow Time 7 seconds nominal (ALFA & RIO) 15 seconds (GOOSENECK)
Maximum Temp. 55ºC
Flow Rate 4.5L per minute/5.5L per minute/8.5L per minute
Warranty 2 years

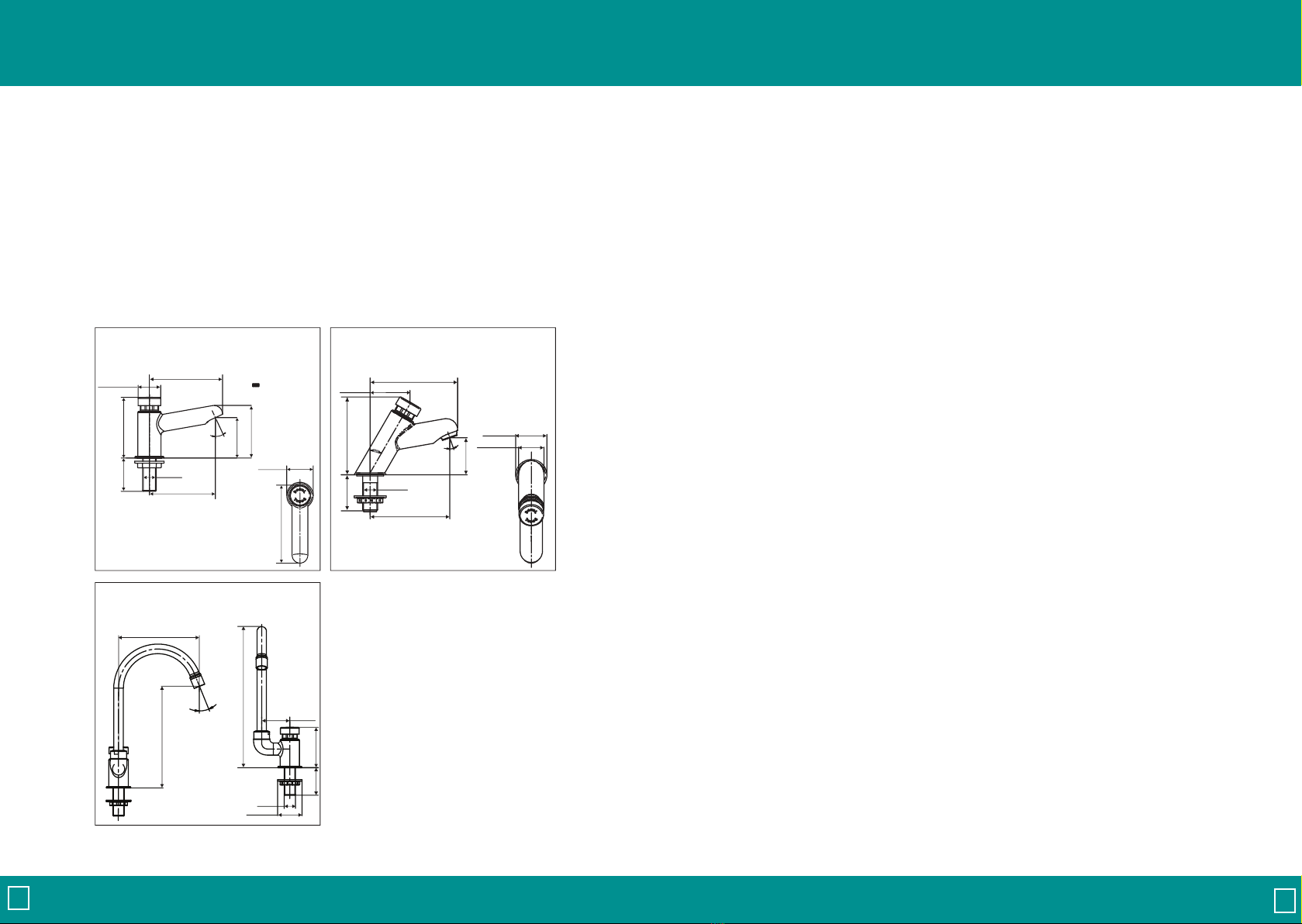

Dimensions
261mm
75mm
51mm
Ø45mm
G1/2"
147mm
185mm
22º
RBA1043 SERIES - ‘ALFA’
FIGURE 1
RBA1044 SERIES - ‘RIO’
Ø34,5m m
Ø44m m
G1/2"
20º
110mm
125mm
51mm
110mm
52mm
Ø44m m
129mm
101mm
G1/2"
80,5mm
62mm
93mm
51mm
112m m
Ø34,5m m
20º
RBA1047 SERIES - ‘GOOSENECK’
52mm
58mm
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz 3
DESCRIPTION
Self closing pillar taps are designed for public areas, available in bright chrome
finish casted from dezincification resistant brass alloy.
Single connection to water supply line, to either cold or pre-mixed water.
RBA 1043-600 ‘Alfa’ Basin Pillar Tap DR - Chrome - 6 Star WELS, 5.5Lpm
RBA 1043-400 ‘Alfa’ Basin Pillar Tap DR - Chrome - 4 Star WELS, 8.5Lpm
RBA 1044-600 ‘RIO’ Basin Pillar Tap DR - Chrome - 6 Star WELS, 4.5Lpm
RBA 1044-400 ‘RIO’ Basin Pillar Tap DR - Chrome - 4 Star WELS, 8.5Lpm
RBA 1047-600 ‘Gooseneck’ Basin Pillar Tap DR - Chrome - 6 Star WELS, 5.5Lpm
RBA 1047-400 ‘Gooseneck’ Basin Pillar Tap DR - Chrome - 4 Star WELS, 8.5Lpm
Installation
1) Installation must be carried out in accordance with local authority requirements.
2) Flush the line thoroughly, and remove all dirt and grit from the line before
connecting the tap.
3) Install the tap in the basin, tightening lightly with spanner or grips.
4) Connection may be made with either flexible S/S braided hose, or copper tube
and compression fittings.
5) Before turning on the water remove the aerator and flush the tap.
6) Replace the aerator and check for leaks.
7) Fit appropriate coloured indicator to the handle.
PROBLEM PROBABLE CAUSE SOLUTION
TROUBLE SHOOTING
No flow or low volume
*To remove the aerator and cartridge, see “Spare Parts” to choose appropriate tool. (Not supplied with the product).
Water flows continuosly
or Short/ long flow time
Leak under knob
Water turned off
Water outlet blocked
Cartridge blocked with dirt
Cartridge damaged
Valve direction incorrect
Cartridge damaged
Turn on
Remove the blockage
Remove and clean*
Replace the cartridge*
Replace the cartridge*
