RBH Sound Signature SX-10 User manual

SIGNATURESXSERIES
O w n e r ’ s M a n u a l
SPEAKERS AND SUBWOOFERS

Break-inPeriod
Allow several hours of listening time to adequately break-in the Signature SX Series
speakers and subwoofers. As they break-in, the driver suspensions will loosen. The
result of break-in will be an increase in low frequency response, improved definition,
and increased clarity and detail.
Introduction
Signature SX Series 1 Owner’s Manual
Congratulations on your purchase of Signature SX Series freestanding speakers and/or
subwoofer! Your speakers are the result of many years of research and development
dedicated to producing high quality products for home audio and audio/video systems.
This manual contains features, setup recommendations and specifications for the Signature
SX Series freestanding speakers. It is recommended you thoroughly read through the
material contained in this manual before connecting your speakers. This will ensure you
have a good understanding of how to setup your speakers for optimum performance and
allow for years of listening enjoyment.
To maintain speaker appearance, we recommend wiping them down with a clean damp soft
cloth. To clean dust from the grille cloth, use a vacuum with a brush attachment.
CareandCleaning
Features
Sophisticated computer modeling and measurement techniques are used extensively
throughout the RBH Signature SX Series speaker design process. At the heart of the RBH
Signature SX Series speakers are proprietary aluminum woofers and midrange drivers.
The special aluminum cone material combines stiffness, low mass and self damping
properties in a manner that allows virtually uncolored presentation of program material.
A powerful magnet, extended voice coil and bumped back plate give the bass/midrange
drivers high excursion capability. This ensures accurate dynamic reproduction. For high
frequencies, a premium quality silk dome tweeter is used. This tweeter uses liquid
cooling to allow greater power handling.
Each Signature SX Series speaker features an extensive crossover network. Steep acoustic
slope crossovers are used to integrate drivers. The use of steep crossover slopes allows
for higher power handling, minimizes driver interaction anomalies, and maximizes the
ability of each driver in their respective band of frequencies. Large 5-way binding posts
ensure a good, solid electrical connection to these crossover networks.
The Signature SX Series speaker cabinets are constructed of ¾-inch medium density fiber-
board because of its inert properties, thereby preventing sound coloration due to cabinet
diffraction. The thickness of the front baffles also prevents excess acoustic radiation.
Signature SX Reference Series
Setting the standard by which all other RBH speakers are measured, the Signature SX
Reference Series offers the luxury of the Signature SX Series speakers with the extreme

Signature SX Series 2 Owner’s Manual
AttachingSpeakerWires
If using a banana jack, attach the matching positive or negative wire and push directly
into binding post top hole.
If not using a banana jack, simply loosen the binding nut to allow the hole in the side
of the terminal to become exposed. Strip ¼-inch of the insulation from the end of the
speaker wire and insert the exposed wire end into the now exposed hole in the side of
the terminal. Tighten the binding nut by turning the nut clockwise until the speaker
wire is secured. Repeat for the other speaker wire(s) as necessary.
Features(continued)
performance of reference-grade components. The tweeter has a larger motor structure,
increased power handling and improved resolution. The aluminum cone woofers that give
the Signature SX Series its great bass to upper-midrange performance are replaced with
an even more advanced aluminum cone woofer featuring a fixed-position phase plug. The
addition of this phase plug extends frequency response and increases power handling,
resulting in increased sonic clarity. The crossover network components have been en-
hanced to manage the higher quality driver components while providing increased audio
quality and power handling.

Signature SX Series 3 Owner’s Manual
RoomSetupSuggestions
In order to obtain the best possible sound from your speaker system, it is important to
determine where the speakers will sound best in your listening room. Room reflections
from the floor, ceiling and side walls influence the balance, imaging and overall sonic
quality at the listening position. Experiment with speaker placement to determine which
location offers the best overall sound. As a general guide, use the room layout diagram
and the following descriptions when setting up a home theater system. Some speakers
shown in the diagram may not always be applicable to your individual system.
Front Main Speakers
As a starting point, place your left and right tower speakers at least 15 inches from the
wall and 7-feet apart from each other. The distance from the listening position to each
speaker should be close to the distance that separates the two main speakers. Angling
the speakers inward towards the listening position may give a more spacious and realistic
sound stage.
Center Channel Speaker
The center channel speaker should be placed in the center between both left and right
main speakers. Often this positioning dictates placing the speaker either directly above
or below a television monitor. The center channel speaker may be placed in a horizontal
(lying down) or vertical (standing) position.
Rear Surround Speakers
The 2-way bookshelf speakers may be placed either above, behind or to the sides of
the listening position. The listening position should be centered between the surround
speakers. For best performance you may want to experiment with angling the surround
speakers either towards or away from the listening position.
Subwoofer
In order to obtain the best possible sound from your subwoofer, it is important to determine
where the subwoofer will sound best in your listening room. Sound reflections from the
floor, ceiling and side walls influence the balance, imaging and overall sonic quality at
the listening position. Experiment with subwoofer placement to determine which location
offers the best overall sound.
Placement of the subwoofer will largely determine quality, quantity and extension of the
bass frequencies within your listening room. Bass frequencies are reinforced by close room
boundaries. Placing the subwoofer in a corner will make the subwoofer sound louder and
boost the very lowest frequencies.
Placing the subwoofer away from walls will provide the least reinforcement, making the
bass sound subjectively thinner than if the woofer were closer to a wall. Good results can
usually be obtained by placing a subwoofer along a wall 1-3 feet from a corner. Experiment
with placement of the subwoofer and the sub-amplifier controls to achieve the proper
bass balance.

RoomSetupSuggestions(continued)
IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal
being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this,
check the settings on your receiver or processor to make sure any “bass boost”,
“super bass” or “loudness” is set to Off. In most cases a home theater receiver or
processor will determine the crossover frequency through bass management settings.
In this configuration, connect the receiver or processor to the Line Level Input
of the powered subwoofer. Also, if your home theater receiver or processor’s bass
management provides the subwoofer with a low-pass audio signal (lowest bass) only,
please use the LFE line level input of the subwoofer or make sure the subwoofer’s
crossover is set to the Off or Defeat position. Your subwoofer will now reproduce
the bass frequencies the way they were originally recorded. Use the subwoofer level
control and the individual bass management control within the receiver or processor
to adjust the subwoofers’ volume if necessary. Once set, the volume controls should
not need to be altered as the subwoofers’ volume will track with the master volume
control of your receiver or processor.
Signature SX Series 4 Owner’s Manual
NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby Digital and DTS generally
have a 5 speaker plus subwoofer requirement. Dolby Digital EX and DTS ES add a center rear speaker. Dolby TrueHD and DTS
Master Audio available only on Blu-ray disc, generally have a 7.1 requirement. Please consult your audio/video professional
to determine which system is best for you and how many speakers you will require.

SubwooferSafetyInstructions
The lightning flash with the arrowhead symbol within an equilateral triangle, is intended
to alert the user to the presence of un-insulated “dangerous voltage” within the product
enclosure that may be of sufficient magnitude to constitute a risk of shock to persons.
Signature SX Series 5 Owner’s Manual
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
When using your subwoofer, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury.
1. Read and understand all instructions in this users manual before operating the
subwoofer and retain this user manual for future reference.
2. Follow all warnings and instructions in this manual and any marked on the back of
the Subwoofer.
3. Never touch the woofer or push objects of any kind into the woofer.
4. The subwoofer should be connected to a power supply compatible with the power
consumption requirements, see the specifications section of this manual.
5. If mounting the subwoofer on a stand, the wall, or other device only do so as
recommended by an authorized technician.
6. Place the subwoofer a safe distance from all heat sources such as radiators, stoves,
or heaters.
7. Do not operate the subwoofer near water—for example, near a bathtub, kitchen
sink or in a wet basement; or a swimming pool.
8. Power supply cords should be routed so they are not likely to be walked on or
pinched by items placed upon or against them.
9. Any service or repair required must be performed by qualified, authorized technician.
Subwoofer Amplier Controls and Setup
This section describes the functions and/or use for each of the amplifier controls
located on the back of the subwoofer. See the diagram of the back of the subwoofer
on the next page.
1. Voltage Selector Switch: Before connecting the amplifier to any power source make
sure the AC Voltage Selector is set to either 110V or 220V to match the power voltage
in your area.
WARNING! If the voltage setting does not match the AC power supplied,
damage to the Subwoofer Amplifier may result.

Signature SX Series 6 Owner’s Manual
2. Volume/Gain Control: The volume/level control should be at the minimum setting
(all the way counter-clockwise) before plugging the subwoofer into an AC wall
socket. Once plugged in, turn the level control up one quarter of a turn (9 o’clock
position) for an initial setting. The level control may be adjusted while playing to
match the subwoofer level with the rest of the system.
IMPORTANT! The volume control should be at the minimum setting (all the way
counter-clockwise) before plugging the subwoofer into an AC wall socket.
3. Crossover Frequency Control: The variable crossover frequency control allows
you to set the low-pass crossover point of the subwoofer anywhere from
40-150 Hz. Experiment with setting the crossover frequency control at highest
setting initially. Increasing the crossover frequency will allow more mid-bass
output from the subwoofer. Decreasing the frequency will allow only deeper bass
from the subwoofer.
NOTE: Read the Important Notice regarding bass management on page 4.
4. Auto Signal Tracking: The subwoofer amplifier uses “smart” signal tracking circuitry.
Once the power cord is plugged in and the switch set to auto, the amplifier automatically
turns on when a signal is detected at the preamplifier or high level inputs and turns off
when no signal has been detected for approximately 15 minutes.
5. Phase Control: This control changes the phase of the subwoofer. Changing the
phase will change the way the subwoofer and main speakers interact with each
other at the crossover frequency. Varying the phase position may result in more
or less mid bass depending on the phasing between the main speakers and the
subwoofer. Generally, the phase is left at the “0” position.
6. LFE Out: This RCA terminals is for “daisy chaining” to another subwoofer or amplifier.
A full-range signal is sent through this terminal.
7. LFE In: Line level input is used to connect to most receivers or processors. This bypasses
the sub amplifiers internal filter.
8. Line Inputs: These RCA terminal connections are to receive the line out from the
amplifier/receiver. This uses the amplifiers internal filter.
9. Balanced LFE In: Impedance balanced XLR3 female input connection to receive
output from receiver. Reduces susceptibility to external noise due to electromagnetic
interference.
10. Balanced LFE Out: Impedance balanced XLR3 male output to connect to another
XLR3 LFE input subwoofer amplifier.
Subwoofer Amplier Controls and Setup (continued)

Subwoofer Amplier Controls and Setup (continued)
Signature SX Series 7 Owner’s Manual
11. Fuse Access: This is the power fuse access.
WARNING! In the event the fuse must be replaced, the replacement fuse must
match exactly the original fuse value. If the replacement fuse is not of the same
value, damage to the Subwoofer Amplifier may result.
CAUTION! Before replacing the fuse, disconnect the power cord from the power
receptacle.
12. Power: Power on and off switch.
Signature SX Series Subwoofer Diagram.
110-120V.FUSE T6.3AL/250V
220-240V.FUSE T3.15AL/250V
110-120V-80Hz
220-240V-50Hz
350 WATTS
POWER
ON
OFF
110-120V
220-240V
POWER
AUTO
ON OFF
PHASE
0º 180º
CROSSOVER
VOLUME
40 Hz 150
MIN MAX
LFE IN
R
L
LFE OUT LINE INPUTS
BALANCED
LFE OUT BALANCED
LFE IN
CAUTION:
DISCONNECT POWER CORD BEFORE CHANGING FUSE.
REPLACE WITH SAME TYPE OF FUSE.
ATTENTION:
DEBRANCHER AVANT DE REMPLACER LE FUSIBLE.
UTILIZER UN FUSIBLE DE RECHANGE DE MEME TYPE.
WARNING: SHOCK HAZARD-DO NOT OPEN
AVIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
RISQUE D’ ELECTROCUTION
NE PAS OUVRIR
ATTENTION:
DSA-350
SUBWOOFER AMPLIFIER

TowerSpeakerOutriggerInstallation
These attractive tower speaker outriggers produce a wider support base for the Signature
SX Series tower speakers creating stability and are ideal when placing speakers on a thickly
carpeted floor.
Package contents include:
4 each outrigger plates
4 metal spike feet
4 each top cap nuts
4 each threaded adjustment washers
12 each MDF wood screws
4 each floor discs
Installing the tower outrigger feet:
1. Attach the tower speaker outrigger plates
to the bottom of the speaker with the
screws provided, as shown in figure 2
below. Rotate the outrigger plates so they
are angled properly (as shown in figure 2
below) before attaching the spike feet,
adjustable washer and top cap nut.
NOTE: To prevent scratching or damaging
of the cabinet, turn the tower upside down
on a soft surface when attaching the tower outrigger feet.
2. Attach the metal spike feet using the top cap nuts and adjustable washer as shown in
figure 1.
3. Adjust the level/height using the adjustment washer.
NOTE: The metal spike feet work best on carpeted
surfaces. Optional floor discs have been provided
for use on wood or tiled floors.

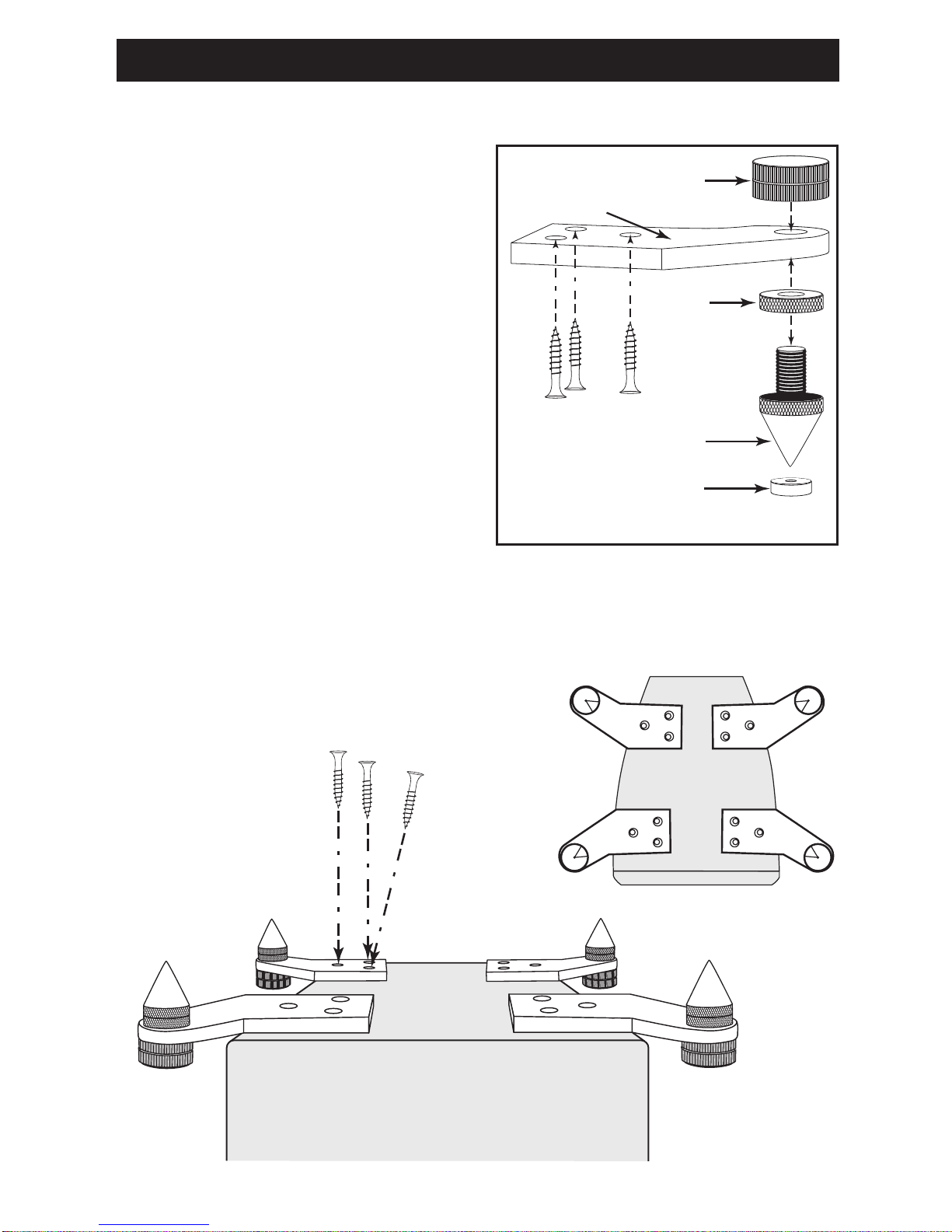

FIGURE 1
Top Cap Nut
Outrigger Plate
Adjustment
Washer
MDF Wood Screws
Spike Feet
Floor Discs
FIGURE 2
Attach each outrigger plate
with the MDF wood screws
Bottom of
tower speaker
Front of tower speaker
Signature SX Series 8 Owner’s Manual
Top View
Orientation of the outrigger plates
on the bottom of the speaker

Signature SX Series 9 Owner’s Manual
Specications
SX-10
Powered Subwoofer
29Hz-150Hz (±3dB)
N/A
300 Watt
Amplifier Included
(1) 10” (254mm)
Aluminum Subwoofer
N/A
N/A
40Hz-180Hz (variable)
12dB/Octave
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
15” (381mm) W
15.25” (387mm ) H
18.5” (470mm ) D
39 lbs. (17.69 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-10/R
Powered Subwoofer
26Hz-100Hz (±3dB)
N/A
350 Watt
Amplifier Included
(1) 10” (254mm)
Reference Aluminum
Subwoofer
N/A
N/A
40Hz-180Hz (variable)
12dB/Octave
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
15” (381mm) W
15.25” (387mm ) H
18.5” (470mm ) D
45 lbs. (20.41 Kg)
SX-1010N
Passive Subwoofer
24Hz-180Hz ±3dB
90dB (2.83V @ 1 Meter)
200-400 Watts
(2) 10” (254mm)
Aluminum Subwoofers
N/A
N/A
N/A
N/A
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.5” (775mm ) H
20.375” (518mm ) D
63 lbs. (28.58 Kg)

Signature SX Series 10 Owner’s Manual
Specications (continued)
SX-1010N/R
Passive Subwoofer
22Hz-100Hz ±3dB
90dB
200-500 Watts
(2) 10” (254mm)
Reference Aluminum
Subwoofers
N/A
N/A
N/A
N/A
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.5” (775mm ) H
20.375” (518mm ) D
76 lbs. (34.48 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-1010P
Powered Subwoofer
22Hz-150Hz ±3dB
N/A
350 Watt Amplifier
Included
(2) 10” (254mm)
Aluminum Subwoofers
N/A
N/A
40Hz-150Hz (variable)
12dB/Octave
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.5” (775mm ) H
20.375” (518mm ) D
68 lbs. (30.85 Kg)
SX-1010P/R
Powered Subwoofer
20Hz-100Hz ±3dB
N/A
500 Watt Amplifier
Included
(2) 10” (254mm)
Reference Aluminum
Subwoofers
N/A
N/A
40Hz-150Hz (variable)
12dB/Octave
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.5” (775mm ) H
20.375” (518mm ) D
81 lbs. (36.74 Kg)

Specications (continued)
SX-12
Powered Subwoofer
27Hz-150Hz ±3dB
N/A
350 Watt
Amplifier Included
(1) 12” (305mm)
Aluminum Subwoofer
N/A
N/A
40Hz-150Hz (variable)
N/A
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
17.7” (450mm) W
19.625” (499mm ) H
21.125” (537mm) D
53 lbs. (24.04 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-12/R
Powered Subwoofer
24Hz-100Hz ±3dB
N/A
400 Watt
Amplifier Included
(1) 12” (305mm)
Reference Aluminum
Subwoofer
N/A
N/A
40Hz-150Hz (variable)
N/A
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
17.7” (450mm) W
19.625” (499mm ) H
21.125” (537mm) D
58 lbs. (26.30 Kg)
SX-441C
Center Channel Speaker
60Hz-20kHz ±3dB
89dB
75-150 Watts
(2) 4” (102mm)
Aluminum Cone Woofers
(1) 1” (25mm)
Silk Dome Tweeter
Yes
3,000 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
18” (457mm) W
6.75” (171mm) H
10.25” (260mm) D
17 lbs. (7.71 Kg)
Signature SX Series 11 Owner’s Manual

Specications (continued)
SX-441C/R
Center Channel
Speaker
65Hz-20kHz ±3dB
89dB
75-150 Watts
(2) 4” (102mm)
Reference Aluminum
Woofers
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
3,000 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
18” (457mm) W
6.75” (171mm) H
10.25” (260mm) D
18 lbs. (8.16 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-44
On-wall Surround
Speaker
70Hz-20kHz ±3dB
88dB
75-150 Watts
(2) 4” (102mm)
Aluminum Cone
Woofers
(2) 1” (25mm)
Silk Dome Tweeters
Yes
3,000 Hz
12dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
10.75” (273mm) W
11.5” (292mm) H
5.625” (143mm) D
12 lbs. (5.44 Kg)
SX-44/R
On-wall Surround
Speaker
70Hz-20kHz ±3dB
88dB
75-150 Watts
(2) 4” (102mm)
Reference Aluminum
Woofers
(2) 1.1” (28mm)
Reference Silk Dome
Tweeters
Yes
3,000 Hz
12dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
10.75” (273mm) W
11.5” (292mm) H
5.625” (143mm) D
13 lbs. (5.90 Kg)
Signature SX Series 12 Owner’s Manual

Specications (continued)
SX-61
Bookshelf Speaker
55Hz-20kHz ±3dB
87dB
75-150 Watts
(1) 6½” (165mm)
Aluminum Cone Woofer
(1) 1” (25mm)
Silk Dome Tweeter
Yes
2,700 Hz
12dB/Octave
8 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.5” (216mm) W
13.75” (349mm) H
11.125” (283mm) D
17 lbs. (7.71 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-61/R
Bookshelf Speaker
55Hz-20kHz ±3dB
87dB
75-150 Watts
(1) 6½” (165mm)
Reference Aluminum
Cone Woofer
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
2,700 Hz
12dB/Octave
8 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.5” (216mm) W
13.75” (349mm) H
11.125” (283mm) D
18 lbs. (8.17 Kg)
SX-6100C
Dedicated Center
Channel Speaker
50Hz-20kHz ±3dB
92dB
75-450 Watts
(4) 6½” (165mm)
Aluminum Cone Woofers
(3) 1” (25mm)
Silk Dome Tweeters
Yes
2,500 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
46” (1168mm) W
8.5” (216mm) H
11” (279mm) D
51 lbs. (23.13 Kg)
Signature SX Series 13 Owner’s Manual

Specications (continued)
SX-6100C/R
Dedicated Center
Channel Speaker
50Hz-20kHz ±3dB
92dB
75-450 Watts
(4) 6½” (165mm)
Reference Aluminum
Cone Woofers
(3) 1.1” (28mm)
Reference Silk Dome
Tweeters
Yes
2,500 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
46” (1168mm) W
8.5” (216mm) H
11” (279mm) D
53 lbs. (24.04 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-6300
Tower Speaker
35Hz-20kHz ±3dB
88dB
100-300 Watts
(3) 6½” (165mm)
Aluminum Subwoofers
(2) 4” (102mm)
Aluminum Cone
Woofers
(1) 1” (25mm)
Silk Dome Tweeter
Yes
100 Hz, 2,700 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.875” (225mm) W
44.375” (1127mm) H
14” (356mm) D
64 lbs. (29.03 Kg)
SX-6300/R
Tower Speaker
35Hz-20kHz ±3dB
88dB
100-300 Watts
(3) 6½” (165mm)
Aluminum Subwoofers
(2) 4” (102mm)
Reference Aluminum
Cone Woofers
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
100 Hz, 2,700 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.875” (225mm) W
44.375” (1127mm) H
14” (356mm) D
66 lbs. (29.94 Kg)
Signature SX Series 14 Owner’s Manual

Specications (continued)
SX-661
L/R Speaker (Left /
Right Main Speaker)
55Hz-20kHz ±3dB
90dB
75-200 Watts
(2) 6½” (165mm) Alu-
minum Cone Woofers
(1) 1” (25mm)
Silk Dome Tweeter
Yes
2,700 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.5” (216mm) W
21.5” (546mm) H
11.1875” (284mm) D
25 lbs. (11.34 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-661/R
L/R Speaker (Left /
Right Main Speaker)
55Hz-20kHz ±3dB
90dB
75-200 Watts
(2) 6½” (165mm)
Reference Aluminum
Cone Woofers
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
2,700 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
8.5” (216mm) W
21.5” (546mm) H
11.1875” (284mm) D
26 lbs. (11.79 Kg)
SX-661C
Dedicated Center
Channel Speaker
55Hz-20kHz ±3dB
90dB
75-200 Watts
(2) 6½” (165mm) Alumi-
num Cone Woofers
(1) 1” (25mm)
Silk Dome Tweeter
Yes
2,700 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
21” (533mm) W
8.5” (215mm) H
11” (279mm) D
25 lbs. (11.34 Kg)
Signature SX Series 15 Owner’s Manual

Specications (continued)
SX-661C/R
Dedicated Center
Channel Speaker
55Hz-20kHz ±3dB
90dB
75-200 Watts
(2) 6½” (165mm)
Reference Aluminum
Cone Woofers
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
2,700 Hz
24dB/Octave
6 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
21” (533mm) W
8.5” (215mm) H
11” (279mm) D
26 lbs. (11.79 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-8300
3-way Tower Front
Main or Rear Speakers
25Hz-20kHz ±3dB
91dB
100-500 Watts
(3) 8” (203mm)
Aluminum Subwoofers
(2) 6½” (165mm)
Aluminum Cone
Woofers
(1) 1” (25mm)
Silk Dome Tweeter
Yes
100 Hz, 2,500 Hz
18dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
10.75” (273mm) W
50.375” (1280mm) H
16.5” (419mm) D
89 lbs. (40.37 Kg)
SX-8300/R
3-way Tower Front Main
or Rear Speakers
25Hz-20kHz ±3dB
91dB
100-500 Watts
(3) 8” (203mm)
Aluminum Subwoofers
(2) 6½” (165mm)
Reference Aluminum
Cone Woofers
(1) 1.1” (28mm)
Reference Silk Dome
Tweeter
Yes
100 Hz, 2,500 Hz
18dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
10.75” (273mm) W
50.375” (1280mm) H
16.5” (419mm) D
90 lbs. (40.82 Kg)
Signature SX Series 16 Owner’s Manual

Specications (continued)
SX-88
Powered Subwoofer
35Hz-180Hz ±3dB
N/A
300 Watt Amplifier
Included
(2) 8” (203mm)
Aluminum Woofers
N/A
N/A
50-160 Hz (variable)
N/A
N/A
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
12.25” (311mm) W
13.5” (343mm) H
14.375” (365mm) D
31 lbs. (14.06 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-T1
L/R Front Main Speaker
50Hz-20kHz ±3dB
92dB
100-500 Watts
(4) 6½” (165mm)
Aluminum Cone Woofers
(3) 1” (25mm)
Silk Dome Tweeters
No
2,500 Hz
24dB/Octave
4 Ohms
Medium Density Fiber-
board (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.3” (771mm) H
19.5” (495mm) D
69 lbs. (31.30 Kg)
SX-T1/R
L/R Front Main Speaker
50Hz-20kHz ±3dB
92dB
100-500 Watts
(4) 6½” (165mm)
Reference Aluminum
Cone Woofers
(3) 1.1” (28mm)
Reference Silk Dome
Tweeters
No
2,500 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
30.3” (771mm) H
19.5” (495mm) D
70 lbs. (31.75 Kg)
Signature SX Series 17 Owner’s Manual

Specications (continued)
SX-T2
L/R Front Main Speaker
22Hz-20kHz ±3dB
92dB
100-500 Watts
(2) 10” (254mm)
Aluminum Subwoofers
(4) 6½” (165mm)
Aluminum Cone Woofers
(3) 1” (25mm)
Silk Dome Tweeters
No
2,500 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
61.5” (1537mm) H
19.5” (495mm) D
132 lbs. (59.87 Kg)
Model:
System Type:
Frequency Response:
Sensitivity:
Recommended/
Rated Power:
Woofer(s):
Tweeter(s):
Tweeter Protection:
Crossover Frequency:
Crossover Slope
Impedance:
Cabinet/Color:
Grille:
Dimensions:
Weight:
SX-T2/R
L/R Front Main Speaker
20Hz-20kHz ±3dB
92dB
100-500 Watts
(2) 10” (254mm)
Aluminum Subwoofers
(4) 6½” (165mm)
Reference Aluminum
Cone Woofers
(3) 1.1” (28mm)
Reference Silk Dome
Tweeters
No
2,500 Hz
24dB/Octave
4 Ohms
Medium Density
Fiberboard (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
61.5” (1537mm) H
19.5” (495mm) D
146 lbs. (66.22 Kg)
SX-T3
L/R Front Main Speaker
22Hz-20kHz ±3dB
92dB
100-500 Watts
(4) 10” (254mm)
Aluminum Subwoofers
(4) 6½” (165mm)
Aluminum Cone Woofers
(3) 1” (25mm)
Silk Dome Tweeters
No
2,500 Hz
24dB/Octave
4 Ohms
Medium Density Fiber-
board (MDF)
Matte Black Oak
Black Cloth
13” (330mm) W
91.5” (2324mm) H
19.5” (495mm) D
195 lbs. (88.45 Kg)
Signature SX Series 18 Owner’s Manual
