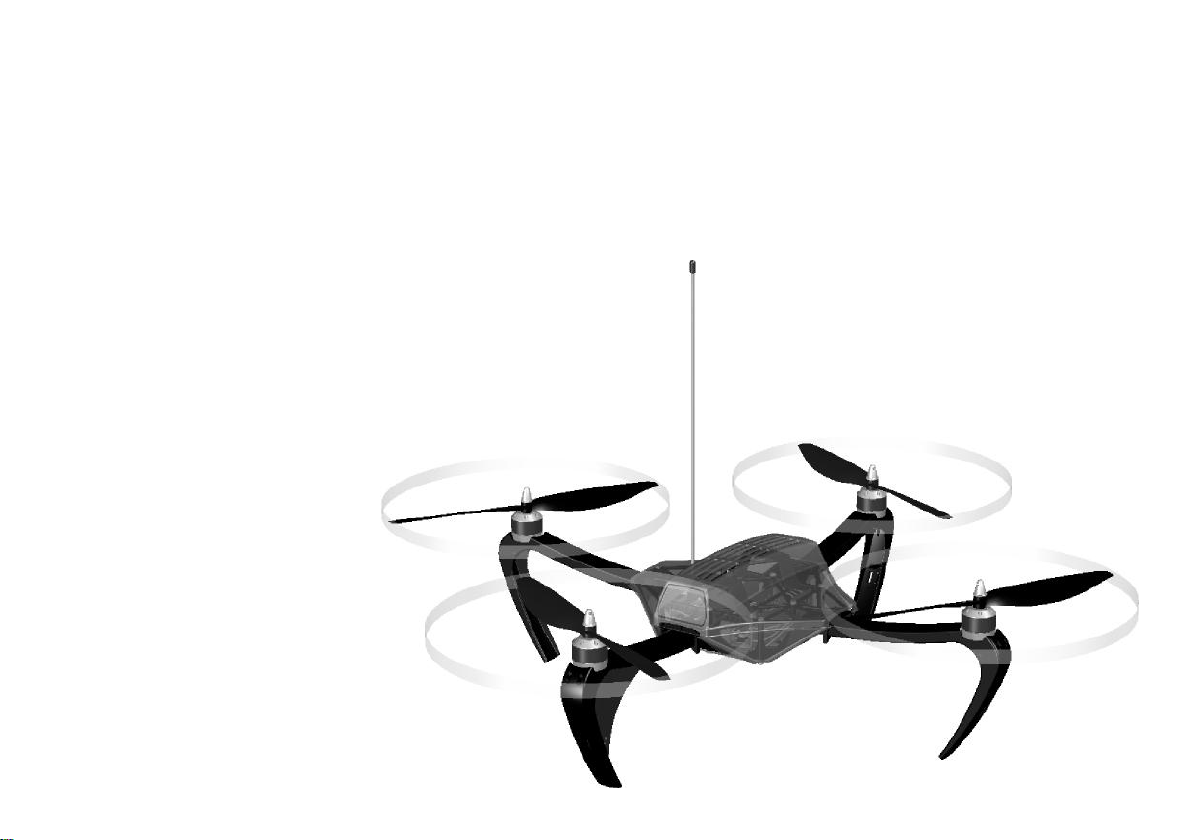

Manual Quadrocopter
T y p e : Q C 4 5 0 - I A R F

Q C 4 5 0 - I
C o n t e n t s
Contents of 2
Introduction 5
Symbol explanation 6
Intended use 7
Product description 8
Scope of supply 9
Exploded View 11
Spare parts 12
Safety references 14
1. My 14
2. Before each start-up 15
3. During the enterprise 16
4. After the enterprise 17
Battery References 18
Construction of the Model 21
1. Examine the pre-mounted chassis 21
2. Assembly of the rotors 22
3. Assembly of the antenna pipe and transfer of the antenna cable 23
4. Attachment of the Battery 24
5. Assembly of the upper cover (already installed) 25
6. Assembly of the flight direction indicator (already installed) 25
Start-up 26
1. RC-receivers prepare 26
2. Examination of the configuration 27
3. Neutral Settings 27
4. First start, engines at and fr om 28
Start the engines 28
Stop the engines 28
Configuration 29
1. Recognize the channels by the transmitter 29
Prepare for the Detect mode 29

Learn the channels 30
2. Setting of the flight mode 32
Configuration with PC software 33
Safety functions 34
1. Protective relay for motor 34
2. Forced Landing 34
3. Low Voltage Monitor 34
Maintenance and servicing 36
1. Regular cleaning 36
2. Battery Care 36
3. Renew from defective parts 37
Exchange of the rotors 37
Exchange of an engine 37
Exchange of an arm 39
Exchange of the complete framework 40
LED announcements 42
Disposal 43
1. General 43
2. Batteries 43
Technical data 44
Check list for the start (copying collecting main) 45
Small flight school 46
1. Basics of the Model Flight 46
What differentiates a Quadrocopter from a conventional helicopter? ......................................................................46
Why doesn't a Quadrocopter turn around the vertical axle? .......................................................................................46
What connects a Quadrocopter with a helicopter? ........................................................................................................47
2. Speziele Begrife fro m the helicopter Hubschrauber-Modelflug 48
Greed 48
Nod 49
R o l 49
Floats 50
3. First flight tests 50
It goes loosely! ......................................................................................................................................................................51
Congratulations - the first flight I business! ..................................................................................................................53

Q C 4 5 0 - I
Every beginning is heavy the first Crash 53
Conformity explanation 54
Imprint 55
Appendix 1: Remote control modes 56
Appendix 2: Special Characteristics 57
1. Exponential 57
2. Mode: Normal or Heading Hold?

I n t r o d u c t i o n
Thank you for the acquisition of this high-quality product! We wish you many exciting and fascinating flight minutes
with that easily to flying Model. Nevertheless we would like to point out you that for the safe enterprise of this aircraft an
exact study of this manual is absolutely necessary.
In this manual you find helpful information and safety references to first start-up, configuration, maintenance and servicing
of the product.
In the chapter „"we tried small flight school to näherzubringen to you in simple and descriptive way the controlling of a
4-rotorigen of helicopter. Particularly we recommend to flight beginners to study this chapter attentively.
Attention, important note!
With the enterprise of the model it can come to special and/or personal injuries. Therefore
absolutely pay attention to it that you are sufficiently insured for the enterprise of the model, e.g.
over a liability insurance. If you already possess a liability insurance, then you inform before
start-up of the model when your insurance w h et h e r the enterprise of the model is coinsured.
Consider: In different countries of the European Union a liability to insure exists for all flight
models!

Q C 4 5 0 - I
S y m b o l e x p l a n a t i o n
The symbol with lightning in the triangle is used, if danger exists for your health, e.g. by electrical impact.
The symbol with exclamation marks knows you on special dangers during handling, enterprise or operation.
„The thumb symbol "stands for speziele h i n t s , control references or resuming information.

Intend ed use
The RC-RC-Elektroflugmodel Quadrocopter QC450-I is exclusive for the private employment in mode-LBA-over-calibrates and
for the associated periods of operation laid ou t.
For another employment this system is not suitable. A use deviating from it can to be e.g. led short-circuit, fire, electrical
impact etc. to the damage of the product with the associated dangers as. The safety references are to be obeyed
absolutely!
The product may not become damp or wet. Since in the Quadrocopter sensitive control electronics is used, which reacts also
to variations in temperature and is optimized for a certain temperature range, is an enterprise under 10°C is to be avoided.
The product is not a toy, it is suitable not for children under 14 years.
Consider all safety references of this operating instructions. It contains important
information to handling the product.

Q C 4 5 0 - I
Product description
With the Elektroflugmodel Quadrocopter acts it around an as far as possible pre-mounted helicopter with four rotors. In the
professionelen range such are already used „drones "for most diverse tasks. Most modern mikroprozessorgessteuerte
electronics with depth control and acceleration sensors stablisieren the Quad more rocopter. High-quality brushless direct
current motors in connection with one speziel developed control make a long, kraftvolen flying operation possible and give
each quantity of reserve for pay loads as e.g. cameras etc. by the new control and the electronic Selbststablisierung arise
outstanding flight characteristics. Different flight programs ensure for the fact that both a risers and professionals have
very rapidly their joy.
The designer framework in lightweight construction way with aluminum and Kunststofkomponenten is stable and makes
outstanding flight characteristics possible. The framework is to be transported hinged and thus simply and space-saving.
The designer framework takes up complete electronics and has place for extender cards. As a result of the lattice
building method a high firmness and a good protection for electronics arise.
To the Fertigstelung of the Models the still following components are necessary:
35 MHz A-volume 4-9-Kanal-PPM-Fernsteuersender
Suitable 35-MHz-A-Band-Quarzpaar
11.1 V LiPo LiPo-Flugakku
oThe use of at least 2000mAh 25C upto max. 4000mAh 20C is recommended
o2600 mAh 25C is the ideal combination of weight and achievement
Suitable battery charger
Flying time: depending upon flight style approx. 20 min. with an LiPo accumulator 11.1 V 2,600 mAh, 25 C
The Model offers the possibility of extensions by means of additional electronics (extension Erweiterungs-Schnittstele on
the control unit available) and the cultivation of various mechanisms at the platform mounting plate on the lower surface
of the lattice framework. References to it find you on the Internet sites of the Herstelers.

-I (Stk.
POS.NR.
BEZEICHNUN

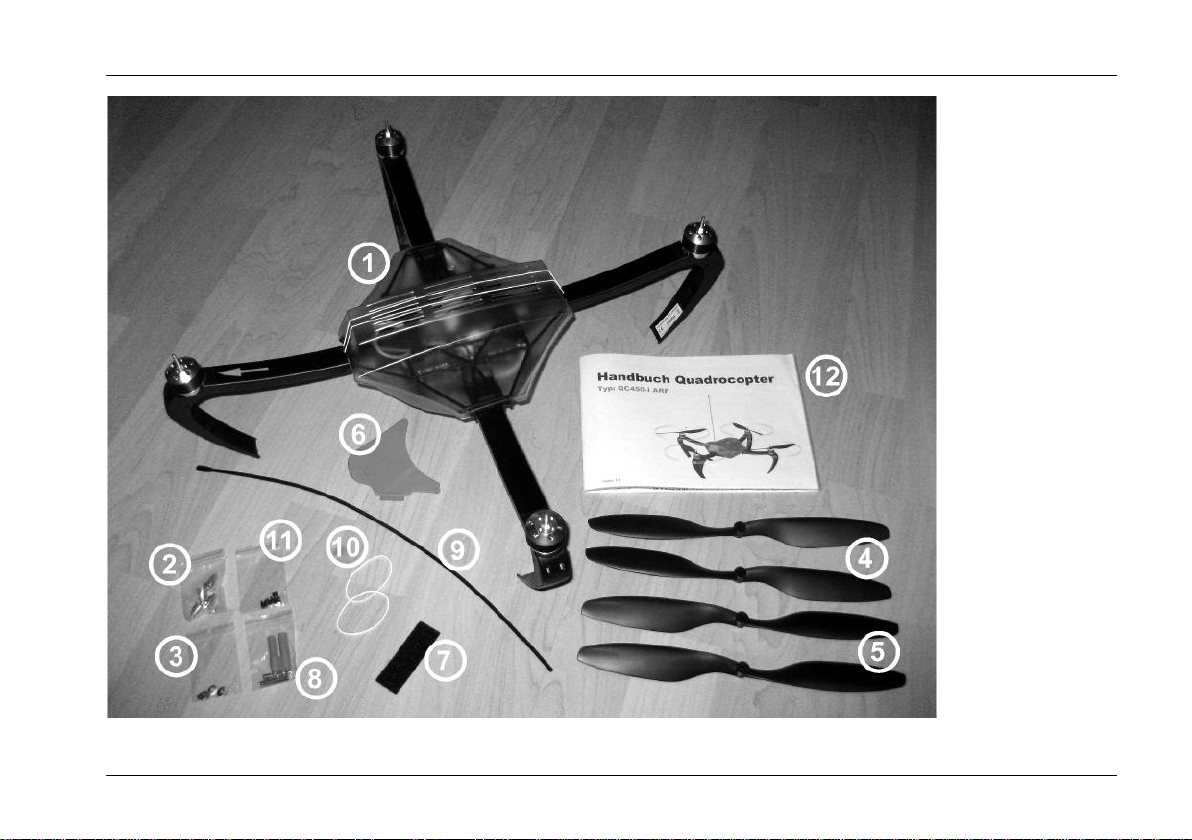

L i e f e r u m f a n g
t e i l w e i s e v o r m o n t i e r t
1
Quadrocopter 450-I ARF
Q )
1
2
Rotorspitze
4
3
Federscheibe M3
6
4
Propeler linksdrehend
2
5
Propeler rechtsdrehend
2
Flugrichtungs a nz e i ger
1
Klettband mit Klebeseite
1
Steckverbinder für Akku
1
Antennenrohr d3x300
1
10
Ersatzgumm iba n d für Abdeckung
2
11
Jumper
4
12
Bedienungsanleitung
1
6
7
8
9

Q C 4 5 0 - I

Exploded View
1 Central Frame Lower
2 Central Frame Upper
3 Boom Joint
4 Aluminum Boom
5 Motor Mount
6 Leg
7 BL-Motor 450
8 Rotor Clockwise
9 Spring Washer M3
10 Rotor Tip
11 Screw M3x5
12 Screw 2.6x10
13 Bottom Cover
14 Upper Cover
15 Antenna Tube
16 Double Sided Velcro
17 Main Power Cable With Plug
18 Driver Unit QC01
19 Control Unit QC02
20 Flight Direction Indicator

Q C 4 5 0 - I
S p a r e P a r t s
Em pfängereinheit
BNr. 206905
Komplett-Rahmen
BNr. 206906
Rotoren (2xlinks, 2xrechts)
BNr. 206901
Abdeckung& Richtungsweiser
BNr. 206899
Aluminium-Ausleger
BNr. 206898
Zentralra h men
BNr. 206897
MotorDriverboard
BNr. 206903

C o n t r o l and s e n s o r b o a r d
B N R . 2 0 6 9 0 2

Q C 4 5 0 - I
S i c h e r h e i t s h i n w e i s e –S e i t e 14
Safety references
With damage, which is caused by neglect of this operating instructions, the guarantee/warranty
expires. For damages and with special or personal injuries, which is caused by inappropriate
handling or neglect of the safety references, we do not take over adhesion! In such cases the
guarantee/warranty expires.
Normal wear and crash damage (engine mountings e.g. incoming or broken plastic parts) are
excluded furthermore from the guarantee and warranty.
Very honoured customer, very honoured customer,
these safety references serve not only for the protection of the product, but also for your own security and the other
persons. Read therefore this chapter very attentively, before you take the product in enterprise!
1 . G e n e r a l l y
For safety and permission reasons (CE) that is not permitted arbitrary ch an ges and/or changing the product.
The product is not a toy, it is suitable not for children under 14 years.
The product may not become damp or wet. Since in the Quadrocopter sensitive control electronics is used, which
reacts also to variations in temperature and is optimized for a certain temperature range, is an enterprise under
10°C is to be avoided.
If you should not have yet sufficient knowledge in handling remote controlled Modelhubschraubern, then you
turn to an experienced Modelsportler or to a Modelbau club.
The conclusion of a private liability insurance is recommendable. Fals you such already possess, then you
inform whether the enterprise of the Models also under the insurance protection fold. Consider: In different
countries of the European Union a liability to insure exists for ale Flugmodele!

Do not let the packing material thoughtlessly lie, this could for children the dangerous toy become.
If questions should result, which cannot be clarified assistance of the operating instructions, then you contact
please us (contact contacts see to chapter „introduction ") or another specialist.
The product was developed for an en t er p r i se with an ambient temperature between 10°C and 40°C and an air
humidity normal in C e n tr a l E u r op e in dry weather. Wi th an enterprise outside of these conditions mentioned it
c a n come to changed (Material-) characteristics and from it resulting also to d ama ges of the product!
A max. take-off weight by 1000g s o l not to be exceeded. With a higher take-off weight the rotors in the
enterprise can be damaged and be caused so a crash!
2 . B e f o r e each s t a r t - up
Stelen it surely that within the range of the remote control no further Modele on the same remote control channel
(transmitter frequency) is operated. They lose otherwise the Kontrole over the remote controlled Modele! Use
always different channels, fal s you at the same time two or several Modele in direct proximity to each other to
begin want.
Examine the insurance of operation of your Models and the remote control plant. If you pay attention thereb y to
visible damages, like e.g. defective plug connectors, or damaged cable loosens screws. In particular damaged
rotors can have dangerous consequences. Exchange old rotors. All mobile parts at the Model must no play in the
storage low-friction function, may however exhibit.
Make sure before each flight that the rotors are firmly bolted on the engines and can the rotors easily be turned.
Too firm screwing of the rotor on can lead to damages of the engine or the rotor.
The Flugakku used in the Model is to be lo aded according to the Herstelerangaben VOL-constantly.

Q C 4 5 0 - I
S i c h e r h e i t s h i n w e i s e –S e i t e 16
Always take for the enterprise of your Models the Teleskopantenne off at the transmitter on the complete
length, since the transmitter exhibits otherwise a substantially smaller range and the transmission final stage is above
average strongly loaded.
You scolded always first the transmitter. Only after it the Flugakku of th e Mod els may be attached and the
Model be switched on. Andernfals one can come it to unforeseeable reactions of the Quadrocopters and the rotors
can ungewolt start! Make sure that when switching on of the transmitter of the Gashebel on on lowest Stelung is
eingestelt!
Make sure w i t h running engines that neither articles nor parts of the body are in the trick and danger area of
the rotors.
3 . D u r i n g t h e e n t e r p r i s e
Do not be received w i t h enterprise of the product a risk! Their o w n security and your surrounding field
depend aleine on your reliable handling the Model.
The inappropriate enterprise can cause serious damages to property and person! Respect therefore with the flying
operation a sufficient safety margin to persons, animals and articles.
Select a suitable area for the enterprise of your Quadrocopters.
Fly you with your Model then only if your reactivity is without reservation given. Tiredness, alcohol or medicine
influence can lead to bad reactions.
Fly you never directly on spectators or on itself to and avoid you direct overflights/flyovers of spectators.
Both engine, autopilots and Flugakku can heat up with the ent erpr i se of the Models. Make for this reason after
at the latest 20 minutes flying time a break of 5 - 10 minutes, before you st ar t the Model again.
Leave always the remote control (transmitter) switched on, as long as the Model is in enterprise. Mark after the
landing always first the Flugakku out and/or scolded you the Model out. Only after it the remote control may b e
swit ch ed off.

With a defect or a malfunctioning first the cause of the disturbance is to be eliminated, before you start your
Model again.
Do not expose your Model and the remote control plant over longer time to the direct sun exposure or large heat.
With a heavy crash (for example f r om large height) the electronic Gyro sensors can be damaged and/or detuned.
Before a renewed flight from there absolutely the vole function is to be examined!
With a crash the gas is to be reduced immediately to nul. Turning rotors can b e d a ma ge d with contact with
obstacles and/or with the impact. Before a renewed flight these are to be examined absolutely for eventuele tears
or Bruchstelen!
In order to avoid damage to the Quadrocopter by crash because of undervoltage and/or to the accumulator by
over-discharging, we recommend, to absolutely consider in the flight the flare signals for undervoltage. Since
the inserted LEDs radiate only in a direction, we recommend the additional installation of the LiPo LiPo -Saver
stock No. 230327. The Lipo Lipo-Saver indicates by light signal a threatening undervoltage to you. Place the LiPo
LiPo-Saver at suitable Stele in the Quadrocopter.
Due to the natural heating up of the engines and the electronics construction units we recommend not to exceed a
flying time of max. 20 min. Afterwards you should leave the Model sufficiently to cooling, in order to avoid
eventuele damage by overheating!
4 . A f t e r t h e e n t e r p r i s e
Clean the Quadrocopter of contamination (grass etc.) and examine you the rotors for tightness as well as a n y
damages through crashes.
Always separate the accumulator from electronics by marking the plug out. Eventuel flowing rivers can destroy
otherwise the accumulator over-discharged and in such a way!

Q C 4 5 0 - I
B a t t e r i e - u n d A k k u - H i n w e i s e –S e i t e 18
Battery and Akku references
Although handling Baterien and Akkus is in the daily life today a matter of course, numerous
dangers and problems exist. Particularly with LiPo /LiIon LiPo-/LiIon-Akkus with their high energy
content (compared with conventional NiCd- or NiMHAkkus) various regulations are to be kept
absolutely, since otherwise risk of explosion of fire exists.
The helicopter is supplied without Akkus and/or remote control. Nevertheless we would like to give
you for safety reasons to handli ng batteries and Akkus extensive information; consider also all
the remote control and the accumulator enclosed information of the manufacturer.
Batteries/Akkus do not belong into child hands.
Do not let batteries/Akkus furnace lie about. There is the danger that these by children or domestic animals are
swallowed. Visit in such F a l a physician immediately!
Batteries/Akkus may be never short circuit, divided or thrown into the fire.
There is danger of
explosion!
Run out ones or damaged batteries/Akkus can c au s e Verätzungen during contact with the skin. Use therefore
in this F a l suitable protective gloves.
Conventional batteries may not be loaded. There is fire and danger of explosion! Load exclusively for it
intended Akkus; use for it suitable accumulator charging units. Batteries (1.5V) are intended only for the unique
use and must be duly disposed of, if they are empty.
Pay attention when inserting batteries/Akkus and/or the connection of a Akkupacks to the correct polarity
(Plus/+ and minus consider). Same is valid when loading Akkus.

Q C 4 5 0 - I
With longer nonusage (e.g. w i th storage) take the Akkus inserted in the remote control, in order to avoid
damage by running out Akkus.
Always replacement you in the remote control transmitter the complete set of Akkus. Do not mix vole with
halbvolen Akkus.
Always use Akkus of the same type, the same capacity and the same Herstelers.
Never mix batteries with Akkus!
Reload Akkus ale three months, since it can come andernfals one by the self discharge to a so-called
over-discharging, whereby the Akkus becomes useless.
Battery chargers and Akkus warm up during the loading procedure. Therefore it i s necessary to pay attention
to a sufficient ventilation. Never take battery chargers and Akkus off!
Load the Flugakku used by you never immediately after the use. Leave to the Flugakku always only cooling (at
least 10-15 minutes).
Load only intact and intact Akkus.
If the outside isolation of the Akkus should be damaged or the Akkus deformed and/or blown up, it
may be loaded on no Fal. In this F a l fire and danger of explosion exists!
If you never damage the Außenhüle of a LiPo /LiIon LiPo-/LiIon-Akkus, do not cut the Folienumhülung,
do not sting with sharp articles in the accumulator. There is fire and danger of explosion!
Take from the Flugakku to the shop fro m the Model and put you him on a fireproof underground.
Hold for distance to inflammable articles.
Note!
The Flugakku is to be separated according to the flight from the Model to. Do not leave stuck on
to the Flugakku at the Model, if you do not use it (e.g. with transport or storage). Andernfals
one can become over-discharged the Flugakku, thus he destroyed/uselessly!
Separate the accumulator from the battery charger only then if it is loaded VOL-constantly.
Load Akkus never unsupervised.

Q C 4 5 0 - I
B a t t e r i e - u n d A k k u - H i n w e i s e –S e i t e 20
Battery chargers and Akkus may not become damp or wet.
