dji PHANTOM 3 PROFESSIONAL User manual

PHANTOM 3
V1.0
2015.04
User Manual
Standard

2
©2015 DJI. All Rights Reserved.
Using this manual
Legends
Warning Important Hints and Tips Reference
Read Before the First Flight
Read the following documents before using the Phantom 3 Standard:
1. In the Box
2. Phantom 3 Standard User Manual
3. Phantom 3 Standard Quick Start Guide
4. Phantom 3 Standard Guidelines and Disclaimer
5. Phantom 3 Standard Intelligent Flight Battery Safety Guidelines
We recommend that you watch all tutorial videos on the ocial DJI website and read the Disclaimer before you y.
Prepare for your rst ight by reviewing the Phantom 3 Standard Quick Start Guide and refer to the User Manual
for more detailed information.
Video Tutorials
Please watch the tutorial videos at the link below, which demonstrates how to use Phantom 3 Standard aircraft
http://www.dji.com/product/phantom-3/video
Download the DJI Pilot app
Download and install the DJI Pilot app before using the aircraft. Scan the QR code to the right
to download the latest version.
The Android version of the DJI Pilot app is compatible with Android 4.1.2 or later.
The iOS version of the DJI Pilot app is compatible with iOS 8.0 or later.

©2015 DJI. All Rights Reserved.
3
Contents
Using this manual
Legends 2
Read Before the First Flight 2
Video Tutorials 2
Download the DJI Pilot app 2
Product Prole
Introduction 6
Feature Highlights 6
Preparing the Aircraft 7
Aircraft Diagram 8
Remote Controller Diagram 8
Aircraft
Flight Controller 11
Flight Mode 11

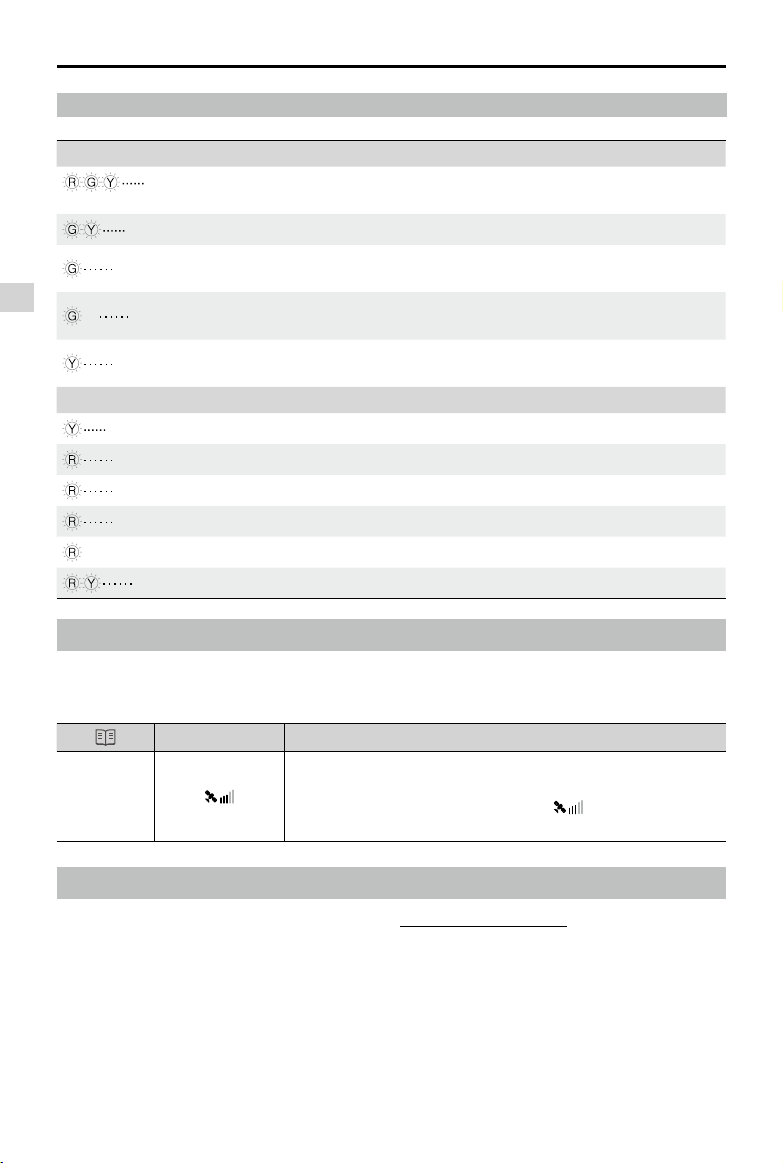

Flight Status Indicator 11

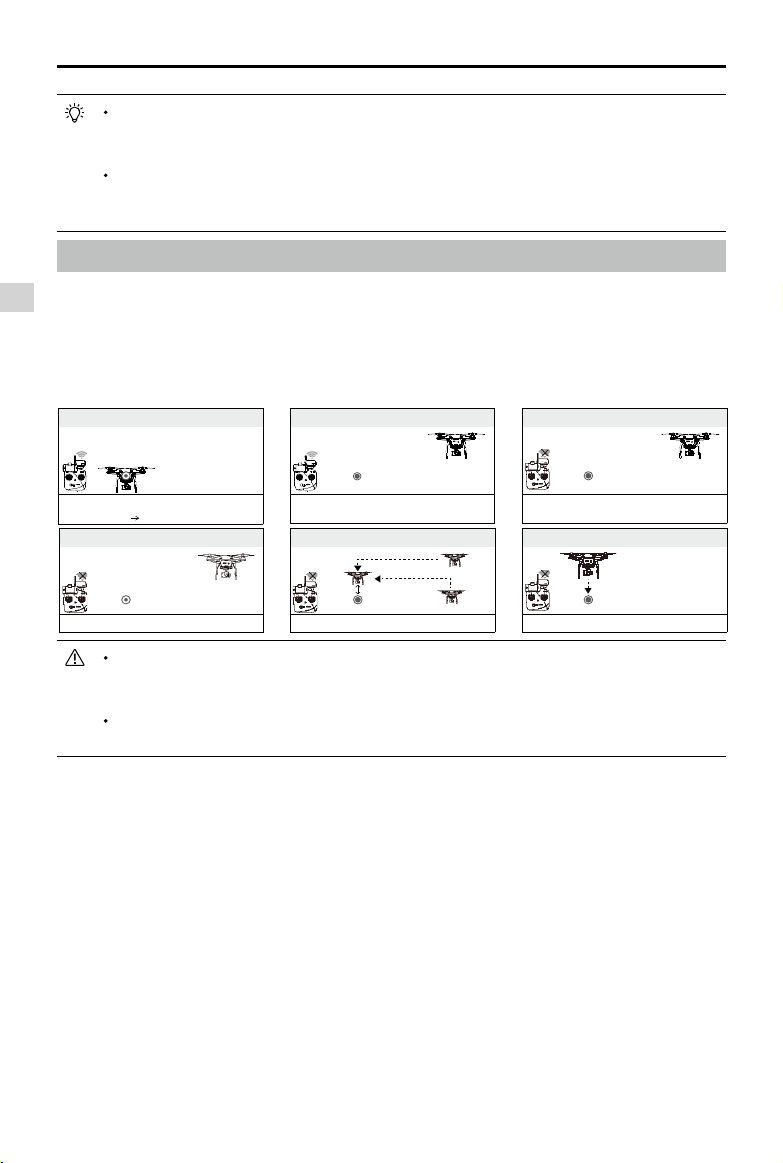

Return-to-Home (RTH) 12
Smart RTH 12

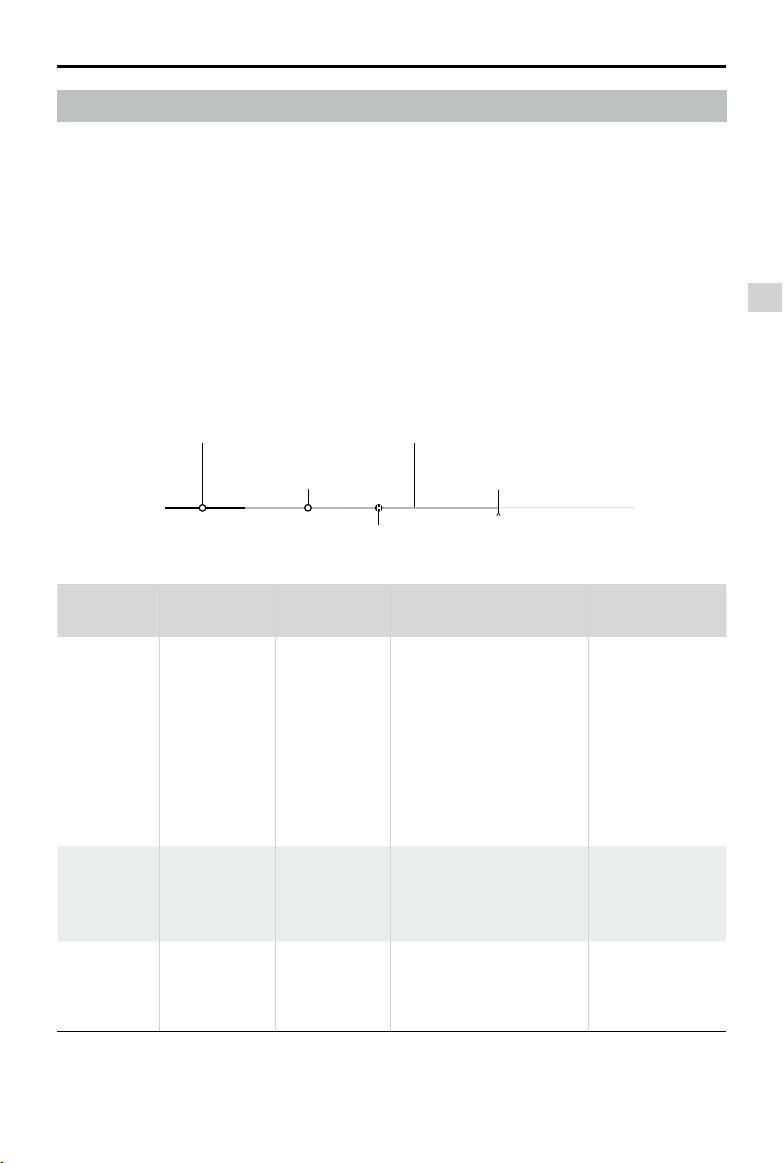

Low Battery RTH 13
Failsafe RTH 14
Vision Positioning System 14
Flight Recorder 16
Attaching and Detaching the Propellers 16
DJI Intelligent Flight Battery 17
Remote Controller
Remote Controller Prole 23
Using the Remote Controller 23
Remote Controller Status LED 27
Linking the Remote Controller 28
Remote Controller Compliance Version 29

4
©2015 DJI. All Rights Reserved.
Camera and Gimbal
Camera Prole 31
Gimbal 32
DJI Pilot App
Camera 35
Director 38
Store 38
Discovery 38
Flight
Flight Environment Requirements 40
Flight Limits and No-Fly Zones 40
Preight Checklist 44
Calibrating the Compass 44
Auto Takeo and Auto Landing 45
Flight Test 46
Starting/Stopping the Motors 46
Troubleshooting (FAQ)
Appendix
Specications 53
Intelligent Orientation Control (IOC) 55
FCC Compliance 56

©2015 DJI. All Rights Reserved.
5
Product Prole
This section introduces the Phantom 3
Standard and lists the components of the
aircraft and remote controller.

6
©2015 DJI. All Rights Reserved.
Product Profile
Product Prole
Introduction
The Phantom 3 Standard represents the next generation of DJI quadcopters. It is capable of capturing 1080P
video and video signal out of the box. The built-in camera has an integrated gimbal to maximize stability while
minimizing both weight and size.
Feature Highlights
Camera and Gimbal: With the Phantom 3 Standard, you’re shooting 1080p video and capturing 12 megapixel pho-
tos that look crisper and cleaner than ever. An enhanced sensor gives you greater clarity, lower noise, and better
pictures than any previous ying camera.
DJI Intelligent Flight Battery: The 4480 mAh DJI Intelligent Flight Battery features upgraded battery cells and an
advanced power management system.
Built-in WiFi Extender: The wi extender is integrated into the remote controller to allow a easy connection to teh
aircraft.
Flight Controller: The next-generation ight controller has been updated to provide a safer, more reliable ight
experience. A newly implemented ight recorder stores critical data from each ight.

©2015 DJI. All Rights Reserved.
7
Product Profile
Phantom 3 Standard User Manual
Preparing the Aircraft
Removing Gimbal Clamp
Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below.
Attaching the Propellers:
Mount the propellers with black dots on to motors with black axes and spin counter-clockwise to secure.
Mount the propellers with sliver dots on to motors with sliver axes and spin clockwise to secure. Be sure
all propellers are securely in place.
Preparing the Remote Controller:
1. Twist the Phone Holder to face outwards and x in position.
2 . Ensure the battery is fully charged.
3. Be sure S1 and S2 are switched to the upper most position. The LED will go green if the Remote Controller is
functioning.
Place all propellers onto the correct motors and tighten by hand to lock them in position.
S1S2

8
©2015 DJI. All Rights Reserved.
Product Profile
Phantom 3 Standard User Manual
Aircraft Diagram
[1] Gimbal and Camera
[2] [Camera Micro-SD Card Slot
[3] Aircraft Micro-USB Port
[4] Front LED Indicator
[5] Landing gear
[6] Motor
[7] Rear LED Indicator
[8] Antennas
[10]
[11]

©2015 DJI. All Rights Reserved.
9
Product Profile
Phantom 3 Standard User Manual
Remote Controller Diagram
[1] Power Button
[2] Status LED
[3] Battery Level LEDs
[4] Neck Strap Securing Hole
[5] S1 Switch
[6] S2 Switch
[7] Control Stick
[8] Phone Holder
[9] Antennas
[10] Gimbal Dial
[11] Charging Port

10
©2015 DJI. All Rights Reserved.
Aircraft
This section introduces the features of
the Flight Controller, Vision Positioning
System, and the Intelligent Flight Battery
