RCA WHP170 User manual

WHP170/WHP175
* Range may vary by environment.
* La portée peut varier selon l'environnement.
* El alcance puede variar según el entorno.
900MHz Wireless Headphones
Casque sans fil à émetteur de 900 MHz
Audífonos inalámbricos con transmisor
de 900 MHz
Transmits stereo signal
even outside your home!
Émet un signal stéréo même
à l'extérieur de la maison!
¡Transmite señal estereofónica
incluso afuera de su casa!
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 1

HEADSET SAFETY
Follow these precautions for safe usage of your wireless headphones.
1. These wireless headphones have been designed for residential use
and should not be used for industrial purposes. The headphones
should be installed and used in accordance with the instructions
contained in this manual.
2. Read through these instructions completely before installation.
Follow the instructions carefully and carry them out in the correct
order. Keep the manual on hand for future reference.
3. The power for this headphone system is delivered with batteries.
Before charging, read the instructions in this manual. Disconnect
the power supply from the recharging cradle/transmitter before
installing or removing batteries.
4. Always leave easy access to the main power supply.
5. Disconnect the unit from the main power supply during storms,
or if you will be absent for a long period of time.
6. If you observe smoke or detect a burning odor, immediately
disconnect the device from the main power supply.
7. Never open the unit yourself; you may receive a severe electric
shock, leading to serious injury or even death.
8. Protect the unit from dust, humidity and sources of excessive heat
(e.g., fireplace or radiator).
9. The power source should not be in contact with liquids or exposed
to the risk of dripping or splashing liquid. Be careful not to place
the power source or recharging cradle/transmitter near any object
containing liquid (e.g., a vase, glass or bottle).
10.Do not expose the unit to direct sunlight. Its maximum ambient
temperature is 95° Fahrenheit (35° Celsius).
11.The ventilation should not be impeded by covering the unit
with any items, such as newspapers, tablecloths, curtains, etc.
12.No flame sources, such as lighted candles, should be placed on
or close to the recharging cradle/transmitter.
13.This unit has been designed for use in a dry environment. If, for
exceptional reasons, you must utilize the unit out of doors (balcony,
veranda, etc.), take care to protect it from dampness (dew, rain
or splashes of liquid).
14.The maximum ambient humidity that the device supports is 85
percent. If the unit is cold and you wish to use it in a warm room,
wait until any condensation on the unit evaporates by itself before
you turn it on.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 2

HEADSET SAFETY (continued)
15.Clean the unit with a soft cloth soaked in a neutral detergent.
You may damage the unit if you use an alcohol-based product.
If you are unsure if the detergent is alcohol-based, test the cleaning
product on the underside of the unit.
Thomson Inc. declines all liability for any use that does not comply with
the instructions in this User’s Manual.
Keep your sales receipt to obtain warranty parts and service and
for proof of purchase. Attach it here and record the serial and model
numbers. These numbers are located on the product.
Model No.______________________
Serial No. ______________________
Purchase Date: __________________
Dealer/Address/Phone: ____________________________________
__________________________________________________________
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Headphone Set Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Recharging the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Recharging Cradle/Transmitter Description . . . . . . . . . . . . . . . . . . . . . .6
Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Battery Installation and Information
Installing the Rechargeable Batteries . . . . . . . . . . . . . . . . . . . . . . . . . .7
Charging the Rechargeable Batteries . . . . . . . . . . . . . . . . . . . . . . . . . .8
NiMH Rechargeable Battery Memory Effect . . . . . . . . . . . . . . . . . . . .8
NiMH Natural Power Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
NiMH Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Connecting the Recharging Cradle/Transmitter . . . . . . . . . . . . . . . . . .9
Operation
Standard Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Alternate Installation Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 3

4
FEATURES
900 MHz RF technology lets you roam freely throughout your house
Operating distance up to 150 feet/45 meters from cradle/transmitter*
No line-of-sight limitations
Convenient power, volume and tuning controls located on headphones
* Range may vary by environment.
INTRODUCTION
Congratulations on your purchase of this wireless headphone
system. The WHP170/WHP175 utilizes wireless, radio frequency
transmission (900 MHz). The headphones are induction recharged
using an electric field and incorporate Phase Lock Loop (PLL)
technology, which offers three channels for radio transmissions.
This 900 MHz stereo wireless headphone system features a compact
design that enables you to enjoy music and TV sound just about
anywhere inside or outside your home. It’s simple to connect this
system to any sound source, such as a DVD, DBS, CD, TV, VCR,
stereo receiver or radio.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 4

Rechargeable batteries
5
HEADPHONE SET DESCRIPTION
For stand-alone functioning, your wireless headphones must be
powered by rechargeable batteries (included). The rechargeable batteries
must be installed into the battery compartment and recharged before
use. (See Battery Installation and Information, page 7).
Volume control On indicator
On/off button
Fine tuning control
(WHP170: knob)
(WHP175: button)
Charge indicator
Rechargeable
battery compartment Rechargeable
battery compartment
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 5

6
RECHARGING CRADLE/TRANSMITTER
The recharging cradle/transmitter acts both as the transmitter of the signal
to the headphones as well as the recharging base.
Off indicator:
incorrect
recharge
On indicator:
correct recharge
BACK
Power on indicator Charging contact
AUDIO IN
input jack
Channel selection control 1, 2, 3
DC IN power supply socket
RECHARGING THE HEADSET

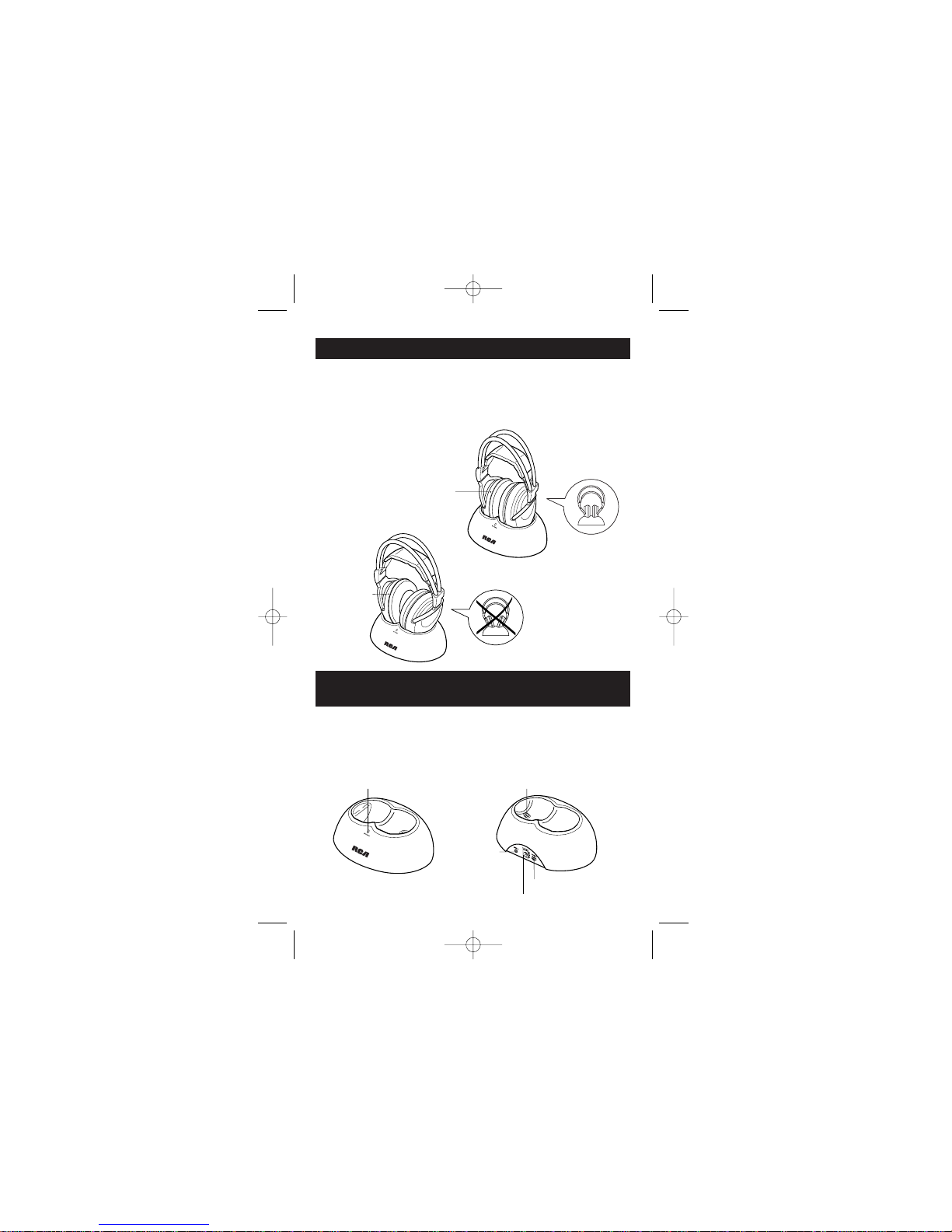

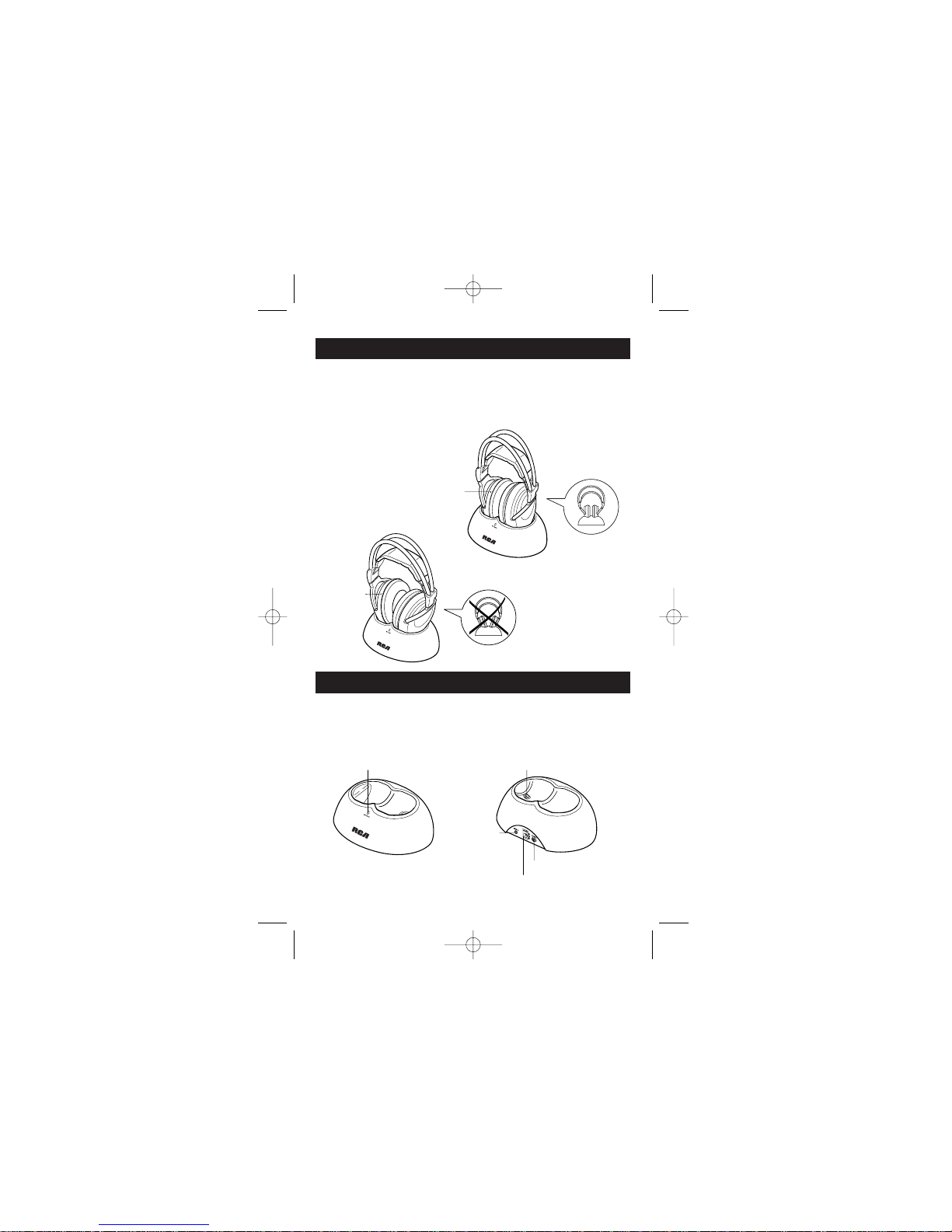

To recharge the headset unit, place the headphones into the recharging
cradle/transmitter with the charge indicator facing to the front.
It is important that the headphones are placed in a completely vertical
position, not leaning to either side. If the headphones are placed
correctly, the charge indicator light on the headphones illuminates.
FRONT
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 6

7
BATTERY INSTALLATION AND INFORMATION
Your wireless headphone unit requires two rechargeable AAAbatteries.
The two rechargeable batteries that are supplied with your wireless
headphones are uncharged. Before you can use the wireless headphones,
the batteries must be charged. Follow these steps to charge and install
the batteries.
Installing the Rechargeable Batteries
Take care to follow these steps to correctly charge and install the batteries.
1. On the left earphone, locate the battery compartment and the word
“Open.” Use your fingernail in the groove on top of the battery
compartment to lift the cover.
2. Insert two AAArechargeable batteries (included), carefully following
the markings inside to ensure the batteries are inserted properly, with
the + and – ends in the correct positions.
3. Replace the battery compartment cover.
SUPPLIED ACCESSORIES
This headphone system includes accessories that enable you to use your
wireless headphone set in a number of ways. (See sections on Standard
Usage and Alternate Installation Configuration, page 9).
Stereo Y adapter cable
(RCA/3.5 mm jack) Main power adapter (AC/DC: 120 V ~ 60 Hz, 12 V = 200mA)
Stereo cable
(3.5 mm jacks) 3.5 mm/6.35 mm jack adapter
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 7

8
BATTERY INSTALLATION AND INFO (continued)
Charging the Rechargeable Batteries
Follow these steps to recharge the NiMH rechargeable batteries.
1. Connect the AC/DC main power adapter to the DC IN
power supply socket, located on the back of the recharging
cradle/transmitter.
2. Then, plug the adapter into an electrical outlet.
3. Place the headphones into recharging cradle/transmitter, with
the charge indicator facing to the front. Make sure the headphones
are placed in a completely vertical position, not leading to either
side. If the headphones are placed correctly, the charge indicator
light illuminates.
4. Subsequent charging must be performed in about 15-17 hours.
NiMH Rechargeable Battery Memory Effect
When an NiMH rechargeable battery is first used, it is important to fully
charge it and then allow it to discharge three times in order to maximize
the battery’s storage capacity. When a battery is recharged before
it is completely discharged, it develops a memory that will limit the
amount of charge in the future. This reduces the battery’s storage
capacity for subsequent charges and so reduces the amount of time
your headphones can be used before recharging is necessary.
NiMH Natural Power Discharge
Due to their chemical design, all rechargeable batteries incur some
degree of natural discharge. This means they automatically lose their
charge to in varying degrees, and the battery’s capacity drops even
when not in use. The size of this power loss varies, depending on the
battery’s type, size, design, internal resistance and, most especially, the
temperature. The higher the temperature, the greater the power loss
through natural discharge.
NiMH Battery Warning
1. To avoid risk of fire, explosion and injury, do not attempt to recharge
non-rechargeable batteries.
2. Respect the environment and the law. Before disposing of
rechargeable batteries, ask your distributor if they can be recycled
and whether or not the distributor collects rechargeable batteries
for recycling.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 8

9
CONNECTING THE RECHARGING
CRADLE/TRANSMITTER
Follow this quick setup guide to ensure trouble-free installation of your
headphones. To connect the recharging cradle/transmitter to the audio
source, follow these steps.
1. Plug the stereo audio cable into the headphone jack of your audio
source (e.g., stereo, TV, CD player, DVD, etc.). If your audio source
has two RCA output jacks in place of a headphone jack, use the
supplied Y cable to connect your headphones to the two (red and
white) RCA jacks.
2. Connect the other end of the stereo audio cable to the AUDIO IN
socket at the back of the recharging cradle/transmitter.
3. Connect the AC/DC main power adapter to the DC IN power
supply socket at the back of the recharging cradle/transmitter. Then,
connect the adapter to an electrical outlet.
OPERATION
Standard usage
1. Switch on the audio source (TV, DVD, CD player, etc.) to which the
recharging cradle/transmitter is connected. If your audio source is
a DVD or CD player, start a disc.
WARNING: The recharging cradle/transmitter has an automatic
function that switches it off if the audio input jack does not receive
an audio signal for approximately two minutes. If the volume on the
audio source is too low, the recharging cradle/transmitter also
switches off after two minutes. This feature was installed to comply
with current legislation that reduces the amount of radio emissions
in the environment. To ensure that this function is not accidentally
triggered, set the audio source volume at approximately 50 percent
capacity. Consult your component user’s manual for details on how
to set the volume for headphones/earphones.
2. The recharging cradle/transmitter is now ready to receive an audio
signal. The recharging cradle/transmitter is activated automatically
when receiving an audio signal from the audio source.
3. Check to make sure the power on indicator light on the front of the
recharging cradle/transmitter is lit, indicating that the unit is ready.
4. Push the POWER ON/OFF button, located on the right earphone.
The LED light turns on to indicate activation.
5. The recharging cradle/transmitter features three phase lock loops
(PLL) for radio frequency transmissions. Select one of these channels,
using the switch on the back of the recharging cradle/transmitter.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 9

10
OPERATION (continued)
6. After selecting a channel, use the fine tuning control, located on right
earphone to adjust the reception. The PLL function automatically
locks the three channels, providing you with top-quality audio
reception with no sound loss.
7. Adjust the volume using the volume control, also located on the
right earphone.
8. When you are through using the headphones, switch them off
using the POWER ON/OFF button, and place the audio source
on standby.
Note: To ensure that your headphones are charged and ready for
use at all times, place them in the recharging cradle/transmitter when
not in use.
Alternate Installation Configuration
The accessories included with your headphone system include a jack
adapter for connecting the unit to a 6.35 mm headphone socket and
a Y cable. Normally, when a device is plugged into a headphone jack,
it automatically shuts off the speakers. If you want the speakers to
continue playing while you are using the headphone set, you can use
the Y adapter instead of the headphone jack. Use the supplied Y cable
to connect your headphones to the two (red and white) RCA jacks.
Connect the other end of the stereo audio cable to the AUDIO IN input
jack at the back of the recharging cradle/transmitter. This is especially
useful if, for example, your family is listening to music in one room
of your home and you want to listen to the same music in another
room. It is also beneficial in families where one person has a hearing
impairment. That person can use the headphones to listen to the
audio source, adjusting the volume as needed. This type of connection
also enables you to use your headphones more simply as you will
only need to switch on the audio source and switch on your
headphones to activate.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 10

11
TROUBLESHOOTING
Refer to this troubleshooting section if you encounter any difficulties in
setting up and using your headphones.
PROBLEM
No sound heard
through the
headphones
Poor sound quality
or interference
SOLUTION
A) Check that your audio source, recharging
cradle/transmitter and headphones are
connected, supplied properly and turned on.
B) Check to ensure that the rechargeable
batteries are installed in the headset
correctly and have been recharged properly.
C) Check to ensure the recharging cradle/
transmitter is running and the power
indicator light on the unit is lit.
D) Check that the audio source is delivering
a sufficient signal to the recharging cradle/
transmitter’s AUDIO IN input jack.
A) Check to ensure that the sound provided
by the audio source is loud enough and
of sufficient quality.
B) Check if the batteries in the headphones have
sufficient power. Recharge or replace them,
if necessary.
C) Check to see if you have selected the best
transmission channel (1, 2, or 3) to provide
the optimum signal reception. If necessary,
try another channel, remembering to fine-
tune the reception using the tuning control.
D) Check if the distance between the
headphones and the recharging cradle/
transmitter is within the operating range.
(The effective range of this device is up to
150 feet/45 meters from the cradle/
transmitter.)* Move closer to the recharging
cradle/transmitter to receive the sound.
E) Check that the audio source provides
stereo sound.
* Range may vary by environment.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 11

12
TROUBLESHOOTING (continued)
PROBLEM
Power cut off
SOLUTION
The recharging cradle/transmitter has an
automatic power off function. When no signal
is received through the recharging cradle/
transmitter’s AUDIO IN input jack, it switches
off. Switch on your audio source again, and use
the tuning control to adjust reception. If necessary,
increase the audio source’s volume.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 12

13
SPECIFICATIONS
Models WHP170
WHP175
Description Radio Frequency
Wireless Headphones System
Transmitter
Carrier Frequency 900 MHz
Effective Range Up to 150 feet/45 meters*
Power Supply 12 V (DC) via a 120V–60 Hz (AC)
main power supply adapter
Transmission Frequency UHF – 900 MHz/three channels:
911.9 MHz (1), 912.6 MHz (2)
and 913.3 MHz (3)
Headset
Power Supply Two AAA1.2V rechargeable batteries
* Range may vary by environment.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 13

14
LIMITED ONE YEAR WARRANTY
Limited One Year Warranty
Our company (in the U.S.,THOMSON INC. / In Canada, Thomson
multimedia Ltd.) warrants that for one year from date of purchase,
it will replace this product if found to be defective in materials or
workmanship. For a prompt, no charge replacement of equivalent
product, return the defective product postage prepaid to the
appropriate address.
In the US:
Product Exchange Center
11721 Alameda Avenue
Socorro TX 79927
In Canada:
Thomson multimedia Ltd.
6200 Edwards Boulevard
Mississauga, Ontario Canada L5T 2V7
This replacement is the company’s sole obligation under this warranty.
THOMSON INC. / Thomson multimedia Ltd. will not be responsible
for any incidental or consequential damages or for any loss arising in
connection with the use or inability to use this product. Some states/
provinces do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may
not apply to you. This warranty excludes defects or damage due
to misuse, abuse, or neglect. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state
to state/province to province.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 14

WHP170/WHP175
* La portée peut varier selon l'environnement.
Casque sans fil à émetteur de 900 MHz
Émet un signal stéréo même
à l'extérieur de la maison!
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 15

SÉCURITÉ DU CASQUE
Respectez ces mesures de sécurité pour assurer le bon fonctionnement
du casque sans fil.
1. Ce casque sans fil a été conçu pour une utilisation résidentielle
et ne doit pas être utilisé à des fins industrielles. Installez et utilisez
le casque selon les instructions contenues dans ce livret.
2. Lisez bien ces instructions avant l'installation. Suivez attentivement
les instructions, dans l'ordre approprié. Conservez ce livret pour
référence ultérieure.
3. Ce casque d'écoute est alimenté par piles. Lisez les instructions
contenues dans ce livret avant le chargement. Débranchez
l'alimentation du socle de rechargement/émetteur avant d'installer
ou de retirer les piles.
4. Laissez toujours un accès facile à l'alimentation principale.
5. Débranchez l'appareil de l'alimentation principale pendant les orages
électriques ou si vous vous absentez pendant une longue période.
6. Débranchez immédiatement l'appareil de l'alimentation principale
si vous remarquez de la fumée ou détectez une odeur de brûlé.
7. N'ouvrez jamais l'appareil vous-même ; vous pourriez recevoir une
puissante décharge électrique et vous blesser gravement ou mourir.
8. Protégez l'appareil contre la poussière, l'humidité et les sources
de chaleur excessive (ex. : foyer ou appareil de chauffage).
9. Le source d'alimentation ne doit pas entrer en contact avec des
liquides ou être exposée à un liquide qui s'égoutte ou éclabousse.
Ne placez jamais la source d'alimentation ou le socle de
rechargement/émetteur près d'un objet contenant un liquide
(ex. : un vase, un verre ou une bouteille).
10.N'exposez pas l'appareil au soleil direct. Sa température ambiante
maximale est de 35° degrés Celsius (95° degrés Fahrenheit).
11.Il ne faut pas gêner la ventilation en couvrant l'appareil d'un article
quelconque, comme des journaux, une nappe, des rideaux, etc.
12.Il ne faut pas placer de source de flamme, comme des chandelles
allumées, sur le socle de rechargement/émetteur, ou près de celui-ci.
13.Cet appareil doit être utilisé dans un endroit sec. Si, pour des raisons
exceptionnelles, vous devez utiliser l'appareil à l'extérieur (balcon,
véranda, etc.), protégez-le bien contre l'humidité (rosée, pluie ou
éclaboussures de liquide).
14.Cet appareil supporte une humidité ambiante maximale de 85 pour
cent. Si l'appareil est froid et que vous devez l'utiliser dans une pièce
chaude, attendez que la condensation sur l'appareil s'évapore seule
avant de l'allumer.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 16

SÉCURITÉ DU CASQUE (suite)
15.Nettoyez l'appareil avec un chiffon doux humecté de détergent
neutre. Vous pourriez endommager l'appareil si vous utilisez
un produit à base d'alcool. Si vous ignorez si le détergent contient
de l'alcool, testez le produit de nettoyage sous l'appareil.
Thomson Inc. rejette toute responsabilité relativement à une utilisation
non conforme aux instructions contenues dans ce guide de l'utilisateur.
Conservez votre coupon de caisse pour obtenir les pièces et le service
sous garantie et comme preuve d'achat. Fixez-le ici et inscrivez les
numéros de série et de modèle. Ces numéros se trouvent sur le produit.
No de modèle ______________________
No de série ______________________
Date d'achat: ______________________
Détaillant/adresse/téléphone: _______________________________
__________________________________________________________
TABLE DES MATIÈRES
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Description du casque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Rechargement du casque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Description du socle de rechargement/émetteur . . . . . . . . . . . . . . . . .20
Accessoires fournis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Installation des piles et information
Installation des piles rechargeables . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Chargement des piles rechargeables . . . . . . . . . . . . . . . . . . . . . . . . . .22
Effet mémoire de pile rechargeable NiMH . . . . . . . . . . . . . . . . . . . . .22
Décharge d'alimentation naturelle NiMH . . . . . . . . . . . . . . . . . . . . .22
Avertissement de piles NiMH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Raccordement du socle de rechargement/émetteur . . . . . . . . . . . . . . .23
Fonctionnement
Utilisation standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Configuration d'installation de rechange . . . . . . . . . . . . . . . . . . . . . .24
Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Fiche technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 17

18
CARACTÉRISTIQUES
Grâce à la technologie RF de 900 MHz, vous pouvez vous déplacer
librement partout dans la maison
Distance de fonctionnement maximale de 150 pieds/45 mètres
du socle/émetteur*
Aucune limite de distance de visibilité directe
Commandes pratiques d'alimentation, de volume et de syntonisation
sur le casque
* La portée peut varier selon l'environnement.
INTRODUCTION
Nous vous félicitons d'avoir acheté ce casque sans fil. Le WHP170/
WHP175 utilise la transmission radiofréquence sans fil (900 MHz).
Le casque est rechargé par induction par champ électrique
et incorpore la technologie PLL (boucle à phase asservie), qui offre
trois voies de transmission radio. Ce casque d'écoute sans fil stéréo
de 900 MHz se distingue pas son design compact qui permet
d'écouter la musique et la télé pratiquement n'importe où à l'intérieur
et à l'extérieur de la maison. Il suffit de le brancher dans une source
sonore comme un lecteur DVD, un système DBS, un lecteur CD,
un téléviseur, un magnétoscope, un récepteur stéréo ou une radio.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 18

19
Piles rechargeables
DESCRIPTION DU CASQUE
Pour le fonctionnement autonome, il faut alimenter le casque sans fil
par piles rechargeables (incluses). Il faut installer les piles rechargeables
dans le logement à piles et les recharger avant l'utilisation. (Voir
Installation et information sur les piles à la page 21).
Commande
de volume Indicateur de marche
Interrupteur
Commande
de syntonisation
(WHP170: bouton)
(WHP175: sélecteur)
Indicateur de
chargement
Logement à piles
rechargeables Logement à piles
rechargeables
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 19

20
DESCRIPTION DU SOCLE DE
RECHARGEMENT/ÉMETTEUR
Le socle de rechargement/émetteur agit comme l'émetteur du signal
du casque et de base de rechargement.
Indicateur éteint:
rechargement
incorrect
Indicateur allumé:
rechargement correct
ARRIÈREAVANT
Indicateur de marche Contact de chargement
Prise d'entrée
AUDIO IN
Sélecteur de voies 1, 2, 3
Prise d'alimentation DC IN
RECHARGEMENT DU CASQUE
Pour recharger le casque, placez celui-ci dans le socle de rechargement/
émetteur, l'indicateur de chargement vers l'avant. Le casque doit
être placé à la position verticale et ne pas pencher d'un côté ou de
l'autre. L'indicateur de chargement du casque s'allume si ce dernier
est placé incorrectement.
WHP170_US_IB_REV.qxd 12/24/03 11:22 AM Page 20
