RCA DRD486RH User manual

Satellite Receiver
User’s Guide
Changing Entertainment. Again.

Cautions
Do not stack electronic components or other objects on top of the
Digital Satellite Receiver. The slots on top of the receiver must be left
uncovered to allow proper airflow to the unit. Blocking the airflow to
the unit could impair performance or damage your receiver and other
components.
Remove any sales or promotional materials attached to the product.
Do not stack the digital satellite receiver on top of a “hot component”
such as an audio power amplifier.
FCC Regulations state that unauthorized changes or modifications to
this equipment may void the user’s authority to operate it.
Your system is equipped with a RF remote control. The RF remote
control complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: 1) The RF remote may not cause harmful
interference and; 2) The RF remote must accept any interference
received, including interference that may cause undesired operation.
Note to Cable TV Installer:
This reminder is provided to call your attention to article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code, Part
1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.
Note to Satellite Dish Installer:
This reminder is provided to call your attention to articles 810 and 820
of the 1999 National Electrical Code. Refer to article 810, in particular
to 810-1 and 810-15, for required grounding of the metal structure of
the Dish Antenna. Refer also to the 810-2 which, by reference to article
820, requires that the satellite dish coaxial cable shield be connected to
the grounding system of the building as close to the point of cable
entry as practical.
Care and Cleaning:
Use a soft cloth or dusting attachment of your vacuum cleaner to dust
your digital satellite receiver. Remove dust from the ventilation holes on
the top and bottom.
Plastic surfaces are easily scratched and can be marred by alcohol and
various solvents. Avoid excessive use of oil-based furniture polishes
since the materials used in the cabinet will accumulate more dust. A
non-abrasive, anti-static cleaner/polisher is recommended.
Important Information
Product Registration
Please fill out the product registration card (packed separately) and
return it immediately, or register online at rca.com. Returning the card
allows us to contact you if needed.
Product Information
Keep your sales receipt to obtain warranty parts and service and for
proof of purchase. Attach it here and record the serial and model
numbers in case you need them. These numbers are located on the
product.
Model No. ______________________________________________
Serial No. _______________________________________________
Purchase Date: __________________________________________
Dealer/Address/Phone: ____________________________________
This symbol indicates "dangerous voltage" inside the product
that presents a risk of electric shock or personal injury.
WARNING
To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture. The apparatus shall not be exposed to dripping or
splashing. No objects filled with liquids, such as vases, shall be placed
on the apparatus.
This symbol indicates important instructions accompanying
the product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Caution: To reduce the risk of electric
shock, do not remove cover (or back). No
user serviceable parts inside. Refer
servicing to qualified service personnel.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
IMPORTANT NOTICE:
This device incorporates an anticopy process technology that is
protected by U.S. patents and other intellectual property rights. The
anticopy process is licensed for non-commercial, home use only.
Reverse engineering or disassembly is prohibited.

1
Table of Contents
Chapter 1: Connections & Setup
Things To Consider Before You Connect Components ................ 2
Choose Your Connection................................................................ 2
Insert Your Access Card ................................................................. 2
Excellent Connection ..................................................................... 3
Very Good (S-Video) / Good (Video) Connection ....................... 4
Basic Connection ............................................................................ 5

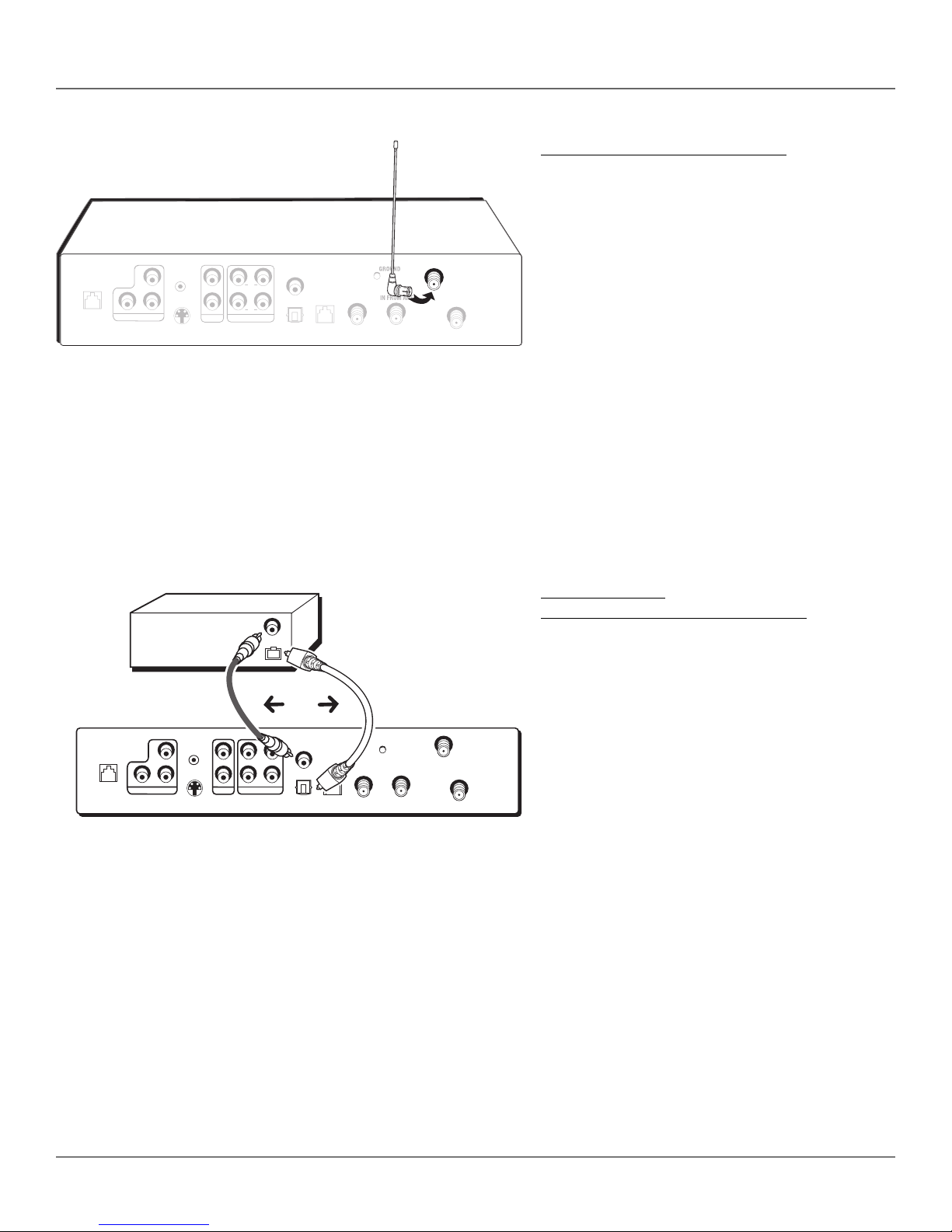

RF Remote Antenna Connection .................................................. 6
Advanced Audio (Digital Audio Output Connection) ................. 6
Jacks and Cables............................................................................. 7
Satellite Receiver Back Panel ............................................................ 8
Place Batteries in the Remote Control ........................................ 8
Plug in and Turn on the Receiver ................................................. 8
Downloading ADVANCED PROGRAM GUIDE™ Data .................. 9
Locating the VCR’s Infrared Remote Control Sensor ................. 9
Connect the VCR Controller .............................................................. 9
Using Highlight and Select............................................................ 9
Selecting a VCR Type ................................................................... 10
Complete the Assisted Setup ...................................................... 10
Order Programming...................................................................... 10
Chapter 2: Using the Remote Control
Remote Control Buttons .............................................................. 11
Top of the Digital Satellite Receiver .......................................... 12
Programming the Remote Control ............................................. 12
Operating Other Components ..................................................... 13
Controlling a Second RCA Satellite Receiver .............................13
Changing the RF Remote Control Code ..................................... 13
Code List ....................................................................................... 14
Chapter 3: Satellite Receiver Features
The Program Guide....................................................................... 16
The Channel Banner ..................................................................... 16
The DIRECTV INTERACTIVE™ Feature ......................................... 17
Displaying On-screen Guides ...................................................... 18
The Detail Guide ..................................................................................18
The Grid Guide .....................................................................................18
Getting Around In the Guides ..................................................... 18
Additional Program Guides ......................................................... 20
The Channel Guide.............................................................................. 20
The Logo Guide ....................................................................................20
The Suggestion Guide ........................................................................20
The Category Guide ............................................................................ 21
The AlphaSort™ Guide ....................................................................... 21
The Scout™ Guide ............................................................................... 21
The Profile Guide ................................................................................. 21
The Guide Toolbar ........................................................................ 22
Chapter 4: Using On-Screen Menus
Using the Menu System............................................................... 23
Main Menu Items ......................................................................... 24
The Program Guide....................................................................... 24
Messages ....................................................................................... 25
Mail .......................................................................................................... 25
Caller ID .................................................................................................. 25
Using the Purchases Menu .......................................................... 27
Reviewing and Canceling Upcoming Purchases ........................ 27
Spending Limits ...................................................................................27
Pay Per View Programs ...................................................................... 27
Timers ............................................................................................ 28
User Profiles .................................................................................. 29
Creating and Editing User Profiles ................................................29
Creating a Profile Channel List .......................................................29
Setting the Rating Limit ...................................................................30
Viewing Hours ......................................................................................30
Setting Up Spending Limits .............................................................30
Locking a User’s Profile .....................................................................30
Locking the System ............................................................................ 31
Unlocking the System ........................................................................ 31
Choosing Your Profile ........................................................................ 31
Personal Settings .......................................................................... 32
Name .......................................................................................................32
Guide Settings .................................................................................32
Channel Banner ...................................................................................32
Color Scheme ..................................................................................32
Translucency ....................................................................................32
Animation .........................................................................................32
Edit Fetch .......................................................................................... 32
INFO Message ..................................................................................33
System Setup ................................................................................ 33
Assisted Setup .................................................................................33
Receiver Index ......................................................................................33
Receiver Options.................................................................................. 34
Dish Pointing ........................................................................................36
System Test............................................................................................37
System Info ...........................................................................................37
System Upgrades .................................................................................37
New Access Card .................................................................................37
Alternate Data...................................................................................... 37
Interactive ..................................................................................... 37
Chapter 5: Other Information
Troubleshooting ............................................................................ 38
Running the System Test .................................................................. 40
Fine-Tuning the Signal ......................................................................40
Finding the TV’s Video Line Input .................................................. 40
Limited Warranty ......................................................................... 41
Accessory Information ................................................................. 44
Index .............................................................................................. 45

Chapter 1: Connections & Setup
2Chapter 1
Illustrations contained in this document are for representation only.
Things To Consider Before You Connect Components
Protect Your Components from Power Surges
• Connect all components before plugging any power cords into the wall outlet.
• Always turn off the digital satellite receiver, TV and other components before you connect or disconnect any cables.
Position Cables Correctly to Avoid Audio Hum or Interference
• Insert all cable plugs firmly into their jacks.
• Place the Audio/Video (A/V) cables to the sides of the TV’s back panel instead of straight down the middle after you connect your components.
• Try not to coil any twin-lead cables and keep them away from the A/V cables as much as possible.
• Make sure all antennas and cables are properly grounded. See the inside front cover of this book for more information.
Protect Your Components from Overheating
• Do not block ventilation holes in any of the components. Arrange the components so that air can circulate freely. Remove any sales or
promotional materials attached to the product.
• Do not stack components.
• Allow adequate ventilation when placing components in a stand.
• Place an amplifier or receiver on the top shelf of the stand so heated air rising from it will not flow around other components.
Choose Your Connection
There are several ways to connect your digital satellite receiver depending on the components you want to connect and the quality of the signal you
want to achieve.
The next four pages show three options for connecting your satellite receiver to your other components, plus two options for connecting your
satellite receiver to a digital audio receiver and instructions for connecting an antenna for an RF remote control. Choose the connection that most
closely matches your components in order to get the best signal you can. For example, if your TV has component video inputs, use the Excellent
Connection shown on the next page as a guide. If your TV only has an RF coaxial input, use the Basic Connection shown on page 5 as a guide.
Page 7 shows the kinds of cables you’ll use to make connections.
Insert Your Access Card
Find the access card in the material that came with your receiver. Make sure the card is facing
up, and fully insert it into the slot on the right side of your satellite receiver.

Chapter 1 3
Connections & Setup
Excellent Connection
Using A/V Cables for component video and A/V connections
for the TV and VCR
This connection provides this receiver’s best picture quality, surpassing that of
S-Video. The component video connection is recommended for use with
HDTVs and multimedia monitors.
Component Video provides the best picture quality (breaking the video signal
into three separate parts). Remember to connect audio cables as well.
What you will need (see page 7 for descriptions of these cables):
• Eight (8) A/V cables
• Three (3) video grade (or component video) cables
• One (1) telephone line cord
• Coaxial cable lines fed from a digital satellite antenna and a standard TV
antenna (or cable feed)
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the
SATELLITE IN jack on the satellite receiver.
2. Connect the cable box or off-air antenna feed (RF coaxial cable) to the IN
FROM ANT jack on the satellite receiver.
3. Connect one end of the supplied telephone line cord to the PHONE JACK
on the back of the satellite receiver, and the other end to an RJ11-type
modular phone jack (the most common type of phone jack).
4. Connect the ends of the supplied A/V cables to the AUDIO and VIDEO
jacks on the back of the digital satellite receiver. Connect the other ends
of the A/V cables to the corresponding Audio/Video input jacks on the
back of the VCR.
Note: Make sure you connect jacks corresponding to their labels. For example,
the VIDEO output on the digital satellite receiver should be connected to VIDEO
input on the VCR, the AUDIO R output to the VCR’s right audio input jack, etc.
5. Connect the ends of a second set of A/V cables (not supplied) to the
AUDIO and VIDEO output jacks on the VCR. Connect the other ends of the
A/V cables to the corresponding Audio/Video input jacks on the back of
the TV.
6. Connect the ends of the component video cables (not supplied) to the
COMPONENT VIDEO jacks on the digital satellite receiver. Connect the
other ends of the component video cables to the corresponding input
jacks on the back of the TV.
Note: Make sure you connect jacks corresponding to their labels. For example,
the Pr output on the digital satellite receiver should be connected to the Pr
input on the TV, the Pb output to the Pb input, etc.
7. Connect cables to the digital satellite receiver’s second AUDIO output jacks
and the other ends to the corresponding Audio input jacks on the TV.
Go to Page 6
Note: Your VCR and TV back panels may not look exactly
like the ones illustrated.
Di
g
ital
S
a
t
elli
t
e
R
ece
iv
er
Cable or
Off-air
Antenna
S
atellite
Di
s
h Ant
e
nn
a
R
J
11
mo
du
l
a
r
phone
j
ac
k
SATELLITE IN
S-VIDEO
OUT TO TV IN FROM ANT
PHONE
GROUND
– R –
AUDIO
– L –
VIDEO
DIGITAL
AUDIO
VCR
LOW SPEED
DATA
Pr
Pb
Y
RF ANT
COMPONENT VIDEO
TV
V
CR
IN
ANT
OU
T
IN
OUT
AUD
L
R
VIDE
O
A
U
DI
O
Vi
deo
L
C
H4
C
H
3
Y
P
B
P
R
Using Your Components
To watch DIRECTV® programming:
Tune the TV to its Component video input channel (if you have difficulty finding your TV’s Component input channel, see your TV’s User’s Manual, or
see page 40 in this manual for additional information). When the TV is tuned to the component video input channel, tune the satellite receiver to the
desired channel.
To record DIRECTV programming:
Tune the satellite receiver to the desired channel. Then set your VCR to record on its video input channel. Begin recording as usual.
To view VCR recordings:
Tune the TV to its video input channel (if you have difficulty finding your TV’s video input channel, see your TV’s User’s Manual, or see page 40 in this
manual for additional information). Begin VCR playback as usual.
1
2
3
4
5
6
7
DIRECTV programming is subject to the terms and conditions of the DIRECTV Customer Agreement; a copy is provided at DIRECTV.com and with your first bill.
See page 10 for more information.

Connections & Setup
4Chapter 1
Very Good (S-Video) / Good (Video) Connection
Using S-Video (or Video) and Audio jacks and cables to
connect to the TV, RF coaxial cables to connect to the VCR
The S-Video connection provides better picture quality than a regular
(composite) video cable and should be used with TVs that don’t have
component video inputs (remember to also connect audio cables since S-
Video carries no sound).
The Video connection provides better picture quality than an RF coaxial
cable alone and should be used with TVs that don’t have component video
or S-Video inputs.
What you will need (see page 7 for descriptions of these cables):
• Two (2) RF coaxial cables
• Two (2) Audio cables
• One (1) S-Video cable (for the S-Video connection)
- OR -
• One (1) Composite Video cable (for the Video connection)
• One (1) telephone line cord
• Coaxial cable lines fed from a digital satellite antenna and a standard TV
antenna (or cable feed)
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the
SATELLITE IN jack on the satellite receiver.
2. Connect one end of an RF coaxial cable to the OUT TO TV jack on the
satellite receiver, and the other end to the antenna input jack on the VCR.
Note: If your VCR has Audio and Video input jacks, you can connect the
satellite receiver to the VCR using A/V cables instead of the RF coaxial cable.
3. Connect one end of an RF coaxial cable to the antenna output jack on
the VCR, and the other end to the TV’s antenna input jack.
4. Connect the cable box or off-air antenna feed (RF coaxial cable) to the
IN FROM ANT jack on the satellite receiver.
5. Connect one end of the supplied telephone line cord to the PHONE JACK
on the back of the satellite receiver, and the other end to an RJ11-type
modular phone jack (the most common type of phone jack).
6. Connect the ends of the audio cables (white and red) in the supplied A/V
cables to the satellite receiver’s AUDIO output jacks, and the other ends
to the corresponding AUDIO input jacks on the TV.
Note: Make sure you connect jacks corresponding to their labels. For example,
AUDIO R output on the digital satellite receiver should be connected to
AUDIO R input on the TV.
7. Connect either a the supplied S-Video cable or the video cable in the
supplied A/V cables to the satellite receiver:
A. Very Good (S-Video): Connect one end of the supplied S-Video cable to the
satellite receiver, and the other end to the S-Video input jack on the TV.
– OR –
B. Good (Video): Connect the end of the video cable (yellow) in the
supplied A/V cables to the satellite receiver’s VIDEO output jacks,
and the other end to the corresponding video input jack on the TV.
Go to Page 6
Di
g
ital
S
a
t
elli
t
e
R
ece
iv
er
Cable or
Off-air
Antenna
S
atellite
Di
s
h Ant
e
nn
a
R
J
11
mo
du
l
a
r
phone
j
ac
k
SATELLITE IN
S-VIDEO
OUT TO TV IN FROM ANT
PHONE
GROUND
–R –
AUDIO
–L –
VIDEO
DIGITAL
AUDIO
VCR
LOW SPEED
DATA
Pr
Pb
Y
RF ANT
COMPONENT VIDEO
TV
V
CR
IN
ANT
OU
T
VIDE
O
L
R
C
H4
C
H
3
S
-VIDE
O
IN
FR
O
M
ANT
Note: Your VCR and TV back panels may not look exactly
like the ones shown.
Using Your Components
To watch DIRECTV® programming:
Tune the TV to its S-Video or Video input channel (if you have difficulty finding your TV’s S-Video or Video input channel, see your TV’s User’s Manual
or page 40 in this manual for more information). Then tune the satellite receiver to the desired channel.
To record DIRECTV programming:
Tune the satellite receiver to the desired channel. Then set your VCR to record on the proper input channel (video input channel if you connected the
digital satellite receiver to the VCR using A/V jacks and cables, channel 3 or 4 if using RF coaxial cable to make the connection).
To view VCR recordings:
Tune the TV to channel 3 or 4 (whichever is set on the VCR as its output channel). Begin VCR playback as usual.
1
2
3
4
5
6
-OR- 7B7A

Chapter 1 5
Connections & Setup
Basic Connection
Using RF coaxial cables for all connections
This connection provides standard picture quality. This connection is only
recommended for use when the connected TV has no Component Video, S-
Video, or A/V input jacks.
What you will need (see page 7 for descriptions of these cables):
• Two (2) RF coaxial cables
• One (1) telephone line cord
• Coaxial cable lines fed from a digital satellite antenna and a standard TV
antenna (or cable feed).
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the
SATELLITE IN jack on the satellite receiver.
2. Connect one end of an RF coaxial cable to the OUT TO TV jack on the
satellite receiver, and the other end to the antenna input jack on the
VCR.
3. Connect one end of an RF coaxial cable to the antenna output jack on
the VCR, and the other end to the TV’s antenna input jack.
4. Connect the cable box or off-air antenna feed (RF coaxial cable) to the
IN FROM ANT jack on the satellite receiver.
5. Connect one end of the supplied telephone line cord to the PHONE JACK
on the back of the satellite receiver, and the other end to an RJ11-type
modular phone jack (the most common type of phone jack).
Go to Page 6
Di
g
ital
S
a
t
elli
t
e
R
ece
iv
er
Cable or
Off-air
Antenna
S
atellite
Di
s
h Ant
e
nn
a
R
J
11
mo
du
l
a
r
phone
j
ac
k
SATELLITE IN
S-VIDEO
OUT TO TV IN FROM ANT
PHONE
GROUND
–R –
AUDIO
–L –
VIDEO
DIGITAL
AUDIO
VCR
LOW SPEED
DATA
Pr
Pb
Y
RF ANT
COMPONENT VIDEO
TV
V
CR
IN
ANT
OU
T
VIDE
O
A
U
DI
O
L
R
C
H4
C
H
3
S
-VIDE
O
IN
FR
O
M
ANT
Note: Your VCR and TV back panels may not look exactly
like the ones shown.
1
2
3
4
5
Using Your Components
To watch DIRECTV® programming:
Tune the TV to the satellite receiver’s output channel (either channel 3 or 4).
Note: You can change the satellite receiver’s output channel by pressing the remote control’s DIRECTV button, then the MENU button, then select System Setup, then System
Options, and finally select Output Channel. Use the remote control’s arrow and OK buttons to highlight and select the desired output channel. Tune the TV to that channel to
see the satellite receiver’s picture.
To record DIRECTV programming:
Follow the directions in the previous step, then set your VCR to record on its proper input channel (channel 3 or 4 if using RF coaxial cable to make
the connection, Video input channel if using A/V cables to connect the VCR to the satellite receiver).
To view VCR recordings:
Tune the TV to channel 3 or 4 (whichever is set on the VCR as its output channel). Begin VCR playback as usual.

Connections & Setup
6Chapter 1
* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
S
ATELLITE I
N
S
-VIDE
O
OU
T T
O
T
V
PH
O
N
E
–
R
–
A
U
DI
O
–
L
–
VIDE
O
DI
G
ITA
L
A
U
DI
O
V
CR
L
O
W
S
PEED
DATA
Pr
P
b
Y
CO
MP
O
NENT VIDE
O
RF ANT
RF Remote Antenna Connection
This connection allows your remote control to communicate
with your digital satellite receiver even when you do not have
line-of-sight to the receiver’s front panel remote sensor.
Just as you would adjust a rabbit-ear antenna to get a better
picture, your RF remote may need similar adjustments
depending upon your environment. RF remote
performance will be optimal when the receiving antenna is
moved away from other electrical noise sources such as
computers, VCR’s, video games, etc., and the cables connecting
these products.
Note: The RF antenna can be connected to the IRD using standard 75
ohm TV coaxial cable which will allow greater flexibility in positioning
the antenna away from noise sources for best performance.
What you will need:
• One RF remote antenna
Making the Connection
Connect the RF remote antenna to the RF ANT jack on the back of your digital satellite receiver.
Using Your Component
As soon as the above connection is made, the RF feature of your remote is in effect. For information about programming the remote control to
operate other devices, see page 12. If you have other RF remote controls, you may want to change the RF code to avoid conflicts. To change the RF
code, see the instructions on page 13.
SATELLITE IN
S-VIDEO
OUT TO TV IN FROM ANT
PHONE
GROUND
–R –
AUDIO
–L –
VIDEO
DIGITAL
AUDIO
VCR
LOW SPEED
DATA
Pr
Pb
Y
RF ANT
Satellite Receiver
(Back Panel)
DIGITAL
AUDIO
INPUT
Receiver or
Decoder with
Optical Input
OR
COMPONENT VIDEO
Advanced Audio
(Digital Audio Output Connection)
Cables: Either Optical (SPDIF) or Coaxial Audio
Use this connection to take advantage of Dolby Digital* quality
sound, when available.
Notes: Your digital receiver back panel may not look exactly like the
one pictured.
This satellite receiver’s digital output jack fully complies with the
international standard governing this type of jack (IEC958), and will
output digital audio signals in either PCM or Dolby Digital format. It is
designed for connection to an external Dolby Digital-capable receiver/
decoder.
Older equipment, some of which is not fully compliant with IEC958,
may not be compatible with Dolby Digital. If the digital audio output is
connected to a receiver that cannot decode Dolby Digital signals, set
the Dolby Digital setting in the System Options menu to PCM (see page
35 for further details). Failure to do so could create a high noise level,
causing damage to headphones, speakers, or your hearing.
Making the Connection
Connect one end of either an optical (SPDIF) cable or a coaxial digital audio cable (you do not have to connect both) to the corresponding DIGITAL
AUDIO output jack* on the satellite receiver, and to the corresponding digital audio input jack on a Dolby Digital receiver or decoder.
Using Your Component
After you connect your satellite receiver to an A/V receiver that includes a Dolby Digital-capable receiver/decoder, you must select Dolby Digital from
the Receiver Options menu (press the remote control’s MENU button, then select System Setup, then Receiver Options, then highlight Dolby Digital.
Use the remote control’s arrow and OK buttons to highlight and select Autoselect, PCM, or Dolby Digital in order for the receiver to recognize the
digital audio connection.
For more information on this feature, see the Dolby Digital entry starting on page 35.

Chapter 1 7
Connections & Setup
Jacks and Cables
Below is a description of the jacks and cables you can use to make connections. Not all cables come with your digital satellite receiver.
S-VIDEO
VIDEO AUDIO
LR
Pb Pr
Y
VCR
DIGITAL
AUDIO
PHONE
DIGITAL
AUDIO
ANTENNA IN
Component Video
Component Video provides this receiver’s best picture quality. Component Video jacks break a standard picture signal down
into three parts for superior imaging. Remember to connect the left and right audio cables because Component Video
carries only the picture signal, not the sound.
S-Video
S-Video jacks/cables provide very good picture quality. Remember to connect the left and right audio cables to the TV
because the S-Video cable carries only the picture signal, not the sound.
Audio/Video (RCA-type)
Audio/Video (A/V) cables provide good picture quality and stereo sound, and should be used if your TV has no S-video or
Component Video jacks. The digital satellite receiver’s A/V jacks are color coded (yellow for video, red for right audio, and
white for left audio). If your TV has only one input for audio (mono), connect it to the left (white) audio jack on the
satellite receiver.
RF Coaxial Cable (F-type)
RF jacks provide good picture and mono sound quality. They should be used if A/V connections are not available on your TV.
RF jacks are also used for off-air antenna, cable, and RF remote control antenna connections. The RF jacks on the receiver
are labeled IN FROM ANT, OUT TO TV, and RF REMOTE. The coaxial cable supplied with your system is used to connect the
receiver to your TV/VCR’s antenna input jack.
VCR Controller
The VCR Controller plugs into the VCR jack on the satellite receiver’s back panel. Attach the other end of the cable to your
VCR’s remote control sensor.
Digital Audio Output (SPDIF or Coaxial Cable)
If you own an A/V receiver that includes a Dolby Digital-compatible decoder, use a digital audio cable (either optical or
coaxial) to connect the satellite receiver to your external A/V receiver/decoder.
Telephone Jack and Cord
The telephone line cord is required to connect your satellite receiver to a telephone line if you choose to subscribe to
*DIRECTV®programming. The phone line connection is used to periodically call out to DIRECTV. You will need an RJ11-type
modulator jack (the most common type of phone jack) which might look like one of those pictured here. If you don’t have
a modular jack, call your local telephone company to find out how to get one installed.

Connections & Setup
8Chapter 1
Satellite Receiver Back Panel
This diagram illustrates each of the back panel jacks found on
your digital satellite receiver. When working with cables, be sure
to connect corresponding outputs and inputs (Video output to
Video input, Right Audio output to Right Audio input, etc.).
SATELLITE IN
S-VIDEO
OUT TO TV IN FROM ANT
PHONE
GROUND
– R –
AUDIO
– L –
VIDEO
DIGITAL
AUDIO
VCR
LOW SPEED
DATA
Pr
Pb
Y
RF ANT
COMPONENT VIDEO
For more information on the function of the back panel jacks and many other features of your digital satellite receiver, press the MENU button and
select System Setup from the Main menu, then select Receiver Index.
Back Panel Jacks (in alphabetical order)
AUDIO (R and L) Audio cables offer better sound quality than RF coaxial cables. Connect a second set of audio cables to another component, such
as a VCR or stereo.
COMPONENT VIDEO (Y PrPb)Provides this receiver’s best picture quality surpassing that of S-Video, Audio/Video, and RF coaxial cables. YPrPbjacks
break a video signal down by three separate channels, providing this receiver’s best picture quality.
DIGITAL AUDIO Connects the satellite receiver’s audio to a Dolby Digital-capable receiver or decoder. This audio connection provides the best sound
quality. Use either the optical or the coaxial DIGITAL AUDIO output jacks (not both) when using component, S-Video, or A/V video outputs.
IN FROM ANT Connect a standard TV antenna or cable feed to the satellite receiver using this jack. You can then switch between the satellite
receiver’s signal and the TV/cable feed using the remote control’s ANTENNA button to toggle between the two.
LOW SPEED DATA This port allows you to connect your digital satellite receiver to future services and accessories as they become available. A
shielded cable and additional hardware may be required.
OUT TO TV Connects the satellite receiver to your TV or VCR using RF coaxial cable. This jack provides the most basic connection, carrying average
sound and video quality.
PHONE Connects the satellite receiver to a telephone line. The digital satellite receiver requires a telephone line connection to periodically
communicate with your program provider.
RF ANT This jack connects an antenna that allows the remote control to use both infrared (IR) for line-of-sight, and radio-frequency (RF) signals,
which work through walls, to operate the satellite receiver.
SATELLITE IN Use to connect the satellite receiver to the satellite dish antenna.
S-VIDEO Provides better picture quality than VIDEO or RF coaxial cable jacks. If your TV has an S-Video jack, use it along with the audio jacks (S-
Video only carries picture information, not sound) to connect to your TV.
VCR This jack allows the satellite receiver to control the VCR using an IR cable. The cable is attached above the VCR’s remote control sensor. This
connection is required for One-Touch Record and Timer recording features.
VIDEO Provides better picture quality than the OUT TO TV jack. Connect the second VIDEO jack to another device, such as a VCR. You must also
connect the AUDIO cables when using the VIDEO connection.
Place Batteries in the Remote Control
Follow these steps whenever you need to install or change the batteries in your digital satellite
receiver’s remote control.
Note: When replacing old batteries, you may need to reprogram the remote control to operate other devices.
Avoid pressing any of the remote control buttons while you’re replacing old batteries. If you press a remote
control button while replacing batteries, you will need to reprogram the remote control to operate other
devices.
1. Remove the cover from the battery compartment.
2. Insert batteries in the battery compartment, matching
the + and – end of each battery.
3. Replace the cover.
Plug in and Turn on the Receiver
Plug the end of the power cord into the wall outlet. Be sure to insert the plug completely.
To turn on the satellite receiver, press the DIRECTV button on the remote control or the ON•OFF
button on the front panel. If your TV brand is RCA, GE, or Proscan, press the TV button on the
remote control to turn on the TV. If your TV brand is not RCA, GE, or Proscan, see page 12 in the
next section, Using the Remote Control, for details on programming the satellite receiver’s
remote control to operate your TV.
Note:
The message “Searching for Satellite Signal” might appear
briefly at the bottom of your screen when you turn on
your satellite receiver for the first time. This is normal.
If this message stays on the screen for more than one
minute, check your receiver’s on-screen signal meter to
make sure your antenna is receiving the strongest possible
satellite signal. See “Signal Meter” on page 36 for more
information.
