TV User'sGuide

WARNING
To reduce the risk of fire or
shock hazard, do not expose
this TV to rain or moisture.
_ T°red _lCebhek_!SNk°fue_eC_eiCv_h°:ked;a rnt°t,rel_dOve_
SHOCKDONOTOPEN JRefer servicing to qualified service personnel.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
,_ This symbol indicates
important instructions
accompanying the product.
Caution: To reduce the risk of electric shock, match
wide blade of plug to wide slot, fully insert.
Attention: Pour 6viter les chocs 61ectriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqt) au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long periods, they
may be permanently imprinted on the screen. Such images include
network Iogos, phone numbers, and video games. This damage is not
covered by your warranty. Extended viewing of channels displaying
these images should be avoided.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building as close to the point of cable entry
as practical.
Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact you if
needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial
and model numbers in case you need them. The numbers are located on the back of the television.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
VCR Plus+, C3,PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

Setup and Connections ......................................................... 3
Step 1: Unpack the TV ...................................................................... 4
Step 2: Connect Your TV .................................................................. 4
TV Only ....................................................................................... 4
The Basic Connection ................................................................. 5
Advanced Connections .............................................................. 6
Step 3: Connect the IR Controller .................................................... 9

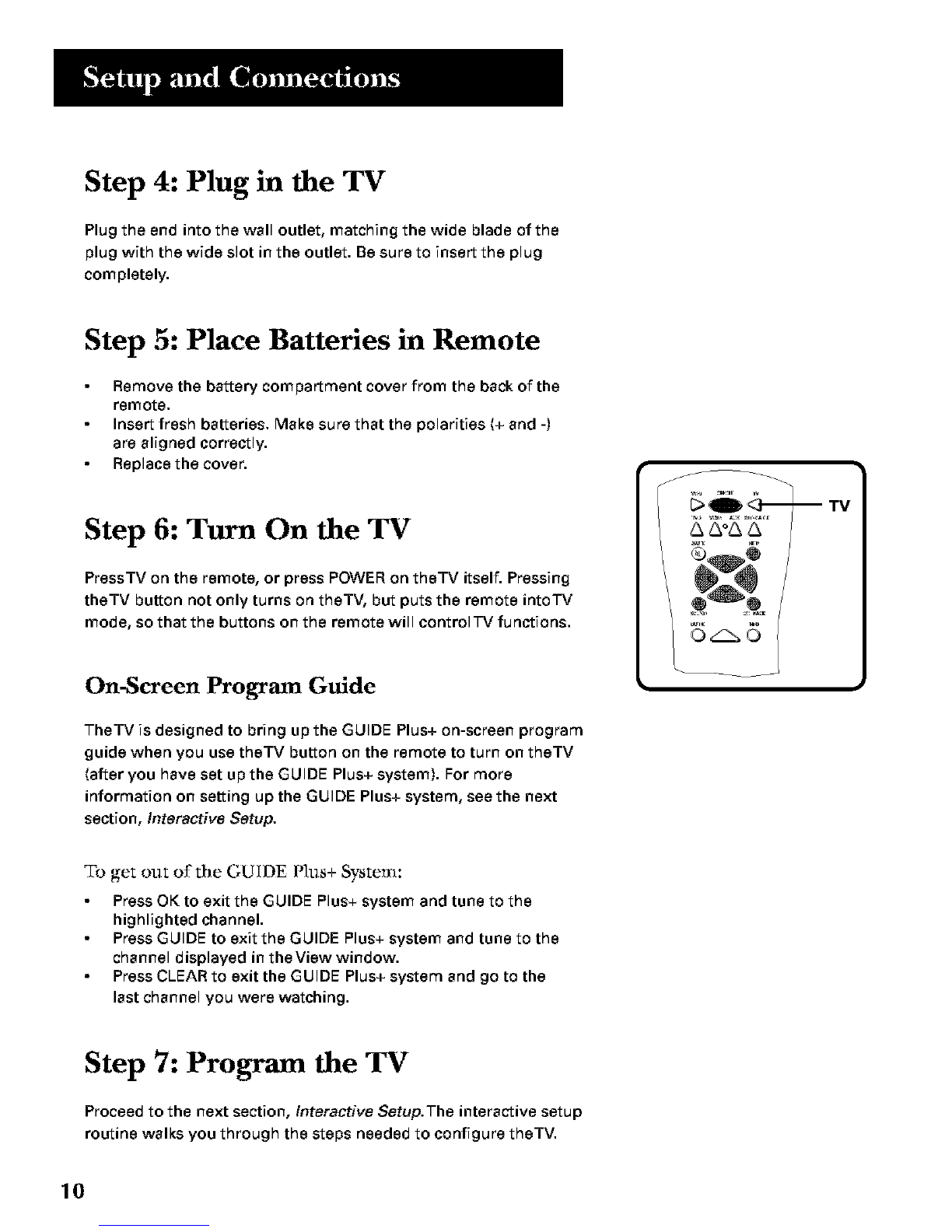

Step 4: Plug in the TV ..................................................................... 10
Step 5: Place Batteries in Remote .................................................. 10
Step 6: Turn On the TV ................................................................... 10
Step 7: Program the TV .................................................................. 10
Interactive Setup ................................................................. 11
Using Point and Select ................................................................... 12
Entering Setup ................................................................................ 12
Selecting a Language ..................................................................... 13
Auto Channel Search ..................................................................... 13
The GUIDE Plus+ System ................................................................ 14

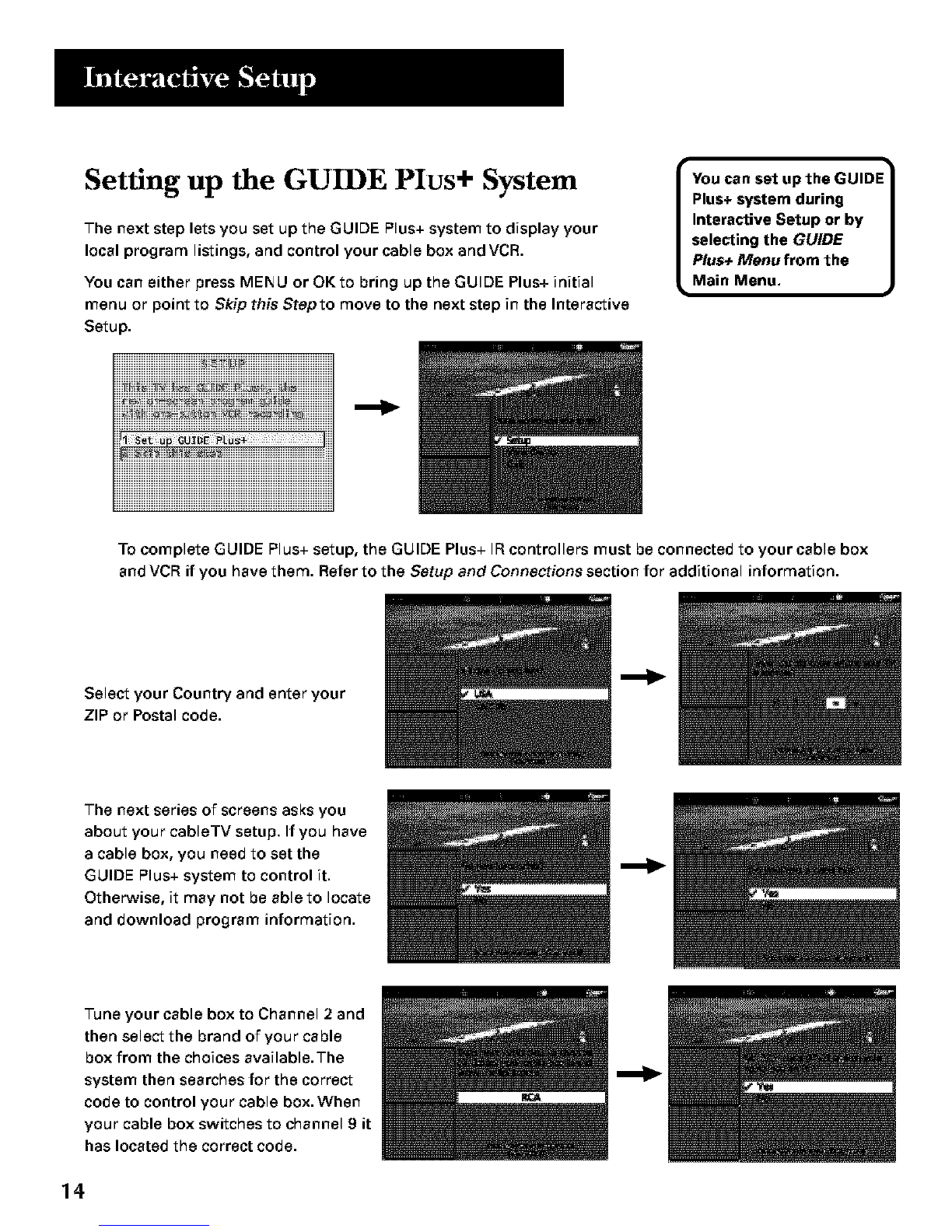

Setting Up the GUIDE Plus+ System ........................................ 14
Setting the Time ............................................................................. 16

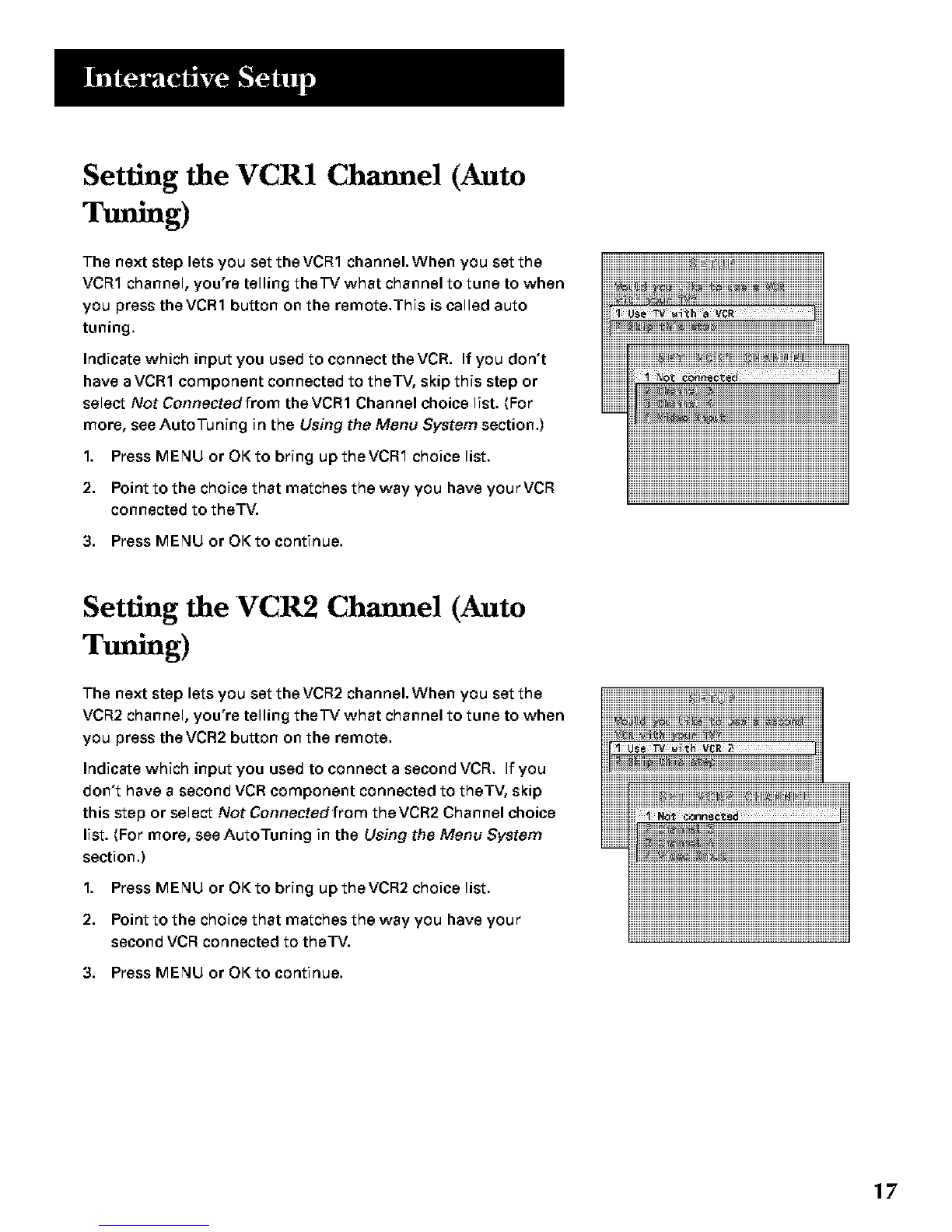

Setting the VCR1 Channel (Auto Tuning) ..................................... 17
Setting the VCR2 Channel (Auto Tuning) ..................................... 17

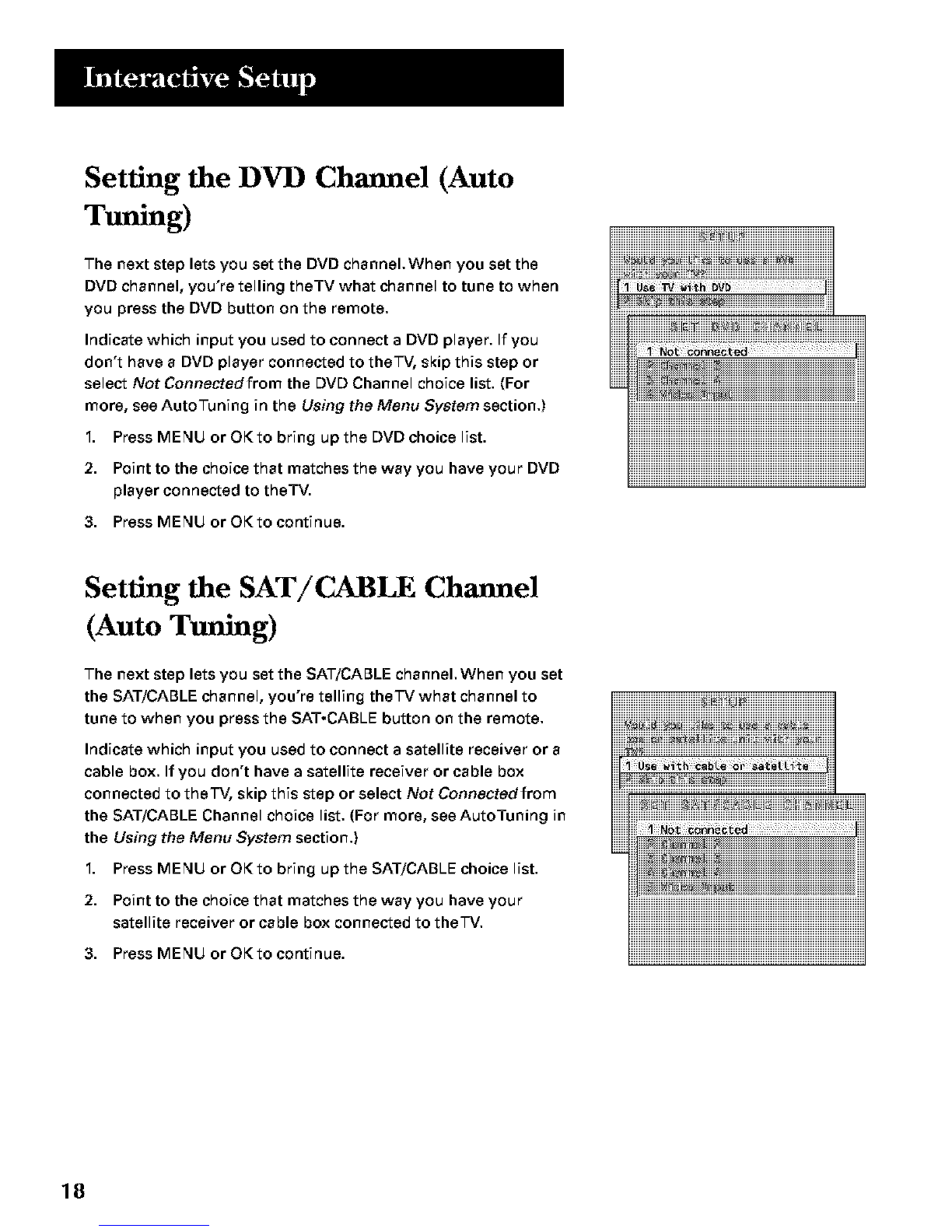

Setting the DVD Channel (Auto Tuning) ...................................... 18
Setting the SAT/CABLE Channel (Auto Tuning) ............................ 19
Labeling the Channels ................................................................... 20
Using the Remote ............................................................... 21
Remote Buttons .............................................................................. 22
Using the WHO.INPUT Button ................................................ 23
Programming the Remote ............................................................. 24
Testing the Remote .................................................................. 24
Using the Remote to Control a Device ................................... 25
Modes of Operation ................................................................ 25
Front Panel ..................................................................................... 25
1

Using the Menus ................................................................. 27
Menus and Control Panels ............................................................. 28
Audio Menu .................................................................................... 30
Using the Remote to Select an Audio Processor .......................... 31
Picture Quality Menu ..................................................................... 32
Screen Menu ................................................................................... 33
Using Closed Captioning ......................................................... 34
Channel Menu ................................................................................ 35
Time Menu ...................................................................................... 36
Other Menus ................................................................................... 36
Features and Controls ......................................................... 37
GUIDE Plus+ Menu ......................................................................... 38
About the GUIDE Plus+ System ..................................................... 38
Getting In & Out of the GUIDE Plus+ System ......................... 39
Downloading Data .................................................................. 39
The Different GUIDE Plus+ System Menus ............................. 39
Grid Guide ........................................................................... 40
Sort ...................................................................................... 41
Schedule .............................................................................. 42
Messages ............................................................................. 43
Editor ................................................................................... 44
Channel Marker .............................................................................. 46
Parental Controls and V-Chip ........................................................ 47
V-Chip TV Rating Limit ............................................................ 48
V-Chip Movie Rating Limit ...................................................... 52
V-Chip Unrated Program Block ............................................... 53
Channel Block .......................................................................... 53
Front Panel Block ..................................................................... 53
Lock/Unlock Parental Controls ................................................ 53
Reference ........................................................................... 58
Troubleshooting ............................................................................. 54
Care and Cleaning .......................................................................... 55
Limited Warranty ........................................................................... 56
Accessory Information ................................................................... 58
Index .................................................................................. 61
2

Getting Started
This manual is designed to get you started
quickly.The first five sections of the manual
show you how to get yourTV Setup and
Connected, run the Interactive Setup, Program
the Remote, and use all of the menus, features,
and controls of yourTV.
The Reference section in the back of the book
contains troubleshooting tips, care and cleaning
instructions, accessory ordering information
and your warranty.
Well... if yourTV's out of the box, let's get
started.
SETUP AND
CONNECTIONS
V
V
V
V
V
•Check out the notes that have been
added throughout the manual in
these 33pBoxes. There are some
important tips that will help you get
the most from your TV.
3

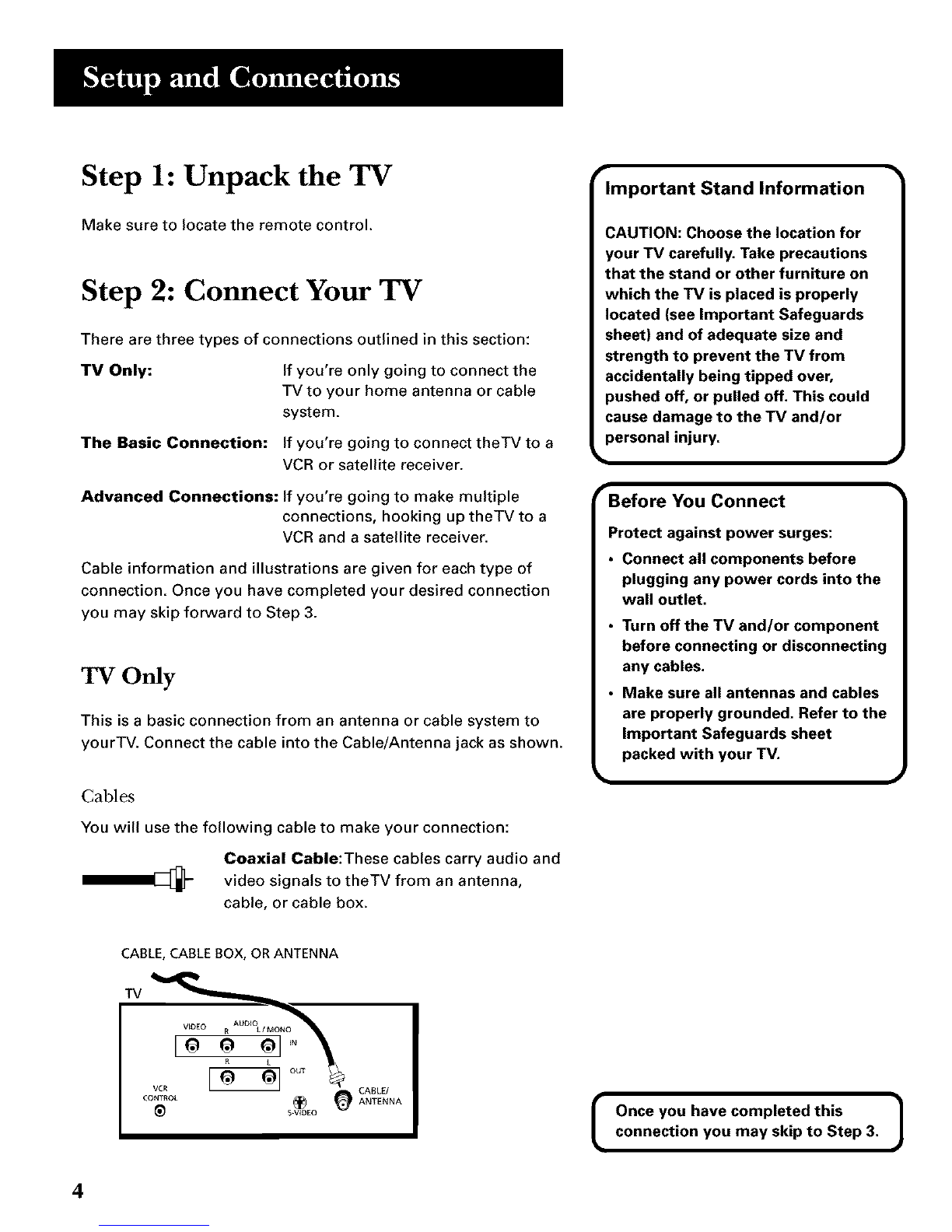

Step 1: Unpack the TV
Make sure to locate the remote control.
Step 2: Connect Your TV
There are three types of connections outlined in this section:
TV Only:
The Basic Connection:
If you're only going to connect the
TV to your home antenna or cable
system.
If you're going to connect theTV to a
VCR or satellite receiver.
Advanced Connections: If you're going to make multiple
connections, hooking up theTV to a
VCR and a satellite receiver.
Cable information and illustrations are given for each type of
connection. Once you have completed your desired connection
you may skip forward to Step 3.
TV Only
This is a basic connection from an antenna or cable system to
yourTV. Connect the cable into the Cable/Antenna jack as shown.
Cables
You will use the following cable to make your connection:
Coaxial Cable:These cables carry audio and
video signals to theTV from an antenna,
cable, or cable box.
Important Stand Information -'
CAUTION: Choose the location for
your TV carefully. Take precautions
that the stand or other furniture on
which the TV is placed is properly
located (see Important Safeguards
sheet) and of adequate size and
strength to prevent the TV from
accidentally being tipped over,
pushed off, or pulled off. This could
cause damage to the TV and/or
personal injury.
Before You Connect
Protect against power surges:
• Connect all components before
plugging any power cords into the
wall outlet.
•Turn off the TV and/or component
before connecting or disconnecting
any cables.
•Make sure all antennas and cables
are properly grounded. Refer to the
Important Safeguards sheet
packed with your TV.
CABLE, CABLE BOX, OR ANTENNA
TV
CONTROL
5kVIDEO
I Once you have completed this 1
connection you may skip to Step 3.
4

The Basic Connection
The basic connection below (TV and VCR) is the most common
connection and is therefore used to illustrate a single
component connection with yourTV. For better sound and
picture quality and multiple component connection information
refer to the next section, Advanced Connections.
Cables
You will use the following type of cable to make your
connection:
Coaxial Cables: In this connection, two
coaxial cables are used: one connects from
an antenna, cable, or cable box to the VCR,
and one connects from theVCR to theTV.
These cables carry both audio and video
signals.
CABLE, CABLE BOX, OR ANTENNA
VCR 1
IN FROM ANT CH3 I
OUT _ TVOH4 I
VIDEO AUDIO
How to View tile VCR
To watch theVCR in this connection tune
TVto Channel 3 or 4.
Later, in the Interactive Setup section
you will program theTV to automatically
tune to Channel 3 or 4 when you turn on
theVCR.
TV
VIDEO R AUDBOL 1MON O
vc. [ Oout
CABLE/CONTROL _ ANTENNA
S_VIDEO
Once you have completed this connection you may skip to
Step 3, "Connect the IR Controller"
5

Advanced Connections
Advanced connections give you better sound and video by
separating the audio and video signals and enabling you to
connect multiple components.
This section describes the types of inputs available on the back
of yourTV and suggests ways you can use them for optimum
performance.
Once you have made your
connections you will need to
program the TV to tune to the
correct Video INPUT channel in order
to see and hear audio and video from
the component, You will program
this later in the Interactive Setup.
J
Back of the TV
The diagram below describes each of the back panel jacks.When
connecting A!V cables, be sure to connect corresponding
OUTPUTS and INPUTS (Video to Video, Right Audio to Right
Audio, etc.).
Video and Audio Inputs
Connect any one of the following components:
•VCR •Internet Access Device
• Laserdisc Player • DVD Player
• Satellite Receiver
To view the component connected to VIDEO,
use theWHO.INPUT button on the remote.
\_ VIDEO
[o
VCR
CONTROL <out
S_V_D_EO
VCR Control
Connect the GUIDE Plus-
system IR controller for
one-button recording and
channel tuning from the
GUIDE Plus+ system.
/
S-Video
This optional
connection can be
used for better
video quality
• picture.
Audio Outputs
Connect to an audio receiver
or amplifier for variable
controlled or fixed level sterec
output.
/
CABLE/
ANTENNA
Cable/Antenna
Takes the signal input from a cable,
cable box, or an off-air antenna. Can also be
used for basic component connections. J
6

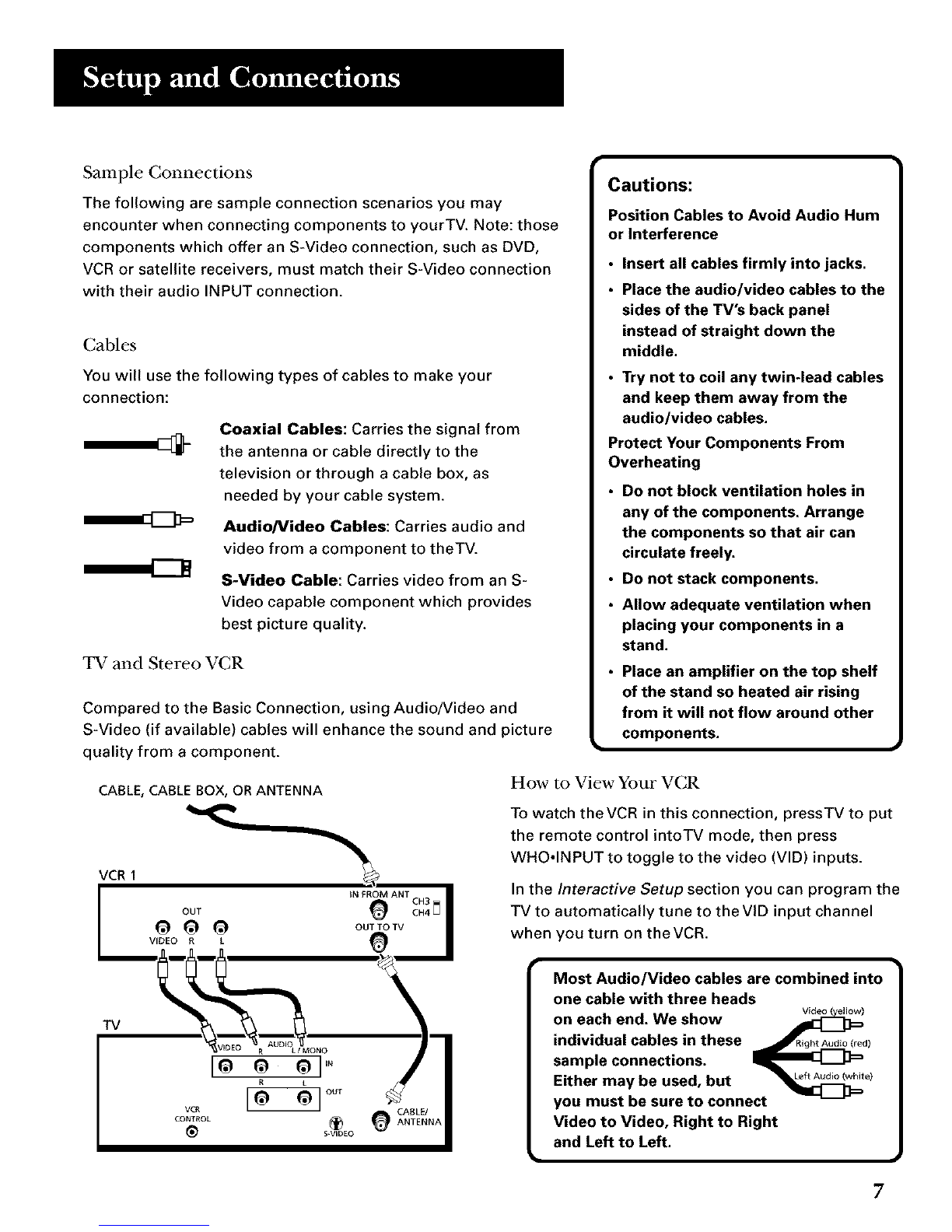

Sample Connections
The following are sample connection scenarios you may
encounter when connecting components to yourTV. Note: those
components which offer an S-Video connection, such as DVD,
VCR or satellite receivers, must match their S-Video connection
with their audio INPUT connection.
Cables
You will use the following types of cables to make your
connection:
Coaxial Cables: Carries the signal from
the antenna or cable directly to the
television or through a cable box, as
needed by your cable system.
AudioNideo Cables: Carries audio and
video from a component to theTV.
S-Video Cable: Carries video from an S-
Video capable component which provides
best picture quality.
TV and Stereo VCR
Compared to the Basic Connection, using Audio/Video and
S-Video (if available) cables will enhance the sound and picture
quality from a component.
Cautions:
Position Cables to Avoid Audio Hum
or Interference
• Insert all cables firmly into jacks.
•Place the audio/video cables to the
sides of the TV's back panel
instead of straight down the
middle.
•Try not to coil any twin-lead cables
and keep them away from the
audio/video cables.
Protect Your Components From
Overheating
Do not block ventilation holes in
any of the components. Arrange
the components so that air can
•circulate freely,
Do not stack components.
•Allow adequate ventilation when
placing your components in a
•stand.
Place an amplifier on the top shelf
of the stand so heated air rising
from it will not flow around other
components.
CABLE, CABLE BOX, OR ANTENNA
VCR1
IN FROM ANT CH3 [_ I
OUT _ CH4
O O O ou TV
VIDEO RL
TV
LIMONO
Ioo ol "
CABLE/
CONTROL _ ANTENNA
{_ S_VIDEO
How to View Your VCR
To watch theVCR in this connection, pressTV to put
the remote control intoTV mode, then press
WHO°INPUT to toggle to the video (VID) inputs.
In the Interactive Setup section you can program the
TV to automatically tune to theVID input channel
when you turn on theVCR.
• 1
Most Audio/Video cables are combined into
one cable with three heads
on each end. We show Wdeo(_,ow)
individual cables in these RightAudio(red)
sample connections.
Either may be used, but e)
you must be sure to connect
Video to Video, Right to Right
and Left to Left.
F

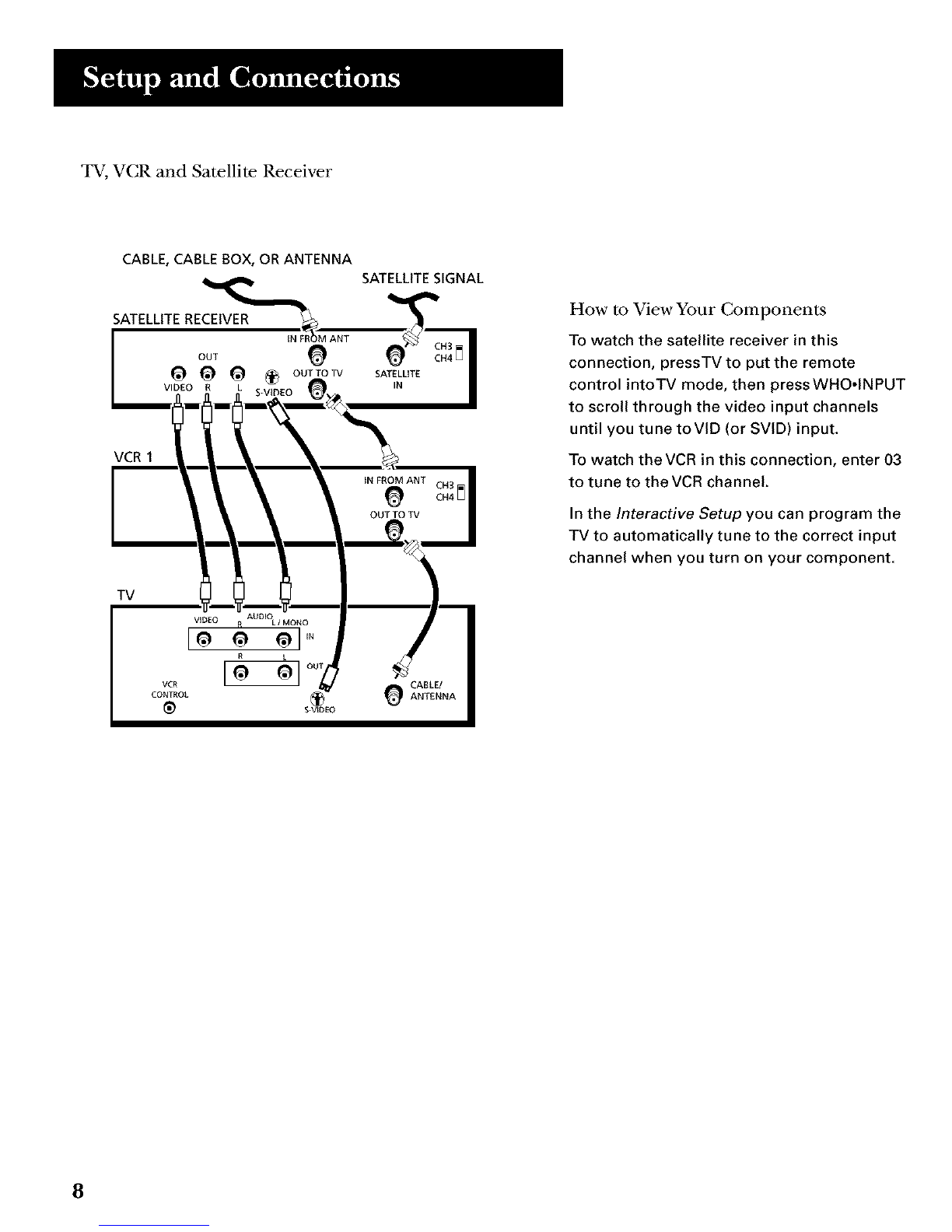

TV, VCR and Satellite Receiver
CABLE, CABLE BOX, OR ANTENNA
SATELLITE RECEIVER
VCR I
TV
SATELLITE SIGNAL
How to View Your Components
To watch the satellite receiver in this
connection, pressTV to put the remote
control intoTV mode, then pressWHO.INPUT
to scroll through the video input channels
until you tune toVID (or SVID) input.
To watch the VCR in this connection, enter 03
to tune to the VCR channel.
In the Interactive Setup you can program the
TV to automatically tune to the correct input
channel when you turn on your component.
8
