RCA TruFlat F20TF10 User manual

CABLE
OR
OFF-AIR SIGNAL
L
R
VIDEO
AUDIO
IN FROM ANT
IN
OUT
OUT TO TV
LR
VCR
ANTENNA
TV
G-LINK
Quick Setup
STEP 1: Connect the TV
Please consult your Television User’s Guide for additional
connection options.
Go to STEP 2 on the next page

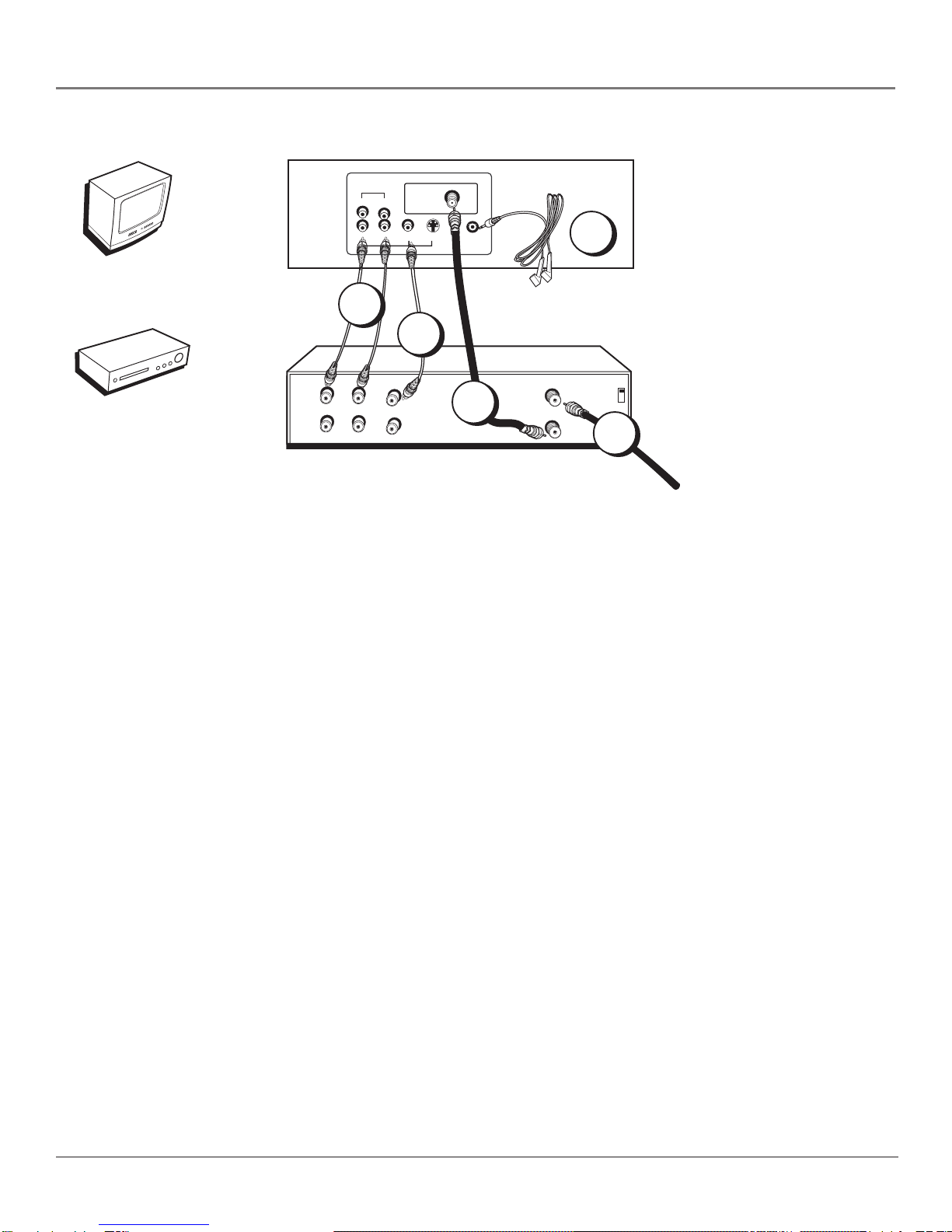

Connecting a TV and VCR
Use a coaxial cable to connect your cable signal or
off-air antenna to the antenna input on your VCR.
Use a coaxial cable to connect the antenna output from
your VCR to the ANTENNA IN jack on the TV.
Plug the G-LINK cable into the G-LINK jack.
1
2
3
1
2
3
Welcome to your no-fee GUIDE Plus+™ Interactive Program Guide. The GUIDE Plus+ system lists TV
schedules for your area on-screen and allows your TV direct control of a cable box and VCR.
This Quick Setup sheet contains basic connection information for your new TV and the GUIDE Plus+ system. Please
consult your Television User’s Guide for additional connection options and other features.
VCR Plus+, C3, PlusCode, GUIDE Plus+, and G-LINK are trademarks of Gemstar Development Corporation. The VCR Plus+ and GUIDE
Plus+ systems are manufactured under license from Gemstar Development Corporation and VCR Index Systems B.V., respectively.
GEMSTAR AND THOMSON MULTIMEDIA INC. ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR OR THOMSON
BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR
CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT,
OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
VCR required for recording.
G-LINK wands
G-LINK cable
Key Features:
• TV program listings and information
• One-touch VCR recording
• Sort programs by categories
• Latest news from MSNBC

Why You Should Use the G-LINK Cable
If you require a cable box to supply your television signal, you must properly connect the G-LINK cable in order
to use the GUIDE Plus+ system. Additionally, using the G-LINK cable with your VCR enables one-touch VCR
recording from the on-screen program guide.

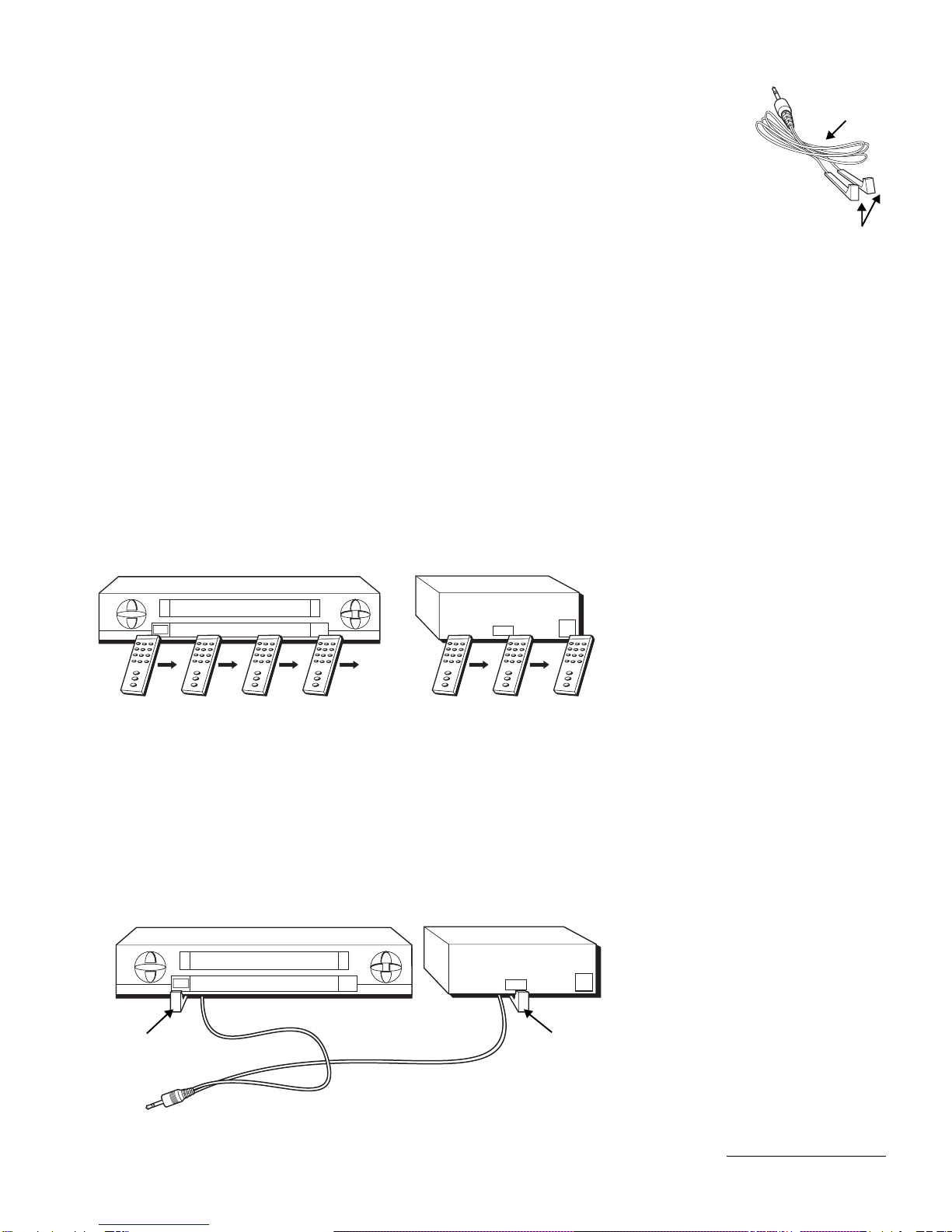

How to Find the Remote Control Sensor
The G-LINK wand needs to be placed in front of the remote control sensor on your VCR and/or cable box so
that the TV can communicate with each of these components.
Some cable boxes and VCRs have the remote control sensor labeled on the unit. If the remote control is labeled
on your VCR and cable box, skip to “Placing the G-LINK Cable Wands” below.
If the remote control sensor isn’t labeled on your VCR and/or cable box, you need to use the remote control that
came with the VCR and/or cable box to locate the sensor.
1. Turn off the VCR and/or cable box.
2. Hold the remote control (not the one that came with your TV, but the one that came with the cable box
and/or VCR) so that it is touching the front of the component.
3. Slowly move the remote control across the front of the component (VCR or cable box) while you press the
power button on and off. You must press and release the power button each time you move the remote
(holding down the button won’t work).
VCR
03
CHANNEL
CABLE BOX
VCR
03
CHANNEL
SENSOR
SENSOR
Connect to G-LINK jack
on the back of the TV
Tip
If you are not using both of
the G-LINK wands with your
system, you can coil the extra
cable, secure it with a twist
tie, and leave it behind the TV.

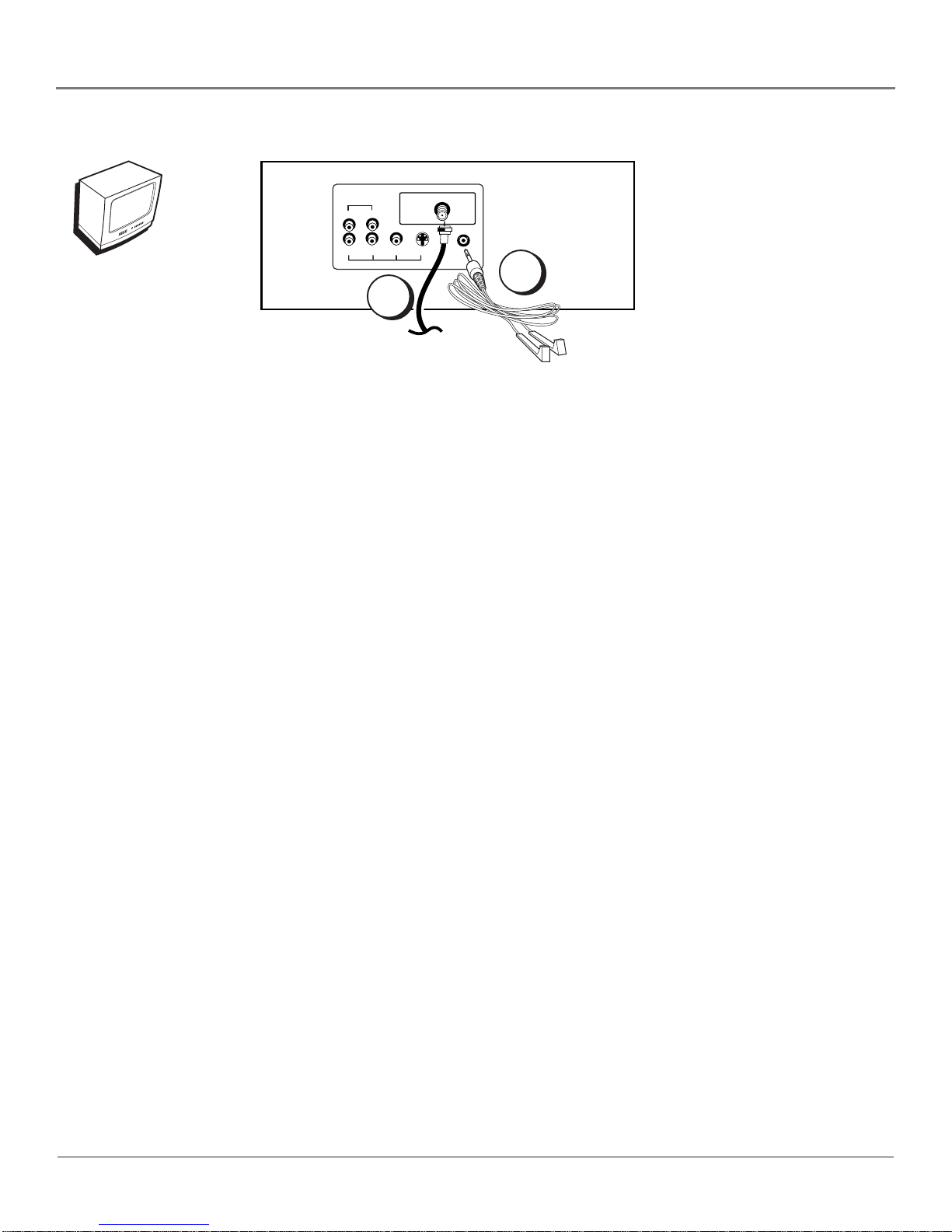

Placing the G-LINK Cable Wands
Place the wands of the G-LINK cable underneath your VCR and/or cable box so that the
bulb is about one inch in front of the remote control sensor. (Make sure you have plugged
the G-LINK cable into the G-LINK jack on the back of the TV.
STEP 2: Place the G-LINK Wands
The G-LINK wands must be placed in front of the remote control sensors on your VCR and cable box to
enable the GUIDE Plus+ system to work properly with your VCR and/or cable box.
4. When the component turns on, you’ve located the remote control sensor.
5. Place the wands of the G-LINK cable underneath your VCR and/or cable box in front of the sensor (see
instructions below).
G-LINK wands
G-LINK cable
G-LINK wand G-LINK wand

STEP 3: Plug in the TV
Plug the end of the power cord into the wall outlet. Match the wide blade of the
plug with the wide slot in the outlet. Insert the plug completely into the outlet.
STEP 4: Put Batteries in the Remote
1. Remove the battery compartment cover on the remote.
2. Insert new batteries. Match the polarities (+ and -) on the batteries with the
diagram on the remote.
3. Put the battery compartment cover back on the remote.
STEP 5: Turn on the TV
Press the TV button on the remote control, or press the POWER button on the TV’s
front panel to turn on the TV. (The first screen of the Interactive Setup appears.)
Auto Channel Search
In the next step of the setup routine, the TV searches for all
channels viewable through your antenna or cable TV
system. This is sometimes called “auto programming.”
1. Highlight “Search for channels” and press OK.
The TV will search for available channels. When the
search is completed, you can begin the GUIDE Plus+
system setup.
SETUP
Select the language to be used
in these menus.
1 English
2 Español
3 Français
Selecting a Language
The first part of the setup routine asks you to select
your preferred language for the menu system.
1. Highlight your preferred language.
2. Press OK to select that language.
SETUP
Would you like the TV to search
for all a ailable channels?
1 Search for channels
2 Skip this step
Use the arrow
buttons to
navigate and
the OK button
to select.
OK
How to Use the Remote Control to Complete the
Interactive Setup
The arrow buttons enable you to navigate through the on-screen display system.
The OK button enables you to select a highlighted item.
• Press the up or down arrow button to move up or down through a menu
screen.
• Press the right or left arrow button to move right or left through a menu
screen.
• Press OK to select the item that you’ve highlighted.
STEP 6: Complete the Interactive Setup
The Interactive Setup routine prepares your TV and the
GUIDE Plus+ system for use.

The GUIDE Plus+ System Setup
The remainder of the interactive setup is designed to enable all of the features
of the GUIDE Plus+ system.
Background
Information
Question &
Answer
Navigation
Instructions
TOCOM 15694510
Overview of a GUIDE Plus+ System Setup Screen
Most setup screens are divided into three parts: If you need additional
information, refer to the Television User’s Guide.
Background Information —Gives an explanation of the step.
Question & Answer — Asks you to answer a question.
Navigation Instructions — Tells you which buttons to press in order to perform
the action.
STEP 1: Identifying Your TV’s Location
You need to indicate in which country the TV is located, and then enter the ZIP code (or postal
code for Canada). The GUIDE Plus+ system uses this information to determine which program
offerings are available in your area.
STEP 2: Configuring for Cable
After you have entered your location information, you need to indicate how you receive your TV
programming.
No Cable Service to this TV
If you do not have cable service on this TV, the GUIDE Plus+ system will create a guide listing
based only on the local off-air programming available in your area.
Cable Service to this TV
If you have cable service on this TV, you need to indicate whether or not a cable box is connected
to the TV.
If you indicate that you do have a cable box, you will need to configure your cable box to receive
information from the TV through the G-LINK cable.
IMPORTANT: You need to make sure that you have followed the steps on
page two of this Quick Setup and properly connected the G-LINK cable to
the TV and placed a G-LINK wand in front of the remote control sensor on
your cable box.
Follow the on-screen prompts to allow the GUIDE Plus+ system to control your cable box. If you
encounter difficulties, please refer to the Television User’s Guide for step-by-step instructions.
STEP 3: Configuring for a VCR
Completing STEP 3 will enable you to use the one-touch VCR recording feature by allowing the TV
to communicate with the VCR through the G-LINK cable.
IMPORTANT: You need to make sure that you have followed the steps on
page two of this Quick Setup and properly connected the G-LINK cable to
the TV and placed a G-LINK wand in front of the remote control sensor on
your VCR.
Follow the on-screen prompts to allow the GUIDE Plus+ system to control your VCR. If you
encounter difficulties, please refer to the User’s Guide that accompanied this TV for step-by-step
instructions.
STEP 4: Confirming Your Settings
The next step shows you a screen that confirms all of the settings. If any settings are incorrect, you
can repeat the setup process to make changes.
Tip
Refer to your Television User’s
Guide for step-by-step
instructions for the GUIDE
Plus+ system setup.

Television
User’s Guide
Changing Entertainment. Again.

This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
G-LINK, VCR Plus+, C3, PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development
Corporation.
The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.
Thomson multimedia Inc. and Gemstar are not in any way liable for the accuracy of the program information
provided by the GUIDE Plus+ System. In no event shall Thomson multimedia Inc. or Gemstar be liable for any
amount representing loss of profits, loss of business, or indirect, special, or consequential damages in connection
with the provision or use of any information equipment, or services relating to the GUIDE Plus+ System.
WARNING
To reduce the risk of fire or
electric shock, do not expose
this product to rain or moisture.
To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates
important instructions
accompanying the product.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqú au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user’s authority to operate it.
Caution: Using video games or any external accessory with fixed
images for extended periods of time can cause them to be
permanently imprinted on the picture tube (or projection TV picture
tubes). ALSO, some network/program logos, phone numbers, etc.
may cause similar damage. This damage is not covered by your
warranty.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact
you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record
the serial and model numbers in case you need them. The numbers are located on the back of the television.
Model No.__________________________________________________________________________________________
Serial No. __________________________________________________________________________________________
Purchase Date:______________________________________________________________________________________
Dealer/Address/Phone: ______________________________________________________________________________
Important Information

Introduction
1
Key Features Overview
Your TV is equipped with features that will add to your TV viewing experience. The following
information summarizes a few of these features. Chapter 3 provides more information about the
rest of the TV’s features and how to use them.
On-screen Program Guide
Description: The GUIDE Plus+ system is an on-screen interactive list of
programs and information that is built into your TV. You can scroll through the
guide to see what’s on and tune directly to that program from the guide. You
can also browse programs by category with the sort feature.
When you access the News feature, MSNBC will appear in your video window
if it’s available through your TV.
One-Touch VCR Recording is another benefit of the GUIDE Plus+ system. You
don’t have to remember to program your VCR or use the menus in your VCR
to set up a recording.
Requirements:
• Complete the on-screen interactive setup. You’ll find detailed instructions
in Chapter 1.
• One-Touch VCR Recording: You must connect the G-LINK cable to the TV
and place one of the wands in front of the remote sensor on the VCR.
• If you have a cable box, connect the G-LINK cable to the TV and place
one of the wands in front of the remote sensor on the cable box.
V-Chip: Parental Controls
Description: You can block programs and movies by content, age-based
ratings, and/or movie ratings.
Requirements:
• Set up the Parental Controls menu in the TV’s main menu (Chapter 3
has details).
• The broadcasters must use the rating system when they send the program
to your TV in order for your TV to block the program.
Auto Tuning
Description: Allows you to set up the TV to automatically tune to a specific
channel when you press a certain component (VCR, DVD Player, etc.) button
on the remote.
Requirements: Set up Auto Tuning in the TV’s menu system. (Chapter 3
has details).
- - Content - -
V-CHIP TV RATING LIMIT
Rating Status
TV-14 View
DLSVFV
VVVV
^
RATING STATUS
TV-MA View
TV-14 View
TV-PG View
TV-G View
TV- 7 View
TV- View
DLSVFV
BVV
VVVV
VBVV
V
Press ^/v to view programs with
this content for this rating.

(This page intentionally left blank)

Table of Contents
3
Introduction
Key Features Overview .................................................................................................... 1
On-screen Program Guide ......................................................................................... 1
V-Chip: Parental Controls ...........................................................................................1
Auto Tuning ................................................................................................................ 1
Chapter 1: Connections & Setup
Things to Consider Before You Connect ......................................................................... 6
Protect Against Power Surges ................................................................................... 6
Protect Components from Overheating ................................................................... 6
Position Cables Properly to Avoid Audio Interference ............................................ 6
Important Stand and Base Safety Information ........................................................ 6
Use Indirect Light ....................................................................................................... 6
Connection Pictures ................................................................................................... 6
Choose Your Connection .................................................................................................. 7
TV + VCR ............................................................................................................................ 8
TV Only .............................................................................................................................. 9
TV + VCR + Satellite Receiver ......................................................................................... 11

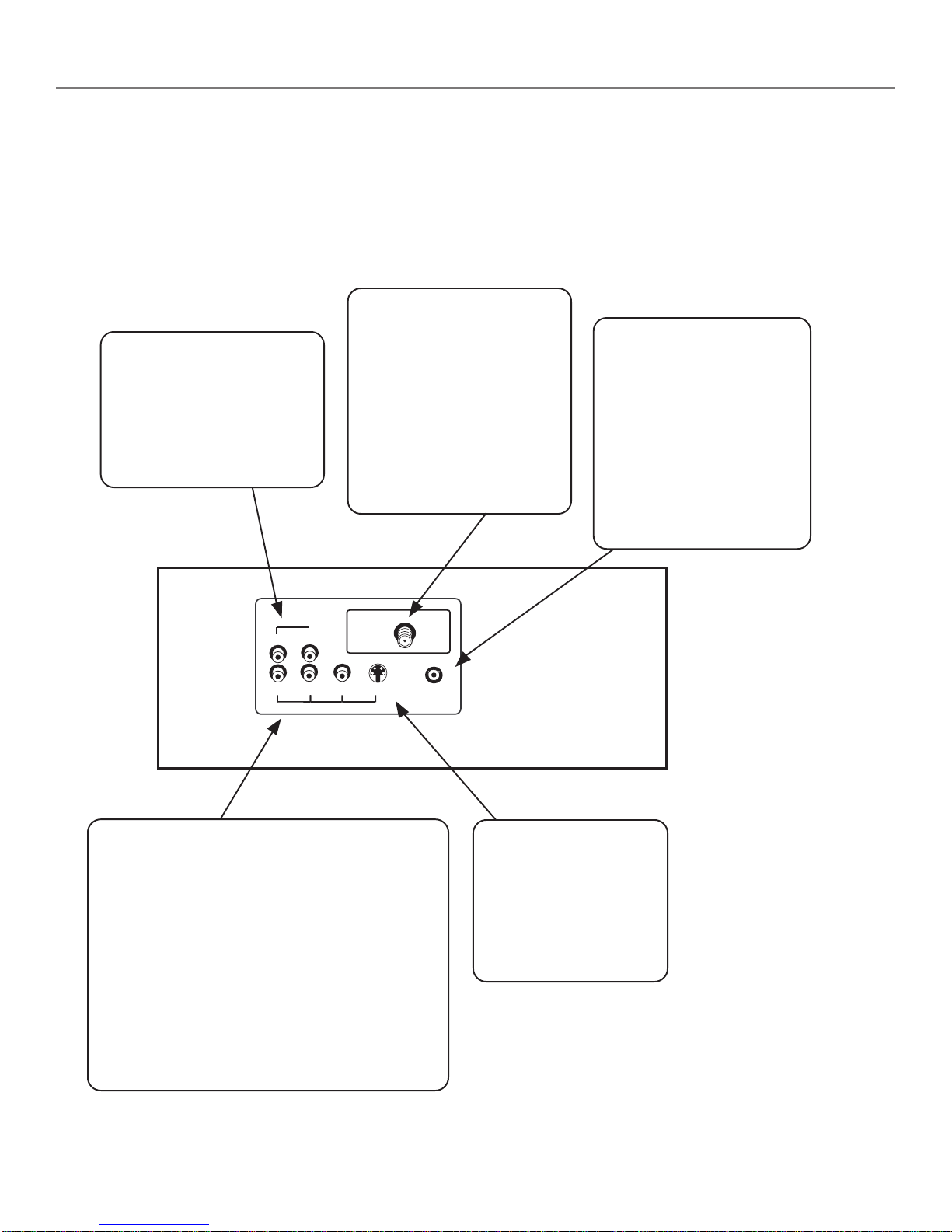

Jacks on the Back of Your TV ......................................................................................... 12
Why You Should Connect This G-LINK Cable ............................................................... 13
How to Find the Remote Sensor ............................................................................. 13
Placing the G-LINK Wands .......................................................................................13
Complete the Interactive Setup..................................................................................... 15
Set the Menu Language .......................................................................................... 15
Complete Auto Channel Search .............................................................................. 15
The GUIDE Plus+ System Setup ................................................................................ 15
What to Expect ............................................................................................................... 20
Next Steps ....................................................................................................................... 20
Chapter 2: Using the Remote Control
The Buttons on the Remote Control ............................................................................. 22
Using the WHO•INPUT Button ................................................................................ 23
Programming the Remote to Operate Other Components ......................................... 24
Find Out If You Need to Program the Remote ....................................................... 24
How to Program the Remote .................................................................................. 24
How to Use the Remote After You’ve Programmed It ................................................ 25
Chapter 3: Using the TV’s Features
About the GUIDE Plus+ System ..................................................................................... 28
Downloading Data ................................................................................................... 28
Getting In & Out of the GUIDE Plus+ System ......................................................... 29
The GUIDE Plus+ System Menus ..............................................................................29
Grid Guide ................................................................................................................ 29
Sort ............................................................................................................................31
News .......................................................................................................................... 32
Schedule .................................................................................................................... 32
Messages ................................................................................................................... 33
Channels ................................................................................................................... 34

Table of Contents
4
Setup ......................................................................................................................... 34
How to Get More Information About an Advertisement or a Program ............... 35
GUIDE Plus+ Menu Items ............................................................................................... 35
Channel Banner .............................................................................................................. 36
Why You Should Use the Auto Tuning Feature ............................................................ 36
How to Set Up the Auto Tuning Feature ................................................................ 36
Parental Controls and V-Chip ......................................................................................... 38
How V-Chip Works ................................................................................................... 38
V-Chip TV Rating Limit ............................................................................................. 39
Blocking Specific Content Themes .......................................................................... 41
Viewing Specific Content Themes ........................................................................... 42
V-Chip Movie Rating Limit ....................................................................................... 43
V-Chip Unrated Program Block ............................................................................... 44
Channel Block ........................................................................................................... 44
Front Panel Block ..................................................................................................... 44
Lock/Unlock Parental Controls ................................................................................ 44
Chapter 4: Using the TV’s Menu System
How to Use Your TV’s Menu System ............................................................................. 46
Audio Menu .................................................................................................................... 46
Picture Quality Menu ..................................................................................................... 47
Screen Menu ................................................................................................................... 48
Using Closed Captioning ................................................................................................ 48
Channel Menu ................................................................................................................. 49
Time Menu ...................................................................................................................... 50
Chapter 5: Other Information
Troubleshooting .............................................................................................................. 52
Care and Cleaning .......................................................................................................... 54
The Front of Your TV ...................................................................................................... 55
RCA TV Limited Warranty .............................................................................................. 55
Accessory Order Form .................................................................................................... 57
Index ................................................................................................................................ 59

Connections & Setup
Chapter Overview:
•Things to Consider Before You Connect
•Choose Your Connection
•Connections
•Jacks on the Back of Your TV
•Why You Should Connect This G-LINK Cable
•Plug in the TV
•Put Batteries in the Remote
•How to Use the Remote Control to Complete the
Interactive Setup
•Turn on the TV
•Complete the Interactive Setup
5
Chapter 1
Changing Entertainment. Again.

6Chapter 1
Connections & Setup
Things to Consider Before You Connect
Protect Against Power Surges
•Connect all components before you plug any of their power cords into the wall outlet.
•Turn off the TV and/or component before you connect or disconnect any cables.
•Make sure all antennas and cables are properly grounded. Refer to the Important
Safeguards sheet packed with your TV.
Protect Components from Overheating
•Don’t block ventilation holes on any of the components. Arrange the components so that
air can circulate freely.
•Don’t stack components.
•When you place components in a stand, make sure you allow adequate ventilation.
•If you connect an audio receiver or amplifier, place it on the top shelf so the heated air
from it won’t flow around other components.
Position Cables Properly to Avoid Audio Interference
•Insert each cable firmly into the designated jack.
•If you place components above the TV, route all cables down the side of the back of the
TV instead of straight down the middle of the back of the TV.
•If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin
lead cables away from audio/video cables.
Important Stand and Base Safety Information
Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate
size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled
off. This could cause personal injury and/or damage the TV. Refer to the Important Safeguards
sheet packed with your TV.
Use Indirect Light
Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft
or indirect lighting.
Connection Pictures
Audio/video cables are usually bundled together. For better visibility, the connection pictures in
this book show each cable separately (audio left, audio right, and video).

Chapter 1 7
Connections & Setup
G-LINK cable
TV
VCR
TV
Components Connection Cables Go to...
Title Needed
Coaxial
Audio/video
G-LINK cable
TV + VCR page 8
Coaxial
TV Only page 9
Audio/Video cables Coaxial cable S-Video cable
TV
VCR
Satellite
Coaxial
Audio/video
S-Video (optional)
G-LINK cable
TV + VCR +
Satellite Receiver pages 10-11

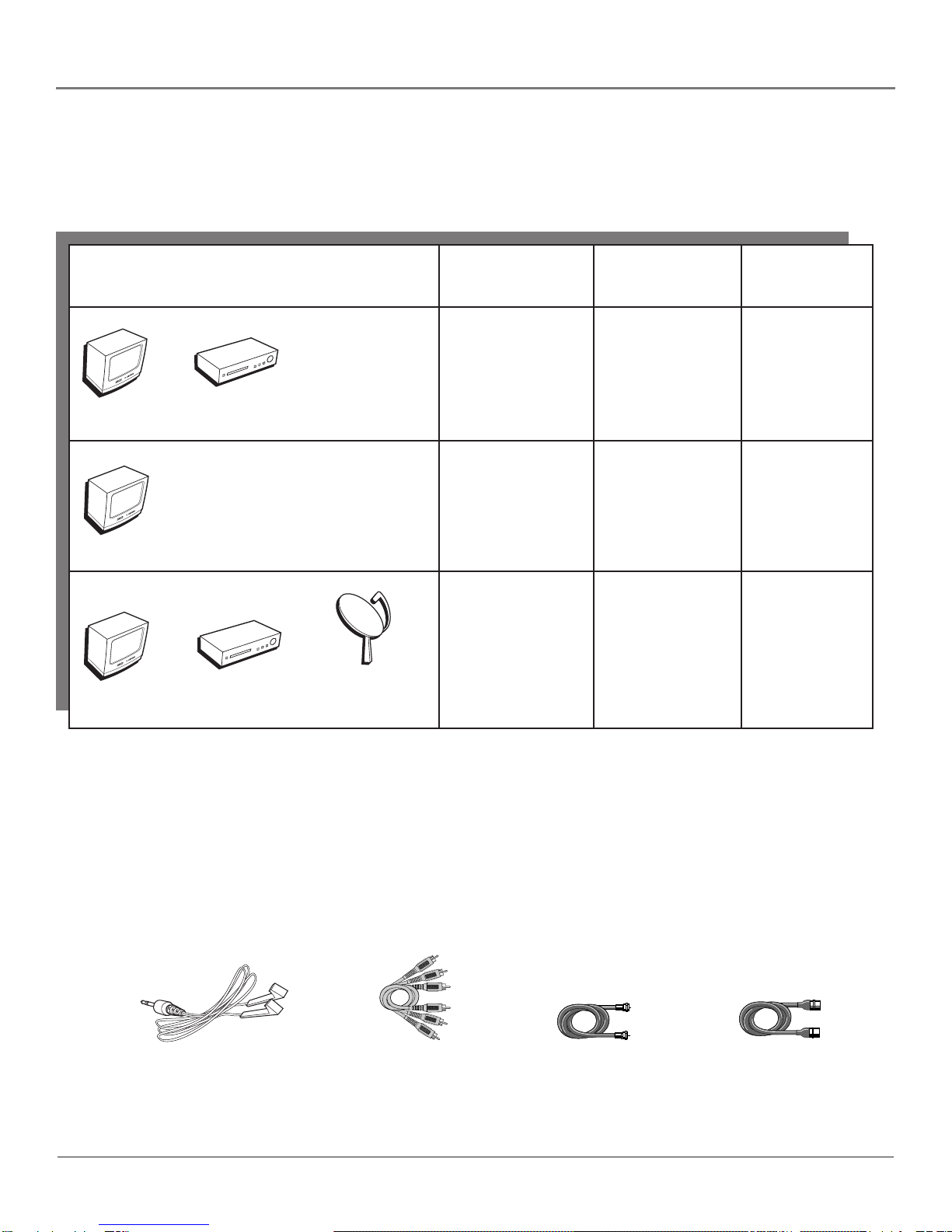

Choose Your Connection
There are several ways to connect your TV. Please use the following chart to determine which
connection is best for you. Proceed to the appropriate page and connect your TV.
Cables Needed to Connect Components to Your TV
The pictures below show the cables needed for the connections represented in this book.
Notes: Audio/Video cables (A/V cables for short) are usually sold as a bundled set, but
the connection pictures in this book show each cable separately for better visibility.
Please locate the G-LINK cable (provided) when you’re getting ready to set up your TV.
You need to connect this cable to your TV, and to your VCR and/or cable box in order for
all of the features of the program guide to work properly.

8Chapter 1
Connections & Setup
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
IN
LR
TV (back panel)
R
VIDEO
ANTENNA
S-VIDEO
OUT
RL
IN
L/MONO G-LINK
From Cable
or Antenna
TV
VCR
2
3
1A
1B
1C
TV + VCR
1. Connect your TV to your VCR
A. Connect a coaxial cable to the ANTENNA jack on your TV and to the Output Jack on your VCR
(sometimes labeled OUT TO TV).
B. Connect the audio/video cables. Connect audio cables (white and red) to the AUDIO IN jacks
on the back of the TV (R and L/MONO) and to the Audio Output Jacks on the VCR (sometimes
labeled OUT R L).
C. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV and to the Video
Output Jack on the VCR.
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).
3. Connect the G-LINK cable to the TV
Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place one of the wands of the
G-LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13

Chapter 1 9
Connections & Setup
R
L/ MONO VIDEO
ANTENNA
S-VIDEO
TV (back panel)
OUT
RL
IN
G-LINK
CABLE
OR
OFF-AIR SIGNAL
TV
2
TV Only
1. Connect the TV to your cable or antenna
Connect the coaxial cable from your cable or antenna to the ANTENNA jack on the back of
your TV.
Go to page 14
2. If you’re connecting a cable box, connect the G-LINK cable
Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place the wands of the
G-LINK cable to the cable box (instructions are on p. 13).
Go to page 13
1

10 Chapter 1
Connections & Setup
R L/ MONO VIDEO
ANTENNA
S-VIDEO
OUT
RL
IN
G-LINK
TV (back panel)
C
H
3
C
H
4
SATELLITE RECEIVER
S-VIDEO
L
RVIDEO
OUT
OUT TO TV SATELLITE
IN
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
IN
LR
Fr
o
m
C
able
o
r An
t
enn
a
S
a
t
elli
t
e
Si
g
na
l
TV
VCR
Satellite
4
3B
2B
1A
1B
1C
2A
3A

Chapter 1 11
Connections & Setup
TV + VCR + Satellite Receiver
1. Connect your Satellite Receiver to your TV
A. Connect the audio/video cables. Connect the audio cables (white and red) to the AUDIO
IN jacks on the back of the TV (R and L/MONO) and to the Audio Output Jacks on the
Satellite Receiver.
B. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV and to the
Video Output Jack on the satellite receiver.
C. Connect S-Video cable (optional). Connect an S-Video cable to the S-VIDEO jack on the
TV and to the S-VIDEO jack on the satellite receiver. (An S-Video cable provides better
picture quality than a regular video cable, but it is optional.)
2. Connect coaxial cables to the Satellite Receiver
A. Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack
on your satellite receiver (sometimes labeled IN FROM ANT).
B. Connect the coaxial cable from your satellite dish antenna to the Input Jack on your
satellite receiver (sometimes labeled SATELLITE IN).
3. Connect the Satellite Receiver to the VCR and to the TV
A. Connect a coaxial cable to the Output Jack (sometimes labeled OUT TO TV) on the
satellite receiver and to the Input Jack on the VCR (sometimes labeled IN FROM ANT).
B. Connect a coaxial cable to the Output Jack on the VCR (sometimes labeled OUT TO TV)
and to the ANTENNA jack on the TV.
4. Connect G-LINK cable
Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place one of the wands
of the G-LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13

12 Chapter 1
Connections & Setup
Jacks on the Back of Your TV
If you are connecting many components, please consult the manual that came with each
component for connection instructions. The picture of your TV’s back panel describes the jacks
on the back of your TV and what types of components that you can connect to these jacks.
When connecting, make sure you connect Output jacks to Input jacks, Video to Video, Right
Audio to Right Audio, etc.
R
L/ MONO VIDEO
ANTENNA
S-VIDEO
TV (back panel)
OUT
RL
IN
G-LINK
Audio and Video Input Jacks:
AUDIO R and L/MONO and VIDEO
Connect any of the following components:
•DVD Player •Satellite Receiver
•Laserdisc Player •VCR
•Internet Access Device
To watch the content from the component that’s
connected to the VIDEO Input Jack, press the
WHO •INPUT button on the remote (the TV
switches to the correct channel).
G-LINK Jack
Connect the end of the
G-LINK cable (provided)
to this jack. The G-LINK
cable enables the TV’s
Guide Plus+ system to
interact with the cable box
and/or the VCR. A picture
of the G-LINK cable is on
page 7.
S-VIDEO Jack
Connecting an
S-Video cable is
optional. S-Video
provides better picture
quality than a regular
video cable.
ANTENNA Jack
Connect the coaxial cable
from the VCR’s Output jack to
this jack. If you’re not
connecting a VCR, connect a
coaxial cable that carries the
signal from the antenna,
cable, or cable box to the
ANTENNA jack.
Audio Output Jacks:
R and L OUT
Connect audio cables to
these jacks and to an
amplifier or audio receiver
for improved sound quality.

Chapter 1 13
Connections & Setup
VCR
03
CHANNEL
CABLE BOX
Tip
If you don’t have both a
cable box and a VCR
connected to your TV,
just coil the cable of the
extra G-LINK wand with
a twist tie and leave it
behind the TV.
VCR
03
CHANNEL
SENSOR
SENSOR
Connect to G-LINK jack
on the back of the TV.
R
L/ MONO VIDEO
ANTENNA
S-VIDEO
TV back panel
OUT
RL
IN
G-LINK
G-LINK wands
G-LINK cable
Why You Should Connect This G-LINK Cable
The G-LINK cable enables the GUIDE Plus+ system (the on-screen interactive program guide) to
work with your VCR and/or cable box.
Cable Box – If your TV is connected to a cable box you must connect the G-LINK cable to receive
TV program listings for your area, and to tune directly to a channel when the program guide is on
your TV screen.
VCR – If your TV is connected to a VCR and you don’t connect the G-LINK cable, one-touch VCR
recording won’t work. The other features of the guide will work properly.
How to Find the Remote Sensor
You have to place the G-LINK wands in front of the remote sensor on the VCR and/or cable box.
Some cable boxes and VCRs have the remote sensor labeled on the unit. If the remote sensor isn’t
labeled on your VCR and/or cable box, you need to use the remote control that came with the VCR
and/or cable box to locate the sensor.
1. Turn off the VCR and/or cable box.
2. Hold the remote control (not the one that came with your TV, but the one that came with the
cable box and/or VCR to which you’re attaching the G-LINK cable) so that it is touching the
front of the component.
3. Slowly move the remote control across the front of the component (VCR or cable box) while
you press the power button on and off. You must press and release the power button each time
you move the remote (holding down the button won’t work).
4. When the component turns on, you’ve located the remote sensor.
Placing the G-LINK Wands
Place the G-LINK wands in front of the remote sensor on your VCR and/or cable box approximately
one inch away from the remote sensor (see instructions below).

14 Chapter 1
Connections & Setup
Use the arrow buttons and the OK
button to move through the menu
system.
OK
Plug in the TV
Plug the end of the power cord into the wall outlet. Match the wide blade of the
plug with the wide slot in the outlet. Insert the plug completely into
the outlet.
Put Batteries in the Remote
1. Remove the battery compartment cover on the remote.
2. Insert new batteries. Match the polarities (+ and -) on the batteries with the
diagram on the remote.
3. Put the battery compartment cover back on the remote.
How to Use the Remote Control to
Complete the Interactive Setup
The technical term is “Navigation”–how you move through the on-screen
menus. The theory is the same throughout the menu screens: highlight your
choice and select it.
To highlight a menu item, press the arrow buttons on the remote to highlight
one of the items listed on the screen. Use the up or down arrow button to move
up or down. Use the right or left arrow button to move right or left.
To select the item that you’ve highlighted, press OK.
Note: Highlighted means that the menu item stands out from other menu
items on the list (appears darker, brighter, or a different color).
Turn on the TV
Press the TV button on the remote control or the POWER button on the TV (the
first screen of the Interactive Setup appears). The menu screens “time out”after
a period of time if you don’t make a selection. The tips in this section tell you
how to access the Setup menu screens manually.
Note: Pressing the TV button not only turns on the TV, but puts the
remote into TV mode. “TV mode” means that the buttons on the remote
control operate the TV’s functions.
