RCF DU 50EN User manual

USER MANUAL
MANUALE D’USO
DU 50EN STEEL WALL-MOUNT
LOUDSPEAKER IN
COMPLIANCE WITH
EN 54-24 STANDARD
DIFFUSORE ACUSTICO
IN ACCIAIO DA PARETE
CONFORME ALLA
NORMA EN 54-24

4
ENGLISH
SAFETY AND OPERATING
PRECAUTIONS
IMPORTANT NOTES
IMPORTANT NOTES
Before connecting and using this product, please read this instruction manual
carefully and keep it on hand for future reference. This manual is to be
considered an integral part of this product and must accompany it when it
changes ownership as a reference for correct installation and use as well as
for the safety precautions.
RCF S.p.A. will not assume any responsibility for the incorrect installation and
/ or use of this product.
SAFETY AND OPERATING PRECAUTIONS
1. All the precautions, in particular the safety ones, must be read with special
attention, as they provide important information.
2. Loudspeaker lines (amplifier outputs) can have a sufficiently high voltage
(i.e. 100-70 V) to involve a risk of electrocution: never install or connect this
loudspeaker when the line is alive.
3. Make sure all connections have been made correctly and the loudspeaker
input voltage is suitable for the amplifier output.
4. Protect loudspeaker lines from damage. Make sure they are positioned in a
way that they cannot be stepped on or crushed by objects.
5. Make sure that no objects or liquids can get into this product, as this may
cause a short circuit.
6. Never attempt to carry out any operations, modifications or repairs that
are not expressly described in this manual.
Contact your authorized service centre or qualified personnel should any of
the following occur:
-The loudspeaker does not function (or works in an anomalous way).
-The cable has been damaged.
-Objects or liquids have got into the unit.
-The loudspeaker has been damaged due to heavy impacts or fire.
7. Should the loudspeaker emit any strange odours or smoke, remove it from
the line after having immediately switched the amplifier off.
8. Do not connect this product to any equipment or accessories not foreseen.
For suspended installation, only use the dedicated anchoring points and do
not try to hang this loudspeaker by using elements that are unsuitable or not
specific for this purpose.
Also check the suitability of the support surface to which the product
is anchored (wall, ceiling, structure, etc.) and the components used for
attachment (screw anchors, screws, brackets not supplied by RCF etc.),
which must guarantee the security of the system / installation over time, also
considering, for example, the mechanical vibrations normally generated by
transducers.

5
ENGLISH
9. RCF S.p.A. strongly recommends this product is only installed by
professional qualified installers (or specialised firms) who can ensure a
correct installation and certify it according to the regulations in force.
The entire audio system must comply with the current standards and
regulations regarding electrical systems.
10. Mechanical and electrical factors need to be considered when installing
a professional audio system (in addition to those which are strictly acoustic,
such as sound pressure, angles of coverage, frequency response, etc.).
11. Hearing loss
Exposure to high sound levels can cause permanent hearing loss. The acoustic
pressure level that leads to hearing loss is different from person to person
and depends on the duration of exposure.
To prevent potentially dangerous exposure to high levels of acoustic pressure,
anyone who is exposed to these levels should use adequate protection
devices.
When a transducer capable of producing high sound levels is being used, it is
necessary to wear ear plugs or protective earphones.
See the technical specifications in the instruction manual for the maximum
sound pressure the loudspeaker is capable of producing.
12. To ensure a correct sound reproduction, loudspeaker phase is to be
respected (loudspeakers are connected respecting the amplifier polarity).
This is important when loudspeakers are installed adjacent one another, for
instance, in the same room.
13. To prevent inductive effects from causing hum, noise and a bad system
working, loudspeaker lines should not be laid together with other electric
cables (mains), microphone or line level signal cables connected to amplifier
inputs.
14. The loudspeaker cable shall have wires with a suitable section (twisted,
if possible, to reduce inductive effects due to surrounding electro-magnetic
fields) and a sufficient electrical insulation. Refer to local regulations since
there may be additional requirements about cable characteristics.
15. Install this loudspeaker far from any heat source.
16. Do not use solvents, alcohol, benzene or other volatile substances for
cleaning the external parts of this product. Use a dry cloth.

6
ENGLISH
RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH
HAS BEEN DESIGNED TO GUARANTEE RELIABILITY AND HIGH
PERFORMANCE.
DU 50EN is a steel wall-mount loudspeaker in compliance with the EN 54-24
standard, designed to be used in sound systems for emergency purposes
(evacuation messages, paging and background music). The 4.5” full-range
loudspeaker is protected by a steel body.
The loudspeaker is provided with:
-A multitap transformer for connection to 100V / 70V constant voltage lines.
-2 ceramic terminal strips for input / output antiflame cables.
-A thermal fuse.
WARNING: MAke suRe thAt the loudspeAkeR Is INstAlled IN AstAble ANd secuRe WAy IN
oRdeR to AvoId ANy coNdItIoNs thAt MAy be dANGeRous foR peRsoNs oR stRuctuRes.
eNsuRe the suppoRt suRfAce (e.G. WAll, etc.) hAs the NecessARy MechANIcAl chARActeRIstIcs
to suppoRt the loudspeAkeR WeIGht.
befoRe INstAllING the loudspeAkeR, cARefully check All coMpoNeNts to be used ANd MAke
suRe theRe Is No dAMAGe, defoRMAtIoN, coRRosIoN ANd/oR MIssING oR dAMAGed pARts thAt
could Reduce the sAfety of the INstAllAtIoN.
INoutdooR use, AvoId INstAllING the loudspeAkeR IN plAces exposed to hARsh WeAtheR
coNdItIoNs.
Remove the loudspeaker front part from the back by unscrewing the 3 lateral
screws, then fix the loudspeaker rear part to the chosen point of the wall /
ceiling through 4 wall-plugs (not included).
Use the drill template available inside the manual (page 11).
Do not use this loudspeaker with its front upwards (in order to avoid
malfunctions) and in tropical climate. It shall not be exposed to dripping or
splashing.
The system needs to be correctly dimensioned to get an uniform acoustic
coverage and sufficient sound pressure levels (in order to get the best speech
intelligibility).
Connect all cables as described in the next manual section, then fix the
loudspeaker front part to the back by screwing the 3 screws (previously
removed).
DESCRIPTION
INSTALLATION

7
ENGLISH
CONNECTION TO
THE AMPLIFIER
(+ –) (–) (+)LOUDSPEAKEREARTH
1
2
3
4
5
CONNECTION
WARNING: loudspeAkeR coNNectIoNs should be oNly MAde by quAlIfIed ANd expeRIeNced
peRsoNNel hAvING the techNIcAl kNoW-hoW oR suffIcIeNt specIfIc INstRuctIoNs to eNsuRe
thAt coNNectIoNs ARe MAde coRRectly ANd to pReveNt ANy electRIcAl dANGeR.
topReveNt ANy RIsk of electRIc shock, do Not coNNect loudspeAkeRs WheN the AMplIfIeR Is
sWItched oN. befoRe tuRNING the systeM oN, check All coNNectIoNs ANd MAke suRe theRe
ARe No AccIdeNtAl shoRt cIRcuIts.the eNtIRe souNd systeM shAll be desIGNed ANd INstAlled
IN coMplIANce WIth the cuRReNt locAl lAWs ANd ReGulAtIoNs ReGARdING electRIcAl systeMs.
This loudspeaker can be connected to a 70 V / 100 V constant voltage line.
Connections with the audio line are made by using the two internal ceramic
terminal strips.
The IN +/– terminals are used for audio signal input and the OUT +/– terminals
(that are directly connected to the corresponding IN +/– terminals) can be used
as an output to link additional loudspeakers in parallel.
1Set the power on the transformer
(according to the line voltage):
-leave the black wire (coming from the
terminal strip) connected to the transformer
COM (5) pin;
-connect the other wire to the transformer
pin (1 – 2 – 3 – 4) marked with the chosen
power.
2Connect the negative conductor (–) of the audio line (which comes from
the amplifier terminal marked -, 0, COM or B) to the loudspeaker input IN –.
3Connect the positive conductor (+) of the audio line (which comes from the
amplifier terminal marked +, 100 V, 70 V or A) to the loudspeaker input IN +.
4Follow the same logic to connect the OUT +/– terminals, that can be
used to link additional loudspeakers in parallel.
5Connect the earth conductor to the terminal strip contact marked with
the earth symbol.
Trasf. pin
1
2
3
4
5
POWER
(100 V)
0.75 W
1.5 W
3 W
6 W
COM
POWER
(70 V)
0.375 W
0.75 W
1,5 W
3 W

8
ENGLISH
NOTES ABOUT CONSTANT VOLTAGE SYSTEMS
-The loudspeaker input voltage (Vd) shall correspond to the amplifier output
voltage (Va).
-The sum of nominal power values (Pd x n) of all loudspeakers connected to
the line shall not exceed the amplifier power (Pa).
-Make sure all loudspeakers are connected in phase to ensure a correct
sound reproduction.
-Always use cables having wires with an adequate cross-section, considering
the cable length and the total loudspeaker power.
-Loudspeaker lines must be kept separated from mains cable, microphone
cables or others, in order to avoid inductive phenomena may cause hum
or noises.
-Use loudspeaker cables having twisted wires to reduce hum caused by
inductive effects due to coupling with electromagnetic fields.
AMPLIFIER
Pa = Amplifier power
Pd = Speaker power
n = Number of speakers
Vd = Speaker input voltage
Va = Amplifier output voltage
Pa > Pd x n Va

9
ENGLISH

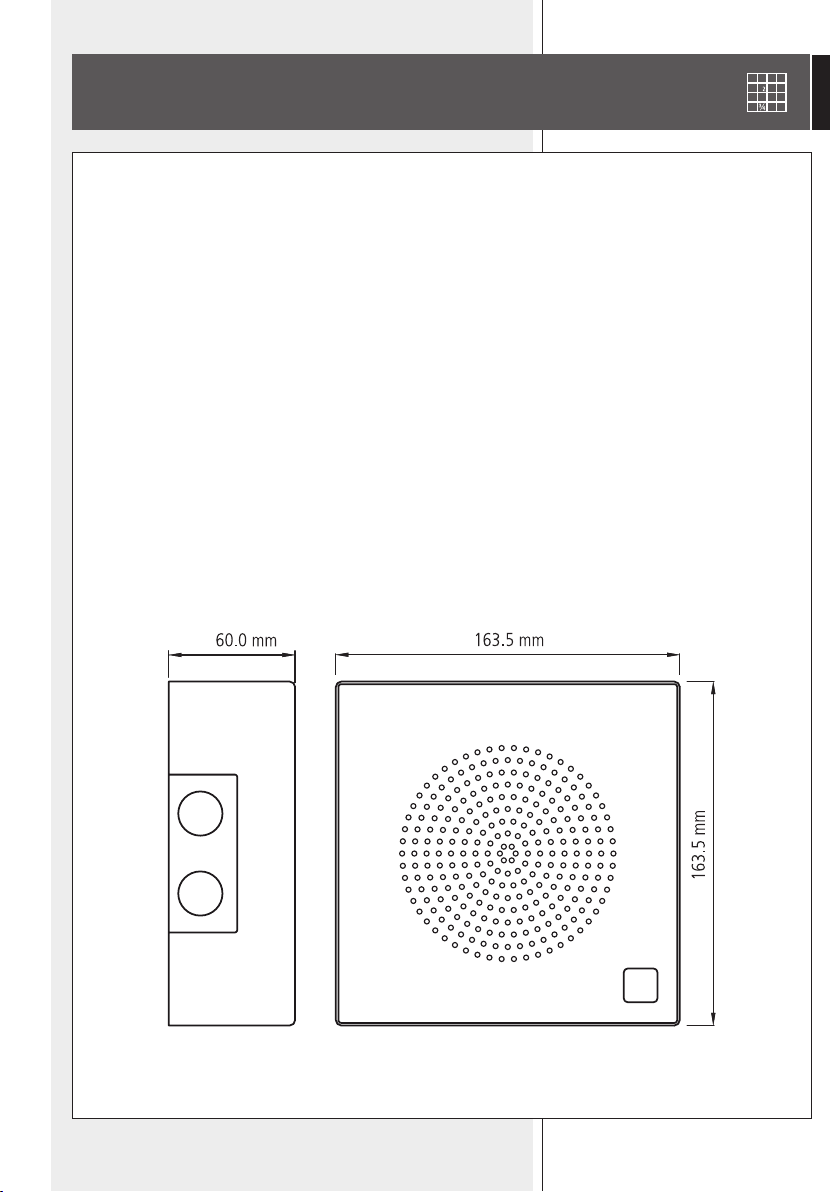

SPECIFICATIONS
INPUT VOLTAGE:
POWER (SELECTABLE):
INPUT IMPEDANCE:
FREQUENCY RESPONSE:
SENSITIVITY:
MAX. SOUND PRESSURE LEVEL:
COVERAGE ANGLE (– 6 dB):
TRANSDUCER:
DIMENSIONS:
BODY MATERIAL:
COLOUR:
CONNECTORS:
NET WEIGHT:
OPERATING TEMPERATURE:
100 V – (70 V)
6 W – 3 W – 1.5 W – 0.75 W (power values are halved at 70 V)
1.67 kΩ(6 W) – 3.33 kΩ(3 W)
6.67 kΩ(1.5 W) – 13.33 kΩ(0.75 W)
190 Hz ÷ 11 kHz (–10 dB)
90 dB (1 W, 1 m)
88 dB (6 W, 4 m)
hor.: 180° (500 Hz), 175° (1 kHz), 120° (2 kHz), 65° (4 kHz)
vert.: 180° (500 Hz), 175° (1 kHz), 120° (2 kHz), 65° (4 kHz)
4.5”
163.5 mm (w), 163.5 (h), 60 mm (d)
steel
white, RAL 9010
ceramic terminal strips
2 kg (4.4 lb)
–30 ÷ +60 °C (–22 ÷ +140 °F)

11
ENG - ITA
163,5 mm
163,5 mm
INSTALLATION / INSTALLAZIONE
DRILL TEMPLATE
DIMA DI FORATURA

10307324 revE2018/ 02
