RD RDC6334G Instructions for use

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
RDC6334G
Laser cutting system hardware user manual
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RuiDa Technology Co., Ltd
Addr: 202-203,B-Block,Technology Building,NO.,1057 Nanhai
Avenue,Nanshan District,Shenzhen city,Guangdong
Province,P.R.China
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.rd-acs.com
https://www.ruidacontroller.com

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
1
COPYRIGHT
All rights reserved.You may not reproduce, transmit, store in a
retrieval system or adapt thispublication, in any form or by any
means, without the prior written permissionof RuiDa, except as
allowed under applicable copyright laws. We have identifiedwords
that we consider as trademarks. Neither the presence or absence
oftrademark identifications affects the legal status of any trademarks.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
2
CERTIFICATION DECLARATION
CE
The product has been certified by the CE (Commutate European) safety certification. It has
passed the corresponding conformity assessment procedure and the manufacturer's
declaration of conformity, in accordance with the relevant EU directive.
ROHS
This product has been certified by EU legislation (Restriction of Hazardous Substances)
Safety certification; comply with relevant EU environmental regulations.
FCC
This product has been certified by the Federal Communications Commission for safety,
Comply with us electronic safety regulations.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
3
SAFETY INFORMATION
When using this system, please make sure the operation is correct and the usage is safe.
Some signs or text will be used to remind you to pay attention to the dangerous matters and
some important information.
Dangerous：
Indicates a serious danger. In the process of use, if the operation is
improper or the way of use is wrong, it may cause serious injury or even
death to the user. Please do not operate it easily until you have made sure
that the operation method is correct and the way of use is correct.
Warning：
Danger.n the process of use, if the operation is improper or the use is
wrong, which may lead to the injury of the personnel, please do not
operate the personnel and related personnel easily, until ensure the
correct operation method and use method is correct before use.
Cautious：
Represents the potential risk of the product. In the process of use, if the
use method is wrong or improper operation, it may cause damage to the
product or some parts. Please do not use it until you have made sure that
the operation method is correct and the usage is correct.
Important：
Represents important information to be paid attention to during the use
of the product.Please do not ignore this information, this information will
provide effective operational help.
This sign indicates laser radiation, which is usually posted on products with
laser output. Please be careful with laser and pay attention to safety when
using this kind of equipment.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
4
Sign in、Devanning、Examine cargo
The product itself with plastic or metal shell, can protect the external electrical components
from damage. The products are packed in foam bags and anti-static bags. If there is any
external damage to the package, check the equipment and notify the carrier and carrier in
writing of the damage.
Inportant:
After receiving the product, please check whether the outer package is intact,
check whether the product is complete after unpacking and whether all parts
are intact. If any damage is found, please contact ruida immediately.
Remove all cargo from package and keep packing material and wiring parts. Please take care
of the safety of the goods when unpacking them.After taking out the goods, please check
whether the parts are complete and intact. If any missing parts or damaged parts are found,
please contact ruida technology immediately.Do not install or debug the equipment if any
obvious damage is found.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
5
Contents
Chapter 1 Brief introduction of HMI and keys function..............................................................................1
1.1 HMI..................................................................................................................................................... 2
1.2 Introduction of key function.............................................................................................................. 2
Chapter 2 Main interface and functions introduction................................................................................ 3
2.1 Boot interface.....................................................................................................................................4
2.2 Main interface.................................................................................................................................... 5
2.3 speed setting...................................................................................................................................... 6
2.4 Max/Min power settings....................................................................................................................7
2.5 Layer parameter setting..................................................................................................................... 8
Chapter 3 Menu functions......................................................................................................................... 10
3.1 System information.......................................................................................................................... 11
3.2 System Configuration....................................................................................................................... 11
3.3 Functions.......................................................................................................................................... 13
3.4 Users parameter...............................................................................................................................15
3.5 Vendor parameter............................................................................................................................16
3.6 Axis Reset Settings........................................................................................................................... 17
Chapter 4 File functions............................................................................................................................. 18
4.1 Memory files.................................................................................................................................... 19
4.2 U U disk files.....................................................................................................................................22
Chapter 5 Alarm information.....................................................................................................................23
5.1 Alarm information............................................................................................................................24
Chapter 6 Installation size..........................................................................................................................25
6.1 Installation size.................................................................................................................................26

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
1
Section 1 Brief
introduction of HMI and
keys function
CONTENTS:
HMI
Introduction of key function

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
2
1.1 HMI
Figure 1.1 HMI
1.2 Key function introduction
“Reset”: Reset the motherboard
“Origin”: Set locating point
“Laser”: Laser on/off
“Track”: To track current processing file
“File”: memory document and U disk file management
“Speed”: Set the current processing speed value
“Max power”: Set the current maximum power value
“Min power”: Set the current minimum power value
“Menu”: System configuration, users’ parameter setting, Vendor parameter setting, etc.
“Stop”: Stop working
“Start”: Start or pause
“X+/-”: x axis movement
“Y+/-”: Y axis movement

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
3
“Esc”: To stop working and cancel file preview when suspend working
“Enter”: To set layer parameter

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
4
Section 2 Main interface
and functions
introduction
CONTENTS:
Boot interface
Main interface
Speed setting
Max/Min power settings
Layer parameter setting

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
5
2.1 Boot interface
Boot screen will display when system is resetting as shown below:
Figure 2.1 Boot screen
Boot screen could be modified by users, by importing defined picture via PC software and then download.
It will be displayed when the system is switched on again after switch off.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
6
2.2 Main interface
Main interface will display when system reset is complete as shown below:
Coordinates display area: The laser head coordinates display in this area during file processing or manual
operation.
Graphics display area: This area is used for file preview and processing to trace the movement of the laser
tube.
Working status area: To display the current working status of the system, which are system idle, system
pause, system completed, system running.
Network connection status: To display the network status of the mainboard. When the network
communication is used and connected, there will be a network connected icon in this area; otherwise it is
a disconnected icon.
Layer parameter setting: When layer information displays in the main interface, click the layer parameter
list with your finger or mouse. If there are multiple layers, you can press and hold the middle of the list
and drag down with your finger. At this time, the layer list will scroll down correspondingly and when a

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
7
layer is in the highlighted state, press “Enter” to access layer parameter modification interface.
In the state of system idle, users can perform file processing, parameter setting, file preview and other
operations.
2.3 Speed setting
Press “Speed” button in the main interface, a dialog box will pop up as following:
Figure 2.3-1 Speed Setting
Click parameter region with your finger or mouse and an input keyboard will pop up afterwards, as shown
below:

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
8

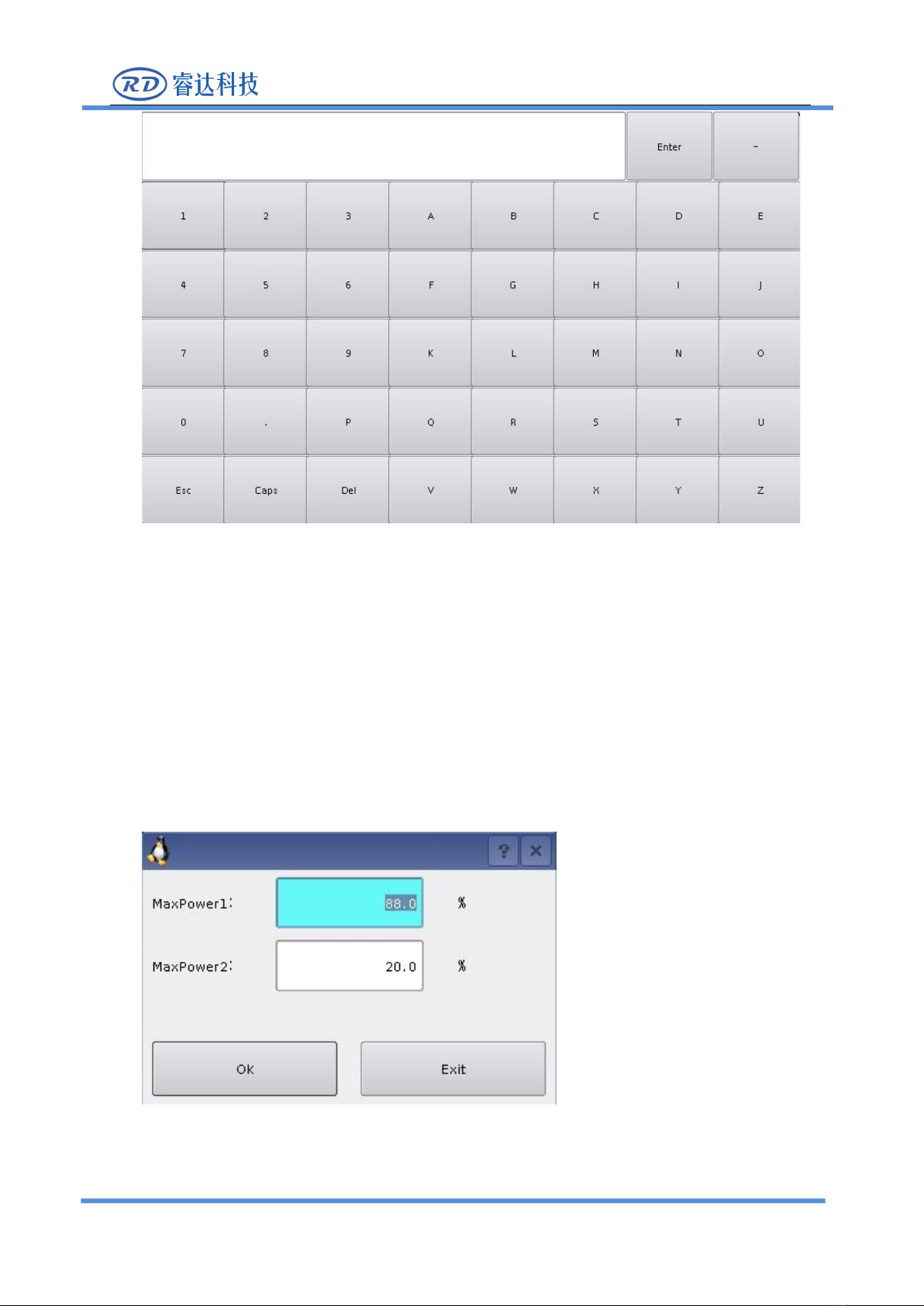

Figure 2.3-2
Press number keys to enter a new value, press “Enter” to confirm the input. Press "Esc" to cancel the
input and return to the previous interface, press "Del" to delete the current value.
2.4 Max/Min power setting
Press “Max power” or “Min power” key in the main interface, dialog boxes will pop up respectively as
shown below:
Figure 2.4-1

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
9
Figure 2.4-2
Refer to speed setting for parameter setting method.
2.5 Layer Parameter Setting
When system is idle, when there is layer information, click layer parameter list with your finger or mouse
to select a layer. If there are multiple layers, you can press and hold the middle of the list and drag down
with your finger. At this time, the layer list will scroll down correspondingly. Then press”Enter” after
selecting, and the layer setting dialog box will pop up:
Figure 2.5
Please refer to speed setting for parameter modification method. Press “Enter” key after modifying the

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
10
parameters. The panel will prompt “parameter setting successful”, then press “Enter” to return main
interface.
When modifying another layer parameter without closing the current layer setting window, be sure to
save the current layer parameter first (if needed). Then click the "Layer List Box" and the layer list pops up,
select the layer to be modified, and then modify the parameters of the layer.

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
11
Section3 Menu functions
CONTENTS:
System information
System Configuration
Functions
Users parameter
Vendor parameter
Axis Reset Settings

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
12
3.1 System information
Click the “System information” button in the main interface of “Menu”, a dialog box will pop up as
following:
Figure 3.1
Click “Read parameters” button, panel will read and display the information of motherboard. Click “Reset”
to clear “Total Pieces”. Press the “Esc” button to return to the previous menu.
3.2 System Configuration
Click the “System configuration” button in the main interface of “Menu”, a dialog box will pop up as
following:

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
13
Figure 3.2-1
Press “Read Parameters” to read the parameters after entering this interface. Press the “Write
Parameters” button to save the modified parameters on the motherboard. Press the “Esc” button to close
dialog box and return back to previous interface.
Interface options are Ethernet and USB for selection. Click the “Ethernet/USB” button, a dialog box will
pop up to enter the password as following:
Figure 3.2-2
After entering the correct password, enter into communication setting dialog box, as shown below:

RDC6334G Laser cutting system hardware user manual
SHENZHEN RUIDA TECHNOLOGY
14
Figure 3.2-3
Click “communication interface select box” to choose “USB” or “Ethernet”, and press the “Enter” button
to save the parameters after selecting. Close the dialog box and return back to previous interface; press
“Esc” button to undo and return to “System Configuration” interface. The types of display screen are
128X64 dot matrix screen, 320X240TFT screen, 640X480TFT screen, for display only, users are not allowed
to modify.
3.3 Function
Click the “Function” button in the main interface of “Menu”, a dialog box will pop up as following:
