Rear view safety Rvs-718-7ml User manual

Reverse With Condence ™ 1

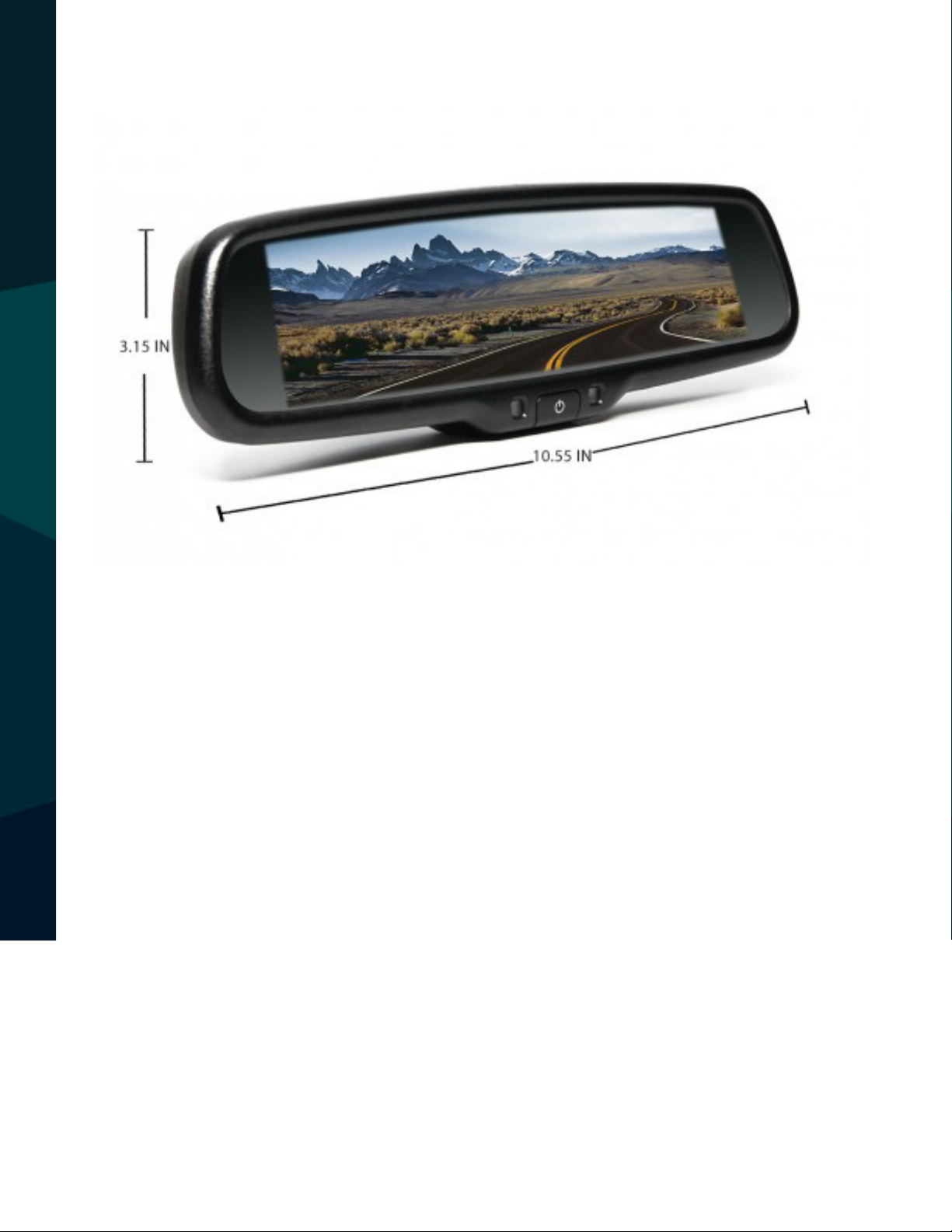

G-Series Rear View Replacement Mirror Monitor

with 7.3” Mirror Link Display

RVS-718-7ML

Instruction Manual

A Safe Fleet Brand

Rear View Safety

Introduction...............................03

SafetyInformation..........................04-06

MonitorInformation......................... 07-09

BeforeYouBegin.......................10-11

InstallationGuide.......................... 12-13

Wiring................................14

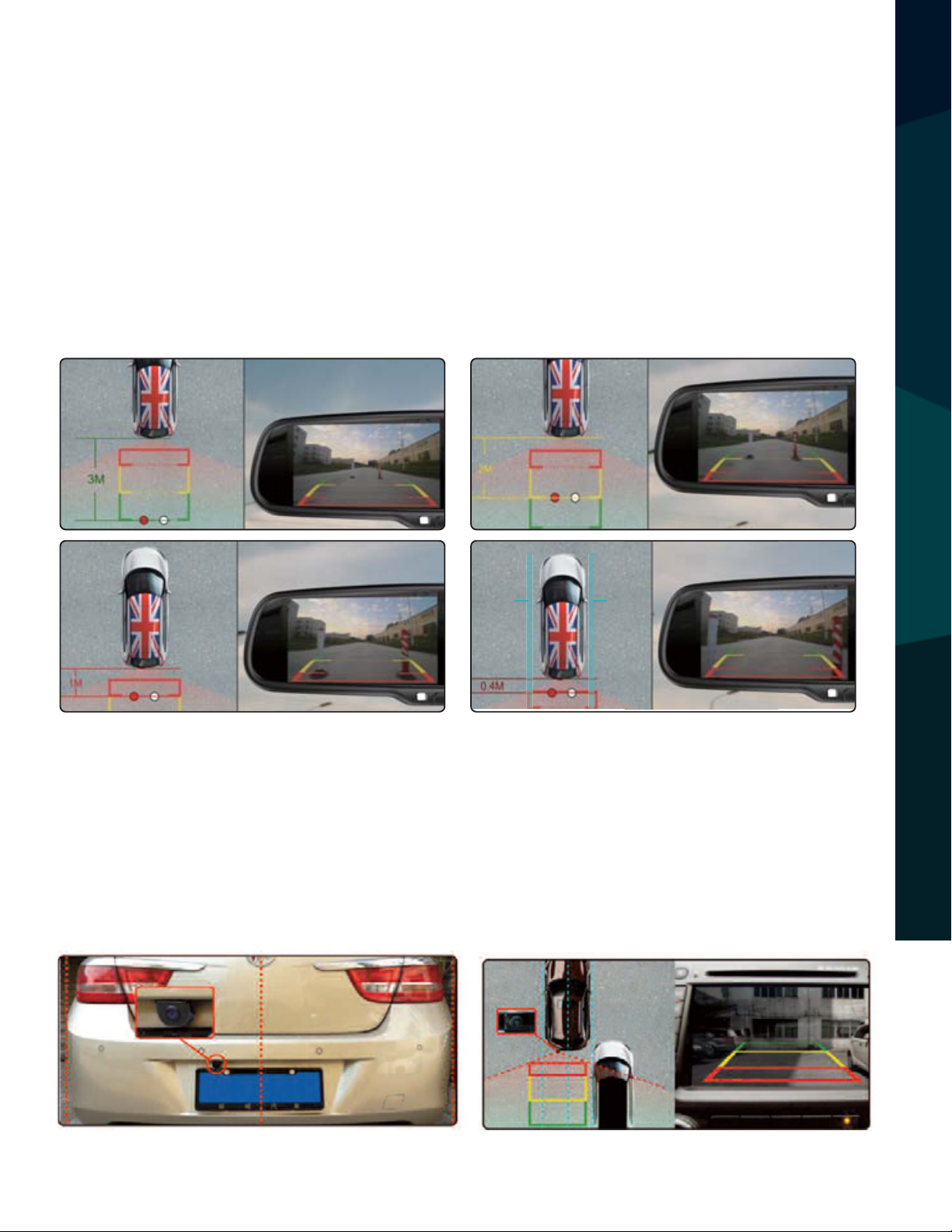

Gridlines............................15-16

RemoteControl............................ 17

BasicSettings.............................18-19

MirrorLink............................. 20-22

DisplayModes............................23-25

Triggering.............................. 26

Warranty&Disclaimer........................ 27-28

Notes........................ . . . . . 29

TABLE OF CONTENTS

Reverse With Condence ™ 3

NOTE! Please read all of the installation instructions

carefully before installing the product. Improper

installation will void manufacturer’s warranty.

Congratulations on purchasing a RearView Backup

Camera System!

With this manual you will be able to properly install and

operate the unit.

The Backup Camera System is intended to be installed as a

supplement aid to your standard rear view mirror that already exists

in your vehicle. The Backup Camera System should not be used as a

substitute for the standard rear view mirror or for any other mirror

that exists in your vehicle.

In some jurisdictions, it is unlawful for a person to drive a

motor vehicle equipped with aTV viewer or screen located forward of

the back of the driver’s seat or in any location that is visible, directly

or indirectly, to the driver while operating the vehicle.

INTRODUCTION

Rear View Safety

Please read the entire manual and follow the instructions and

warnings carefully. Failure to do so can cause serious damage and/or

injury, including loss of life. Be sure to obey all applicable local

trac and motor vehicle regulations as it pertains to this product.

Improper installation will void manufacturer’s warranty.

• The Rear View Camera System is

designed to help the driver safe-

ly detect people and/or objects

helping to avoid damage or injury.

However, you the driver, must use it

properly. Use of this system is not a

substitute for safe, proper or legal

driving.

• Never back up while looking at the

monitor alone. You should always

check behind and around the vehi-

cle when backing up, in the same

way as you would if the vehicle did

not have the Rear View Camera

System.Ifyoubackupwhilelooking

only at the monitor, you may cause

damage or injury. Always back up

slowly.

•The Rear View Camera System is

not intended for use during exten-

sive back-up maneuvers or backing

into cross trac or pedestrian walk-

ways.

•Please, always remember, the area

displayed by the Rear View Camera

Systemis limited.Itdoes notdisplay

the entire panorama that is behind

you.

USAGE:

SAFETY INFORMATION

Reverse With Condence ™ 5

•Electric shock or product

malfunction may occur if this

product is installed

incorrectly.

• Use this product within the

voltage range specied. Failure

to do so can cause electronic

shock or product malfunction.

• Take special care when

cleaning the monitor.

•Make sure to rmly ax the

product before use.

• If smoke or a burning smell

is detected, disconnect the

system immediately.

• Where the power cable may

touch a metal case, cover the

cable with friction tape.

A short circuit or disconnected wire

may cause a re.

• While installing the Rear View

System be careful with the wire

positioning in order to avoid wire

damage.

• The Rear View System should only

be used when the vehicle is in

reverse.

• Do not watch movies or

operate the monitor while driving;

as it may cause an

accident.

• Do not install the monitor

where it may obstruct drivers

view or obstruct an air bag

device.

• Dropping the unit may cause

possible mechanical failure.

INSTALLATION:

SAFETY INFORMATION

Rear View Safety

Before drilling please check that no cable or wiring is on the other side

of the wall. Please clamp all wires securely to reduce the possibility of

being damaged while vehicle is in use. Keep all cables away from hot

or moving parts and electrical noisy components.

We recommend doing a benchmark test before installation

to insure that all components are working properly.

Step 1: Choose the monitor and camera locations.

Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)

hole should be drilled for passing camera cable through vehicles

walls. Install split grommets where applicable.

Step 3: Once all cables and wiring have been properly routed, perform

a system function test by temporarily connecting the system.

SAFETY INFORMATION

Reverse With Condence ™ 7

MONITOR INFORMATION

Chapter one: Product IntroducƟon

The packing box contains the following accessories, please conrm:

●Wire harness

●User's manual

●7.3 inch car Rear view mirror monitor with mirror link

●Wire cover

●Remote control

1.2 Features

1.3 SpecicaƟon

●7.3 inch wide LCD display screen

●2-way video inputs

●Back up camera display

●Automa�c brightness adjustment

●4.0 mm glass and φ21 mm car factory OEM bracket

●Adjustable guide line

●Screen size: 7.3 inch

●Display screen: TFT-LCD

●Aspect resolu�on: 1280(H)*390(V)

●Working voltage: DC 10V-DC 16V

●Working temperature: -20℃~+65℃

●Signal system: PAL/Auto/NSTC

●Mode switch between wide screen and dual screens LCD display separately

12 3 4

1.1 Package

1.4 OperaƟng panel

For the items listed above, please check with your package box. If any damage, Please

contact with the distributor or the agent as soon as possible.

7.3 inch ultra high brightness display screen

Turn on/oﬀthe display screen ( reversing mode: short press to

adjust the screen brightness)

Indicator

Front light sensor

When the menu is closed, press it to switch model of Mirrorlink, model switched

between Miracast Mode (Android) and DLNA Mode (iOS).

Mirrorlink mode switch

Press “CH” shortly can realize the transforma�on about video input channels,

also can realize choosing as mirrorlink, Video+mirrorlink, Mirrorlink+video,

Camera+mirrorlink, Mirrorlink+camera, Video full display, Camera full display

channels. Reversing model also can be selected, and it also can stay in the last

channel you choose when you are enter into reversing again.

Switch display mode

Short press it can adjust the color mode of the image. Four modes are available,

that is STANDARD, BRIGHT, BEAUTIFUL, and SOFT.

Color mode adjustment

1. 7.3”display screen

2. Front light sensor

3. ON/OFF button for screen display. Short press to adjust screen brightness

in reverse mode

4. Power indicator

5. Mirror link mode switch (M): Use this button to switch mirror link mode

(Miracast Mode for Android and DNLA Mode for iOS)

6. Display switch (CH): Use this button to switch between display modes.

Display modes include full side/rear camera displays, a full mirror link

display, and multiple dual displays

7. Color Adjustment: Short press to adjust color. Options are standard, bright,

beautiful, and soft

Monitor Buttons

Rear View Safety

MONITOR INFORMATION

Speaker

Special bracket

Red to ACC+

Black to GND

Back car signal

Video input

Camera

Connector

Connector cover

Cable cover

trigger line 1

Reverse With Condence ™ 9

MONITOR INFORMATION

A Safe Fleet Brand

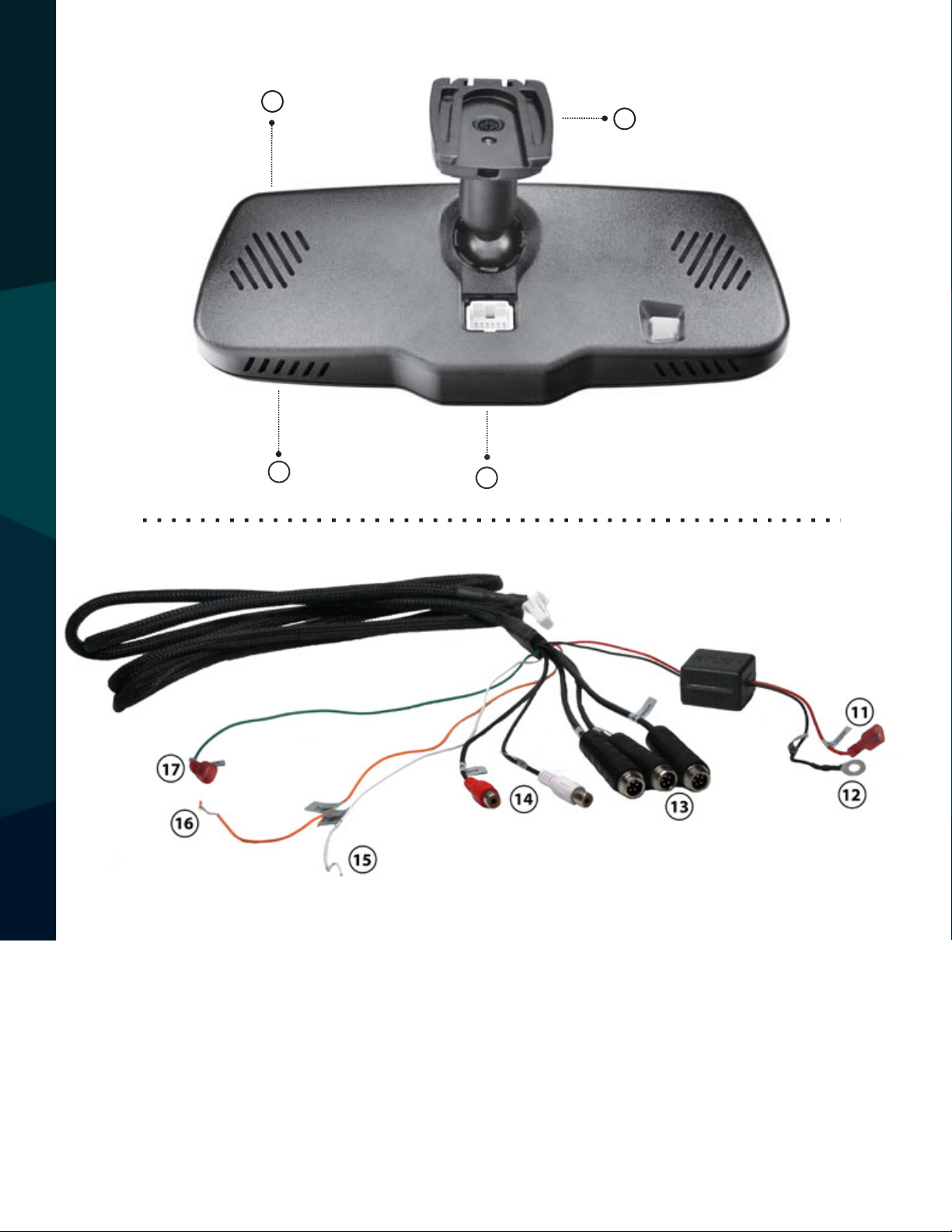

8. Speaker

9. Connector

10. Special Bracket

11. Red To ACC+

12. Black To GND

13. 5 Pin Camera Connectors

14. Audio Cables

15. Trigger Line 1

16. Trigger Line 2

17. Rear Signal

Rear View Safety

Replacement Monitor

The mirror monitor replaces the existing car mirror. Carefully remove

the mirror o the“pin”. Slide the replacement mirror on to the pin and

secure it with the screw provided (already in the screw hole).Dier-

ent cars have dierent brackets, depending on your vehicle make and

manufacturer. There are many methods to remove the original rear-

view mirror, however, please don’t force the mirror o the bracket.

The manufacturer will not be responsible for damage caused to your

car by an improper mirror installation.

Camera & Cable

Be sure to position the cable properly. The aviation camera cable uses

aircraft grade connectors which means the camera cable can be ex-

posed to all weather elements. Do not run the cable over sharp edges,

do not kink the cable, and keep away from HOT and rotating parts.

Fasten all cables and secure all excess cable. Connect camera to the

camera extension cable running inside the vehicle.

BEFORE YOU BEGIN

Reverse With Condence ™ 11

Wiring

After connecting the camera to the“camera cable”the camera should

be plugged into AV2. Connect the RED 12V power wire to an

ignition power source and the BLACK 12V ground wire to a chassis

ground.The GREEN wire is the REVERSE trigger wire. Connect this wire

to the vehicle’s backup light circuit to activate the rear-view image

whenever the vehicle shifts into reverse. To connect a second camera,

connect it to AV1. It can be turned on by pressing the power button on

the monitor.

Precautions for use of Mirror Monitor

I. The Mirror Monitor is made of glass. Do not subject it to a

mechanical shock by dropping it from a high place, etc.

II. Do not apply excessive force to the monitor surface or the

adjoining areas since this may cause the color tone to vary.

III. Only clean with a soft dry cloth and/or Windex.

IV. Do not attempt to disassemble the mirror monitor.

Safety

• Before drilling, be sure no cable or wire is on the other side.

• Feed as much cable as possible into vehicle & clamp securely.

This reduces the possibility of cable being hooked or snagged.

BEFORE YOU BEGIN

Rear View Safety

INSTALLATION GUIDE

Installation and Wiring

Dierent cars have dierent brackets/bases. It depends on your vehicle

maker/manufacturer.There are many ways to remove the original rear

view mirror. Do not force the mirror o the bracket. The manufacturer

will not be responsible for any damage caused to your car by improper

mirror installation.

Reverse With Condence ™ 13

INSTALLATION GUIDE

Chapter two: InstallaƟon and Wiring

2.1 How to install

2.2 Special bracket

Remove the original rear view mirror and remain

the metal base on the windscreen

Original car rear view mirror

Along this direc�on to install

rear view mirror

Along this direc�on to install

rear view mirror

Along this direc�on to install

rear view mirror

Contra-rotate the xed

rear view mirror

Remove the original mirror

Install mirror monitor on the base

Diﬀerent cars have diﬀerent brackets. It depends on your vehicle maker and manufacturer.

There are many methods to remove the original rear view mirror, however, please don’t

force the mirror oﬀthe bracket.

The manufacturer will not be responsible for any damage caused to your car by wrong

installa�on of the mirror.

We have many kinds of brackets. One of them must suit for your car, and we are not going to

go through anymore examples, because the space is limited.

If you don’t nd the same bracket here as your car, please contact us.

If the mirror monitor doesn’t t in your vehicle, please contact us. We

have many dierent kinds of brackets and adaptors.

Bracket Type

Rear View Safety

WIRING

How to Wire

2.3 How to wire

The advisable installaƟon

posiƟon for camera

Back up video

Right video

LeŌvideo

By connecƟng the green line, the reversing signal is input to the rear view mirror and

reversing video can automaƟcally display on the wide 7.3 inch LCD monitor.

Power harness

FUSE

BOX

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Back up video

LeŌvideo

Green Back car signal

Trigger line 1

Purple

2.3 How to wire

The advisable installaƟon

posiƟon for camera

Back up video

Right video

LeŌvideo

By connecƟng the green line, the reversing signal is input to the rear view mirror and

reversing video can automaƟcally display on the wide 7.3 inch LCD monitor.

Power harness

FUSE

BOX

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Back up video

LeŌvideo

Green Back car signal

Trigger line 1

Purple

Power harness

FUSE

BOX

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Black to GND

Red to ACC +12V

Back up

camera

Green

5 Pin Camera Connector

5 Pin Camera

Connector

Audio

Cables

Rear signal

Trigger line 1

Trigger line 2

White

Orange

Le

camera

Reverse With Condence ™ 15

GRIDLINES

Chapter three: Adjustable Guideline

Generally, to help drivers esmate the distance from obstacles, there are three lines for

reference -red, yellow and green. Those three lines are displayed on the monitor when car is

reversing. The green line is 3m from the back of car and the yellow line is 2m. The distant red

line is 1m from the backside of car while the closed red line is 0.4m. Both reference lines on

the leand right should leave 0.2m space from the car.

Regular guide line is xed. But installaon sites of cameras are dierent as well as car size. The

xed guide line is not accurate enough for drivers. There will be a great dierence between

regular and xed guide lines and car's real guide lines, especially when camera is mounted on

the leor right side of car backside. It may cause accidents.

20CM20CM

3.1 About guide line

3.2 What the regular guide line is

3.3 How to adjust the guide line

Note: keep the remote control 05.m-1.0m from rear view mirror when you use the remote

to adjust the parking lines.

Press the buƩon to choose L or R adjustable guide line

Remote control Move the guide line Rotate the guide line

Clockwise

Right

Down

Le

An-clockwise

According to the site of standard reference line, we can put reference objects such as desks

in the back side of the car. Compared with the marked reference objects, we can adjust the

sites and angles of two guide lines are displayed on the monitor. You will get the accurate

and safety guide lines once it coincides with the reference objects.

Press seng buon to enter “guide line adjustment” mode. The system is defaulted to

adjust leguide line rst. Press the buon again to switch to adjust the right guide line.

The up , down , leand right buons are to adjust the corresponding locaon

of guide lines. The clockwise rotaon and contra rotang buons are to adjust the

angles of guide lines. It is easy to operate and calibrate.Aer nishing calibraon, switch the

reverse gear to save the informaon.

109

Wrong posiƟon

Right posiƟon

Display on the monitor

Adjustable Grid Lines

Generally, to help drivers estimate the distance from obstacles, there

are three lines for reference -red, yellow and green.These three lines

are displayed on the monitor when car is reversing. The green line is 3m

from the back of car and the yellow line is 2m. The distant red line is 1m

from the back of car while the closed red line is 0.4m. Both reference

lines on the left and right should leave 0.2m space from the car.

The accuracy of the grid lines can vary based on how you angle your cam-

era. Adjust the grid lines to compensate for inaccuracies.

Rear View Safety

GRIDLINES

Long press the“Settings”(middle) button on the remote to enter grid

line adjustment mode. Press the“Settings”button again to toggle be-

tween left/right grid lines. Use the“UP/DOWN/LEFT/RIGHT”buttons to

adjust grid line location, and the rotation buttons to adjust grid line

angle.
