Rear view safety RVS-778607 User manual

InstalIation Instructions
©2016 Rear View Safety Inc.
Product Manual
RVS-778607
Warranty
One Year Warranty
Warranty Performance
Warranty Disclaimers
Rear View Safety Inc. warrants this product against material defects for a period of
one year from date of purchase. We reserve the right to repair or replace any such
defective unit at our sole discretion. Rear View Safety Inc. is not responsible for a
defect in the system as a result of misuse, improper installation, damage or mis-
handling of the electronic components. Rear View Safety Inc. is not responsible for
consequential damages of any kind.
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW
SAFETY PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP,
SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE REAR VIEW
SAFETY INC PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO
REAR VIEW SAFETY INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS
WARRANTY.
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE
ABOVE WARRANTY IS MADE WITH REGARD TO THIS
DISCLAIMS ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND
.LLAHSTNEVEONNI.SEITNARRAWREHTOLLA
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE
DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR
DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE
OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY
CLAIMS FOR LOSS OF PROFITS.
.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the
unauthorized use of nonconforming parts; the damage is due to normal ware and tear,
this damage is due to abuse, improper maintenance, neglect or accident: or the
damage is do to use of the Rear View Safety Inc. system after partial failure or use with
improper accessories.
IMPORTANT NOTICE
Please read this manual before proceeding
installation
With this manual you will
be able to properly install
and operate the unit.
The Backup Camera
System is intended to be
installed as a supplement
aid to your standard rear-
view mirror that exist in
your vehicle. The Backup
Camera System is not
intended for use as a
substitute for rear-view
mirror or for any other
motor vehicle equipment
required to be installed
by law.
.
Congratulations
Installation Location
on your
purchase of a Rear View
Backup Camera System.
Your Backup Camera System is
designed to provide you with
many years of trouble-free.
In some jurisdictions, it is
unlawful for a person to
drive a motor vehicle
equipped with a
TV viewer or screen located
forward of the back of the
driver's seat or in any
location that is visible,
directly or indirectly, to the
driver while operating the
vehicle.
In most jurisdictions, it is
unlawful for a person to
drive a motor vehicle
equipped with a
TV, TV monitor or screen
located forward of the back
of the driver's seat or in any
location that is visible, directly
or indirectly, to the driver
while operating the vehicle.
.
Installation
Video (in)
Camera
-12V
Power (in)
To automatically have the camera & monitor turn ON when
vehicle activates, Simply connect the red power line 12V+ to
ignition power which can be an accessory switch/fuse line &
the black power line to ground.
To automatically have the camera and Monitor turn ON only
when vehicle goes in reverse. Simply connect the Camera's
red power line 12V+ to the vehicles reverse tail lights and the
black wire to Ground. Connect 15' RCA video cable Cameras
side and Monitors Side and than attach Monitors Red power
line 12V+ to reverse gear which can be an accessory
switch/fuse line and the black wire to ground.
Mount the camera adjust the lens of the camera to its position.
Connect power cord 12+ (red) and 12V- (black) to your vehicles
DC12V power system. Connect the video output (yellow) of the
camera to the display in your vehicle.
. Monitor accepts 2 video inputs
(white and Yellow cables ) to alternate between inputs cut
power to either input.
White RCA cable (plug)
is also a "VIDEO IN" cable
A Safe Fleet Brand
Backup Camera System with License Plate Camera
and 3.5" Display

2
Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA

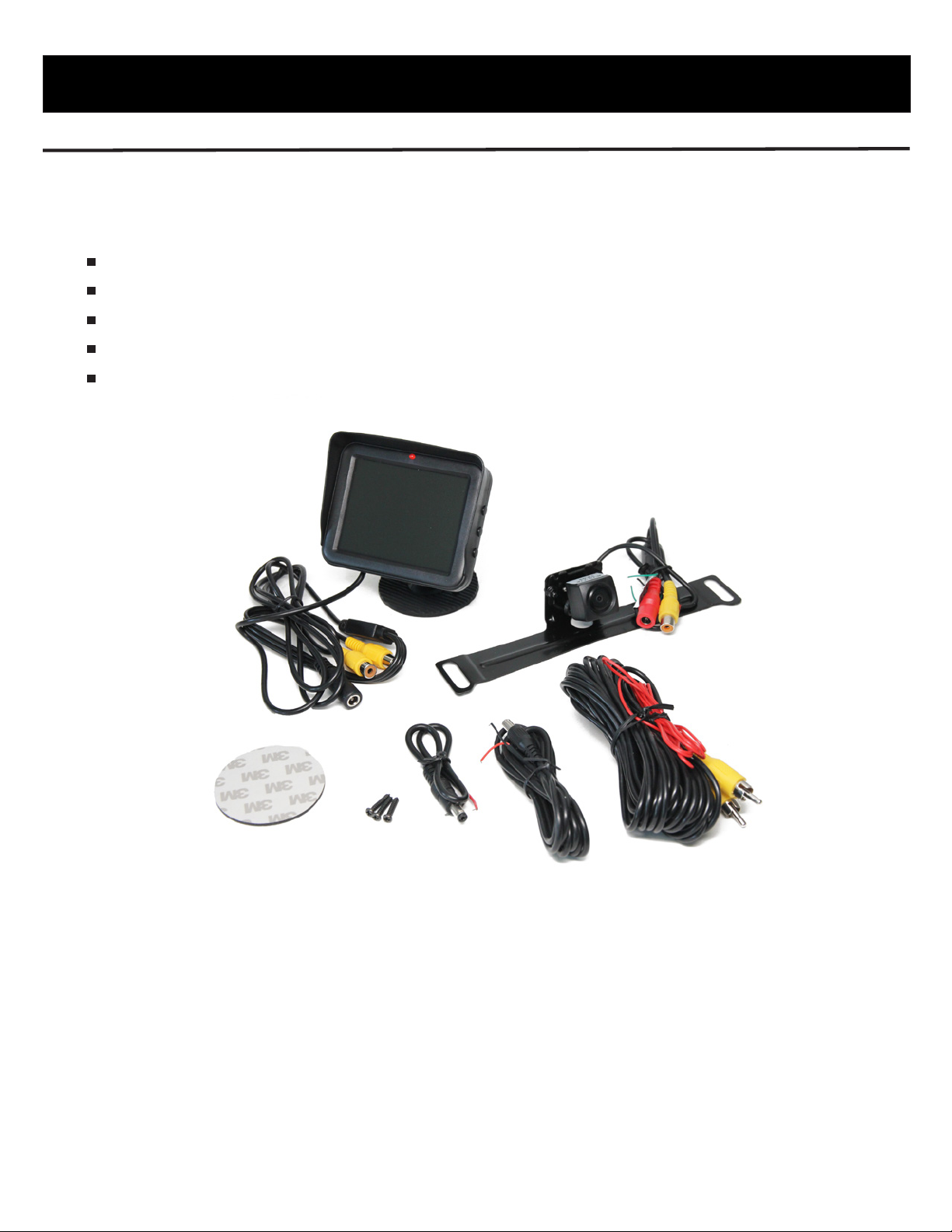

This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max
InstalIation Instructions
©2016 Rear View Safety Inc.
Product Manual
RVS-778607
Warranty
One Year Warranty
Warranty Performance
Warranty Disclaimers
Rear View Safety Inc. warrants this product against material defects for a period of
one year from date of purchase. We reserve the right to repair or replace any such
defective unit at our sole discretion. Rear View Safety Inc. is not responsible for a
defect in the system as a result of misuse, improper installation, damage or mis-
handling of the electronic components. Rear View Safety Inc. is not responsible for
consequential damages of any kind.
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW
SAFETY PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP,
SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE REAR VIEW
SAFETY INC PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO
REAR VIEW SAFETY INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS
WARRANTY.
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE
ABOVE WARRANTY IS MADE WITH REGARD TO THIS
DISCLAIMS ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND
.LLAHSTN
EVEONNI.SEITNARRAWREHTOLLA
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE
DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR
DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE
OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY
CLAIMS FOR LOSS OF PROFITS.
.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the
unauthorized use of nonconforming parts; the damage is due to normal ware and tear,
this damage is due to abuse, improper maintenance, neglect or accident: or the
damage is do to use of the Rear View Safety Inc. system after partial failure or use with
improper accessories.
IMPORTANT NOTICE
Installation
Video (in)
Camera
-12V
Power (in)
To automatically have the camera & monitor turn ON when
vehicle activates, Simply connect the red power line 12V+ to
ignition power which can be an accessory switch/fuse line &
the black power line to ground.
To automatically have the camera and Monitor turn ON only
when vehicle goes in reverse. Simply connect the Camera's
red power line 12V+ to the vehicles reverse tail lights and the
black wire to Ground. Connect 15' RCA video cable Cameras
side and Monitors Side and than attach Monitors Red power
line 12V+ to reverse gear which can be an accessory
switch/fuse line and the black wire to ground.
Mount the camera adjust the lens of the camera to its position.
Connect power cord 12+ (red) and 12V- (black) to your vehicles
DC12V power system. Connect the video output (yellow) of the
camera to the display in your vehicle.
. Monitor accepts 2 video inputs
(white and Yellow cables ) to alternate between inputs cut
power to either input.
White RCA cable (plug)
is also a "VIDEO IN" cable
A Safe Fleet Brand
Backup Camera System with License Plate Camera
and 3.5" Display
Please read this manual before installation.
Congratulations on
your purchase of a Rear
View Safety Backup
Camera System.
Installation Location
In some jurisdictions, it
is unlawful for a person
to drive a motor vehicle
equipped with a TV
monitor or screen
located forward of the
back of the driver’s seat
of in any location that is
visible, directly or
indirectly, to the driver
while operating the
vehicle.
After reading this manual
you will be able to properly
install and operate this
system.
The backup camera system
is not intended to be
installed as a supplement
aid to your standard rear-
view mirror that exists in
your vehicle. The backup
camera system is not
intended as a substitute for
a rear-view mirror or any
other motor vehicle
equipment required to be
installed by law.

3
Rear View Safety Inc. We reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor, 170°
MT9V136 camera with night vision and all the wires, connectors and
mounts you will need. The system is weatherproof, strong and
reliable, shock resistant and comes with a full year warranty.
3.5"LCD Color Monitor
170° License Plate Camera
15' RCA Extension Cable
Power Cables
3M Mounting Pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max

4
Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max

5
Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max

6
InstalIation Instructions
©2016 Rear View Safety Inc.
Product Manual
RVS-778607
Warranty
One Year Warranty
Warranty Performance
Warranty Disclaimers
Rear View Safety Inc. warrants this product against material defects for a period of
one year from date of purchase. We reserve the right to repair or replace any such
defective unit at our sole discretion. Rear View Safety Inc. is not responsible for a
defect in the system as a result of misuse, improper installation, damage or mis-
handling of the electronic components. Rear View Safety Inc. is not responsible for
consequential damages of any kind.
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW
SAFETY PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP,
SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE REAR VIEW
SAFETY INC PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO
REAR VIEW SAFETY INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS
WARRANTY.
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE
ABOVE WARRANTY IS MADE WITH REGARD TO THIS
DISCLAIMS ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND
.LL
AHSTNEVEONNI.SEITNARRAWREHTOLLA
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE
DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR
DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE
OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY
CLAIMS FOR LOSS OF PROFITS.
.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC.
REAR VIEW SAFETY INC
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the
unauthorized use of nonconforming parts; the damage is due to normal ware and tear,
this damage is due to abuse, improper maintenance, neglect or accident: or the
damage is do to use of the Rear View Safety Inc. system after partial failure or use with
improper accessories.
IMPORTANT NOTICE
Please read this manual before proceeding
installation
With this manual you will
be able to properly install
and operate the unit.
The Backup Camera
System is intended to be
installed as a supplement
aid to your standard rear-
view mirror that exist in
your vehicle. The Backup
Camera System is not
intended for use as a
substitute for rear-view
mirror or for any other
motor vehicle equipment
required to be installed
by law.
.
Congratulations
Installation Location
on your
purchase of a Rear View
Backup Camera System.
Your Backup Camera System is
designed to provide you with
many years of trouble-free.
In some jurisdictions, it is
unlawful for a person to
drive a motor vehicle
equipped with a
TV viewer or screen located
forward of the back of the
driver's seat or in any
location that is visible,
directly or indirectly, to the
driver while operating the
vehicle.
In most jurisdictions, it is
unlawful for a person to
drive a motor vehicle
equipped with a
TV, TV monitor or screen
located forward of the back
of the driver's seat or in any
location that is visible, directly
or indirectly, to the driver
while operating the vehicle.
.
Installation
Video (in)
Camera
-12V
Power (in)
To automatically have the camera & monitor turn ON when the
vehicle is turned on, simply connect the red power line 12V+ to
ignition power which can be an accessory switch/fuse line &
connect the black power line to ground.
To automatically have the camera and Monitor turn ON only when
vehicle goes in reverse, simply connect the cameras red power line
12V+ to the vehicles reverse tail lights and the black wire to ground.
Connect the 15' RCA video cable camera and monitor side, then
attach monitors red power line 12V+ to reverse gear which can be
an accessory switch/fuse line and the black wire to ground.
Mount the camera adjust the lens of the camera to its position.
Connect power cord 12+ (red) and 12V- (black) to your vehicle's
DC12V power system. Connect the camera video output (yellow) to
the display in your vehicle. The white RCA cable (plug) is also a
"Video IN" cable. The monitor accepts 2 video inputs (yellow and
white). To alternate between inputs, cut power to either input.
A Safe Fleet Brand
Backup Camera System with License Plate Camera
and 3.5" Display

7
Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intended to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in an accident.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor
.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max

Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max
Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
Make sure the monitor stand is
firmly fixed to secure location.
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
Dropping the unit may cause possible
mechanical failure.
Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
SAFETYPRECAUTIONS
Troubleshooting
Monitor will not power up /
no backlight on power button
•
No image on screen
Check fuse
Check 12v+ to monitor.•
•
•
•
•
•
Check ground connection.
Verify camera is on correct camera input.
Verify cable is connected to monitor.
Verify camera is connected to cable.
Connect known good camera and cable to monitor.
Product Info
Monitor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
PAL
628X586 pixels
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
2.8mm/120 - 1.8mm/710
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.2Lux/F1.5(0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
656X462 pixels
1/60-1/100,000 sec
o
No More 300mA
This system is complete with a color 3.5" LCD monitor 120° CMD
camera with night vision and all the wires, connectors and mounts
you will need. The system is weather proof, strong and reliable, shock
resistant and comes with a full year warranty.
3.5 LCD color monitor
170° view angle camera
15' RCA extension cable for camera
Power Cables
3M mounting pad
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
Product Info
Camera
A Safe Fleet Brand
Camera MT9V136
Effective Pixels 668x576/668x512
TV System PAL/NTSC
TV Lines 480
Viewing angle 170°
Weatherproof Rating IP68
Night Vision Yes
Usable Illumination 0.5 Lux
Power Source DC 12V-24V (+/- 10%)
S/N Ratio 48dB
Electronic Iris 1/50, 160-1/100,000 sec
Video Output 1Vp-p 75 Ω
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 10G / 100G
White Balance Auto
AGC Auto
Operating Temperature -30 °C ~ +70 °C / RH 95% Max
Storage Temperature -50 °C ~ +50 °C / RH 95% Max
Customer Service
Rear View Safety Inc.
1797 Atlantic Ave
Brooklyn NY 11233
Tel: [phone]
www.rearviewsafety.com
