REAXING REAX RAFT User manual

QUICK START
RAFT
MANUAL
REAXRAFT
THE FLOATING BOARD

REAXRAFT | 3
QUICK START |
SYSTEM COMPONENTS............................................................................................................................ PAG.4
1.1 REAX RAFT
1.2 POOL LANE ROPES (NOT INCLUDED)
1.3 DETAILS
OPTIONAL ITEMS.................................................................................................................................................... PAG.12
ASSEMBLY INSTRUCTIONS......................................................................................................... PAG.13
GENERAL SAFETY RULES & WARRANTY............................................. PAG.14
4.1 WARNINGS
4.2 PRECAUTIONS
TABLE OF CONTENTS
1
2
3
4

REAXRAFT
4 |
QUICK START |
6
2
3
5
10
9
8
7
41
1

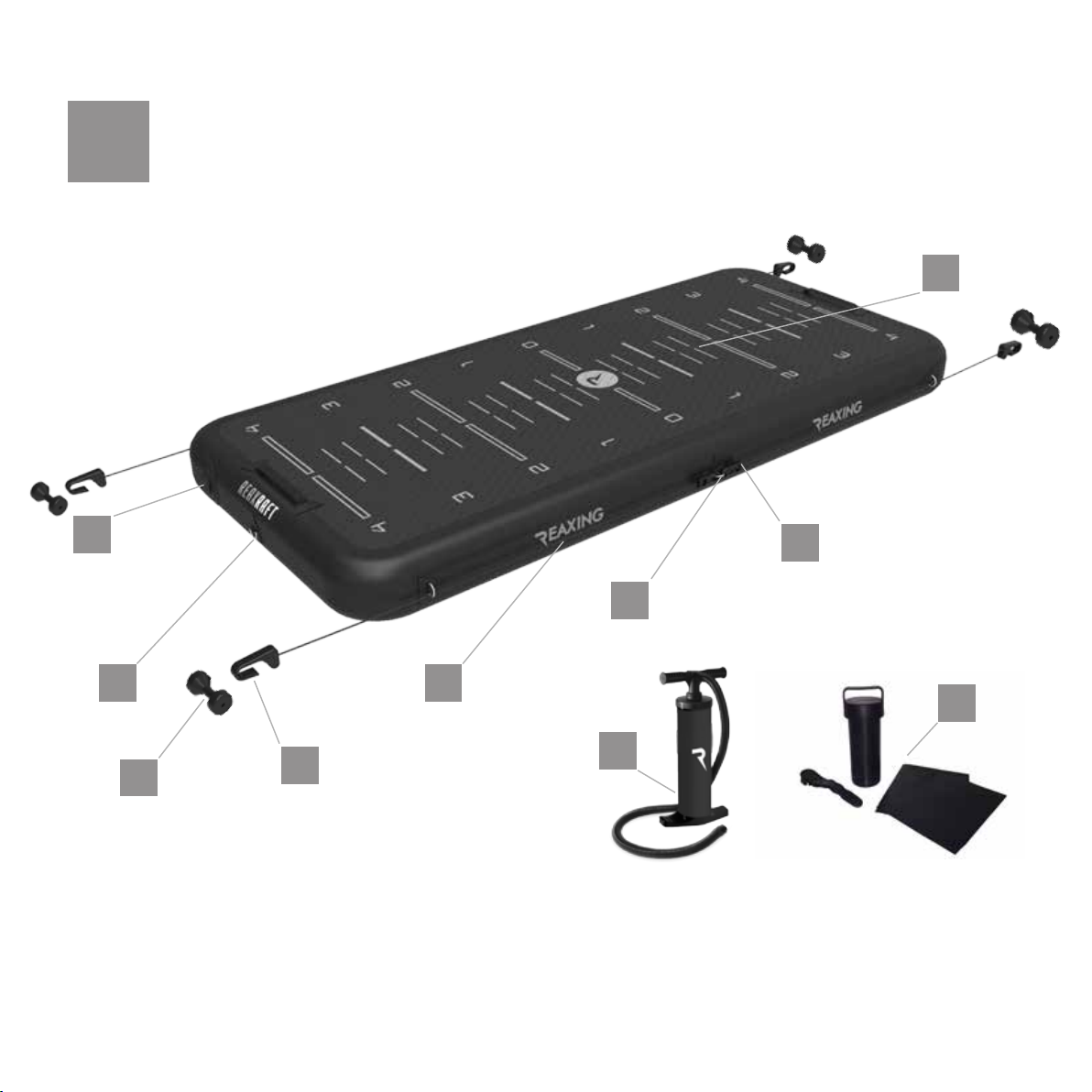

1.1 REAX RAFT (see image at page 6)
Anchoring System
Ination valve
Hand Pump
Central D-Ring for Pool Anchoring
Workout Area
Upper Handles for Training Programs
Lower Handles for Easy Transportation
Repair Kit
SYSTEM COMPONENTS

REAXRAFT | 5
QUICK START |
1
POOL LANE ROPES (not included)
Pool lane ropes positioning (see images at pages 7-8-9)
REAX RAFT non-aligned layout
REAX RAFT aligned layout
REAX RAFT slightly non-aligned layout

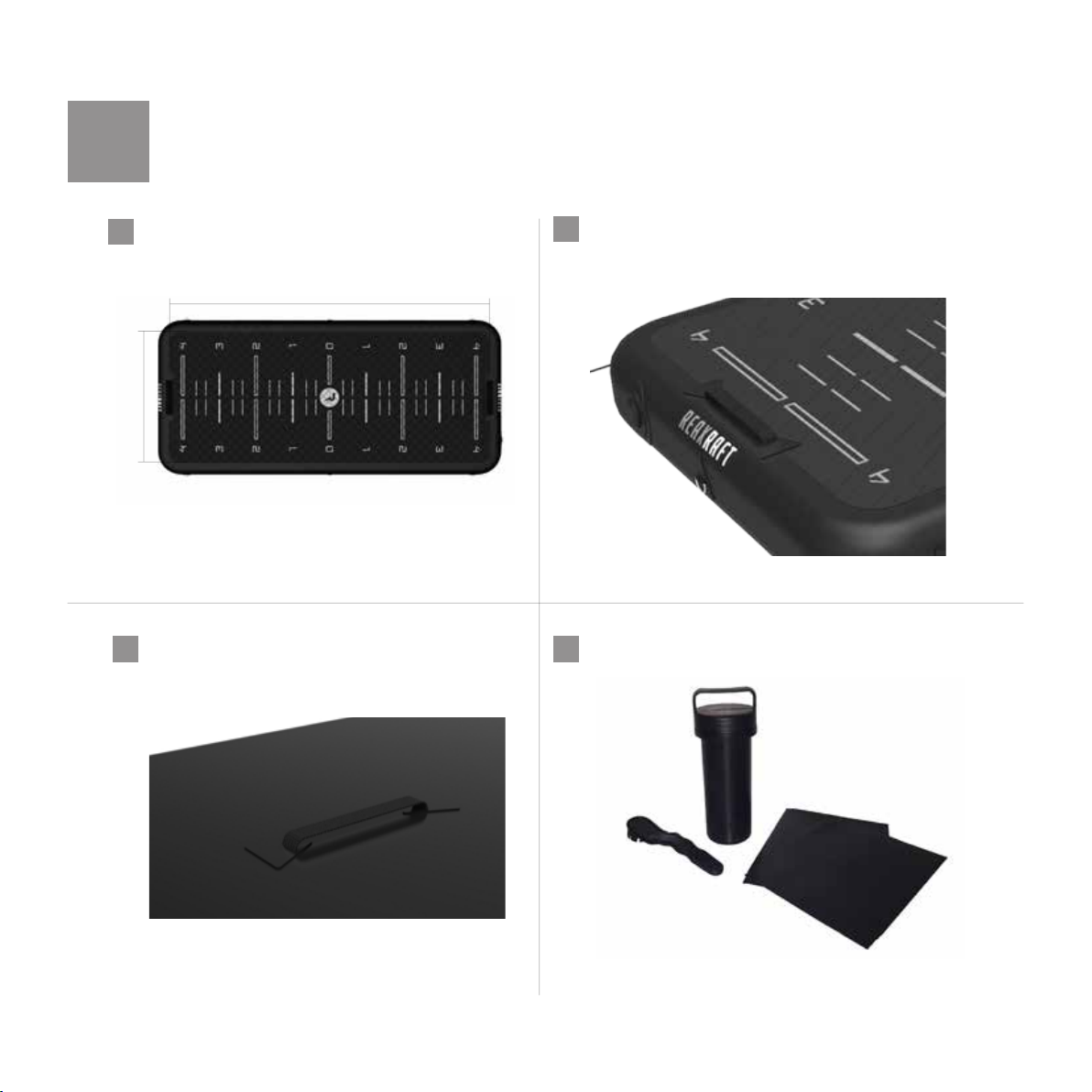

DETAILS (see images at pages 10-11)
1.4 OPTIONAL ITEMS (see images at page 12)
REAX RAFT light elastic BAND
REAX RAFT medium elastic BAND
Compressor
Central Anchoring
11
14
12
15
13
16
17

REAXRAFT
6 |
QUICK START |
1
1
8
6
2
9
3
5
4
10
7
1.1 REAX RAFT

REAXRAFT | 7
QUICK START |
1
2000
31001200100012001000120010001200100012001000120010001200100012001200 10003100
20001200100012001000120010001200100012001200 10001200 10001200 10001200 10002000 10001200
2000 20002500
325045045013004504501300450450130045045013004504501300450450130045045013004504503250 450 450 1300
2150450 450450 450 1300450 450 1300450 450 1300450 450 1300450 450 1300450 450 1300450 4 50 1300450 450 130013004504502150
2500 2500
POOLSIDE
2 meters
distance between
lane ropes
2,5 meters
distance between
lane ropes

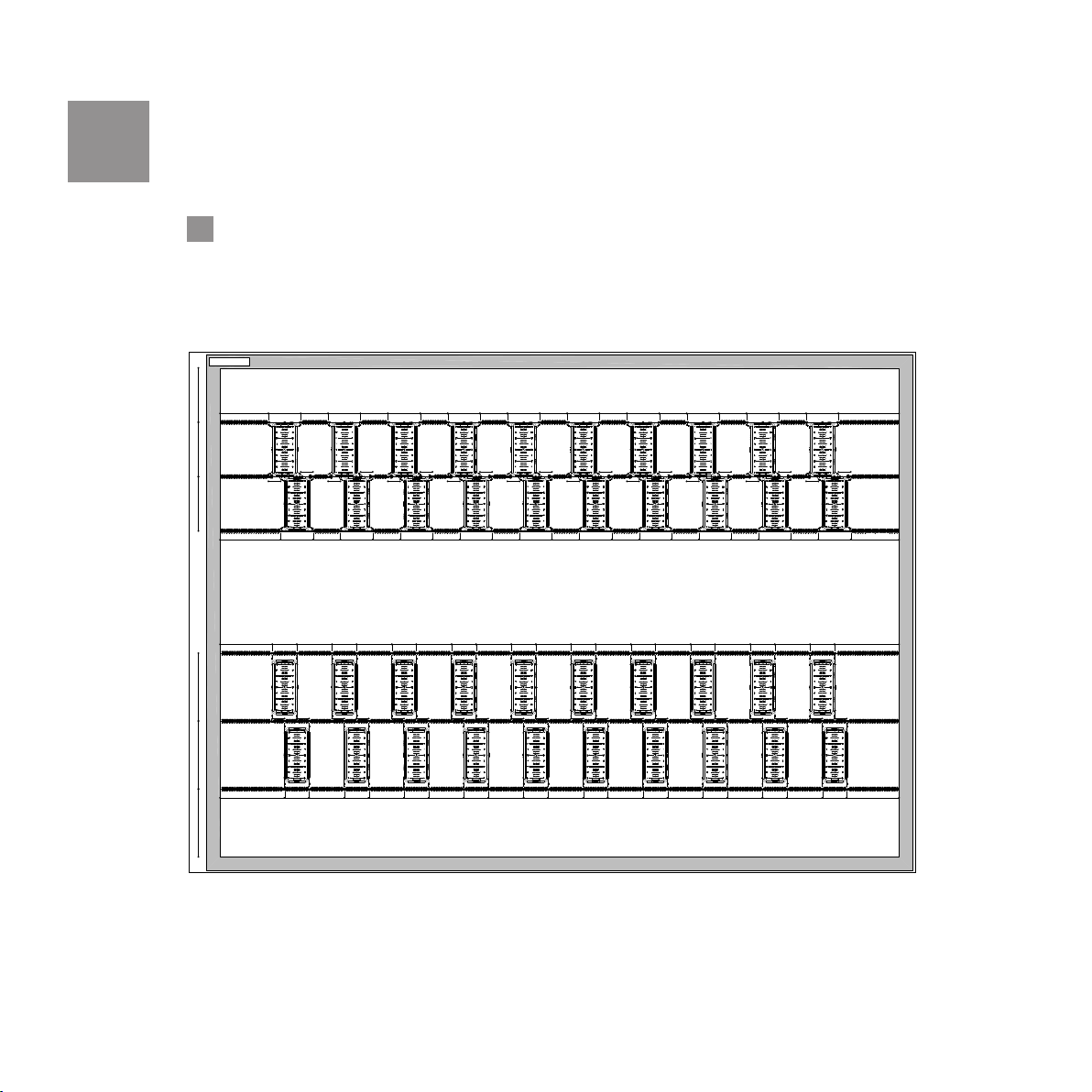

11. Non-aligned layout of no. 19 REAX RAFT
(2 meters distance between lane ropes; 2,50 meters distance between lane ropes)
11
1.2 POOL LANE ROPES (NOT INCLUDED)

REAXRAFT
8 |
QUICK START |
1
2 meters
distance between
lanes ropes
2,5 meters
distance between
lane ropes
2500
100 100 100100 100 100100 100 100100 100 100100 100 100100 100 100100 100 100100 100 100100 100 100100100100
2150450 450450 450 130045 0 450 1300450 450 1300450 450 1300450 450 1300450 450 1300450 450 1300450 450 130013004504502150
25002500
2150 450 450 1300 1300450450 1300450450 1300450450 1300450450 1300450450 1300450450 1300450450 1300450450 450450 2150
100 100100 100100 100100 100100 100100 100100 100100 100100 100100100
2000120010001 2001000120010001200100012001200 10001200 10001200 10001200 10002000 10001200
20002000
1200 10002000 10001200 10001200 10001200 10001200 1200 1000 1200 1000 1200 1000 1200 1000 1200 2000
POOLSIDE
2000
12. Aligned layout of no. 20 REAX RAFT
(2 meters distance between lane ropes; 2,50 meters distance between lane ropes)
12
1.2 POOL LANE ROPES (NOT INCLUDED)

REAXRAFT | 9
QUICK START |
2 meters
distance between
lanes ropes
1
13. Slightly non-aligned layout of no. 20 REAX RAFT
(2 meters distance between lane ropes; 2,50 meters distance between lane ropes)
13
1250125012501250 1250125012501250
1250 1250 1250 1250 1250 1250 1250 1250 1250 2150
2600
2600
2150
450 450 450450450 450 450450 450 450450450450 450 450450450 450450450
900900900900900900900900900900
900900900900900900900900900900
2500 25002500
450
450450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450450
450
1200120012001200120012001200120012001200
1200120012001200120012001200120012001200
2000 2000 2000
POOLSIDE
2000 950 950 950 950 950 950 950 950 950 2450
2450 950 950 950 950 950 950 950 950 950 2000
1250
2 meters
distance between
lanes ropes
2,5 meters
distance between
lane ropes
1.2 POOL LANE ROPES (NOT INCLUDED)

REAXRAFT
10 |
QUICK START |
1
5
2
Hand pump
3
1.3 DETAILS
Anchoring system
1
4 6
1 4 6 Ination valve
Central D-ring for pool anchoring

REAXRAFT | 11
QUICK START |
11.3 DETAILS
Lower handles for easy transportation
9
Workout Area
185 cm
75 cm
7Upper handles for training programs
8
Repair kit
10

REAXRAFT
12 |
QUICK START |
2
REAX RAFT MEDIUM ELASTIC BAND
RX1028
15
CENTRAL ANCHORING
RX1074
17
COMPRESSOR
RX1030
REAX RAFT LIGHT ELASTIC BAND
RX1027
16
14
OPTIONAL ITEMS

REAXRAFT | 13
QUICK START |
• Anchor the locking systems (1) to the lane ropes, observing the recommended distances as
from g. 11-12-13
• Pull REAX RAFT out of its package
• Lay the unit on a at surface, making sure no object may damage it
• Make sure to place REAX RAFT with the workout area upwards
• Find the ination valve (2)
• Find the ination system (3)
• Insert the ination system inside the valve
• The working pressure of the REAX RAFT is 1,1 bar
• Remove the ination system after use and store it in a dry place
• Hand-tighten the ination valve
• Anchor the karabiners (4) to the central side D-rings (5).
• Insert the elastic chords linked to the karabiners (4) in the central side D-rings (5).
• Fix the extremities of the elastic chords on the hooks (6). Watch the video tutorial:
https://youtu.be/ipIjFGh7_to
• Fix the hooks (6) to the locking systems (1) previously anchored to the ropes. Watch the
video tutorial: https://youtu.be/DBBBRbBBopo
Customized anchoring kits are available upon request.
• Inated REAX RAFT sizes: 200x90x15cm / 6,56x2,9x0,49ft
• Maximum load capacity: 160kg / 350lbs
ASSEMBLY INSTRUCTIONS
3

REAXRAFT
14 |
QUICK START |
GENERAL SAFETY RULES & WARRANTY
4
THIS PRODUCT IS INTENDED FOR PROFESSIONAL USE ONLY
4.1 WARNINGS
REAX RAFT is a professional product conceived and designed in ITALY, to be used only on WATER.
REAX RAFT is not a toy, but an advanced on-water training device. Please see the warning label on
REAX RAFT. The use is forbidden to children under 12. Keep away from children.
The unit is normally intended to be used by 1 adult at a time.
In case of 1 user, please mind the minimum safety distances:
• 2 meters between the poolside and the unit
• 1,30 meter between the units during the workout
The use of the product by 2 users is allowed only according to the following specic regulations:
• Adult and experienced users, to be veried by a qualied delegate supervisor
• 2,50 meters between the poolside and the unit
• 2,60 meter between the units during the workout
For safety reasons, it is not allowed to perform any activity in the pool lanes next to the ones used
with REAX RAFT.

REAXRAFT | 15
QUICK START |
4
4.2 PRECAUTIONS
• Disregarding any of the safety precautions and instructions contained in the product’s
manual may result in injury.
• Read carefully the safety instructions before using the unit. All warnings and operating
instructions must be strictly followed.
• The use of REAX RAFT should always be done under the direct supervision of a trainer
• Check local laws and regulations regarding proper and safe use of REAX RAFT
For further information regarding the product’s warranty, please refer to the “OWNER’S MANUAL”.
2 0
90 cm
200
cm
Swimmers only
200 cm
max.
160 kg.
1.1 bar
0-12
No protection
against drowning
2 0
90 cm
200
cm
Swimmers only
200 cm
max.
160 kg.
1.1 bar
0-12
No protection
against drowning
